Warehouse Loading Docking Equipment Stationary Hydraulic Dock Leveler

Customization:	Available
After-sales Service:	Free Maintenance Parts Support
Warranty:	1-3 Years

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.:JX-DHL-001

Application:Warehousing Docking

Lift Mechanism:Hydraulic Lift

Carrying Capacity:Weight Level

Driven Type:Hydraulic

Feature:Explosion-Proof

Certification:CE, RoHS, ISO 9001

Load Capacity:Dynamic 8 Tons, Static 16 Tons

Oil Cylinder:Dual Cylinder, 2 Hydraulic Pistons

Lead Time:7-30 Days

⚙️

Product Description

Loading & Unloading Warehouse Stationary Hydraulic Dock Leveler:

The electric dual cylinder hydraulic dock leveler is engineered for facilities requiring frequent loading from trucks of varying heights. When a height discrepancy exists between the truck bed and the loading platform, this system adjusts automatically to create a seamless slope. Forklifts can drive directly into the truck, significantly boosting operational efficiency.

Safety Features:

Emergency Braking: Built-in valves lock the platform within 2cm of descent if a truck accidentally pulls away.
Dual Cylinder Design: Patented left and right cylinder system ensures maximum stability and prevents rollover during off-center loading.
Toe Protection: Full-length side guards protect operators' feet from being pinched during operation.
Arc Transition: A specialized "duck beak" tongue plate (5-7° arc) prevents bumping and ensures smooth forklift transitions.

The main structure is fabricated from high-strength non-slip pattern steel plate. The platform's underside features 10 reinforced C-section steel beams, ensuring even stress distribution and minimal surface deformation under heavy loads.

📊

Technical Parameters

Power Supply	3 Phase/380V/50Hz, 0.75KW
Standard Sizes	W2000mmL2000mm / W2000mmL2500mm (Customizable)
Adjustment Range	±300mm (Safe angle ± 12.5%)
Dock Plate	Non-Slip Pattern Steel Plate, 6mm-7mm Thickness
Tongue Plate	400mm length, 14mm Thickness
Hydraulic System	German ARGO-HYTOS Integrated Products
Hydraulic Oil	Aviation Grade (Limit -40ºC)
Load Capacity	Dynamic 6.8 - 8 Tons, Static 13.6 - 16 Tons
Protection Class	IP56 Wall Mounted Control Box
Operational Life	≥ 100,000 Cycles

📦

Packaging & Shipping

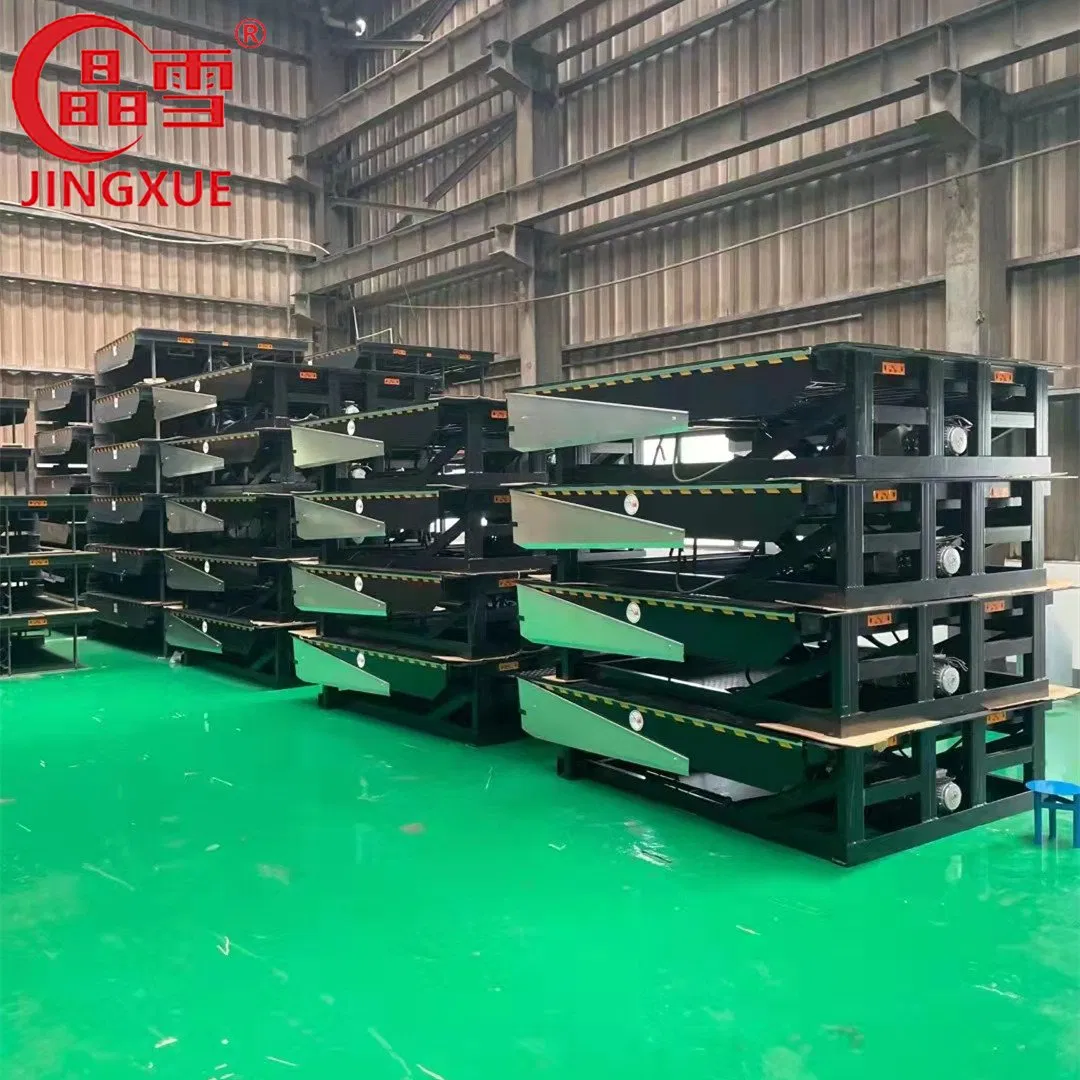

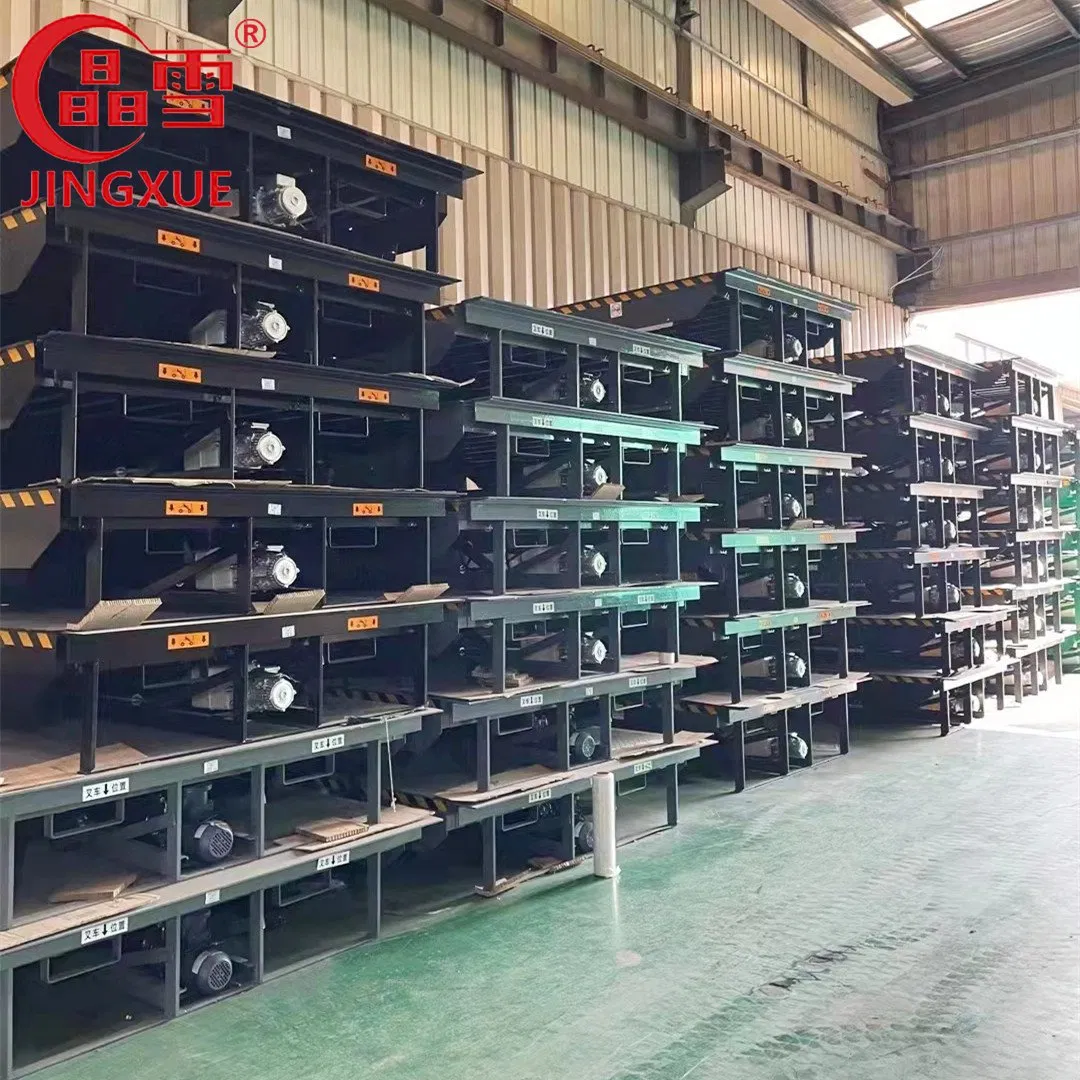

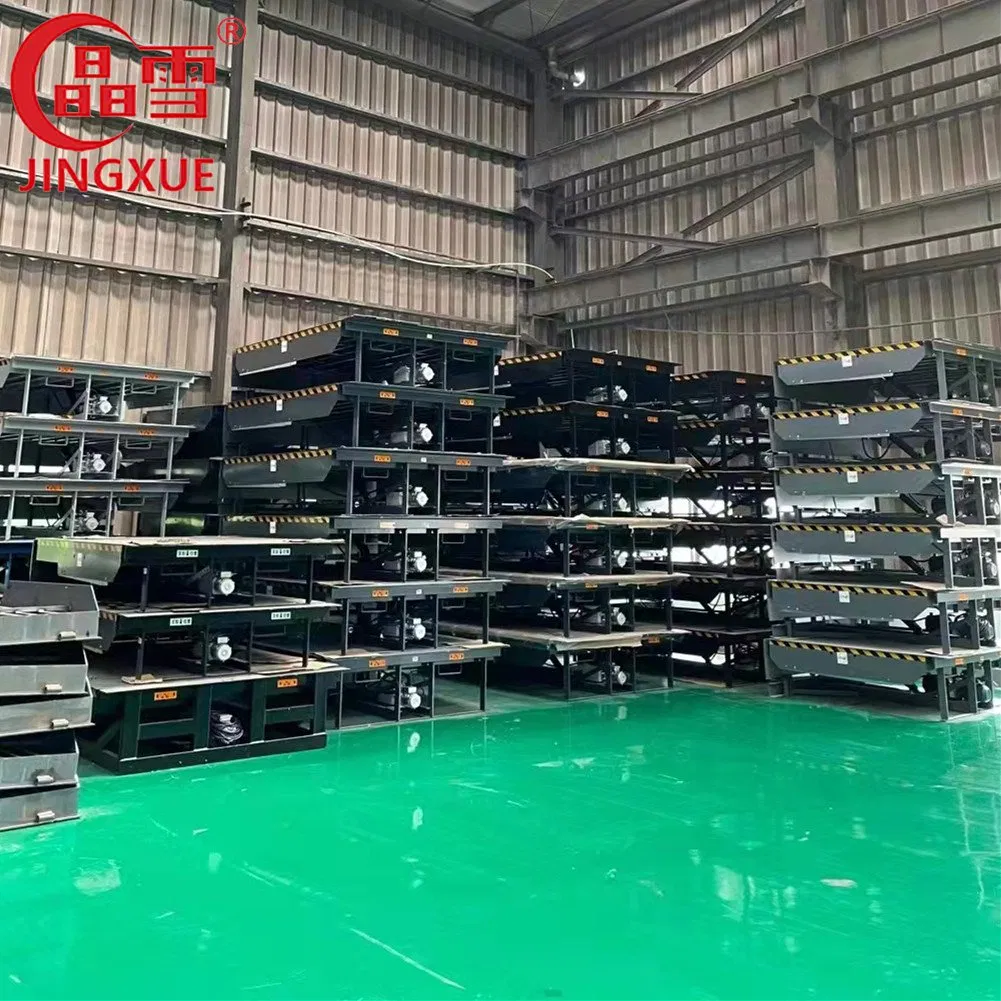

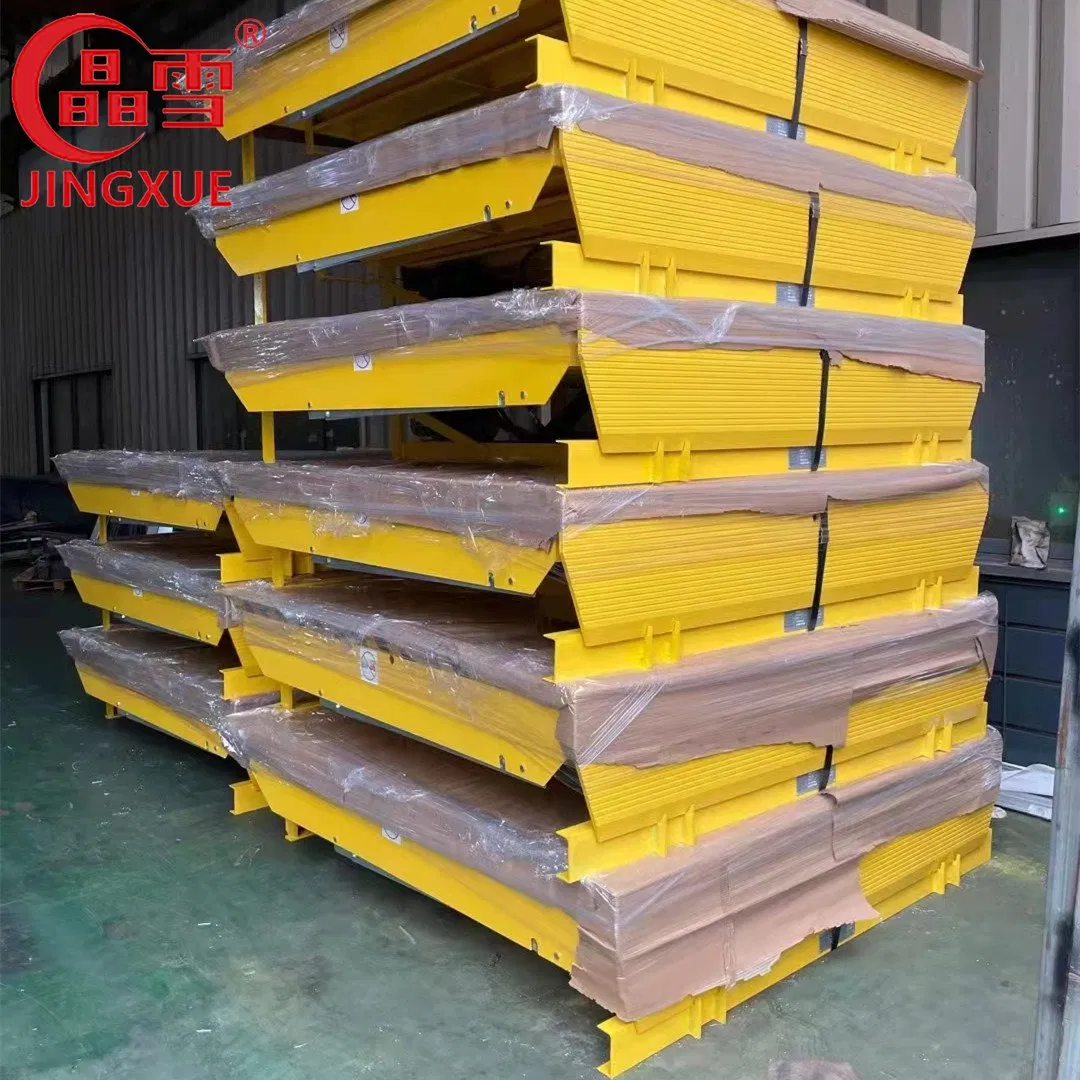

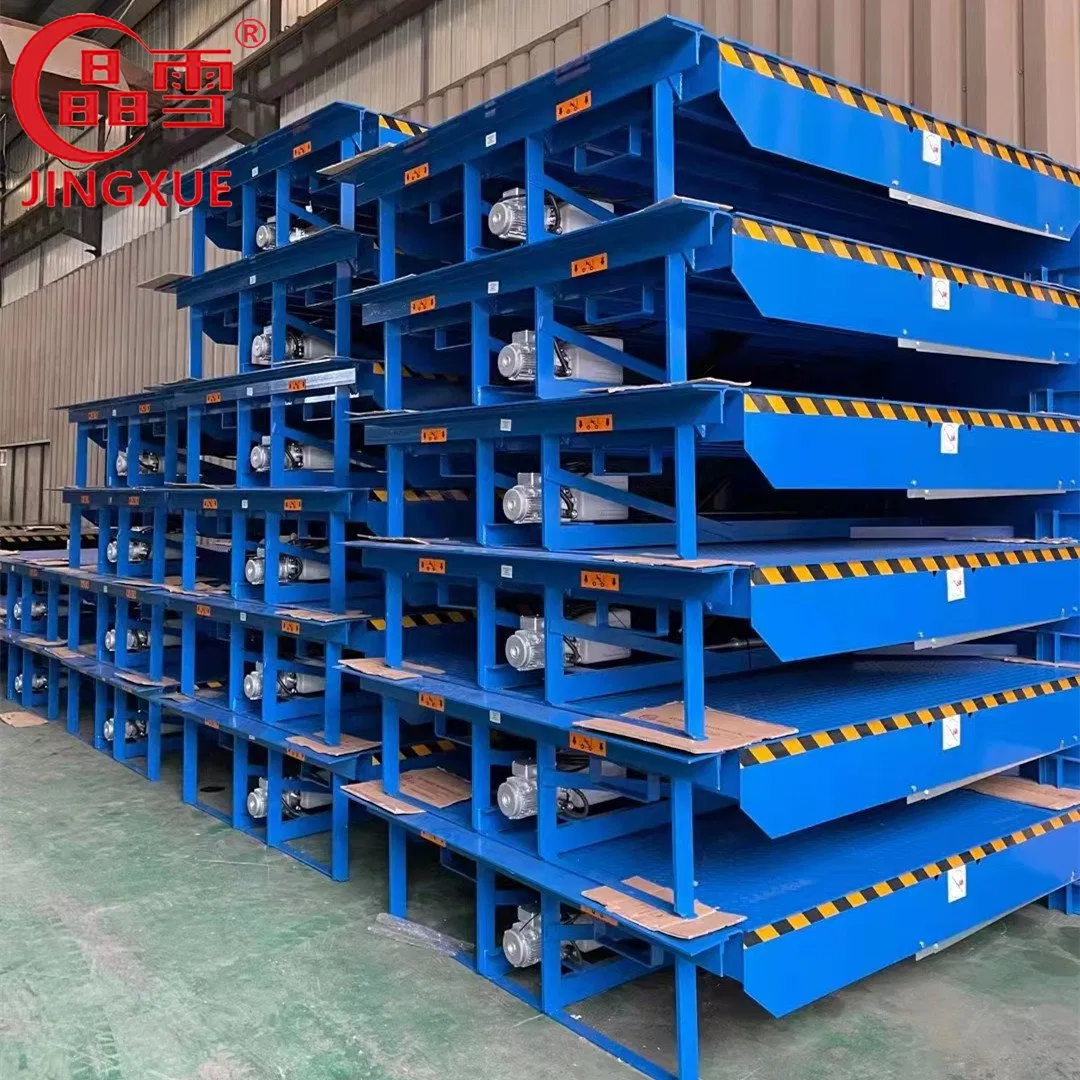

Packing Details: Hydraulic dock levelers are stack-packed with corrugated paper covers protecting the main plates and corners to prevent damage during transit.

Shipping Terms: EXW, FOB, C&F, CIF, and DDP terms are all acceptable. Typical lead time is 2-4 weeks after order confirmation, depending on quantity and seasonal factors.

❓

Frequently Asked Questions

Q1: What is the maximum load capacity of the dock leveler? A: The standard unit supports a dynamic load of 8 tons and a static load of up to 16 tons, which exceeds European EN1398 standards.

Q2: How does the emergency stop system work? A: In case of a truck sudden departure, the hydraulic system detects pressure changes and the emergency valve locks the platform within 2cm of descent to protect cargo and personnel.

Q3: Can the dimensions be customized for our specific pit? A: Yes, while our standard sizes are 2000x2000mm and 2000x2500mm, we offer full customization to fit your existing pit dimensions.

Q4: What kind of hydraulic system is used? A: We use high-quality German ARGO-HYTOS integrated hydraulic systems known for their stability, low failure rates, and reliable performance.

Q5: Is the equipment suitable for extremely cold environments? A: Yes, we use aviation-grade hydraulic oil that remains functional in temperatures as low as -40ºC.

Q6: What is the expected lifespan of the dock leveler? A: The equipment is designed and tested for an operational life of at least 100,000 cycles under normal maintenance conditions.
