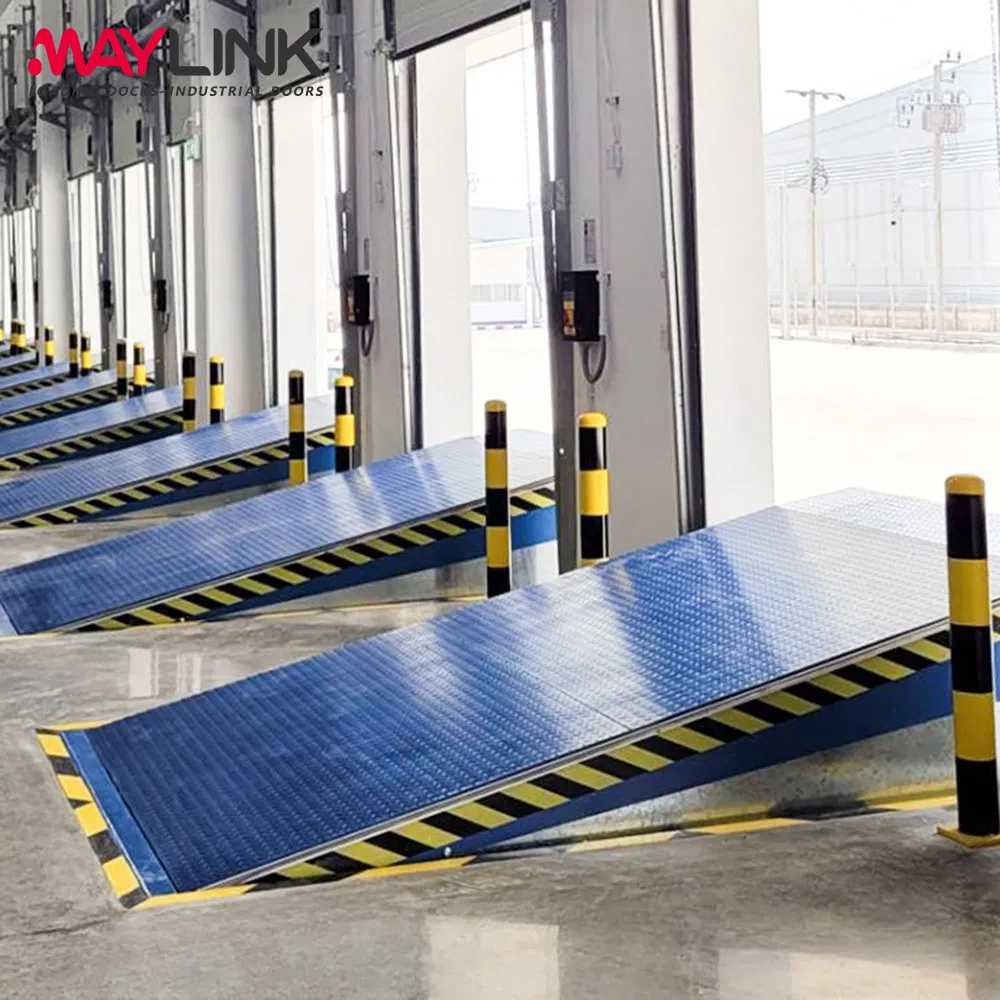

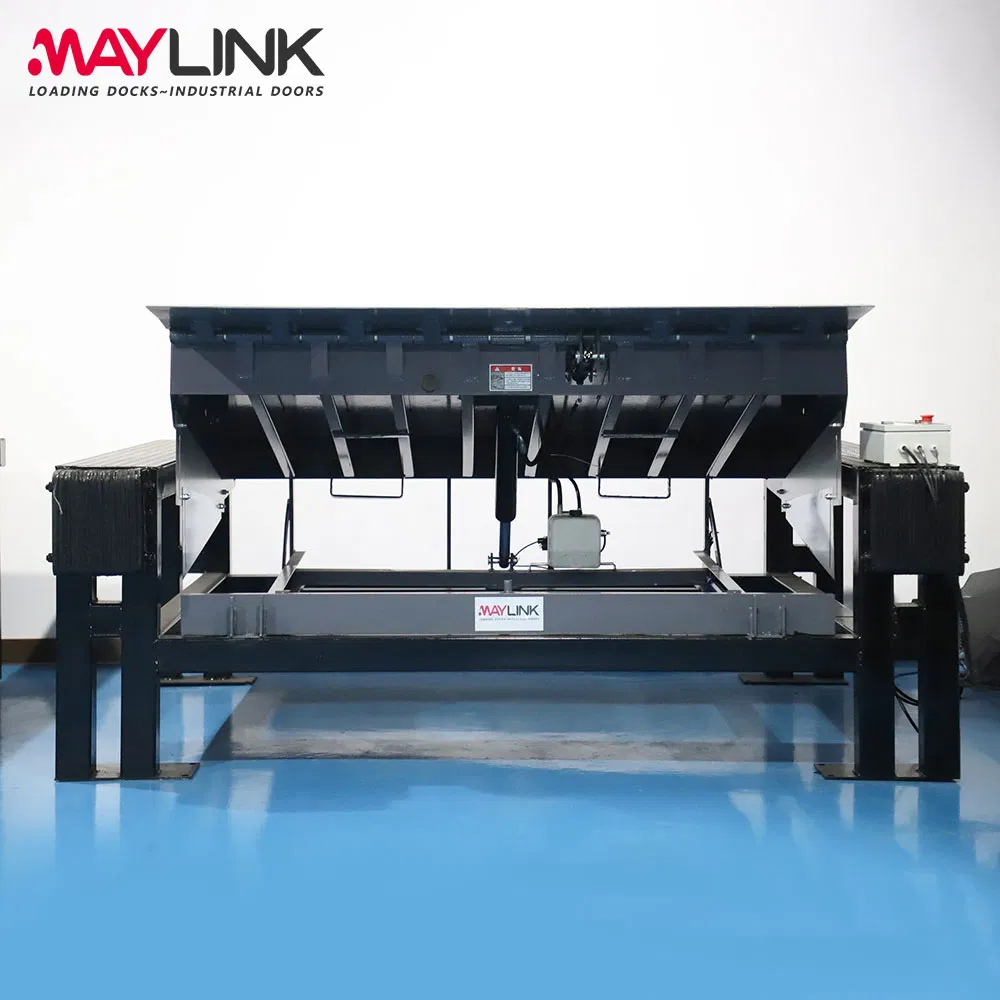

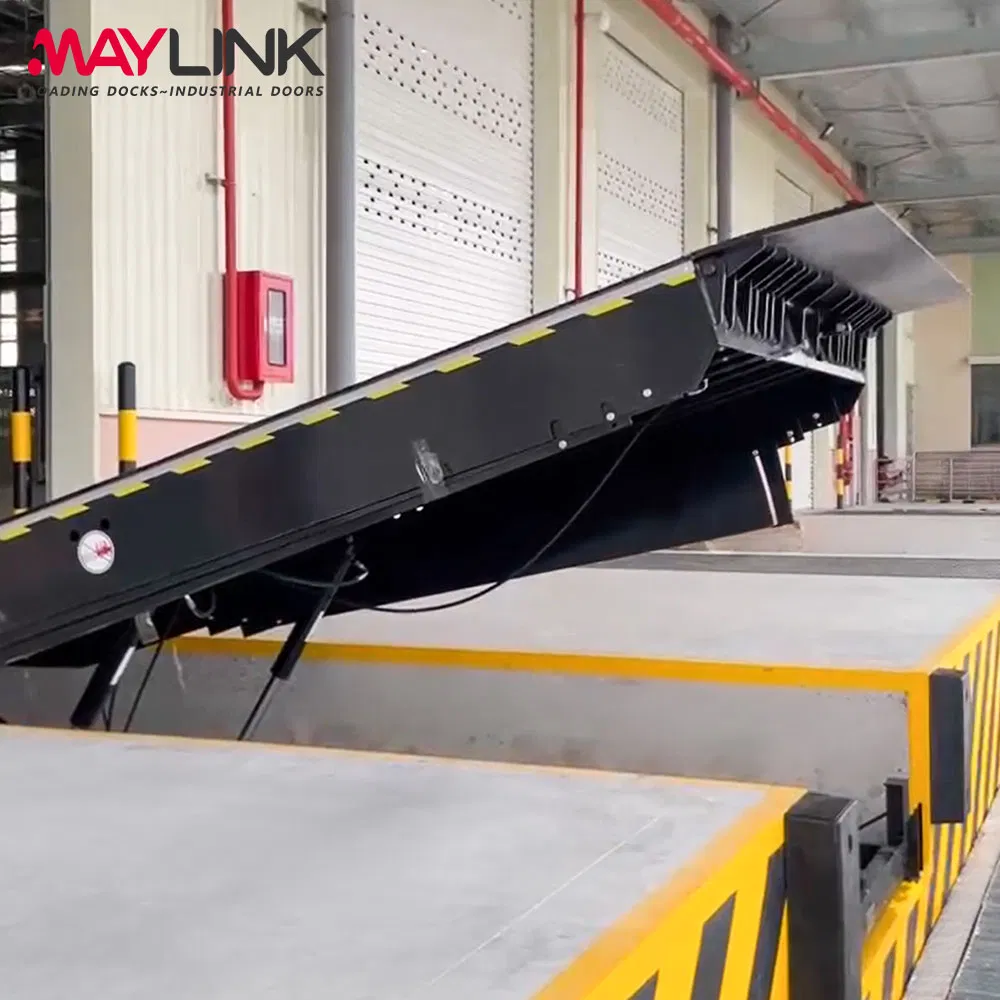

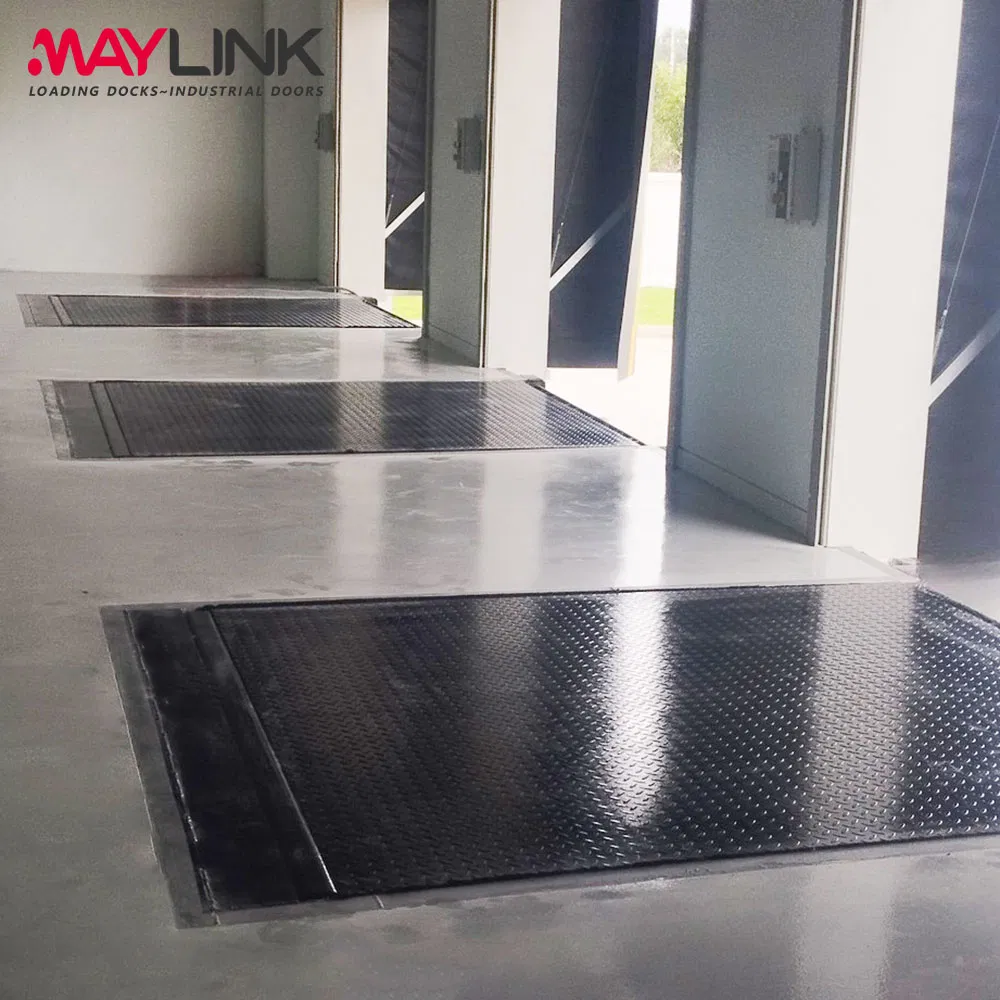

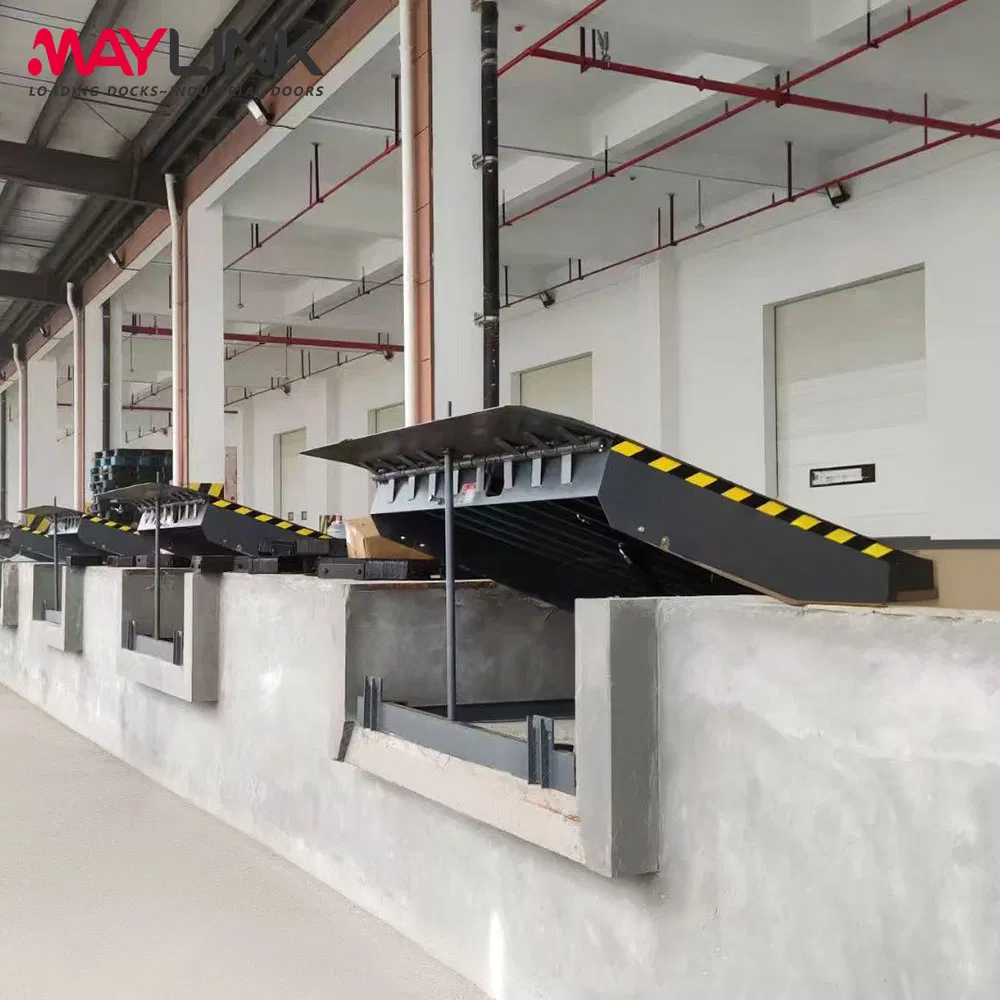

The electric hydraulic dock leveler is designed to bridge height differences between loading docks and truck carriages of varying heights. With the press of a button, the dock plate automatically rises and the lip extends to create a smooth, adjustable slope for forklift access, greatly improving loading and unloading efficiency.
| Size: | W2000×L2000×H500/600mm; Customized |
| Power Supply: | 380V±10%/3P/50~60Hz; 220V±10%V/1P/50~60Hz |
| Load Capacity: | Dynamic 6.8T to 10T; Static 13.6T to 20T |
| Adjust Range: | +350mm, -300mm |
| Dock Plate: | 8mm thick Non-spliced Non-slip pattern steel |
| Tongue Plate: | 400/450/500mm, 16mm thick Non-slip pattern steel |
| Hydraulic System: | Germany Argo-Hytos/Switzerland Bucher |
| Warranty: | 3 years |

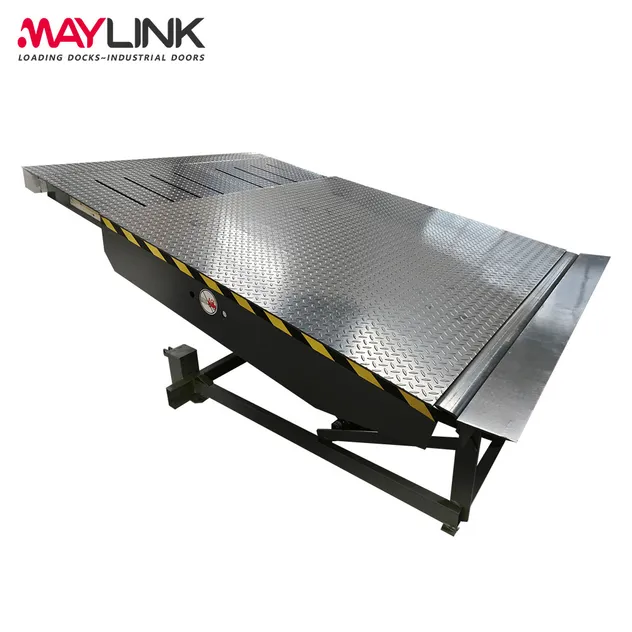

Telescopic Dock Leveler

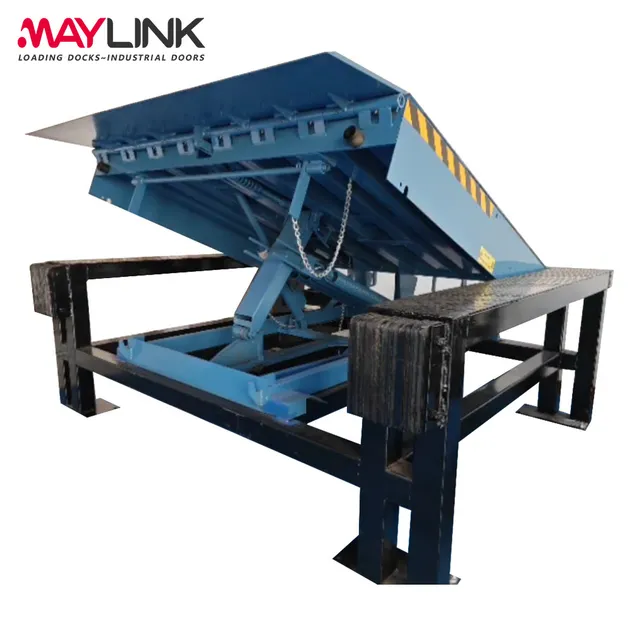

Mechanical Dock Leveler

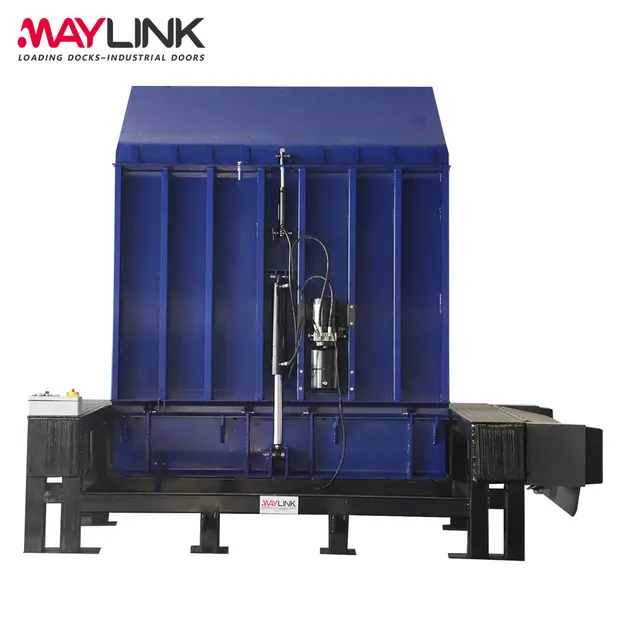

Vertical Dock Leveler

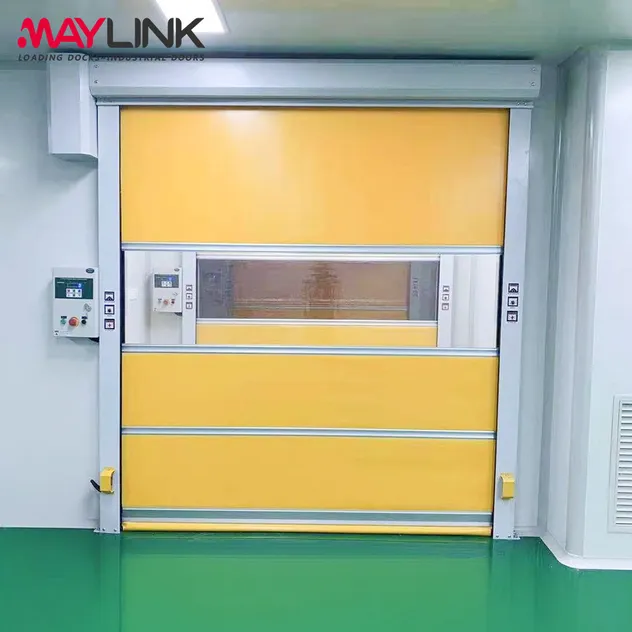

PVC High Speed Door

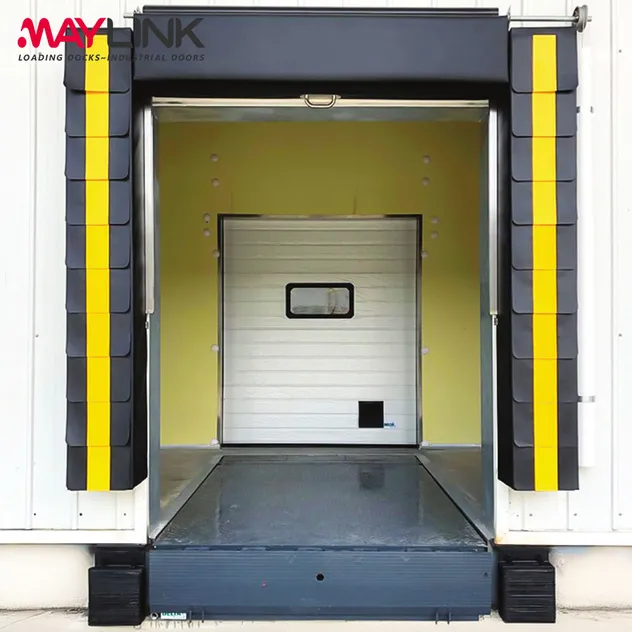

Sponge Dock Seal

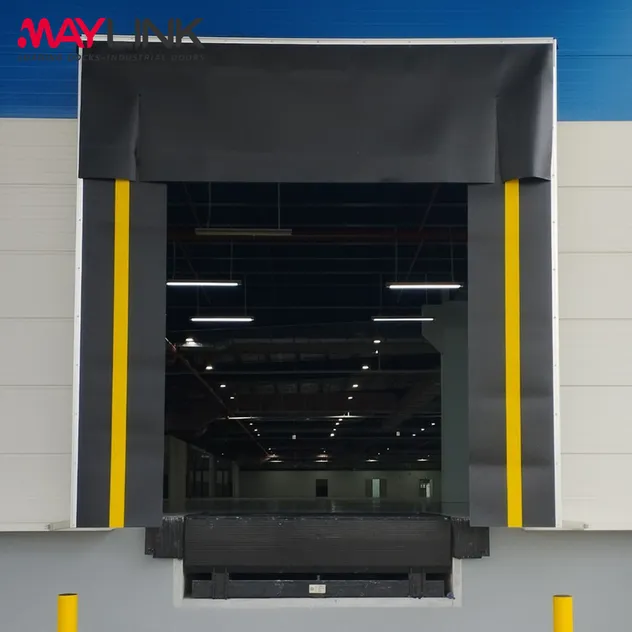

Mechanical Dock Shelter

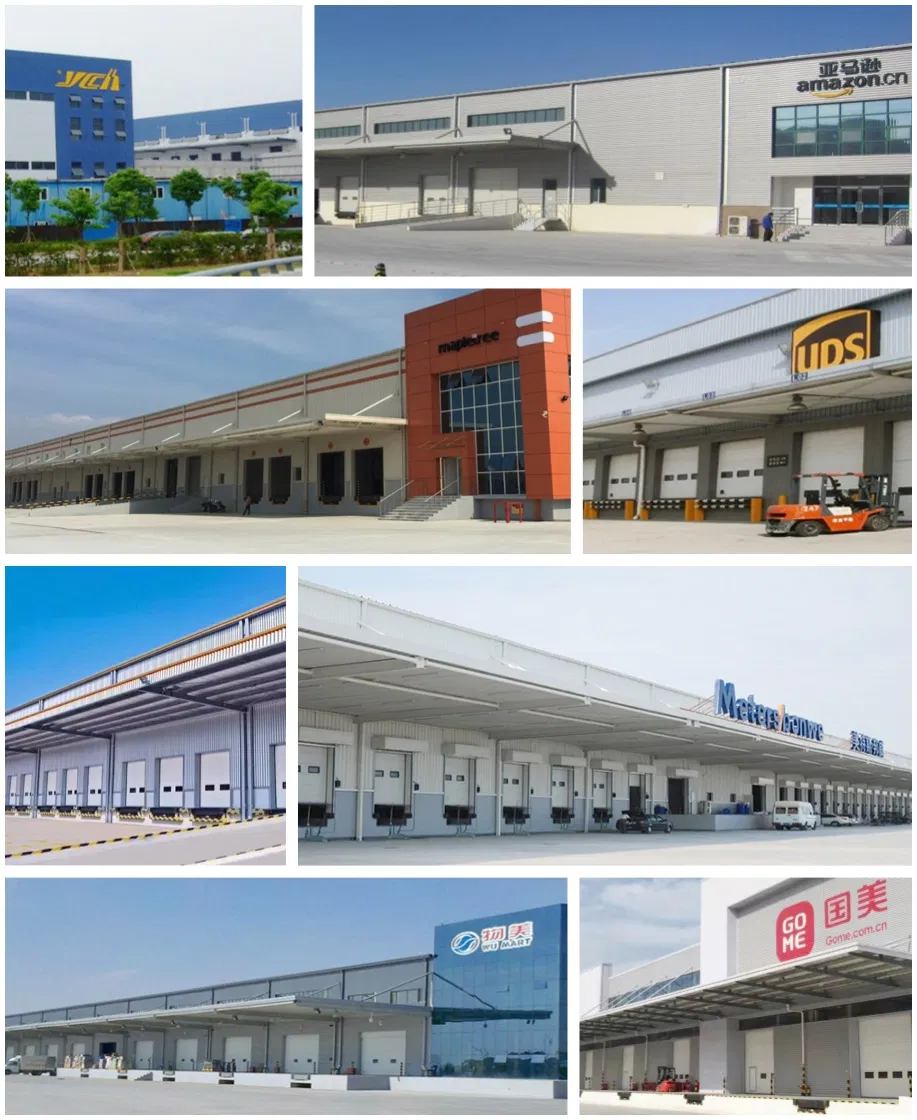

Providing total solutions for loading docks and industrial doors, our products are exported to over 60 countries across Europe, the Americas, Asia, Australia, and the Middle East. We maintain strategic partnerships with global logistics leaders and cold chain providers.
