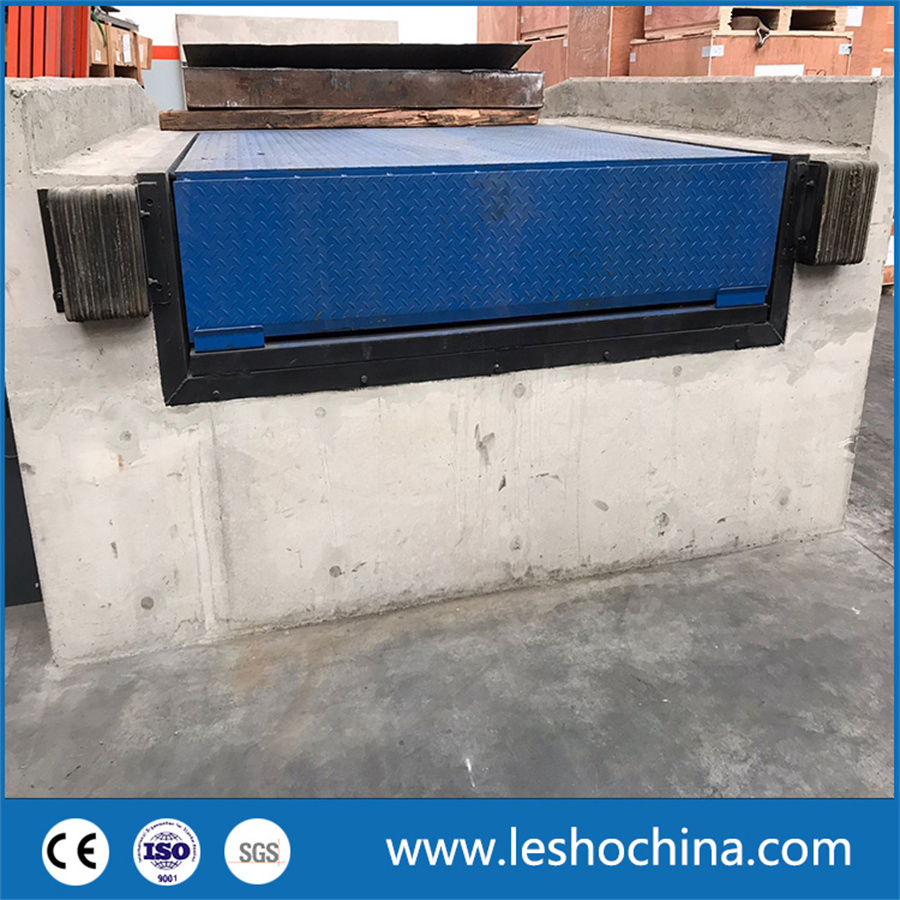

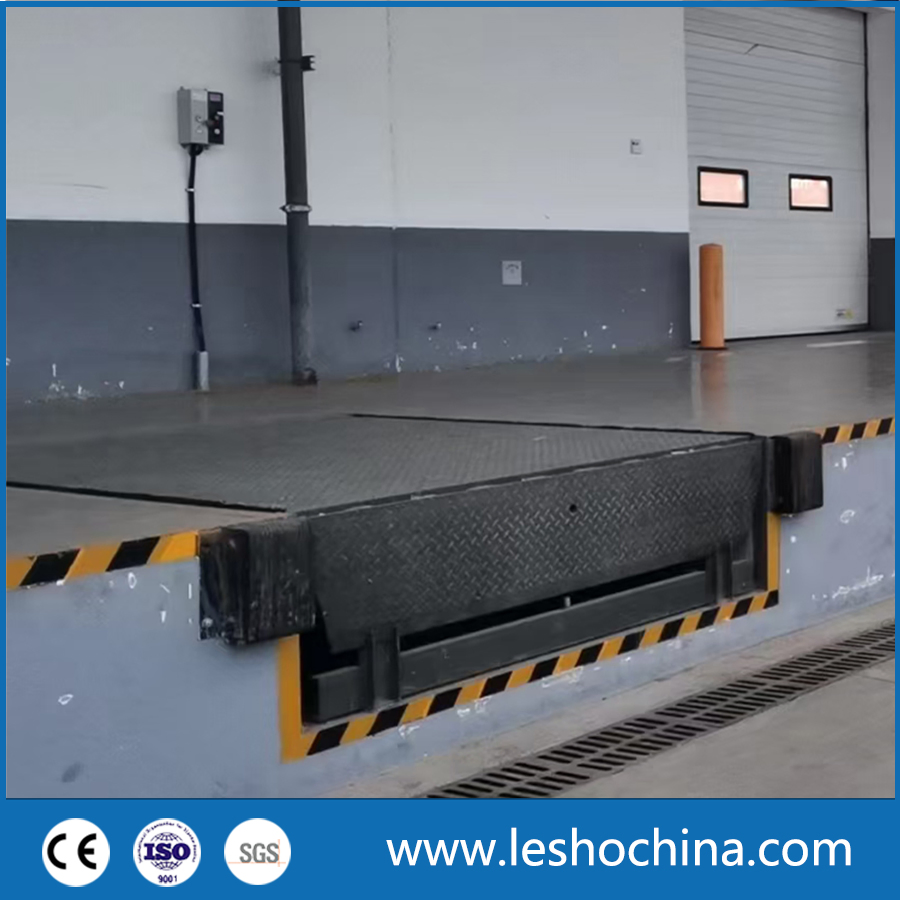

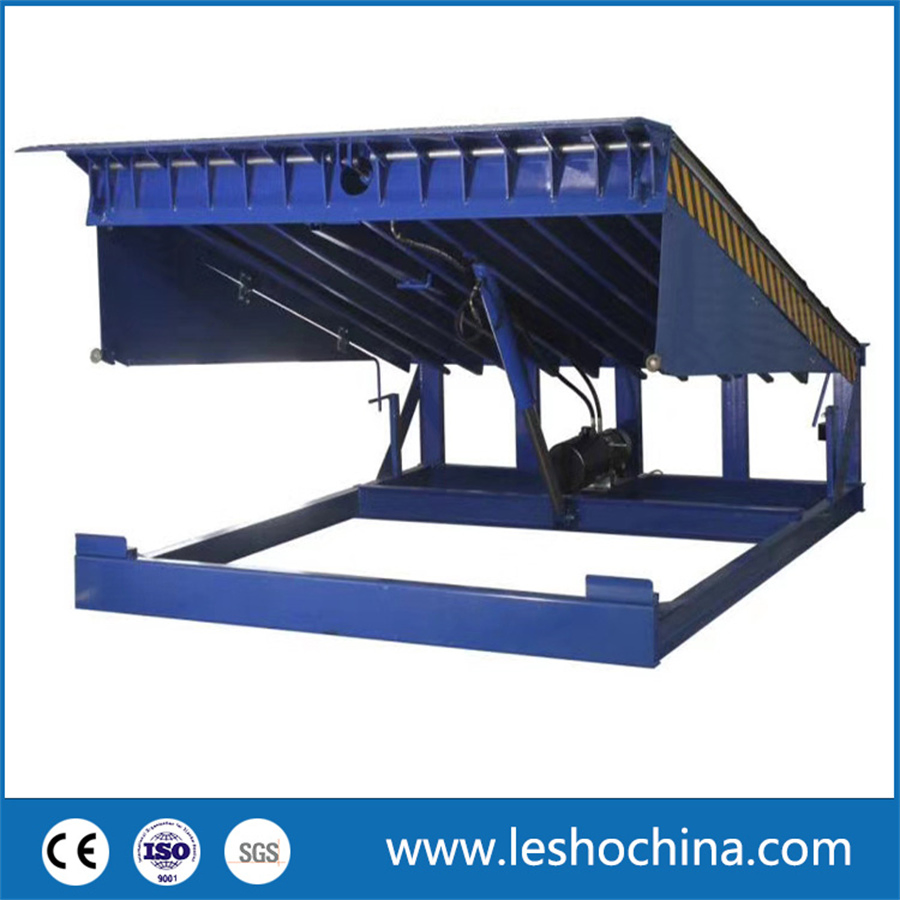

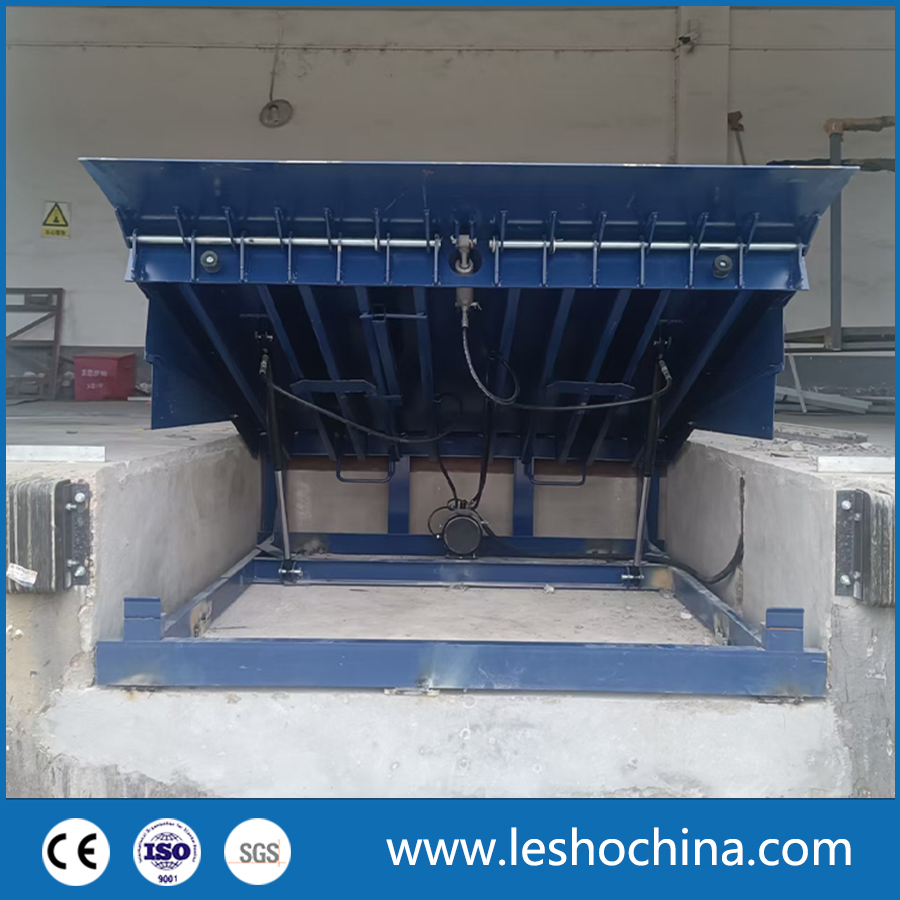

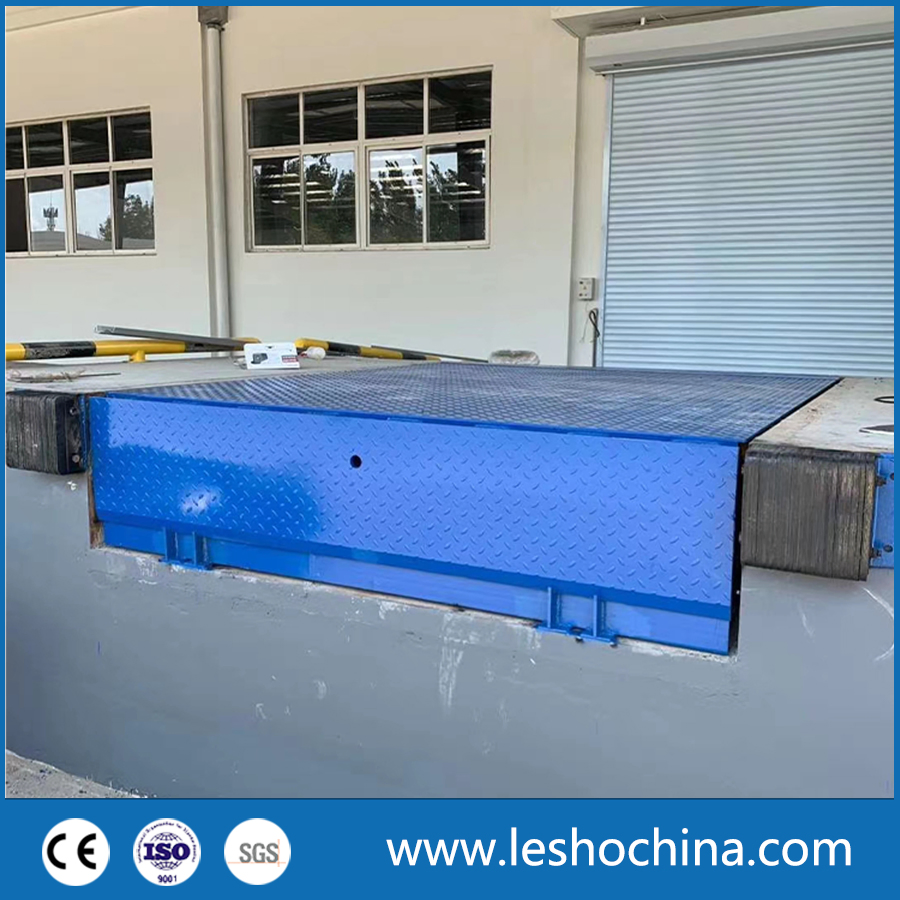

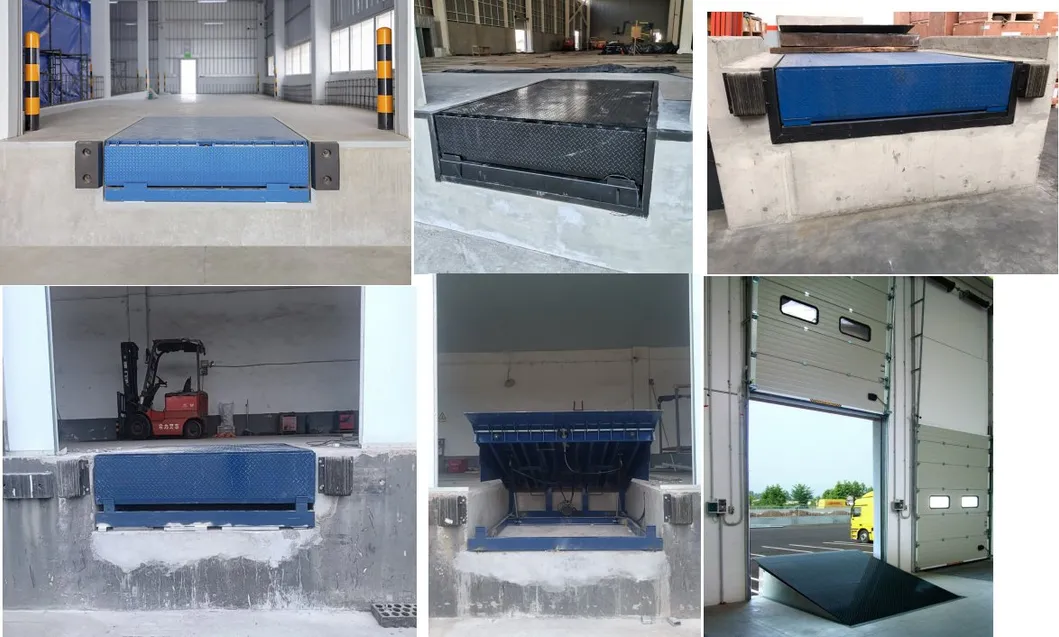

Automatic Stationary Fixed Hydraulic Dock Leveler or Dock Ramp
The dock leveler is the optimal solution to adjust the height difference between the loading platform and the container truck. The height can be adjusted arbitrarily, saving manpower and improving loading efficiency.
| Dynamic Load | Panel Thickness | Reinforcement | Static Load | Forklift Range |
| 5 Tons | 6mm | 4mm L Steel | 8 Tons | 2.5 Tons |
| 8 Tons | 8mm | 4mm L Steel | 11 Tons | 3.5 Tons |
| 10 Tons | 8mm | 14# I-beam | 13 Tons | 5 Tons |
| 14 Tons | 10mm | 16# I-beam | 17 Tons | 6 Tons |

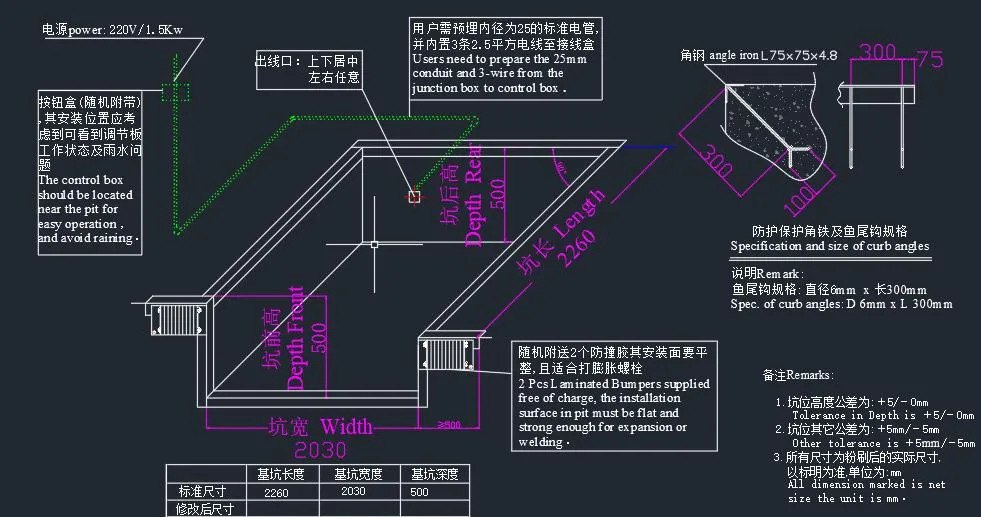

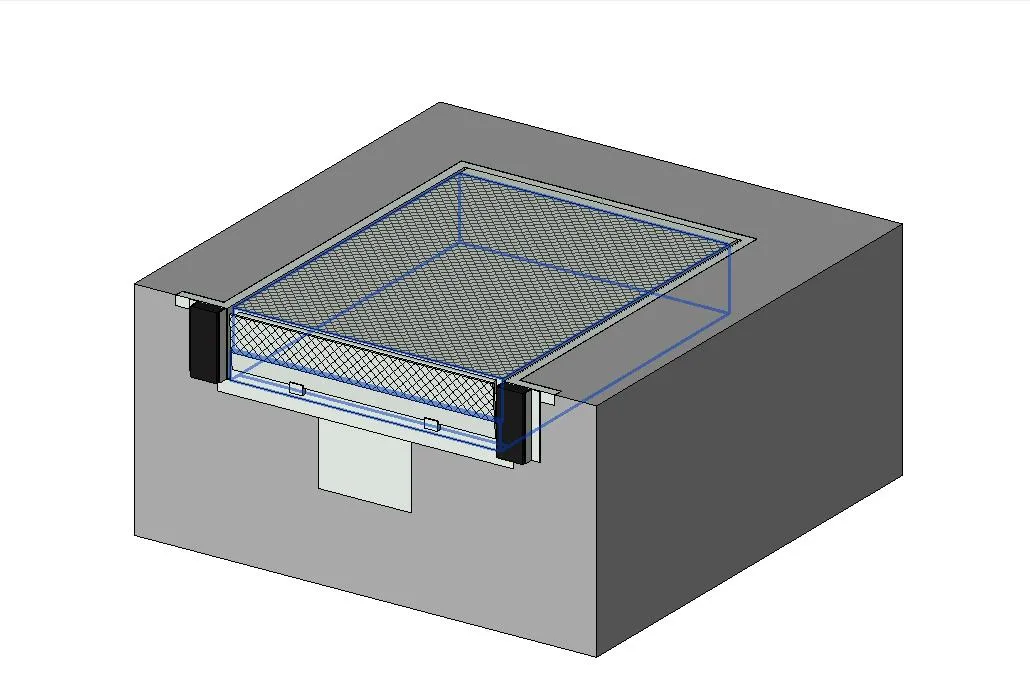

Accurate shop drawings ensure pit construction is precise and without misunderstanding.
Standard Sizes Available:

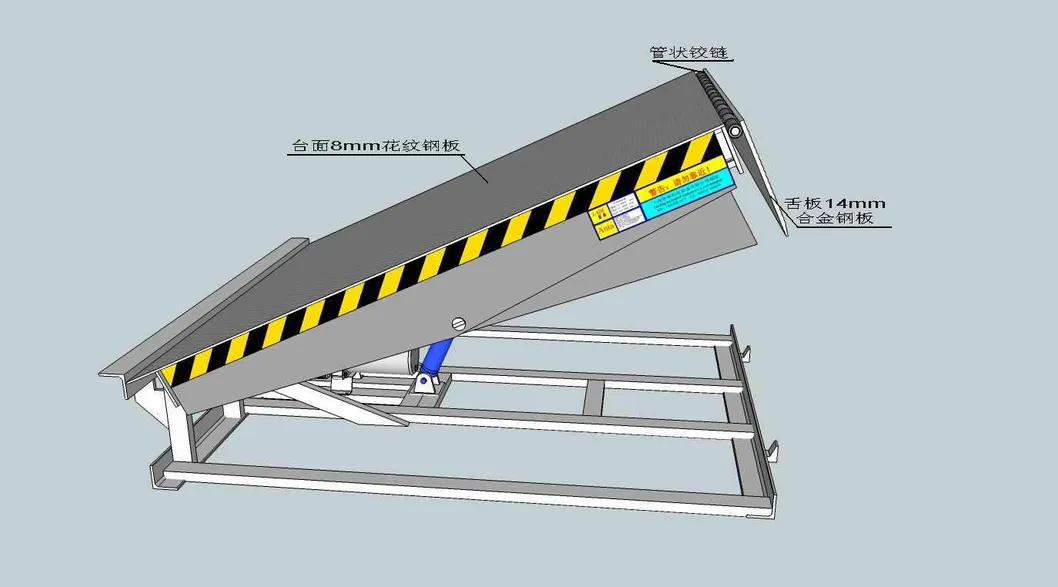

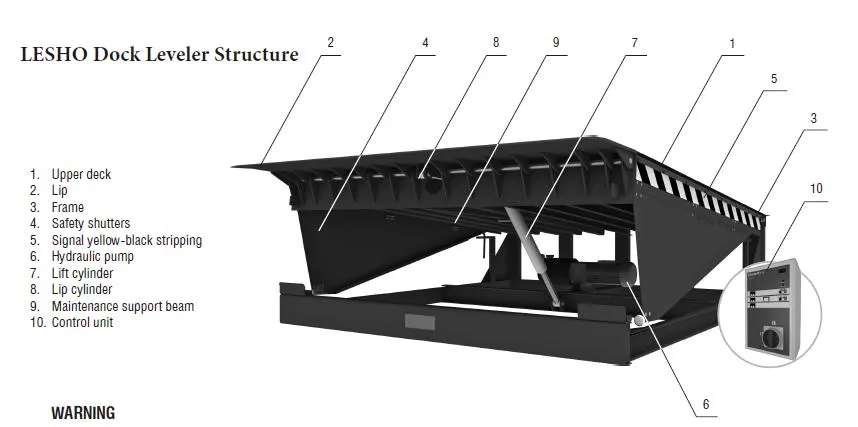

Main Platform: 6mm-8mm thick whole set steel plate with high-density steel tube support.
Top Lip: 12-16mm thick steel with embossed anti-skidding surface.

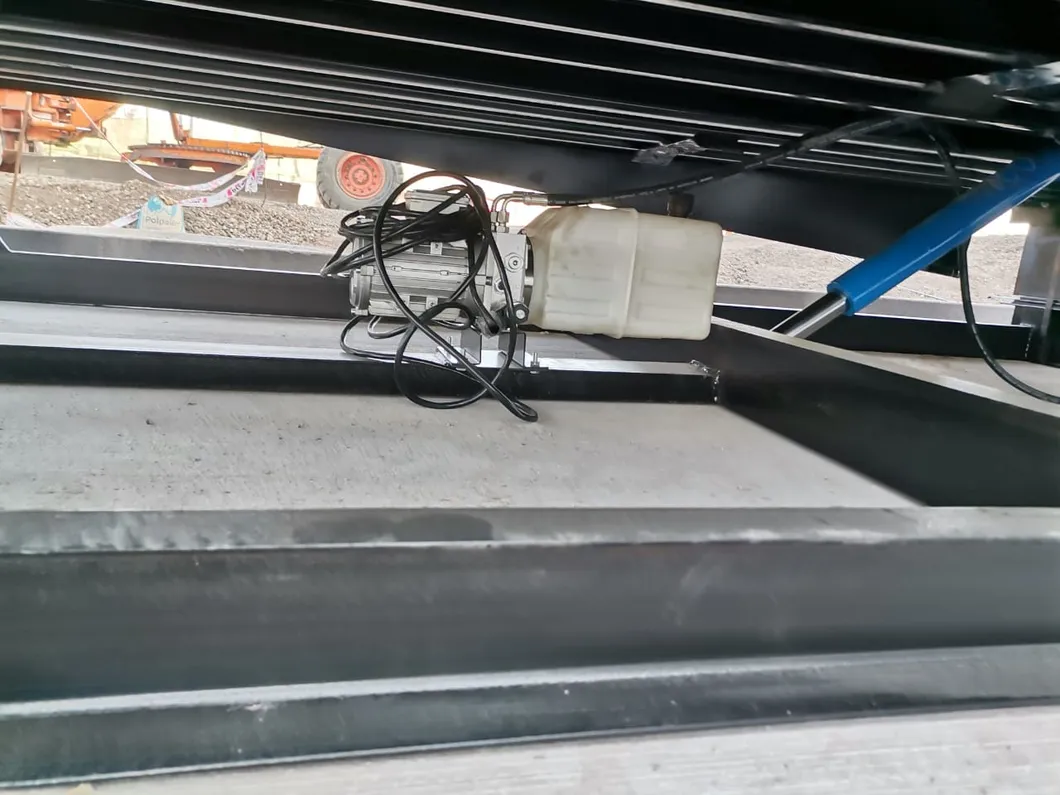

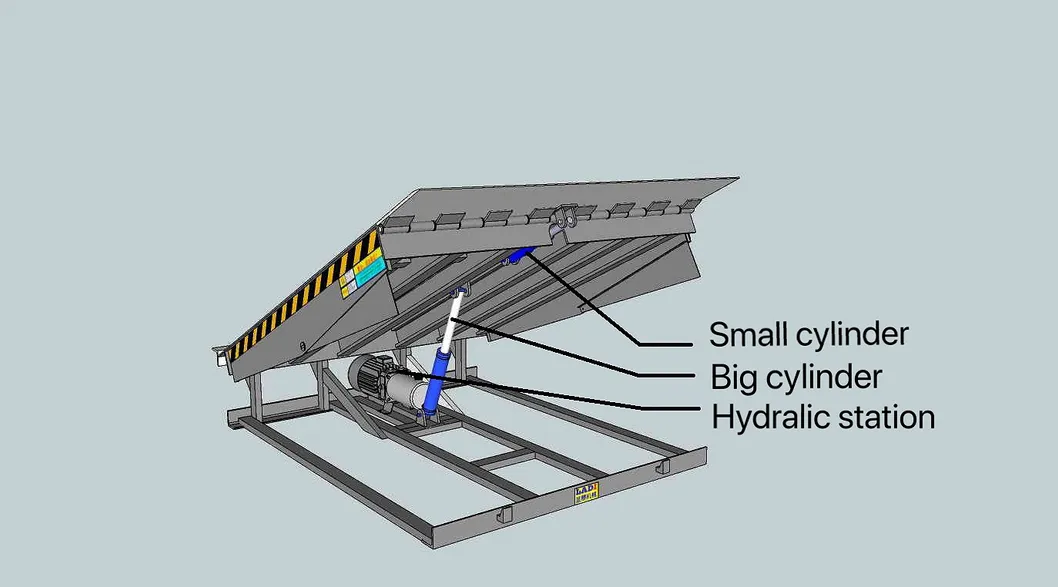

Hydraulic Motor: 0.75KW-1.5KW power with overheating self-protection.

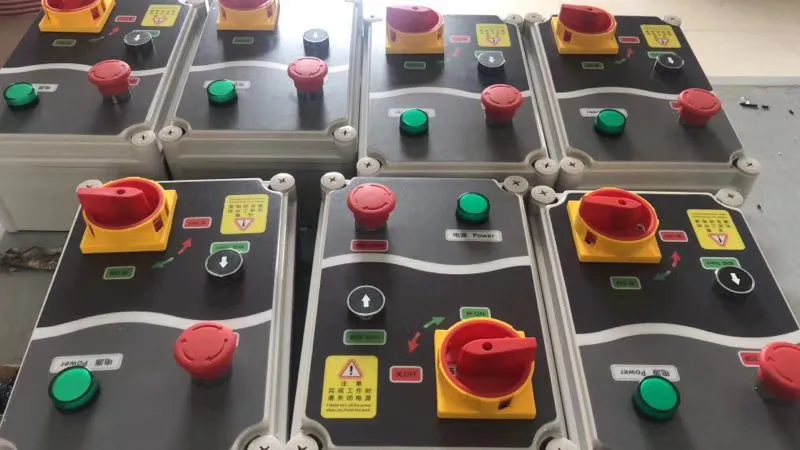

Control Panel: Features emergency stop, power switch, and one-touch operation buttons.

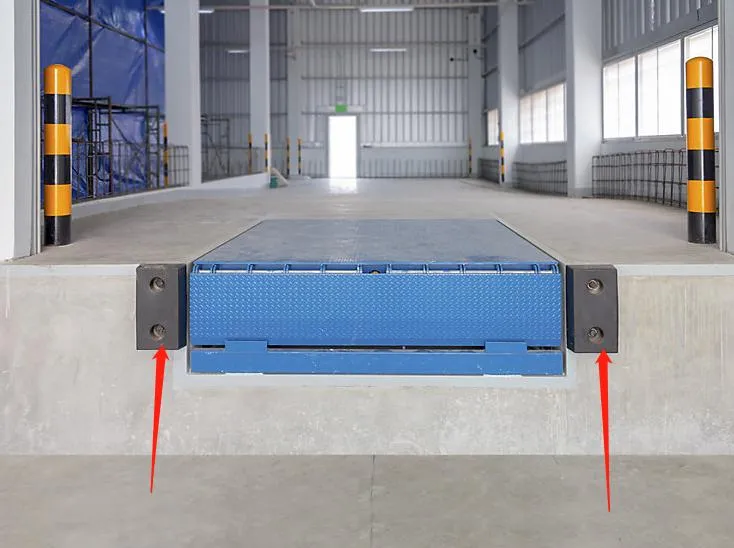

Dock Bumper: Wear-proof high-strength rubber material for concrete fixing.

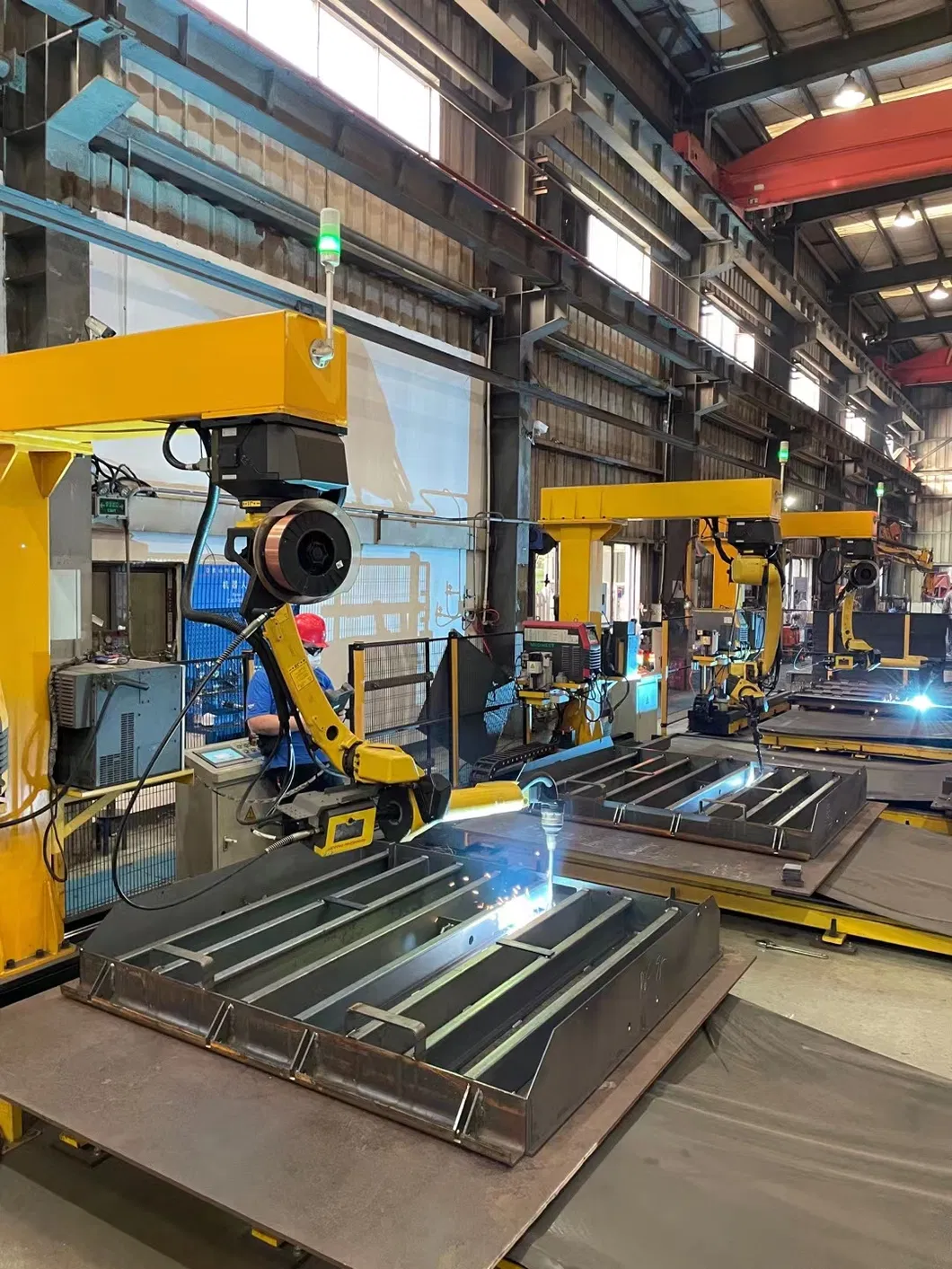

Welding robots ensure all work is accurate and durable.

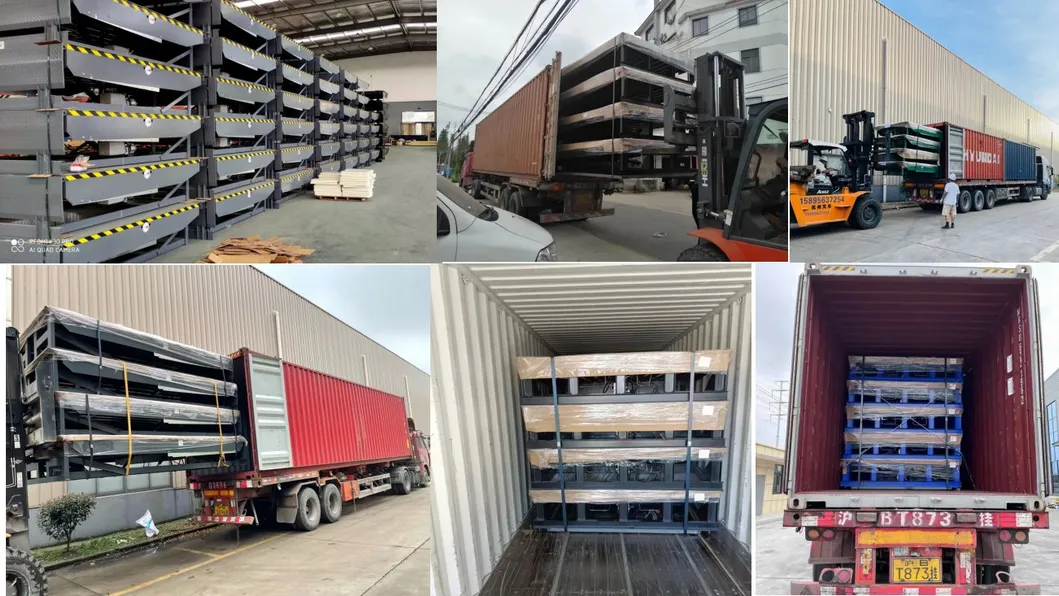

One 40ft HQ container can load up to 20 sets of standard dock levelers.
