Customization: Available
After-sales Service: 2 Years
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Model NO.
DLT-THK
Application
Workshop Crane
Lift Mechanism
Telescoping Lift
Driven Type
Hydraulic
Load Capacity
6.8t
Lip Length
1000mm/1200mm
Power Source
380V, 3pH, 50Hz
Certification
CE, ISO 9001

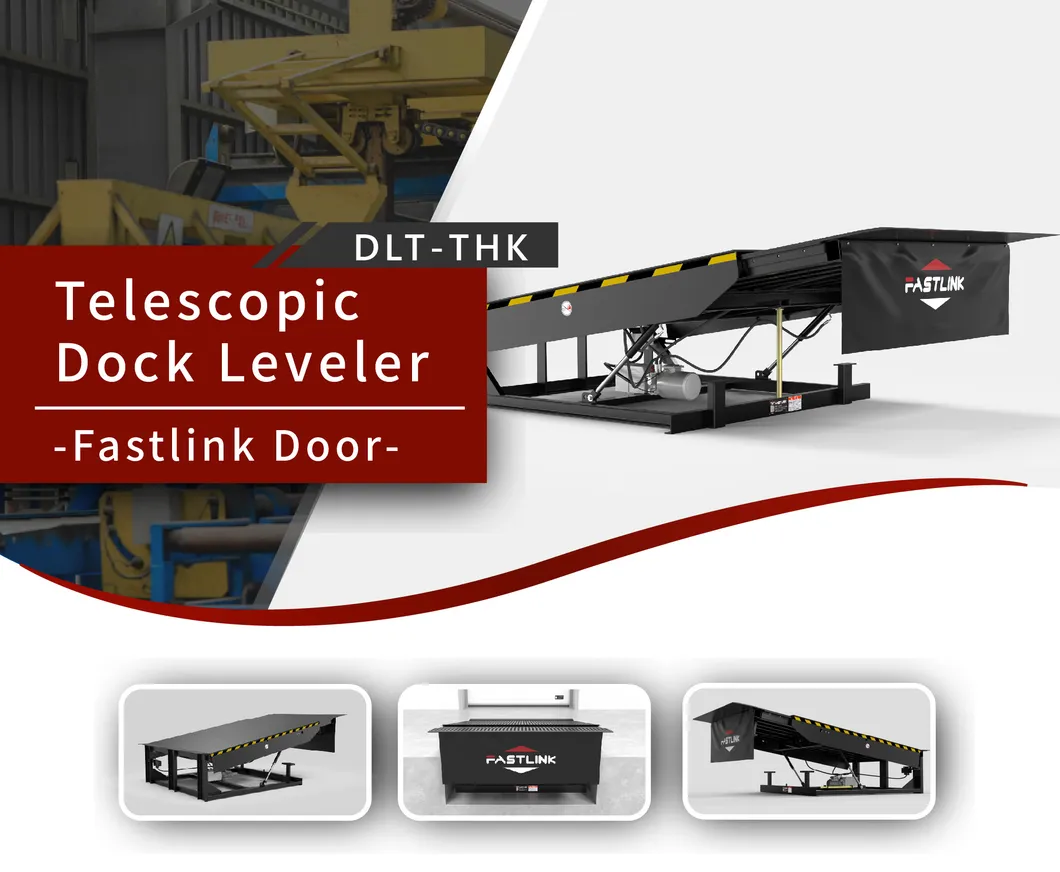

Telescopic Dock Leveler

Product Attributes

Key Features
Industry TypeDock leveler
MaterialHigh-strength Steel
Deck PlateNon-slip patterned steel sheet, 8mm thick base plate
Lip Plate14/15mm thick non-slip steel, double 5-degree arch design
CylinderDouble cylinders system
Dynamic Load6.8T
Size Dimensions
Minimum SizeW1800mm * L2000mm * H600mm
Maximum SizeW2200mm * L2500mm * H690mm
Standard Lip1000mm / 1200mm
🛡️ Security Configuration

Maintenance Support Rods: Penetrating style bars effectively support the platform and tongue against impacts from front and sides.

Side Foot Protectors: Side stops prevent operator injury by keeping feet away from the underside of the platform.

🧠 Intelligent Control System

Equipped with fault code display, operational status monitoring, and fire linkage interlock functions. The patented control box ensures safe and efficient intelligent management.

⚙️ Reinforced Platform

The structure is reinforced by 8-10 C-beam steel reinforcement members, ensuring the platform remains resilient under heavy dynamic loads.

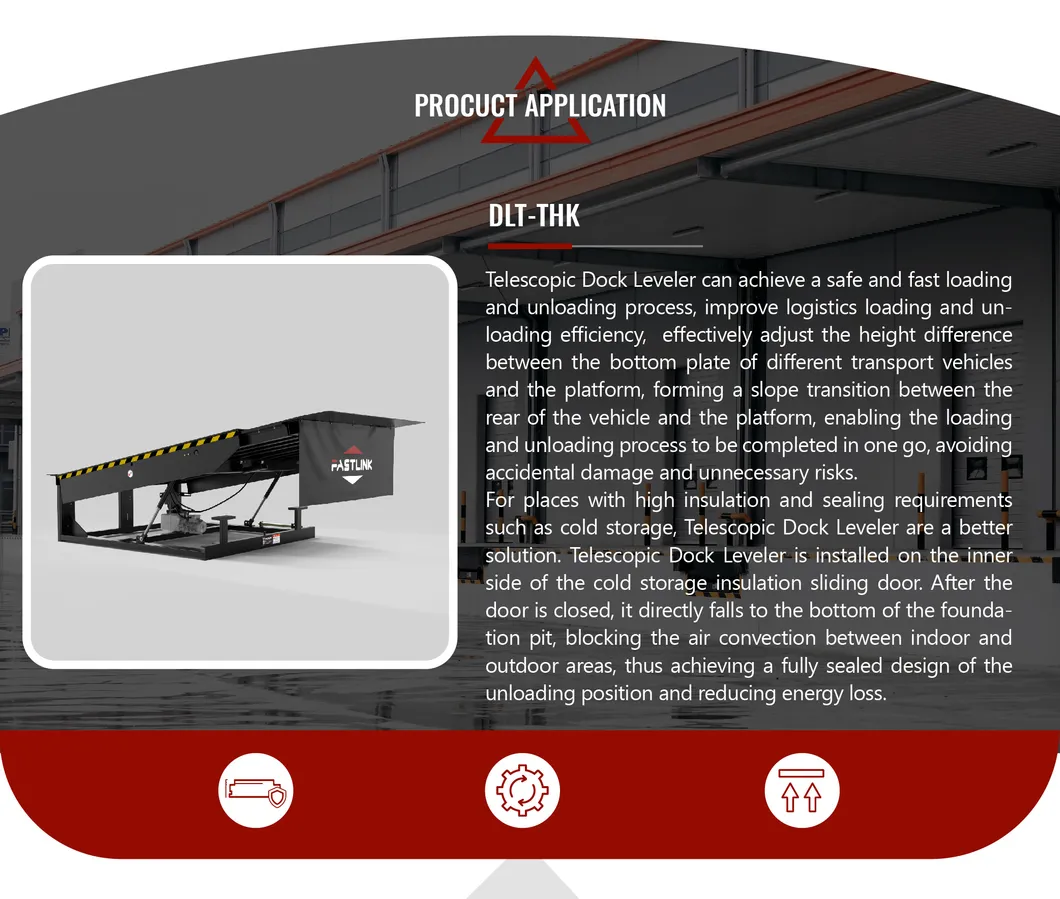

Feature View 1

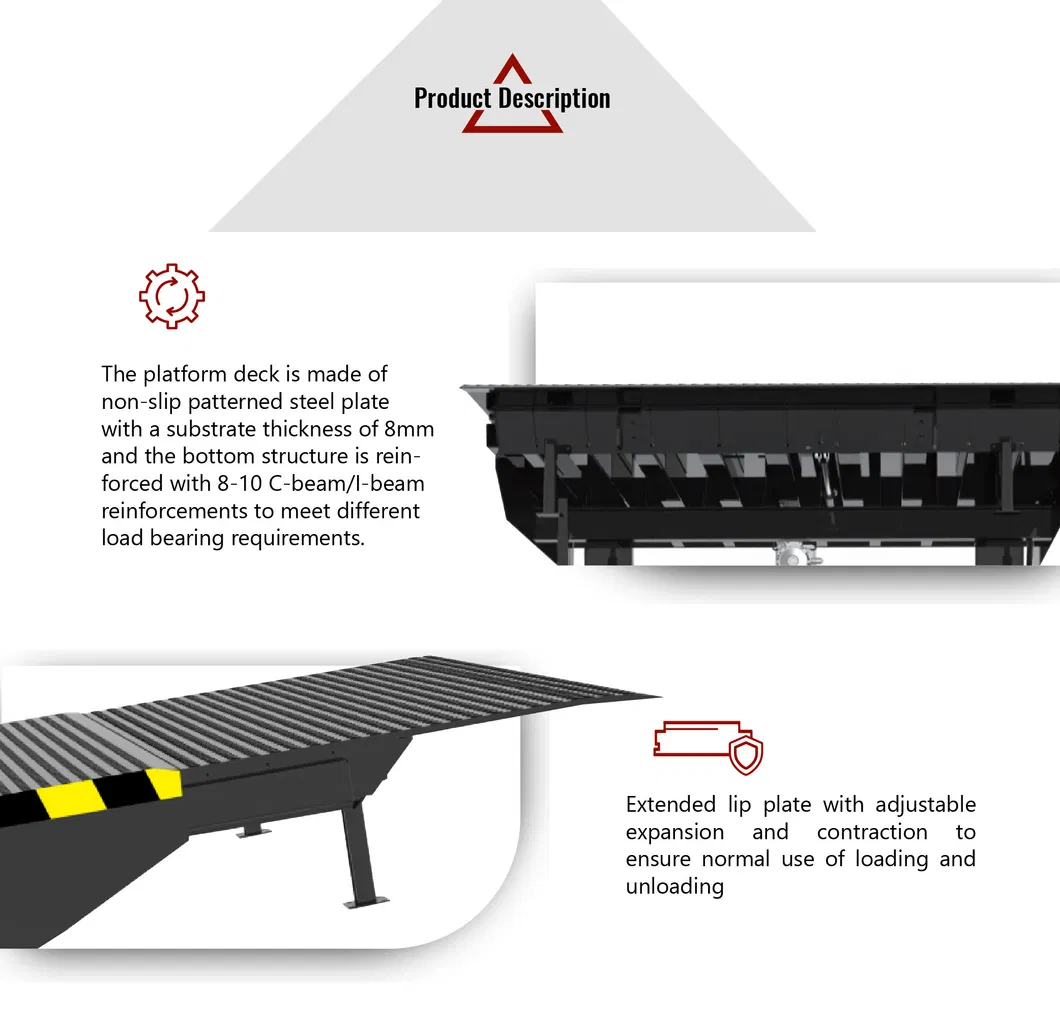

Feature View 2

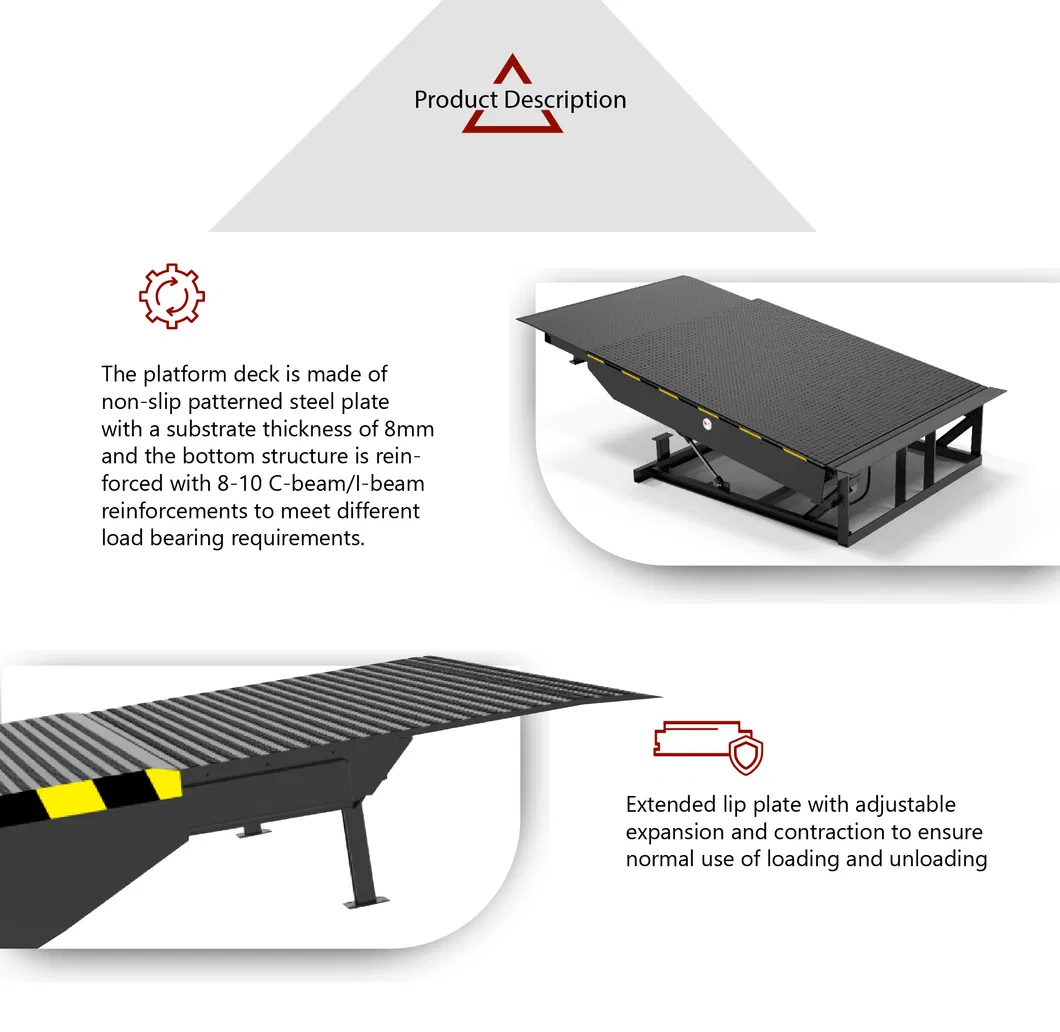

Feature View 3
Feature View 4

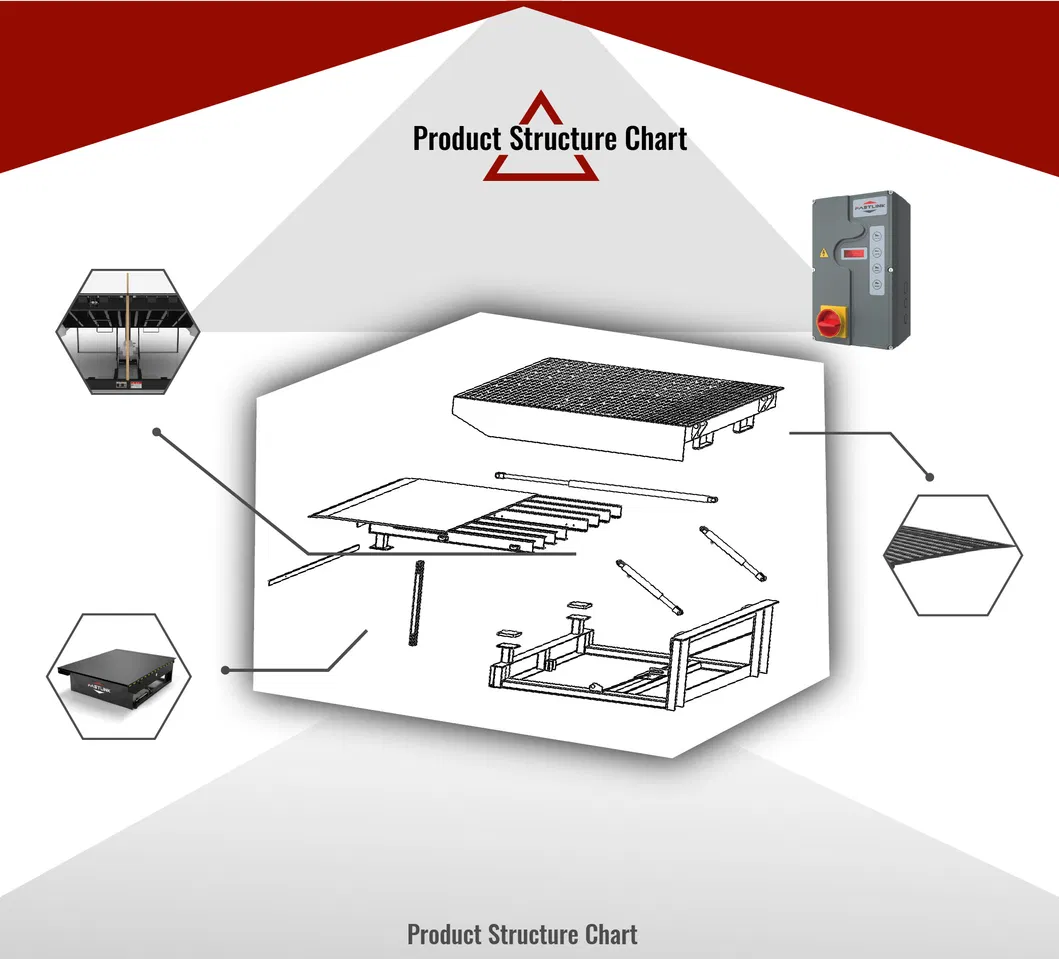

Feature View 5

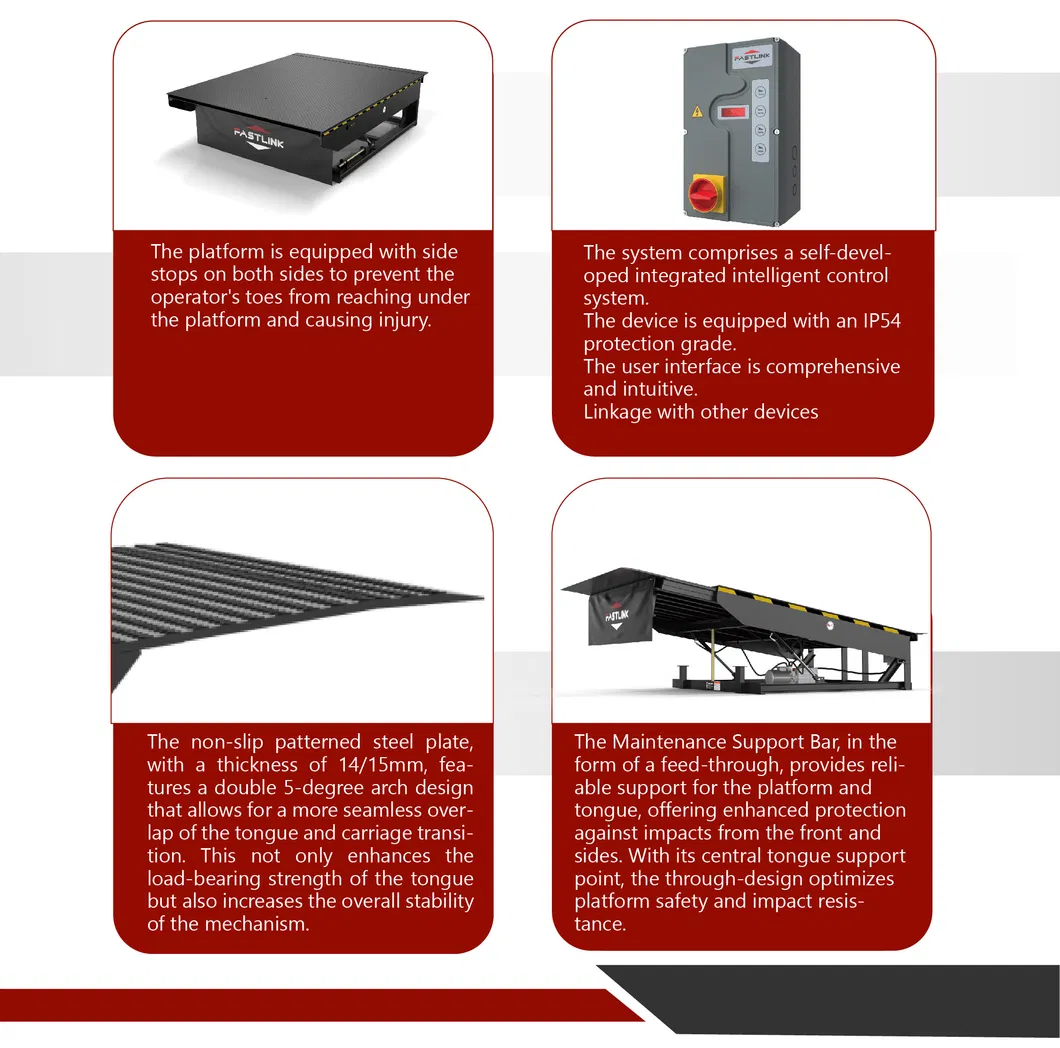

Feature View 6
Feature View 7

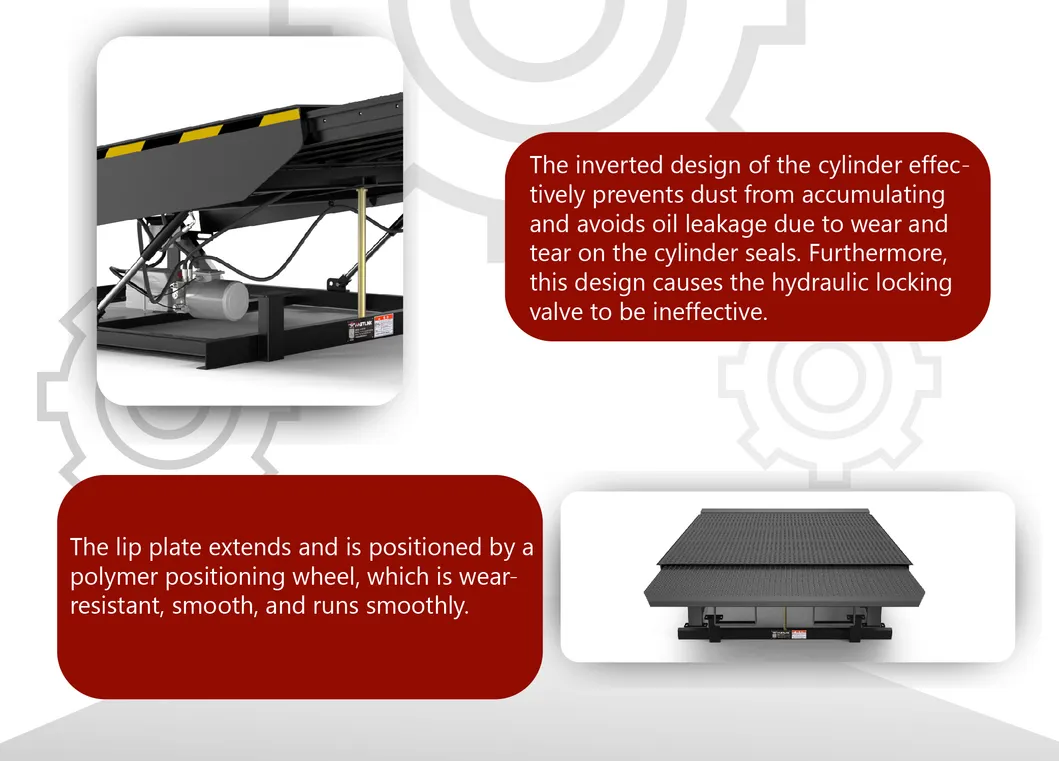

Feature View 8
Feature View 9

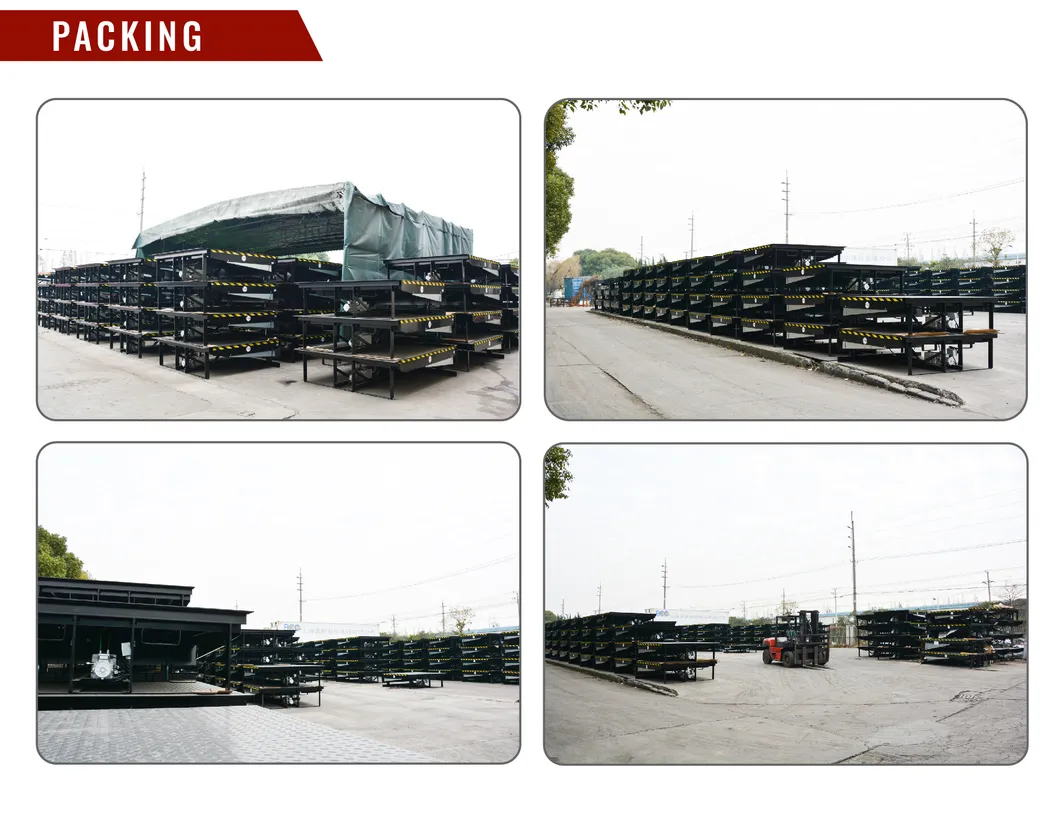

Feature View 10
Feature View 11
Feature View 12

Frequently Asked Questions

Q1: How to choose the length of the Telescopic Dock Leveler?
The length depends on the height difference between the carriage floor and the platform. Formula: Length (L) = Height Difference (h) / 0.125.
Q2: What are the common sizes available?
Standard common sizes include W2000mm*L2000mm*H600mm and W2000mm*L2500mm*H690mm.
Q3: What are the common application scenarios?
It is ideal for loading/unloading side-platform vehicles and insulation environments like cold storage where the leveler must stay indoors while the lip extends.
Q4: What is the difference between dynamic and static loads?
Dynamic load is the combined weight of forklift and cargo during operation; Static load is the maximum weight the platform can hold in its reset state.
Q5: What are the unique features of the lip plate?
It features a longer telescopic lip (1000-1200mm) and a double 5-degree arch design for seamless transition and enhanced stability.
Q6: What certifications does this equipment hold?
The equipment is fully compliant with CE, ISO 9001, CPR, and UL standards.
