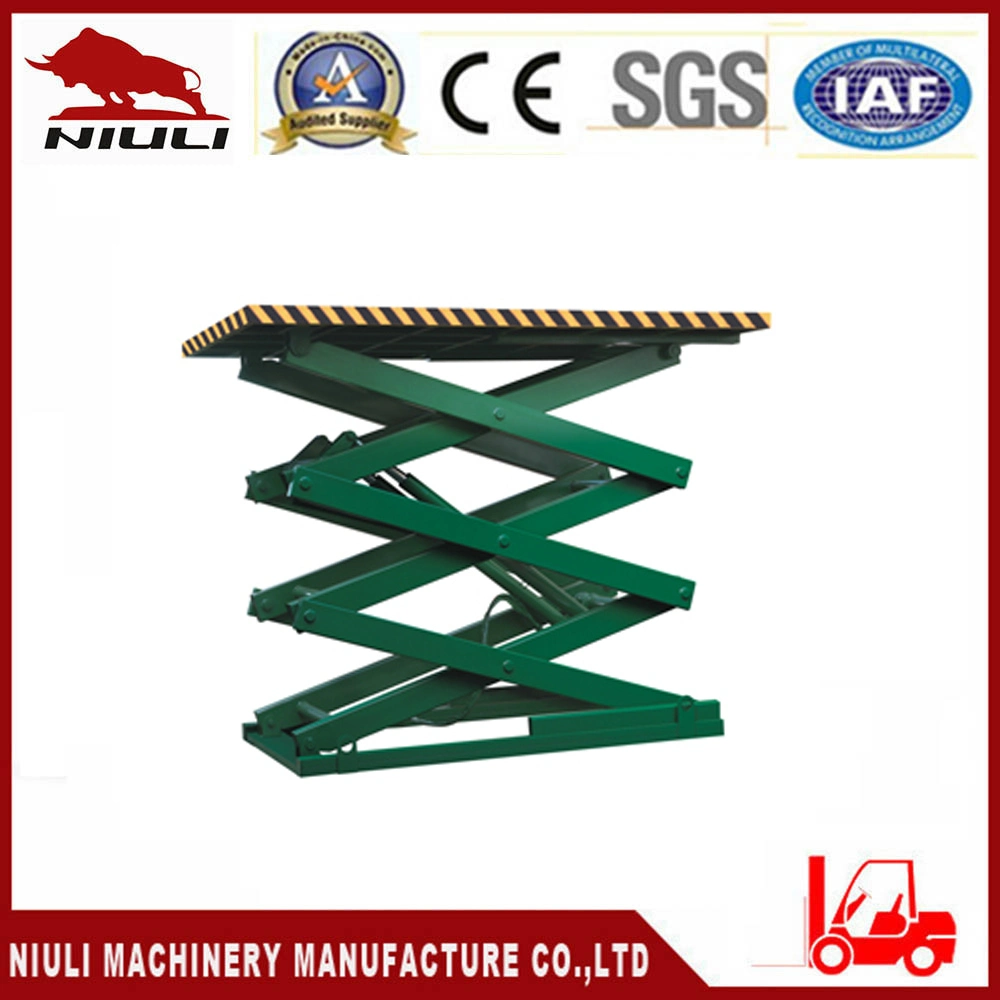

Niuli Lifting Machine Cargo Lift Equipment Platform Hydraulic Lift Table

1 / 5

Niuli Lifting Machine Cargo Lift Equipment Platform Hydraulic Lift Table

After-sales Service:	Online Service
Warranty:	1 Year
Application:	Workshop Crane

Send Inquiry

Product Description

Basic Specifications

Model NO.

SJG

Lift Mechanism

Scissor Lift

Carrying Capacity

Weight Level

Moves

Stationary

Driven Type

Hydraulic

Running Mode

Stationary

Certification

Product Name

Fixed Scissor Lift Table

Height

Customized

Platform Size

Adjustable

Capacity

Customized

Transport Package

Wooden Case

HS Code

8427900000

Production Capacity

100PCS

★

Product Description

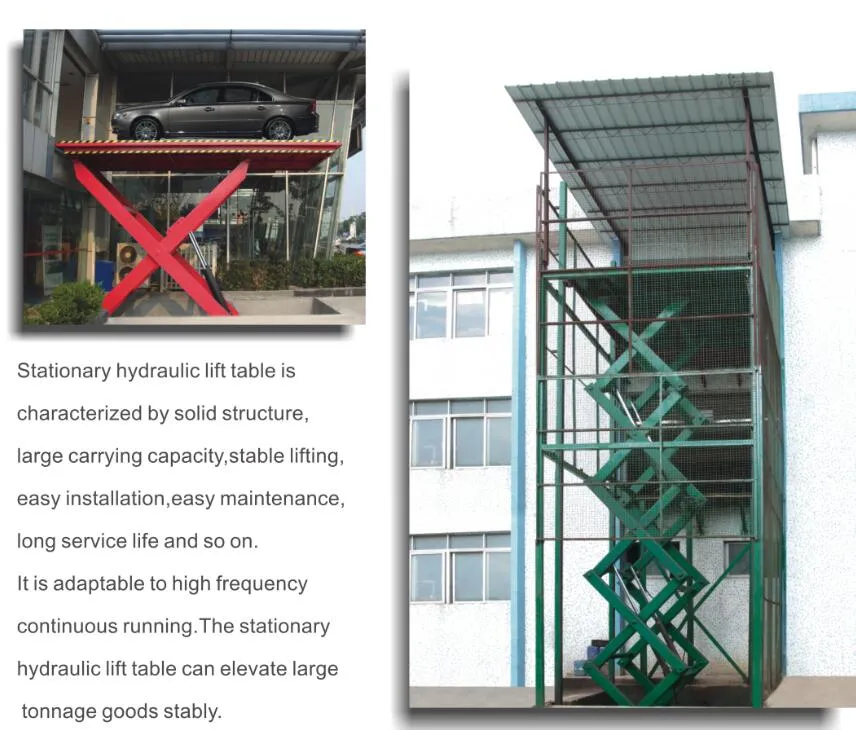

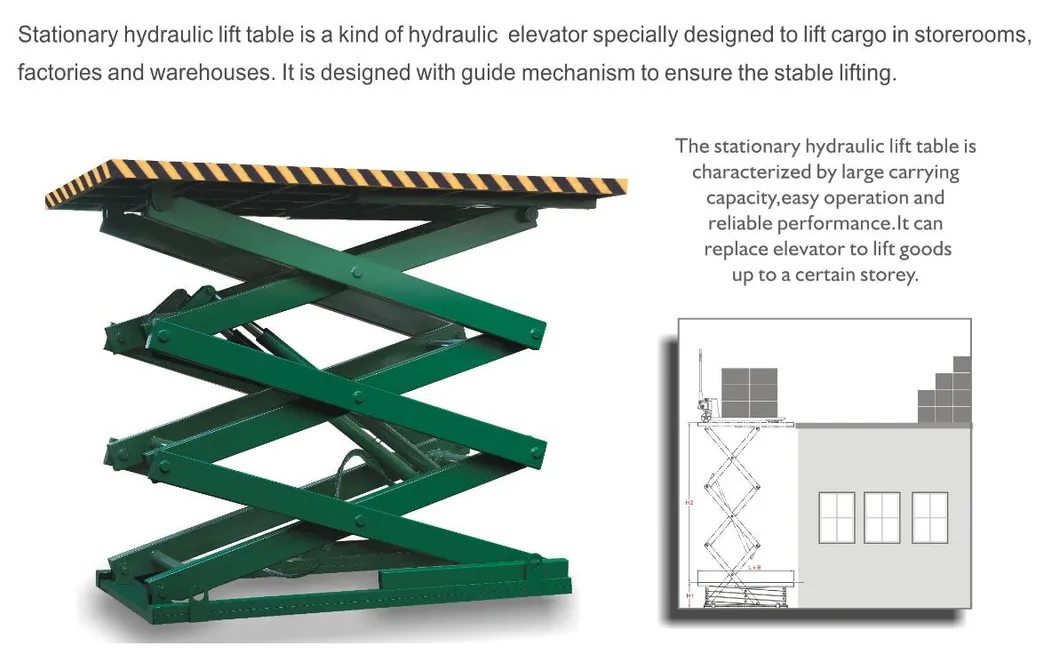

That product is the appropriation liquid that used for the different story high goods to deliver to press a working panel lifter, the main application warehouse, garage, the car puts a layer with various work etc. The story high piece the top and bottom goods transport. Have extensive applicability, load to have great capacity, ascend and descend a safety steady, install a maintenance in brief convenient, is layer in economic practical low building the ideal goods that act for elevator transport an equipments.

We can made different size and capacity lift table according your demands. Please specify:

⚖️ Capacity Requirements
↕️ Lifting Height
📏 Platform Size
⚡ Motor Power (380V/220V)

📋

Technical Parameters

Model	Capacity (kg)	Lifting Height H2 (mm)	Rated Height (mm)	Pit Depth (mm)	Platform Size (mm)	Elevating Time (s)	Motor Power (kw)	Self Weight (kg)
SJG1-1.7	1000	1700	2160	460	2500x2000	30	2.2	1200
SJG2-1.7	2000	1700	2180	480	2500x2000	30	3.7	1400
SJG3-1.7	3000	1700	2180	480	2500x2000	30	3.7	1600
SJG5-1.7	5000	1700	2280	580	2800x2000	30	7.5	2000
SJG10-1.7	10000	1700	2500	800	4000x2000	30	7.5	3000
SJG1-3	1000	3000	3540	540	2000x2000	30	2.2	1300
SJG2-3	2000	3000	3600	600	2000x2000	30	3.7	1600
SJG3-3	3000	3000	3600	680	2000x2000	30	3.7	1800
SJG1-4	1000	4000	4680	740	2000x2000	40	2.2	1500
SJG2-4	2000	4000	4740	800	2000x2000	40	3.7	1800
SJG3-4	3000	4000	4800	800	2000x2000	40	5.5	2000
SJG1-5	1000	5000	5800	880	2000x2000	60	2.2	1700
SJG2-5	2000	5000	5880	960	2000x2000	60	3.7	2100
SJG3-5	3000	5000	5960	1020	2000x2000	70	5.5	2500
SJG1-6	1000	6000	7020	1120	2000x2000	70	3.7	2000
SJG2-6	2000	6000	7120	1280	2000x2000	70	5.5	2500
SJG3-6	3000	6000	7120	1520	2000x2000	100	5.5	3000
SJG1-9	1000	9000	10280	740	2500x2000	120	5.5	3500
SJG2-9	2000	9000	10520	800	2500x2000	50	7.5	4800
SJG4-4	4000	4000	4740	880	4500x2000	60	5.5	3500

Frequently Asked Questions

What are the primary applications for the SJG scissor lift?

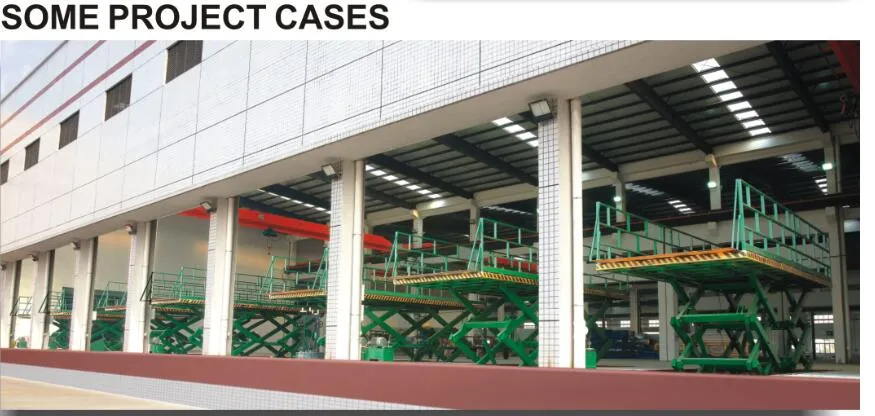

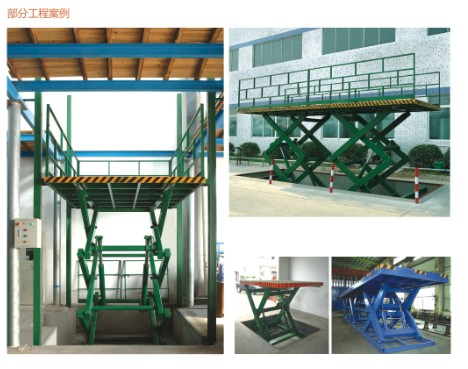

It is primarily used in warehouses, garages, and industrial workshops for delivering goods between different floor heights or working panels.

Can the platform size and lifting height be customized?

Yes, we provide fully customized solutions. You can adjust the platform dimensions, lifting height, and carrying capacity according to your specific site requirements.

What power supply is required for the hydraulic motor?

Standard models typically use 380V/50Hz or 220V/50Hz. However, we can accommodate other voltage models based on your local power standards.

Is the stationary scissor lift table safe to operate?

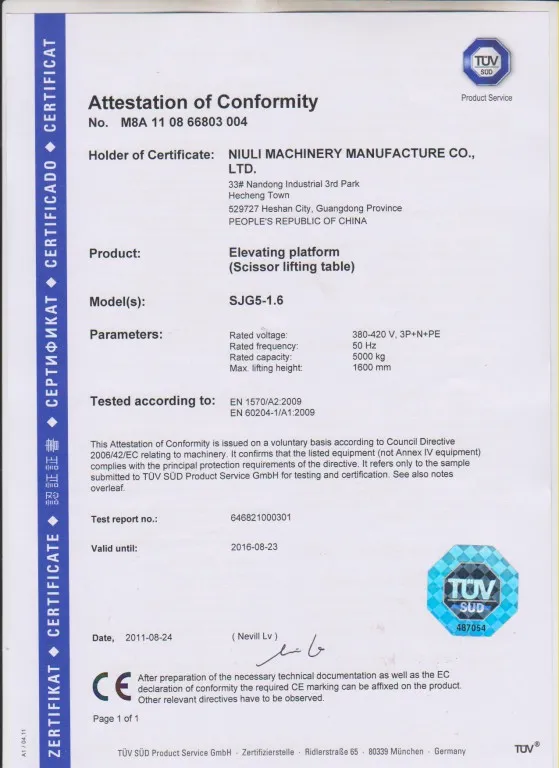

Absolutely. Our lifts are CE certified and designed for steady ascent and descent, ensuring safety during heavy-duty transport.

How is the equipment shipped?

To ensure maximum protection during international transit, all lift tables are securely packed in professional wooden cases.

Is maintenance difficult for this type of lift?

The design focuses on simplicity and durability. Regular hydraulic fluid checks and joint lubrication are usually sufficient for long-term convenient operation.
