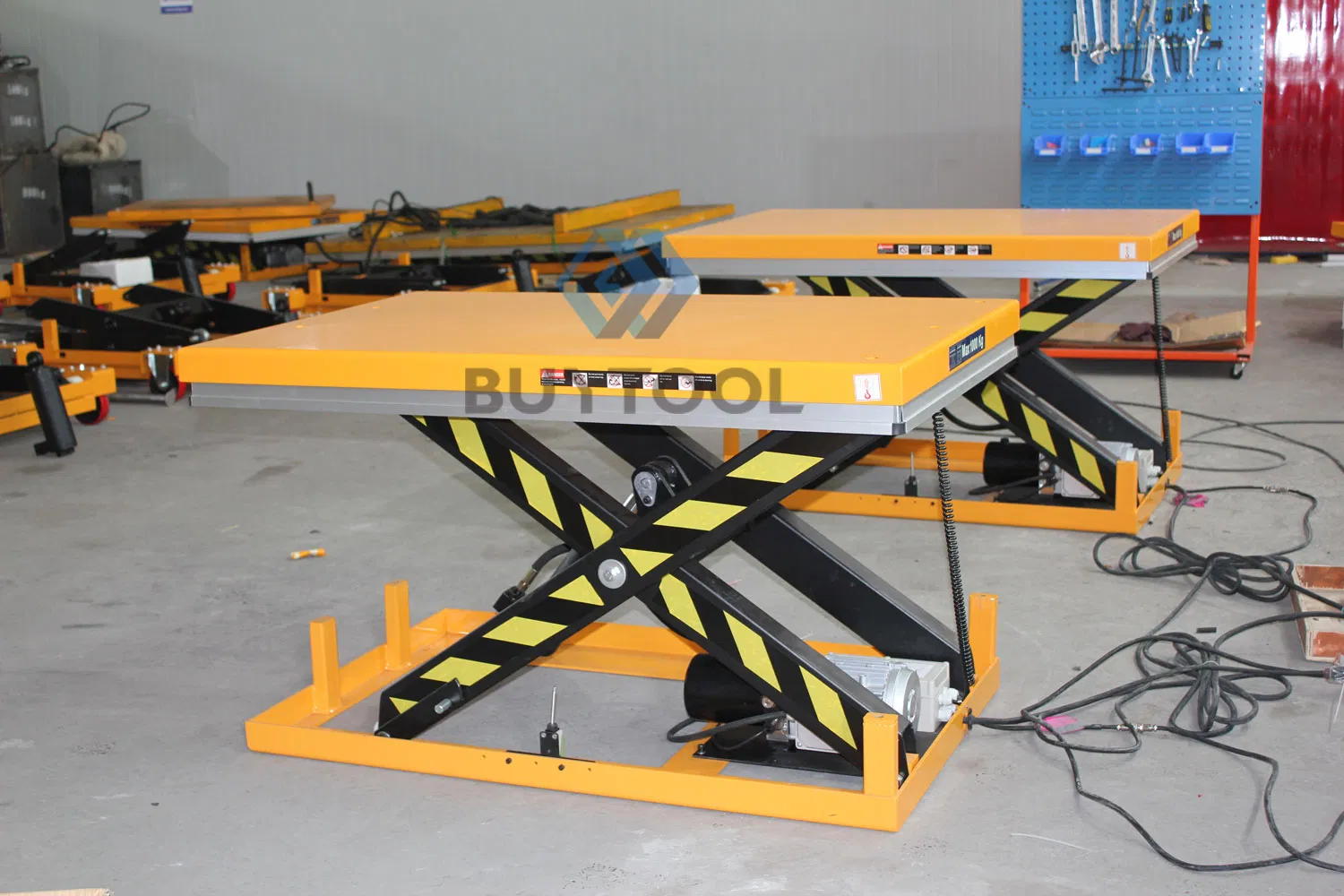

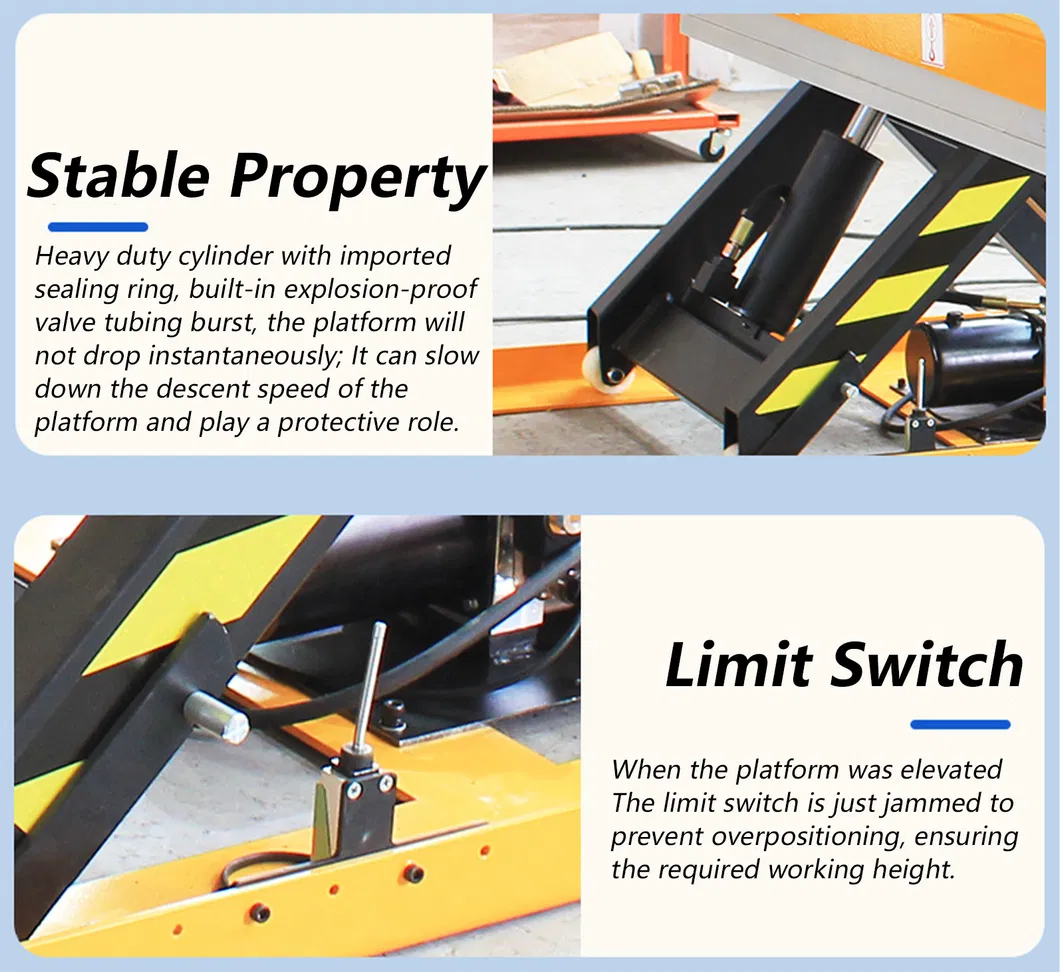

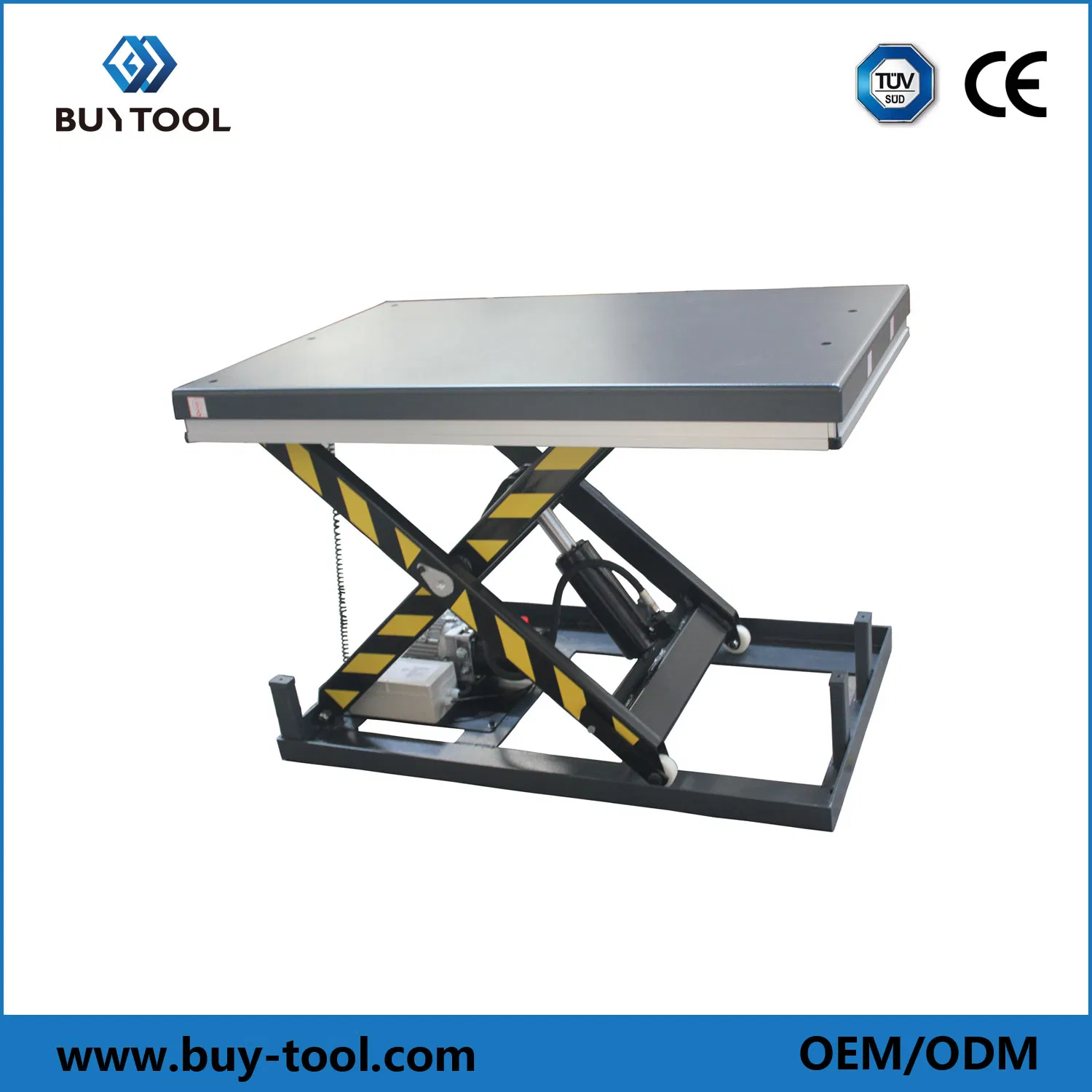

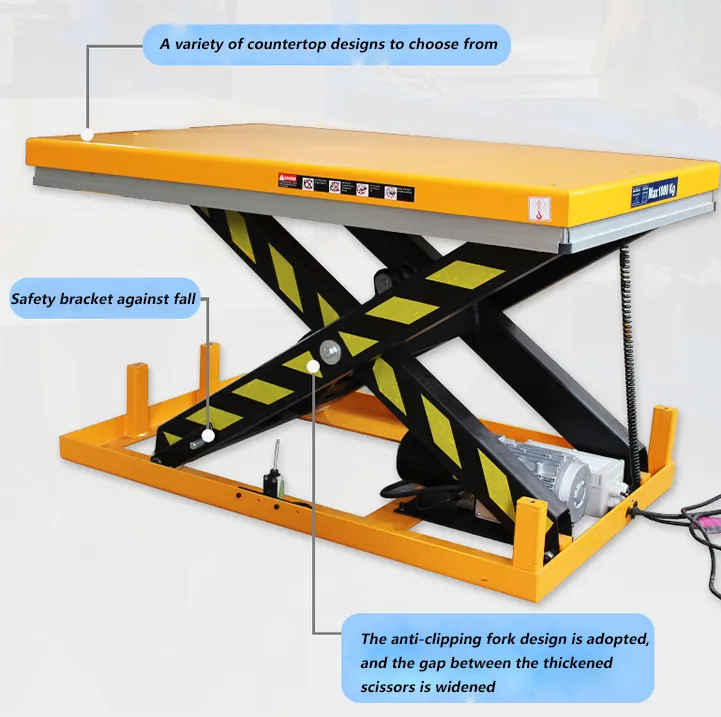

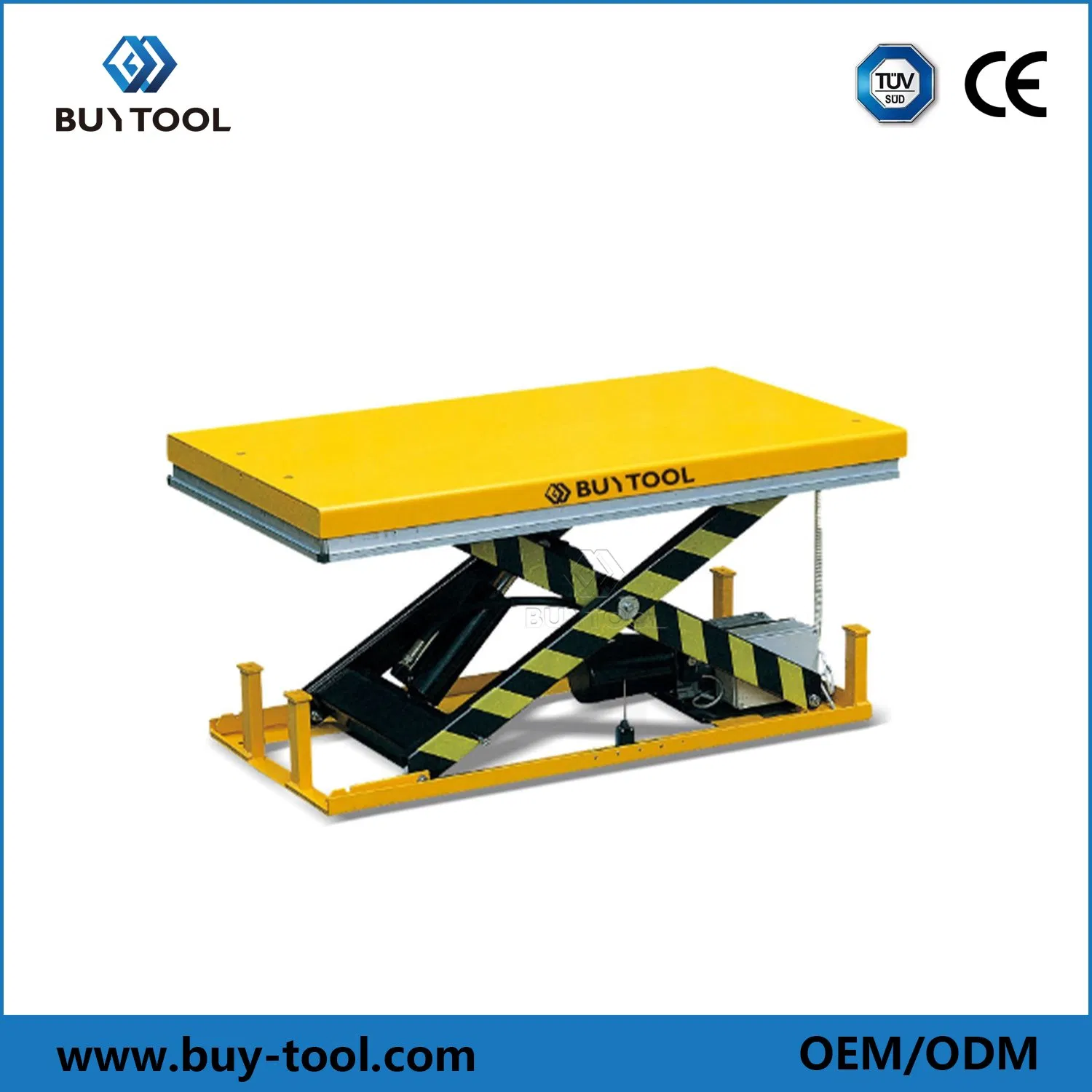

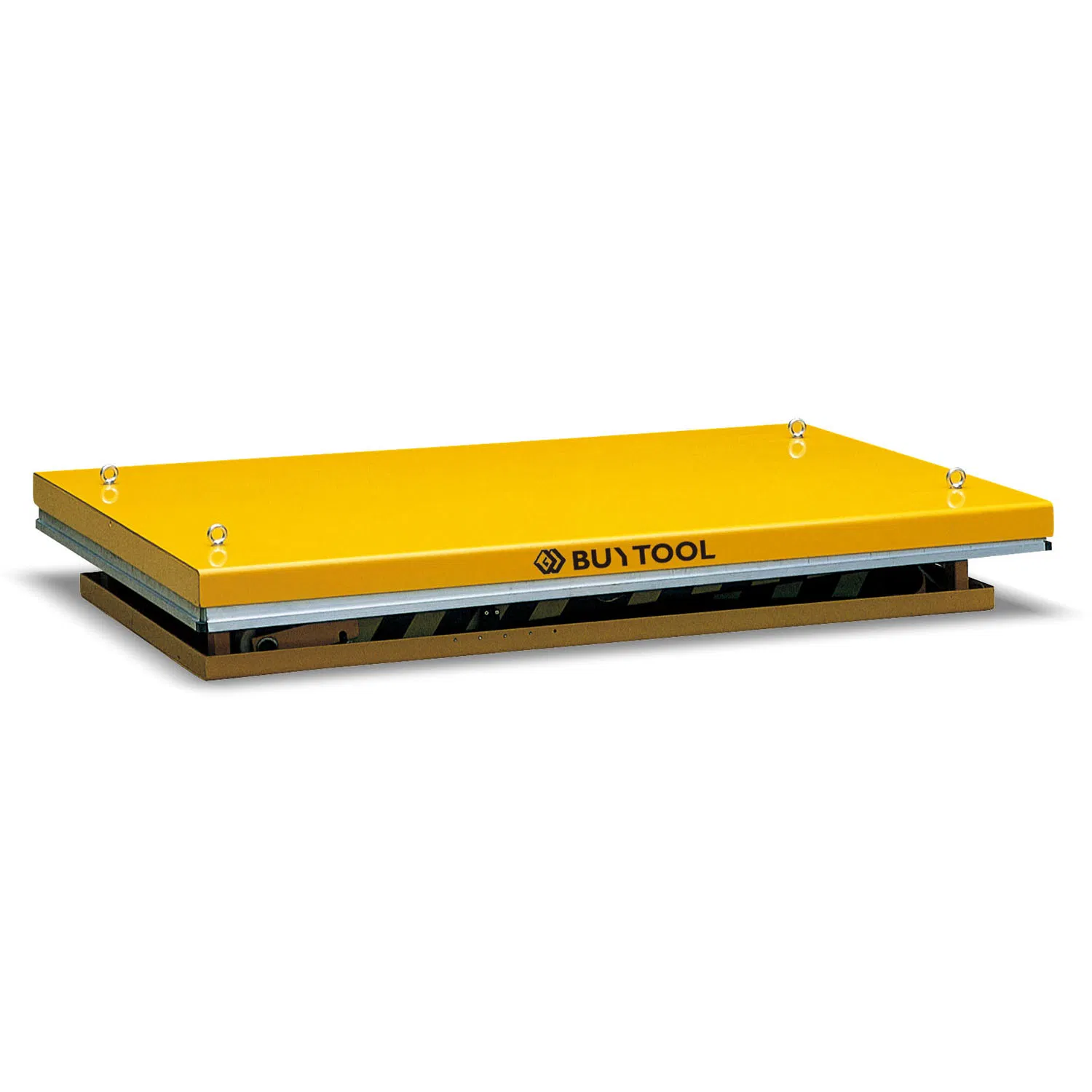

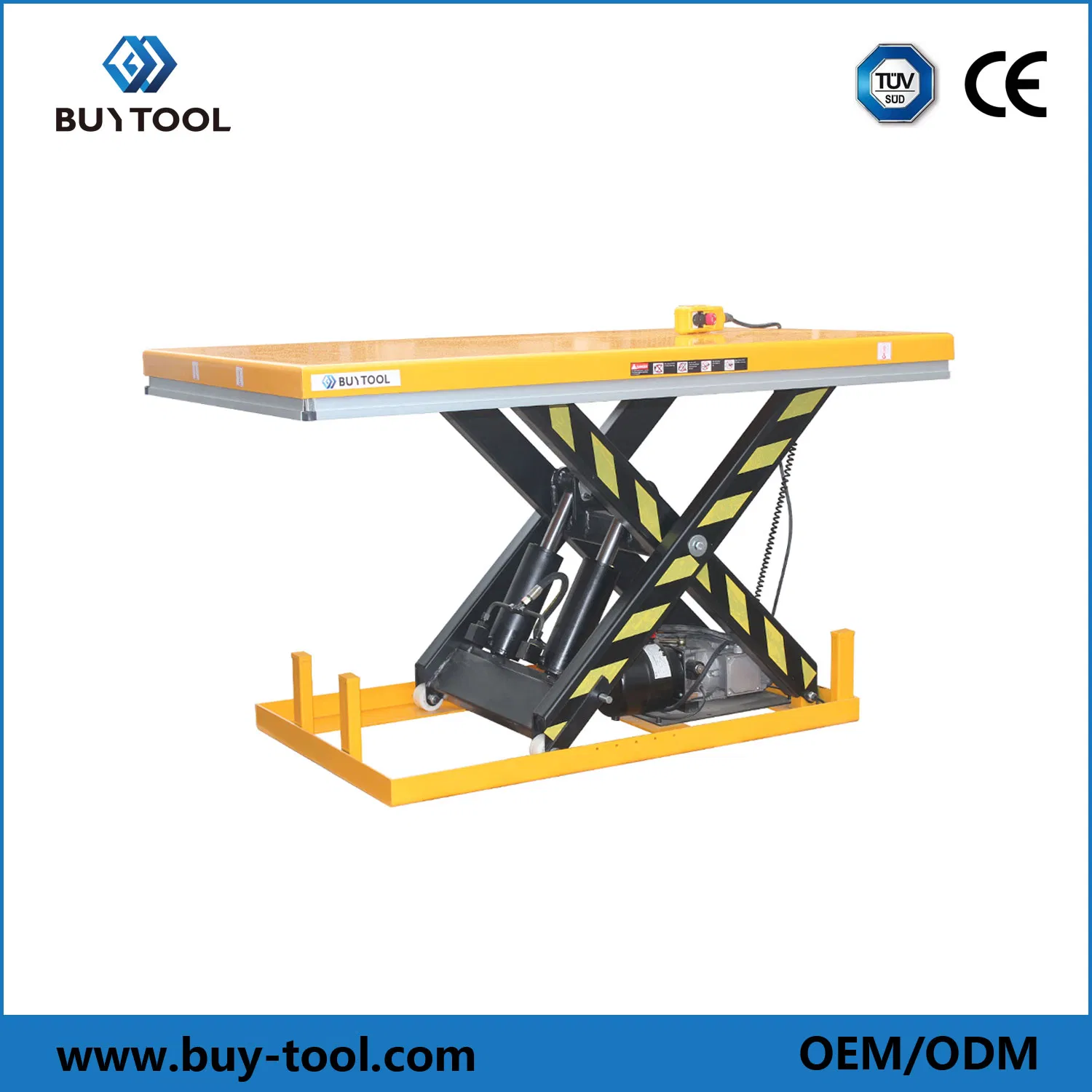

Introducing our fantastic 1-ton to 4-ton Fixed Type Hydraulic Electric Scissor Lift Table. This heavy-duty design is engineered for reliability and safety in demanding industrial environments. Equipped with a safety guard and anti-explosion valve, it ensures secure operation for all your lifting needs.

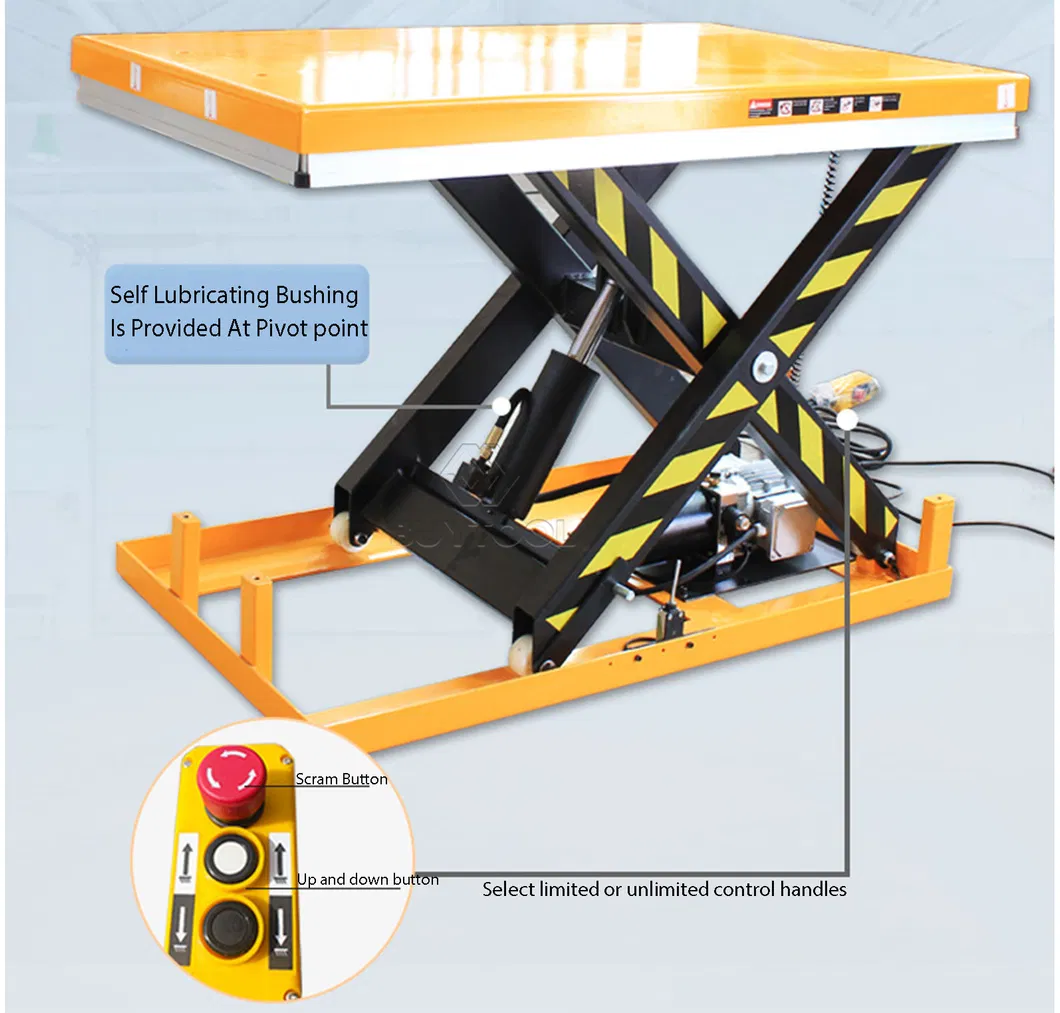

The system features self-lubricating bushings on pivot points for smooth operation and a removable lifting eye to facilitate easy handling and installation.
| Model | Capacity (kg) | Lowered H (mm) | Raised H (mm) | Platform Size (mm) | Lift Time (s) | Power Pack | Net Weight (kg) |
|---|---|---|---|---|---|---|---|
| HW1001 | 1000 | 205 | 990 | 820×1300 | 20-25 | 380v/1.1kw | 160 |
| HW1003 | 1000 | 240 | 1300 | 850×1700 | 30-35 | 380v/1.1kw | 200 |
| HW2001 | 2000 | 230 | 1000 | 850×1300 | 20-25 | 380v/2.2kw | 235 |
| HW2004 | 2000 | 250 | 1300 | 1000×1700 | 25-35 | 380v/2.2kw | 300 |
| HW4001 | 4000 | 240 | 1050 | 1200×1700 | 30-40 | 380v/2.2kw | 375 |
| HW4008 | 4000 | 350 | 1300 | 1800×2200 | 45-50 | 380v/2.2kw | 655 |
Our hydraulic electric scissor lift tables are ideal for various industrial settings including workshops, warehouses, and building projects. We maintain a rigorous inspection process to ensure every unit meets the highest quality standards before shipment.
From raw material checks to final load limit tests, we guarantee reliability. All products are CE approved and designed for long-term heavy-duty use.
