Product Description

📋 Basic Specifications

Model NO.

HW1001, HW2005, HW4008 series

Application

Workshop Crane, Warehouse Crane

Lift Mechanism

Scissor Lift

Capacity

1000kg - 4000kg

Driven Type

AC Powered

Min. Lift Height

205mm

Max. Lift Height

1300mm

Certification

CE, ISO 9001

Power Supply

380V/50Hz

HS Code

84279000

🏗️ Product Overview

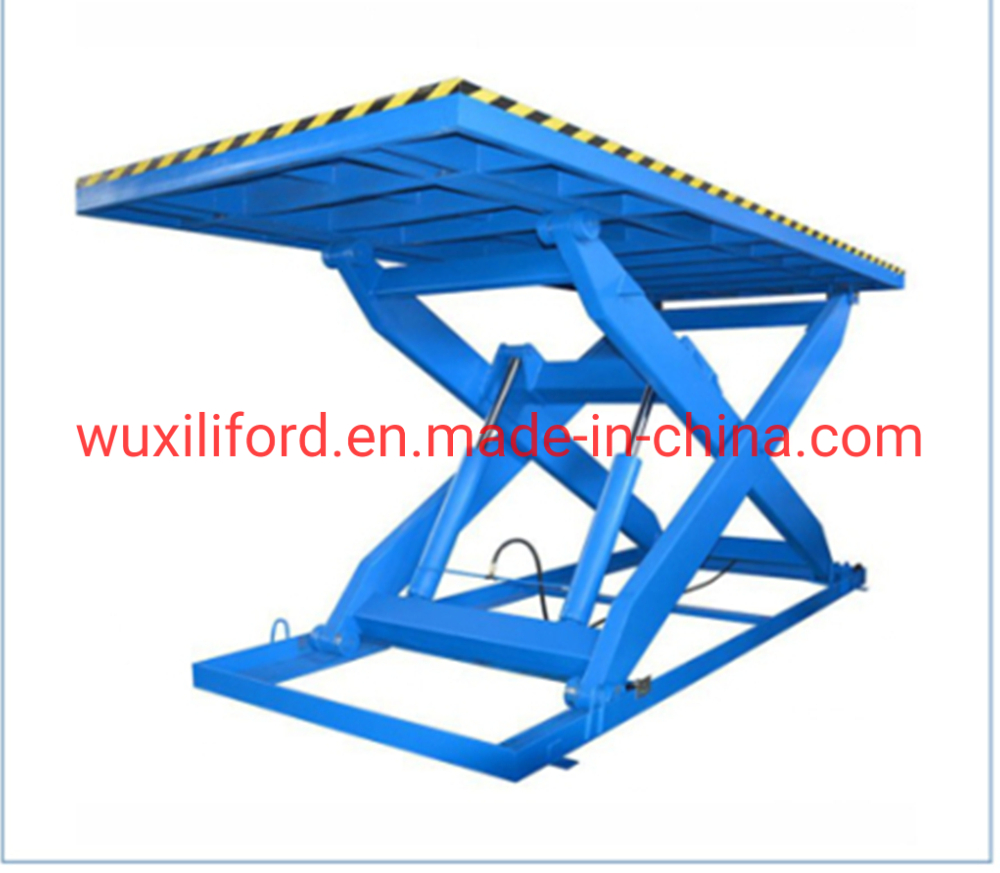

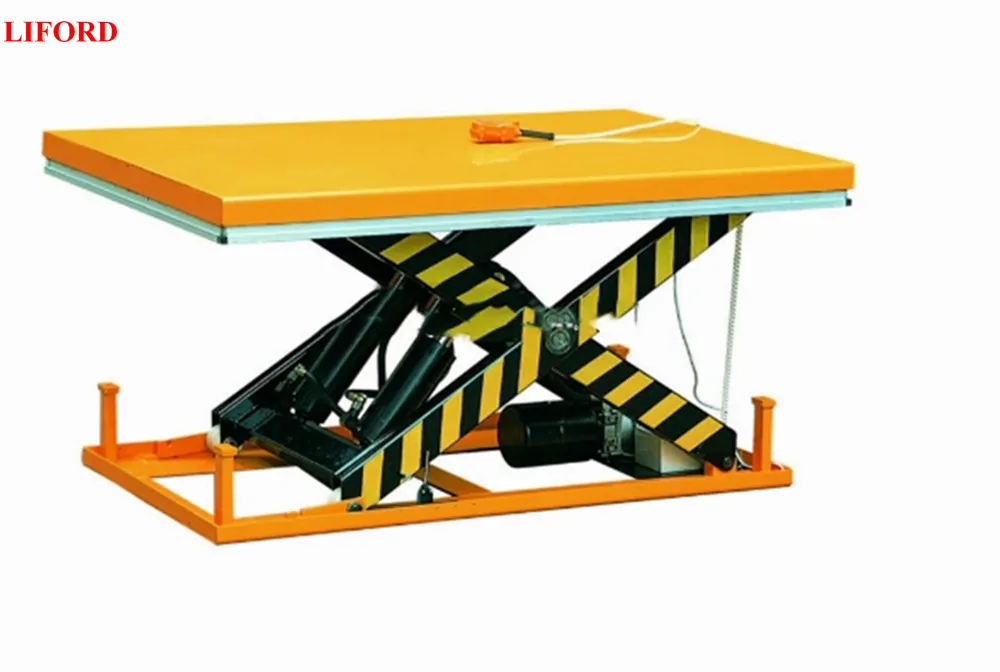

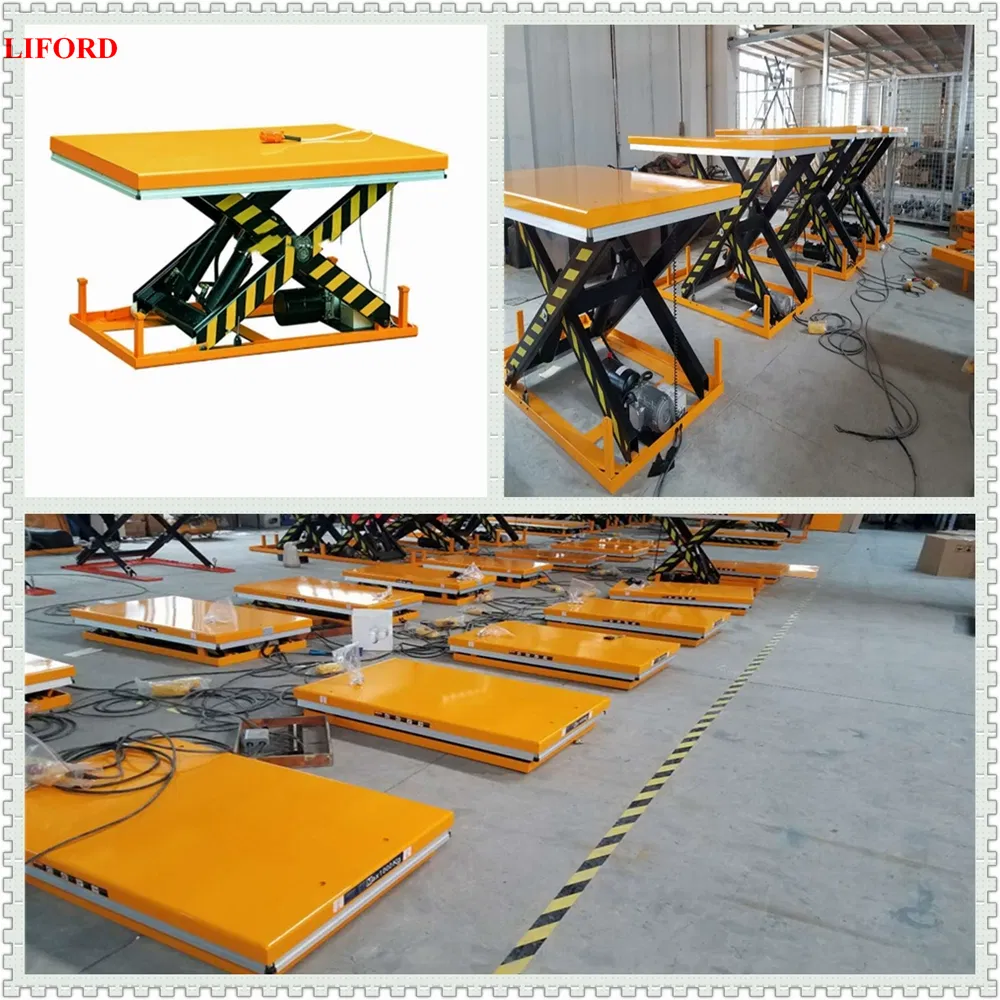

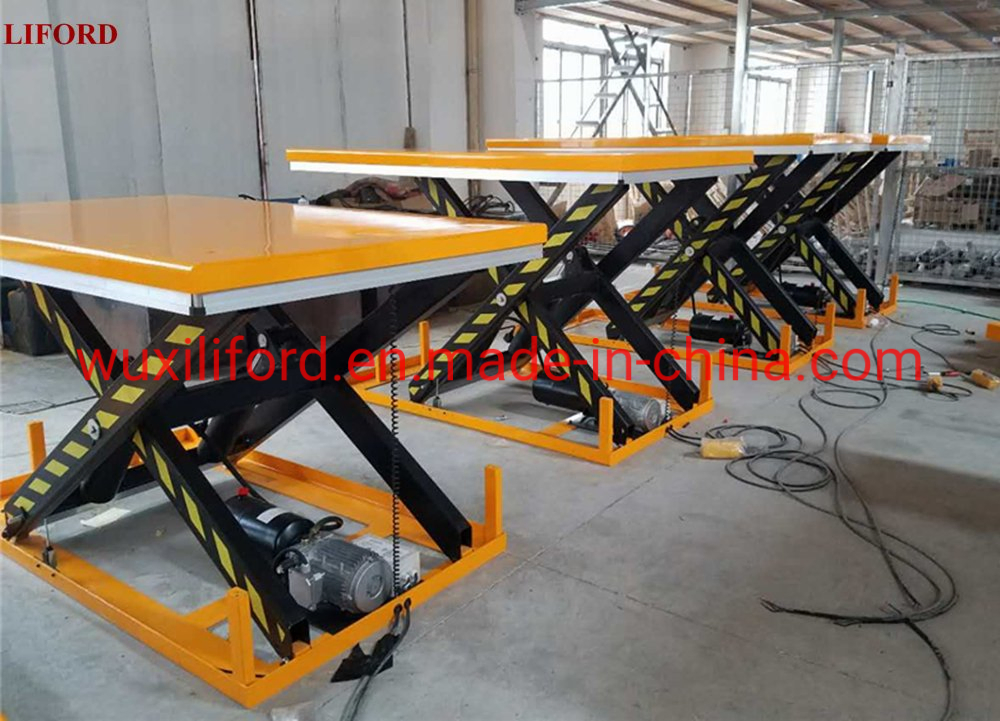

Stationary Scissor Lifting Platform - 2000kg to 4000kg

This heavy-duty electric scissor lift table is designed for stationary applications in workshops and warehouses, providing a stable and efficient solution for vertical material handling.

⭐ Key Features

Heavy duty design with capacity ranging from 1000kg to 4000kg.
High-quality pump station ensures smooth and steady lifting performance.
Equipped with anti-pinch safety features and overload protection.
External power pack with relief valve and compensated flow valve for speed control.
Upper platform fitted with a safety perimeter to prevent descent upon contact with obstructions.

📊 Technical Data Sheet

Model	Capacity (kg)	Height Min/Max (mm)	Platform Size (mm)	Base Size (mm)	Lift Time (s)	Power (V/Hz)	Weight (kg)
HW1001	1000	205/990	1300*820	1240*640	20~25	380/50	160
HW1003	1000	240/1300	1700*850	1580*640	30~35	380/50	200
HW2001	2000	230/1000	1300*850	1220*785	20~25	380/50	235
HW2005	2000	250/1300	2000*850	1600*785	25~35	380/50	300
HW4001	4000	240/1400	1700*1200	1600*900	30~40	380/50	375
HW4008	4000	350/1300	2200*1800	1620*1400	35~45	380/50	655

🛡️ Why Choose Our Equipment?

Over 10 years of professional experience in material handling industry.
Fast production and on-time delivery to keep your projects on schedule.
One-stop custom service and OEM/ODM availability for non-standard requirements.
100% inspection of all finished products before shipment.
Robust packaging: Strong cartons for air and heavy-duty pallets for sea freight.

❓ Frequently Asked Questions

Q1: What is the maximum load capacity of these lift tables?

Our stationary scissor lift series supports a wide range of capacities, from 1000kg (1 ton) up to 4000kg (4 tons), depending on the specific model chosen.

Q2: What safety features are included?

Safety is a priority. Each table includes an anti-pinch safety perimeter, overload protection via a relief valve, and a compensated flow valve to control lowering speed.

Q3: Can the platform size be customized?

Yes, we offer OEM/ODM services. While our standard sizes range from 1300*820mm to 2200*1800mm, we can design non-standard parts to meet your specific needs.

Q4: What power supply is required for operation?

The standard driven type is AC 380V/50Hz. This ensures powerful and consistent lifting performance for heavy-duty industrial use.

Q5: How is the product packaged for international shipping?

For sea delivery, we use strong pallets with stretch film or cartons to ensure the equipment arrives in perfect condition. For air freight, reinforced cartons are used.

Q6: What is the typical lifting time?

Lifting times vary by model and load, typically ranging from 20 to 45 seconds to reach maximum height.
