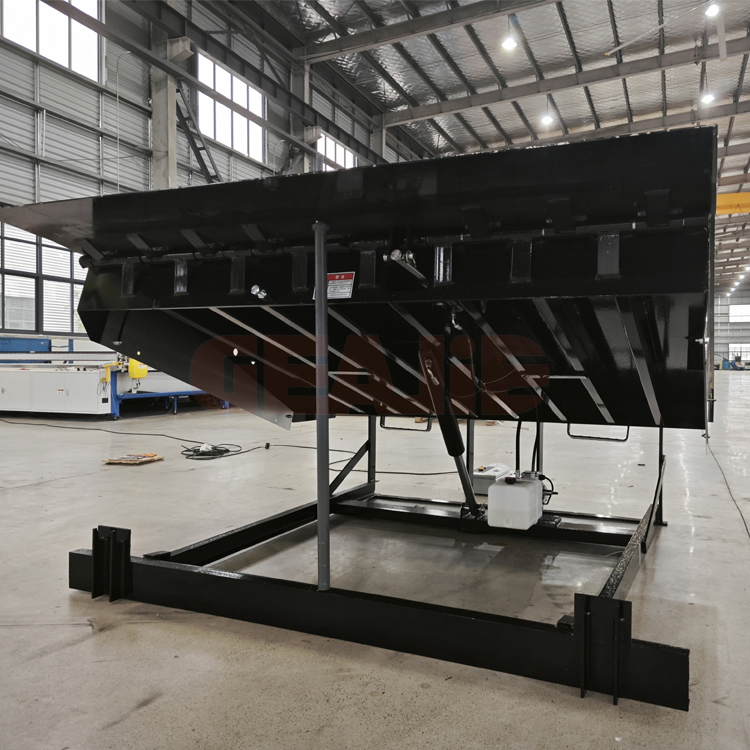

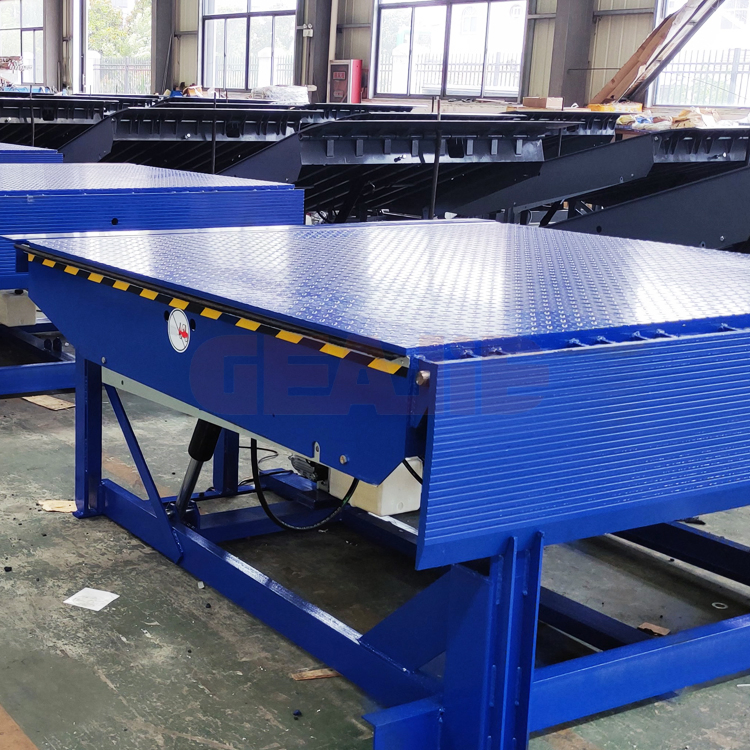

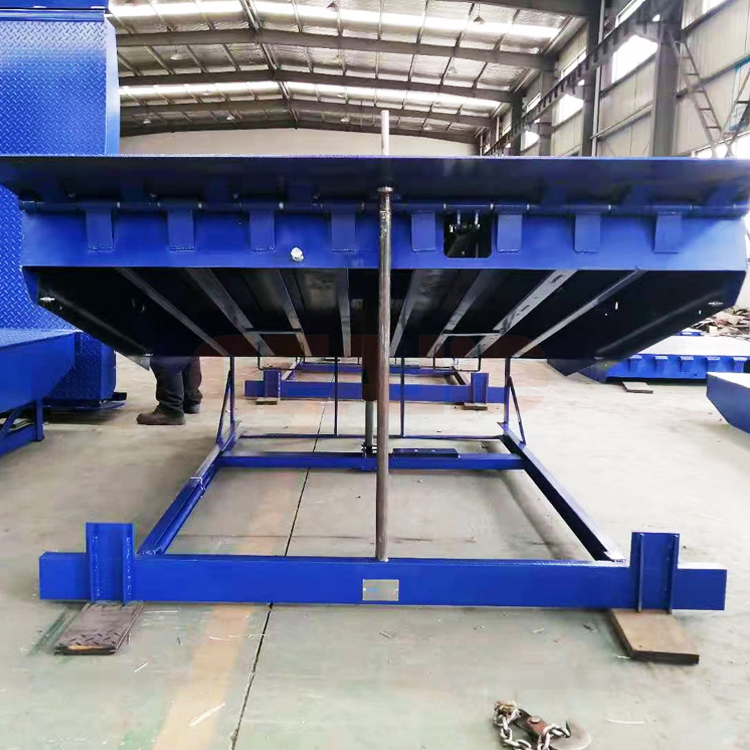

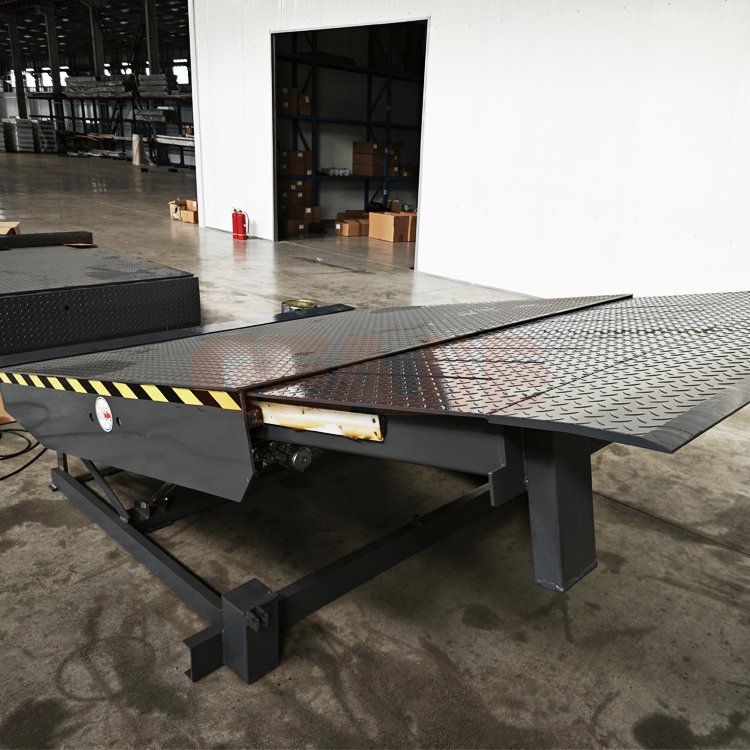

Mechanical Dock Leveler Heavy Duty 6.8 Tons Capacity Hydraulic Loading Dock Equipment CE & ISO Certified

Customization: Available
After-sales Service: Available
Warranty: 1 Year

Product Description

📋

Basic Product Specifications

Model NO.
DL04
Application
Warehouse Crane, Charge and Discharge
Lift Mechanism
Articulated Lift
Carrying Capacity
Weight Level (6.8 - 10 Tons)
Driven Type
Hydraulic
Certification
CE, RoHS, ISO 9001, AAA
Power Supply
380V / 0.75kw
Hydraulic System
Swiss Bucher Hydraulic System
Working Range
-300 to +350mm
Loading Capacity
Up to 10000kg
⚙️

Product Description

The DL04 Mechanical Dock Leveler is your reliable partner for seamless warehouse operations, bridging trucks and docks with precision and power. Featuring a premium Swiss Bucher hydraulic system, this heavy-duty unit handles up to 6.8 tons while ensuring smooth, safe transitions. Ideal for logistics parks, factories, and distribution centers, it cuts downtime and enhances productivity.

Mechanical Dock Leveler Heavy Duty

Key Advantages:

  • Superior Strength & Longevity: Crafted from premium, rust-proof steel for enduring performance in tough environments.
  • Smooth Hydraulic Performance: Advanced Swiss Bucher hydraulics provide effortless lifting from -300mm to +350mm.
  • Advanced Safety Integration: Equipped with non-slip decking, protective railings, and auto-lock systems.
  • Global Standards Compliance: Fully certified under CE, ISO 9001, and RoHS for quality assurance.
  • Versatile Fit: Adjustable design suits multiple vehicle types for industrial dock needs.
🖼️

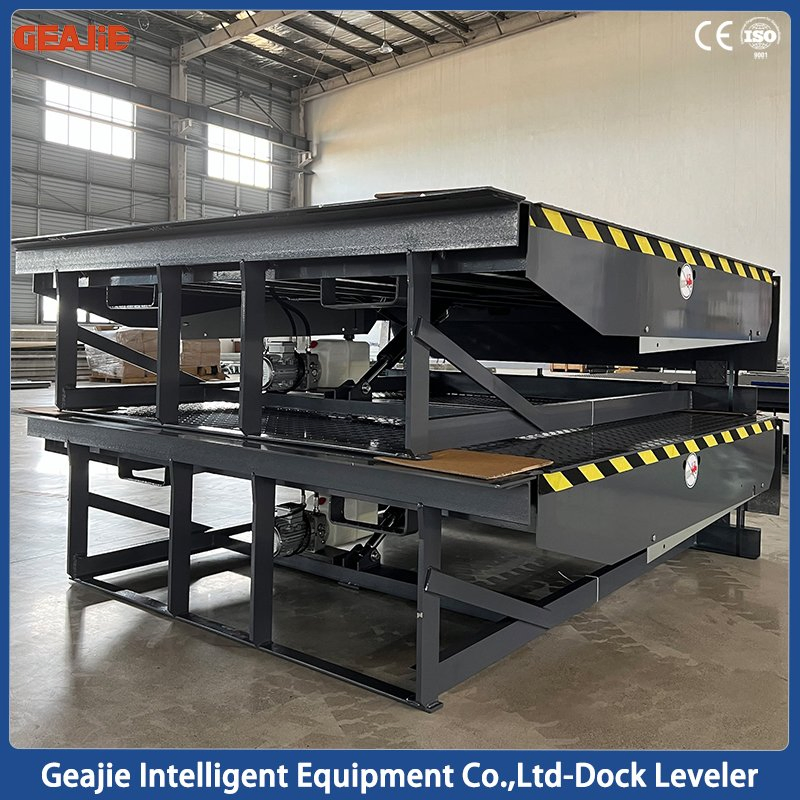

Electric Hydraulic Dock Leveller Gallery

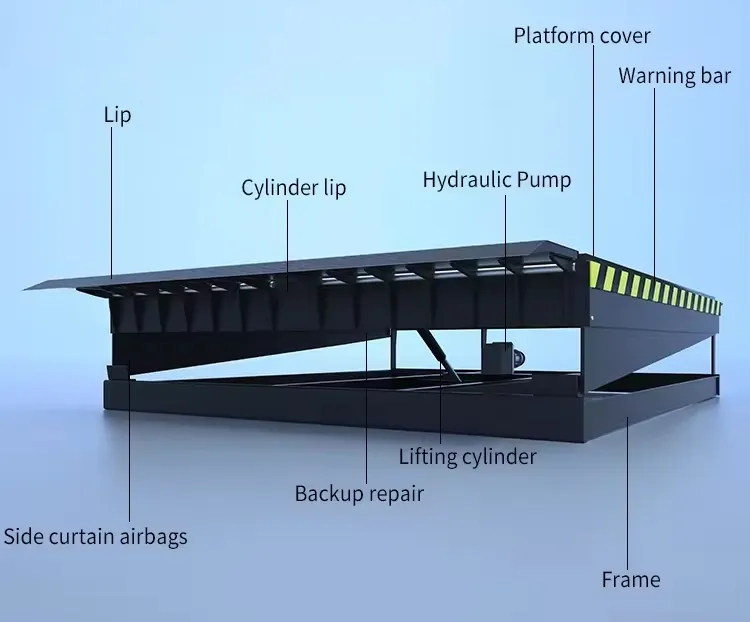

Electric Hydraulic Dock Leveller

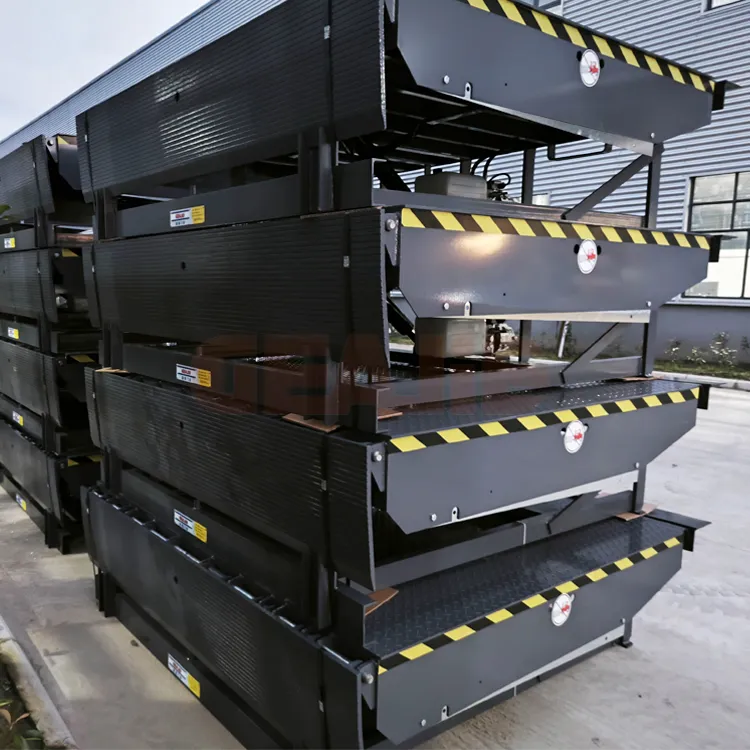

Product Show 1

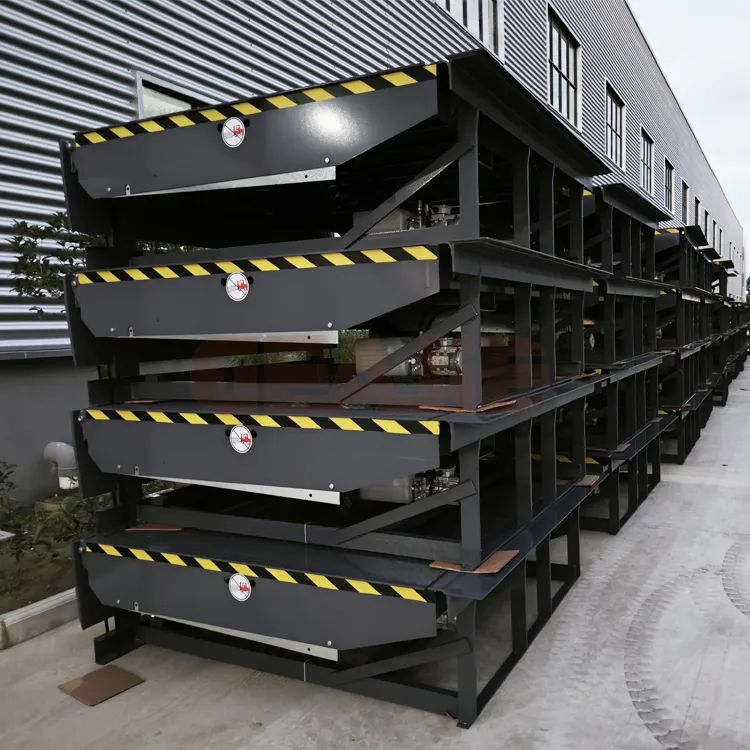

Product Show 2

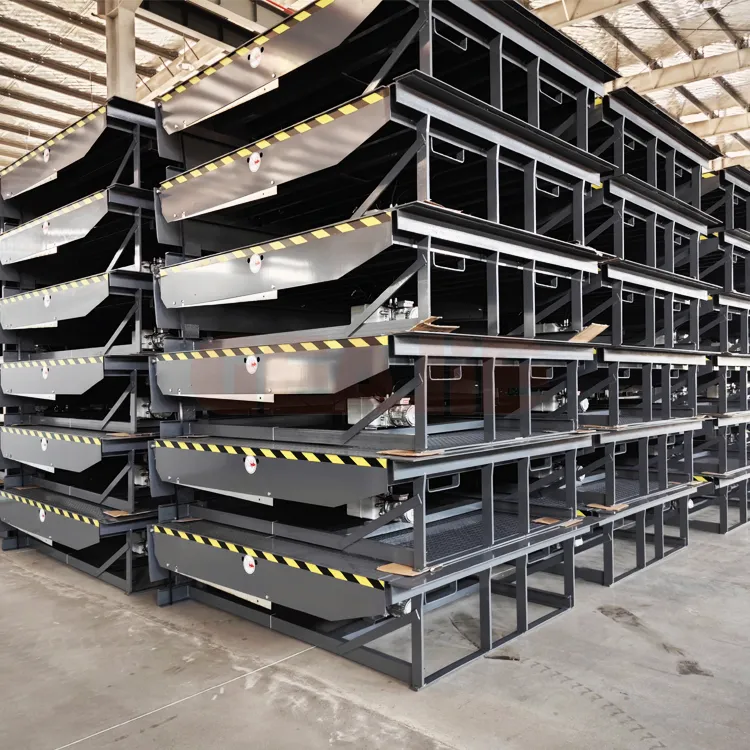

Product Show 3
Product Show 4
Product Show 5
📊

Material & Technical Description

Technical Specifications
Application EnvironmentLogistics unloading port
Load Capacity6 - 25 tons
Available Widths1830mm, 2000mm, 2130mm
Available Lengths2000mm, 2500mm, 3000mm, 3500mm
Countertop Structure8mm high-strength anti-skid pattern steel plate
Lip Thickness14mm / 16mm / 20mm based on load
Security ConfigurationAnti-fall, anti-pinch, maintenance support rod, self-locking
Standard Lip400mm (500mm optional)
🏗️

Structural Components

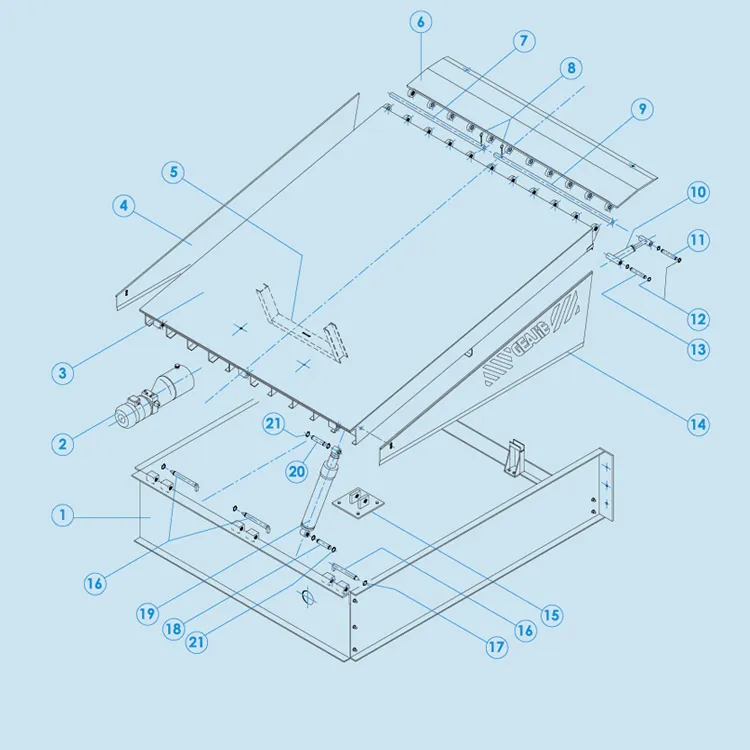

Structural Drawing
1. Mould12. Seeger straight pins of the lip
2. Hydraulic control unit13. Straight Pin body of the body
3. Upper plate14. Right foot guard
6. Swinging lip19. Upper plate cylinder

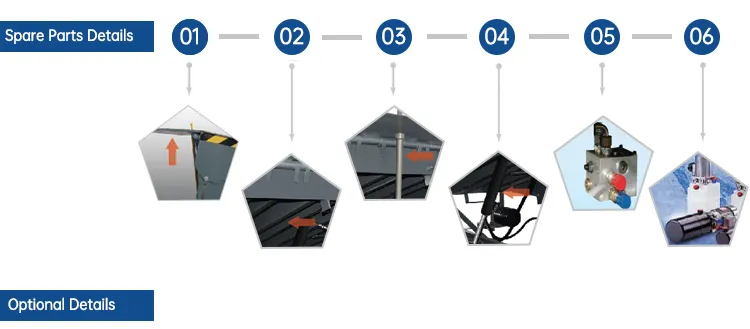

Base Requirements
🏭

Manufacturing Excellence

As a leading manufacturer specializing in high-performance loading dock solutions, we integrate R&D, production, and quality control in-house. With over 15 years of expertise, every unit undergoes rigorous testing to meet international benchmarks.

Factory View 1

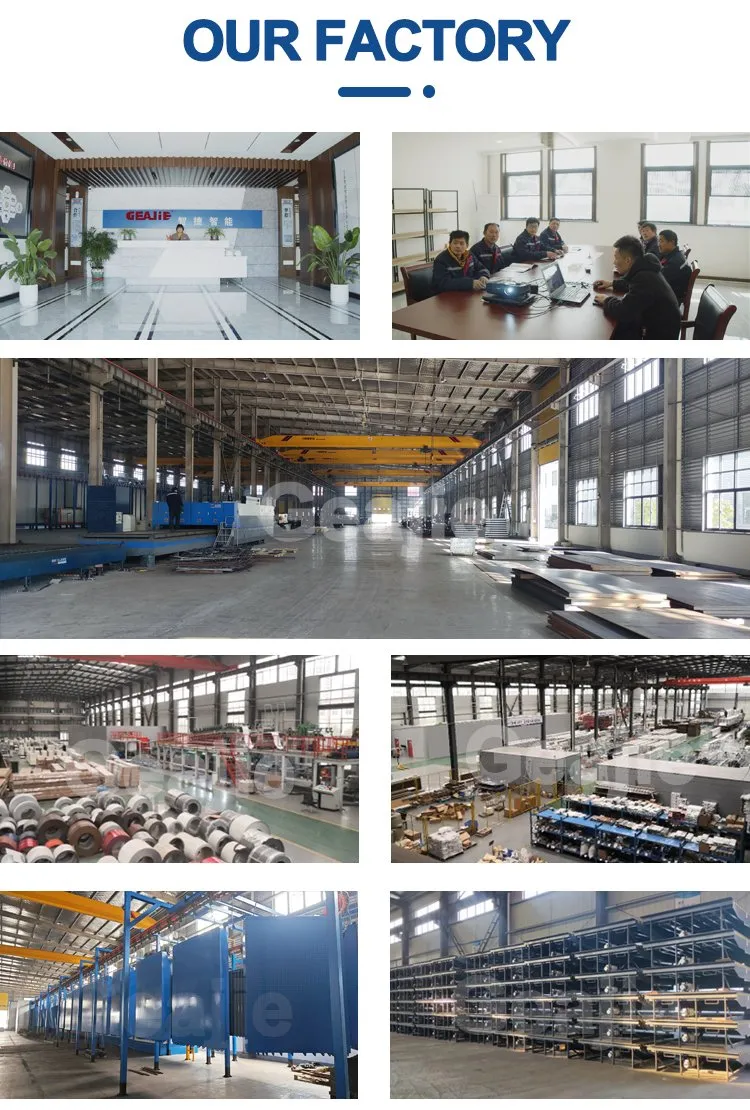

Factory View 2

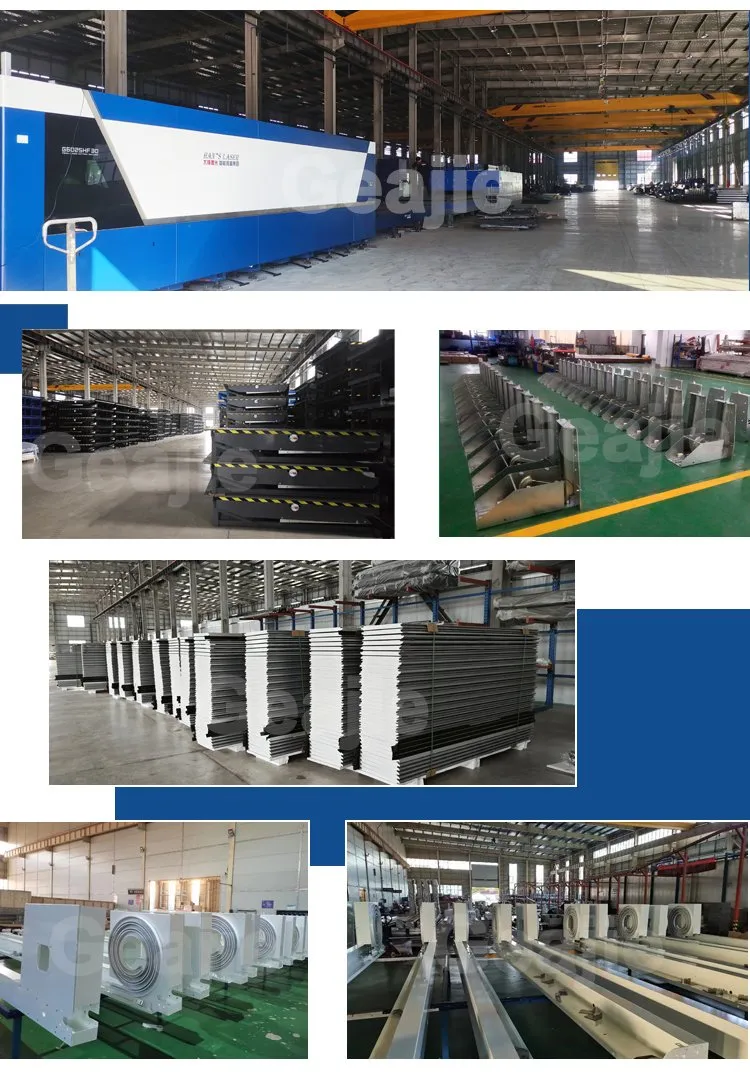

Factory View 3
Factory View 4

Frequently Asked Questions

What sets this Mechanical Dock Leveler apart from competitors?
The DL04 features a high load capacity (up to 10 tons) with a Swiss hydraulic system integrated into a rugged steel frame, delivering unmatched durability and low-maintenance efficiency.
Is installation complicated for this heavy-duty equipment?
No. The stationary design allows for straightforward setup. Most installations can be completed in a few hours with standard industrial tools and provided guides.
What certifications do your dock levelers hold?
Our products are fully compliant with CE, ISO 9001, and RoHS standards, ensuring safety, reliability, and quality for the global market.
Can the loading dock leveler be customized?
Yes, we provide full support for custom sizes, load capacities, and colors to match your specific warehouse pit requirements and operational needs.
What is the standard working range of the platform?
The standard working range is from -300mm to +350mm, allowing it to bridge the gap between various truck heights and the loading dock effectively.
How do you ensure the safety of workers during operation?
The unit includes an anti-slip pattern steel plate, safety side guards (toe guards), a platform anti-fall function, and a safety maintenance support rod.
