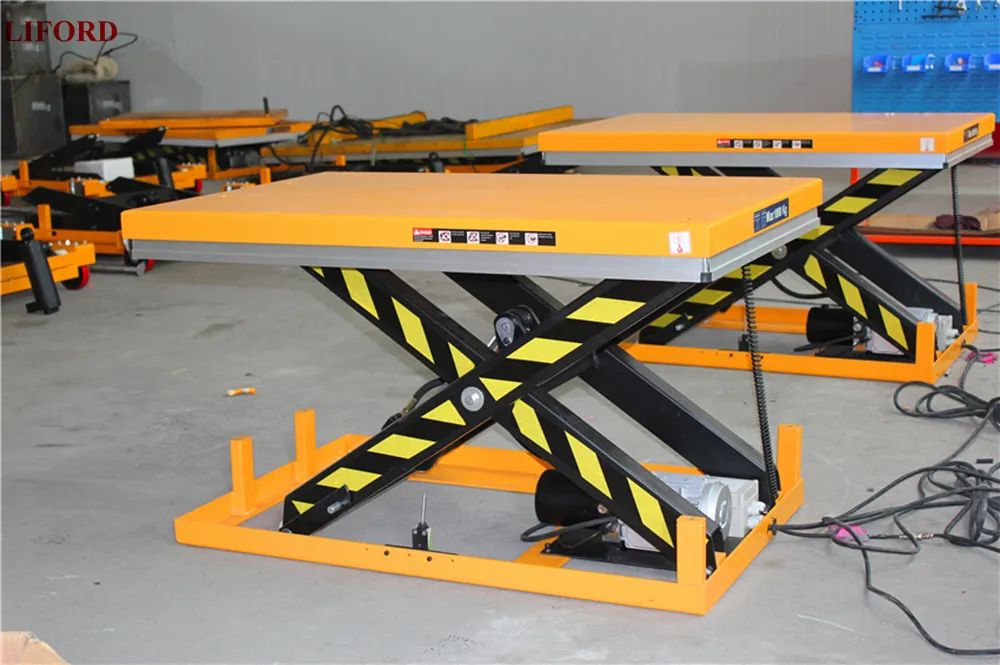

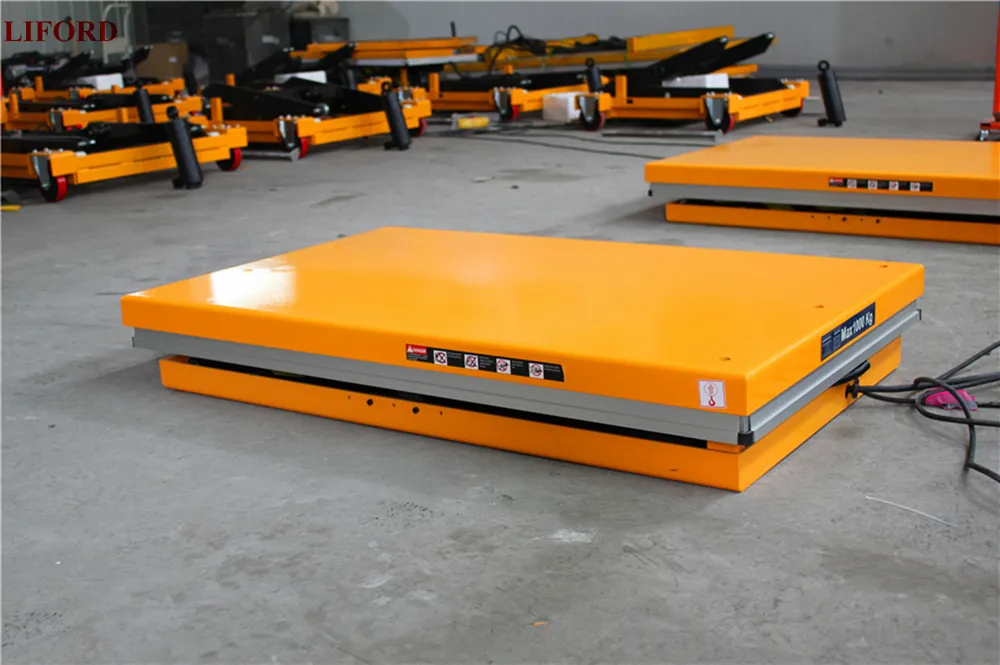

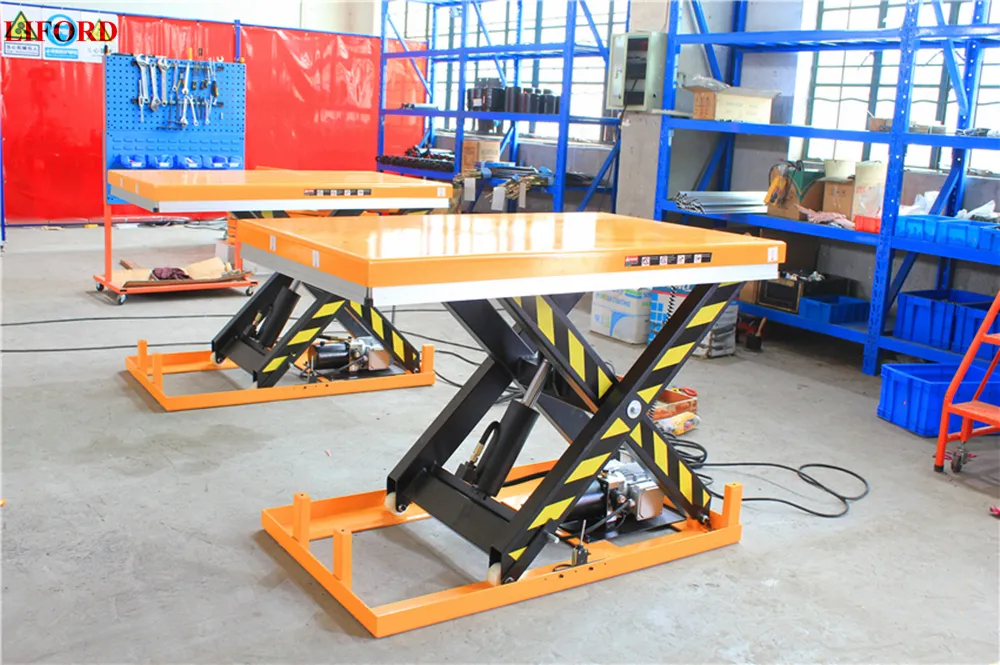

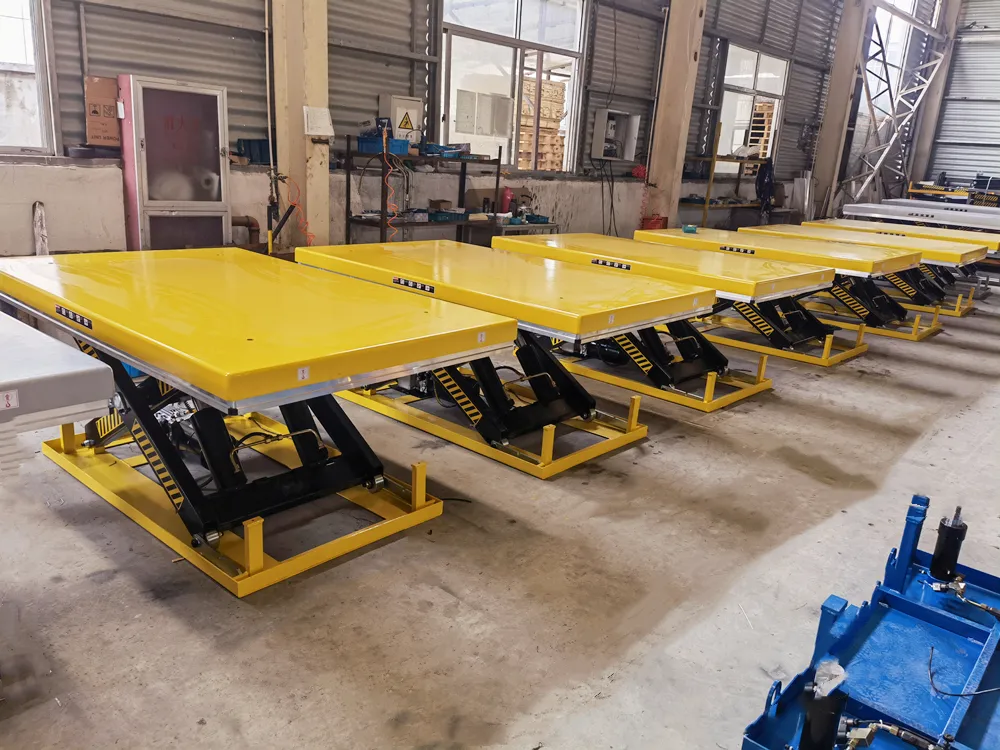

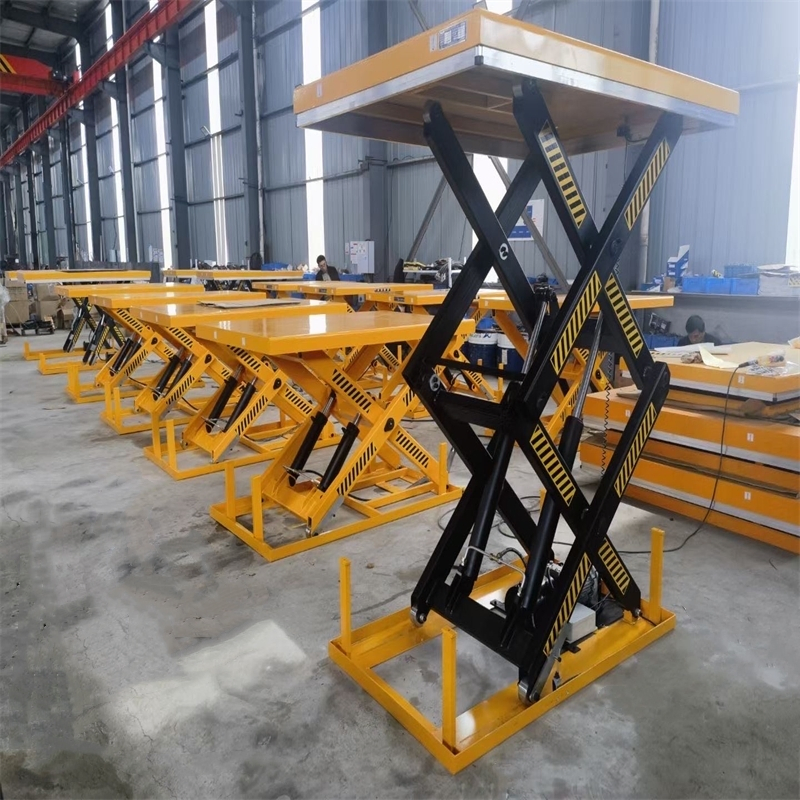

1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulic Lift Table Hw1006

1 / 5

1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulic Lift Table Hw1006

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.HW1001, HW2001, HW4001 series

ApplicationWorkshop, Shipboard, Warehouse, Building Crane

Lift MechanismScissor Lift

Carrying Capacity1000kg - 4000kg

Driven TypeAC (380V/50Hz)

CertificationCE, ISO 9001

Lifting Height205mm - 1300mm

Platform Size1300*820mm - 2200*1800mm

💡 Key Features

🔹 Heavy duty design 1000-4000kg; strong structure and steady performance.
🔹 High quality pump station provides smooth lifting features.
🔹 Integrated anti-pinch and overload protection functions.
🔹 External power pack equipped with a relief valve against overloading.
🔹 Compensated flow valve for precise lowering speed control.
🔹 Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.

📋 Technical Data

Model	Capacity (kg)	Height Min/Max (mm)	Platform Size (mm)	Base Size (mm)	Lift Time (s)	Weight (kg)
HW1001	1000	205/990	1300*820	1240*640	20~25	160
HW1006	1000	240/1300	2000*1000	1580*640	30~35	223
HW2001	2000	230/1000	1300*850	1220*785	20~25	235
HW2006	2000	250/1300	2000*1000	1600*785	25~35	315
HW4001	4000	250/1400	1700*1200	1600*900	30~40	375
HW4008	4000	300/1400	2200*1800	1620*1400	35~45	655

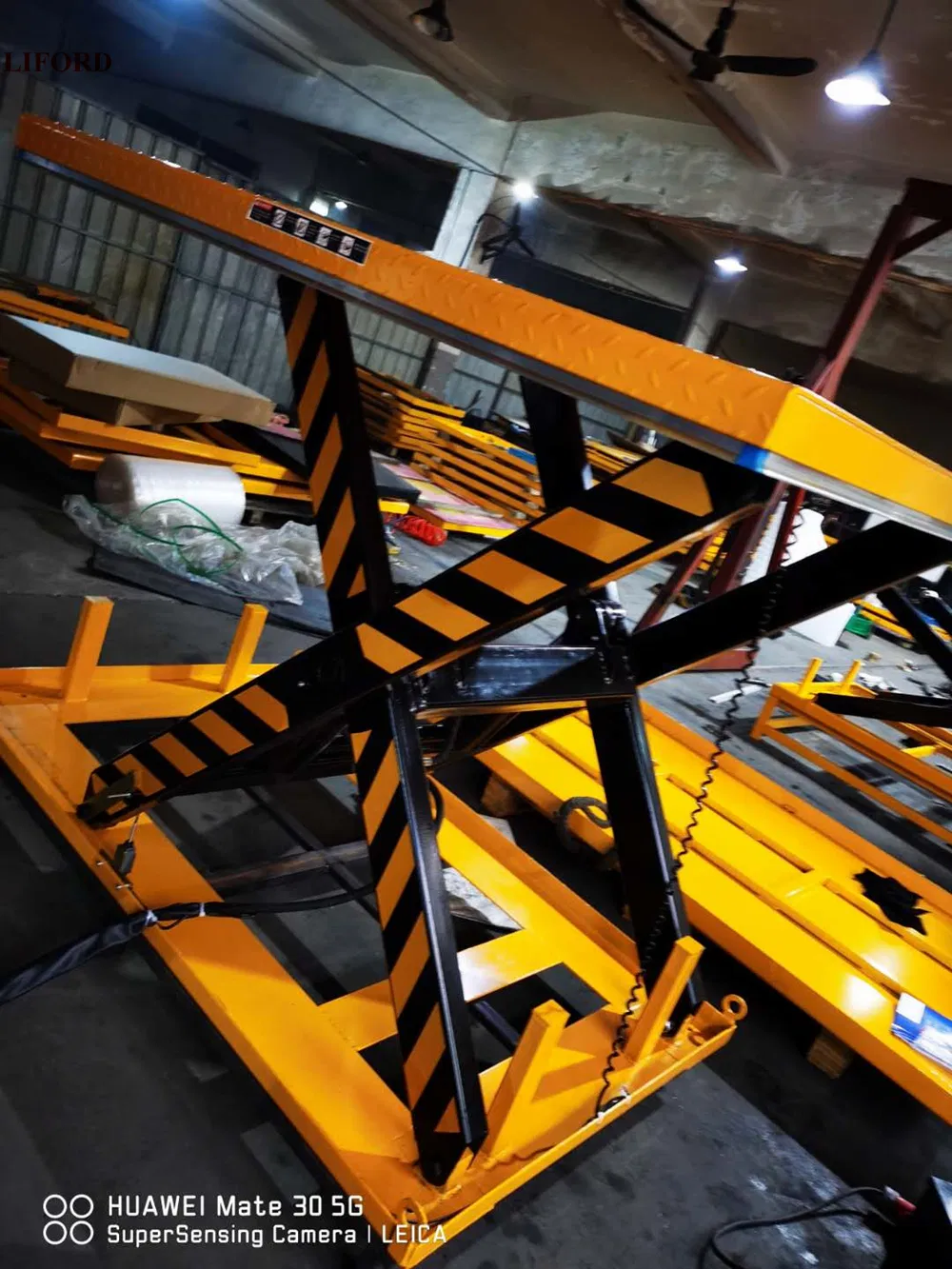

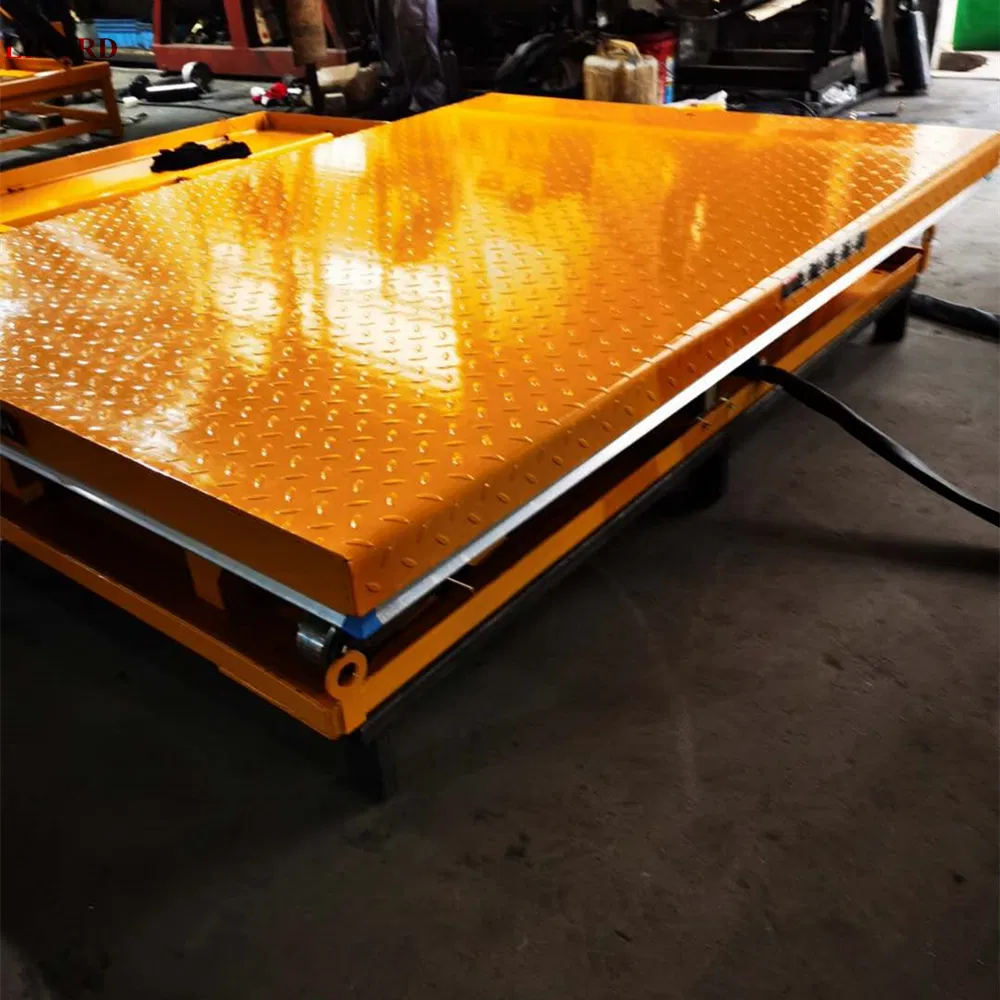

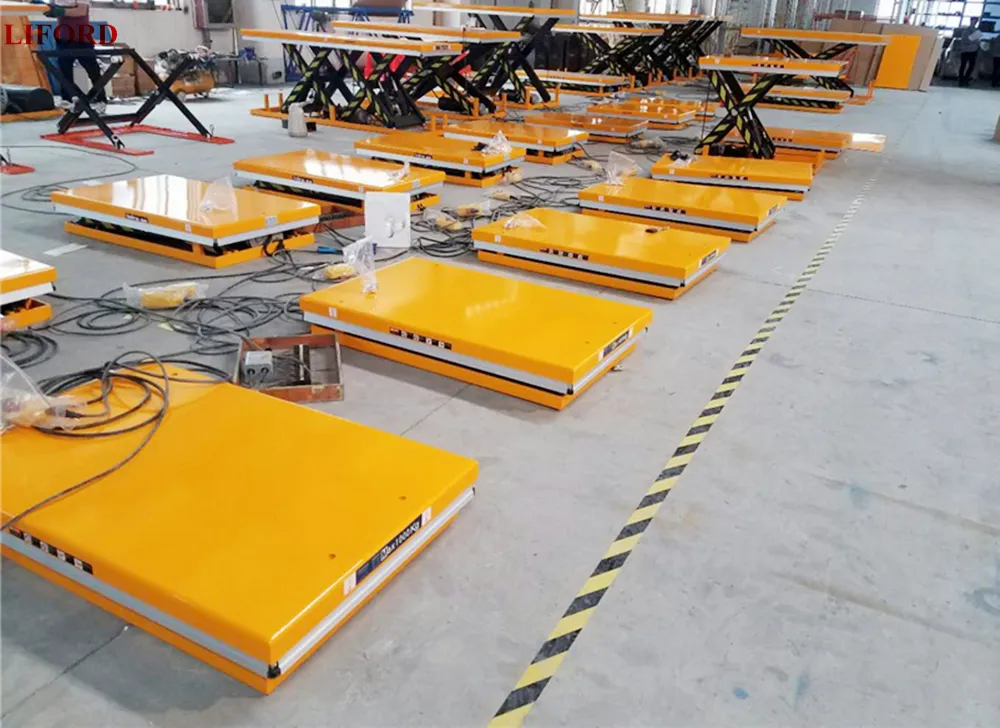

🔍 Quality Details

📦 Packaging & Delivery

Package Size215.00cm * 115.00cm * 60.00cm

Gross Weight247.000kg

Sea DeliveryStrong pallet and stretch film/cartons

Air DeliveryStrong cartons with packing belts

✅ Why Choose Our Lift Tables?

⭐ Over 10 years of professional experience in material handling industry.
⭐ Fast production and on-time delivery to keep your projects on schedule.
⭐ One-stop custom service and value-added solutions.
⭐ OEM/ODM services available for non-standard requirements.
⭐ 100% inspection of finished products before shipment.

❓ Frequently Asked Questions

1. What is the maximum capacity of your stationary lift tables? Our standard series ranges from 1000kg to 4000kg, designed for heavy-duty industrial applications.

2. Does the lift table include safety features? Yes, it is equipped with a safety perimeter to prevent descent upon contact with obstructions, as well as overload protection and anti-pinch functions.

3. What power supply is required? The standard power supply is AC 380V/50Hz. Custom voltages can be discussed through our OEM services.

4. Can I customize the platform size? Yes, we provide one-stop custom services and can design various non-standard platform sizes according to your specific needs.

5. How is the product protected during shipping? For sea delivery, we use strong pallets and stretch film. For air delivery, we utilize reinforced cartons with packing belts to ensure arrival in perfect condition.

6. Are the products certified? Yes, all our stationary lift tables are manufactured under ISO 9001 standards and carry CE certification.
