Product Description

Basic Info.
Model NO.
HY1001, HY1501, HY2001
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Driven Type
AC (380V/50Hz)
Certification
CE, ISO 9001
Product Name
U-Shape Lift Table
Capacity
1000-2000kg
Min. Height
85mm --- 105mm
HS Code
8427900000
Production
600PCS/Month
Product Description
Low Profile Scissor Lift

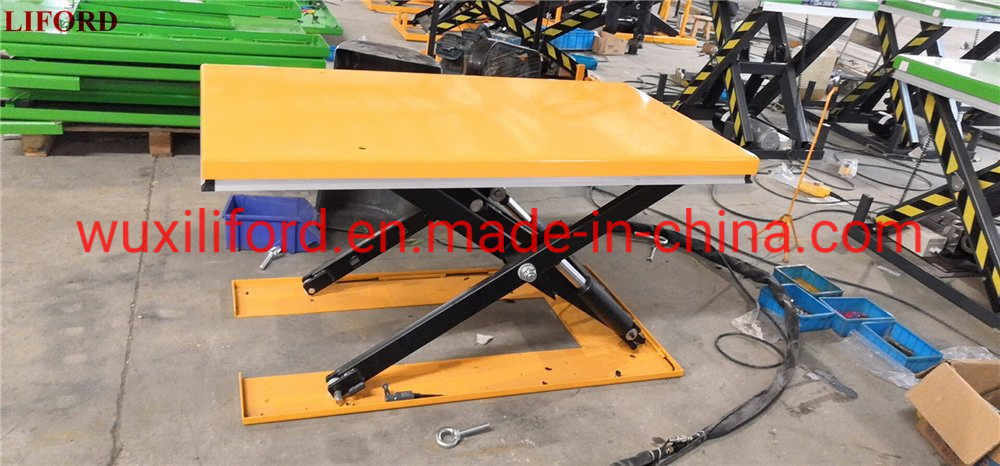

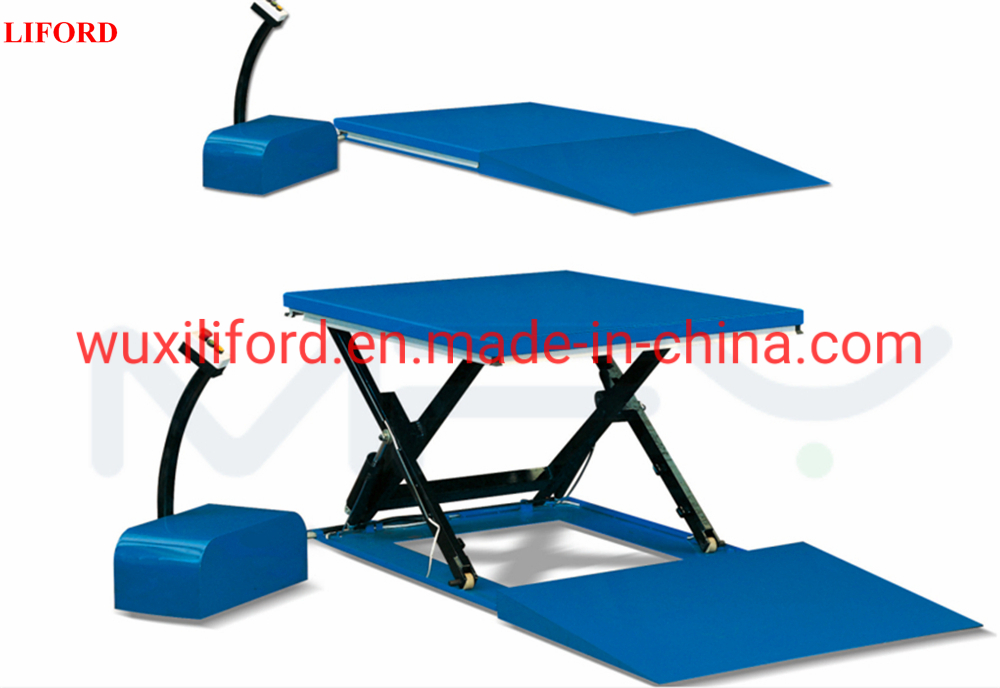

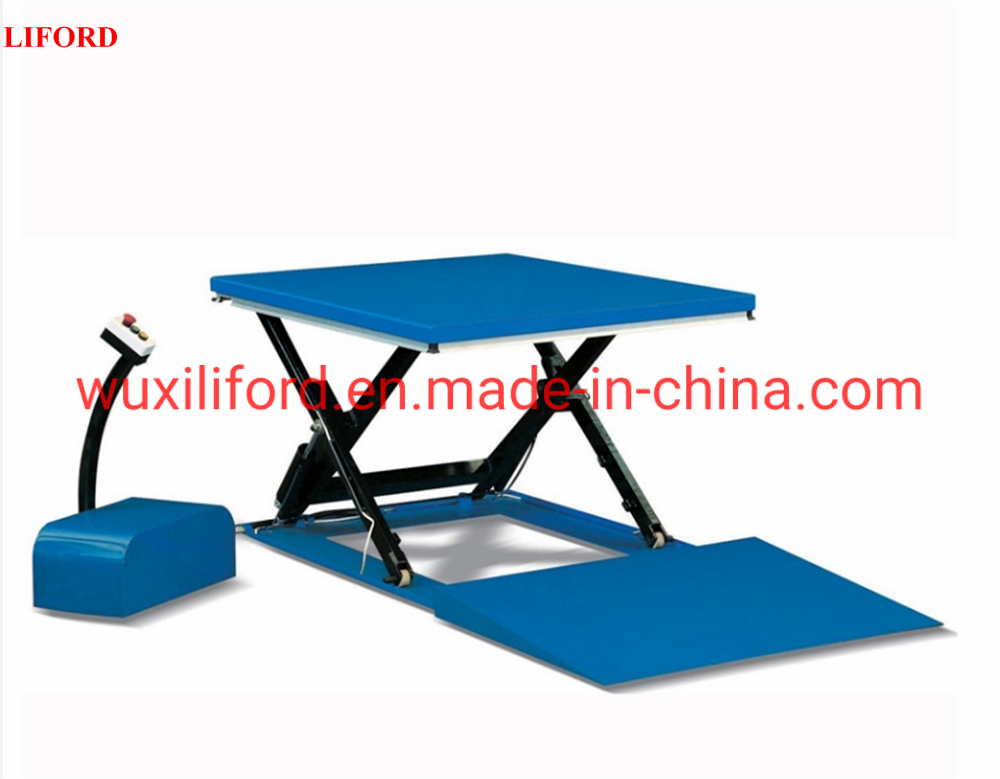

Capacity 1t 2t Low Profile Electric Scissor Lift Table

Structure

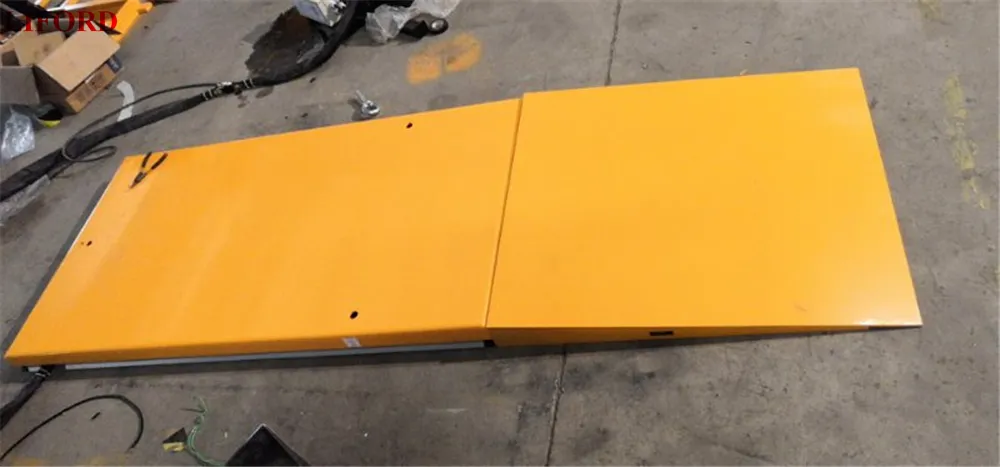

Design

Key Features

  • Closed height only 85-105mm, no ramp needed for pallets.
  • Mechanical safety chocks for safe maintenance procedures.
  • Super low closed height eliminates the need for pit installation.
  • Complies with EN1570 norm and ANSI/ASME safety standards.

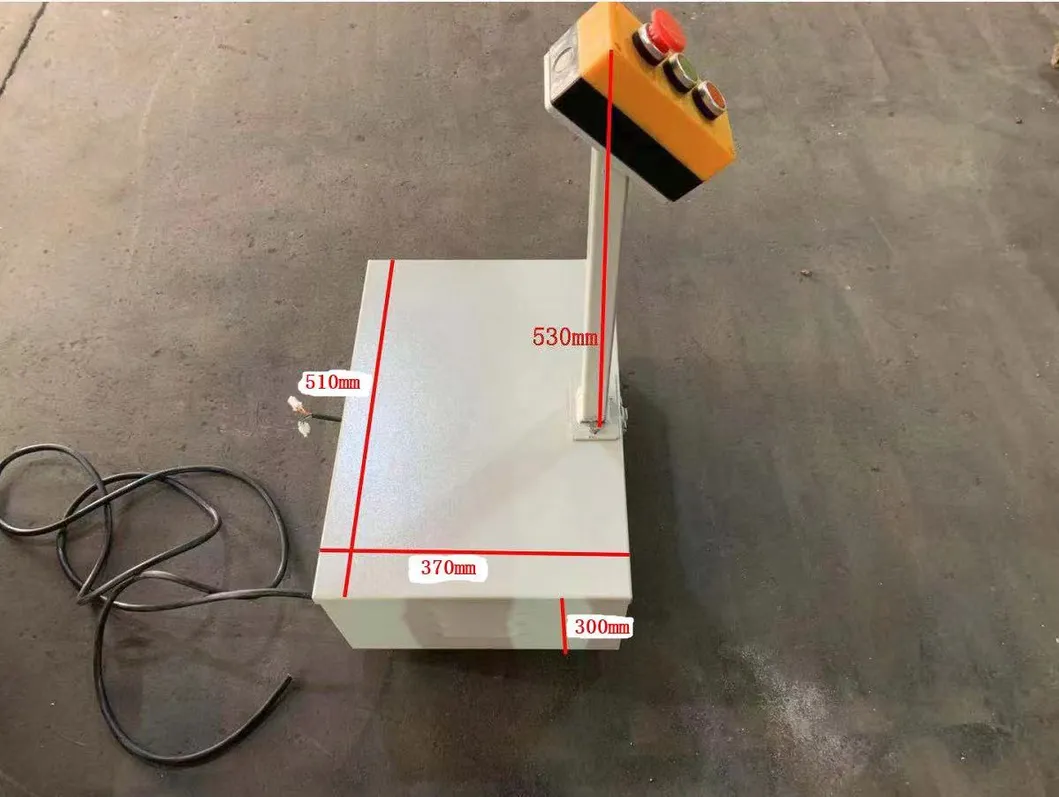

  • Remote power pack with pedestal and IP54 protected controls.
  • Upper platform with safety perimeter to prevent descent on obstruction contact.
  • 24V control box with UP/DOWN buttons and Emergency Stop.
  • External power pack with relief valve against overloading.
  • Hose burst safety valve to prevent emergency lowering.
  • Removable lifting hooks for easy handling and installation.

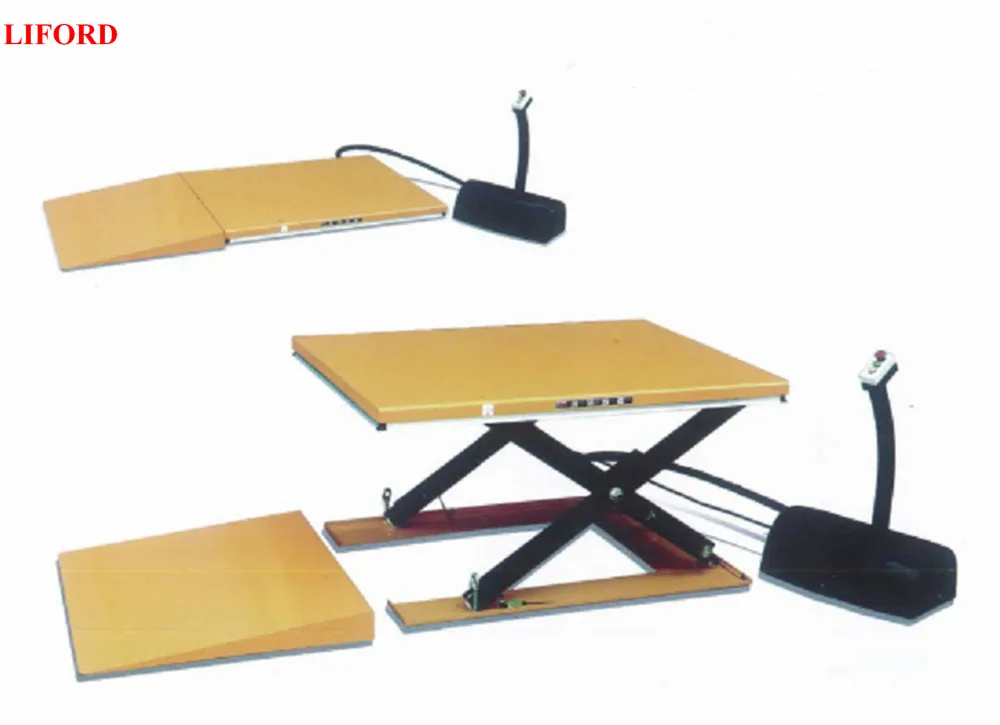

Workshop
Application
Details
Technical Data
Model Capacity (kg) Height Min/Max (mm) Table Size (mm) Lifting Time (s) Power N.W. (kg)
HY1001100085/8601450*114025380V/50Hz357
HY1002100085/8601600*114025380V/50Hz364
HY1003100085/8601450*80025380V/50Hz326
HY15011500105/8701600*80030380V/50Hz302
HY20012000105/8701600*118035380V/50Hz419
Technical Drawing
Why Choose Us?
  • Professional Experience: Over 10 years in material handling industry.
  • Fast Delivery: Optimized production cycles to ensure on-time project usage.
  • Custom Service: OEM/ODM capabilities to meet specific non-standard requirements.
  • Quality Assurance: 100% inspection of finished products before shipment.
  • Robust Packaging: Strong cartons for air and heavy-duty pallets for sea freight.
Quality Control
Frequently Asked Questions
Do I need to dig a pit for this lift table?
No, the HY series features a super low profile (min height 85mm), allowing for direct floor placement without pit installation.
What is the standard power supply?
The standard configuration is 380V/50Hz AC, suitable for most industrial workshop environments.
How does the safety perimeter work?
The upper platform is fitted with an aluminum safety bar. If it encounters an obstruction during descent, it automatically stops the table to prevent injury or damage.
What is the typical lifting time?
Depending on the model and capacity (1t to 2t), the lifting time ranges from 25 to 35 seconds.
Can I request custom table sizes?
Yes, we provide OEM/ODM services and can design non-standard platform sizes based on your specific application needs.
How is the product protected during shipping?
We use heavy-duty pallets wrapped with stretch film or reinforced cartons to ensure the equipment arrives in perfect condition.
