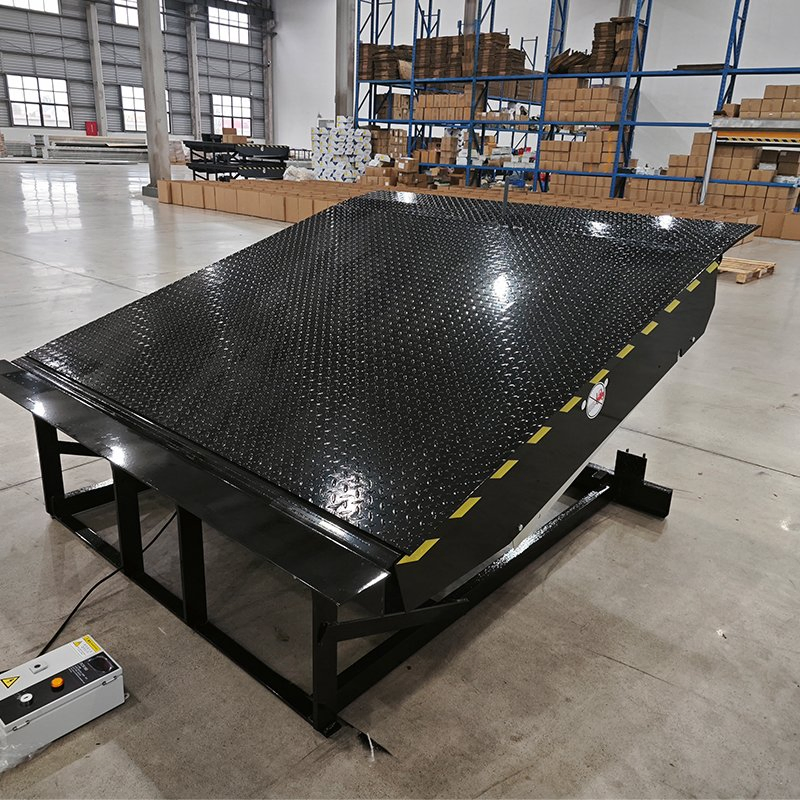

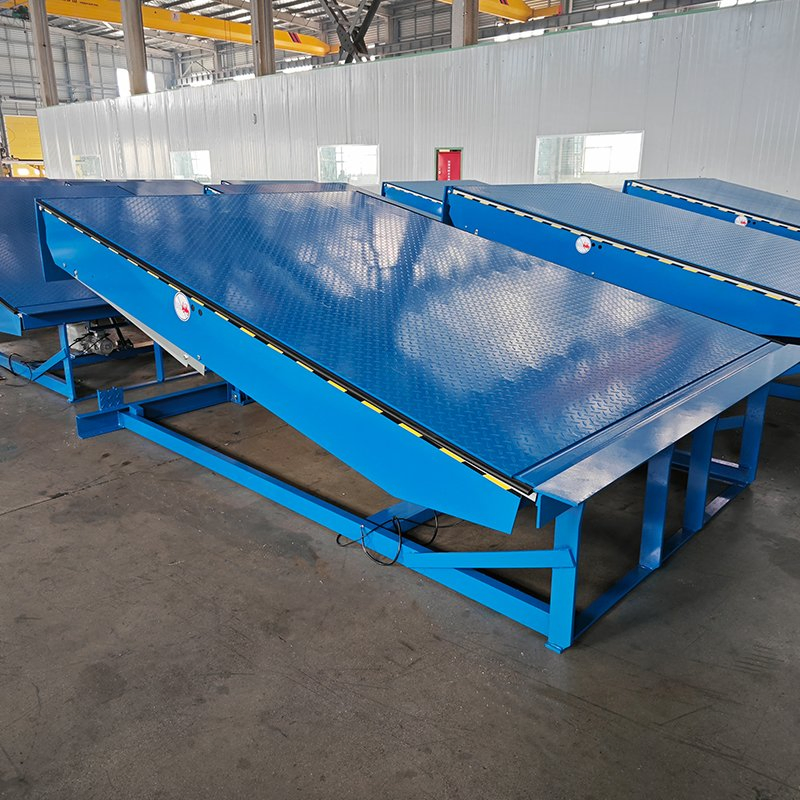

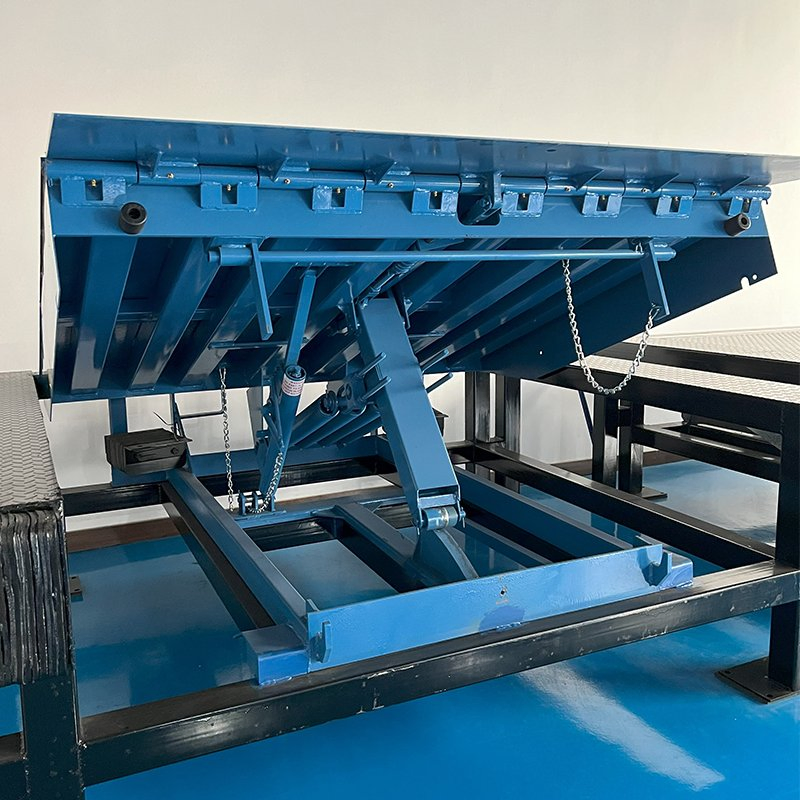

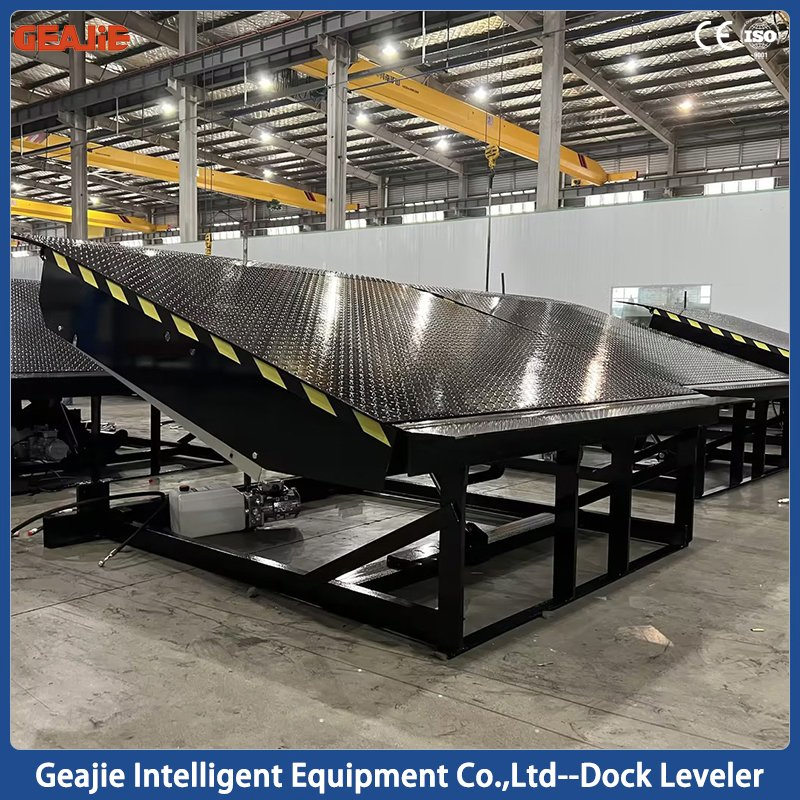

Industrial Warehouse Lifting Platform Loading Hydraulic Dock Leveler

1 / 5

Industrial Warehouse Lifting Platform Loading Hydraulic Dock Leveler

Customization:	Available
After-sales Service:	Available
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.DL01

ApplicationWorkshop Crane, Warehouse Crane

Lift MechanismArticulated Lift

Driven TypeHydraulic

CertificationCE, RoHS, ISO 9001, AAA

Loading Capacity10000kg

Power Supply380V/0.75kw

Hydraulic UnitSwiss Bucher Hydraulic System

Working Range-300 to +350mm

OriginChina

Product Overview

Electric Hydraulic Dock Leveller

✔ High-strength anti-skid pattern steel plate (8mm countertop, up to 20mm lip).

✔ Equipped with premium Swiss Bucher Hydraulic Systems.

✔ Comprehensive safety: anti-fall function, anti-pinch protection, and night self-locking.

Product Parameters

Feature	Specification
Load Capacity	6 - 25 tons
Width Options	1830mm, 2000mm, 2130mm
Length Options	2000mm to 3500mm
Lip Style	Standard tongue, T-shaped, or Three-section
Control Unit	380V / 0.75Kw (Standard)
Security	Platform anti-fall & anti-pinch safety protection

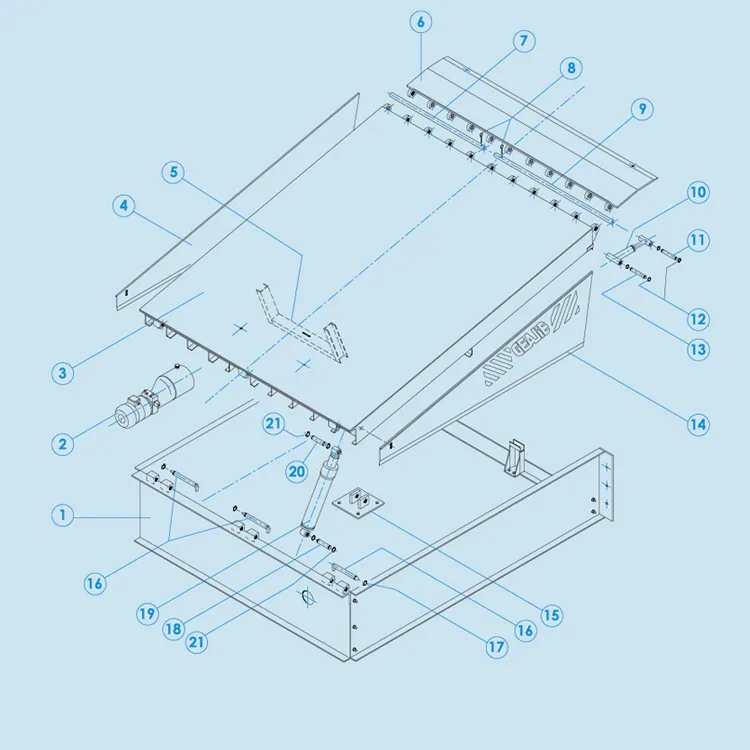

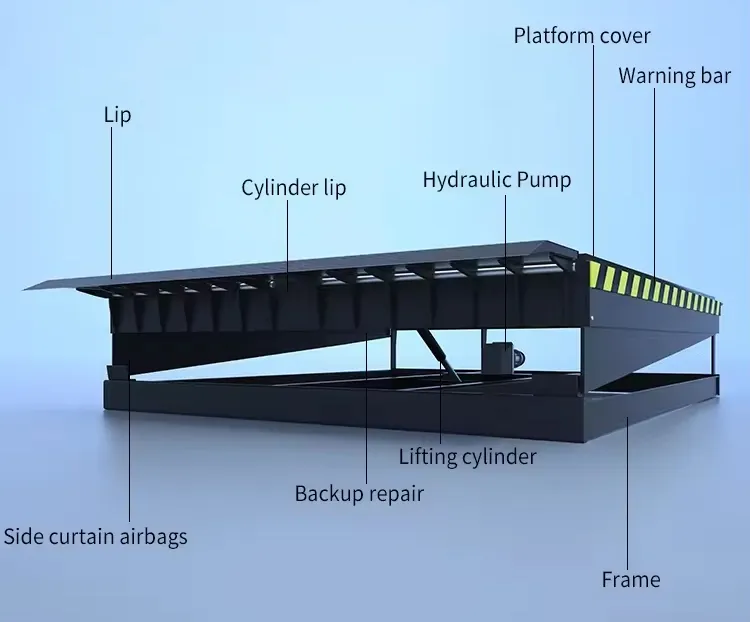

Structural Drawing & Components

1. Mould	12. Seeger straight pins of the lip
2. Hydraulic control unit	13. Straight Pin body of the body
3. Upper plate	16. Upper plate rotation pivot
6. Swinging lip	19. Upper plate cylinder

Key Advantages

Durable Material: Made of heavy-duty steel treated for corrosion resistance.

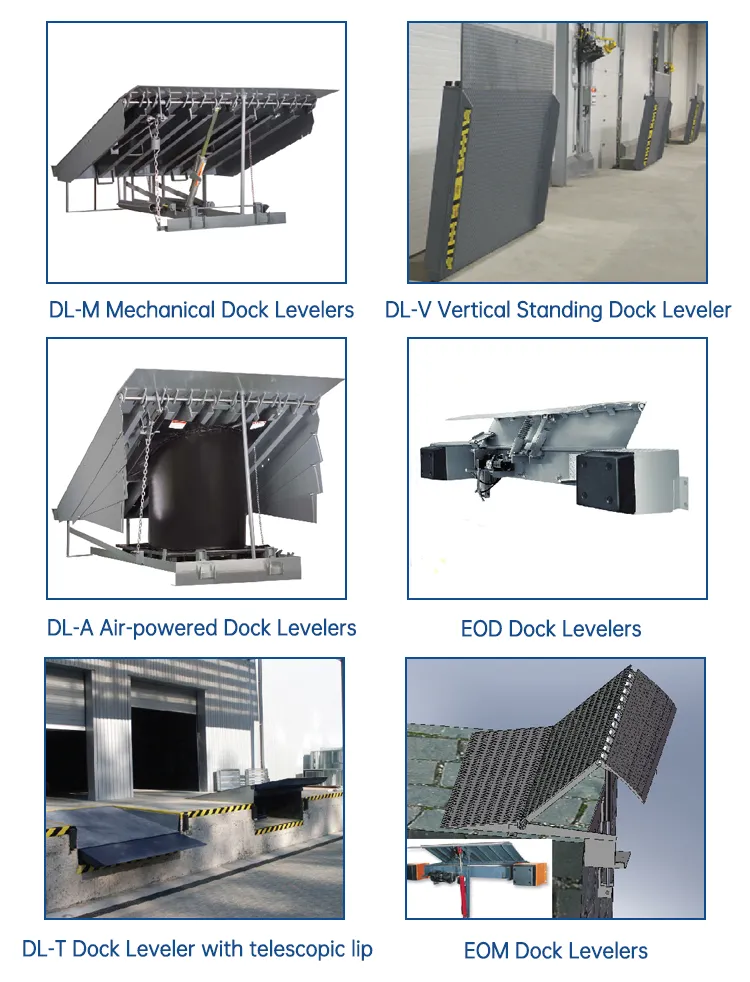

Flexible Operation: Available in hydraulic, pneumatic, and mechanical types with remote or button control.

Enhanced Safety: Includes safety barriers, anti-slip surfaces, and advanced sensors.

Customizable: Adjustable heights to accommodate various truck and dock specifications.

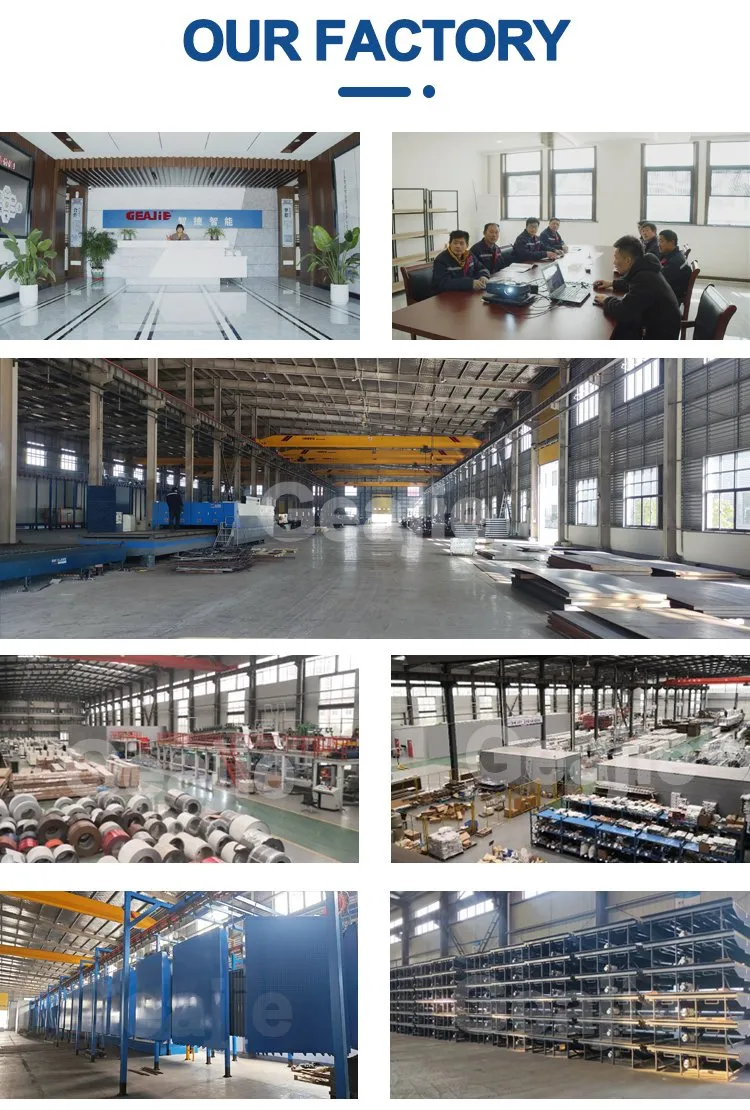

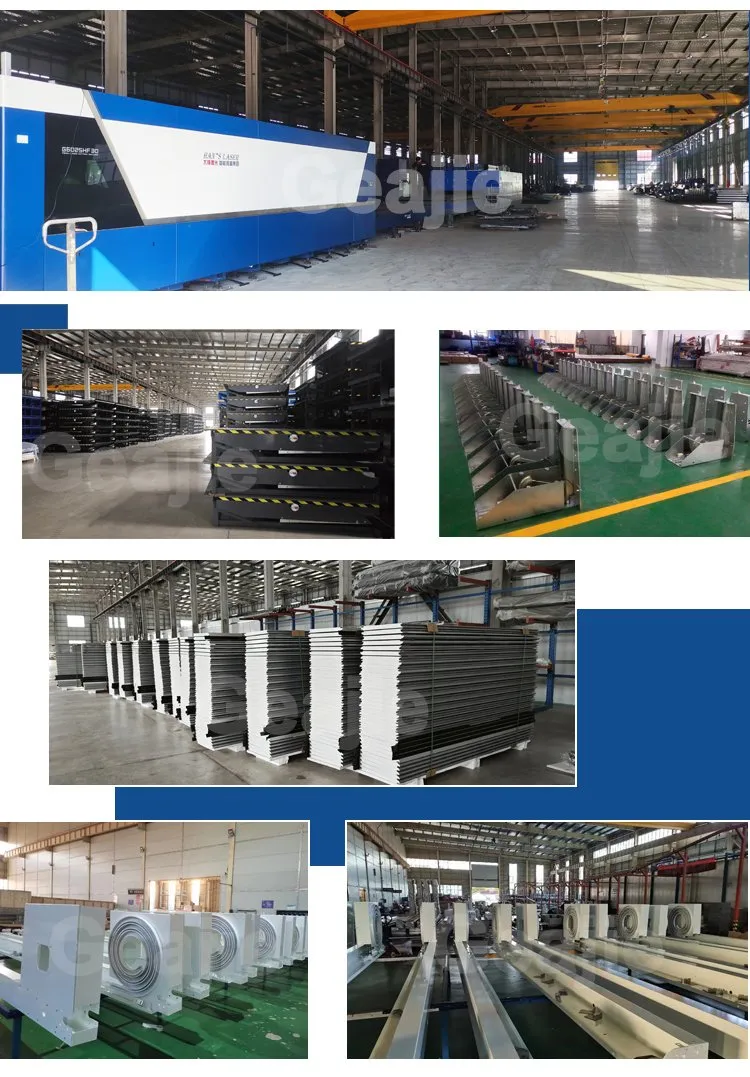

Factory & Production

Frequently Asked Questions

Q1: What is the Minimum Order Quantity (MOQ)? A: The MOQ is 1 set.

Q2: What are the maximum available dimensions for the platforms? A: The maximum length is 6.5M and the maximum width is 6M (adjustable).

Q3: Are other types of industrial doors and accessories available? A: Yes, we also provide sliding doors, rapid doors, garage doors, rolling shutters, and industrial fans. We produce most parts in-house to ensure quality control.

Q4: How difficult is the installation process? A: Our products are designed for very easy installation.

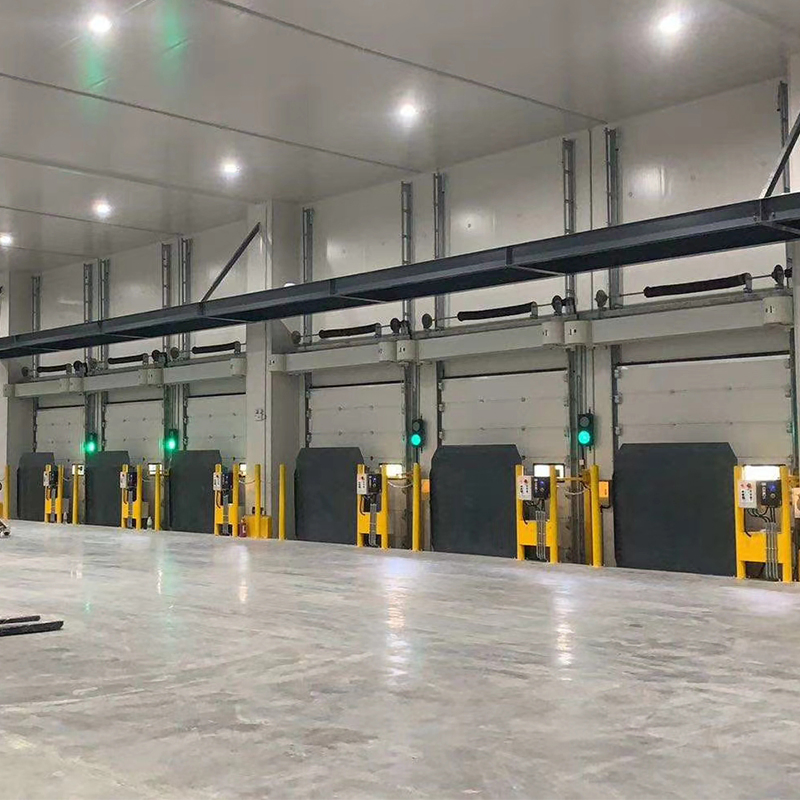

Q5: Where are these dock levelers typically used? A: They are ideal for factory outlets, logistics parks, and outgoing ports.

Q6: How does a dock leveler improve operations? A: It significantly improves the efficiency of cargo handling, making the loading and unloading of goods much faster and safer.
