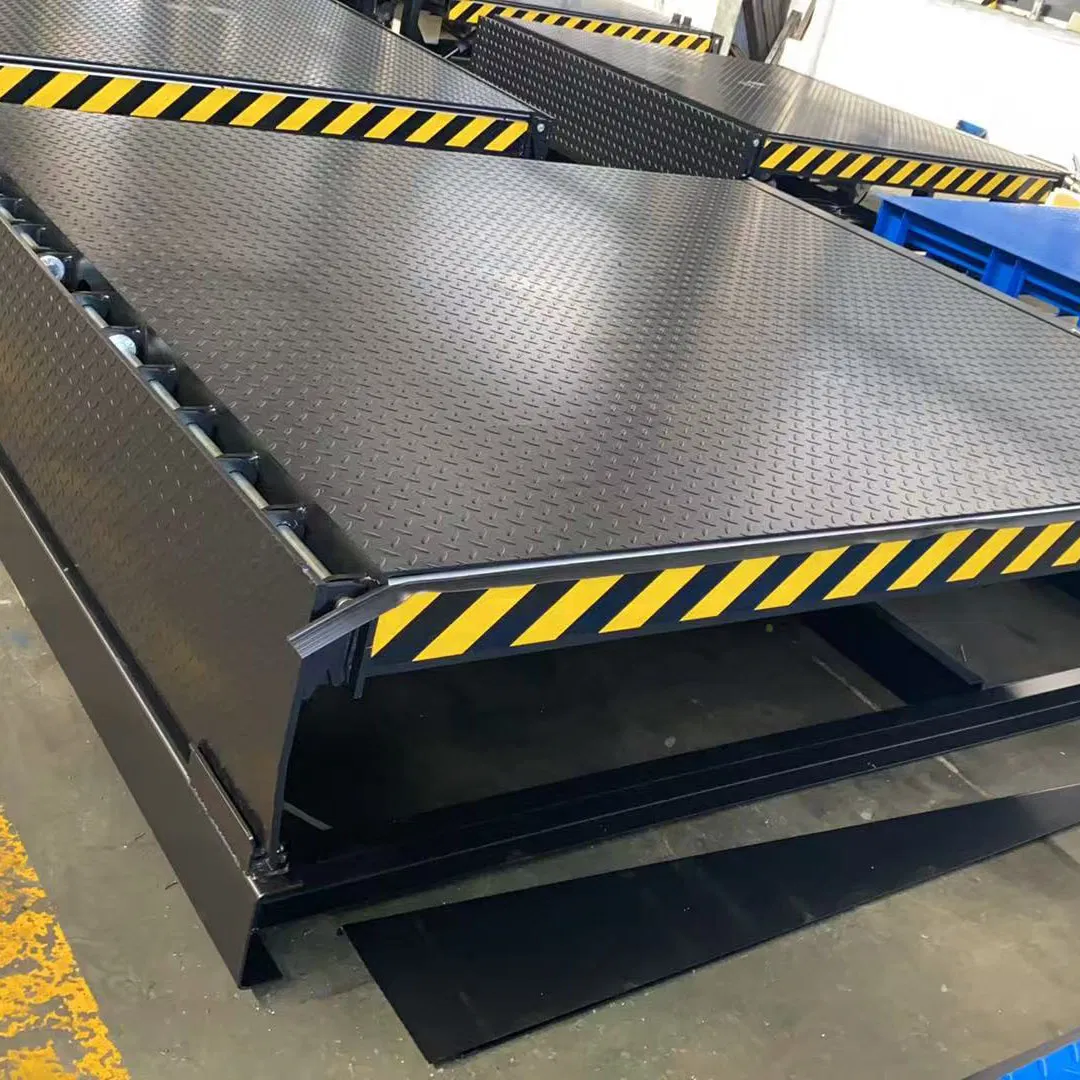

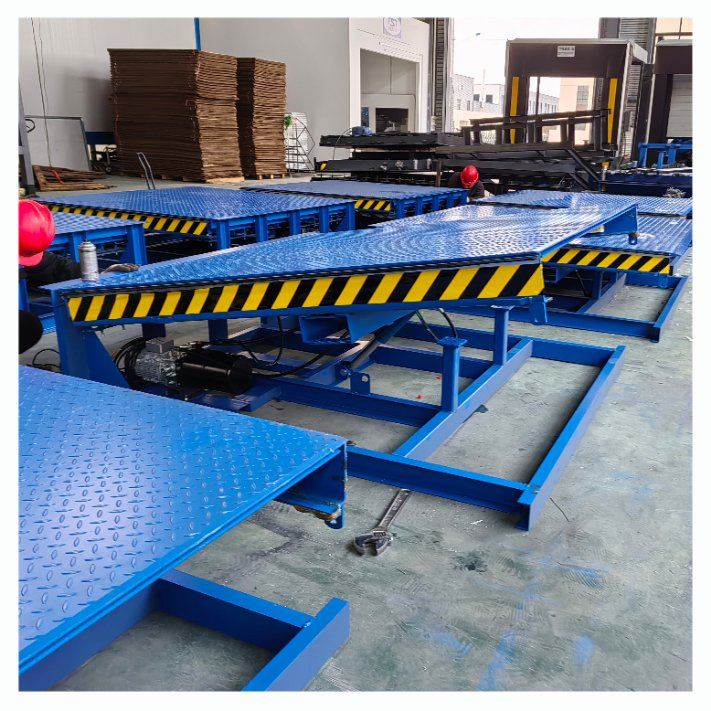

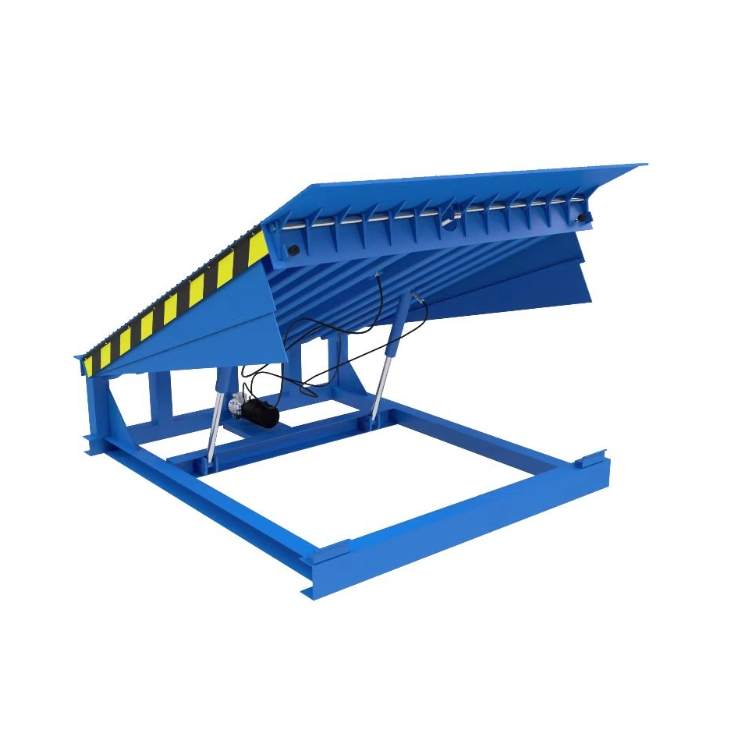

Industrial Dock Leveler 6 Ton 8 Ton 10 Ton for Container Loading
Industrial Dock Leveler 6 Ton 8 Ton 10 Ton for Container Loading
Industrial Dock Leveler 6 Ton 8 Ton 10 Ton for Container Loading
Industrial Dock Leveler 6 Ton 8 Ton 10 Ton for Container Loading
Industrial Dock Leveler 6 Ton 8 Ton 10 Ton for Container Loading
1 / 5
Industrial Dock Leveler 6 Ton 8 Ton 10 Ton for Container Loading
Industrial Dock Leveler 6 Ton 8 Ton 10 Ton for Container Loading
Industrial Dock Leveler 6 Ton 8 Ton 10 Ton for Container Loading
Industrial Dock Leveler 6 Ton 8 Ton 10 Ton for Container Loading
Industrial Dock Leveler 6 Ton 8 Ton 10 Ton for Container Loading

Industrial Dock Leveler 6 Ton 8 Ton 10 Ton for Container Loading

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
Folding -01
Application
Warehouse Crane
Lift Mechanism
Hydraulic
Carrying Capacity
Weight Level
Moves
Folding Dock Leveler
Driven Type
Hydraulic
Running Mode
Stationary
Certification
CE, ISO 9001
Power Source
Electric Hydraulic
Height Adjustment
-300/+300mm
Adjustment Time
<30 Seconds
Lip Specs
14/16mm*400/500mm
★

Product Overview

Industrial Dock Leveler Construction

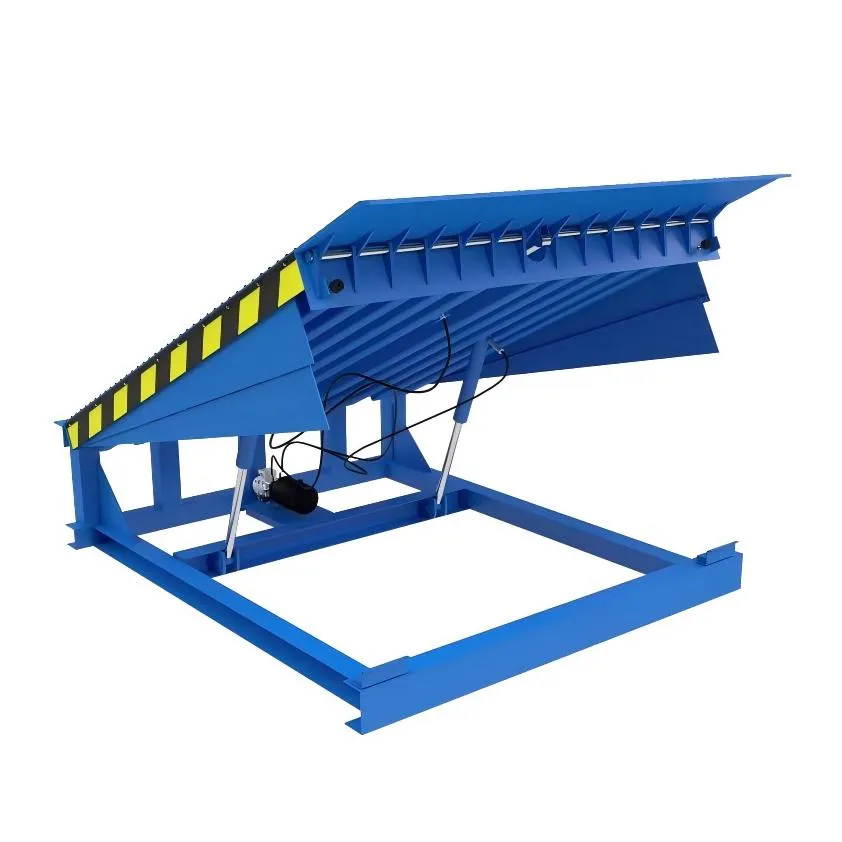

Dock Leveler Detail
Hydraulic Dock Leveler Configuration (6-20 Ton)
Equipment Size L2000/2500*W2000*H600mm Customizable
Rated Load Dynamic: 6 tons, Static: 9 tons Up to 20 tons available
Lip Thickness 12mm*400mm 14/16mm*400mm
Main Platform 6mm tread plate 8mm integrated plate
Control Box Wall-mounted ABS Del/Screen Control Box
Motor Power 380V, 50Hz, 1.1KW International Brands (Brevini/Bucher)
Main Frame L-shaped (12 units) 14# I-beam (10 units total)

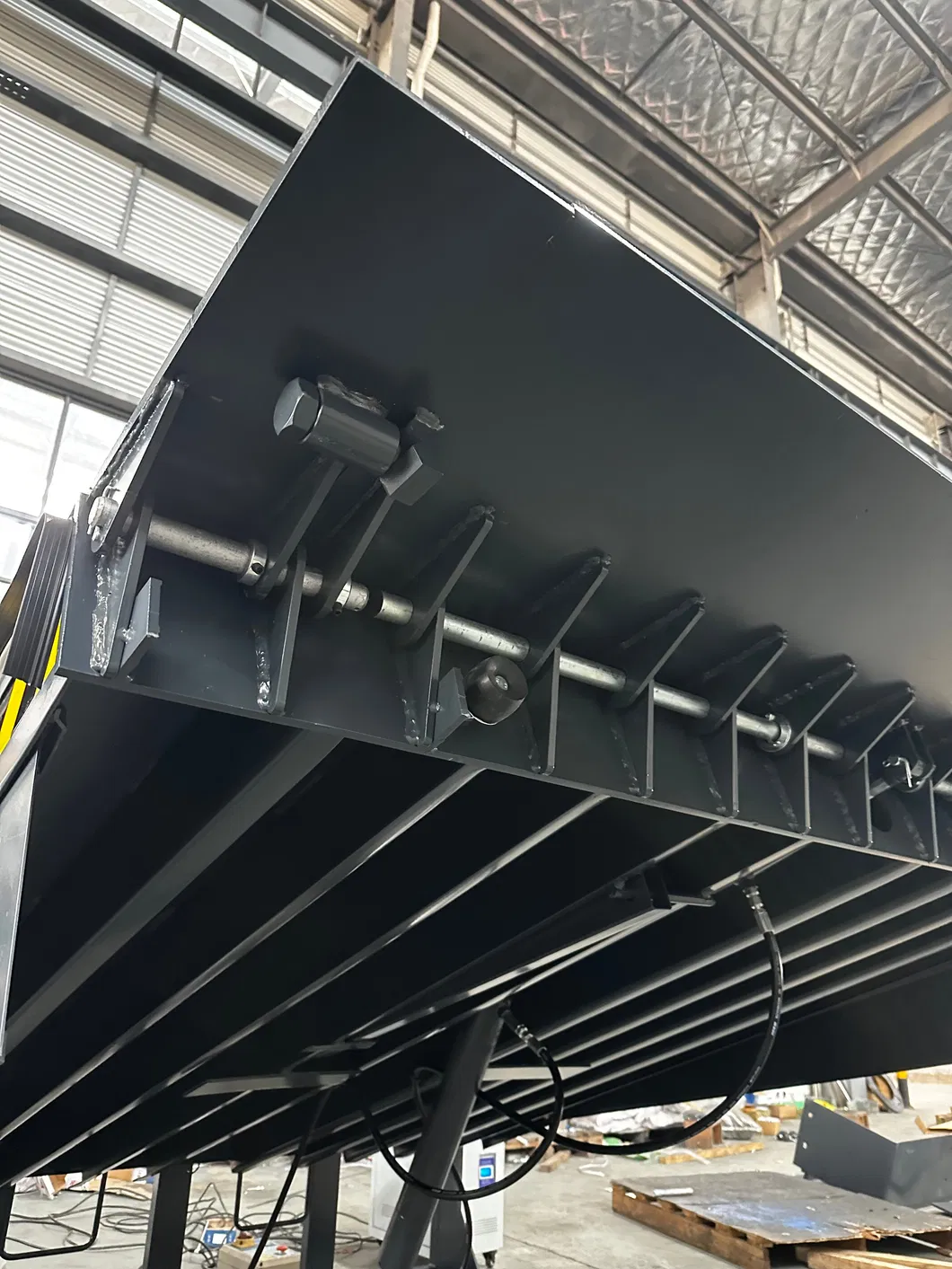

Industrial Dock Leveler Layout

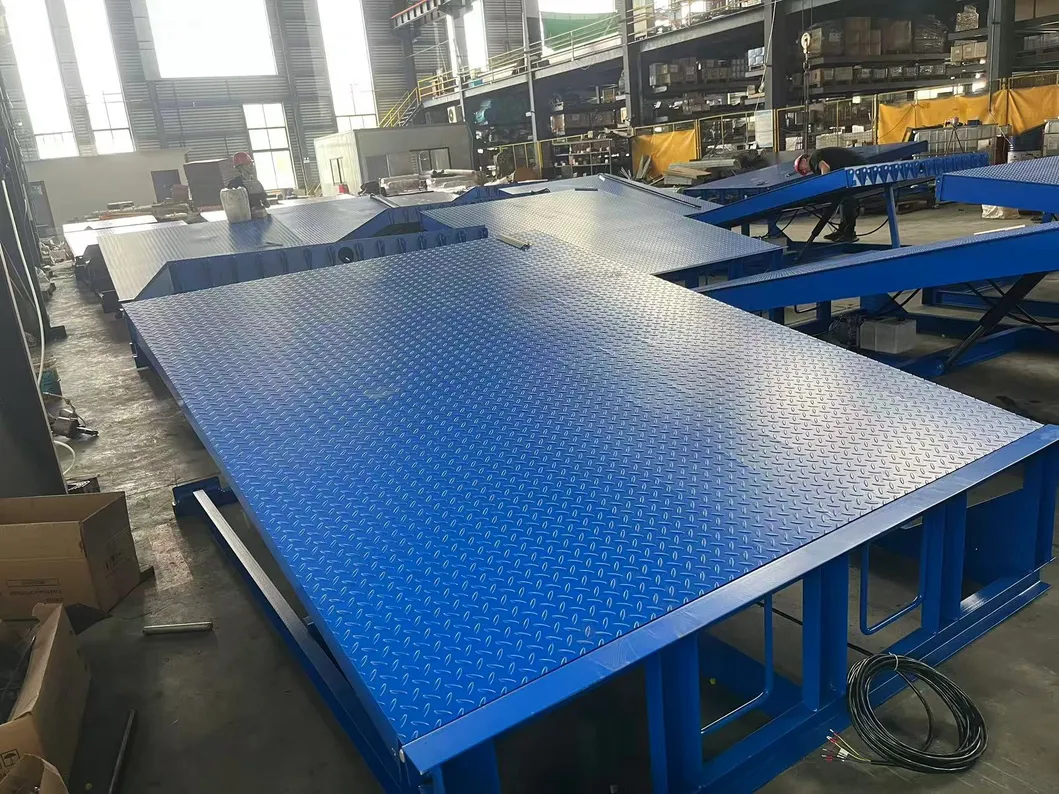

Loading Process

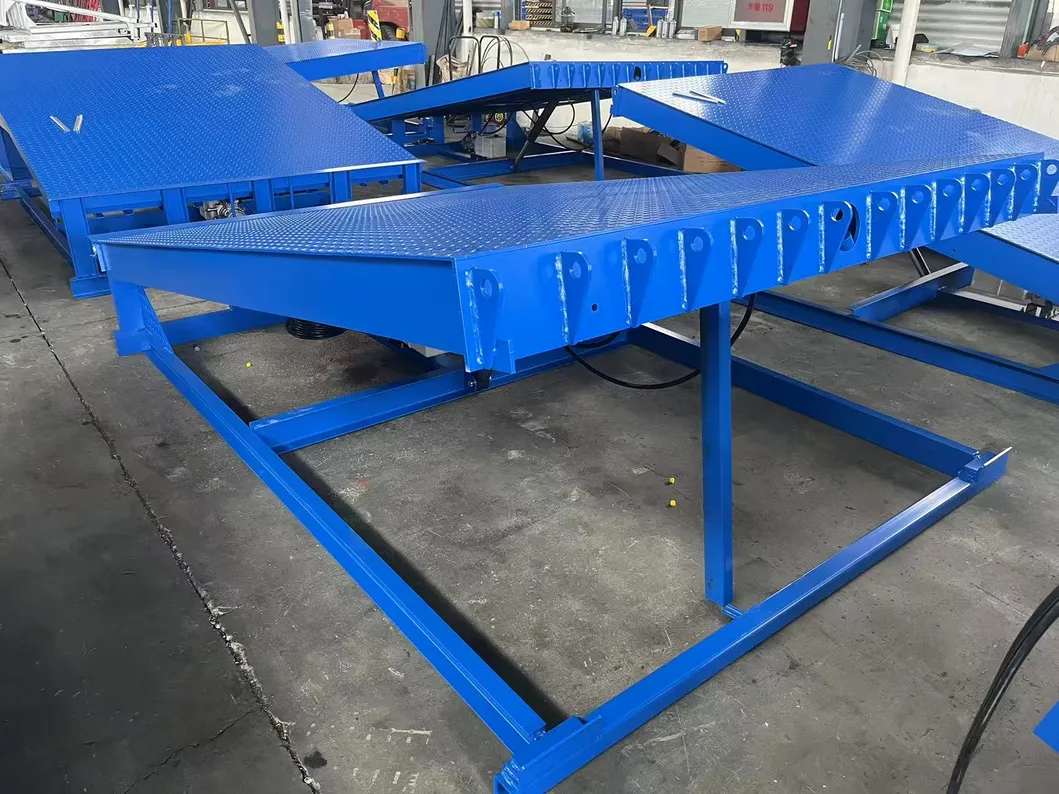

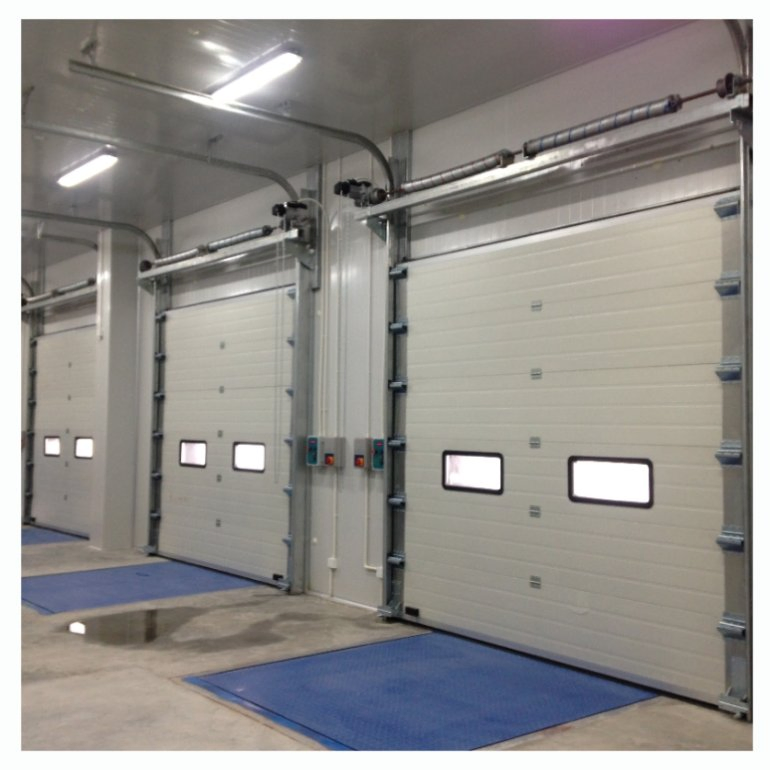

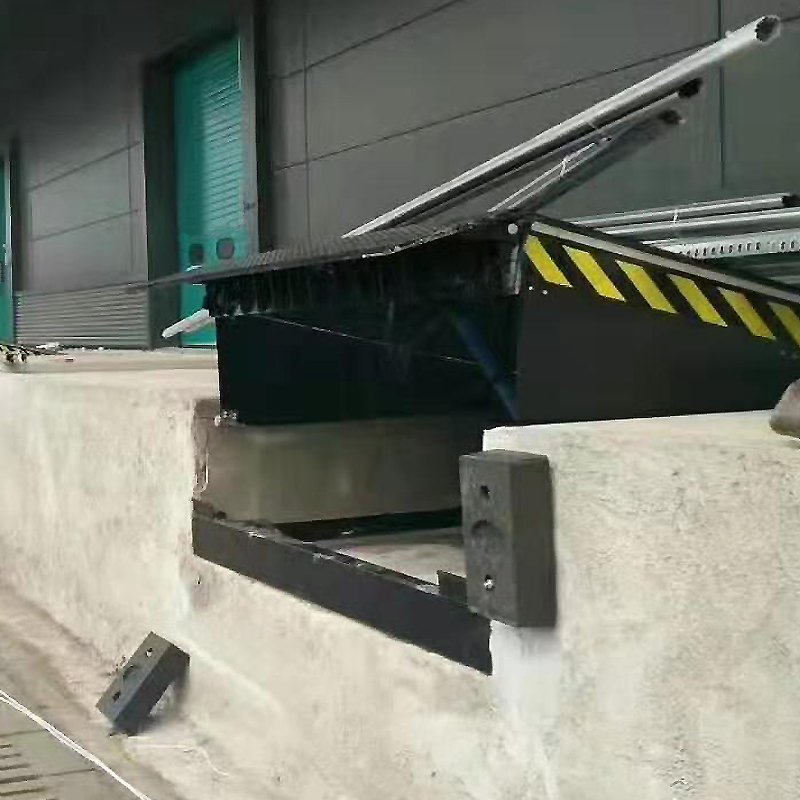

Installation View
Hydraulic System Detail
?

Frequently Asked Questions

What is the standard weight capacity for these dock levelers?
Our hydraulic dock levelers come in standard dynamic loads of 6 tons, with customizable options for 8, 10, 12, 15, and 20 tons to suit various industrial needs.
How much height adjustment can the platform provide?
The platform offers a height adjustment range of +300mm upward and -300mm downward, allowing for seamless transition between the warehouse floor and various truck heights.
How long does it take to adjust the leveler position?
The electric hydraulic system is highly efficient, typically requiring less than 30 seconds to move from any position to the corresponding loading height.
Are the dimensions and specifications customizable?
Yes, we provide customizable options for equipment size, rated load, lip thickness, and control systems to meet specific warehouse requirements.
What power source is required for operation?
The system operates on an electric hydraulic power source, typically using a 380V, 50Hz, 1.1KW motor for standard configurations.
What certifications do these products hold?
Our dock levelers are fully compliant with CE and ISO 9001 certifications, ensuring high safety and quality standards for industrial use.
