Factory Direct Hydraulic Dock Leveler with Fast Delivery
Factory Direct Hydraulic Dock Leveler with Fast Delivery
Factory Direct Hydraulic Dock Leveler with Fast Delivery
Factory Direct Hydraulic Dock Leveler with Fast Delivery
Factory Direct Hydraulic Dock Leveler with Fast Delivery
1 / 5
Factory Direct Hydraulic Dock Leveler with Fast Delivery
Factory Direct Hydraulic Dock Leveler with Fast Delivery
Factory Direct Hydraulic Dock Leveler with Fast Delivery
Factory Direct Hydraulic Dock Leveler with Fast Delivery
Factory Direct Hydraulic Dock Leveler with Fast Delivery

Factory Direct Hydraulic Dock Leveler with Fast Delivery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
Folding -01
Application
Warehouse Crane
Lift Mechanism
Hydraulic
Carrying Capacity
Weight Level
Moves
Folding Dock Leveler
Driven Type
Hydraulic
Running Mode
Stationary
Certification
CE, ISO 9001
Size
2000X2000/2000X2500/2000X1600mm
Dynamic Load
6t/8t/10t/15t/20ton
Power Source
Electric Hydraulic
Height Adjustment Range
-300/+300mm
Adjustment Time
<30 Seconds
Lip Thickness
14/16mm*400/500mm
Platform Thickness
6/8mm
Transport Package
2000*2000*600mm
⚙️

Product Description

Hydraulic Dock Leveler Overview

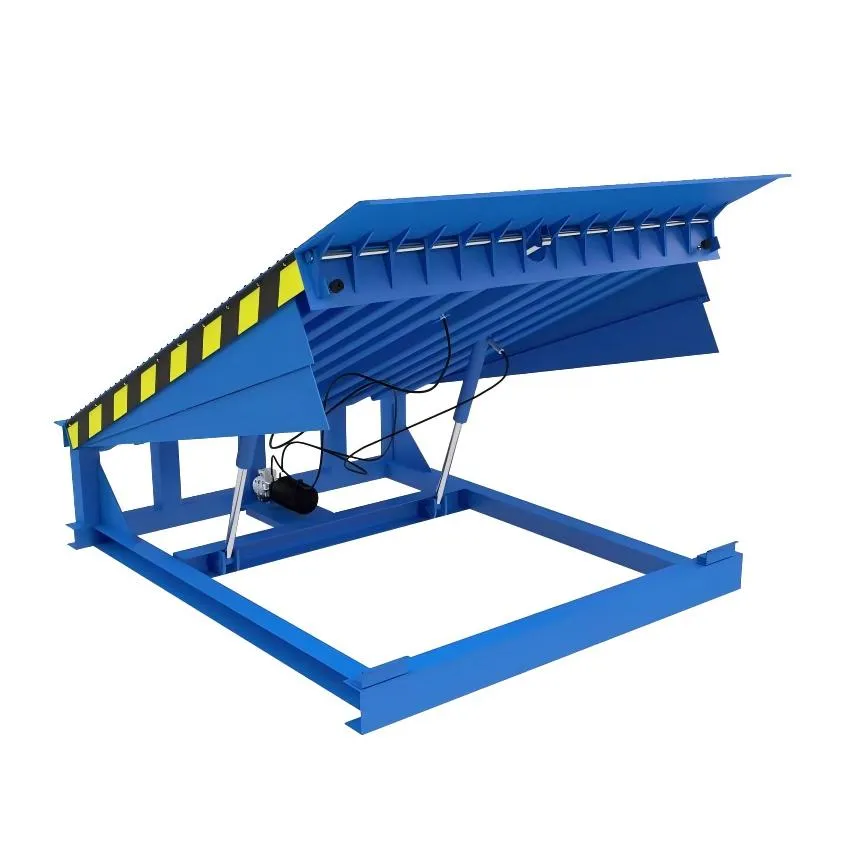

Hydraulic Dock Leveler Details
Hydraulic Dock Leveler with 6/8/10 /15/20Ton Configuration
Equipment Size L2000/2500*W2000*H600mm Customizable
Rated Load Dynamic Load: 6 tons, Static Load: 9 tons 8 / 10 / 12 / 15 / 20 tons
Lip Thickness & Length 12mm*400mm 14/16mm*400mm
Main Platform 6mm tread plate 8mm integrated tread plate
Control Box Wall-mounted ABS plastic Del / Screen Control Box
Motor Power Domestic pump station (1.1KW) BREVINI / OILTEC / ARGO-HYTOS / BUCHER
Main Frame L-shaped bent parts 4mm 14# I-beam, 10 units total

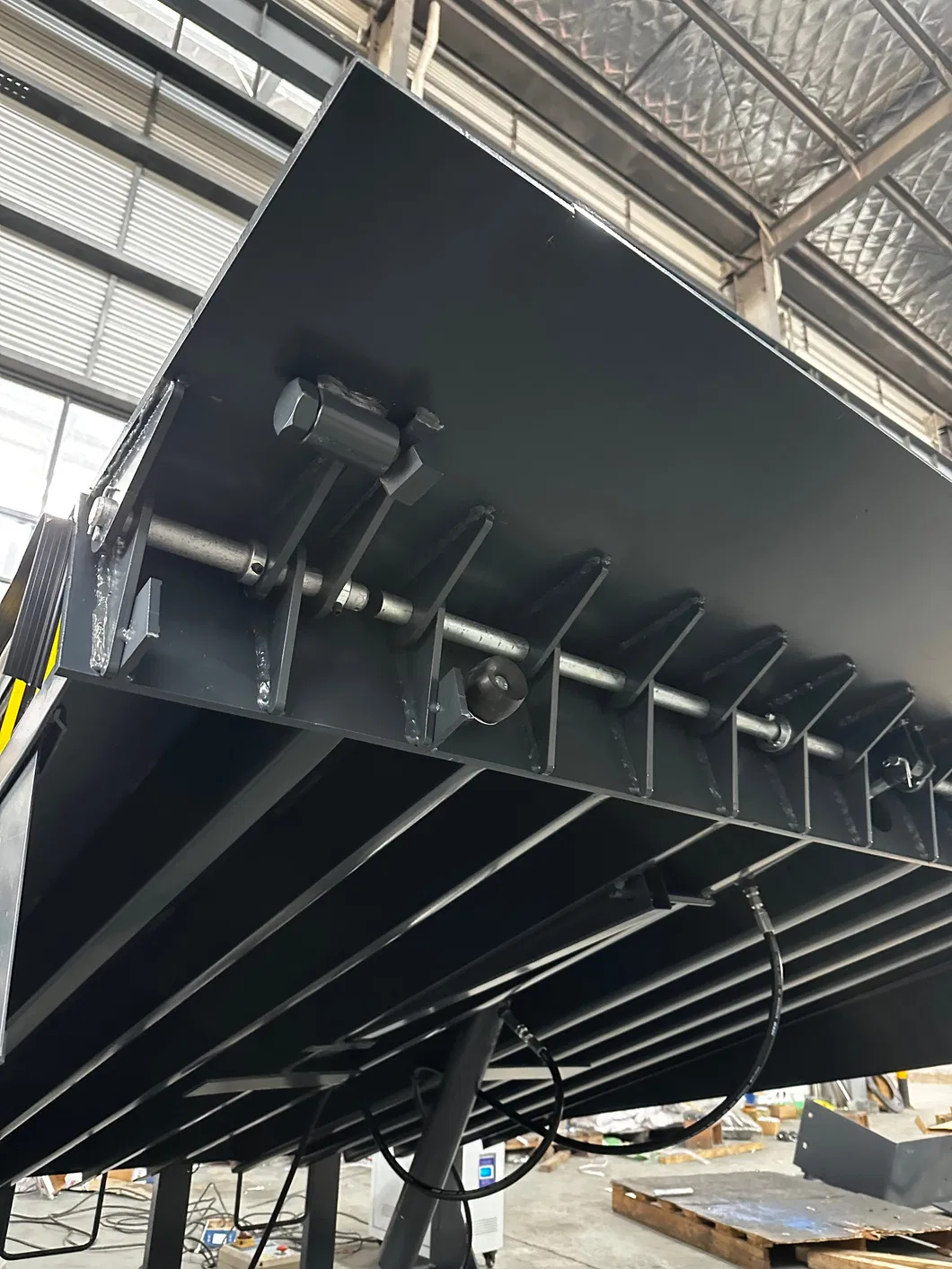

Dock Leveler Feature 1

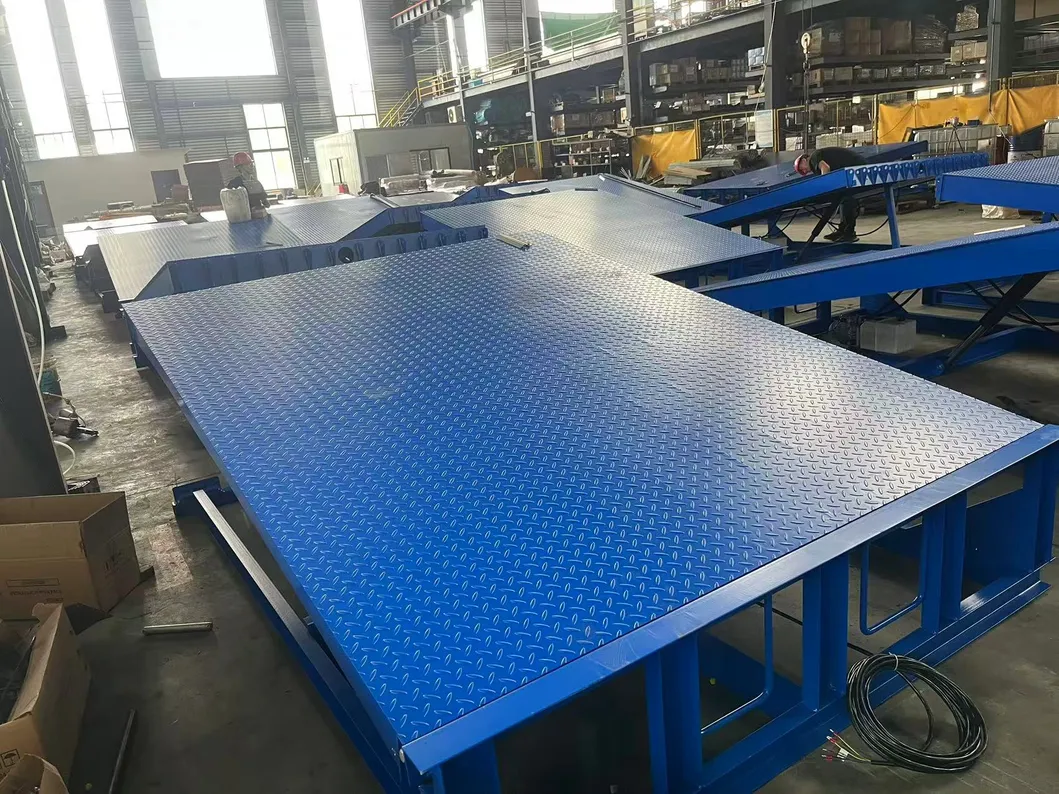

Dock Leveler Feature 2

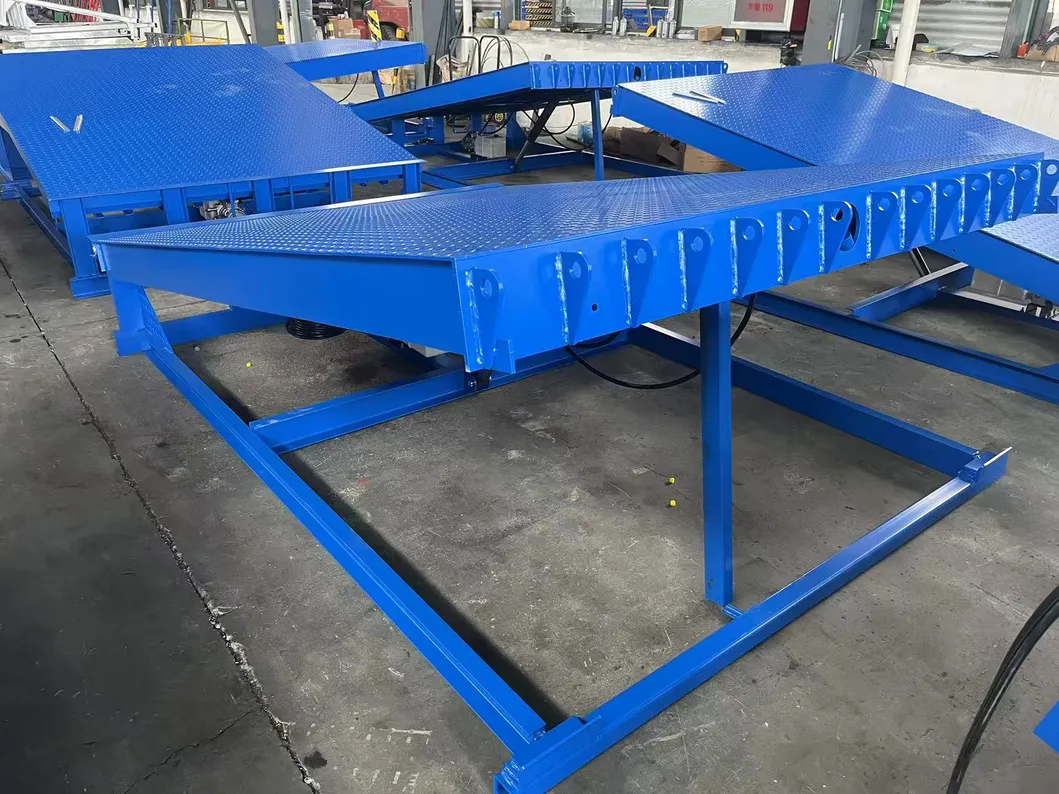

Dock Leveler Feature 3

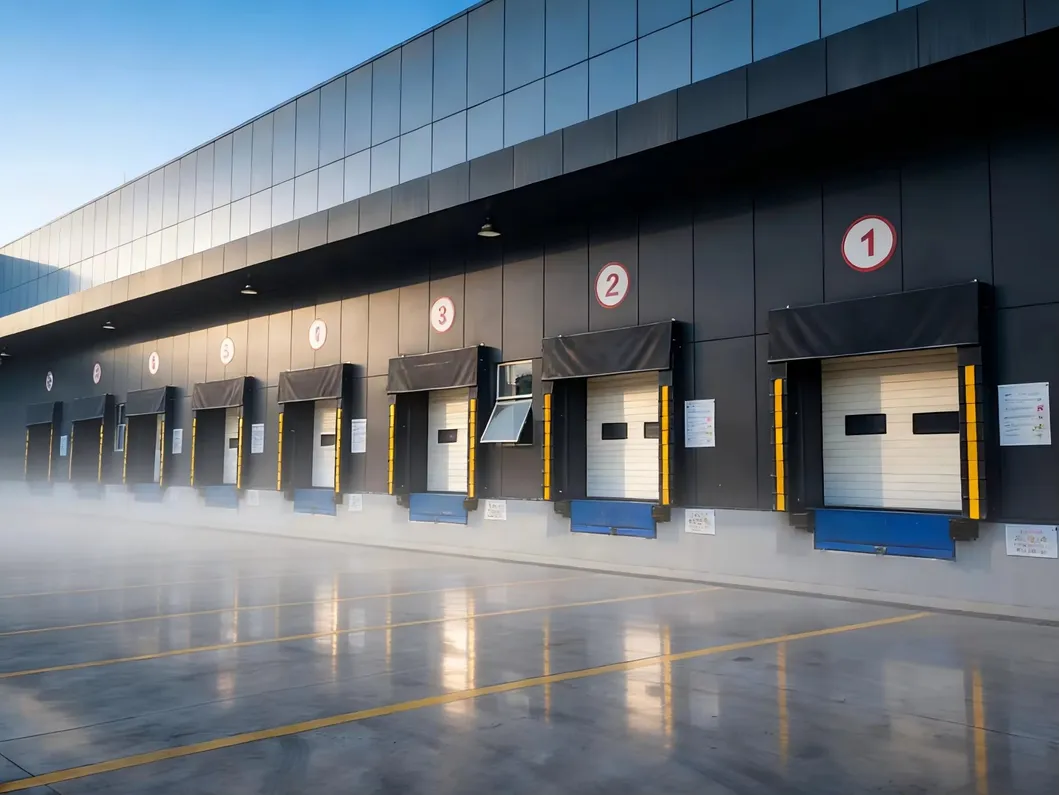

Dock Leveler Feature 4

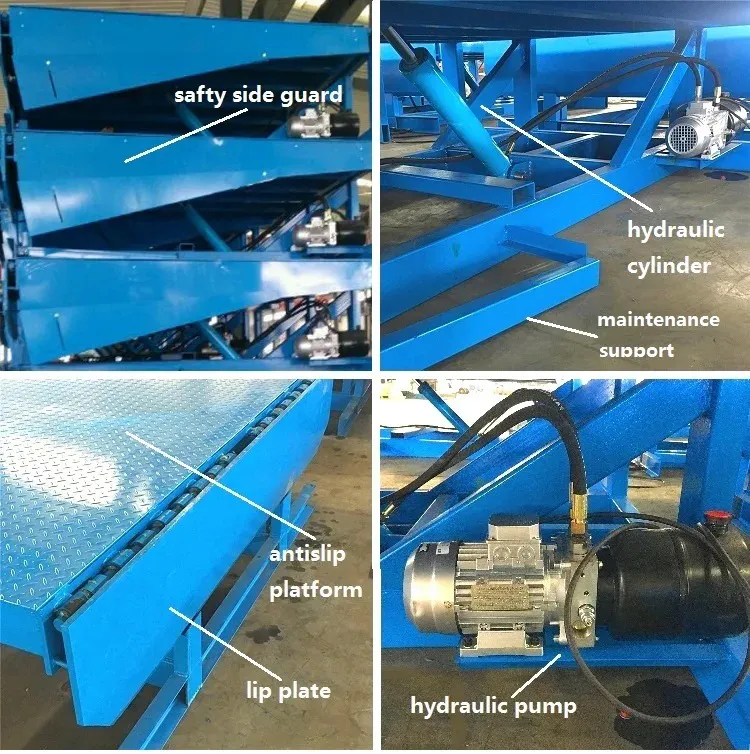

Dock Leveler Feature 5

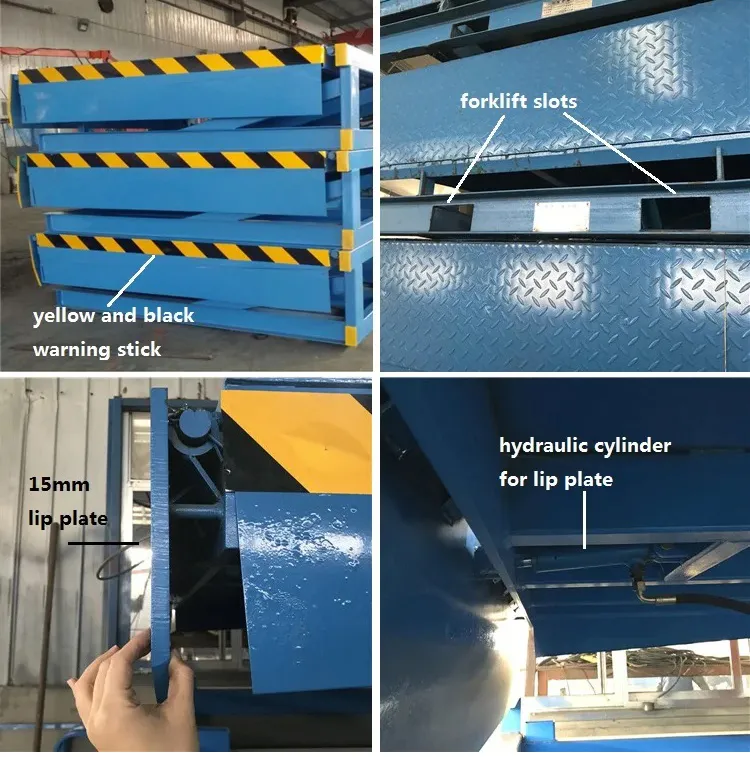

Dock Leveler Feature 6

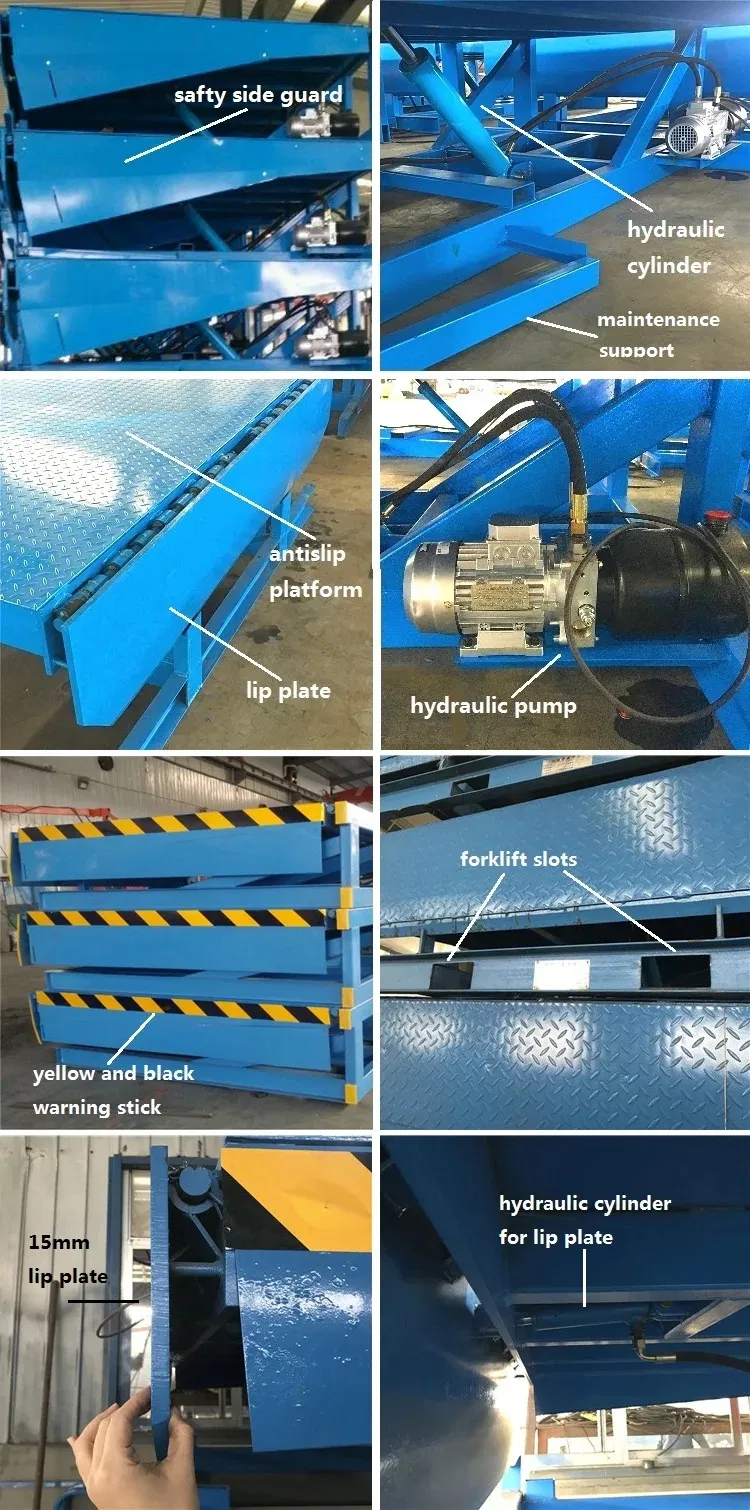

Dock Leveler Feature 7

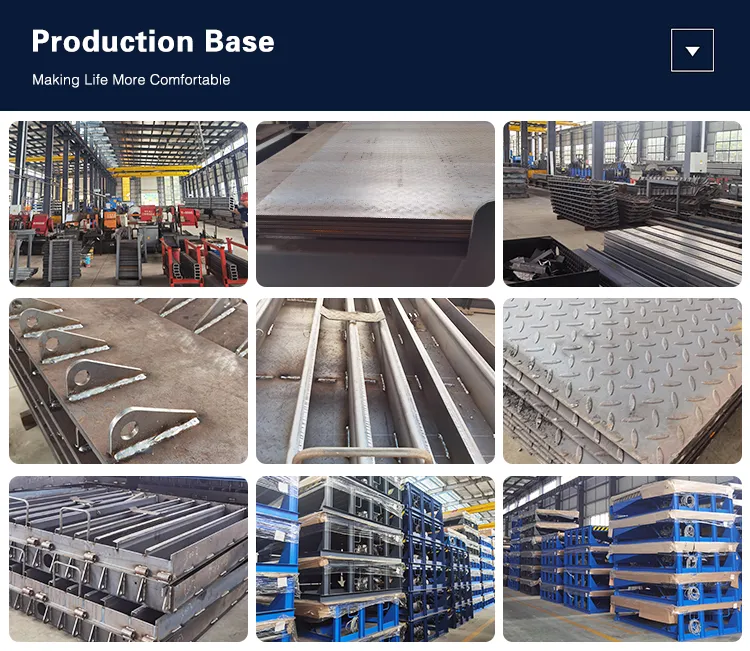

Dock Leveler Feature 8

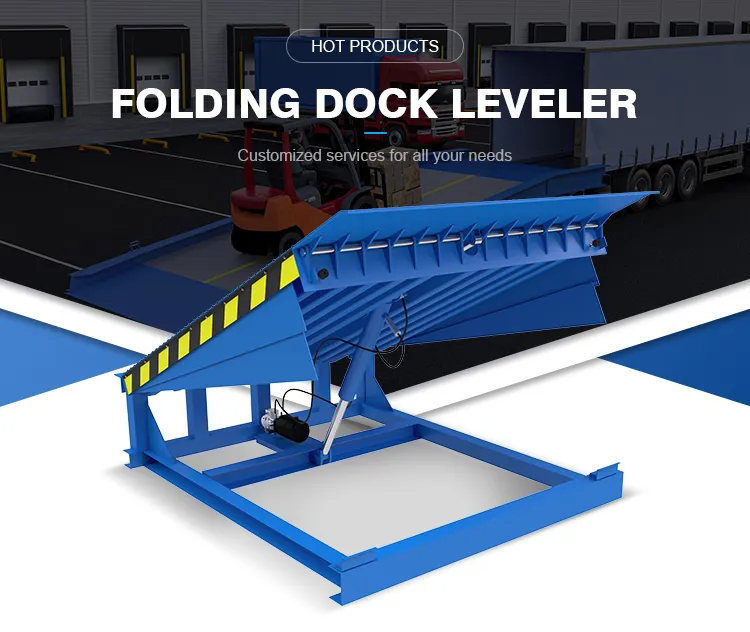

Dock Leveler Feature 9

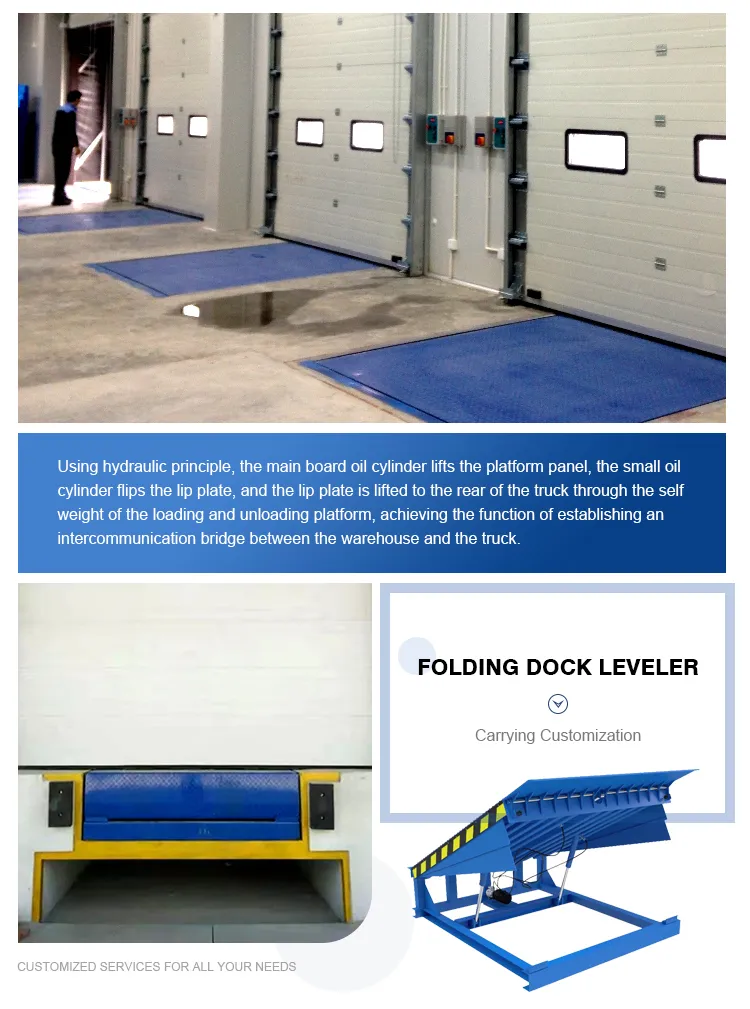

Dock Leveler Feature 10

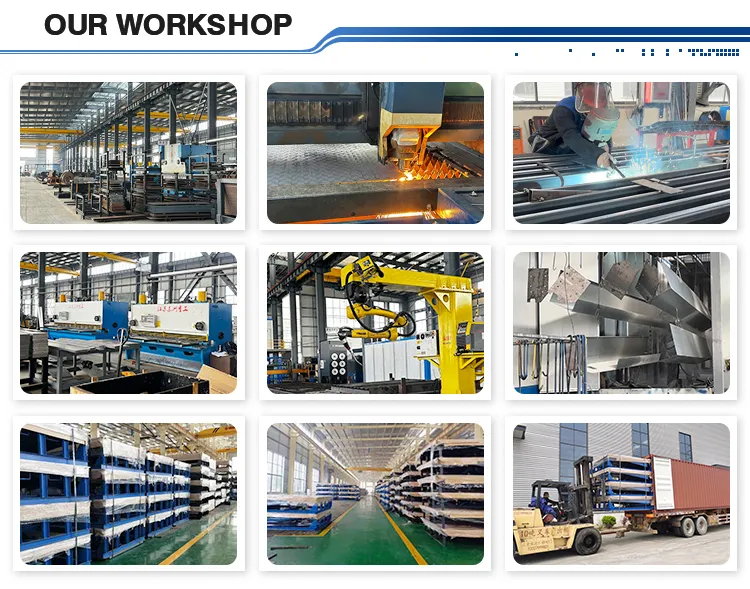

Dock Leveler Feature 11

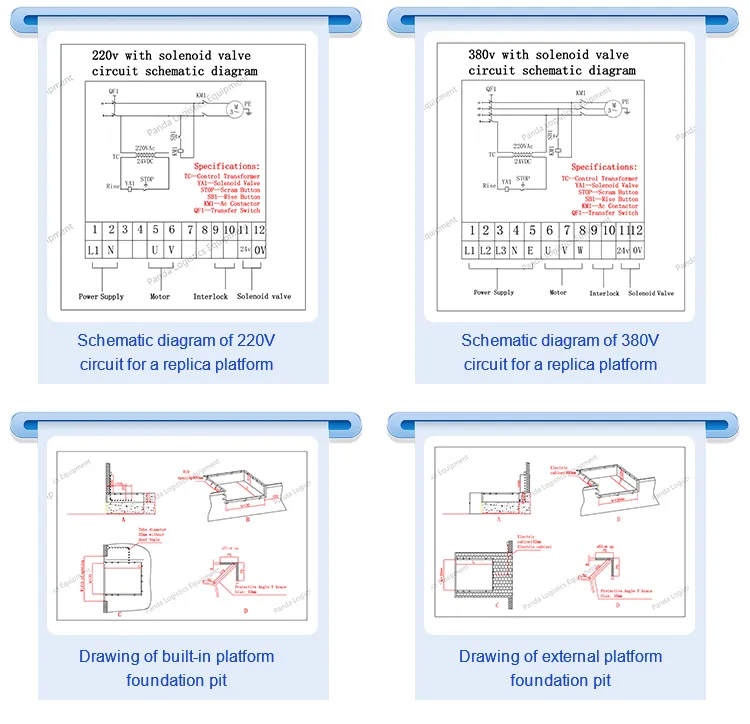

Dock Leveler Feature 12
Dock Leveler Technical Drawing
Dock Leveler FAQ Image
❓

Frequently Asked Questions

1. What is the maximum dynamic load capacity of the dock leveler?
The standard dynamic load capacity ranges from 6 tons to 20 tons, depending on the configuration selected.
2. Are the sizes of the dock levelers customizable?
Yes, while standard sizes include 2000x2000mm and 2000x2500mm, we offer full customization to meet your specific warehouse requirements.
3. What is the height adjustment range for these units?
The hydraulic dock leveler provides a height adjustment range of +300mm upward and -300mm downward.
4. How long does it take to complete a full adjustment cycle?
The adjustment process is highly efficient, taking less than 30 seconds to move from any position to the corresponding height.
5. What power source is required for operation?
The system uses an electric hydraulic power source, typically configured for 380V, 50Hz, with a 1.1KW motor.
6. What certifications do your hydraulic dock levelers have?
Our products are fully compliant with international standards and hold both CE and ISO 9001 certifications.
