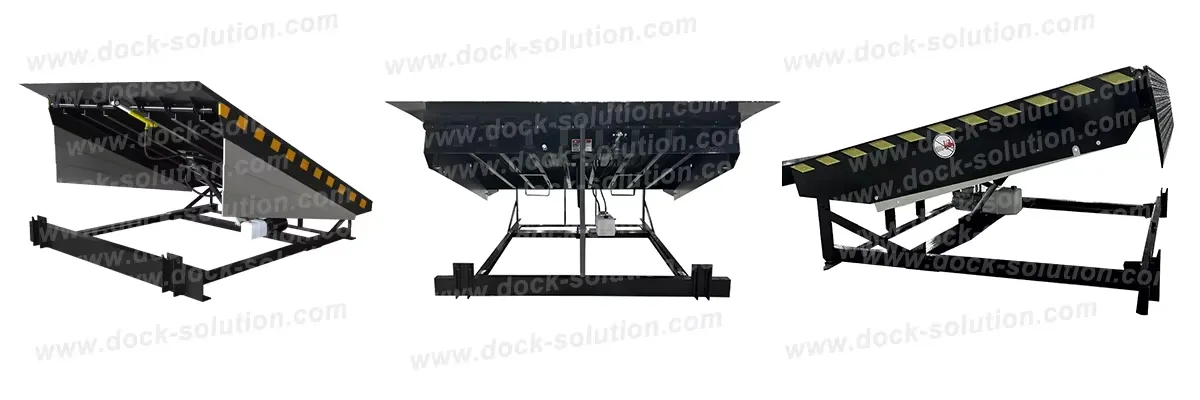

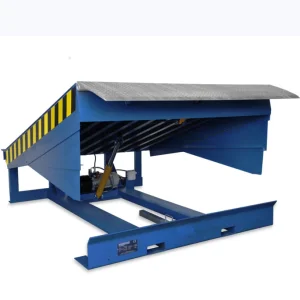

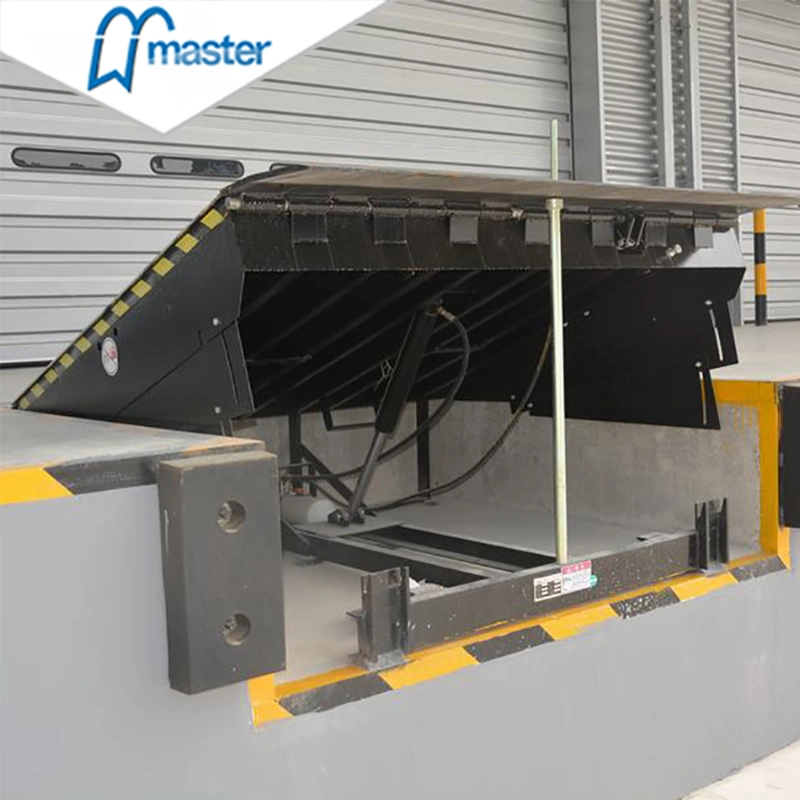

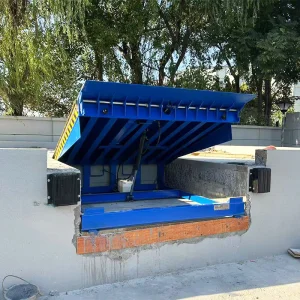

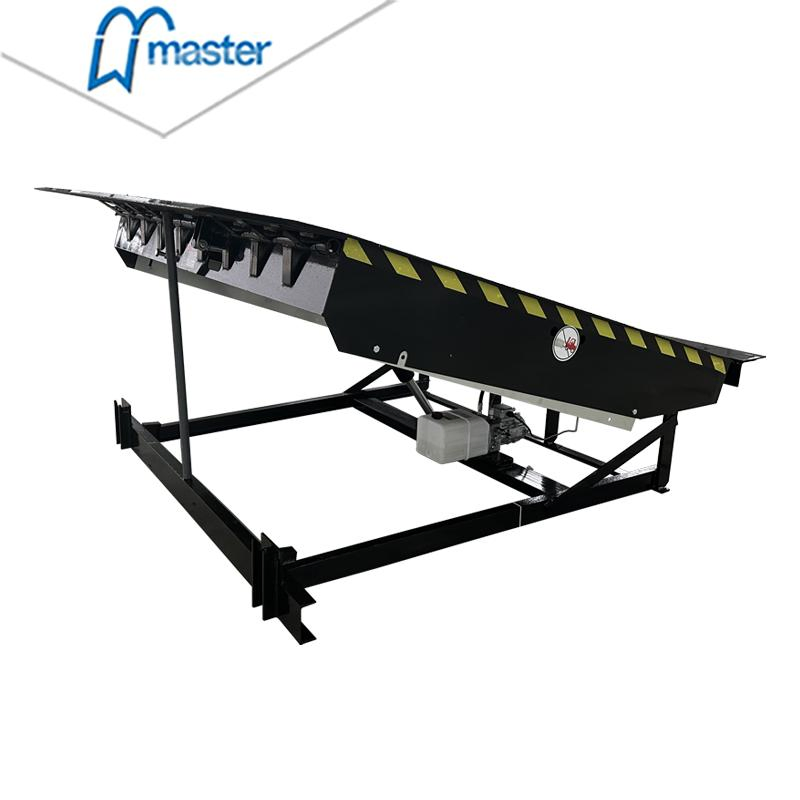

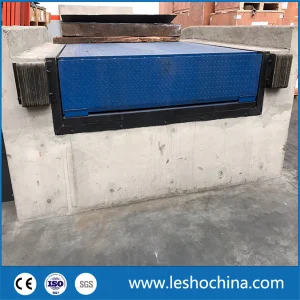

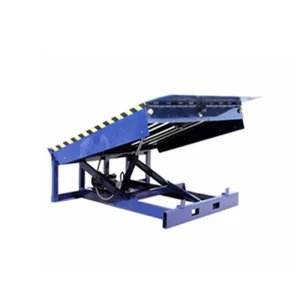

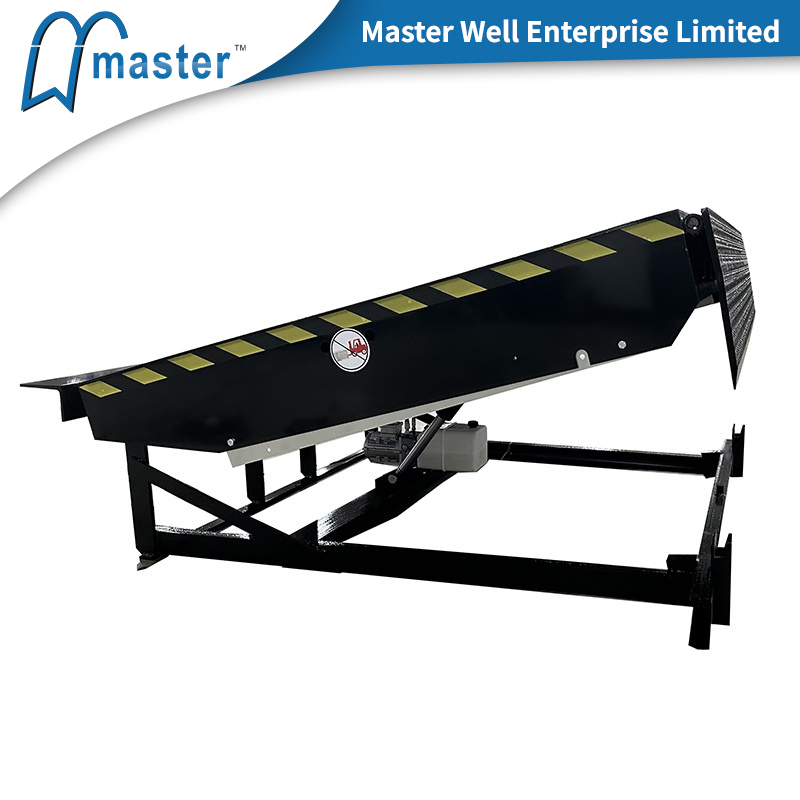

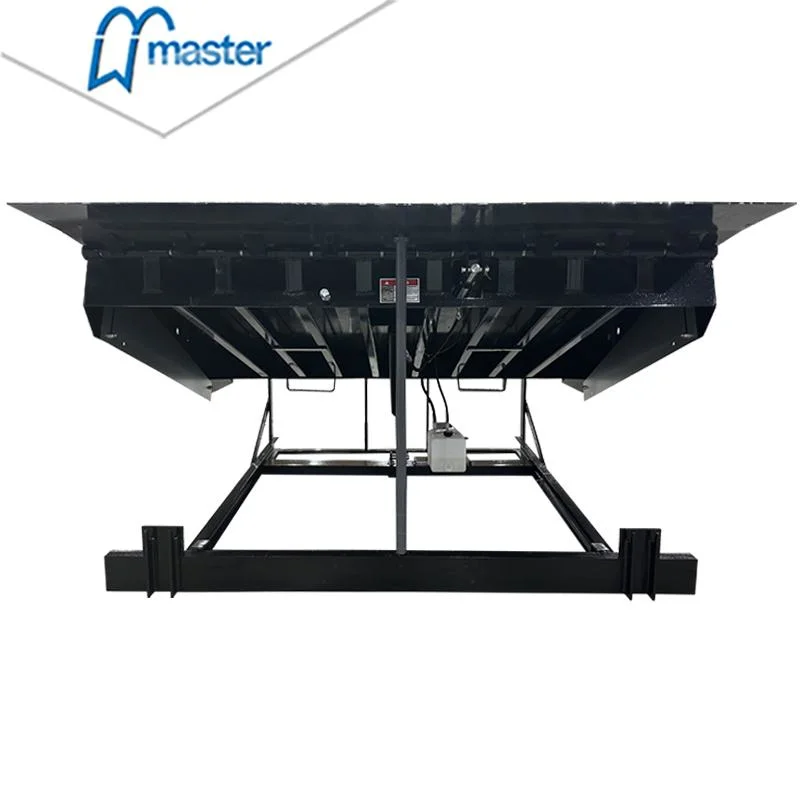

The Hydraulic Dock Leveler uses a hydraulic power unit to lift the upper main panel through a main oil cylinder, while a small auxiliary oil cylinder pushes out the lip plate. It is essential when dock height and truck height differ. Through the principle of self-weight drop, the lip plate is positioned onto the rear of the truck to facilitate loading.
This hydraulic system is the most commonly used loading platform due to its stable performance, simple operation, low maintenance rate, and ease of repair.
| Upper Plate | 8 mm thickness, anti-skate steel plate |
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Support Profile | C-shaped stiffener / 14# I Beam |
| Sealing Element | Japan Brand NOK A505 |
| Working Range | +300mm / 260~300mm |
| Adjustment Time | Rise Time ≤16S, Fall time ≤10S |
| Electric Control Box | 24V weak current control |
| Dynamic Loading Capacity | 6,000 ~ 25,000 KG |
| Service Life | ≥ 200,000 times |
| Operating Temperature | -30℃ ~ +50℃ |

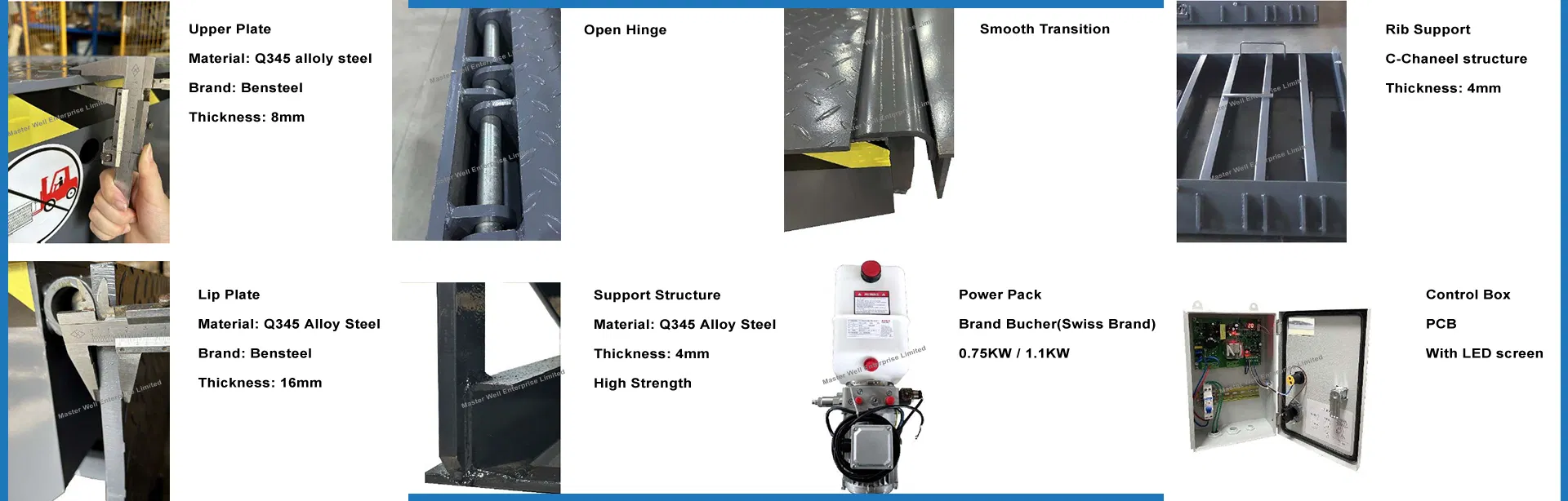

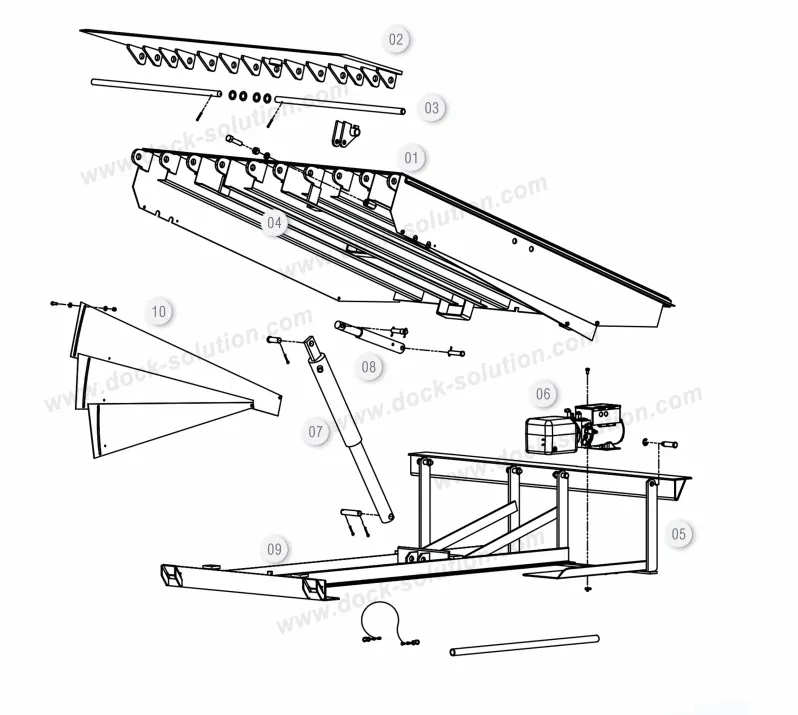

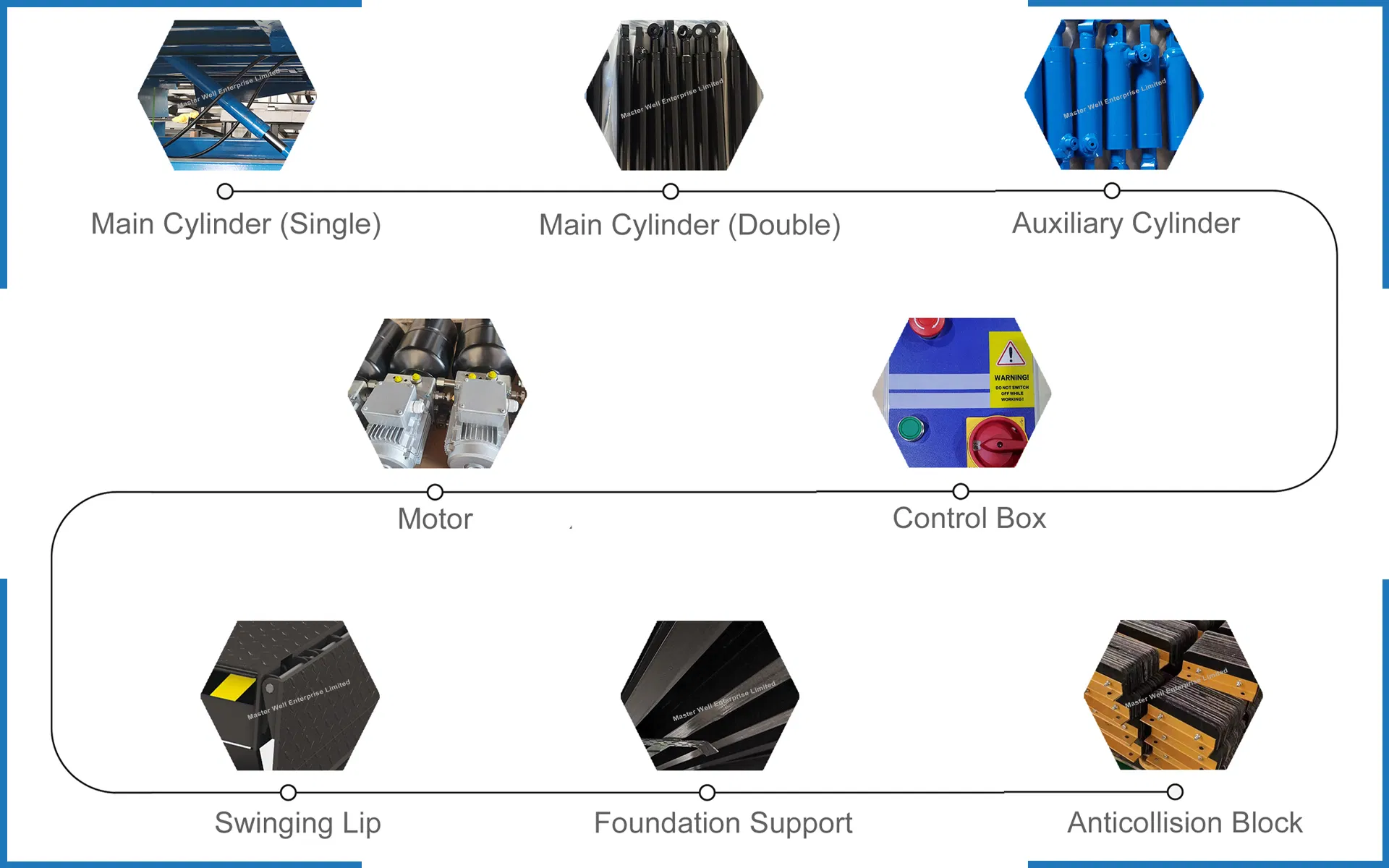

| 1. Upper Plate | 6. Power Pack |
| 2. Lip Plate | 7. Main Cylinder |
| 3. Hinge (Open) | 8. Auxiliary Cylinder |
| 4. Rib Support | 9. Frame |
| 5. Support Structure | 10. Guard |
Relying on excellent business performance and R&D, our team consists of approximately 100 professionals across International Sales, Domestic Sales, Purchasing, Finance, Human Resources, and Research and Development. We are dedicated to providing professional loading solutions for global clients.
