Home > Dock Leveler > Fastlink High quality Commercial Telescopic Dock Leveler for Smooth Loading Mobile Ramp Dock Levelers

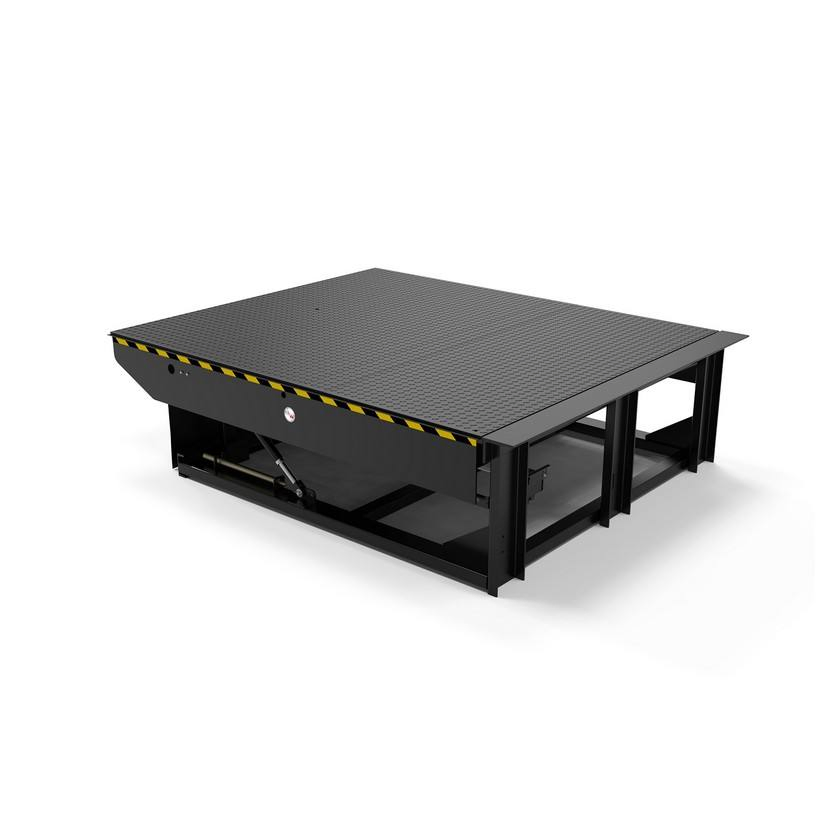

Fastlink High quality Commercial Telescopic Dock Leveler for Smooth Loading Mobile Ramp Dock Levelers
Fastlink High quality Commercial Telescopic Dock Leveler for Smooth Loading Mobile Ramp Dock Levelers
Fastlink High quality Commercial Telescopic Dock Leveler for Smooth Loading Mobile Ramp Dock Levelers
Fastlink High quality Commercial Telescopic Dock Leveler for Smooth Loading Mobile Ramp Dock Levelers
Fastlink High quality Commercial Telescopic Dock Leveler for Smooth Loading Mobile Ramp Dock Levelers
1 / 5
Fastlink High quality Commercial Telescopic Dock Leveler for Smooth Loading Mobile Ramp Dock Levelers
Fastlink High quality Commercial Telescopic Dock Leveler for Smooth Loading Mobile Ramp Dock Levelers
Fastlink High quality Commercial Telescopic Dock Leveler for Smooth Loading Mobile Ramp Dock Levelers
Fastlink High quality Commercial Telescopic Dock Leveler for Smooth Loading Mobile Ramp Dock Levelers
Fastlink High quality Commercial Telescopic Dock Leveler for Smooth Loading Mobile Ramp Dock Levelers

Fastlink High quality Commercial Telescopic Dock Leveler for Smooth Loading Mobile Ramp Dock Levelers

Customization: Available
After-sales Service: 2 Years
Warranty: 1 Year
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
DLT-THK
Application
Workshop Crane
Lift Mechanism
Telescoping Lift
Driven Type
Hydraulic
Load Capacity
6.8t
Certification
CE, ISO 9001
Lip Length
1000mm/1200mm
Color
RAL9011/RAL7016
Table Size
W2000mm*L2500mm*H600mm
Power Source
380V, 3pH, 50Hz
🛠️

Product Description

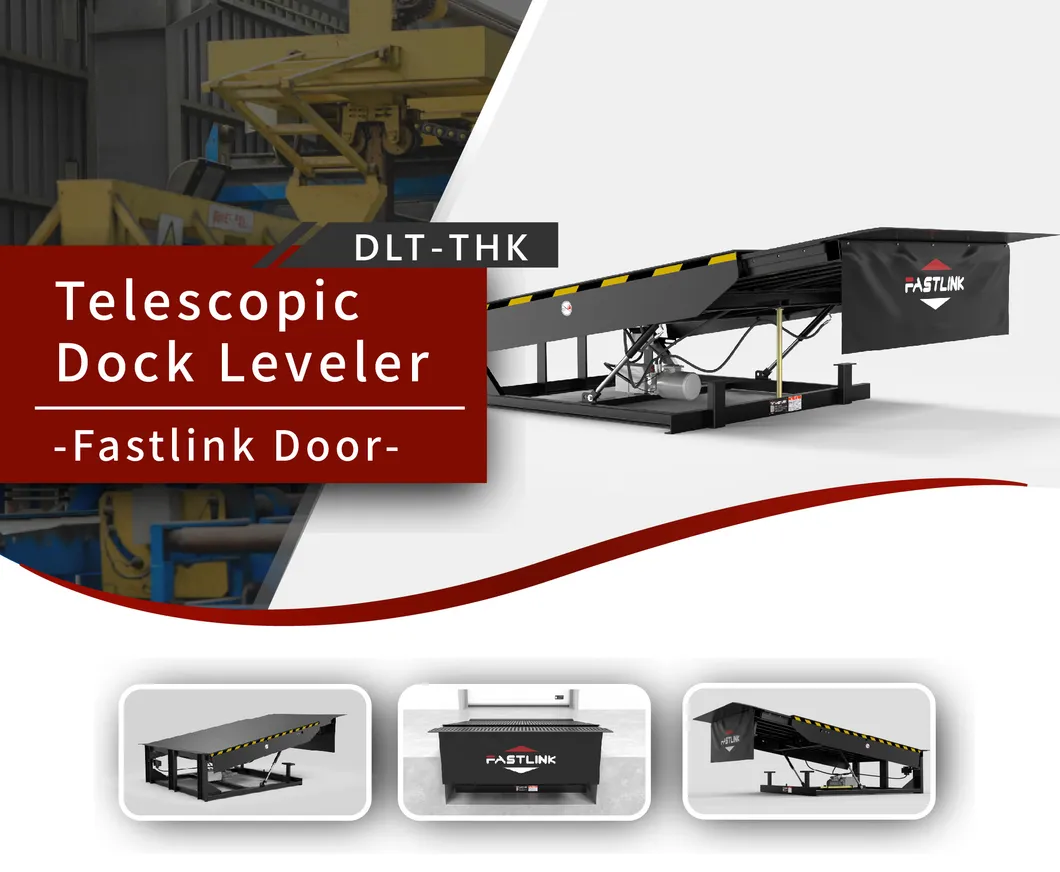

Telescopic Dock Leveler
Technical Attributes
Industry TypeDock leveler
MaterialHigh-strength Steel

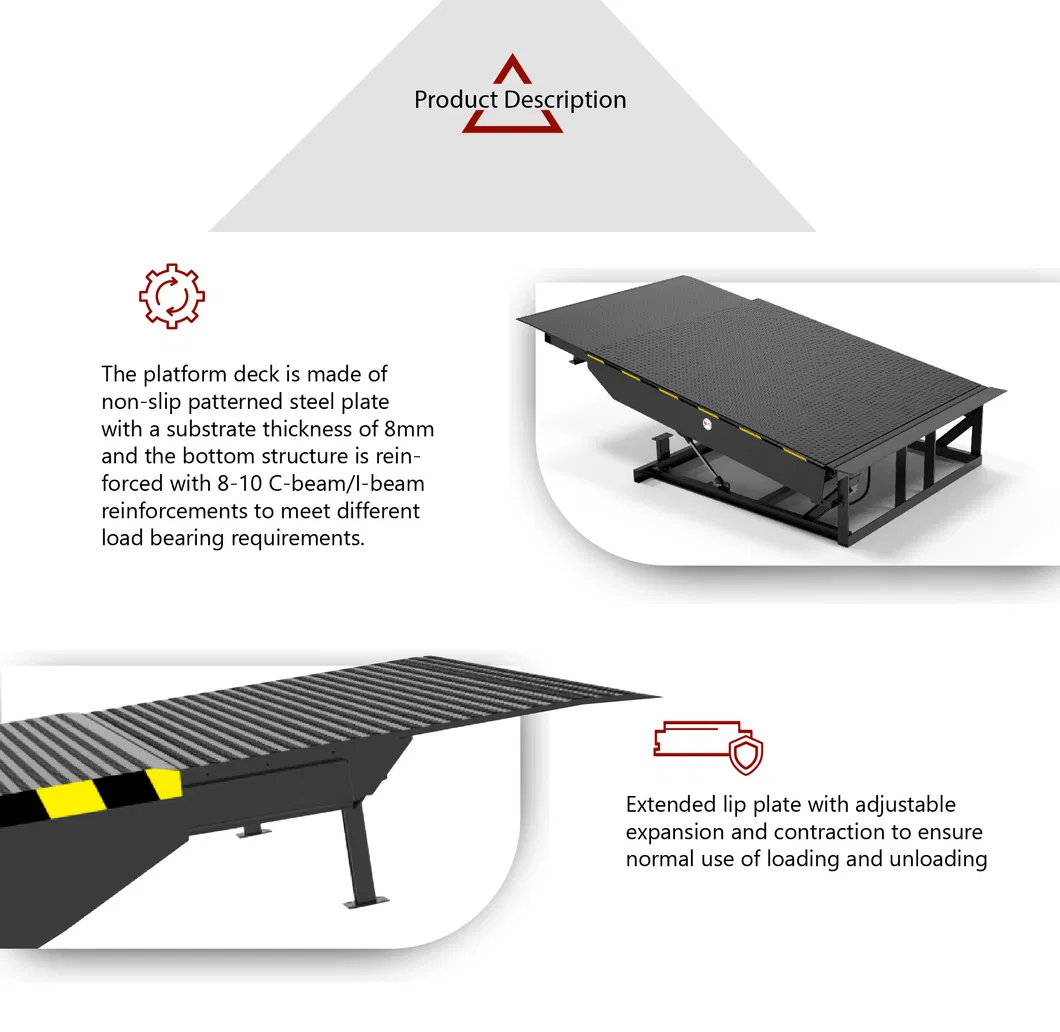

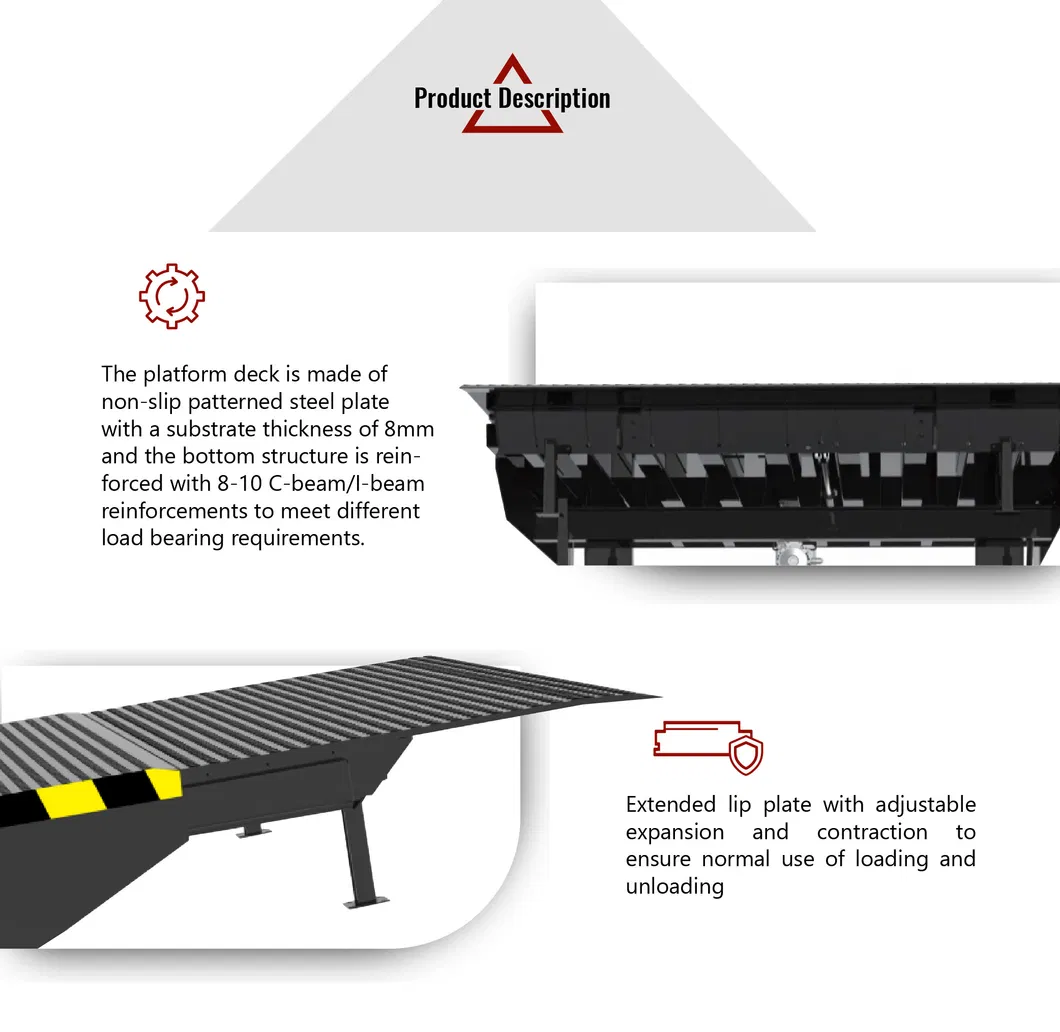

Deck PlateNon-slip patterned steel sheet, 8 mm thick
Lip PlateNon-slip patterned steel, 14/15mm thickness, double 5-degree arch design
Reinforcement8-10 C-beam steel reinforcement for optimal support

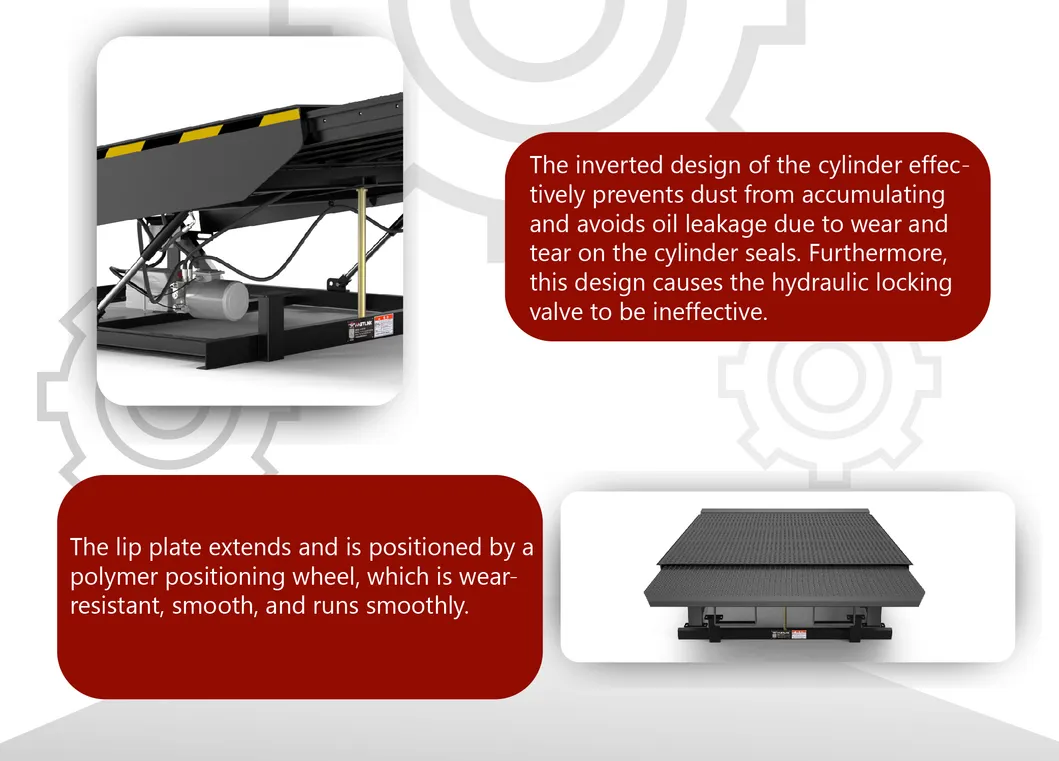

Hydraulic SystemIntegrated hydraulic power unit with double cylinders
Control SystemIntelligent control with fault code display and self-safety protection

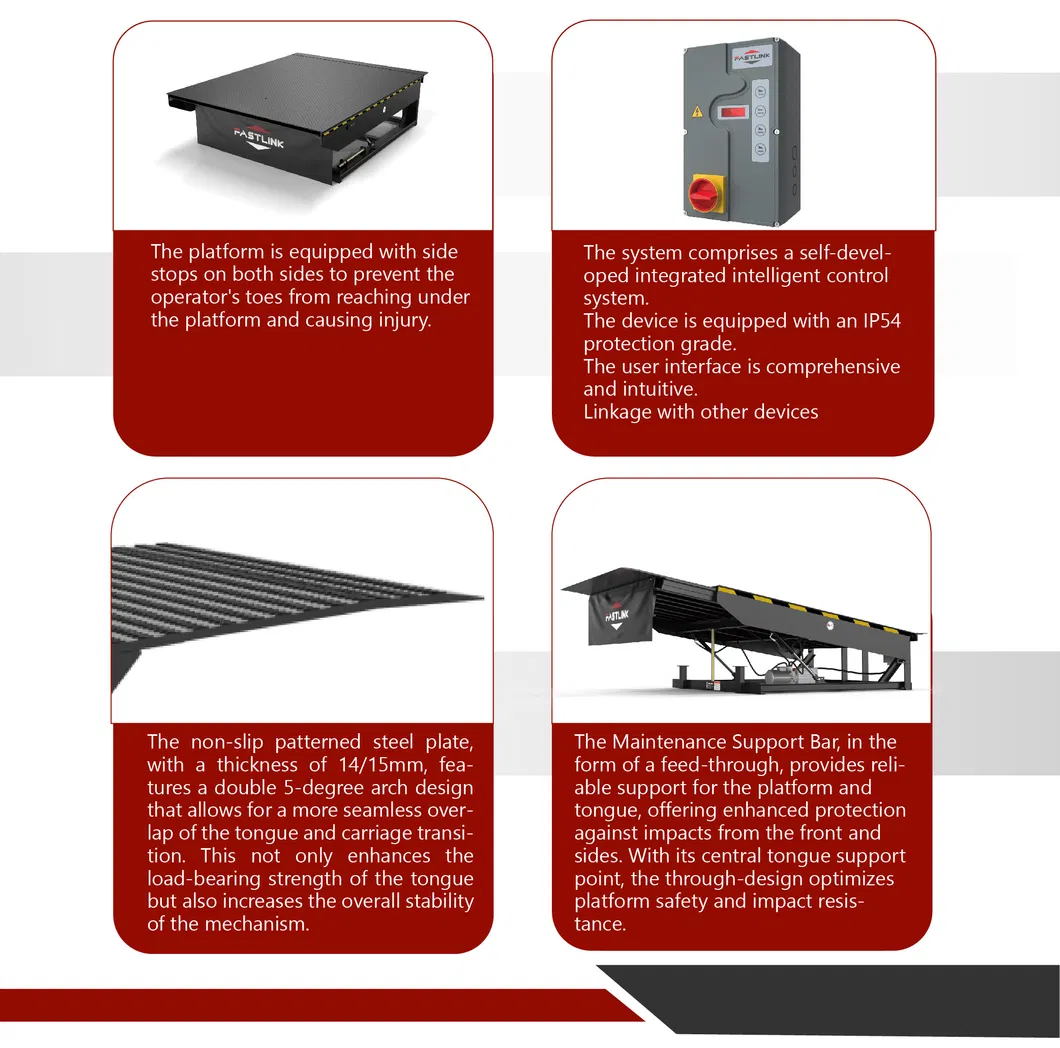

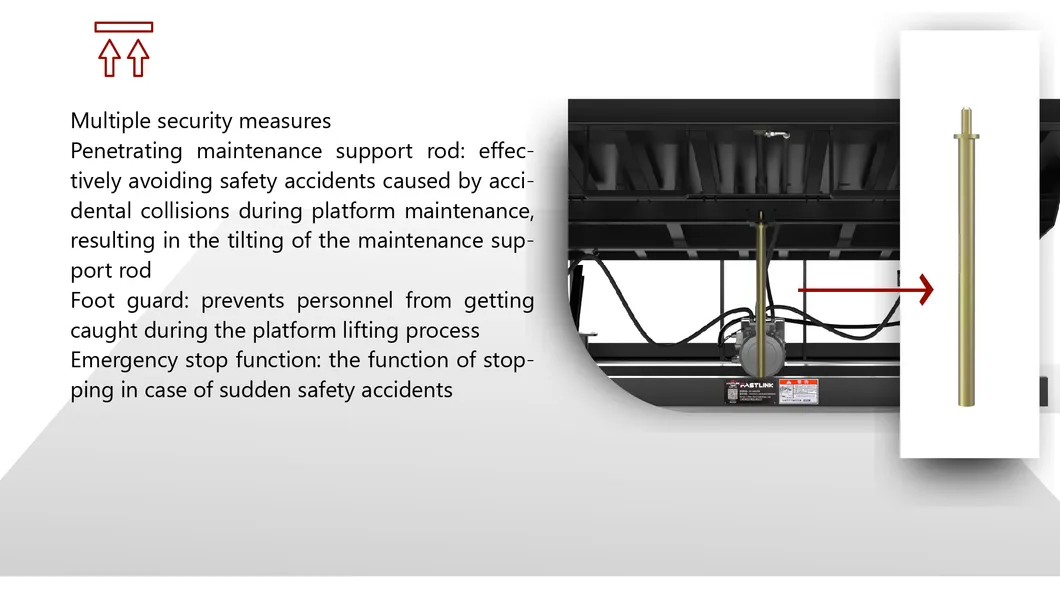

Safety FeaturesSide foot protectors and penetrating maintenance support rods
🖼️

Visual Display

Loading Detail
Mechanism View
Installation

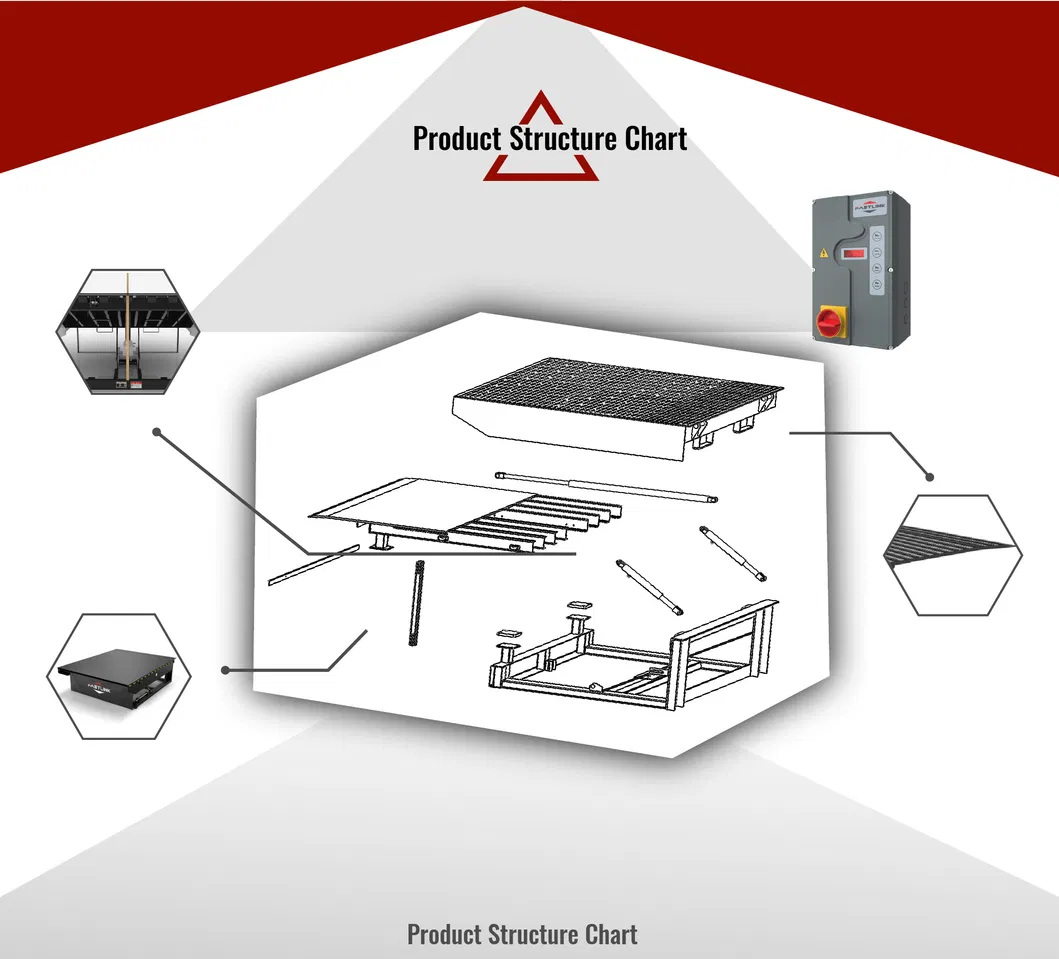

Structure Detail
Operational View
Safety Components
Dock Leveler Side View
Control Box
Hydraulic Unit
Workshop Application
Logistics Solution

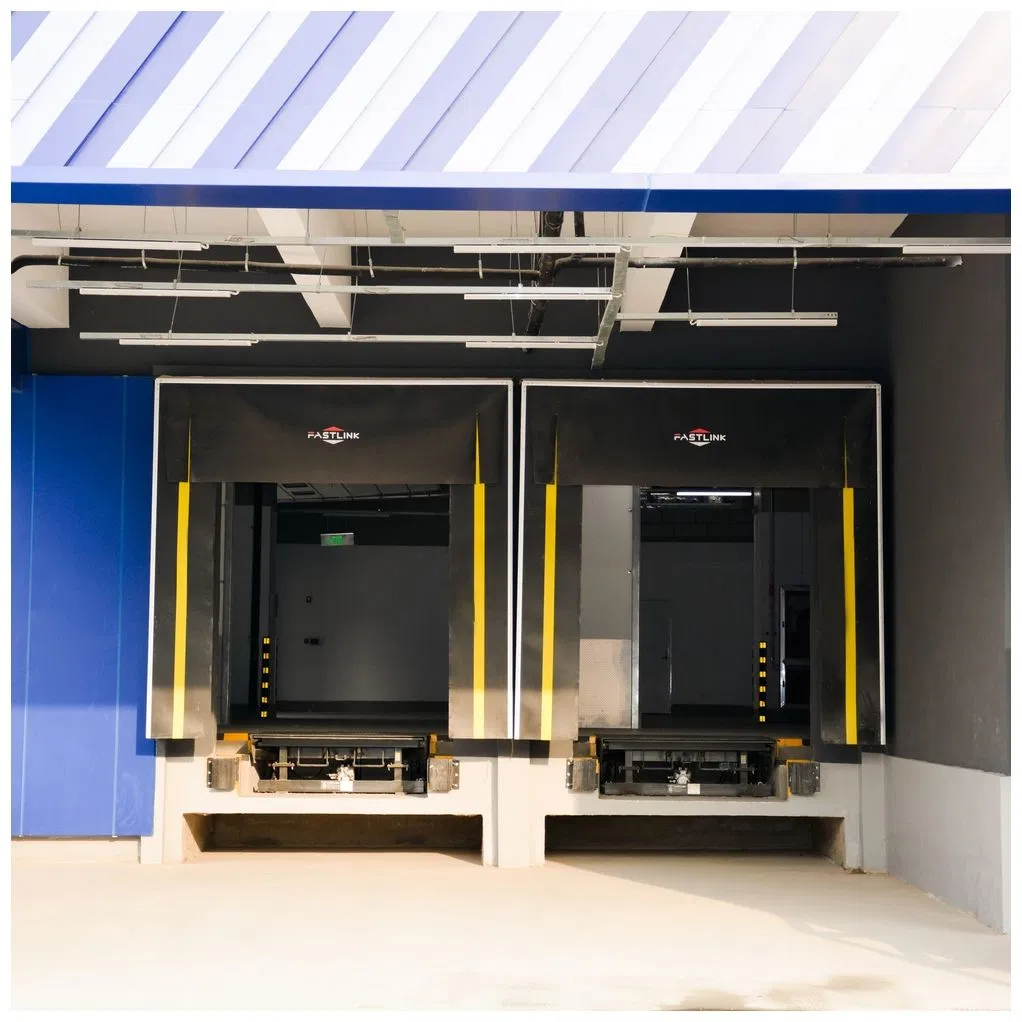

Loading Dock
Technical Drawing
Certification and Quality
❓

Frequently Asked Questions

1. How to choose the length of the Telescopic Dock Leveler?
The length of the platform depends mainly on the difference between the height of the vehicle carriage floor and the platform height. Formula: Platform length L = h (height difference) / 0.125.
2. What are the common sizes for this equipment?
Standard common sizes include W2000mm*L2000mm*H600mm and W2000mm*L2500mm*H690mm. Customized sizes are also available based on specific requirements.
3. What are the typical application scenarios?

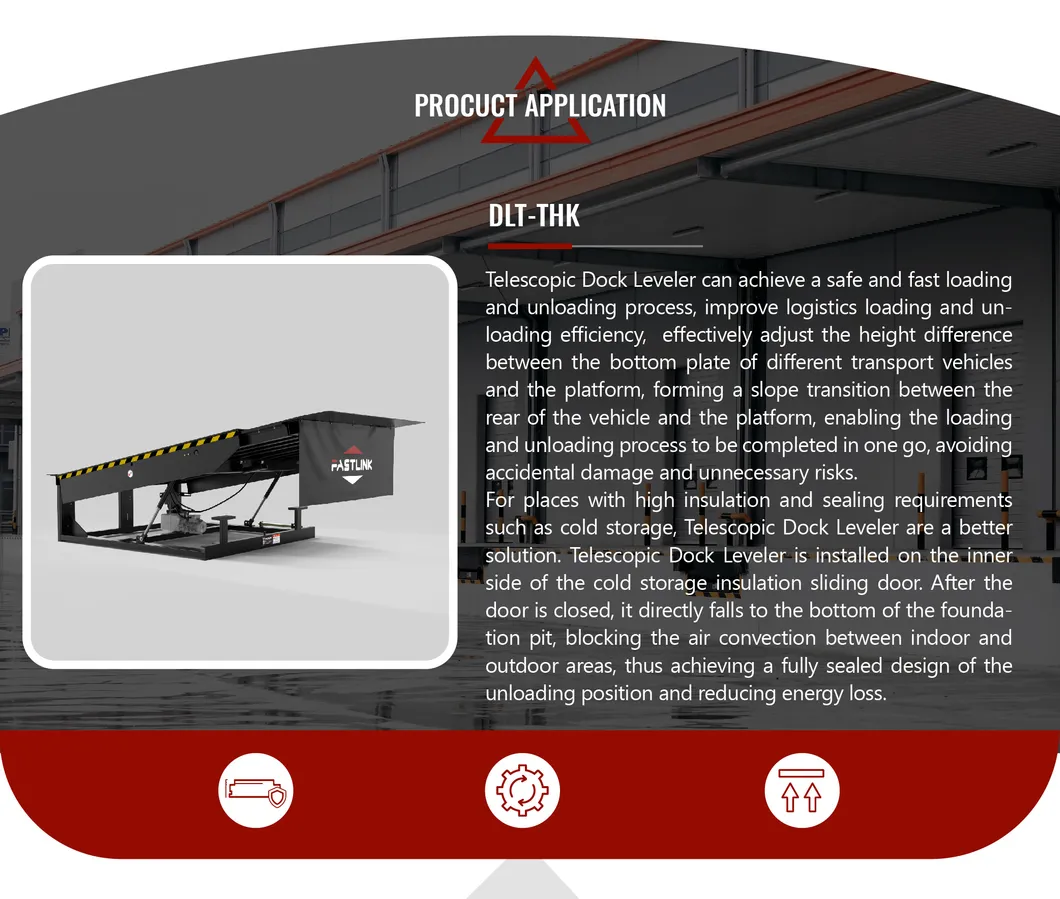

It is ideal for side-platform loading and insulation environments like cold storage where the dock leveler must remain entirely indoors while the lip extends to reach the vehicle.
4. What is the difference between dynamic and static loads?
Dynamic load (6.8T) is the maximum weight of a moving forklift and cargo during operation. Static load is the maximum weight the platform can support in its reset, stationary state.
5. What makes the lip plate design special?
The lip plate features a 14/15mm thickness with a double 5-degree arch design, ensuring a seamless transition between the dock and the vehicle for increased stability and strength.
6. What safety features are included in the control system?
The intelligent control system includes fault code displays, operational status monitoring, fire linkage, interlock functions, and self-safety protection mechanisms.
