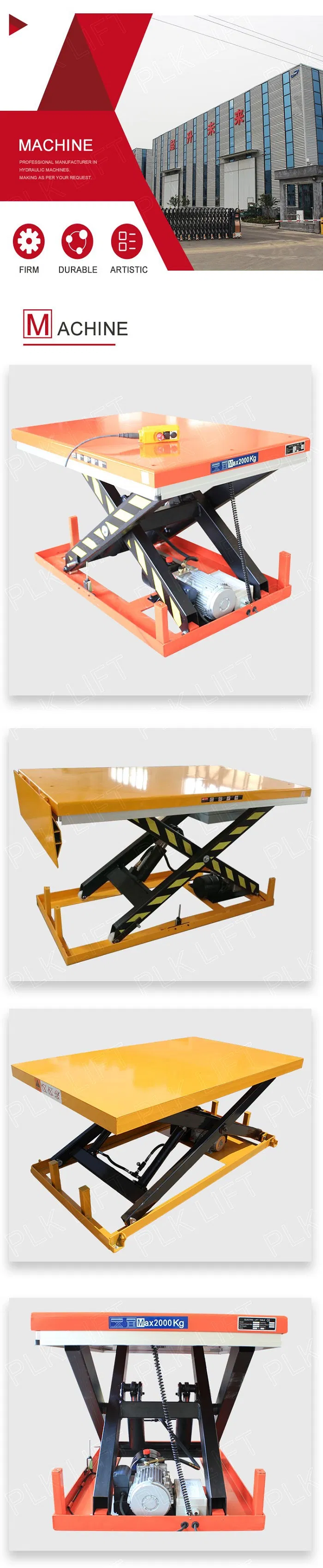

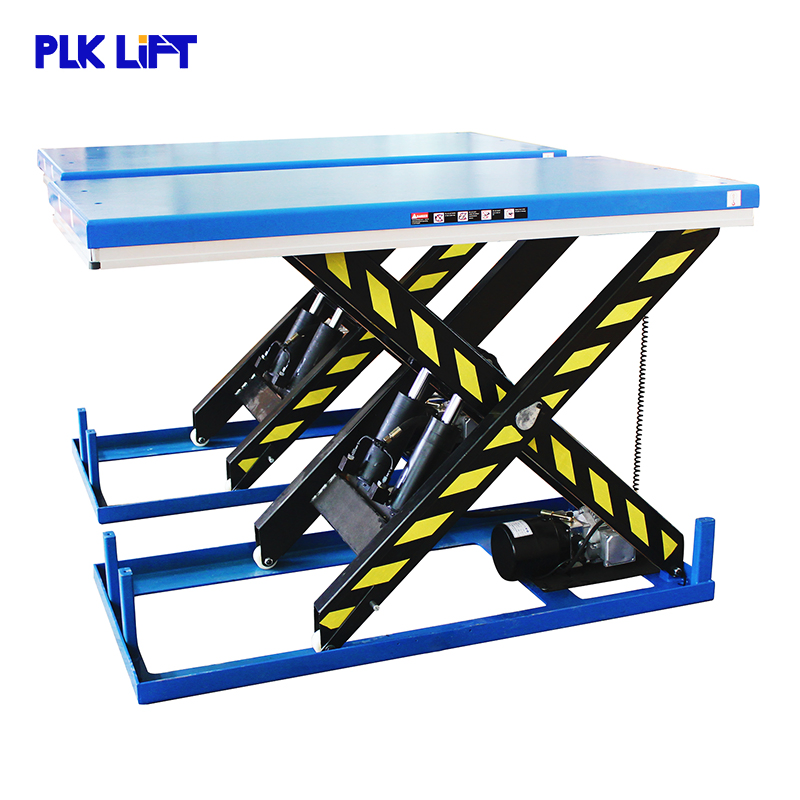

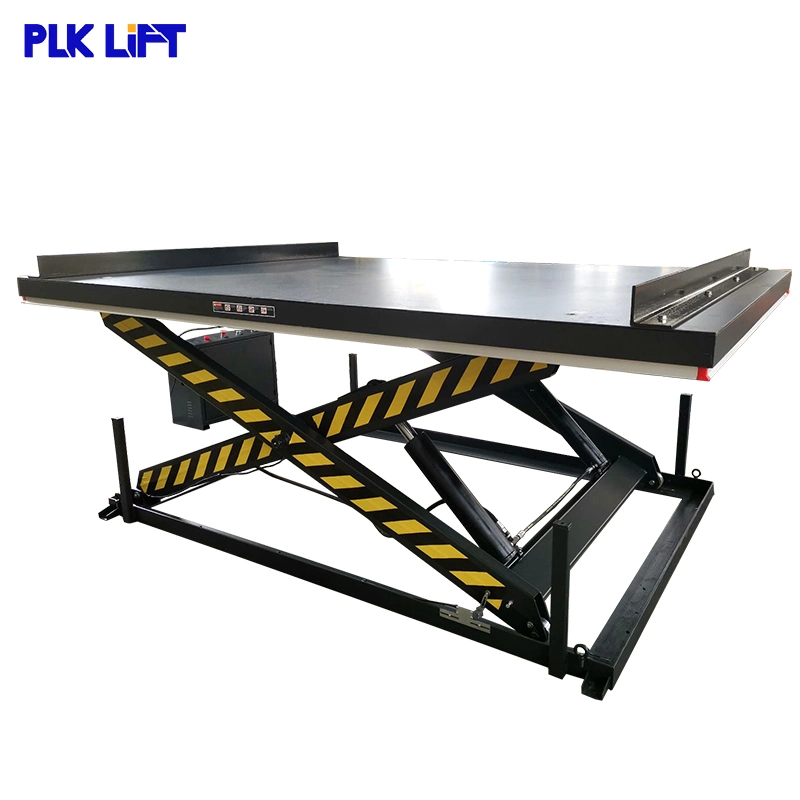

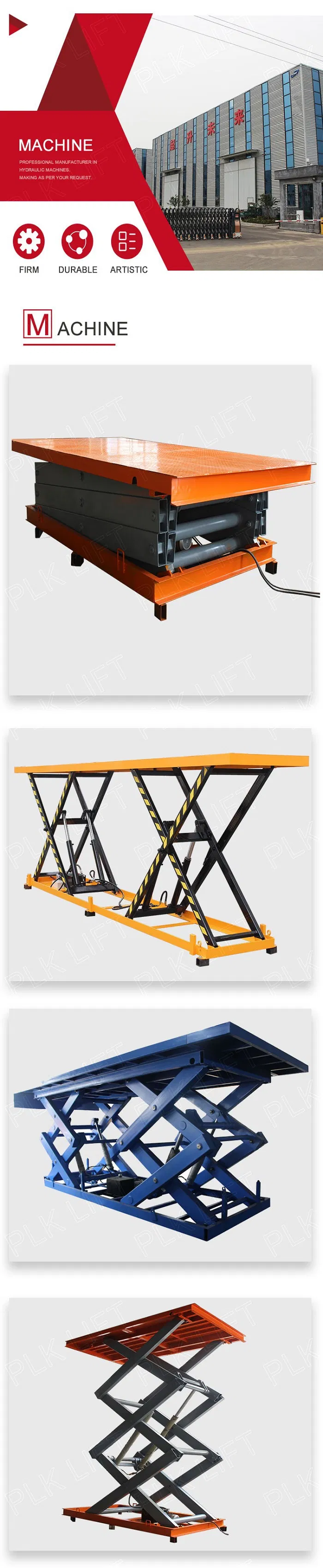

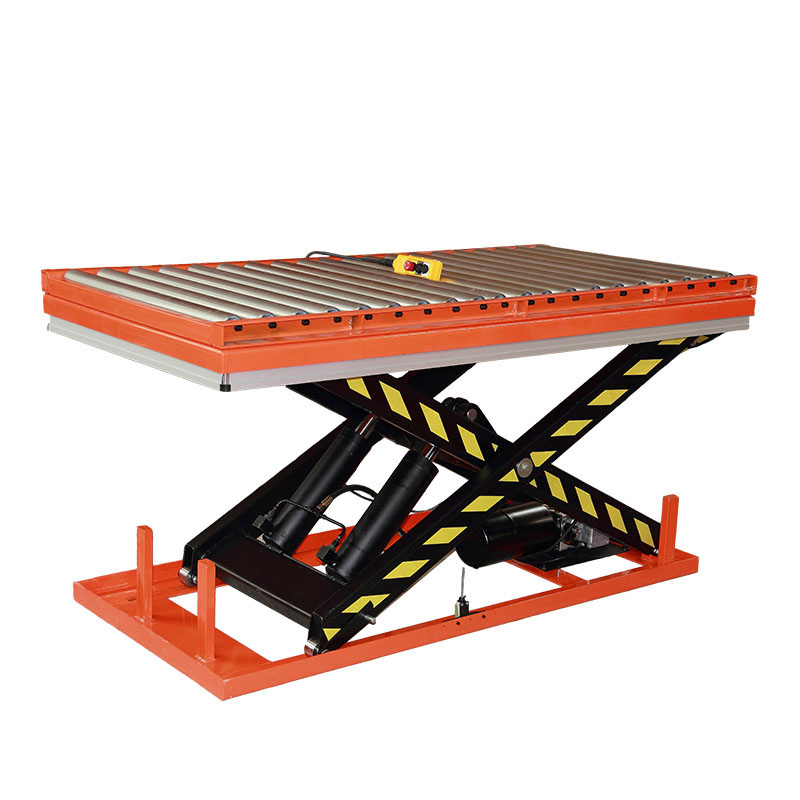

Portable Hydraulic Three Scissor Lift Table
The Hydraulic table is our standard model, equipped with a single layer scissor mechanism. With a maximum platform height of 3000mm and load capacities of 1000kg and 2000kg, it is designed for versatile industrial use.

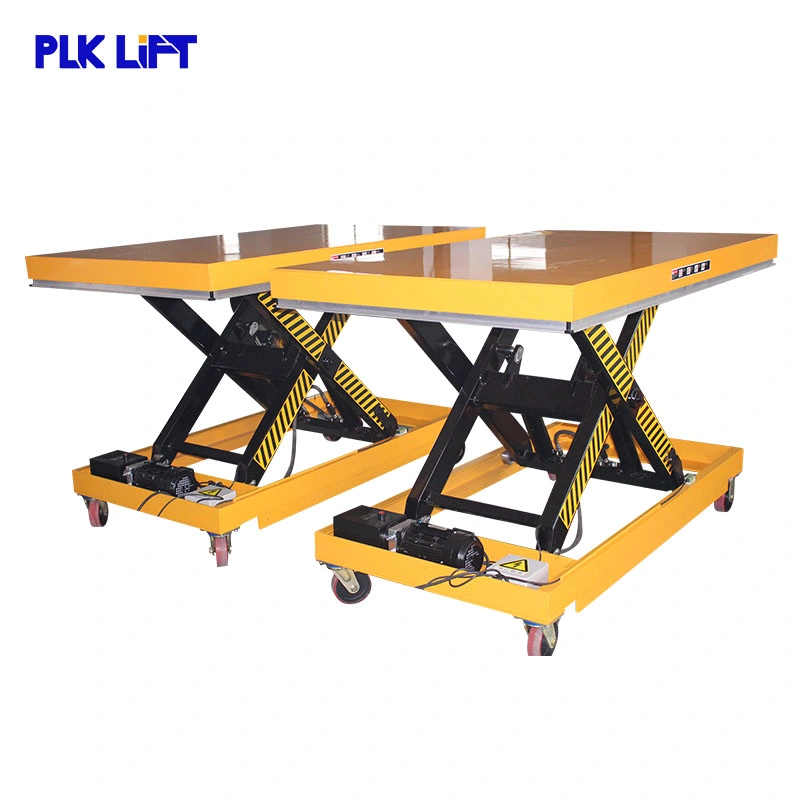

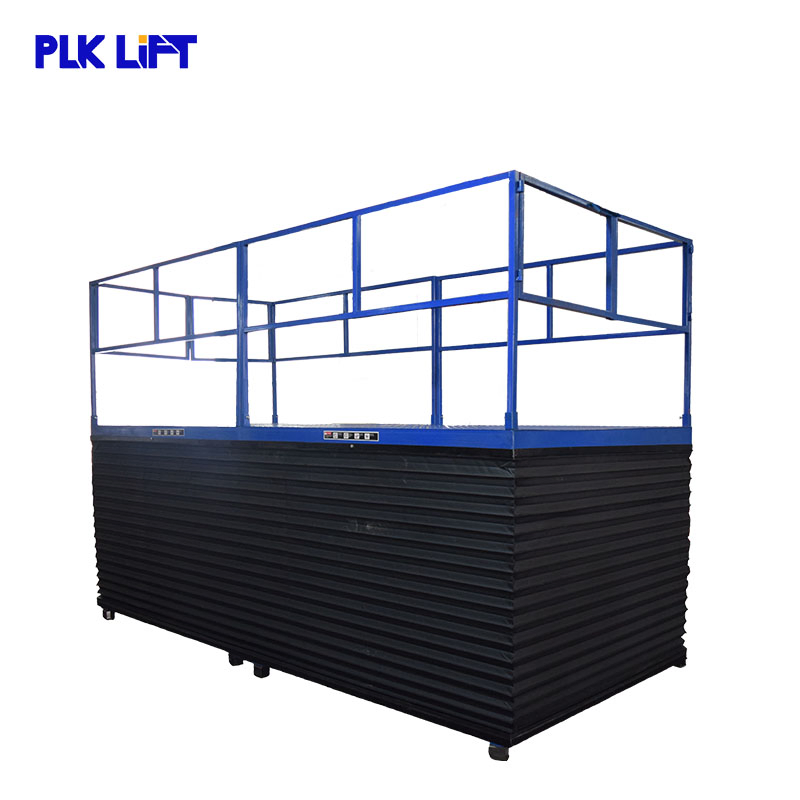

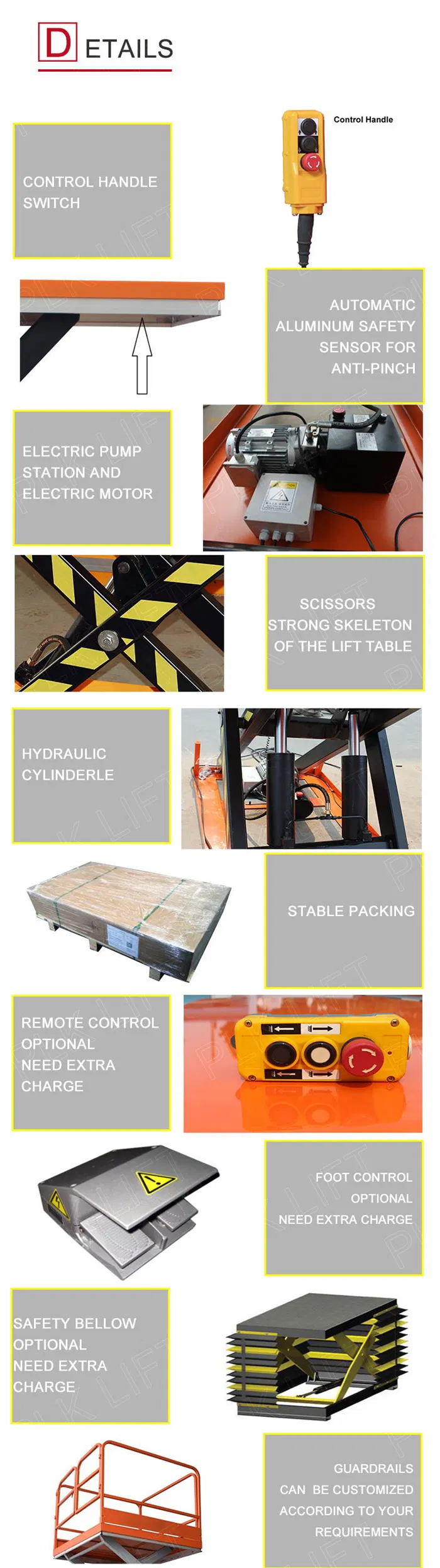

This scissor lift table is equipped with a safety valve to ensure the protection of both goods and users. We offer 6 optional configurations including rollers, organ covers, and wheels for enhanced mobility.
Known for its compact volume and easy operation, this hydraulic table is an efficient choice for modern logistics and production environments.
| Model | Load Capacity (KG) | Self Height (MM) | Max Platform Height (MM) | Platform Size (MM) | Lifting Time (S) | Net Weight (KG) |
|---|---|---|---|---|---|---|
| HW1001 | 1000 | 205 | 1000 | 1300×820 | 20~25 | 160 |
| HW1002 | 1000 | 205 | 1000 | 1600×1000 | 20~25 | 186 |
| HW1003 | 1000 | 240 | 1300 | 1700×850 | 30~35 | 200 |
| HW2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 | 235 |
| HW2004 | 2000 | 250 | 1300 | 1700×1000 | 25~35 | 300 |
| HW4001 | 4000 | 240 | 1050 | 1700×1200 | 30~40 | 375 |
| HW4008 | 4000 | 350 | 1300 | 2200×1800 | 35~40 | 655 |
| HW501L | 500 | 200 | 1000 | 1200*600 | 20~25 | 120 |
