Electric Hydraulic Scissor Lift Table with 4000kg Capacity for Industrial Use

Customization: Available
After-sales Service: Yes
Warranty: 1 Year

Product Description

🔹 Basic Information
Model NO.
HW1001, HW1008, HW2001, HW2008, HW4001, HW4008
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Stationary
Driven Type
AC
Certification
GS, CE, ISO 9001
Voltage
380v/50hz/3ph or 220v/50hz/1ph
Max Capacity
4000 kg
Lifting Height
300 - 1400 mm
Motor Power
380V / 2.2 kW
Production Capacity
3000PCS/ Month
🔹 Product Description

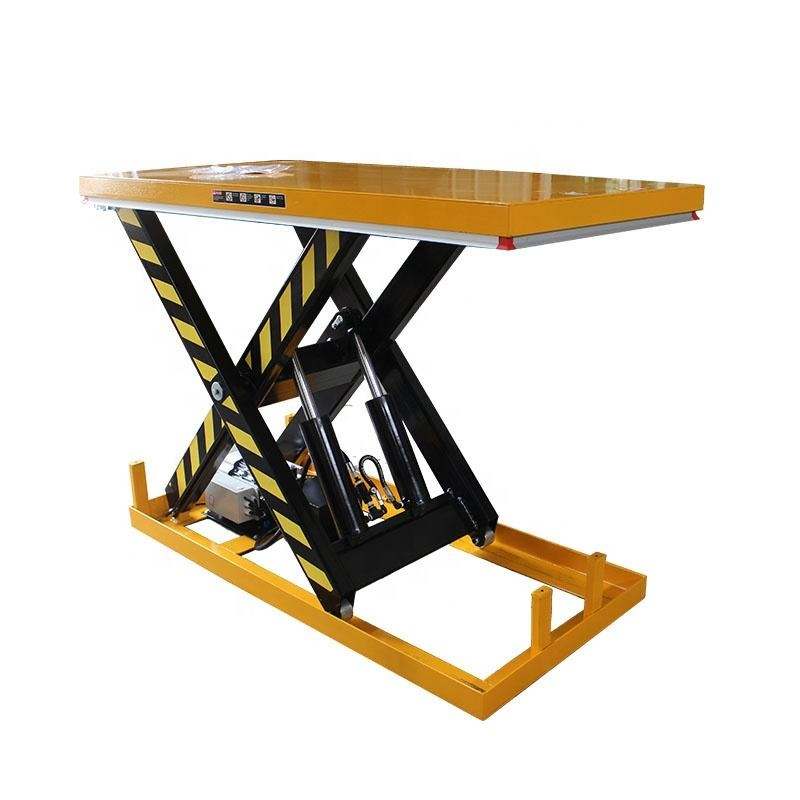

Electric Hydraulic Scissor Lift Table

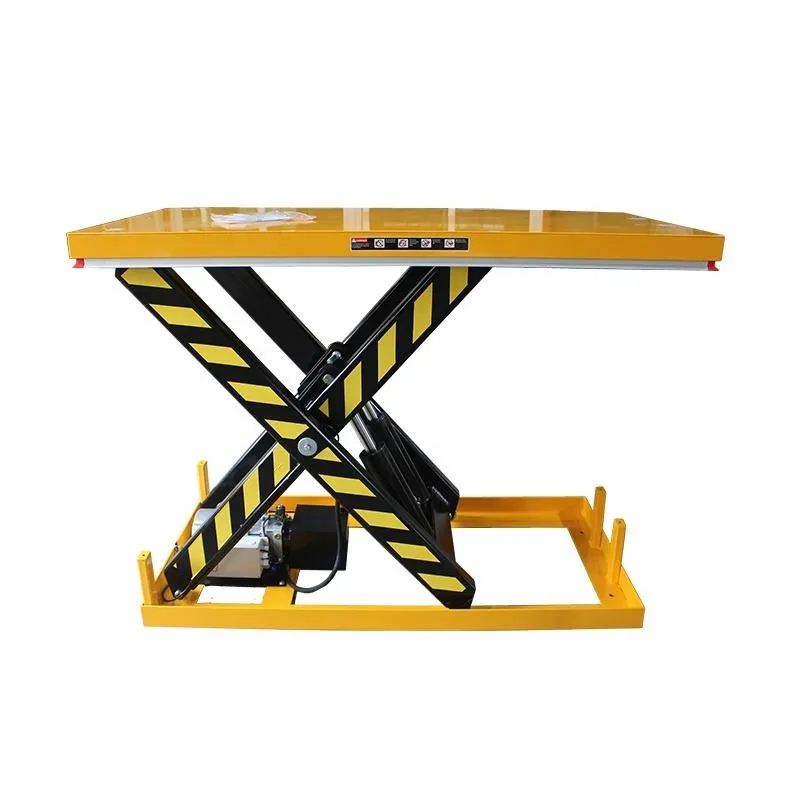

Lift Detail 1

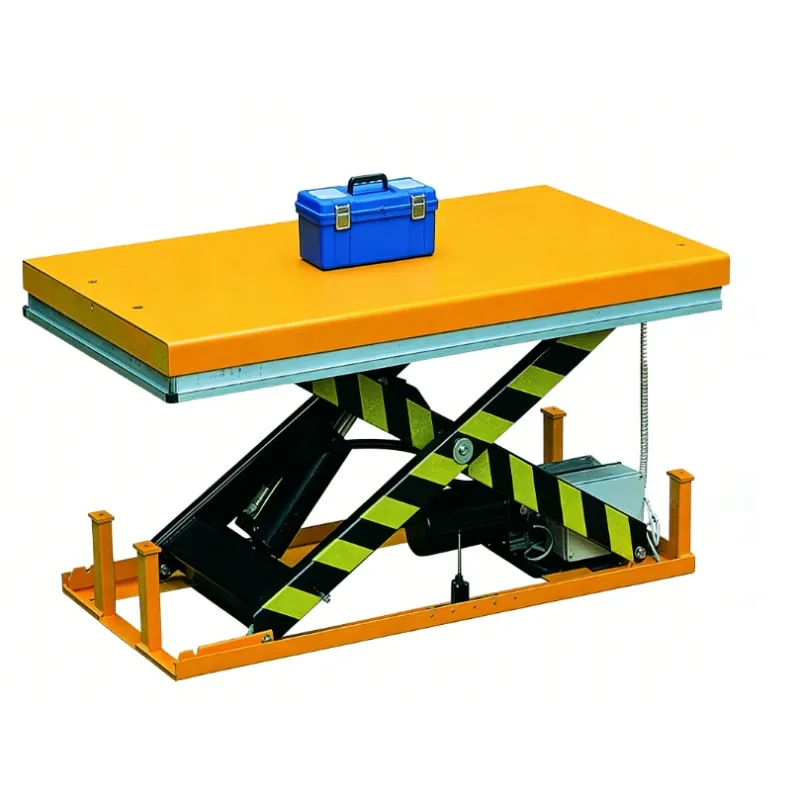

Lift Detail 2

Electric Hydraulic Scissor Lift Table – a robust, versatile, and highly efficient material handling solution engineered to elevate productivity across industrial, manufacturing, and logistics environments. Designed with precision and durability in mind, this lift table seamlessly combines electric power with smooth hydraulic operation to provide reliable vertical lifting for loads ranging from 1000kg to 4000kg.

Built for demanding applications, the scissor lift table features a sturdy welded steel frame and a spacious platform available in multiple sizes to accommodate various load types and workspace layouts. Powered by a reliable 380V AC motor (1.1kW–2.2kW), it ensures steady lifting within 20–50 seconds, minimizing downtime while enhancing operational safety.

Model Capacity (kg) Lowered H (mm) Raised H (mm) Platform Size (mm) Lift Time (s) Power Pack Net Weight (kg)
HW100110002051000820×130020-25AC 1.1kw160
HW100310002401300850×170030-35AC 1.1kw200
HW200120002301050850×130020-25AC 1.5kw235
HW2004200025013001000×170025-35AC 1.5kw300
HW4001400024011001200×170030-40AC 2.2kw375
HW4008400030014001800×220045-50AC 2.2kw540

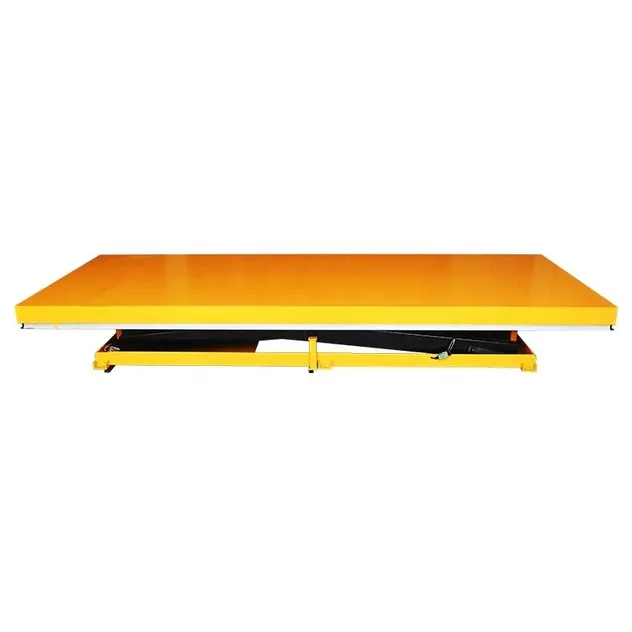

Industrial Use 1
Industrial Use 2
Industrial Use 3

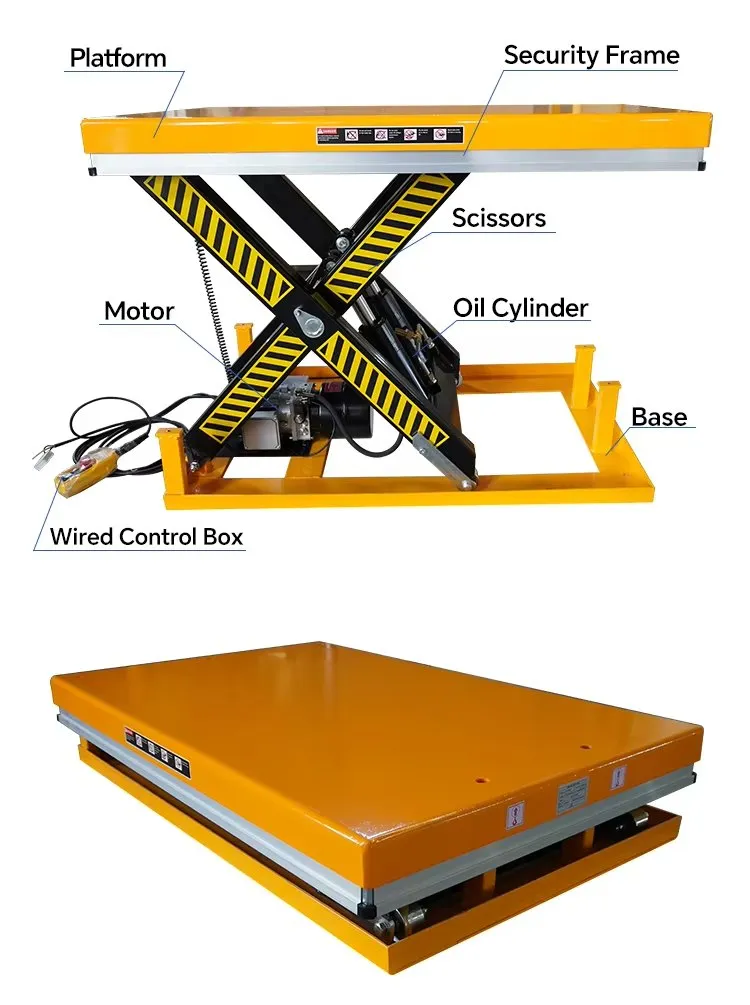

Product Specification View
🔹 Main Products & Factory

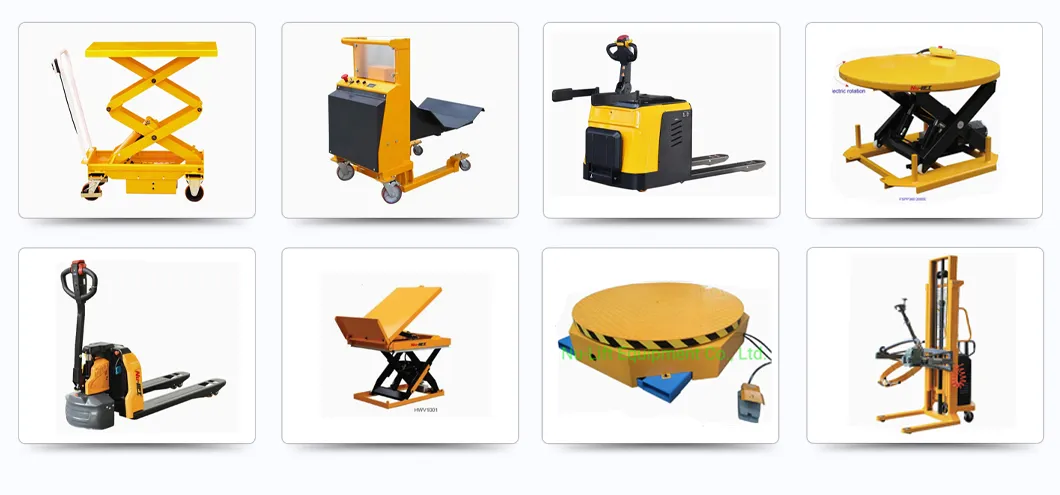

Product Range

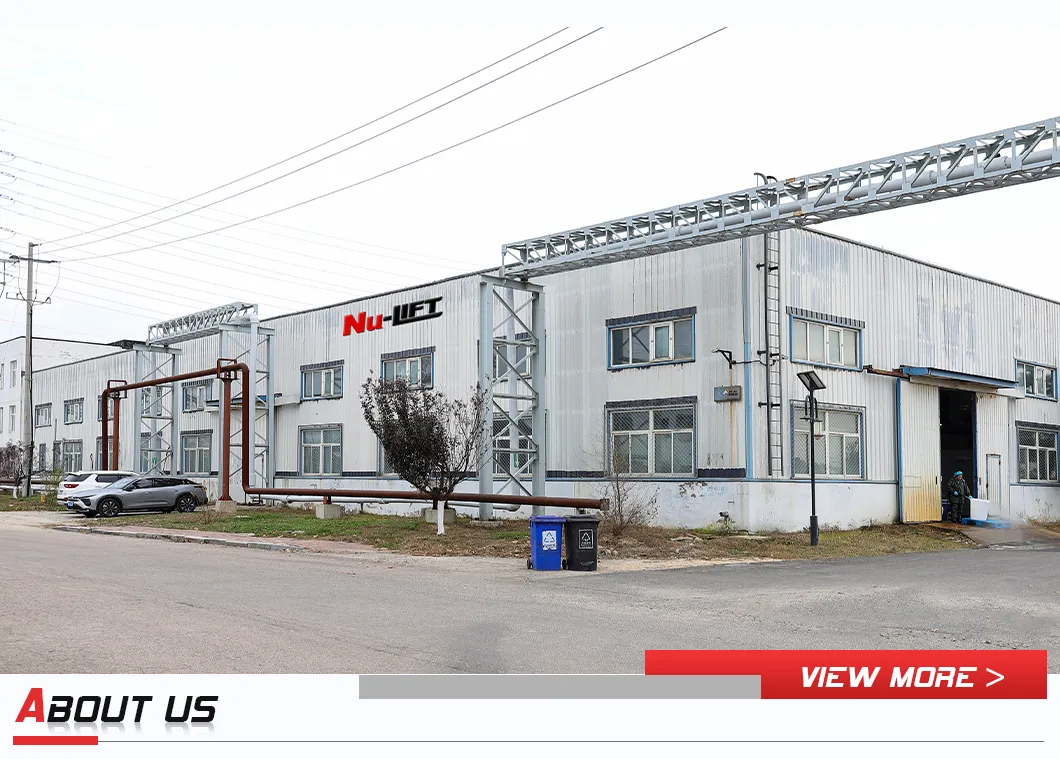

Company Overview

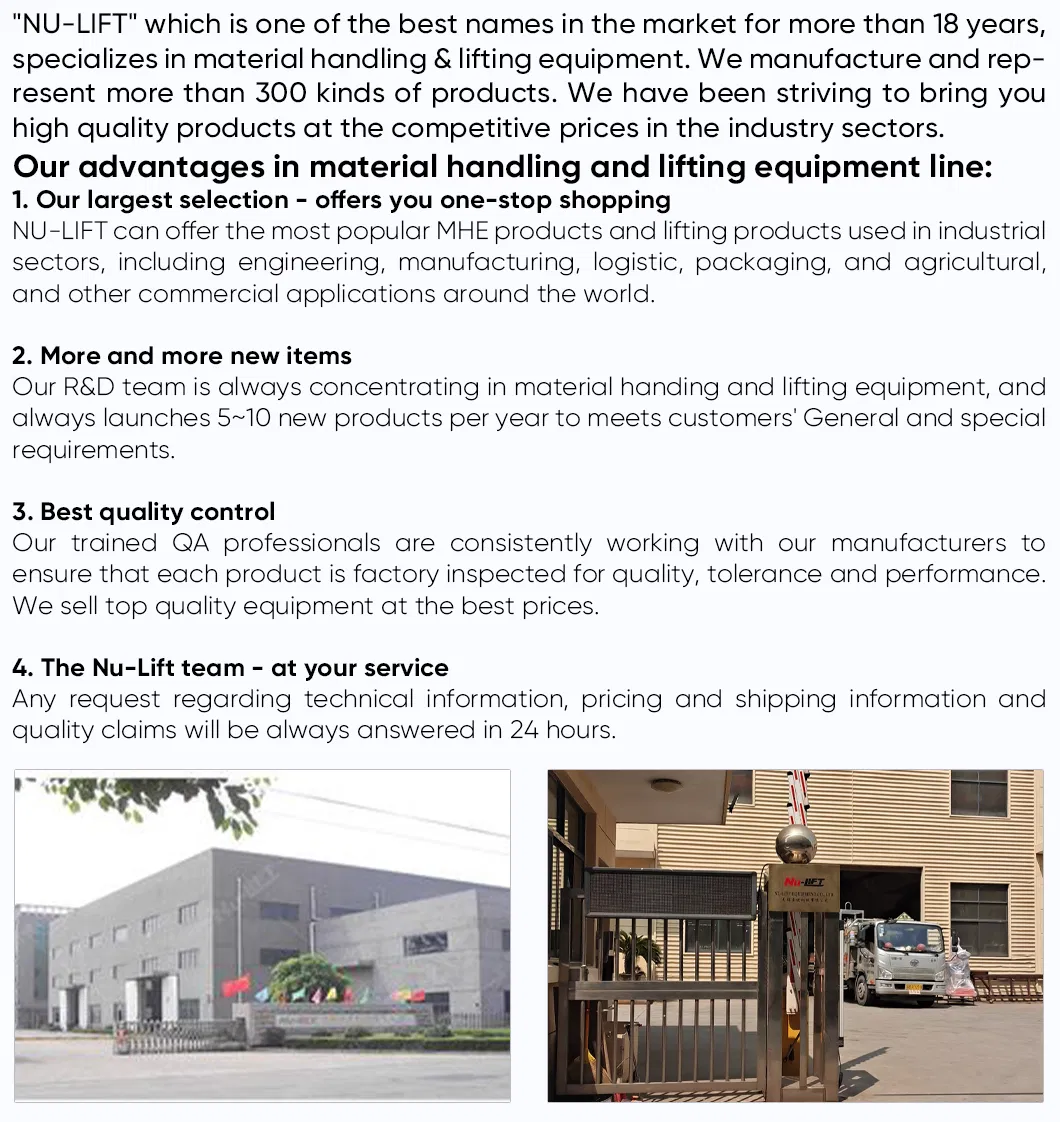

Operational Facilities

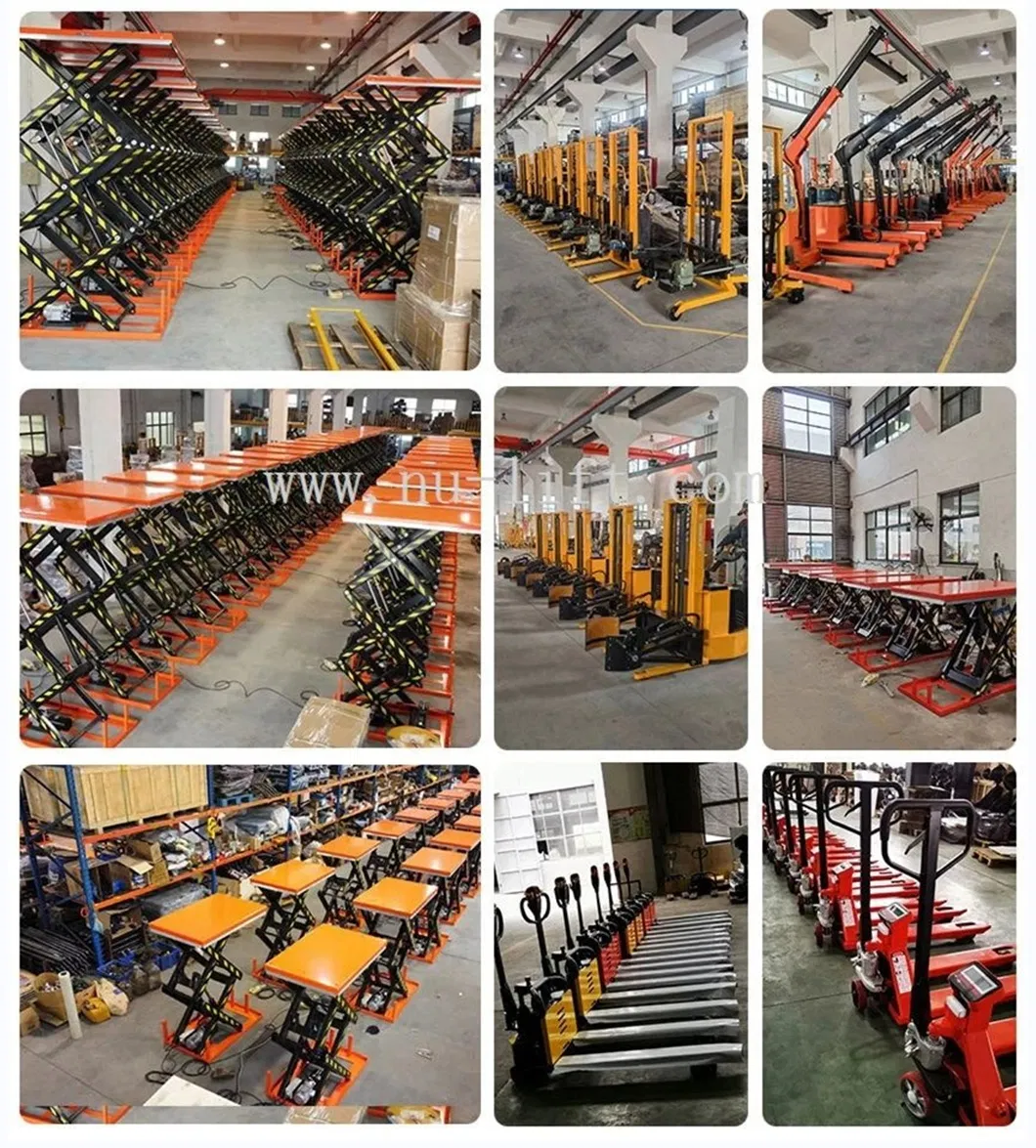

Factory Production
🔹 Certifications & Exhibition
Quality Certificates
Global Exhibitions
🔹 Packing & Delivery
Secure Packaging
❓ Frequently Asked Questions
What is the maximum lifting capacity of these scissor lift tables?
The maximum lifting capacity for our standard series ranges up to 4000 kg, depending on the specific model chosen (e.g., HW4000 series).
What power source is required for operation?
These tables are powered by an AC motor. The standard configuration is 380V/50Hz/3Ph, but a 220V/50Hz/1Ph option is also available.
How long does it take to lift the platform to its maximum height?
The lift cycle time typically ranges between 20 and 50 seconds, varying based on the model's load capacity and motor power.
Are these lift tables certified for safety?
Yes, our scissor lift tables are manufactured to meet high safety standards and carry GS, CE, and ISO 9001 certifications.
What is the minimum lowered height for loading?
The lowered height starts from as low as 205mm for smaller models and goes up to 300mm for the 4000kg high-capacity models.
What are the primary applications for this equipment?
They are ideal for stationary use in workshops, warehouses, assembly lines, packaging stations, and various industrial building environments.
