Product Description

Electric Hydraulic Dock Leveller
🔹 Basic Info & Specifications
Model NO.
VSDL-01
Application
Warehouse Crane, Charge and Discharge
Lift Mechanism
Articulated Lift
Driven Type
Hydraulic
Loading Capacity
10000kg
Power Supply
380V/0.75kw
Power Unit
Swiss Bucher Hydraulic System
Working Range
-300 to +350mm
Lip Plate
400mm Standard / 500mm Optional
Certification
CE, RoHS, ISO 9001
🔹 Product Description

The Electric Hydraulic Dock Leveller is designed for quick and safe loading and unloading operations in warehouse and logistics environments. Built with high-strength materials and precision hydraulic systems, it ensures seamless transitions between the dock and the vehicle.

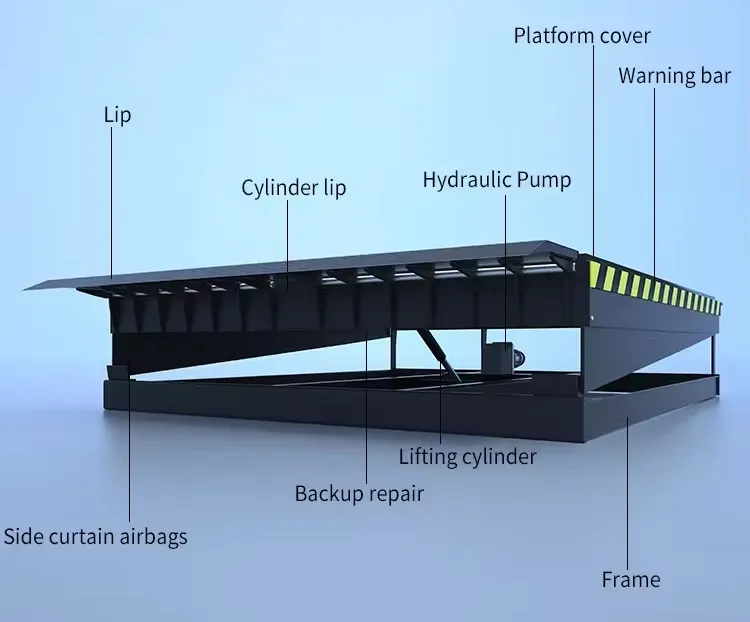

Dock Leveller Operation

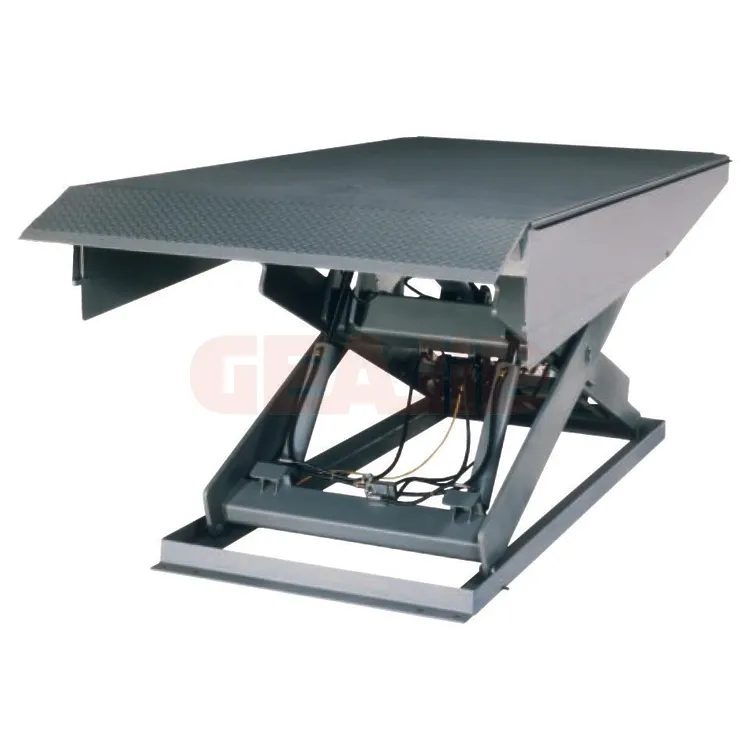

Leveler Front View
Leveler Side View

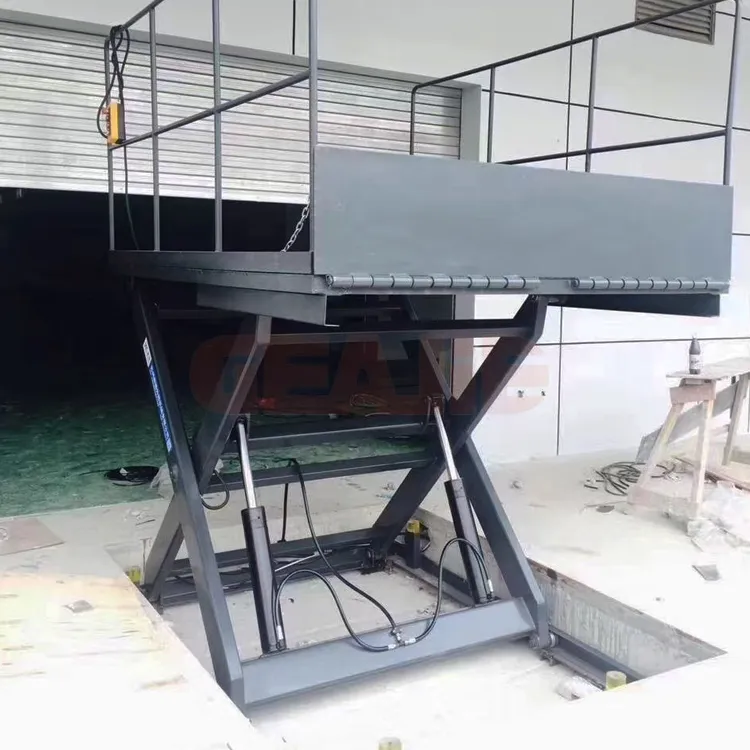

Leveler Installation
🔹 Technical Parameters
Feature Specification Details
Application EnvironmentLow temperature with high sealing requirements
Load Capacity6-10 tons
Standard Width (W)1830mm, 2000mm
Standard Length (L)1500mm, 1800mm, 2000mm
Countertop Structure8mm high-strength anti-skid pattern steel plate
Lip Thickness14mm / 16mm high-strength steel
Security ConfigurationFull anti-fall safety function
Color OptionsBlack, Gray, Blue, Green, Customizable
🔹 Structural Components

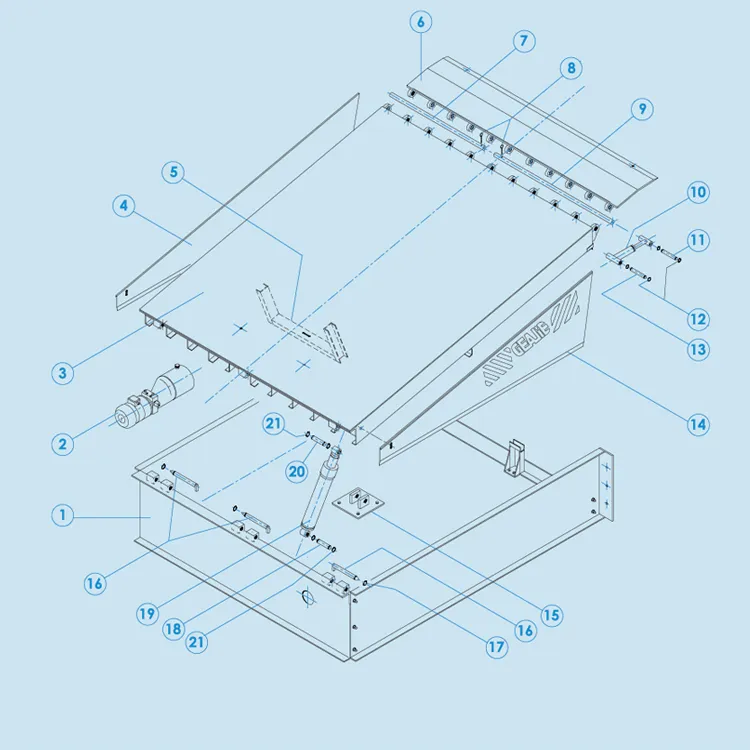

Structural Drawing
1. Mould
2. Hydraulic Control Unit
3. Upper Plate
4. Foot Guards
6. Swinging Lip
10. Lip Cylinder
16. Rotation Pivot
19. Main Cylinder
🔹 Key Advantages
Superior Material Made of durable steel to ensure load-bearing capacity and long-term durability. Treated for high corrosion resistance.
Advanced Hydraulics Equipped with the Swiss Bucher Hydraulic System for smooth and reliable lifting operations.
Enhanced Safety Features anti-slip surfaces, safety barriers, and anti-fall sensors to protect personnel during use.
High Adjustability Adjustable height ranges accommodate various truck heights and dock levels for a smooth connection.
🔹 Packaging & Logistics
Transport Package
Heavy-duty Wooden Cases
Package Size
200cm * 300cm * 100cm
Gross Weight
800.00kg
Production Capacity
15,000 Units Per Year
🔹 Factory & Application Show

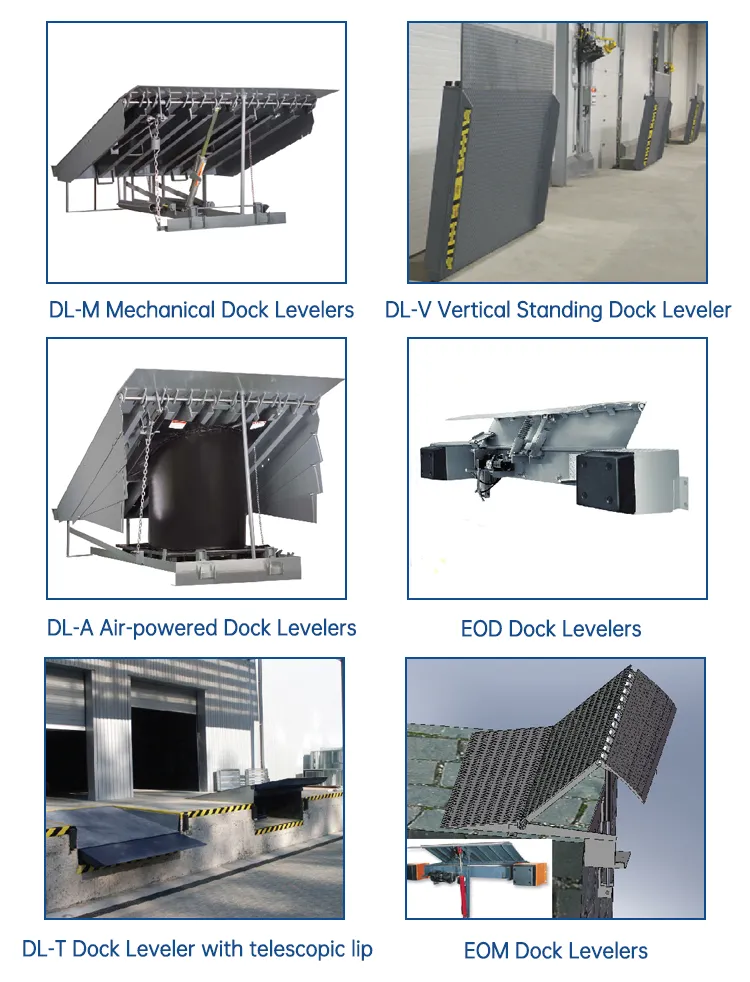

Warehouse Application
Production Line 1
Production Line 2
🔹 Frequently Asked Questions
What is the minimum order quantity (MOQ)?
The MOQ is 1 set, making it accessible for both small facilities and large-scale projects.
What is the maximum size available for the dock leveler?
We can produce units up to 6 meters in width and 6.5 meters in length. Dimensions are fully adjustable based on your requirements.
What is the primary effect of using a dock leveler?
It significantly improves cargo handling efficiency by providing a stable bridge between the warehouse floor and the truck bed, allowing for rapid loading/unloading.
Is the installation process difficult?
No, our products are designed for straightforward installation. We provide detailed guidance to ensure a quick setup.
Which environments are best suited for this equipment?
It is ideal for factory outlets, logistics park outgoing ports, and cold storage facilities where high sealing and efficiency are required.
Are there different power supply options?
Standard power is 380V/3PH, but we also offer non-standard options like 220V/1PH/50HZ to meet local electrical standards.
