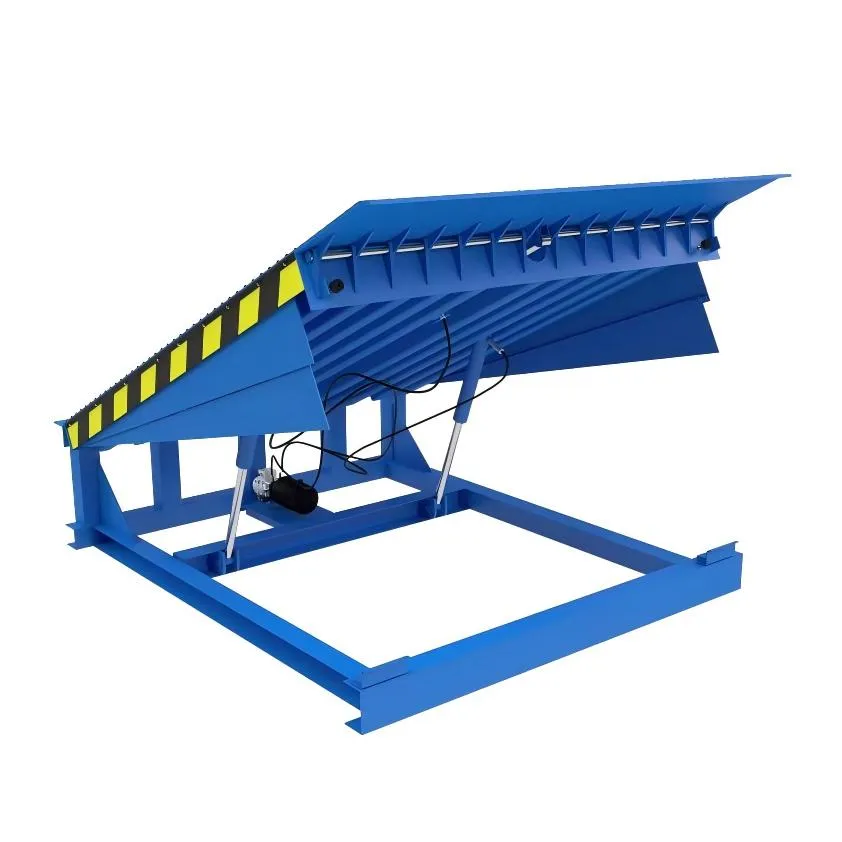

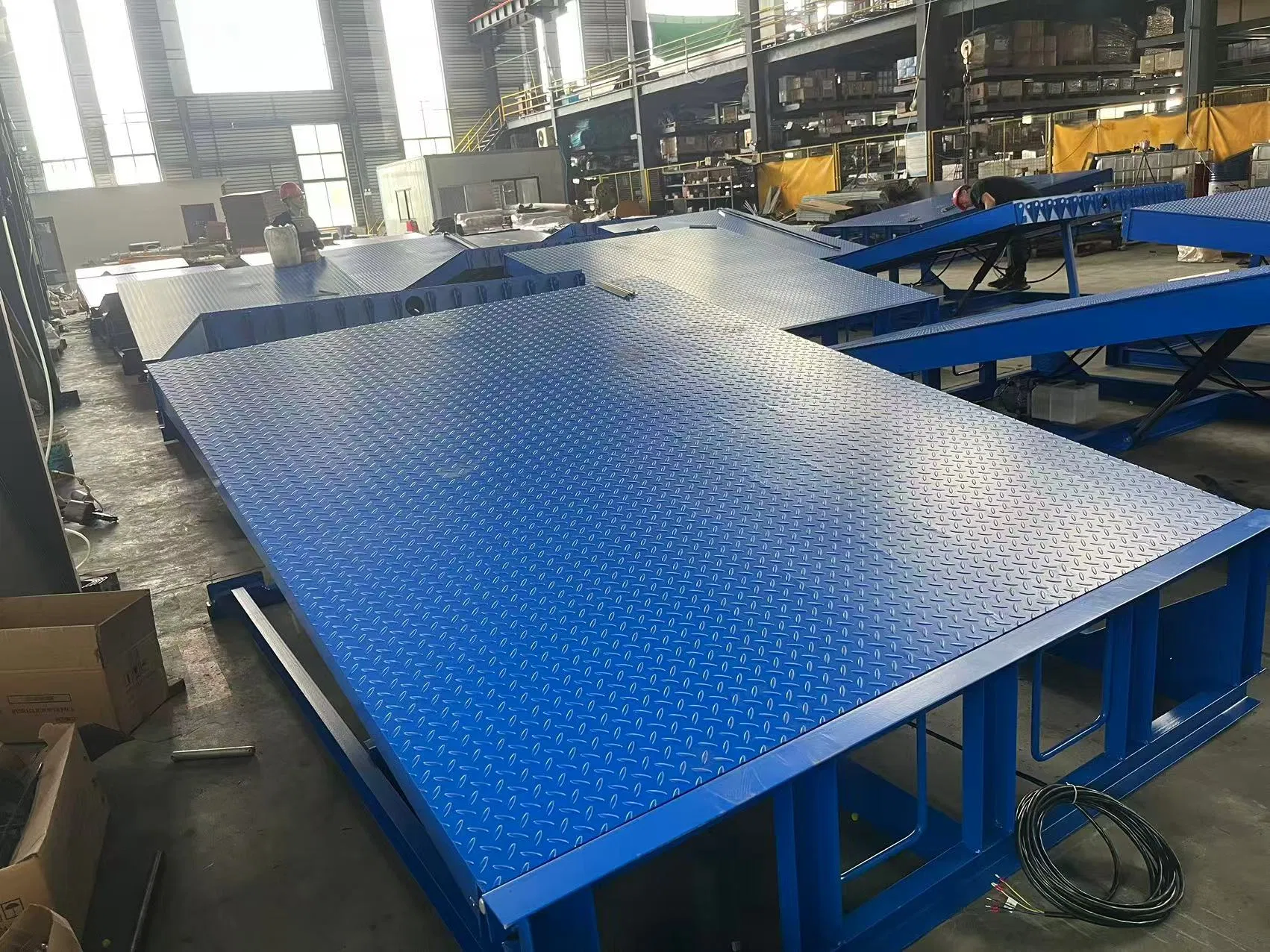

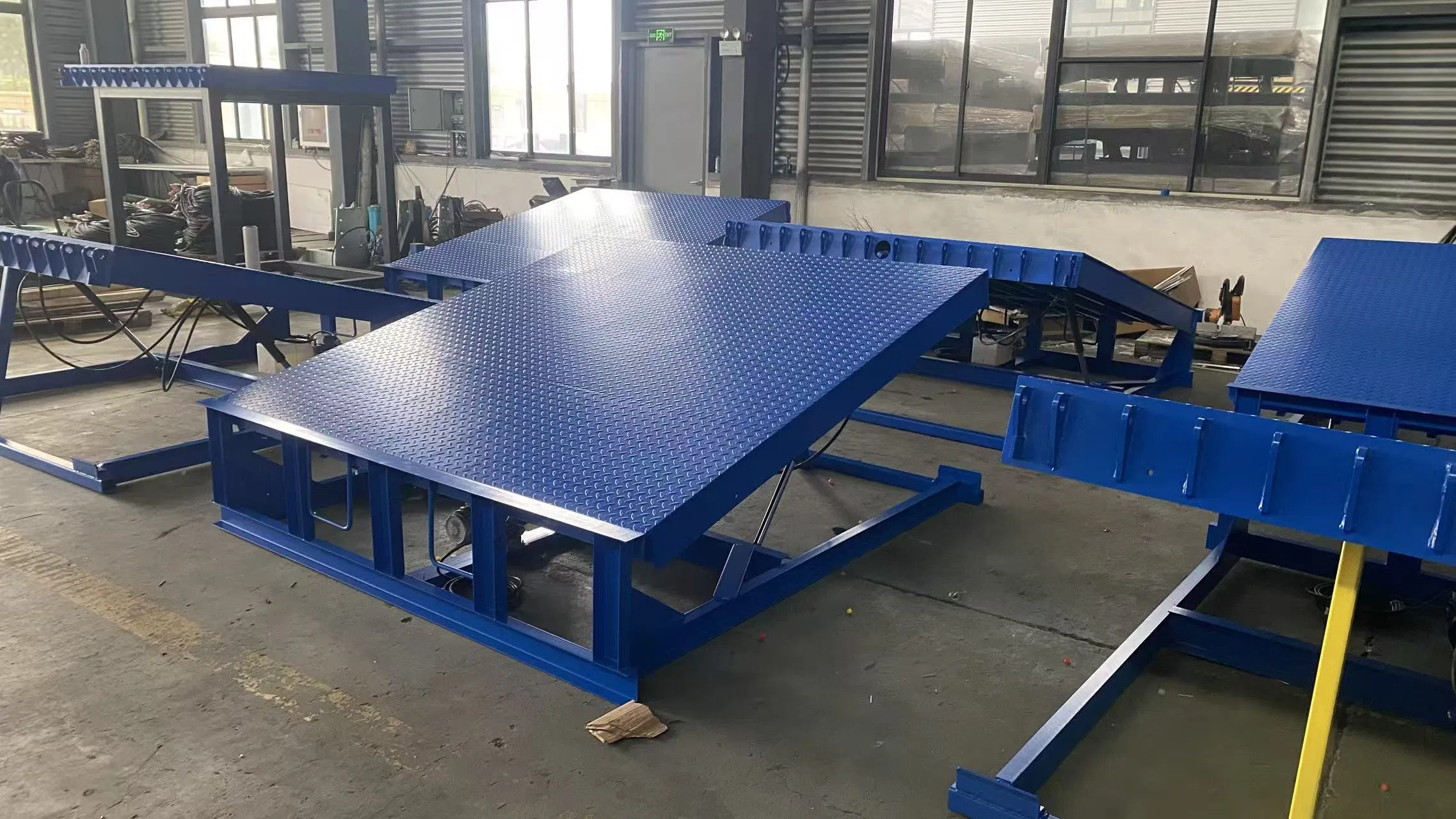

Dock Leveler for Forklift Loading in Warehouse and Container Use

1 / 5

Dock Leveler for Forklift Loading in Warehouse and Container Use

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Folding -01

Application

Warehouse Crane

Lift Mechanism

Hydraulic

Moves

Folding Dock Leveler

Driven Type

Hydraulic

Certification

CE, ISO 9001

Size

2000X2000/2000X2500/2000X1600mm

Dynamic Load

6t/8t/10t/15t/20ton

Power Source

Electric Hydraulic

Adjustment Range

-300/+300mm

Lip Thickness

14/16mm*400/500mm

Platform Thickness

6/8mm (Integrated Tread Plate)

Product Configuration

Hydraulic Dock Leveler Configuration
Equipment Size	L2000/2500W2000H600mm	Customizable
Rated Load	Dynamic: 6 tons, Static: 9 tons	8t/10t/12t/15t/20t Available
Lip Thickness & Length	12mm*400mm (Integrated)	14/16mm*400mm
Main Platform	6mm tread plate	8mm integrated tread plate
Control Box	Wall-mounted ABS plastic	Del / Screen Control Options
Motor Power	Domestic pump station (1.1KW)	Italy/Germany/Swiss Brands Available
Main Frame	4mm L-shaped parts (12 units)	14# I-beam (10 units total)

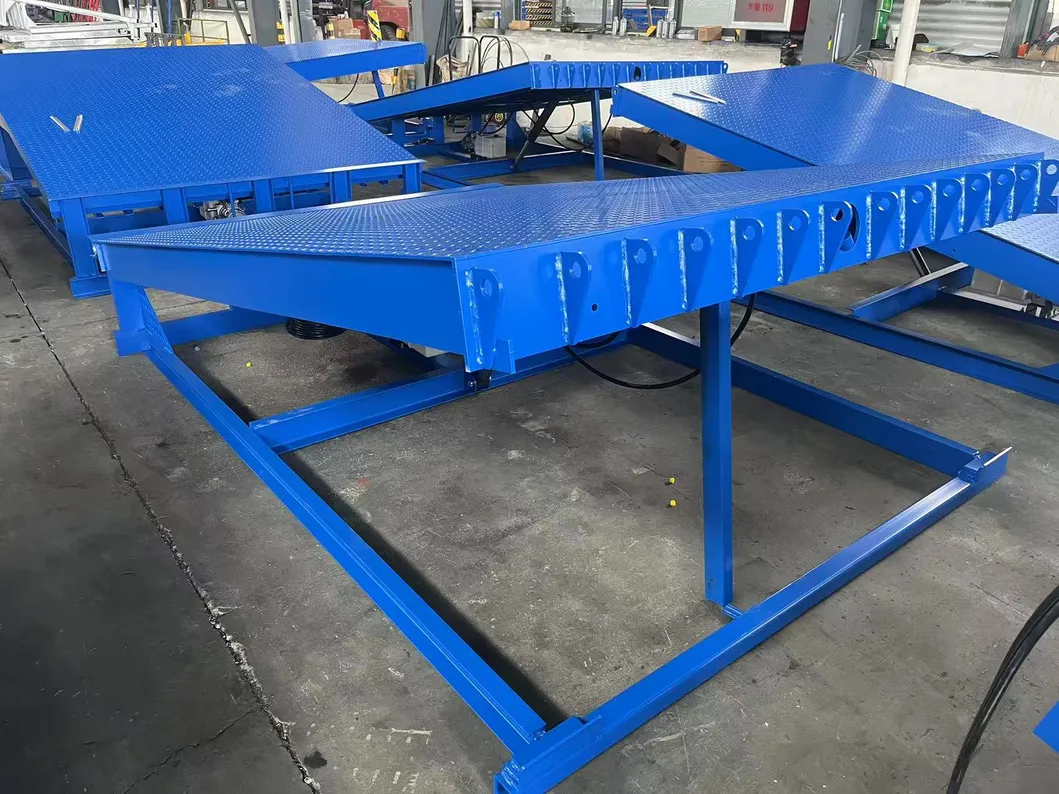

Visual Display

Frequently Asked Questions

What is the maximum dynamic load capacity for this dock leveler?

The system supports various dynamic load levels including 6 tons, 8 tons, 10 tons, 15 tons, and up to 20 tons to meet different heavy-duty requirements.

Can the equipment dimensions be customized?

Yes, while standard sizes like 2000x2000mm and 2000x2500mm are available, we offer full customization for equipment size to fit your specific warehouse dock requirements.

What is the height adjustment range of the platform?

The hydraulic dock leveler provides a height adjustment range of -300mm to +300mm, allowing for smooth transitions between the dock and various truck heights.

How long does it take to adjust the position?

The electric hydraulic system is highly efficient, typically taking less than 30 seconds to move from any position to the corresponding working height.

What certifications does this product hold?

Our folding dock levelers are fully certified with CE and ISO 9001 standards, ensuring high quality and safety for industrial warehouse operations.

What materials are used for the main platform?

The main platform uses a high-strength integrated tread plate with a thickness of either 6mm or 8mm, providing a non-slip surface and durable performance under heavy forklift traffic.
