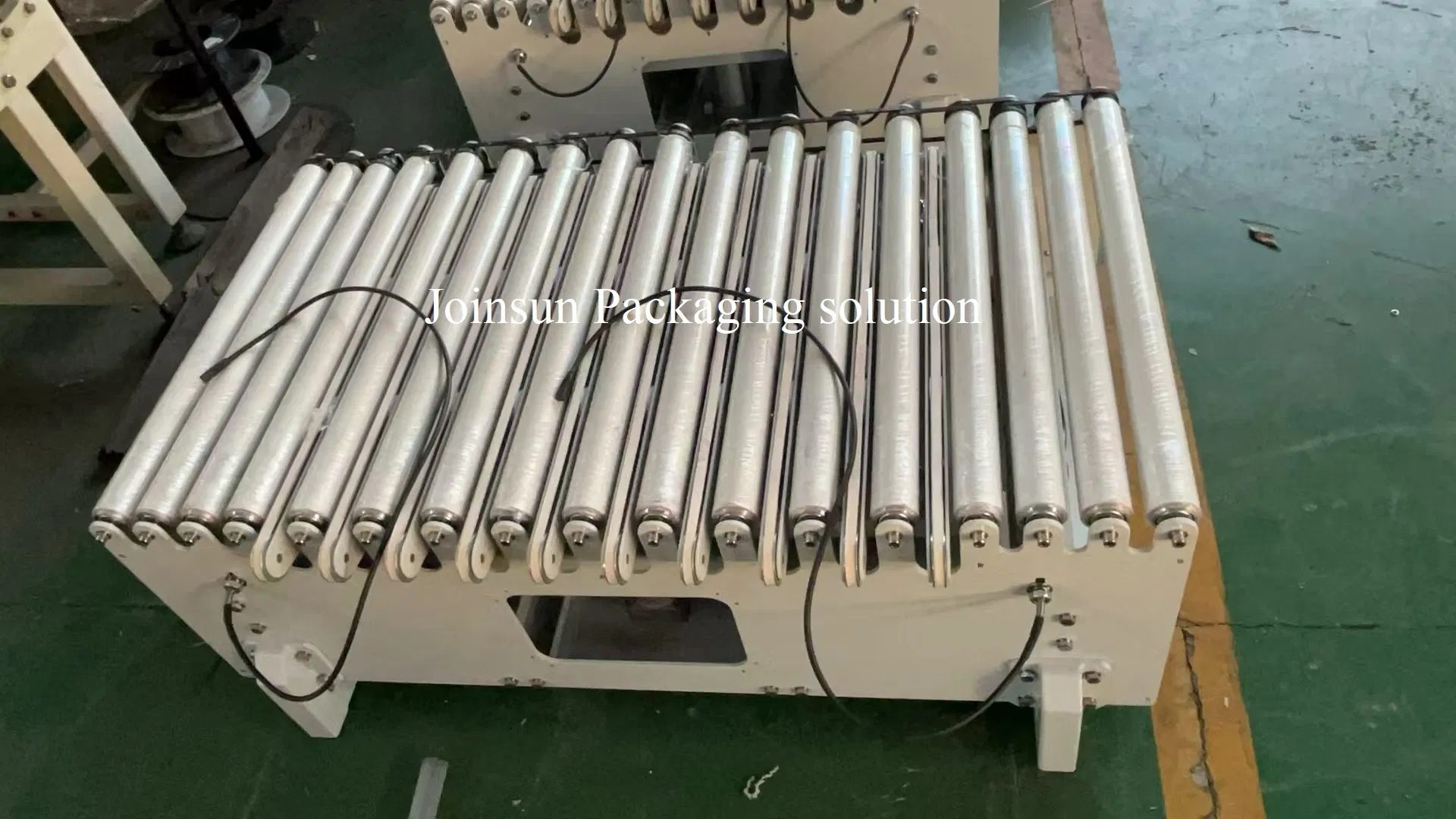

25kg Plastic Pellet Soft Bag Transfer Conveyor System - Direction Shift Transfer

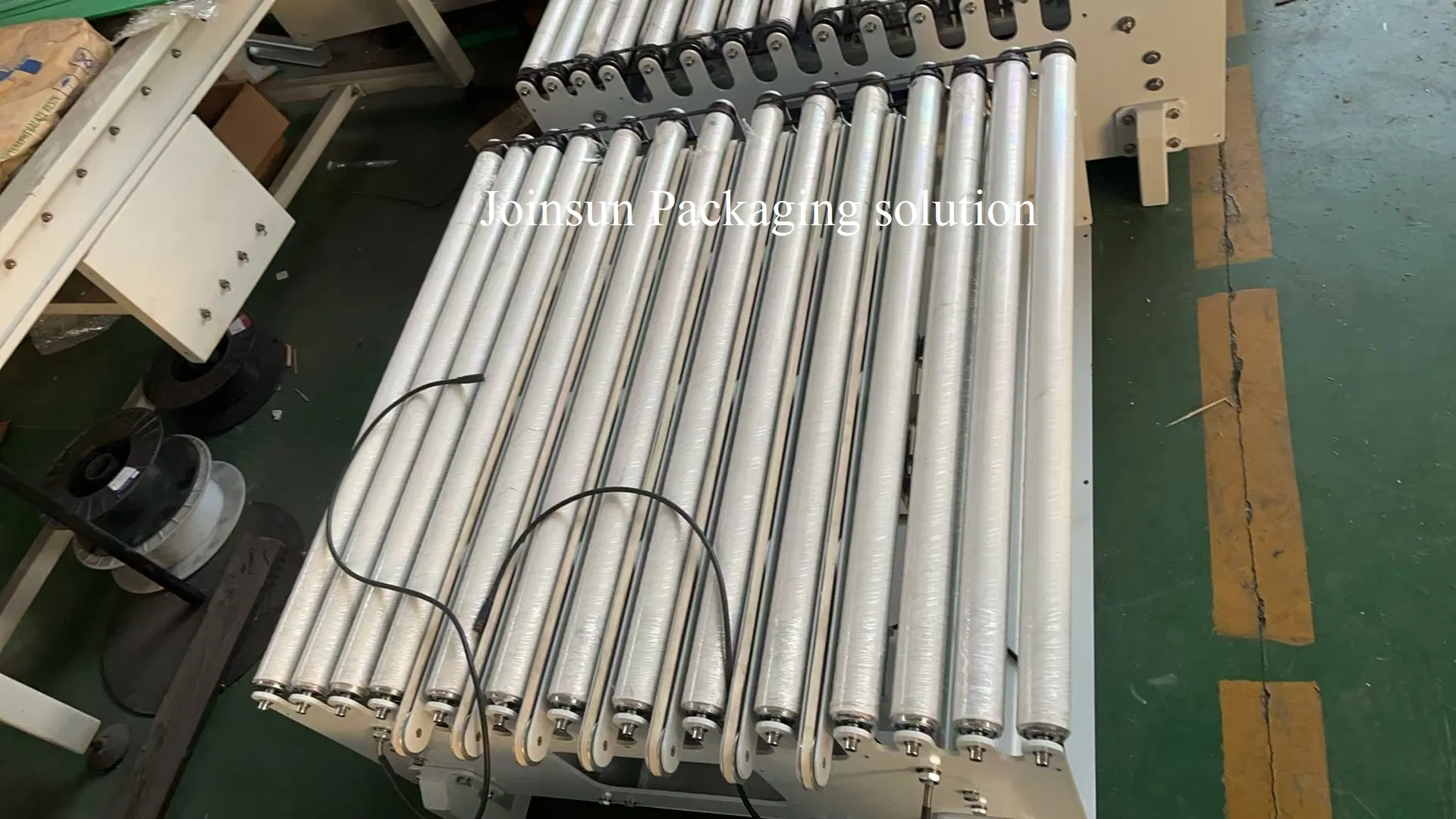

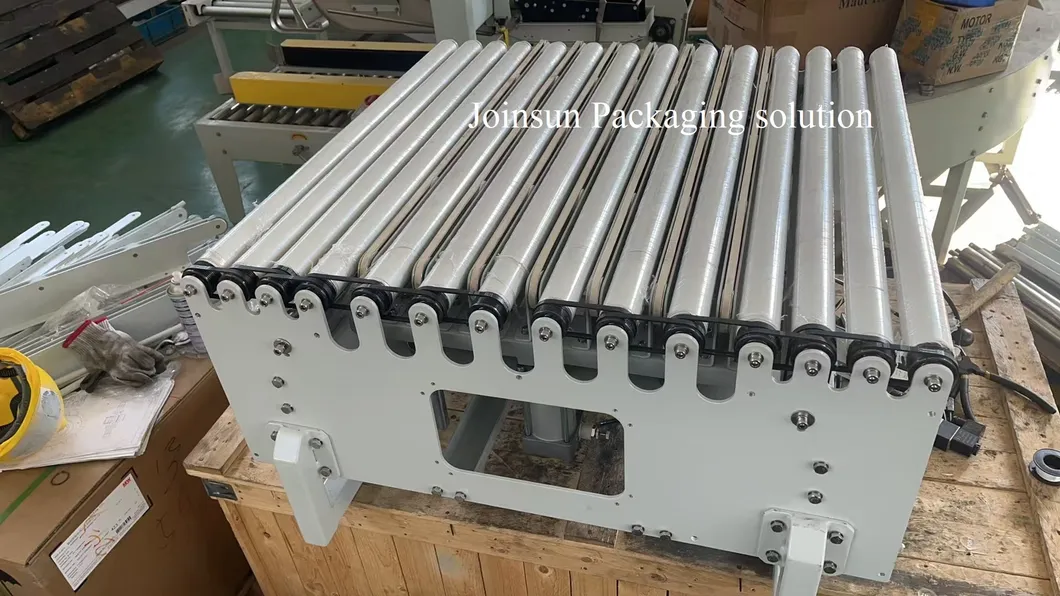

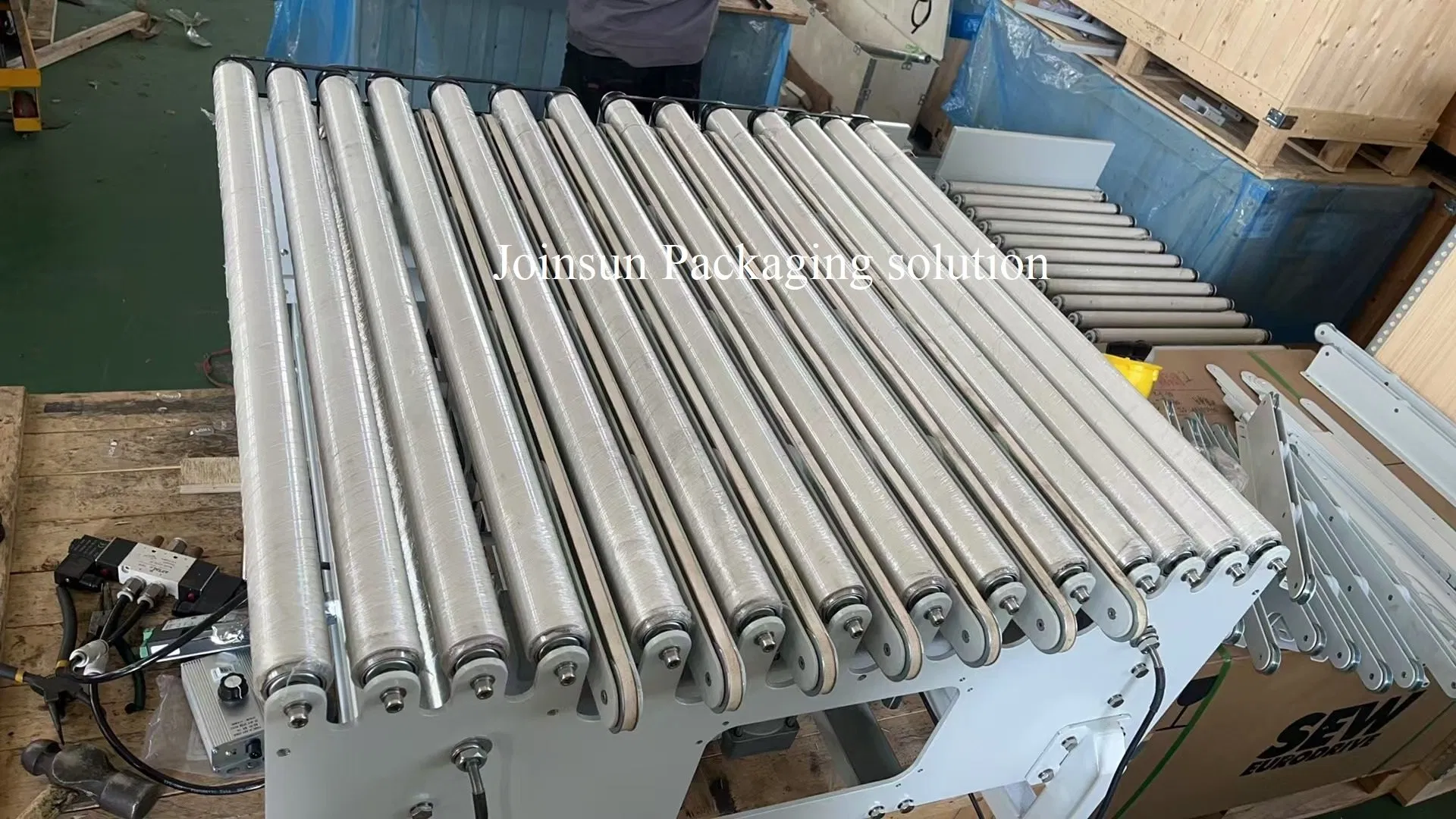

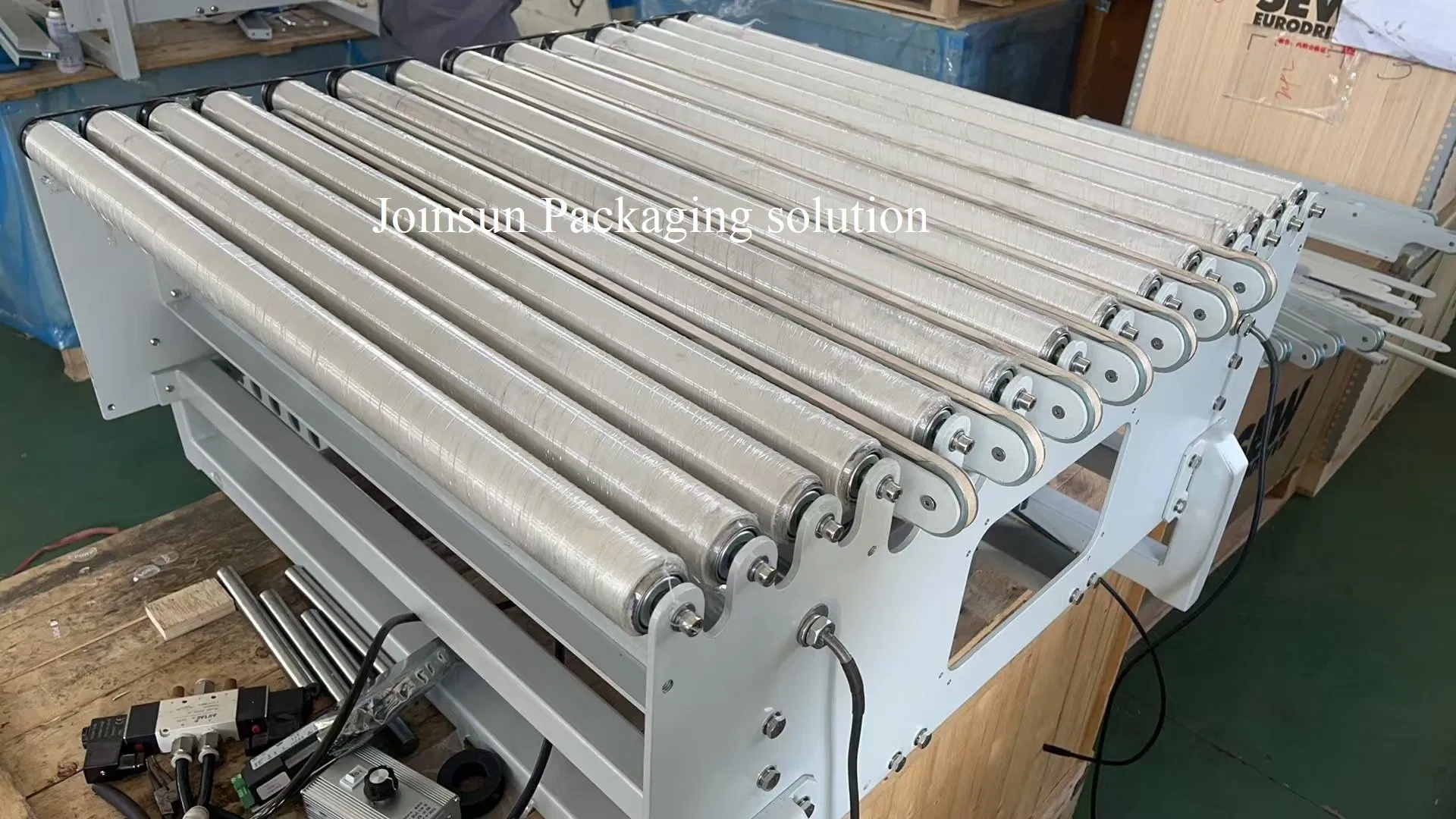

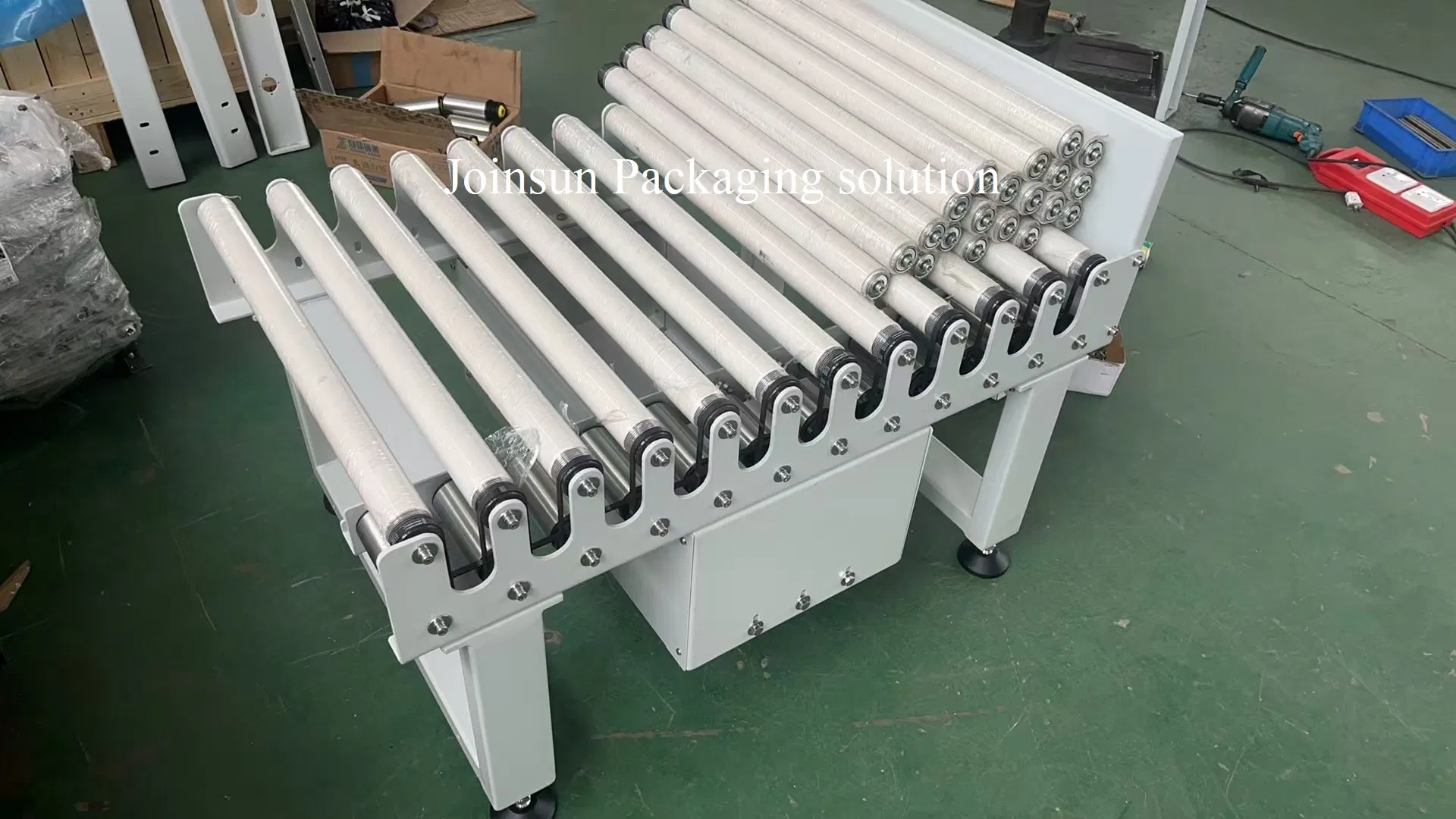

The direction shift transfer unit, also known as a Pop-up Transfer conveyor, lifts your product and transfers it at 90° to an adjoining conveyor. This innovative lift design eliminates the need for vertical guides or cam ramps, ensuring low maintenance and smooth end-of-stroke actuation.
The transfer is actuated by an air bag system, which removes the need for traditional seals and complex lubrication circuits found in standard air cylinders. Each unit is equipped with a pressure relief valve for maximum safety. Its compact footprint effectively addresses facility space constraints while accommodating height differences between adjacent equipment.
Our expertise covers a wide range of solutions including Chain Driven Live Roller (CDLR), Gravity Conveyors, Turntables, Zero Pressure Accumulation (MZPA), and 24VDC Motorized Driven Roller Conveyors (MDR).
| Model | KP-YZ-02 |
| Suitable Product Types | Soft or hard bags, carton boxes |
| Suitable Product Size | 200-800 * 200-1000mm |
| Transfer Speed | 5~20 pcs/min (depending on project) |
| Driven Type | O-band or Timing belt |
| Frame Material | Carbon Steel, surface painting |
| Motorized | Electric roller |
| Air Source | 0.6-0.8Mpa |
| Cylinder | SMC or equivalent |
| Feeding Height | 500-600 +/-50mm |
Specializing in manufacturing and exporting conveyors and packing solutions for over 10 years, we focus on unique innovation and best-in-class service for automation businesses.
