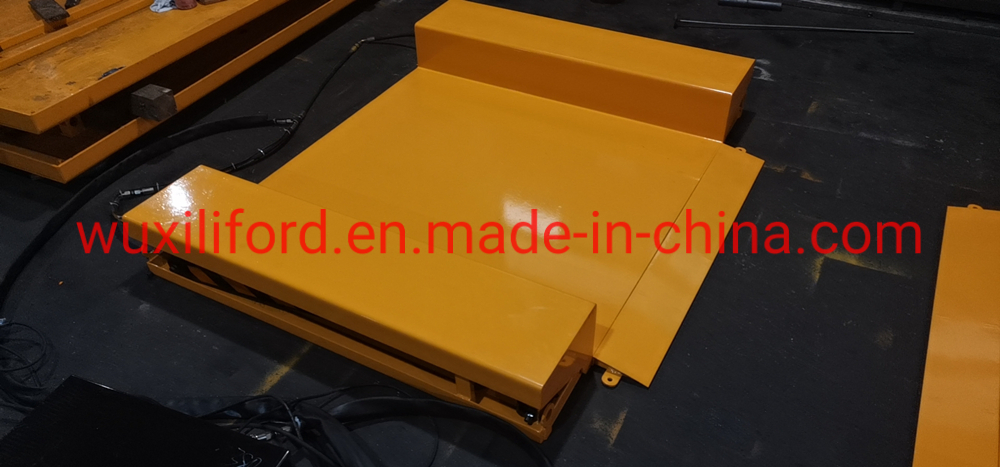

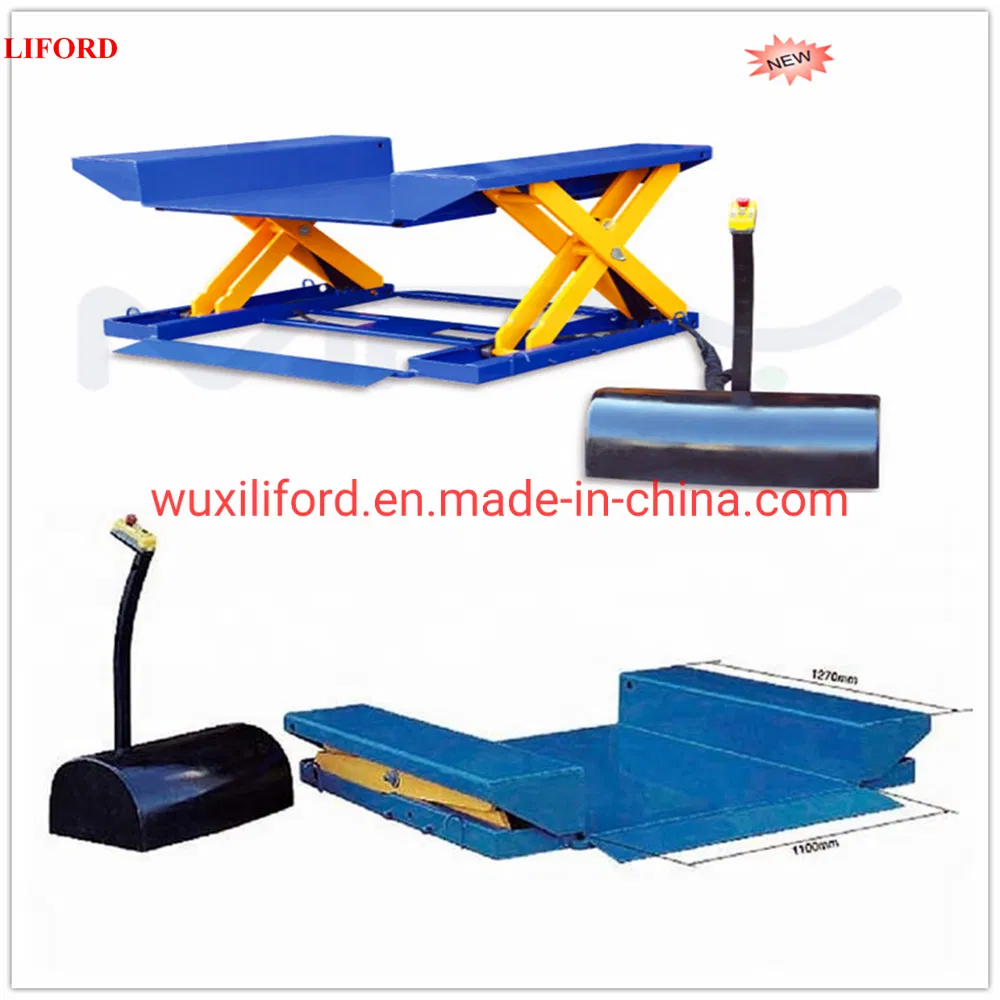

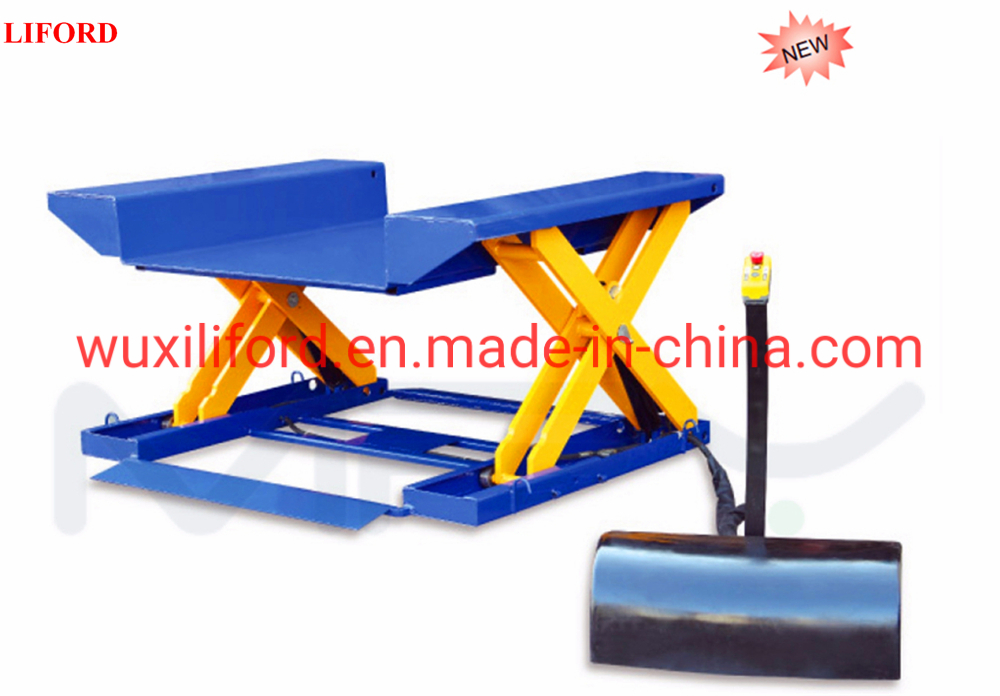

500kg -1500kg Chinese Supplier Stationary Electric Scissor Lift Table Hydraulic Lifting Platform Zero Level Electric Hydraulic Scissor Lift Fixed Lifting Table
500kg -1500kg Chinese Supplier Stationary Electric Scissor Lift Table Hydraulic Lifting Platform Zero Level Electric Hydraulic Scissor Lift Fixed Lifting Table
500kg -1500kg Chinese Supplier Stationary Electric Scissor Lift Table Hydraulic Lifting Platform Zero Level Electric Hydraulic Scissor Lift Fixed Lifting Table
500kg -1500kg Chinese Supplier Stationary Electric Scissor Lift Table Hydraulic Lifting Platform Zero Level Electric Hydraulic Scissor Lift Fixed Lifting Table
500kg -1500kg Chinese Supplier Stationary Electric Scissor Lift Table Hydraulic Lifting Platform Zero Level Electric Hydraulic Scissor Lift Fixed Lifting Table
1 / 5
500kg -1500kg Chinese Supplier Stationary Electric Scissor Lift Table Hydraulic Lifting Platform Zero Level Electric Hydraulic Scissor Lift Fixed Lifting Table
500kg -1500kg Chinese Supplier Stationary Electric Scissor Lift Table Hydraulic Lifting Platform Zero Level Electric Hydraulic Scissor Lift Fixed Lifting Table
500kg -1500kg Chinese Supplier Stationary Electric Scissor Lift Table Hydraulic Lifting Platform Zero Level Electric Hydraulic Scissor Lift Fixed Lifting Table
500kg -1500kg Chinese Supplier Stationary Electric Scissor Lift Table Hydraulic Lifting Platform Zero Level Electric Hydraulic Scissor Lift Fixed Lifting Table
500kg -1500kg Chinese Supplier Stationary Electric Scissor Lift Table Hydraulic Lifting Platform Zero Level Electric Hydraulic Scissor Lift Fixed Lifting Table

500kg -1500kg Chinese Supplier Stationary Electric Scissor Lift Table Hydraulic Lifting Platform Zero Level Electric Hydraulic Scissor Lift Fixed Lifting Table

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
HX500, HX1000, HX1500
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
500kg-1500kg
Driven Type
Electric Motor
Certification
CE, ISO 9001
Min. Lifting Height
25mm / 35mm
Max. Lifting Height
800mm
Power Supply
380V / 50Hz
Lifting Time
25-30s
HS Code
8427900000
Stationary Electric Scissor Lift Table
⭐

Product Description

Stationary Electric Scissor Lift Table - Hydraulic Lifting Platform Zero Level Fixed Lifting Table

Electric Hydraulic Scissor Lift

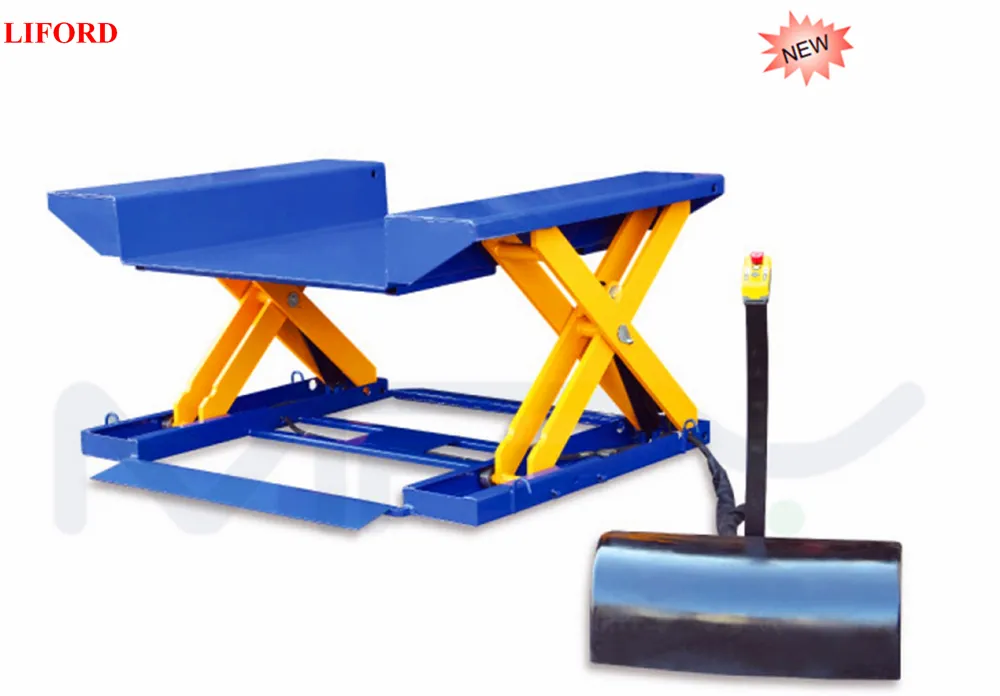

Lift Table Detail 1 Lift Table Detail 2 Lift Table Detail 3
🚀

Key Features

✔
Heavy Duty Design: Robust construction with 500kg to 1500kg load capacity.
✔
Super Low Profile: Concave table design allows for installation without floor pits.
✔
High-Quality Components: European standard AC power supply (IP54 grade, 380V/50HZ/3 Phase).
✔
Precision Control: Equipped with anti-overload and flow compensated valves for accurate lowering speed.
✔
Safety First: Safety device beneath the table automatically stops lowering if obstacles are detected.
✔
Low Maintenance: Auto lubrication guide rings on pivot points reduce friction and wear.

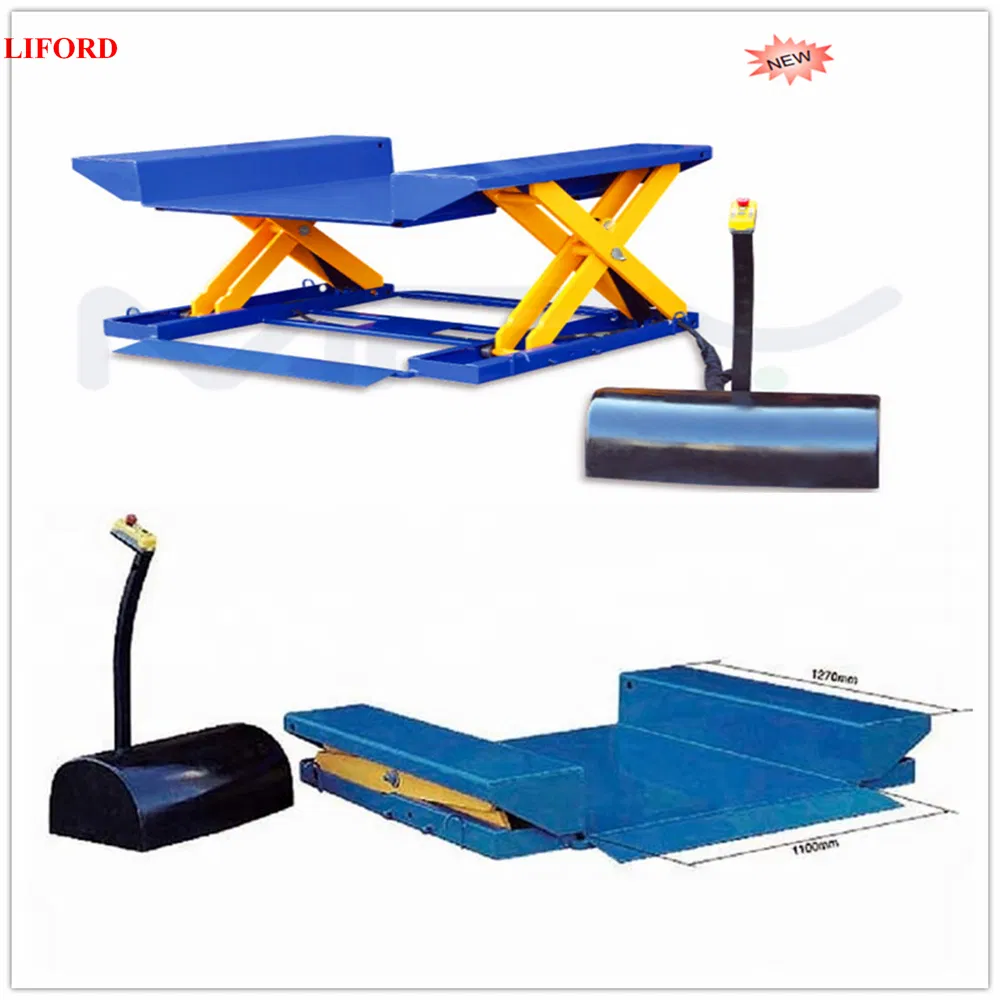

Feature Image 1 Feature Image 2
📊

Technical Data

Model Unit HX500 HX1000 HX1500
Capacity kg 500 1000 1500
Table Size mm 1270*1100 1270*1100 1270*1100
Table Height mm 25-800 35-800 35-800
Lifting Time s 25-30 25-30 25-30
Battery/Power V/Hz 380/50 380/50 380/50
Net Weight kg 315 395 470

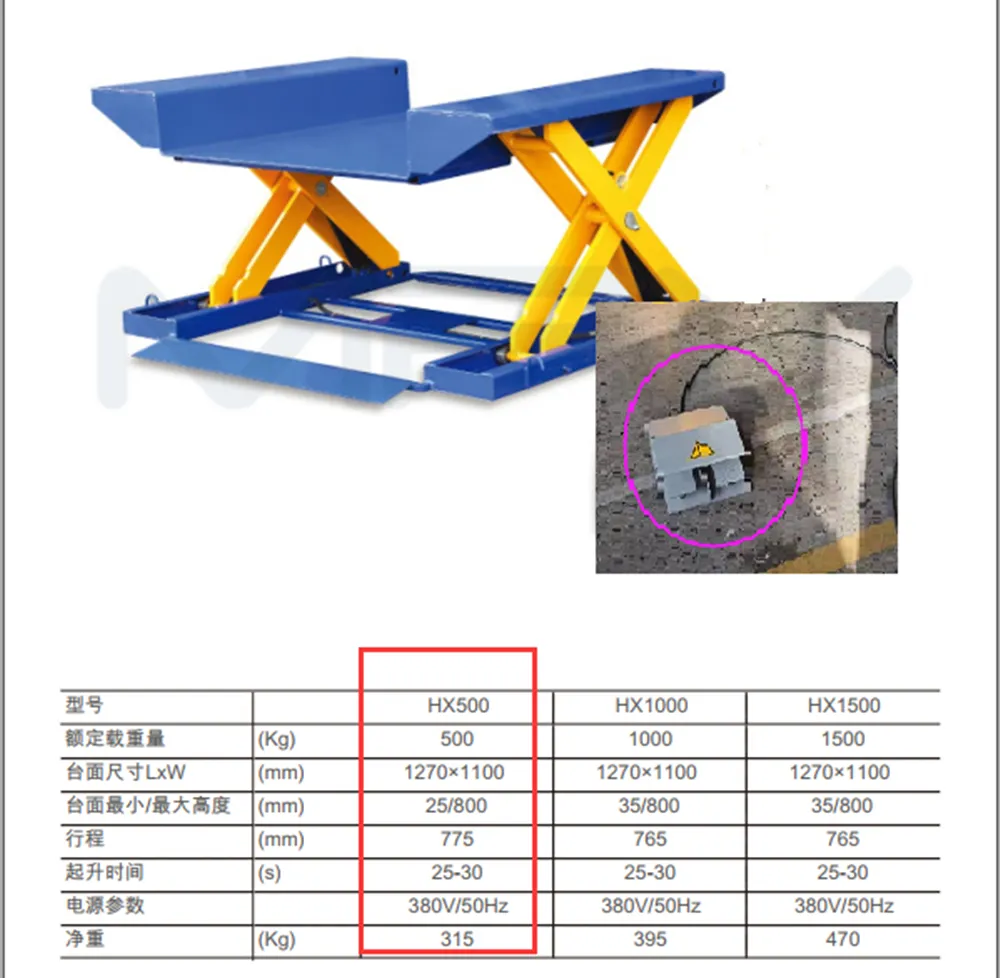

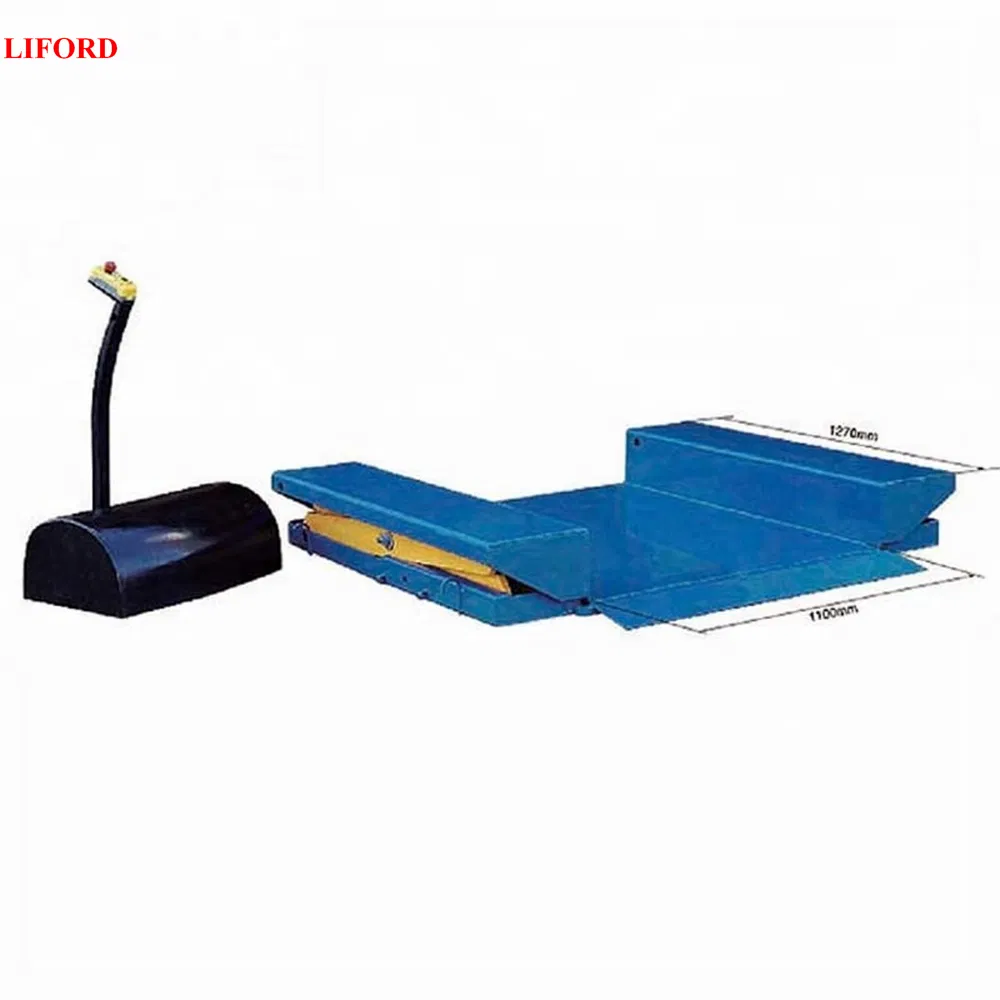

Product View 1 Product View 2 Product View 3
Product View 4 Product View 5
💎

Why Choose Our Equipment?

1. Professional Experience: Over 10 years in the material handling industry.
2. Fast Delivery: Efficient production cycles to ensure your project stays on schedule.
3. Custom Services: OEM/ODM capabilities to design non-standard parts for specific needs.
4. Quality Assurance: 100% inspection of all finished products before shipment.
5. Secure Packaging: Strong pallets and reinforced cartons for safe sea and air transport.
Customer Feedback
❓

Frequently Asked Questions

Q1: What is the maximum load capacity of these lift tables? A: The HX series offers three models with capacities of 500kg, 1000kg, and 1500kg to suit different industrial requirements.
Q2: Can this lift table be used without digging a pit in the floor? A: Yes, the super low concave design allows it to be installed directly on the ground, making it ideal for facilities where floor excavation is not possible.
Q3: What safety features are included to protect operators? A: It includes a safety trip bar under the platform that stops the descent upon contact with an obstacle, as well as an anti-overload valve.
Q4: What are the power requirements for the electric motor? A: The standard configuration requires a 3-phase AC 380V/50Hz power supply.
Q5: How fast does the table lift to its maximum height? A: The lifting time is approximately 25 to 30 seconds to reach the maximum height of 800mm.
Q6: Is the equipment suitable for outdoor use? A: The electrical components have an IP54 rating, providing protection against dust and water splashes, though it is primarily designed for indoor workshop and warehouse environments.
