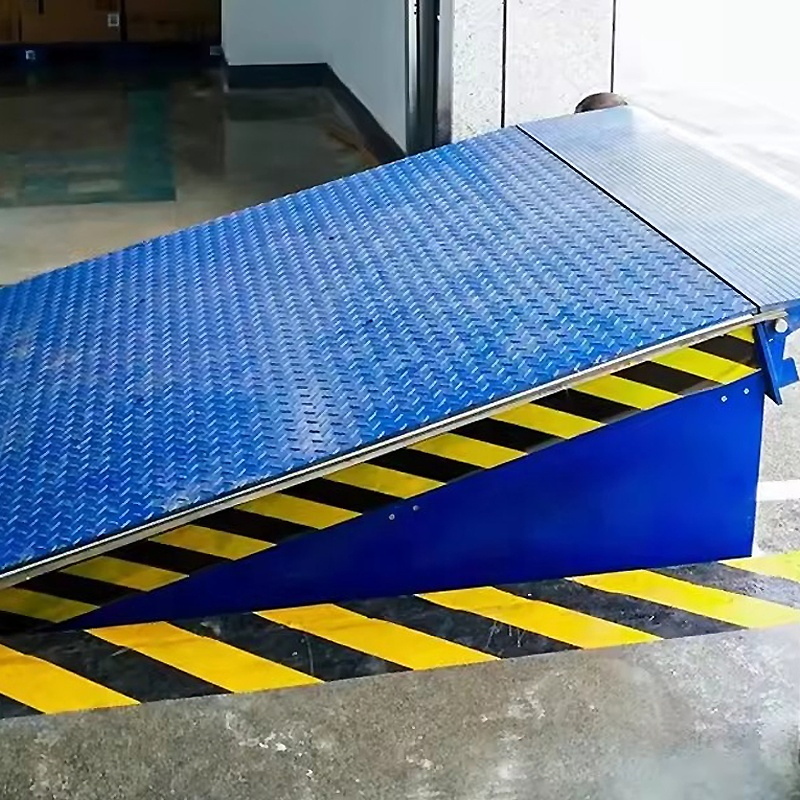

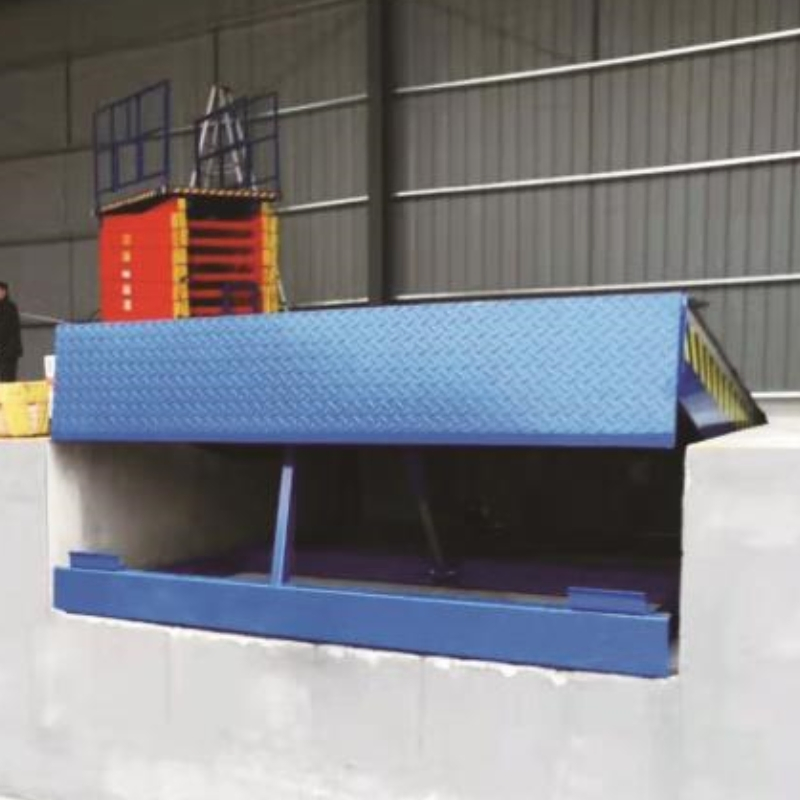

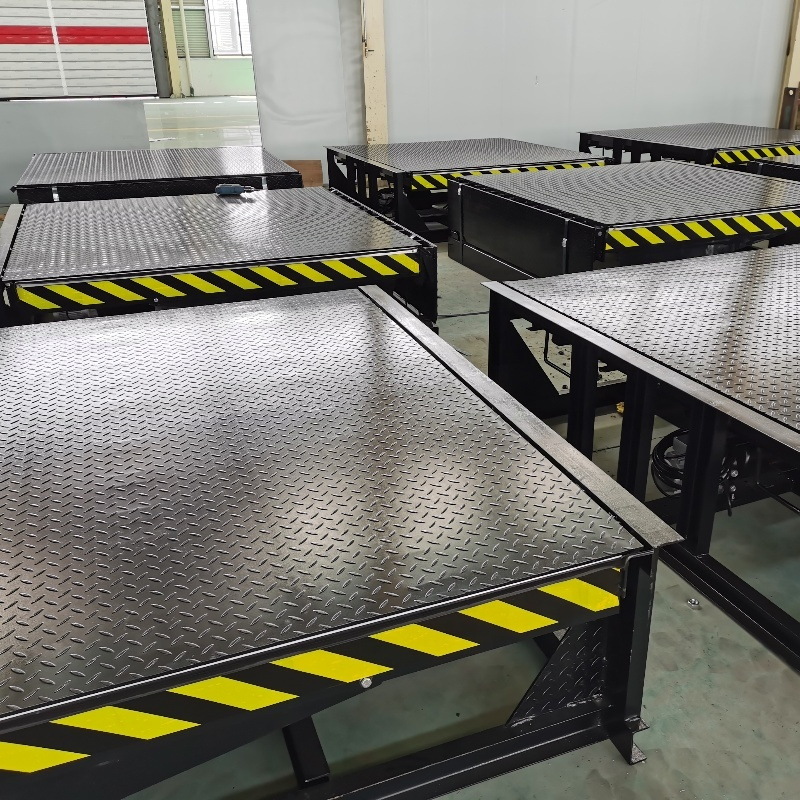

China Manufacturer Hydraulic Dock Leveler with Competitive Price
China Manufacturer Hydraulic Dock Leveler with Competitive Price
China Manufacturer Hydraulic Dock Leveler with Competitive Price
China Manufacturer Hydraulic Dock Leveler with Competitive Price
China Manufacturer Hydraulic Dock Leveler with Competitive Price
1 / 5
China Manufacturer Hydraulic Dock Leveler with Competitive Price
China Manufacturer Hydraulic Dock Leveler with Competitive Price
China Manufacturer Hydraulic Dock Leveler with Competitive Price
China Manufacturer Hydraulic Dock Leveler with Competitive Price
China Manufacturer Hydraulic Dock Leveler with Competitive Price

China Manufacturer Hydraulic Dock Leveler with Competitive Price

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
Folding -01
Application
Warehouse Crane
Lift Mechanism
Hydraulic
Carrying Capacity
Weight Level
Moves
Folding Dock Leveler
Driven Type
Hydraulic
Running Mode
Stationary
Certification
CE, ISO 9001
Size
2000X2000/2000X2500/2000X1600mm
Dynamic Load
6t/8t/10t/15t/20ton
Power Source
Electric Hydraulic
Height Adjustment
-300/+300mm
Adjustment Time
<30 Seconds
Lip Thickness
14/16mm*400/500mm
⚙️

Product Description

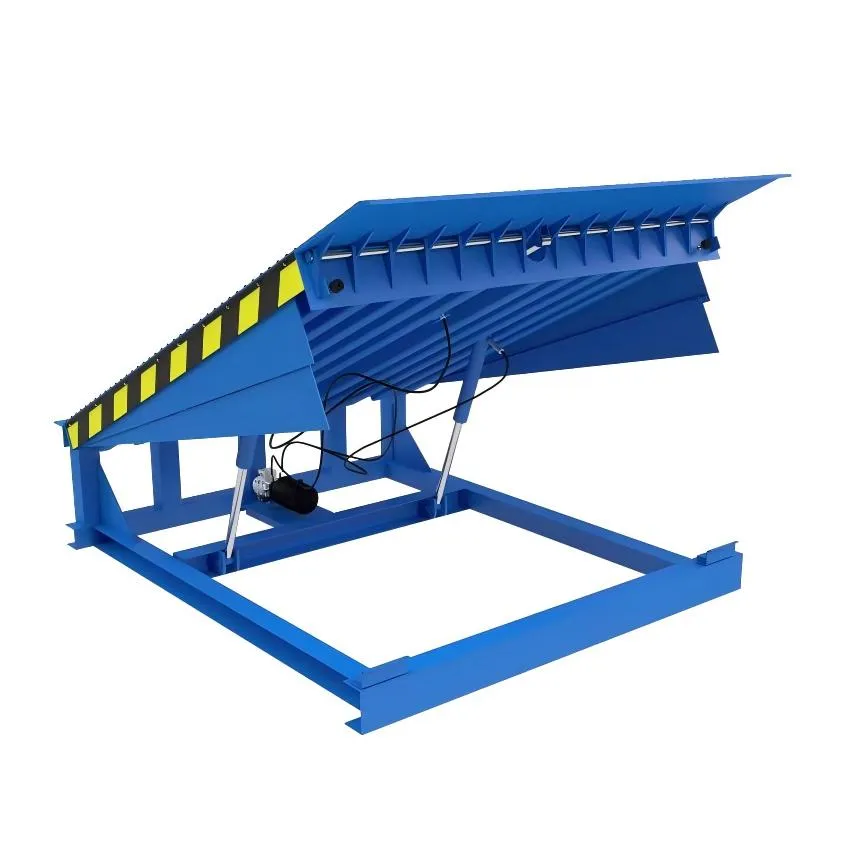

Hydraulic Dock Leveler Hydraulic Dock Leveler Details
Hydraulic Dock Leveler Configuration (6-20 Ton)
Equipment Size L2000/2500*W2000*H600mm Customizable
Rated Load Dynamic: 6 tons, Static: 9 tons 8 / 10 / 12 / 15 / 20 tons
Lip Thickness & Length 12mm*400mm (integrated) 14/16mm*400mm
Main Platform 6mm tread plate 8mm (integrated)
Control Box Wall-mounted ABS plastic Del / Screen Control Box
Motor Power 380V, 50Hz, 1.1KW Italy/Germany/Switzerland Brands
Main Frame 4mm thickness, 12 units 14# I-beam, 10 units total
🖼️

Product Showcase

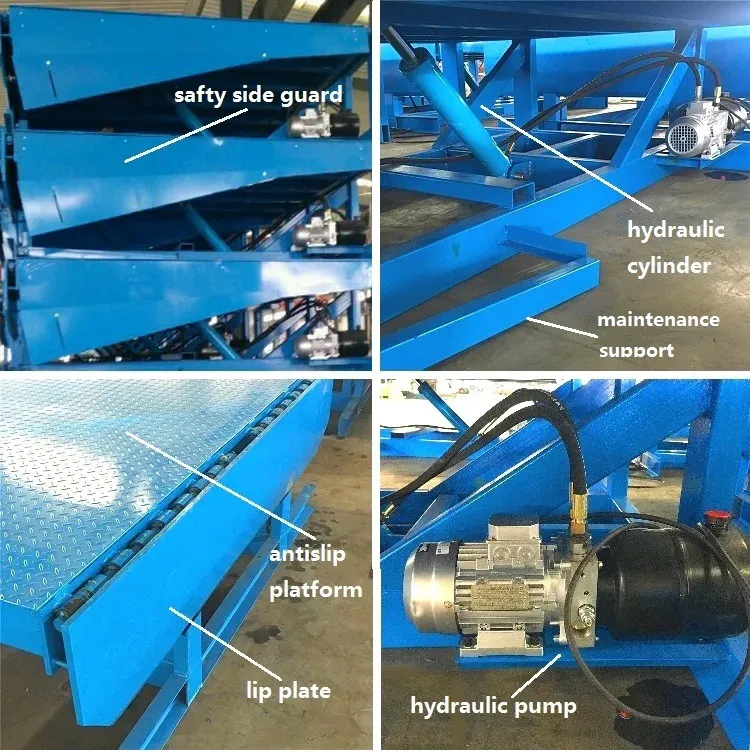

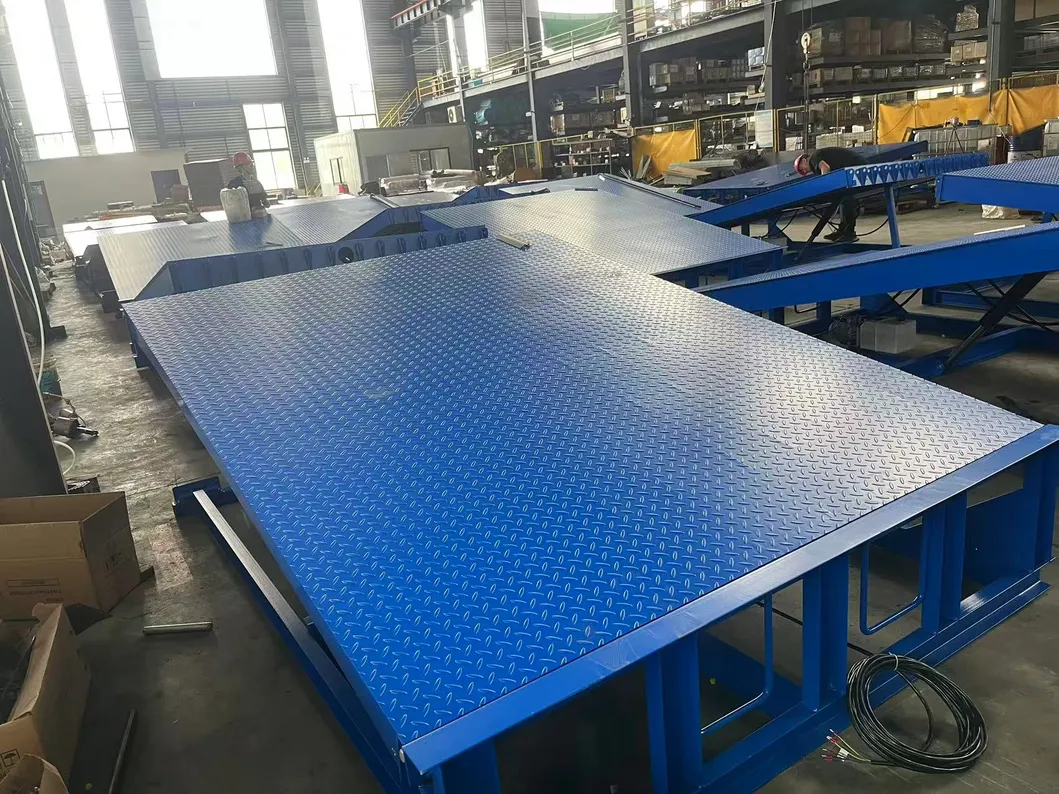

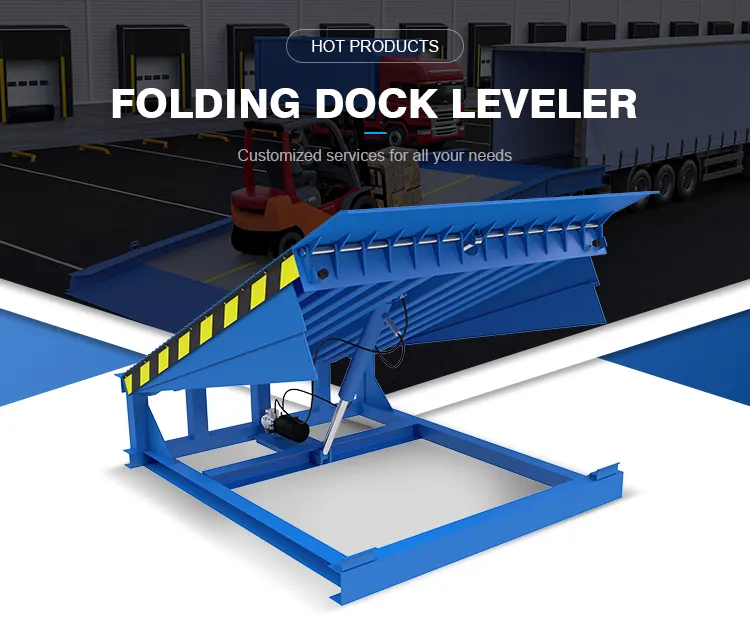

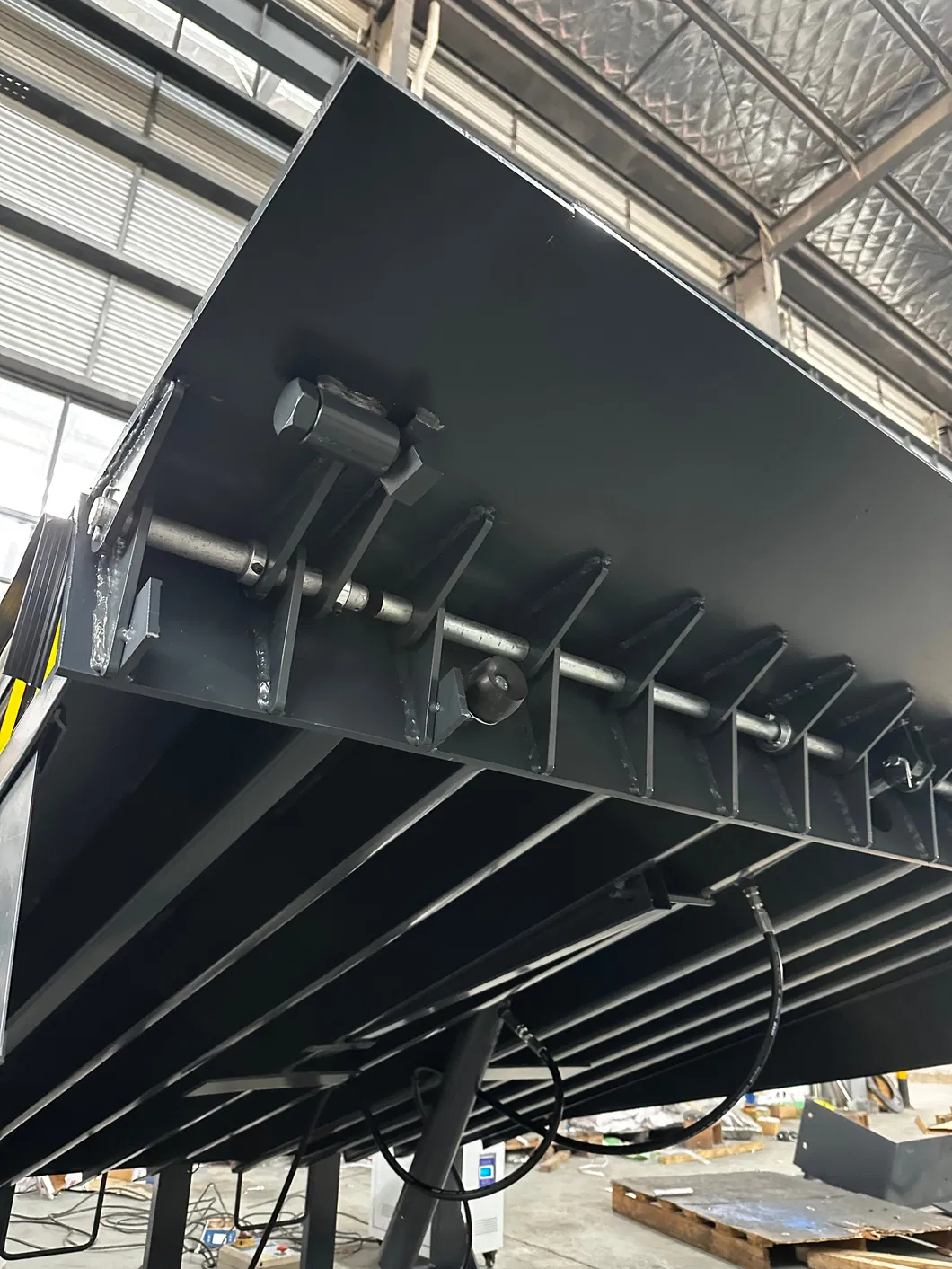

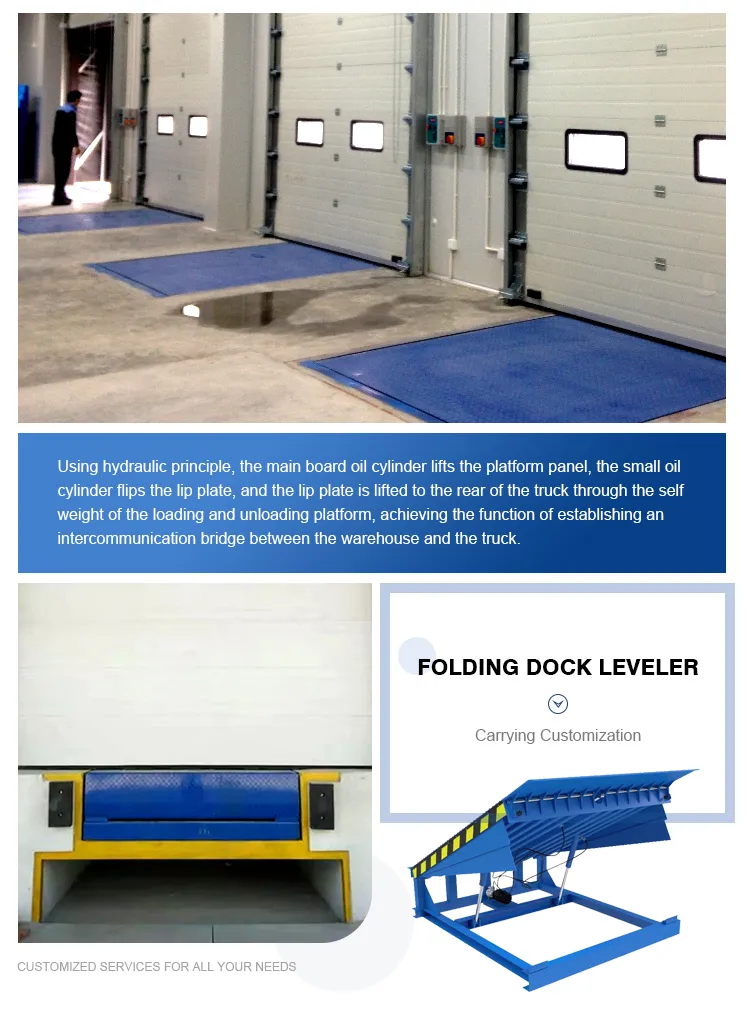

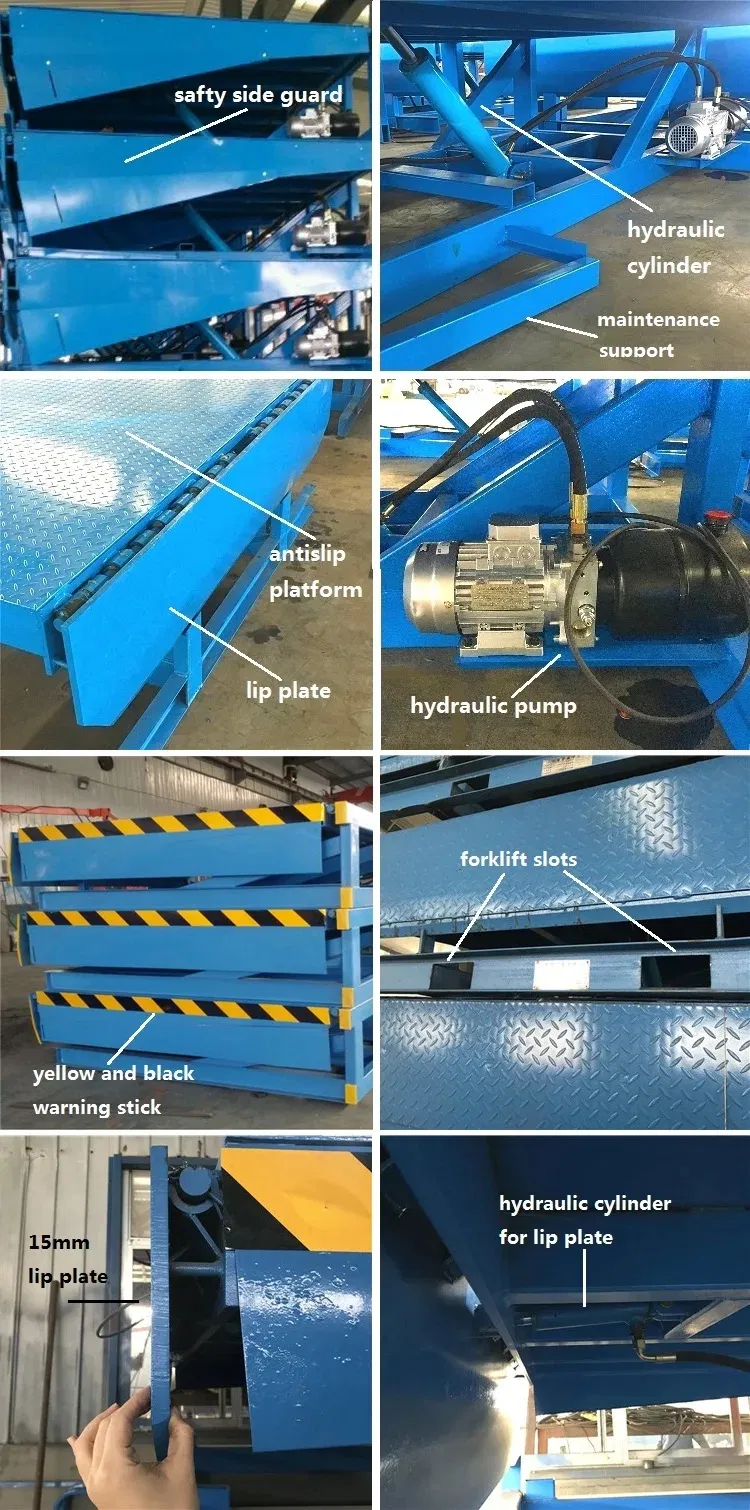

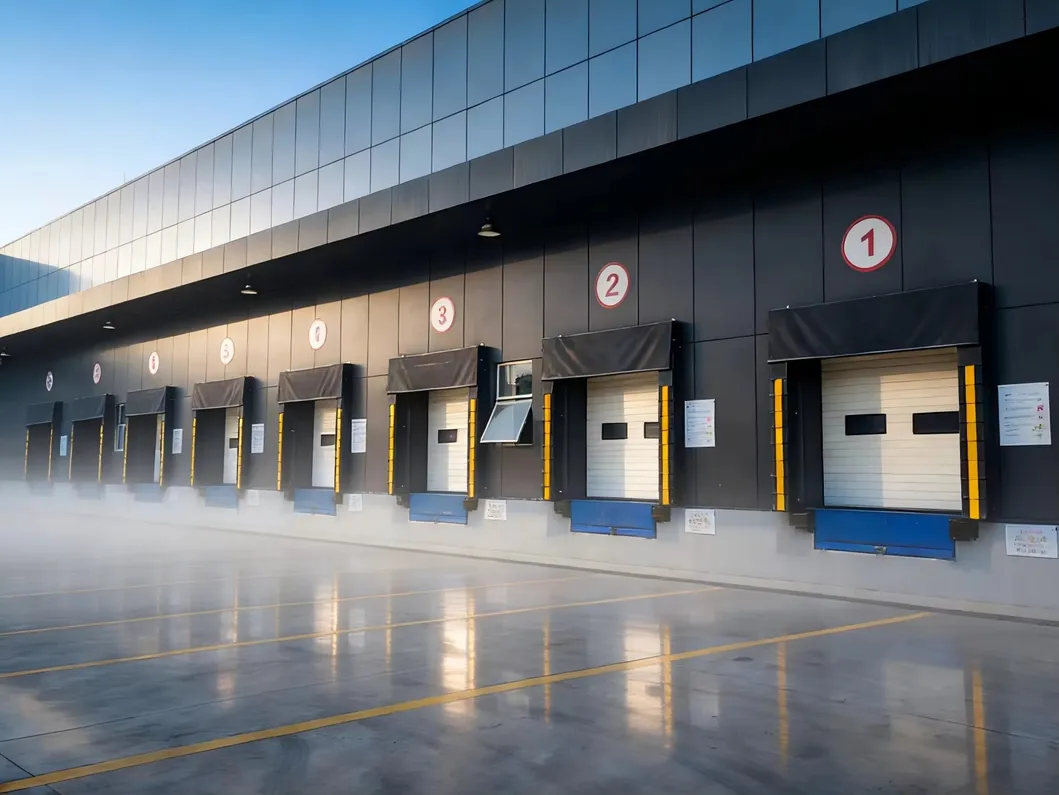

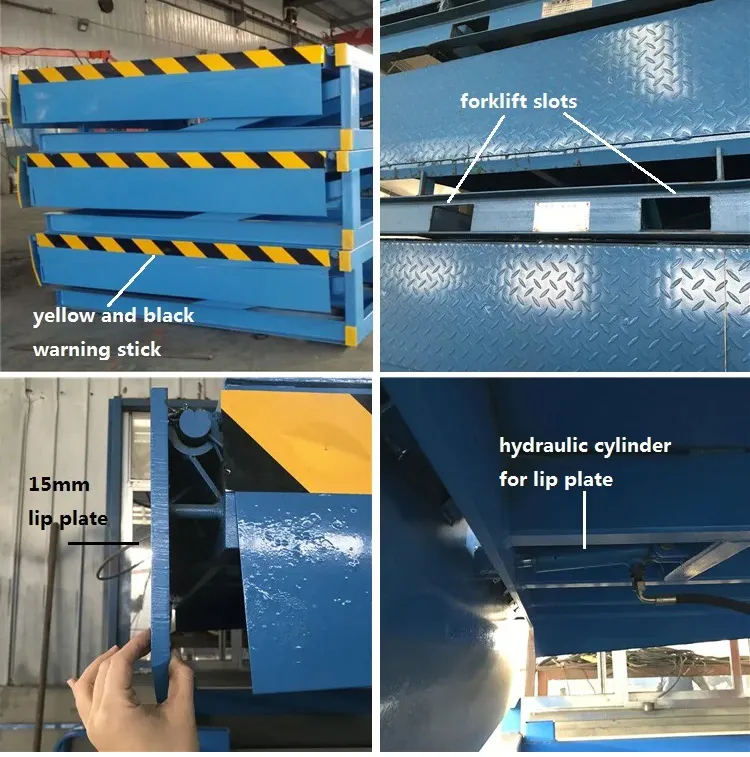

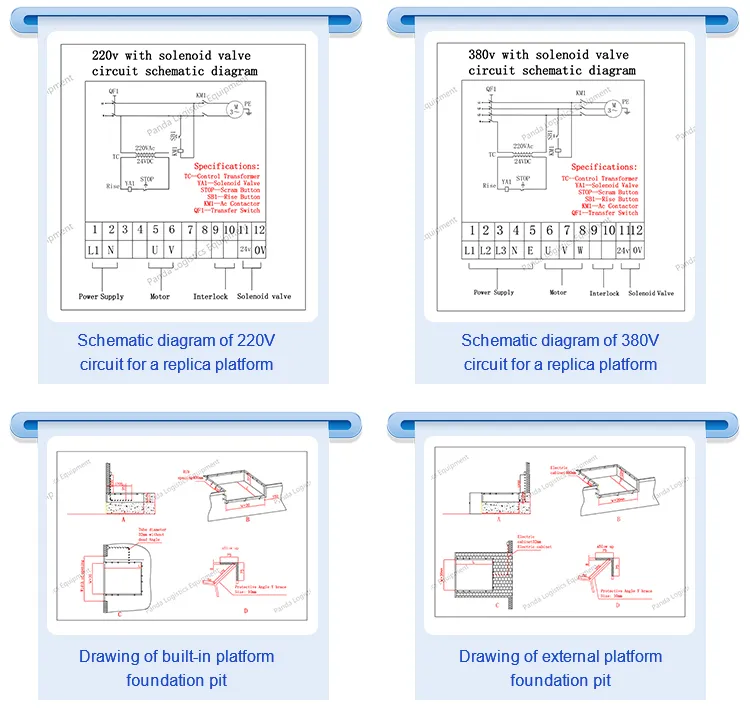

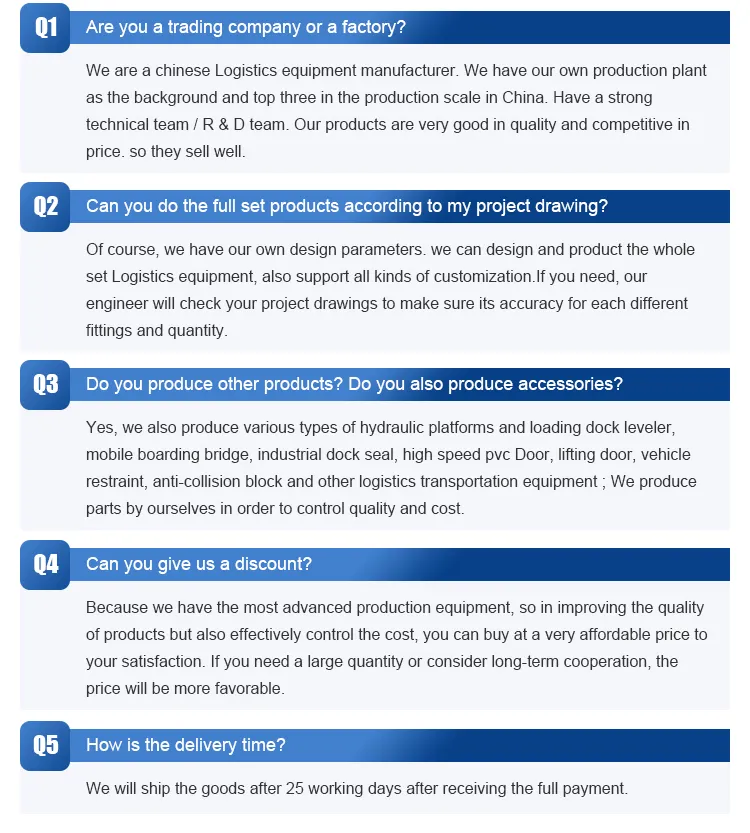

Dock Leveler View 1 Dock Leveler View 2 Dock Leveler View 3 Dock Leveler View 4 Dock Leveler View 5 Dock Leveler View 6 Dock Leveler View 7 Dock Leveler View 8 Dock Leveler View 9 Dock Leveler View 10 Dock Leveler View 11 Dock Leveler View 12 Dock Leveler View 13 Dock Leveler View 14
❓

Frequently Asked Questions

What is the maximum carrying capacity of this dock leveler?
The hydraulic dock leveler is available in multiple weight levels, including dynamic loads of 6t, 8t, 10t, 15t, and up to 20 tons.
Are the sizes of the dock leveler customizable?
Yes, while standard sizes include 2000x2000mm, 2000x2500mm, and 2000x1600mm, we offer full customization to meet your specific warehouse requirements.
What is the height adjustment range for the platform?
The equipment features a height adjustment range of +300mm to -300mm, allowing it to bridge the gap between various truck heights and the warehouse floor.
How long does it take to complete a full adjustment?
The hydraulic system is highly efficient, requiring less than 30 seconds to move from any position to the corresponding working height.
What safety certifications does the product have?
Our hydraulic dock levelers are fully compliant with international standards and hold both CE and ISO 9001 certifications.
What power source is required for operation?
The system operates on an electric hydraulic power source, typically configured for 380V at 50Hz with a 1.1KW motor.
