1~20ton Stationary Hydraulic Scissor Lifter Fixed Lift Tables Cargo Lift Platform
OEM & ODM & OBM

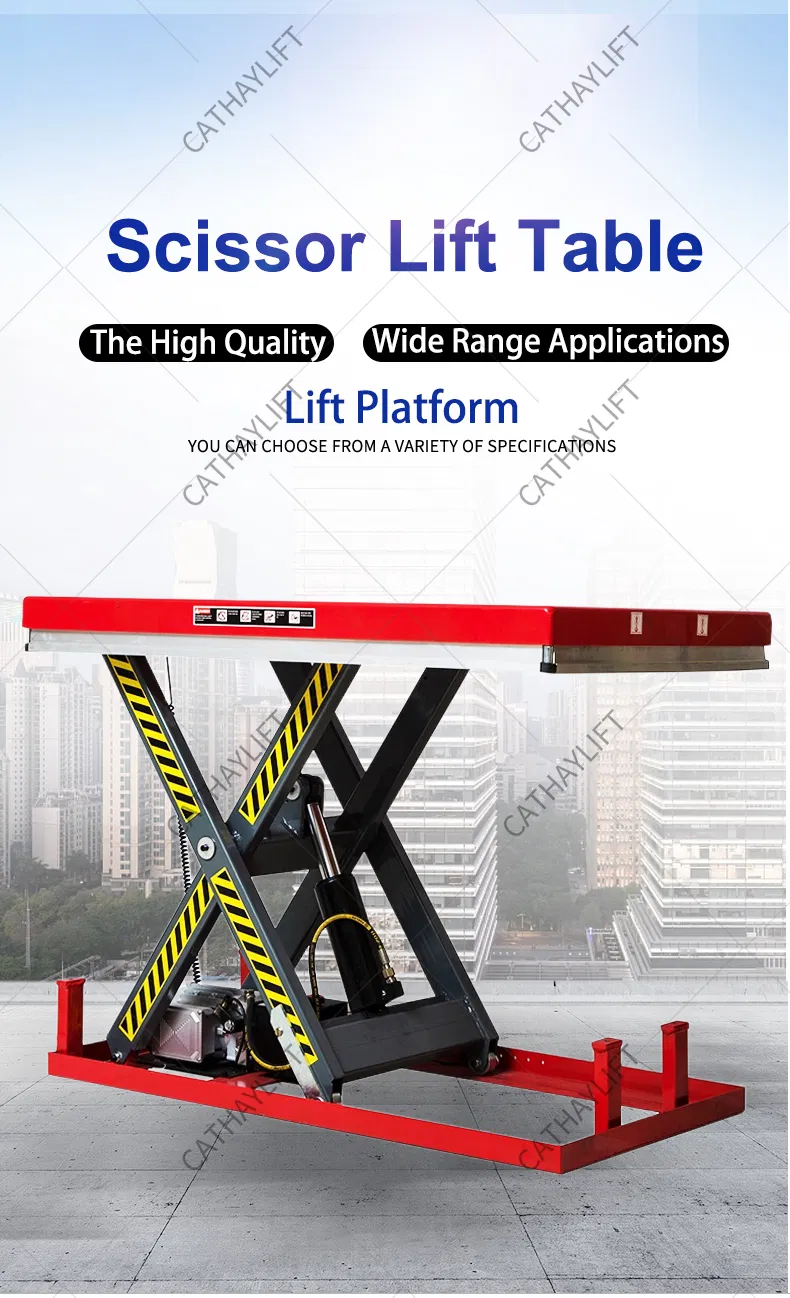

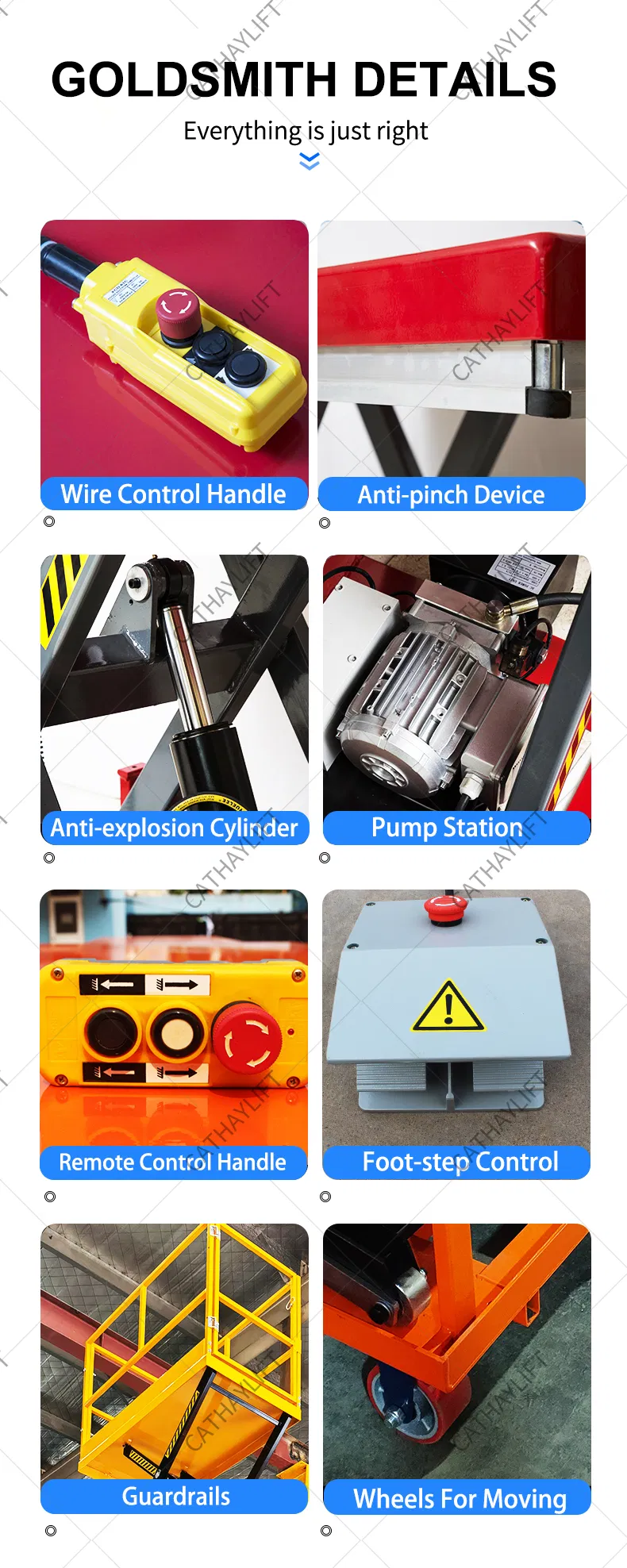

This standard single scissor lift adopts a high-strength precision oil cylinder and imported sealing ring, which provides excellent sealing performance to avoid leakage and improve overall safety. The countertop is finished with high-quality paint, ensuring it is anti-rust and corrosion-resistant. The layout steel is specifically selected for superior load-bearing capacity. The equipment features power-off protection and an emergency stop button to instantly halt lifting or lowering operations.
| Model | Load Capacity (KG) | Self Height (MM) | Max Platform Height (MM) | Platform Size (MM) | Lifting time (S) |
|---|---|---|---|---|---|
| 500kg Load Capacity | |||||
| C0501 | 500 | 180 | 950 | 610*916 | 17~22 |
| C0504 | 500 | 200 | 1000 | 2000*800 | 20~25 |
| 1000kg Load Capacity | |||||
| C1001 | 1000 | 205 | 1000 | 1300×820 | 20~25 |
| C1007 | 1000 | 240 | 1300 | 2000×1000 | 30~35 |
| 2000kg Load Capacity | |||||
| C2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 |
| C2007 | 2000 | 250 | 1300 | 2000×1000 | 25~35 |
| 4000kg Load Capacity | |||||
| C4000 | 4000 | 230 | 1000 | 2500*850 | 20~25 |
| C4007 | 4000 | 350 | 1300 | 1700×1500 | 35~40 |

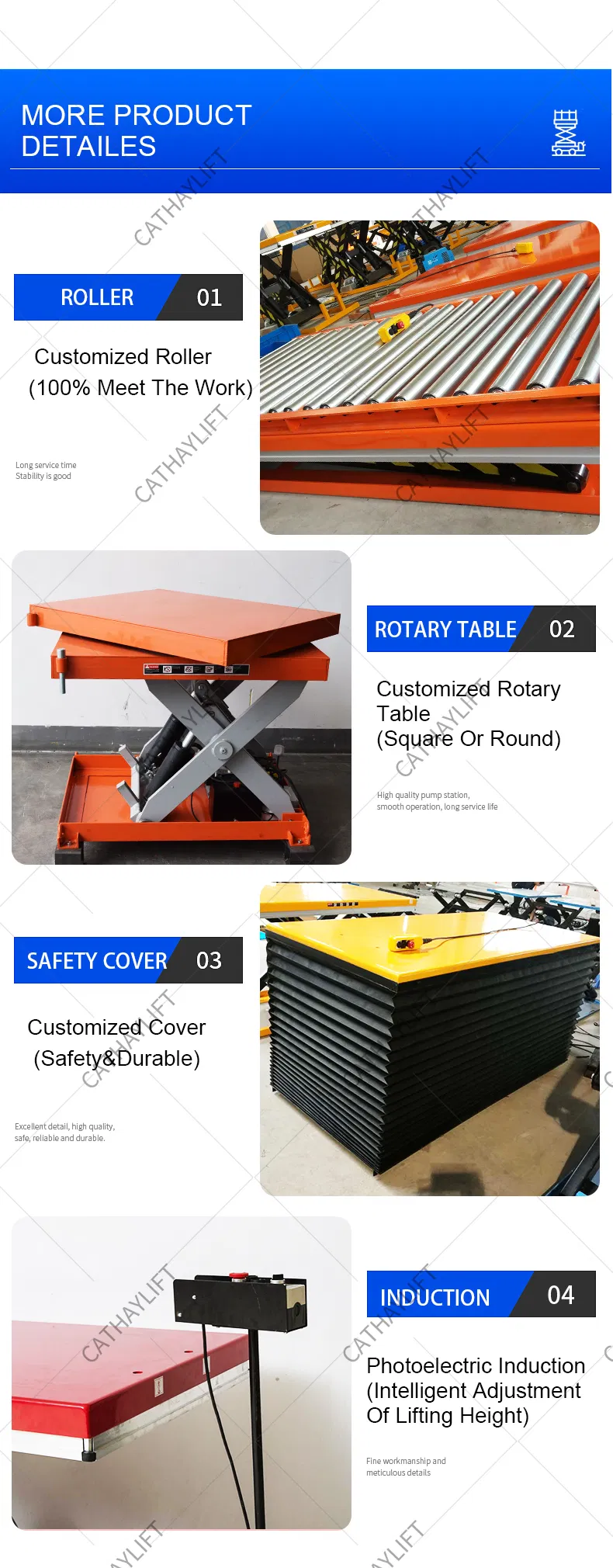

* Note: Custom models are available if standard specifications do not meet your requirements.

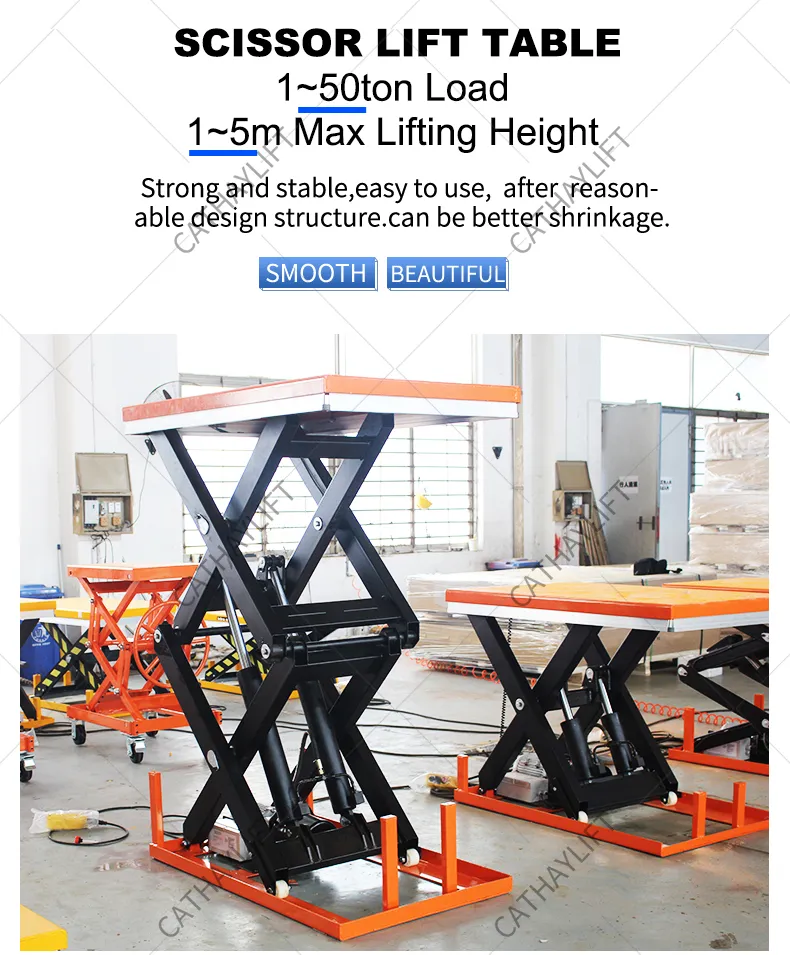

These lift tables provide convenience for working in narrow areas, such as elevators, indoor facilities, and under eaves. With load capacities ranging from 500kg to 5000kg, they efficiently accommodate personnel and materials, facilitating storage and maintenance tasks.
