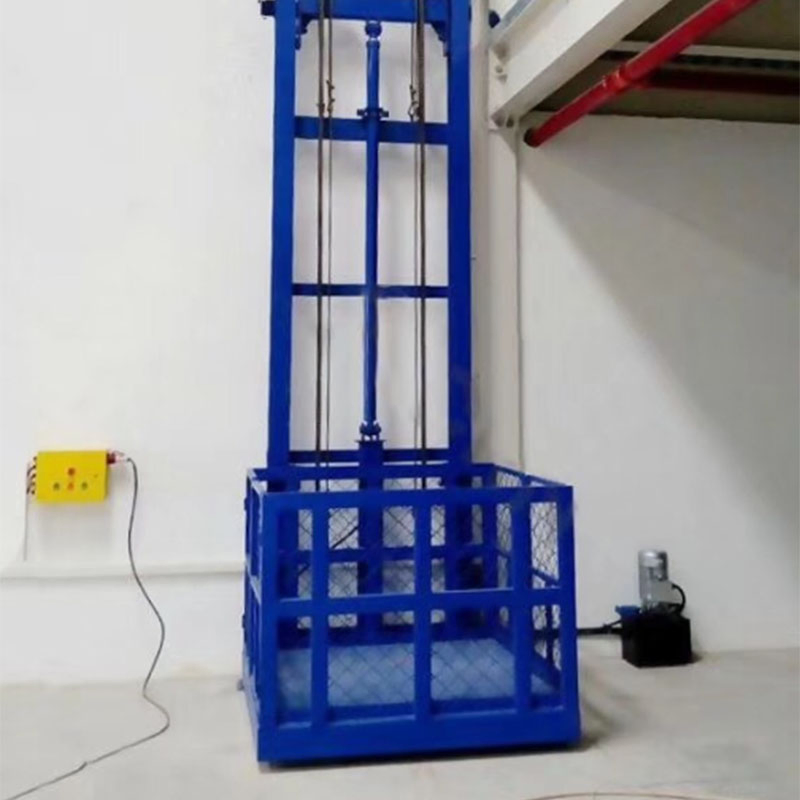

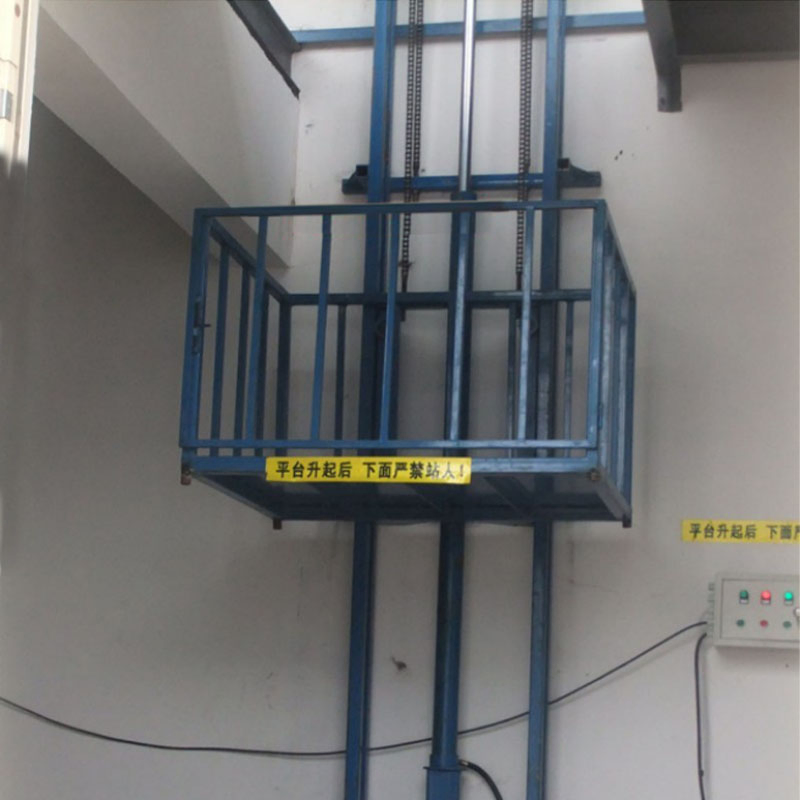

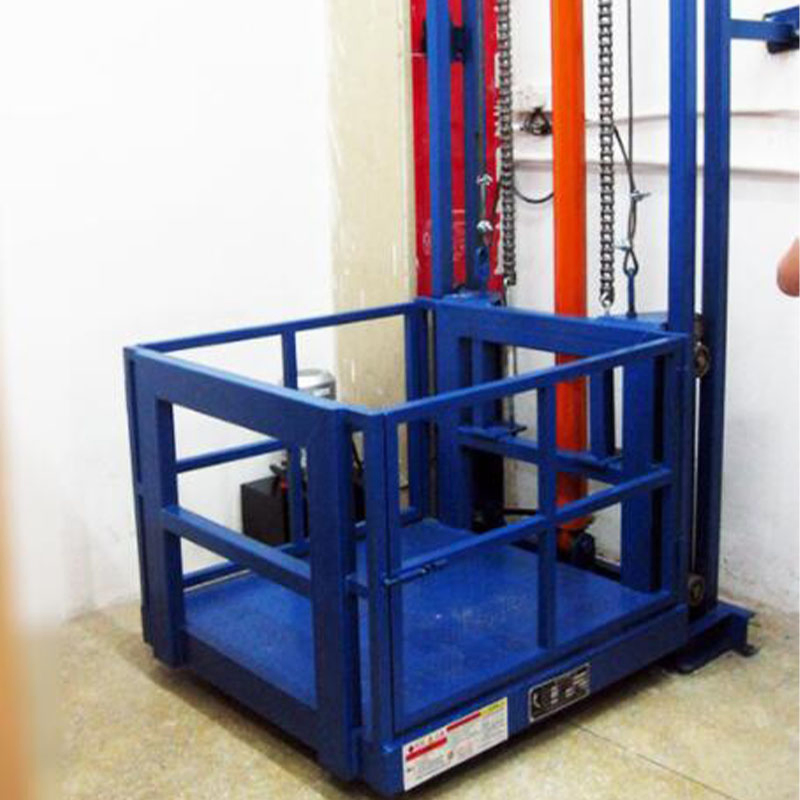

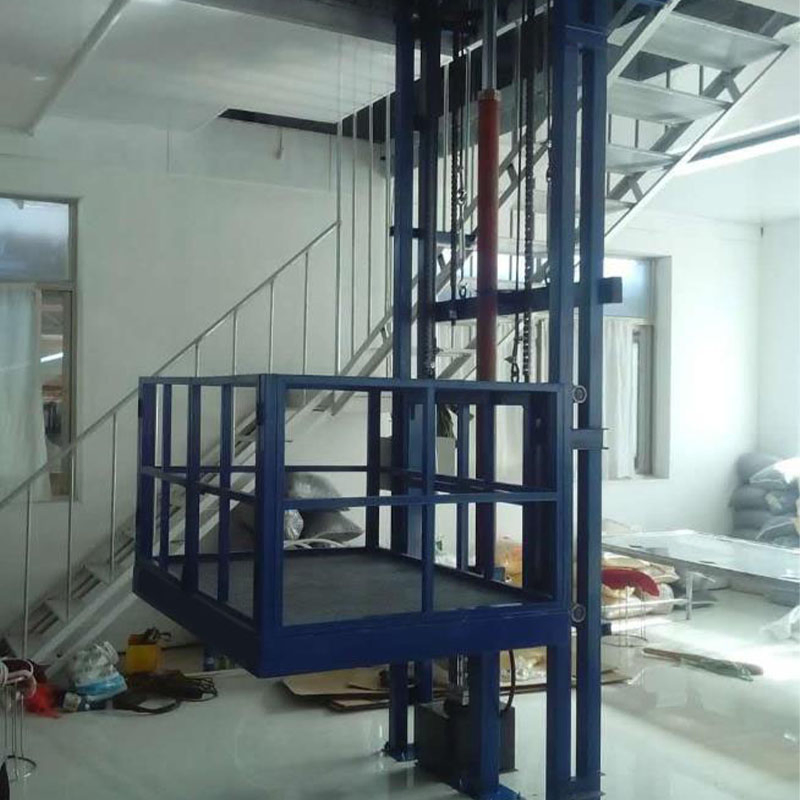

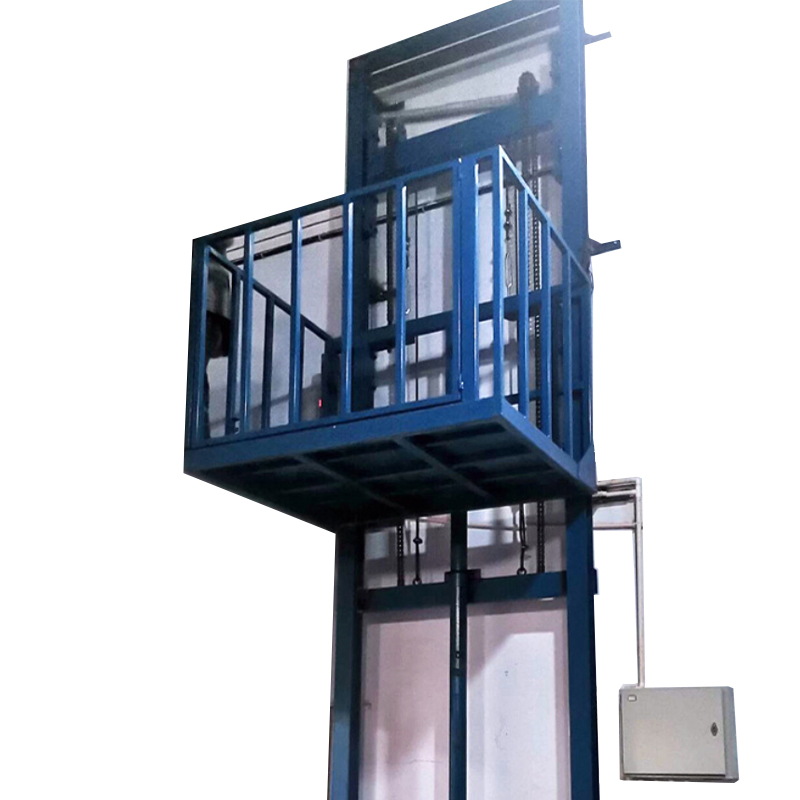

Warehouse Customized Steel Material Hydraulic Electric Heavy Duty Small Vertical Freight Elevator Platform Goods Lifter Guide Rail Floor Cargo Lift with CE
Warehouse Customized Steel Material Hydraulic Electric Heavy Duty Small Vertical Freight Elevator Platform Goods Lifter Guide Rail Floor Cargo Lift with CE
Warehouse Customized Steel Material Hydraulic Electric Heavy Duty Small Vertical Freight Elevator Platform Goods Lifter Guide Rail Floor Cargo Lift with CE
Warehouse Customized Steel Material Hydraulic Electric Heavy Duty Small Vertical Freight Elevator Platform Goods Lifter Guide Rail Floor Cargo Lift with CE
Warehouse Customized Steel Material Hydraulic Electric Heavy Duty Small Vertical Freight Elevator Platform Goods Lifter Guide Rail Floor Cargo Lift with CE
1 / 5
Warehouse Customized Steel Material Hydraulic Electric Heavy Duty Small Vertical Freight Elevator Platform Goods Lifter Guide Rail Floor Cargo Lift with CE
Warehouse Customized Steel Material Hydraulic Electric Heavy Duty Small Vertical Freight Elevator Platform Goods Lifter Guide Rail Floor Cargo Lift with CE
Warehouse Customized Steel Material Hydraulic Electric Heavy Duty Small Vertical Freight Elevator Platform Goods Lifter Guide Rail Floor Cargo Lift with CE
Warehouse Customized Steel Material Hydraulic Electric Heavy Duty Small Vertical Freight Elevator Platform Goods Lifter Guide Rail Floor Cargo Lift with CE
Warehouse Customized Steel Material Hydraulic Electric Heavy Duty Small Vertical Freight Elevator Platform Goods Lifter Guide Rail Floor Cargo Lift with CE

Warehouse Customized Steel Material Hydraulic Electric Heavy Duty Small Vertical Freight Elevator Platform Goods Lifter Guide Rail Floor Cargo Lift with CE

Customization: Available
After-sales Service: Online
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
CL0.5-1
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Lift Chain
Driven Type
Hydraulic
Feature
Explosion-Proof
Certification
CE
Origin
China
Transport Package
Wooden Box

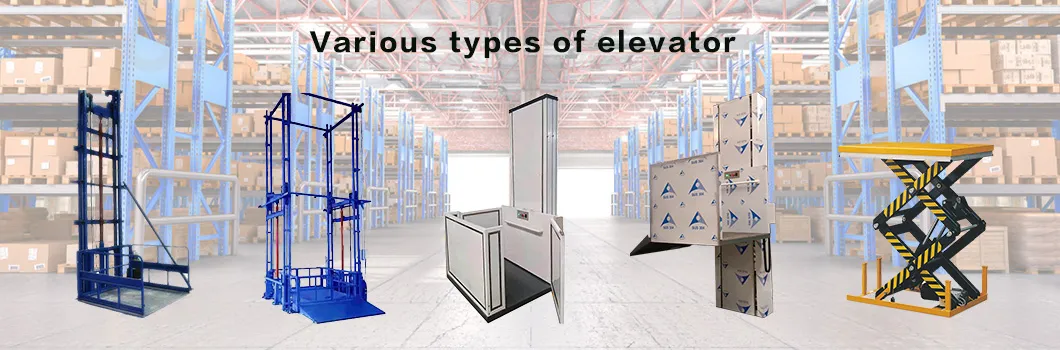

Freight Elevator Platform
Product Parameters
ModelCL0.5-2200
Load capacity100kg - 10ton
Platform size1500*1500mm (customized)
Max Lifting height10000mm (customized)
Self height≤120mm
Platform Material100*50*4mm rectangular tube + 3mm checkered plate Q345B
Guide Rails Height4200mm (customized)
Pump Motor2.2kw - 5kw
Lifting Chains16A
Safety RopeDiameter 10mm
Mezzanine Lift Door Options

The doors of a mezzanine lift in a warehouse can be fixed to the platform in several ways, depending on design and safety requirements:

●
Hinged Doors: Fixed with heavy-duty hinges; can be single or double-leaf; equipped with safety interlocks.
●
Vertical Lift Doors: Move up and down using counterweights or motorized mechanisms, similar to roller shutters.
●
Folding Doors: Multiple panels that fold upon opening; ideal for tight spaces.
●
Guillotine-Style Doors: Consist of sections that counterbalance each other; common in high-security environments.

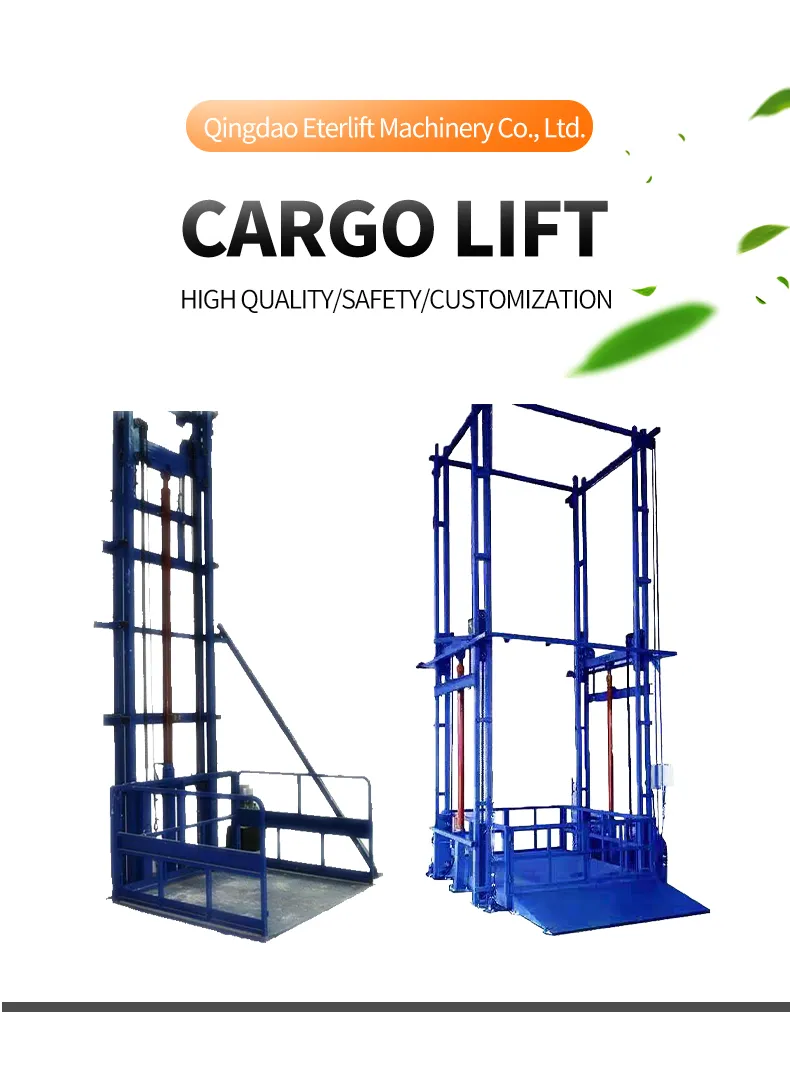

Lift Detail 1

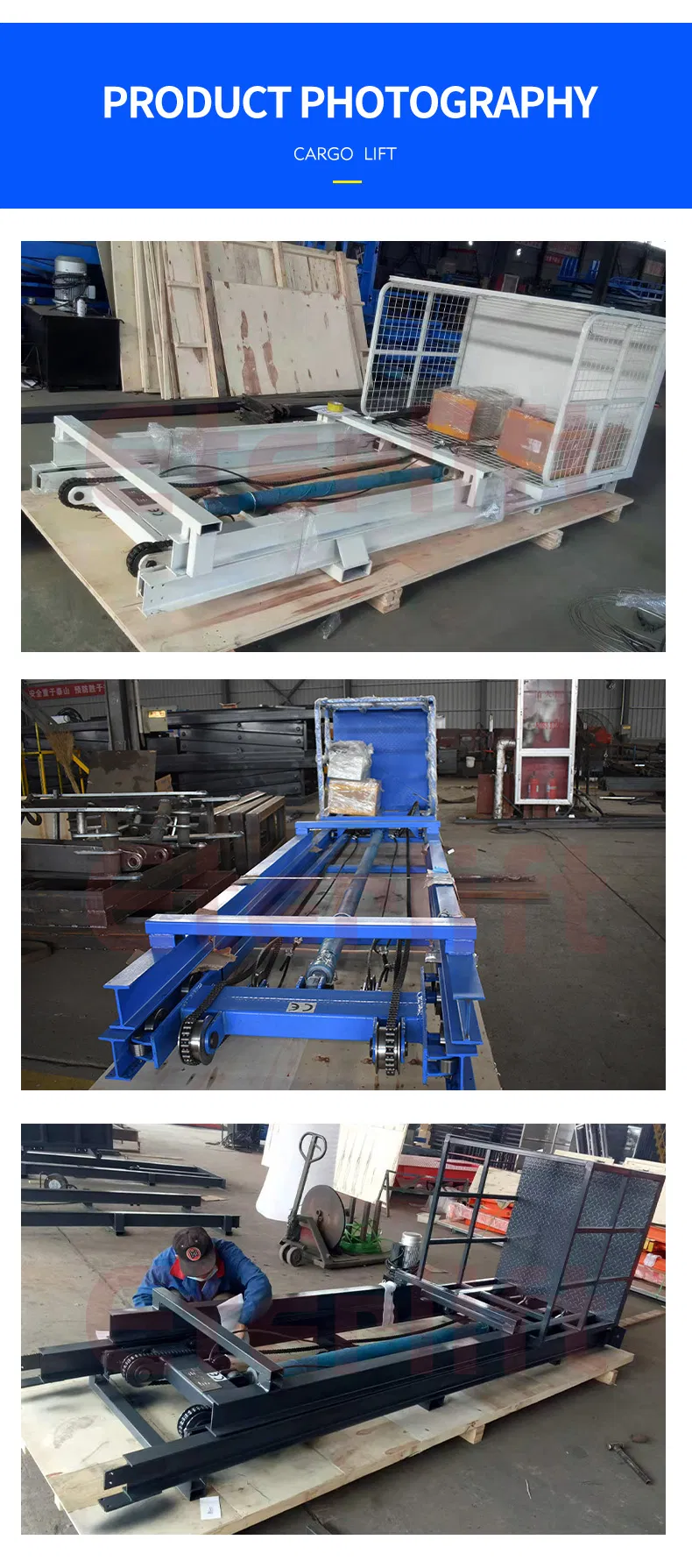

Lift Detail 2
Lift Detail 3

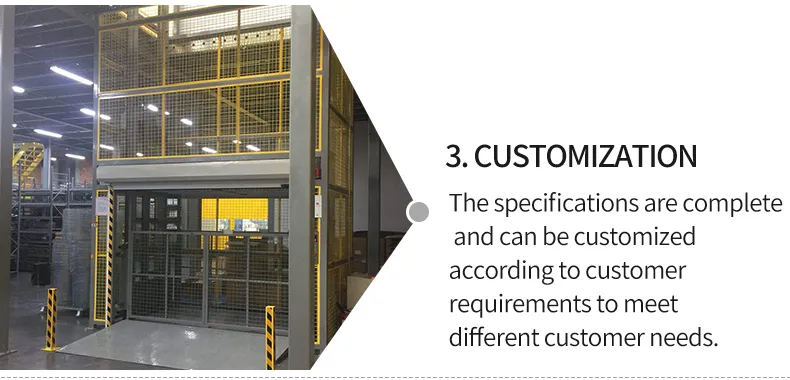

Lift Detail 4
Lift Detail 5
Lift Detail 6
Lift Detail 7

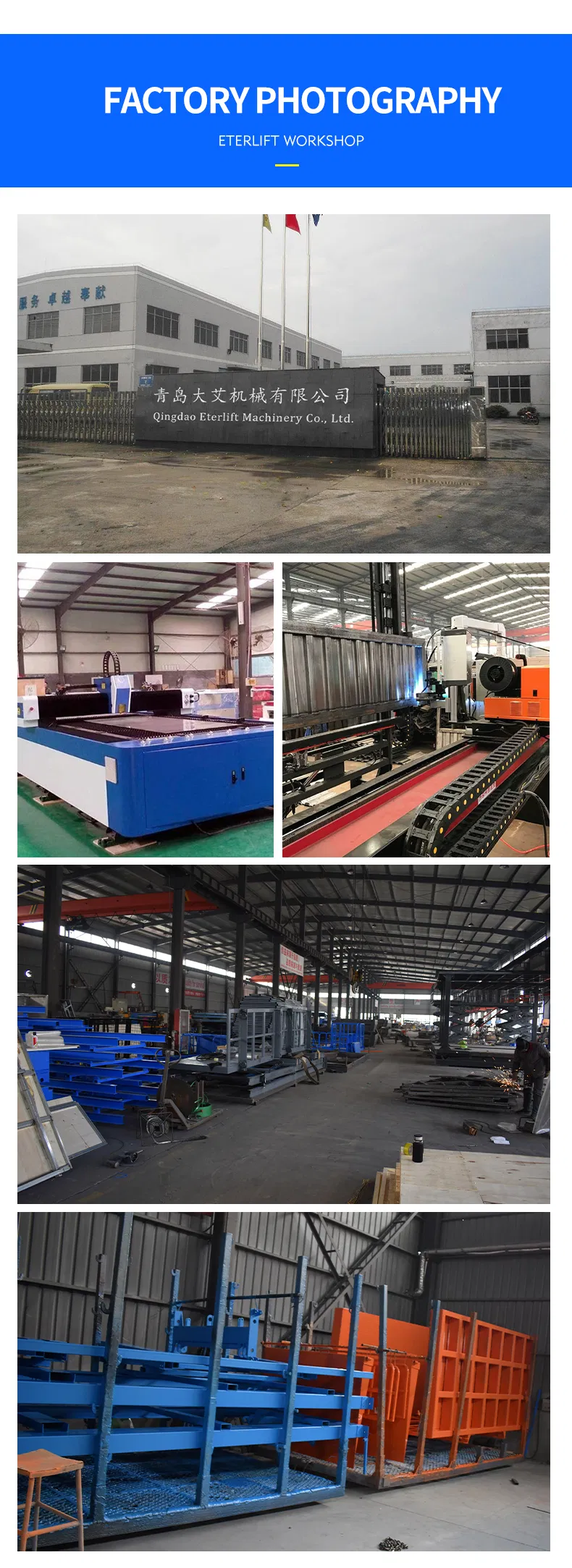

Lift Detail 8
Lift Detail 9
Lift Detail 10
Mounting Methods
✔
Direct Mounting: Doors attached directly to the main lift frame.
✔
Guide Rails & Tracks: Essential for sliding and vertical door stability.
✔
Spring-Loaded Mechanism: Ensures automatic closure for enhanced safety.
✔
Electromagnetic Locks: Keeps doors secured during operation.
Frequently Asked Questions
Q1: What is the maximum load capacity for this cargo lift?
The lift supports a wide range of capacities, from 100kg up to 10 tons, depending on your specific requirements.
Q2: Can the platform size and lifting height be customized?
Yes, both the platform dimensions (standard 1500*1500mm) and the lifting height (up to 10000mm) are fully customizable to fit your facility.
Q3: What safety features are included in the design?
The lift includes safety ropes (10mm diameter), high-strength lifting chains (16A), explosion-proof features, and can be equipped with electromagnetic interlocks for the doors.
Q4: What are the requirements for the installation site?
The lift has a very low self-height (≤120mm), which often eliminates the need for a deep pit, making it suitable for various warehouse and workshop floors.
Q5: What types of doors can be installed on the platform?
We offer several options including hinged doors, vertical lift doors, folding doors, and guillotine-style doors to suit your space and operational needs.
Q6: Is the equipment certified for international use?
Yes, the cargo lift is CE certified, ensuring it meets essential health and safety requirements for European and international standards.
