CE Approve Hydraulic Lift 10000kg Vvvf Goods Elevator Freight Elevator Cargo Lift

1 / 5

CE Approve Hydraulic Lift 10000kg Vvvf Goods Elevator Freight Elevator Cargo Lift

Customization:	Available
After-sales Service:	7*24
Warranty:	1 Year

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

TF3000, TF3000, F5000

Type

Wellhole

Load Capacity

5000kg-20000kg

Speed

0.25m/S-1.5m/S

Drive Mode

Open & Close

Automatic

Lift Mechanism

Hydraulic/ Traction

Control System

VVVF

Guide Rail

T Guide

Elevator Door

Center Opening Door

Certification

ISO/ CE/ Eac

Origin

China

🏗️

Product Description

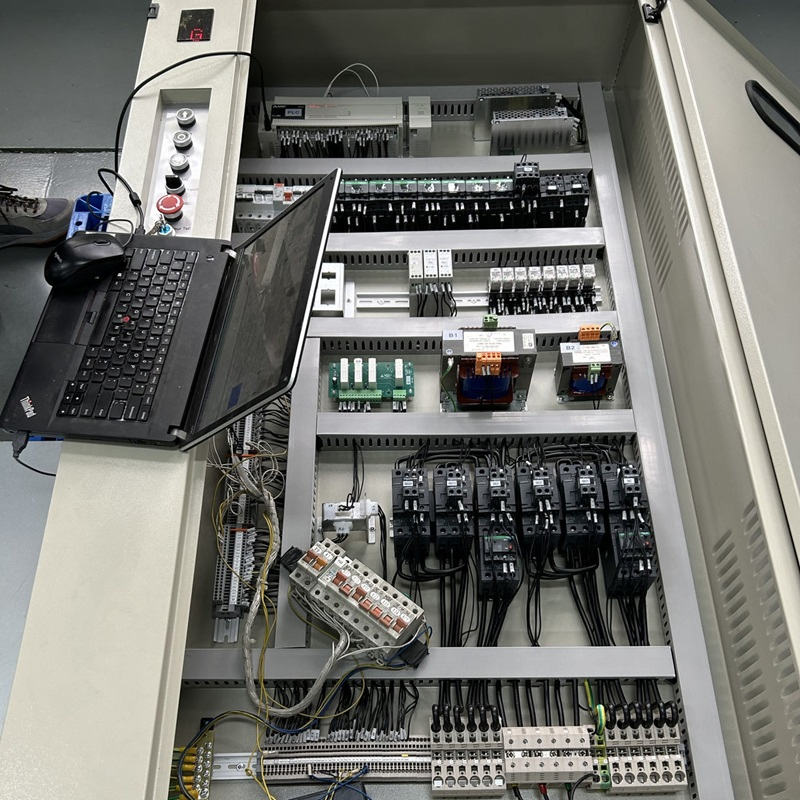

The freight elevator uses advanced microcomputer control technology and technology integration to greatly improve performance and quality while reducing the failure rate. Utilizing variable frequency electric drive technology, the elevator structure is simplified, making maintenance more convenient.

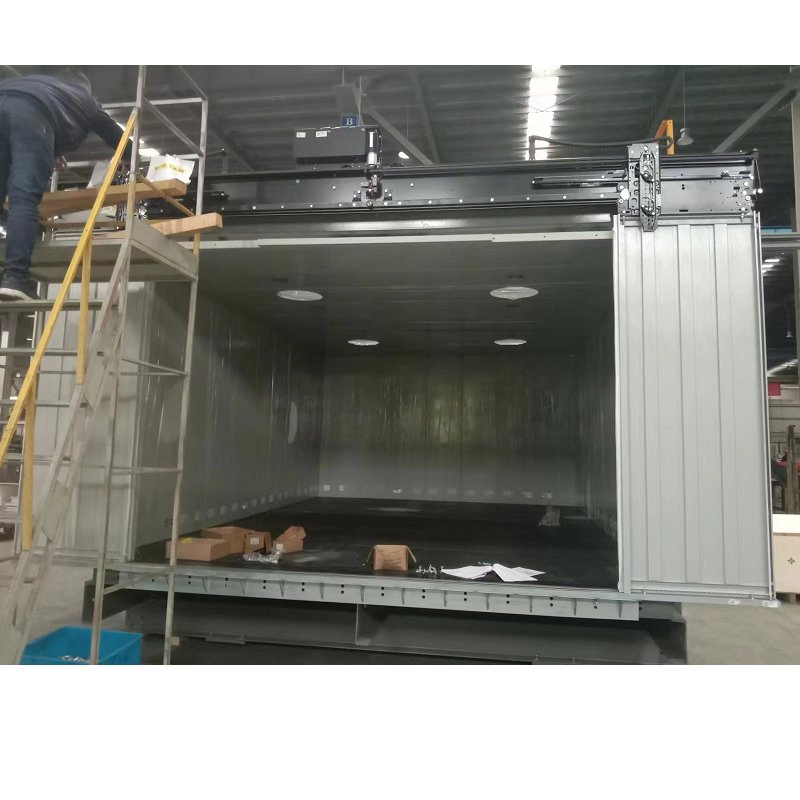

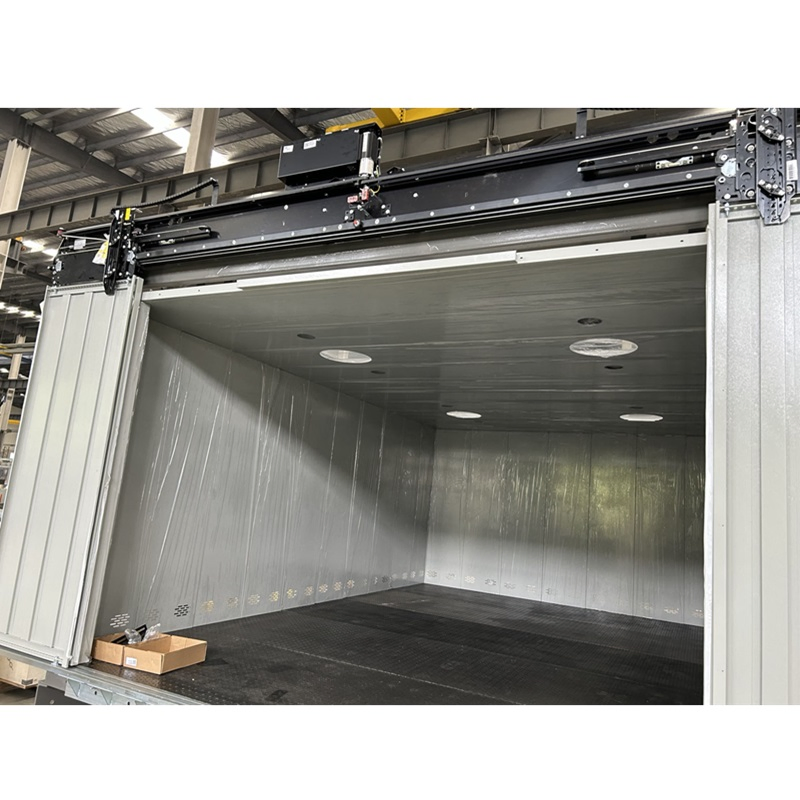

The optimized designed car is spacious, bright, economical, and practical. It ensures cargo transportation is convenient, fast, safe, and reliable with a large load capacity. It is ideal for factories, warehouses, shopping malls, libraries, and other professional environments.

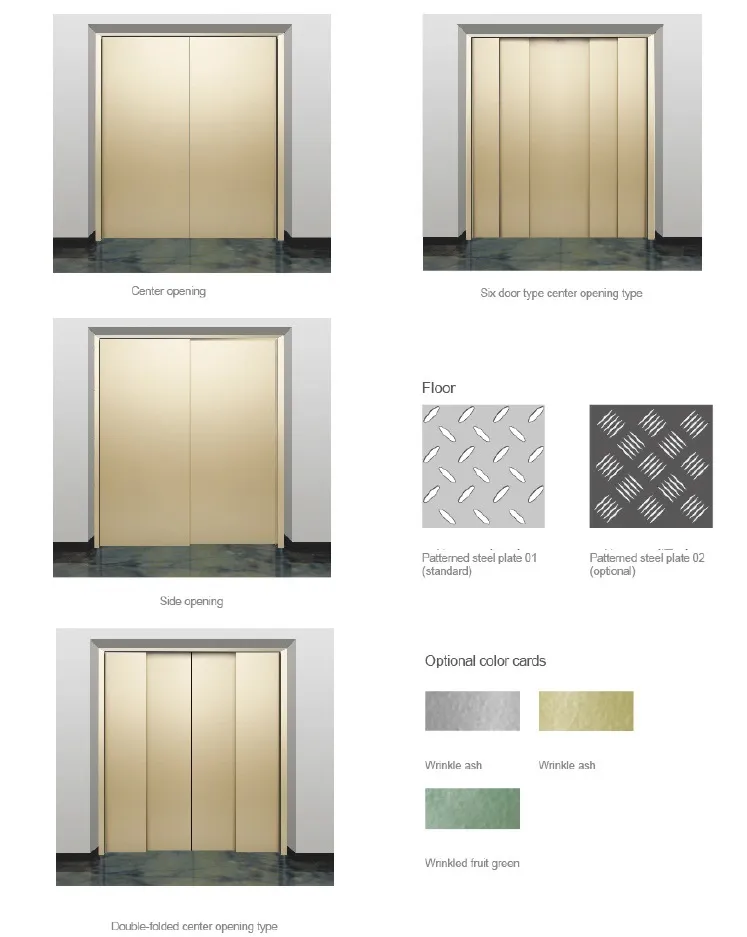

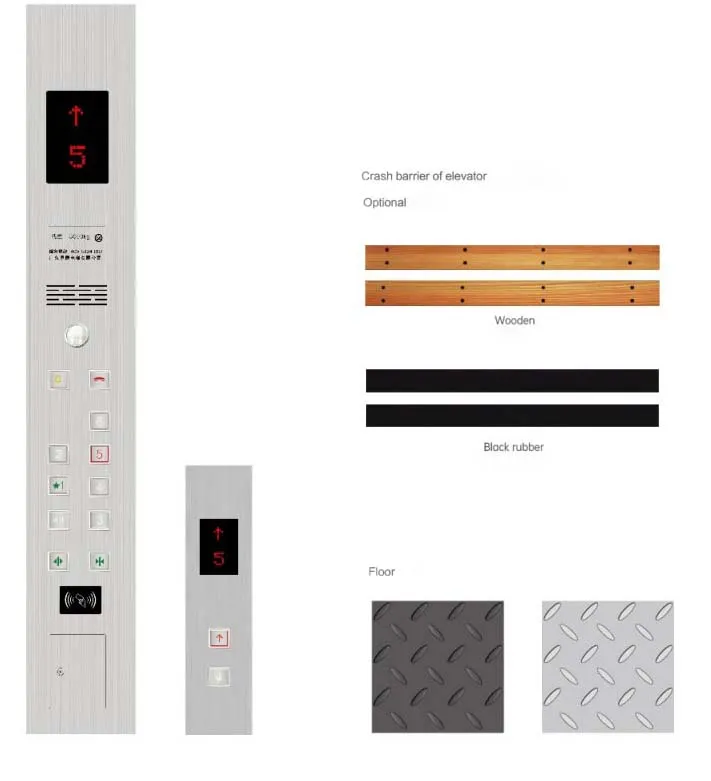

COP / LOP & Landing Door

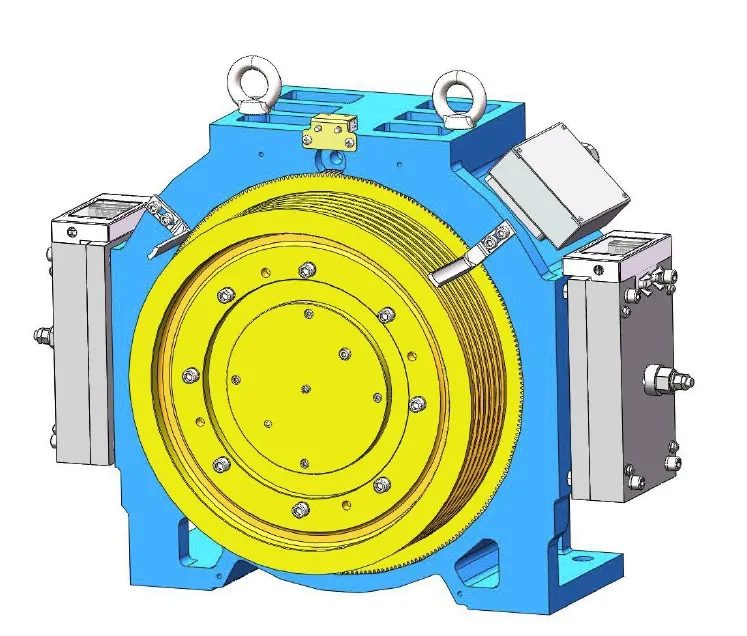

Technical Traction System

The traction host of the series is designed for vertical logistics, meeting various load requirements. Vector closed-loop control technology ensures smooth and accurate operation, improving response speed and overall performance.

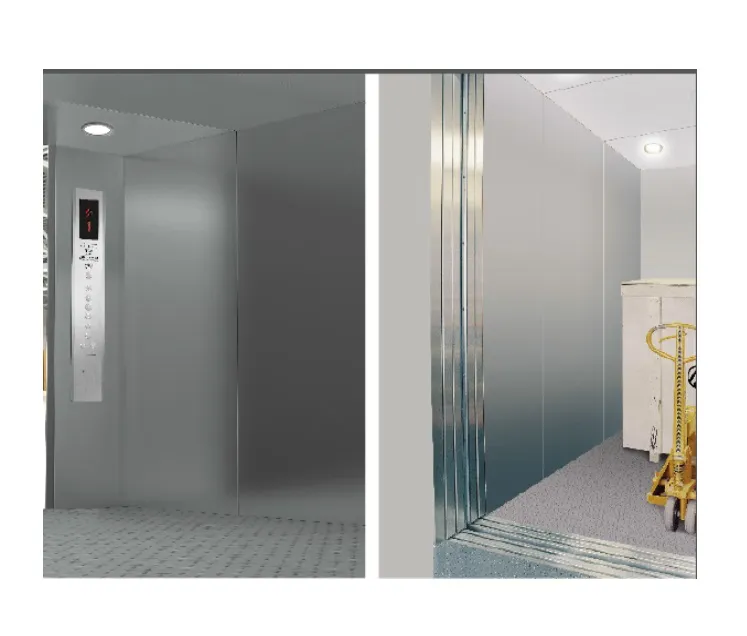

Energy Efficiency & Structure

VVVF speed regulation reduces power supply capacity and saves nearly 40% energy compared to traditional technology. The multi-folding hall car door achieves maximum opening width for large goods, supported by a sturdy car bottom and accurate weighing devices to prevent overloading.

📊

Technical Parameters (Up to 30000kg Capacity)

Model	Capacity (kg)	Speed (m/s)	Car Size (CWCDCH mm)	Door Size (OP*OPH mm)	Shaft Size (HW*HD mm)	OH (mm)	PT (mm)	Power (kw)
F3000	1000	0.5-1.0	140016002200	1200*2100	2300*2200	4500	1500	7.5-11
	2000	0.5-2.0	190021002200	1600*2100	2900*2700	4500-4800	1500-1800	11-18.5
	3000	0.5-2.0	220025002200	1700*2100	3300*3200	4500-4800	1500-1800	15-22
	4000	0.5-2.0	250028002200	2000*2100	4000*3500	4500-4800	1500-1800	18-35
TF3000	2000	0.5-1.0	190021002200	1600*2100	2900*2700	4500	1500	11-18.5
	3000	0.5-1.0	220025002200	1700*2100	3300*3200	4500	1600	15-22
	5000	0.5-1.0	280031002200	2400*2100	4200*3800	4500	1800	18-35
F5000	8000	0.25-0.5	280045002200	2600*2100	4400*5200	4800	1800	30-45
F5000	10000	0.25-0.5	300053002200	2700*2100	4600*6000	4800	1800	30-45

❓

Frequently Asked Questions

What is the maximum load capacity available for these freight elevators?

Our standard range supports up to 10,000kg (F5000 model), with customized solutions capable of reaching up to 30,000kg for specialized industrial requirements.

How much energy can the VVVF technology save?

The VVVF (Variable Voltage Variable Frequency) speed regulation technology saves nearly 40% more energy compared to traditional AC two-speed elevator systems.

In which environments are these elevators typically installed?

These elevators are ideal for factories, museums, exhibition halls, auto shops, warehouses, parking garages, and large shopping malls.

Are the car dimensions and door openings customizable?

Yes, we support customization to meet specific site requirements, ensuring the car size and door opening width facilitate your specific types of cargo.

What safety certifications do your freight elevators carry?

Our freight elevators are fully compliant with ISO, CE, and EAC international standards, ensuring high safety and reliability.

What drive modes are available for these systems?

We offer both Electrical Traction and Hydraulic elevator mechanisms, depending on the load capacity and shaft requirements of your building.
