Fixed front curtain: Largely meets the requirements of all types of vehicles with different heights.

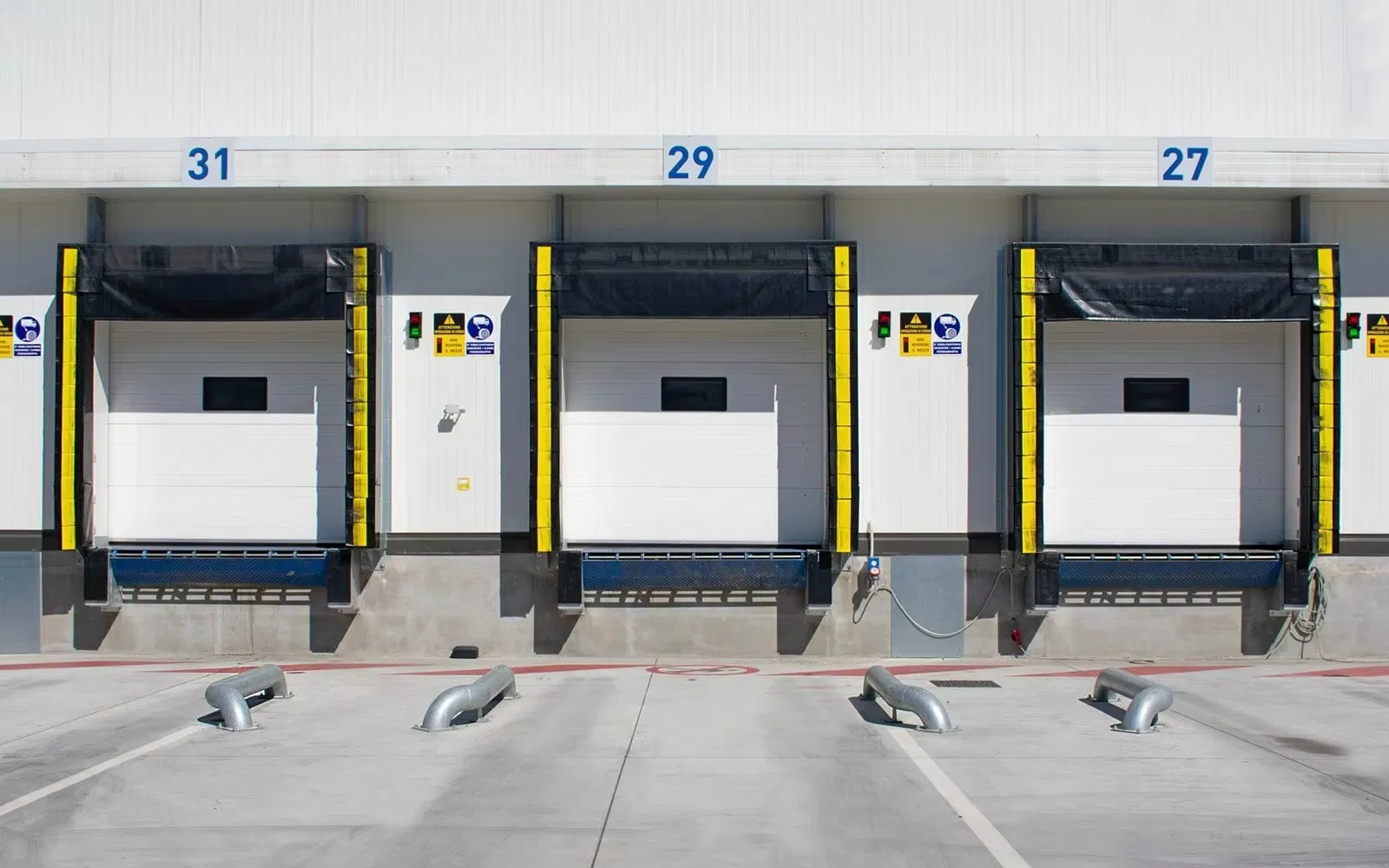

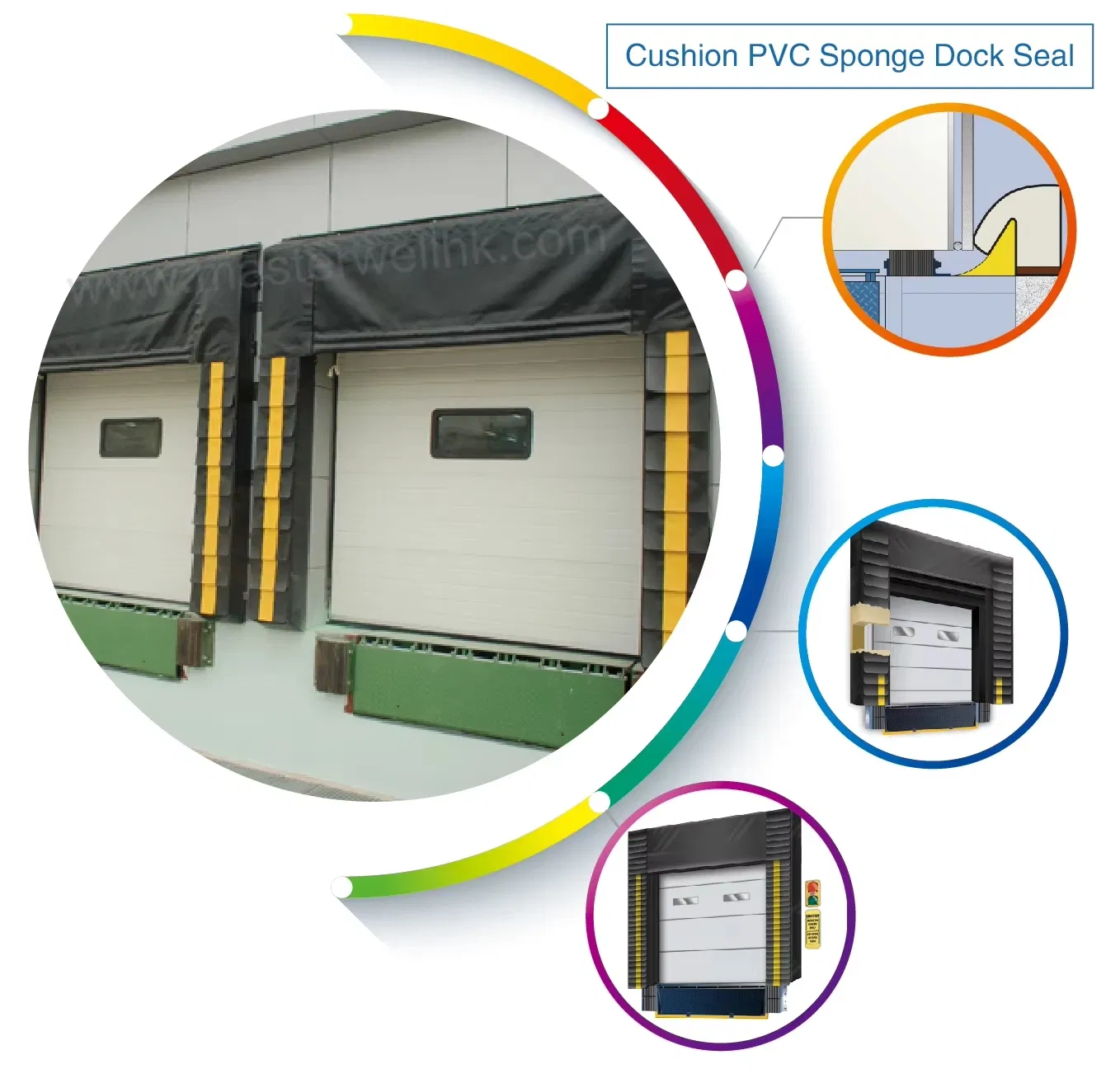

Cushion dock seal: Coupled with high elastic sponge, creating a tight seal between the vehicle tail and door, significantly reducing energy consumption.
| Configuration Details | ||
|---|---|---|
| Top Seals | 1 Item | Wear-resistant vinyl fiber with high elasticity sponge pad (effective to -40 ℃). |
| Vertical Seals | 2 Items | Louver folds for wear protection; reflective warning strips for safety. |
| Hardware | 1 Set | Galvanized anti-rust surface treatment for durability. |

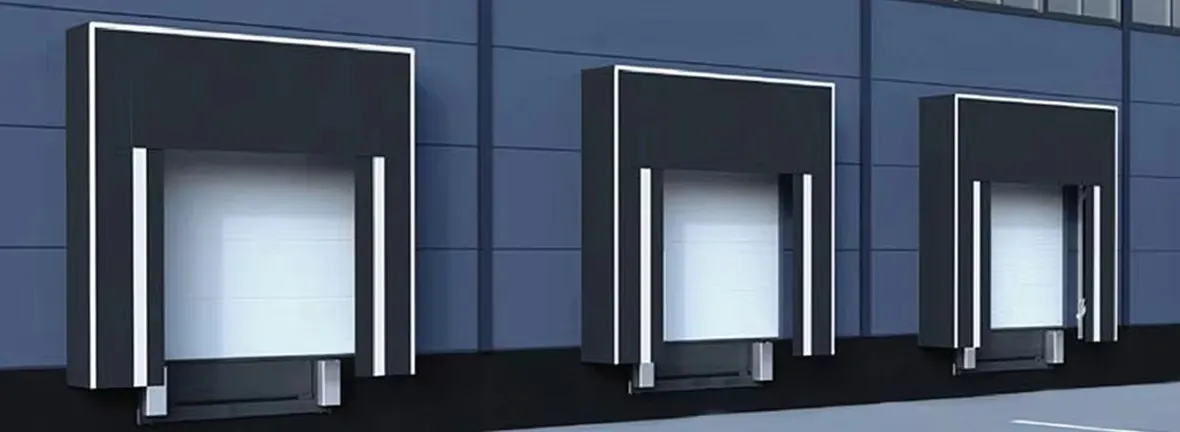

The foldable aluminum alloy structure is ideal for medium-strength loading areas. The front curtain, made of special PVC, offers high elasticity, wear resistance, and tensile strength, ensuring a full seal around the vehicle.
| Parameters | |||
|---|---|---|---|
| Front Curtain Tensile Force | Longitudinal >550N / Transverse >900N | ||
| Width | 3000-3400mm | Profile Color | RAL9006 |
| Thickness | 3mm | Temp Range | -35℃ to +90℃ |

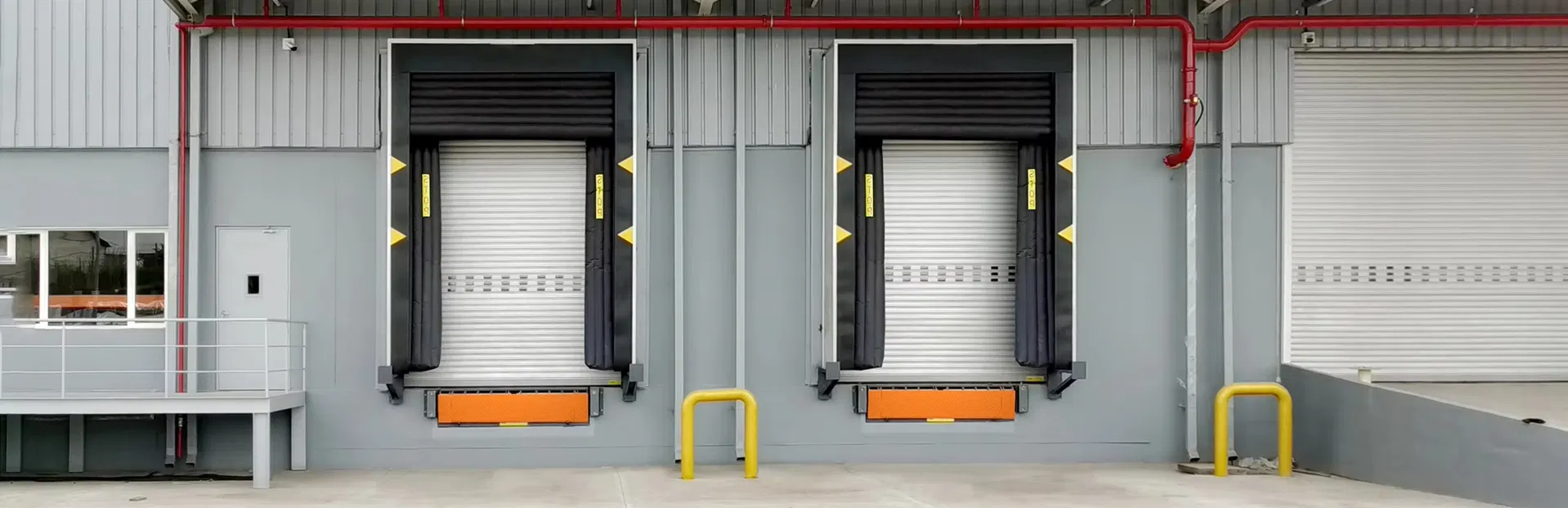

| Technical Specification | |||
|---|---|---|---|
| Power Supply | 380V / 50HZ | Inflation Time | Approx 30s |
| Moving Range | Top: 900mm / Side: 600mm | Material | Cordura 1000 |
