| Model NO. | ZGLIFT/019 |
|---|---|
| Application | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism | Scissor Lift |
| Carrying Capacity | Light Level |
| Driven Type | AC |
| Feature | Explosion-Proof |
| Certification | GS, CE, RoHS, ISO 9001 |
| Specification | 2270*800*1100mm |

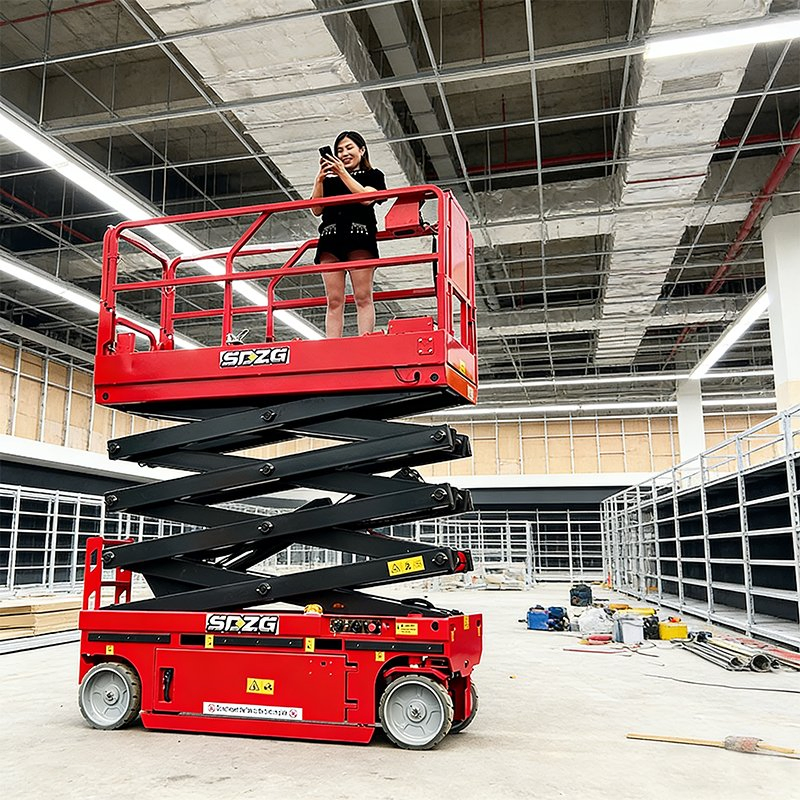

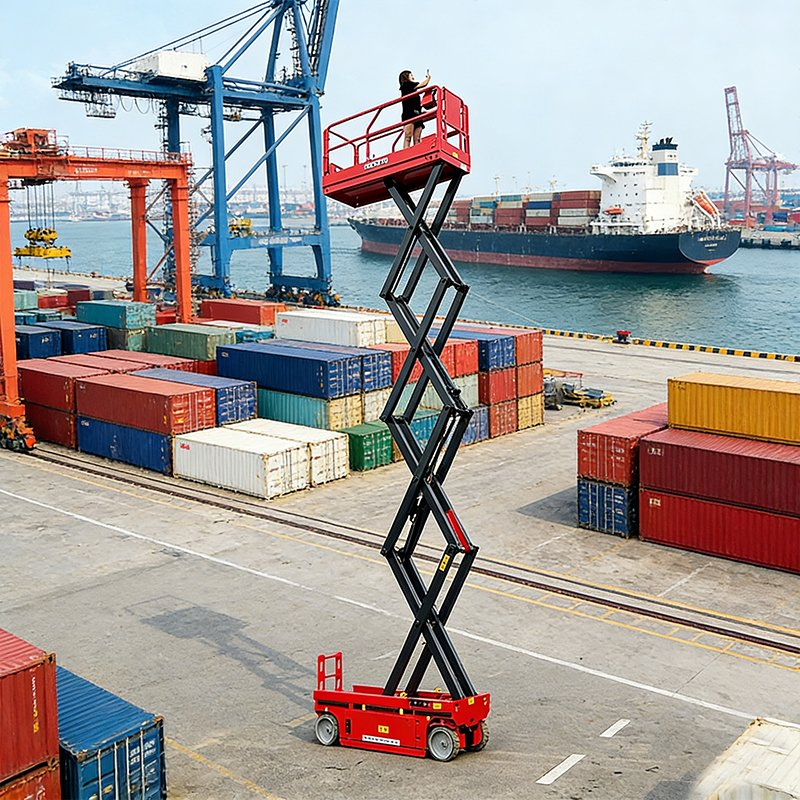

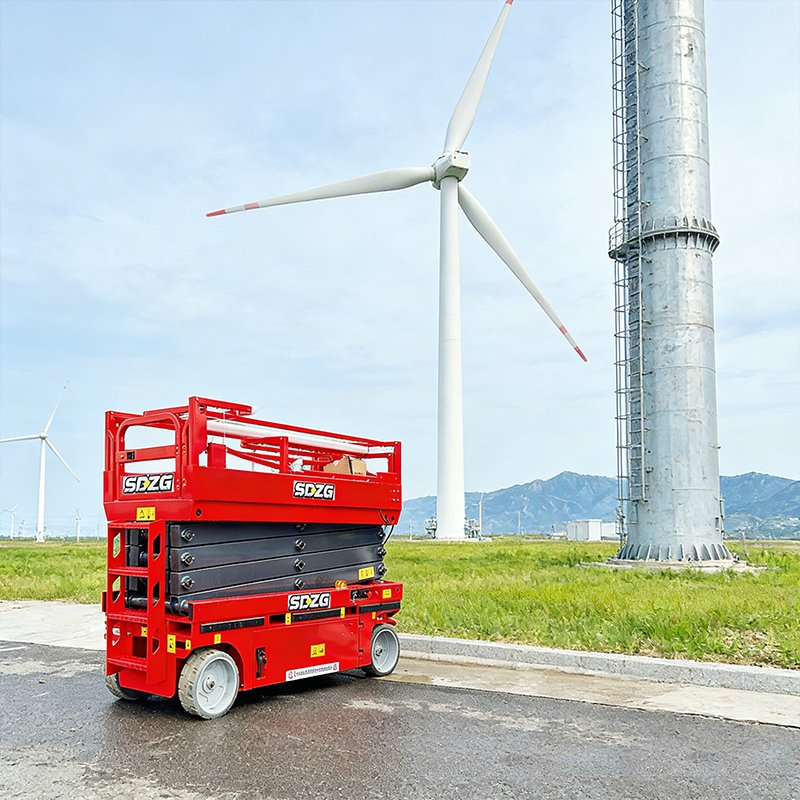

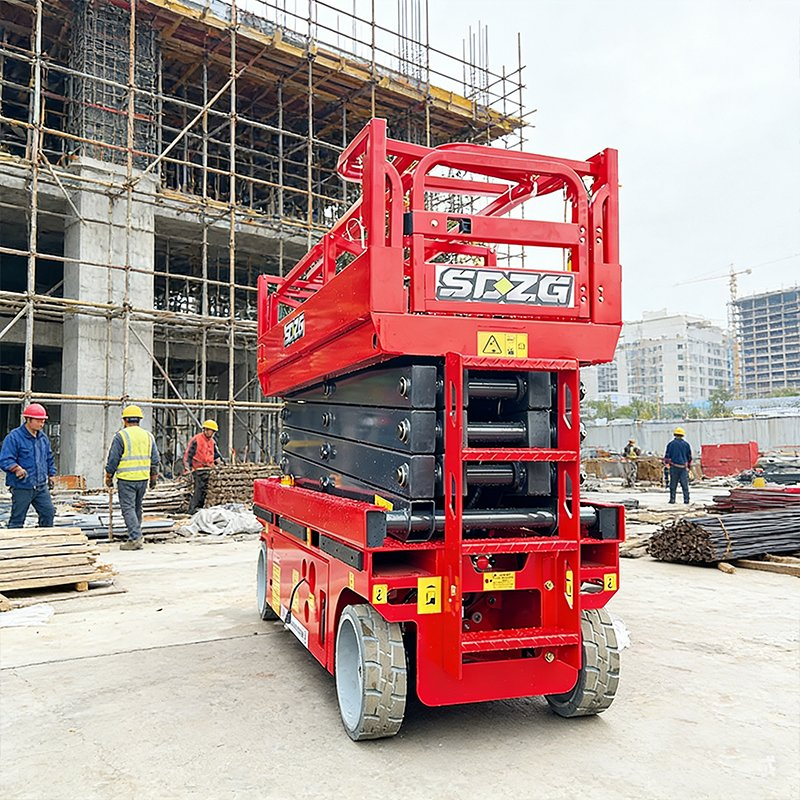

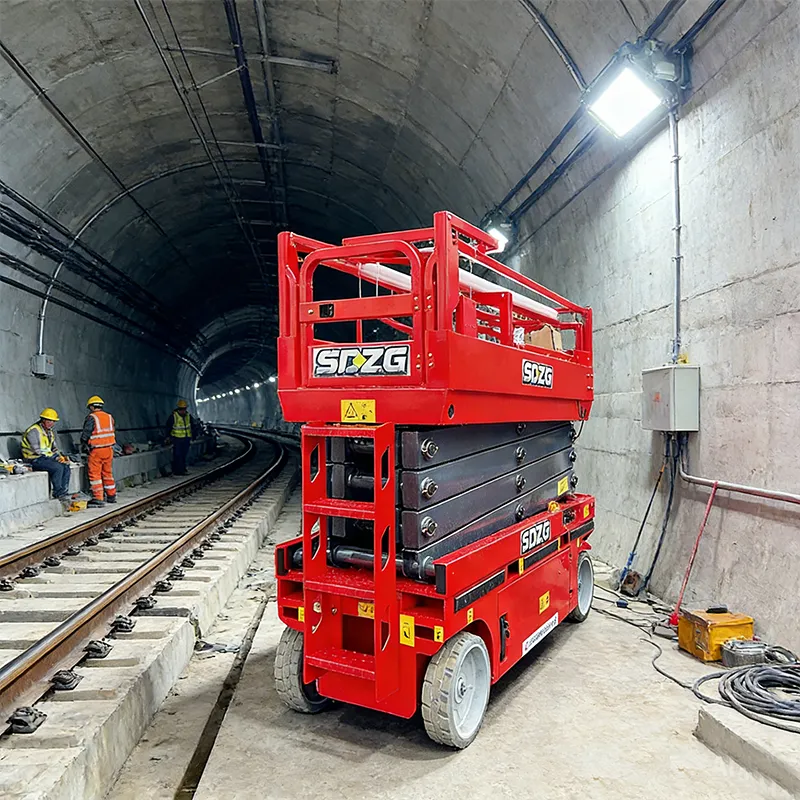

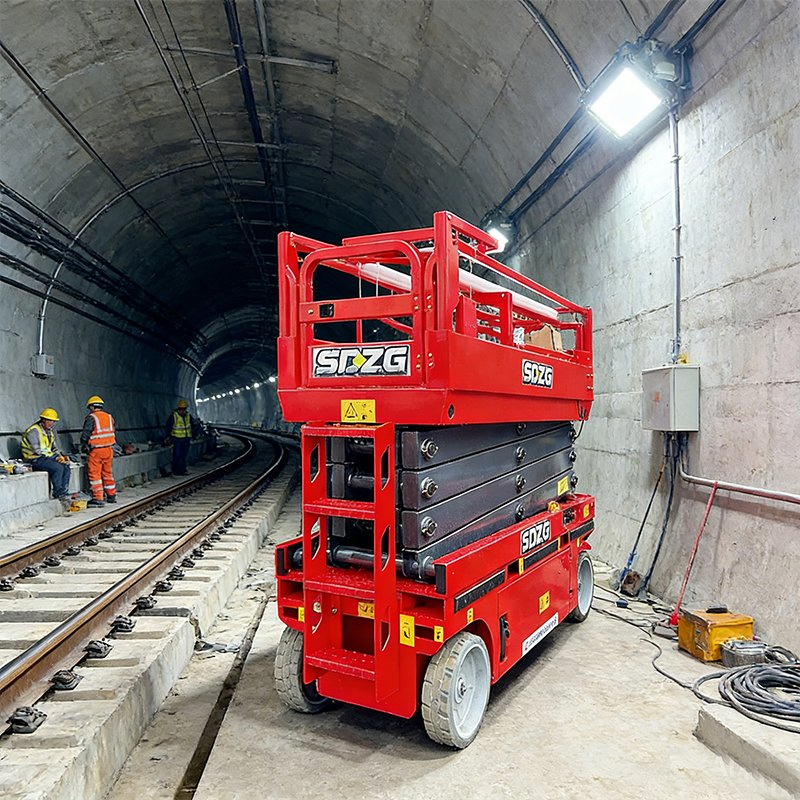

This self-propelled scissor lift platform is a versatile solution for elevated work tasks. It boasts a maximum working height of 12.00m and a maximum platform height of 10.00m, enabling operators to reach considerable heights for maintenance, installation, or cleaning jobs. With a safe working load of 320kg (113kg for the extended platform), it can handle various tools and materials.
Designed for flexibility, the machine features a 0.9m table extension for added reach, a minimum ground clearance of 0.1/0.02m to navigate uneven surfaces, and a turning radius of 0/2.2m for smooth movement in tight areas. Powered by a 24V/203Ah battery with a 24V/30A charger, this lift ensures reliable operation. It can handle a maximum climbing capacity of 25%.
| Max Working Height | 12.00m | Lifting Speed | 3-5m/min |
|---|---|---|---|
| Max Platform Height | 10.00m | Travel Speed (Stowed) | 3.5km/h |
| Safe Working Load | 320kg | Travel Speed (Elevated) | 0.8km/h |
| Platform Dimensions | 2.27×0.8×1.1m | Battery | 24V/203Ah |
| Platform Extension | 0.9m | Max Climbing Ability | 25% |
| Wheelbase | 1.89m | Machine Weight | 2600kg |

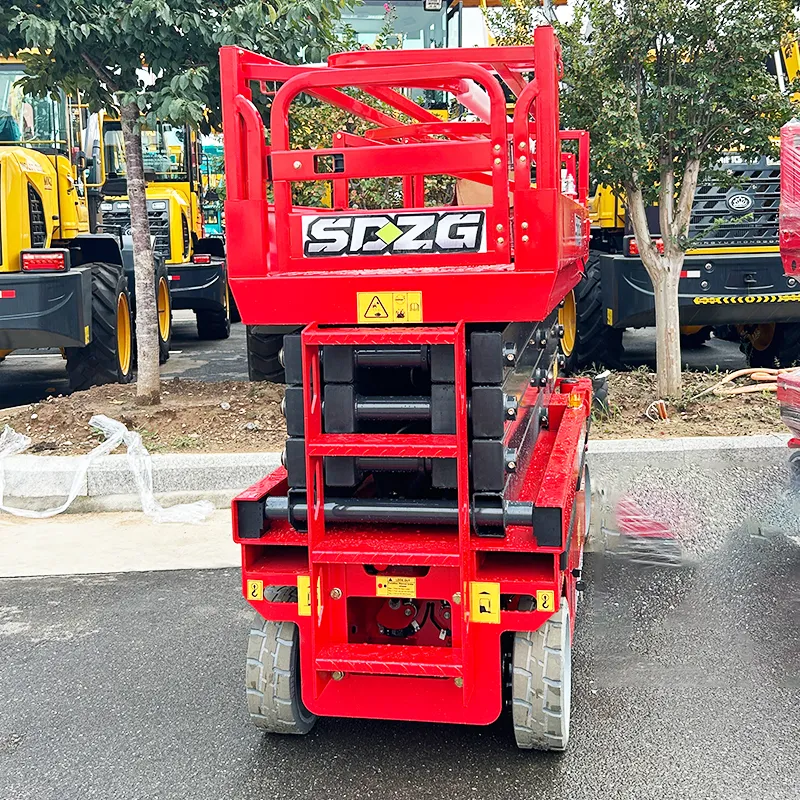

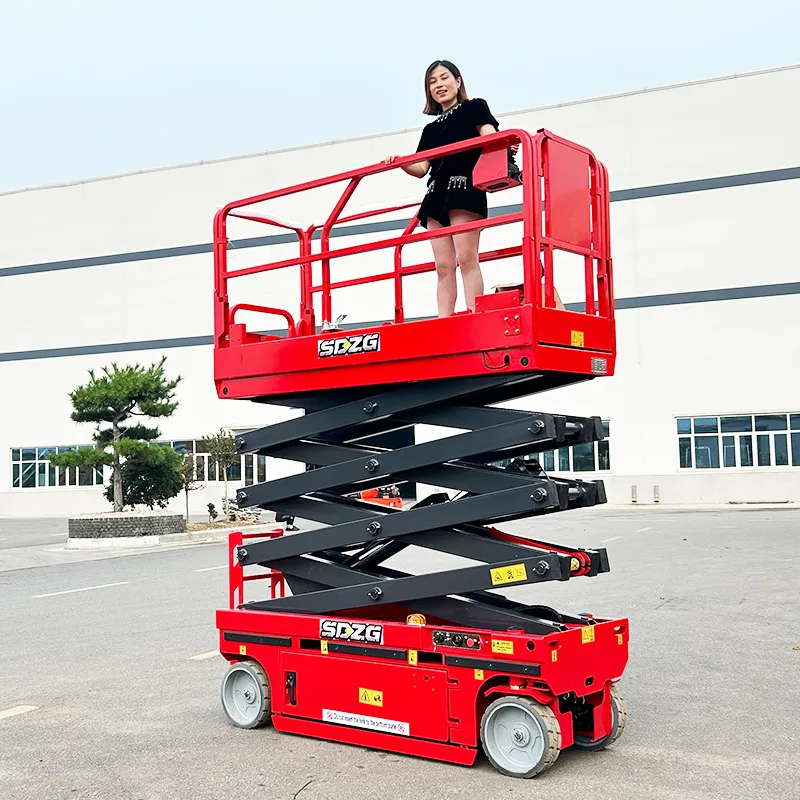

Superior Design & Performance
Adopts a streamline design that makes the appearance more pleasing. Equipped with reliable components that are powerful, dependable, and easy to service. This equipment is designed to reduce operational costs while providing greater productivity and profitability.

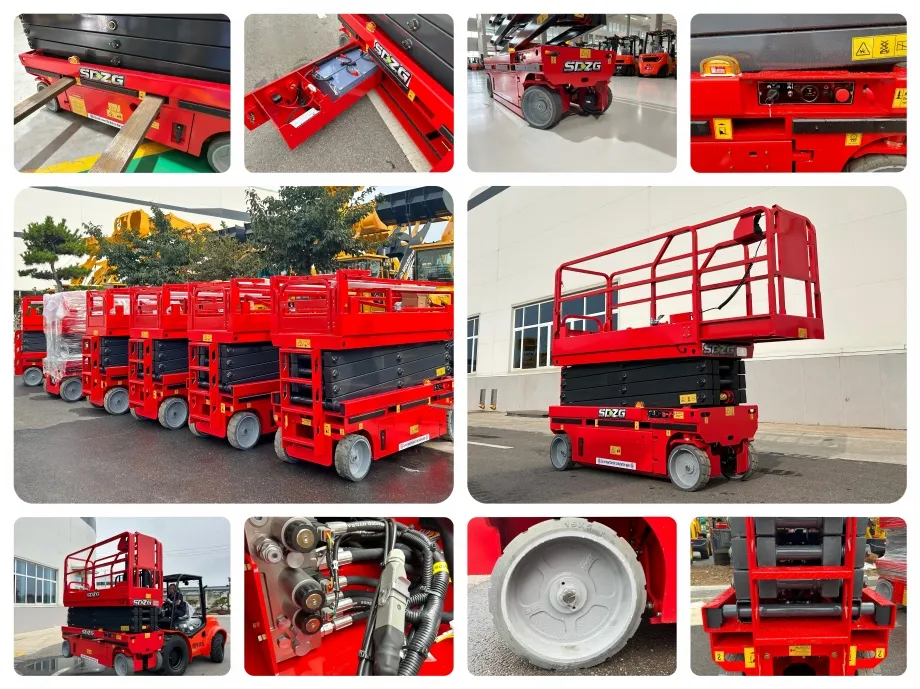

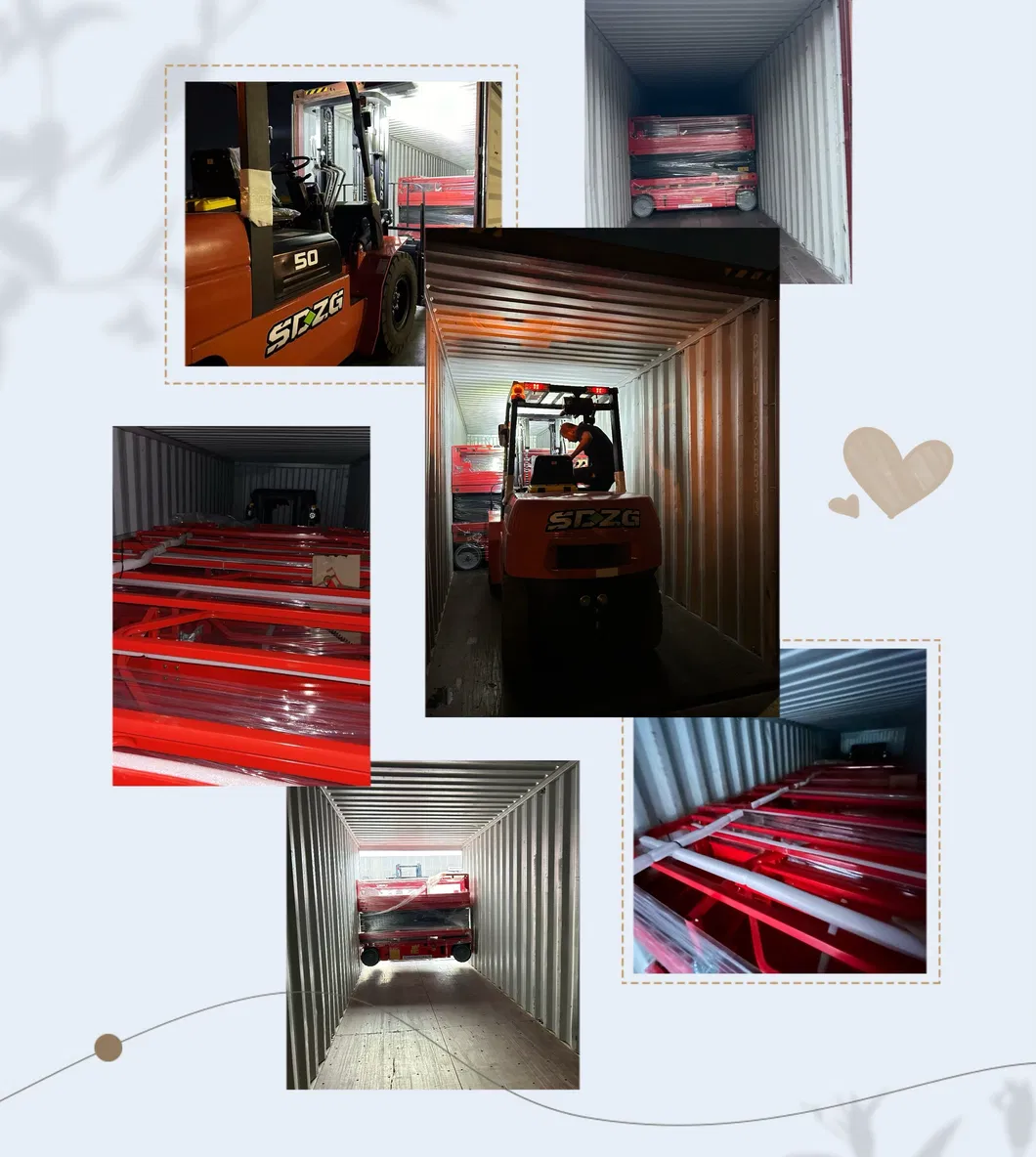

To ensure the utmost protection of your valuable goods, we offer comprehensive, environmentally conscious, and highly efficient packaging solutions. We utilize reinforced timber crates, precision-cut shock-absorbing foam inserts, and advanced moisture-resistant barrier liners to secure every component.
After-Sales Service: All products are supplied with a one-year or 2000 working hours (whichever occurs first) quality warranty. Service is available in over 100 countries globally.

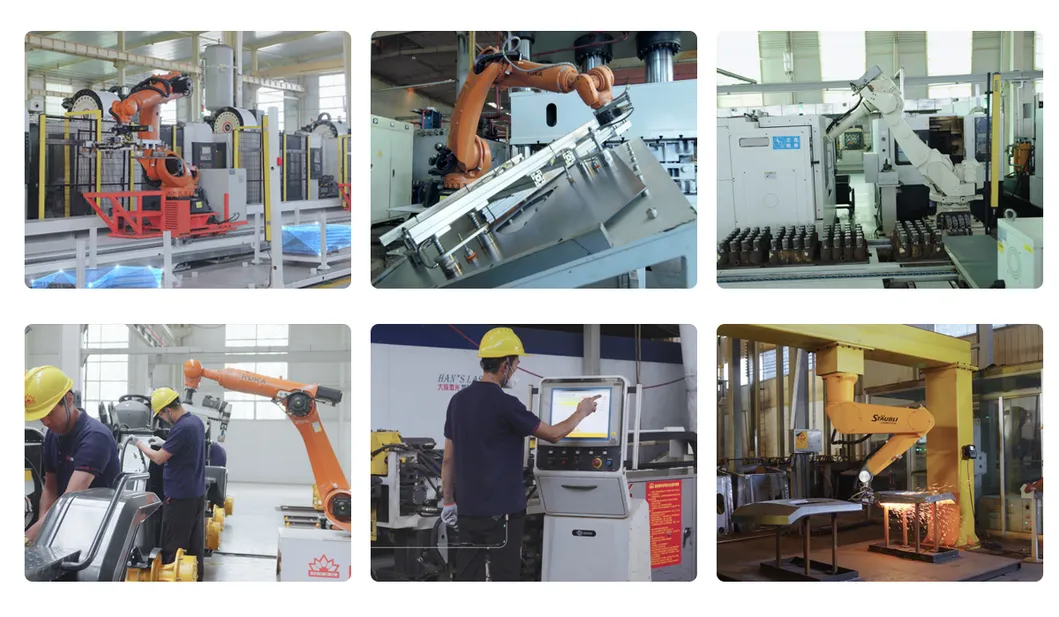

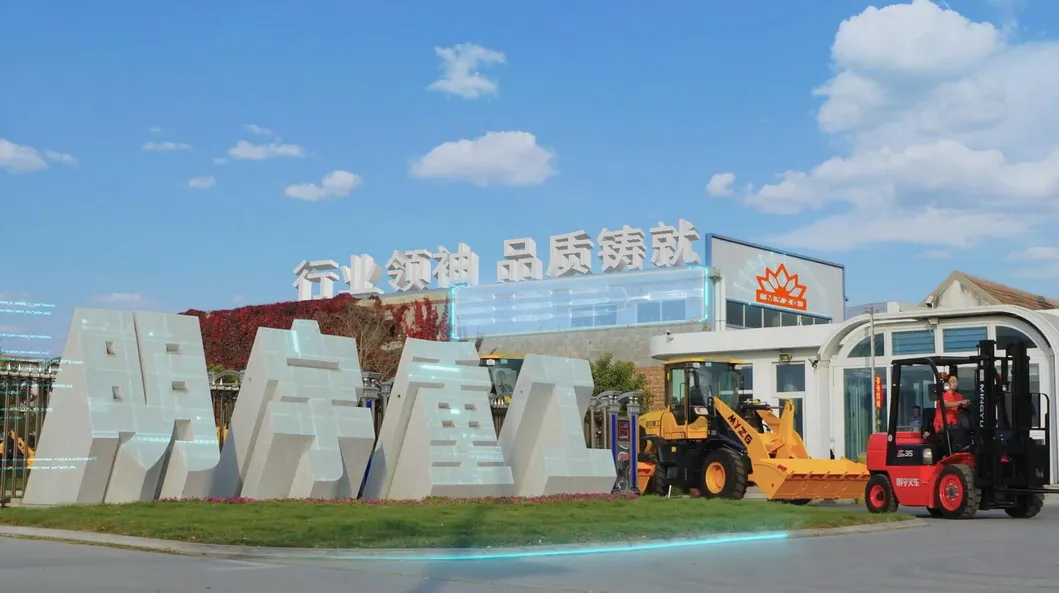

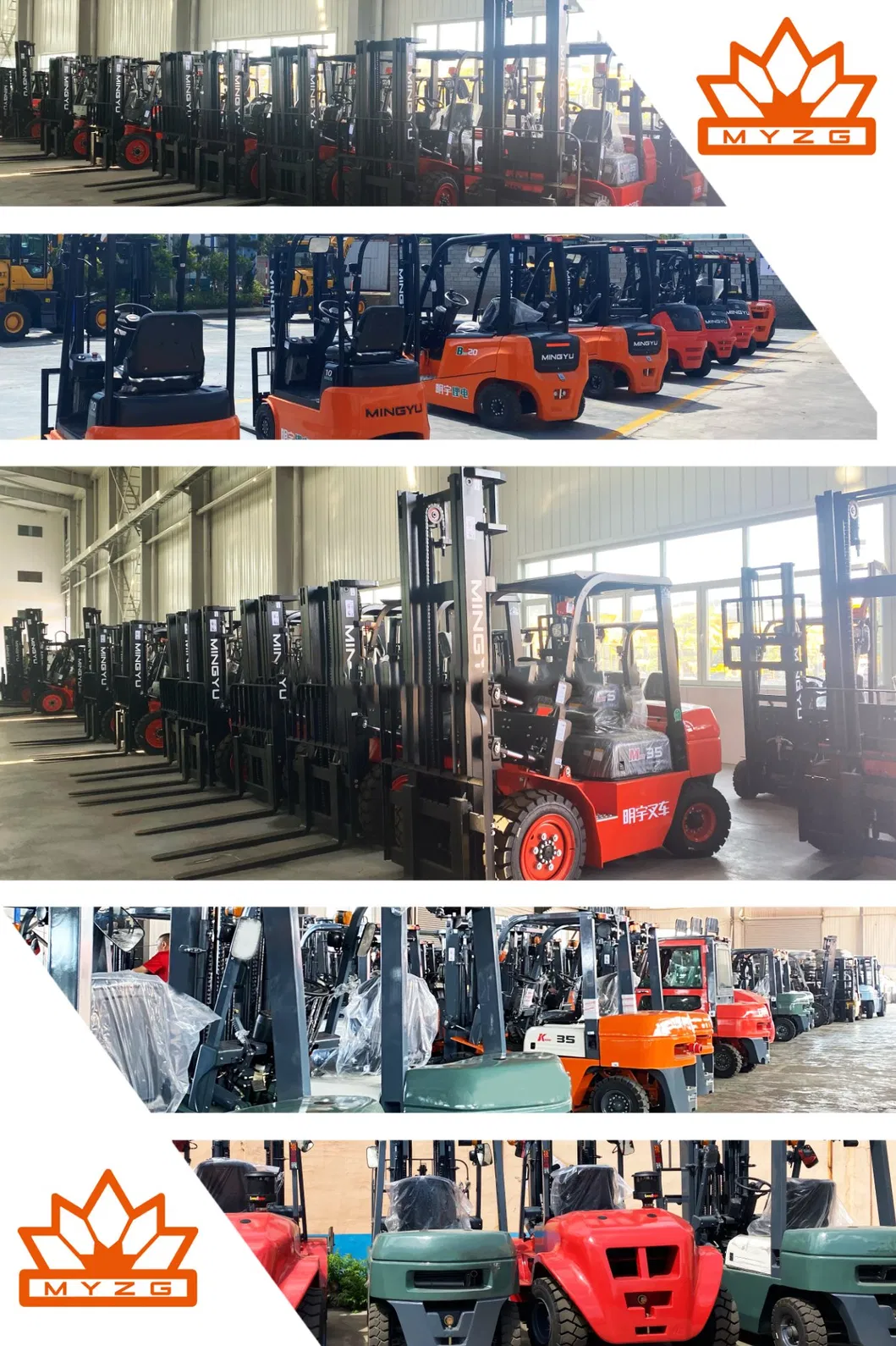

Factory Excellence: Our production process is controlled by an ERP system, from the smallest stainless steel part to the most advanced anti-corrosion technology. Every machine undergoes rigorous testing before delivery.
