Premium Aerial Solutions

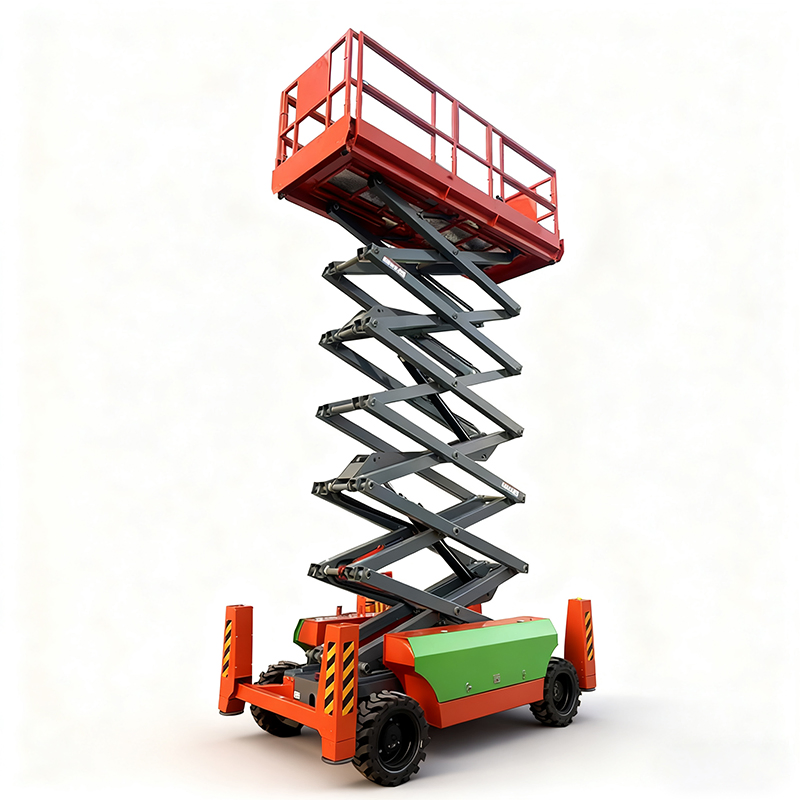

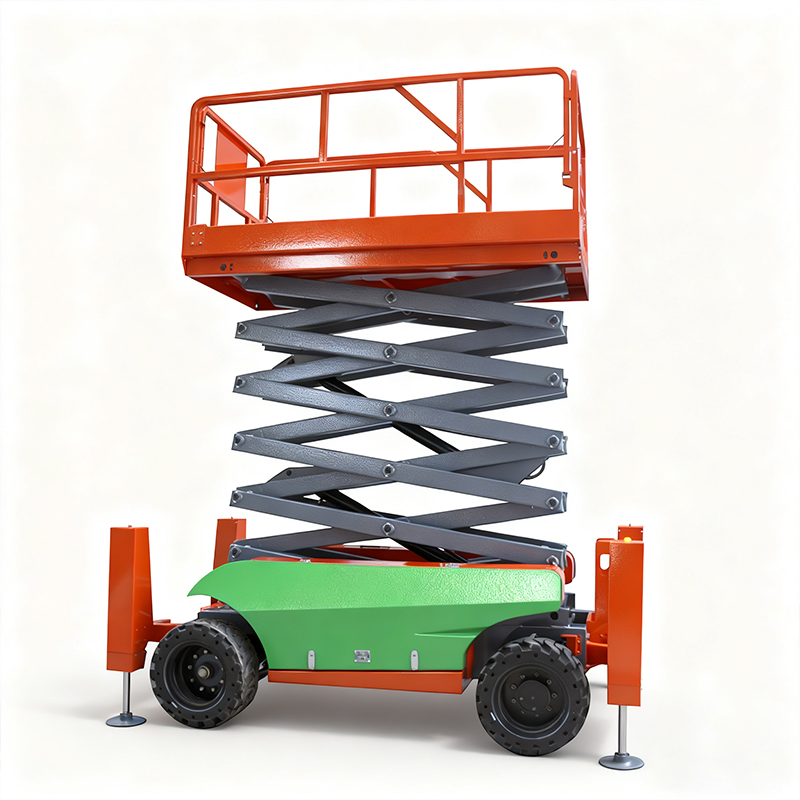

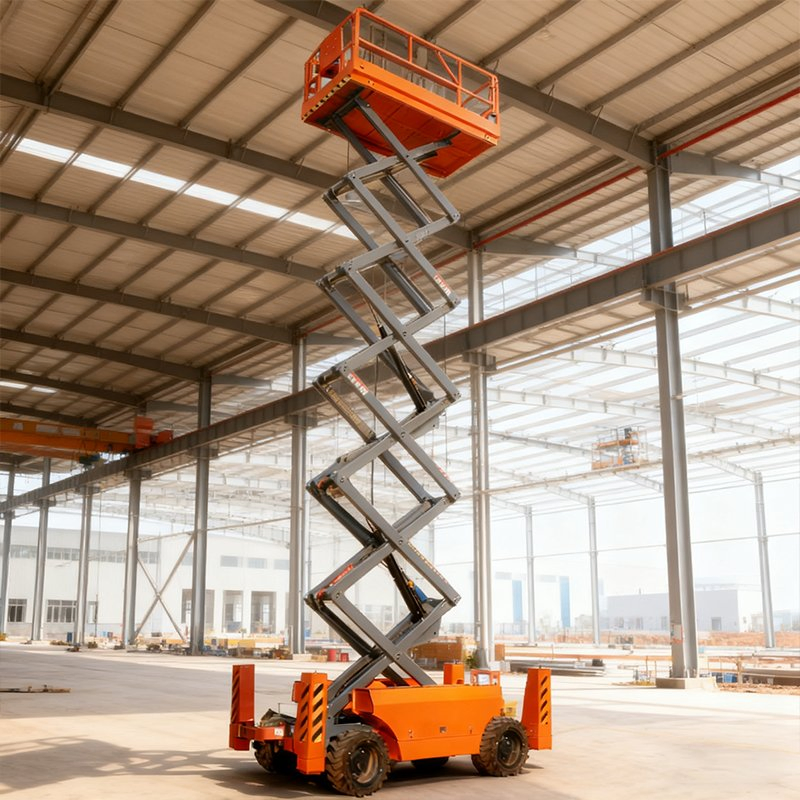

Outdoor Indoor Maintenance Aerial Work Machine Electric Hydraulic Lift Platform

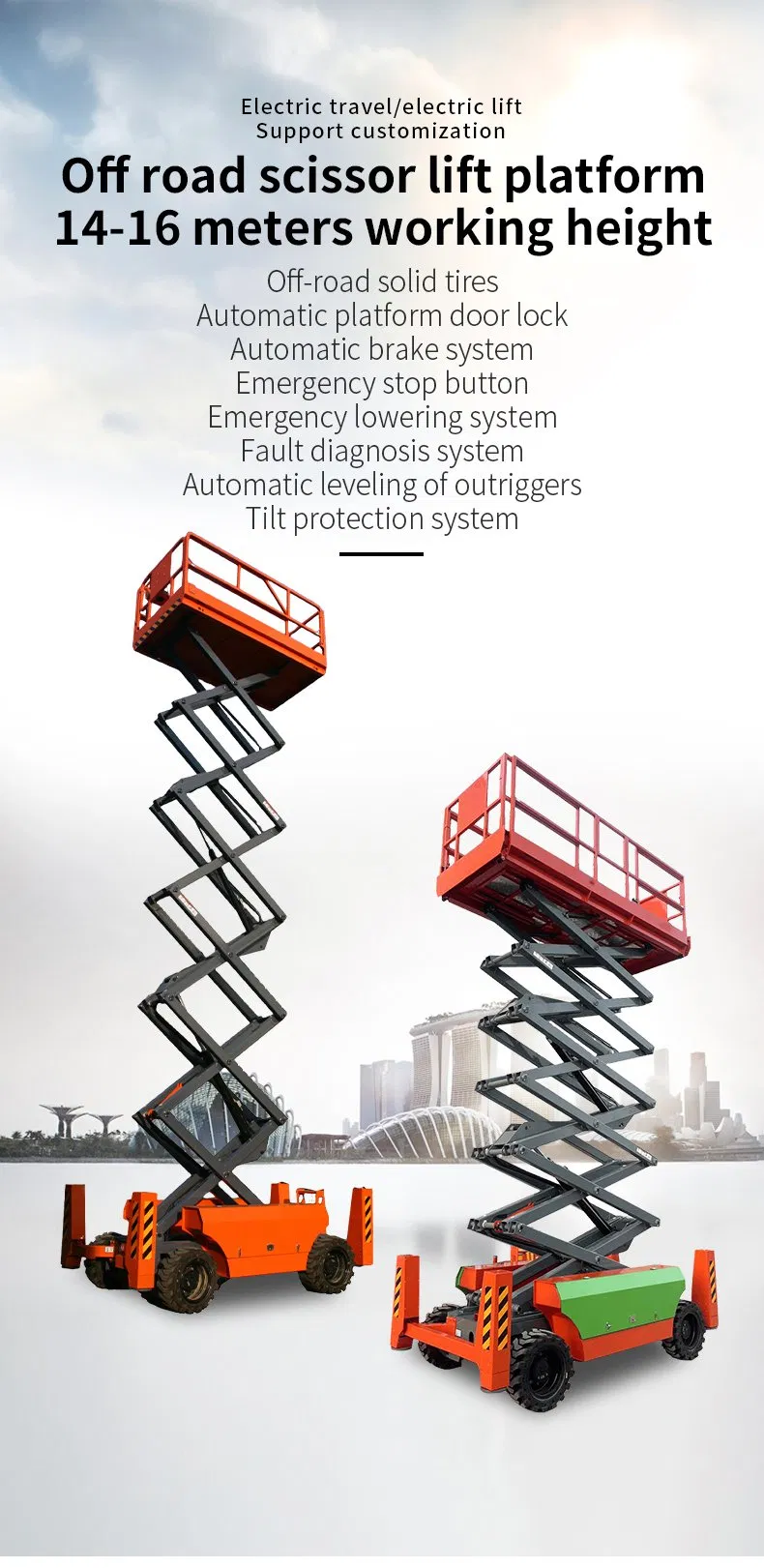

14–16m Working Height | Electric Travel & Electric Lift | Support Customization

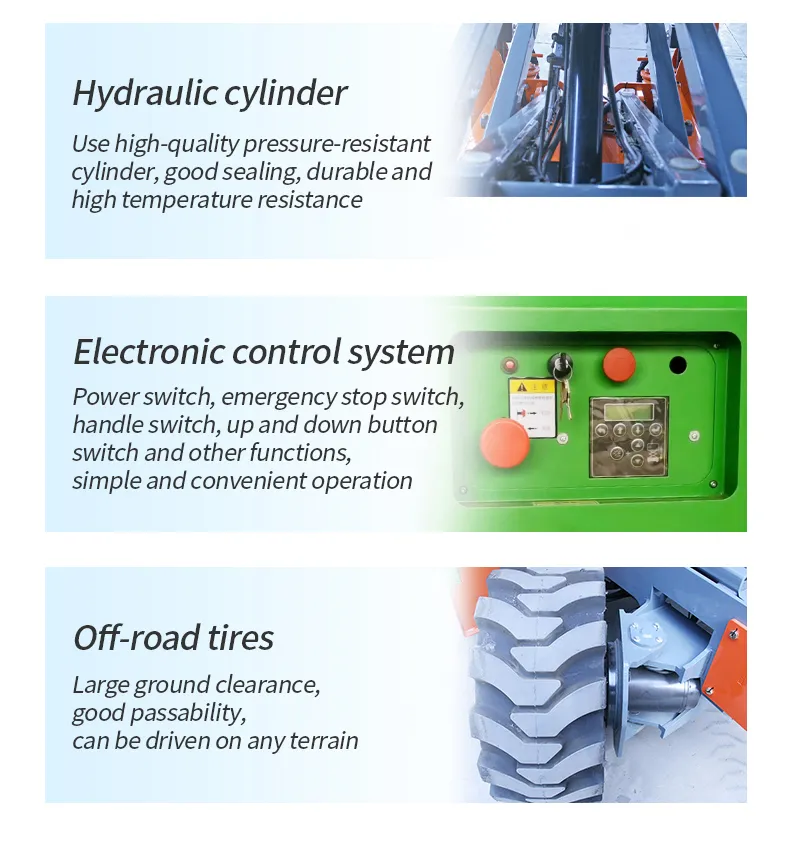

⚙️ Off-road solid tires
🔒 Automatic platform door lock
🛑 Emergency stop button
📟 Fault diagnosis system
⚖️ Automatic leveling outriggers
📉 Emergency lowering system

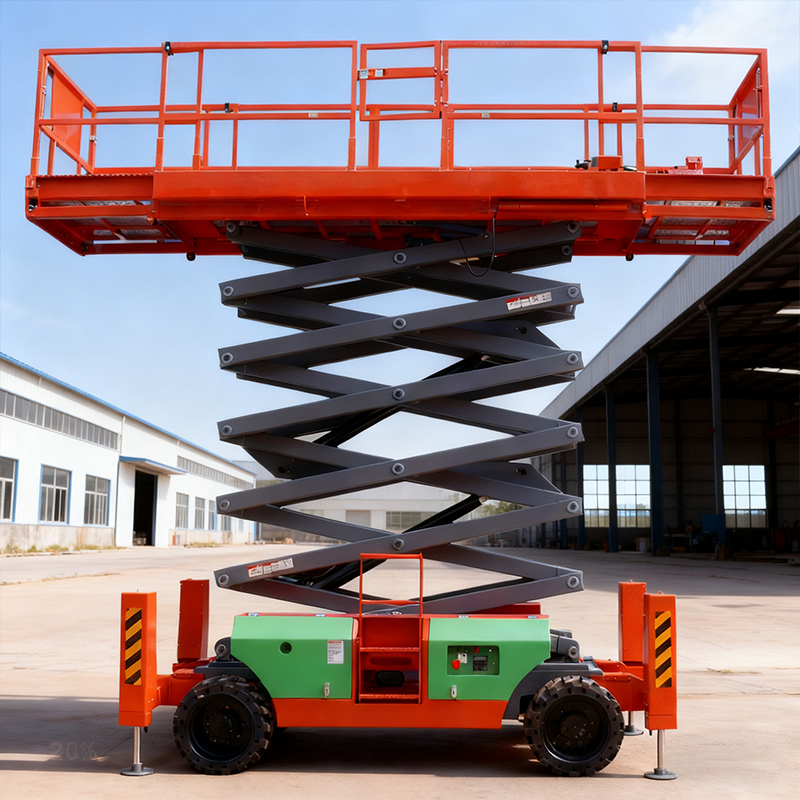

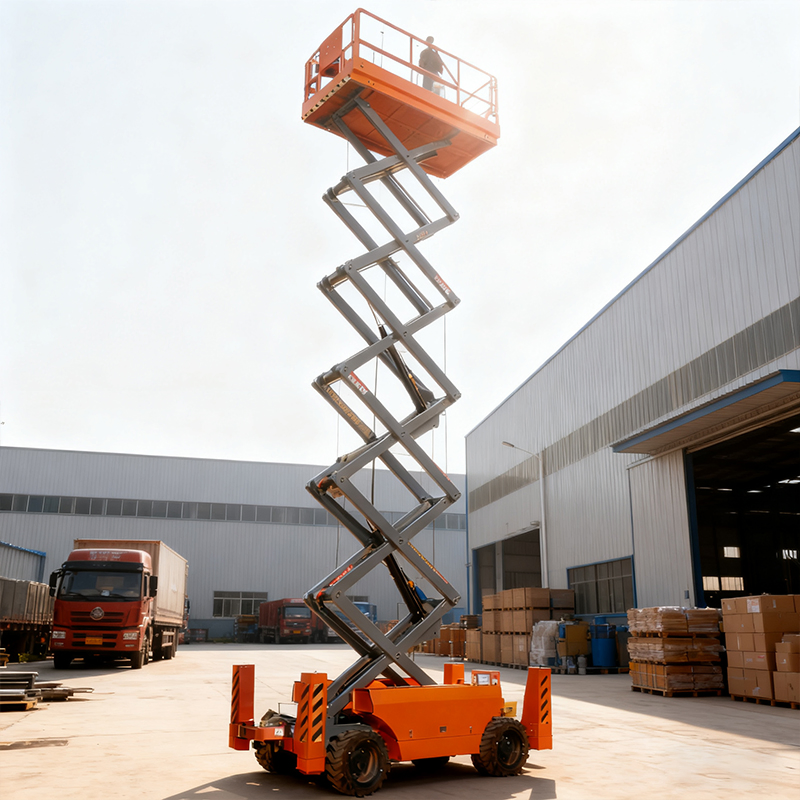

Designed for rough terrain and demanding outdoor environments, this off-road scissor lift provides powerful performance, high stability, and outstanding adaptability.
📊 Basic Information
Application
Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Certification
CE, ISO 9001
Production Capacity
100 Sets/Month
📝 Technical Specifications
| Model |
SJPT1214ERT |
SJPT1214ERT-T4 |
SJPT1614ERT-T4 |
| Dimensions |
| Max. Working Height | 14m | 14m | 16m |
| Max. Platform Height | 12m | 12m | 14m |
| Platform Length | 2570mm | 2570mm | 3600mm |
| Overall Width | 1830mm | 1830mm | 1830mm |
| Performance |
| Rated Load Capacity | 450kg | 450kg | 450kg |
| Max. Gradeability | 30% | 35% | 35% |
| Steering / Braking | Rear-Wheel Drive | Front Four-Wheel | Front Four-Wheel |
| Battery | 8×12V/150Ah | 8×12V/150Ah | 8×12V/150Ah |
| Machine Weight | 3740kg | 4160kg | 5150kg |
🚀 Key Features & Advantages
Electric Travel & Lift
Stable, quiet, and efficient lifting powered by a high-performance system. Reduces labor intensity and improves work efficiency.
Off-Road Solid Tires
Large ground clearance engineered for muddy roads, gravel surfaces, and uneven construction sites.

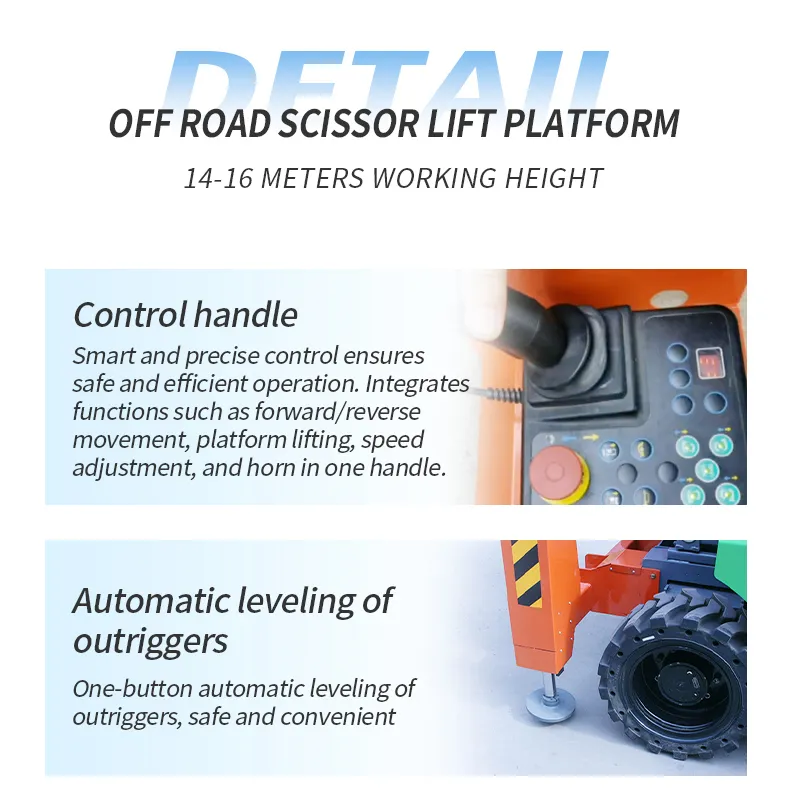

Auto Leveling Outriggers
One-button auto-leveling system ensures maximum stability during lifting on sloped terrain.
High Stability
Wide chassis and reinforced scissor structure provide superior safety even under heavy load at full height.
🏗️ Versatile Applications
Ideal for various scenarios:
- ✅ Indoor operations in large venues
- ✅ High-rise building maintenance
- ✅ Equipment repair and service
- ✅ Billboard installation
- ✅ Construction sites & Farmland

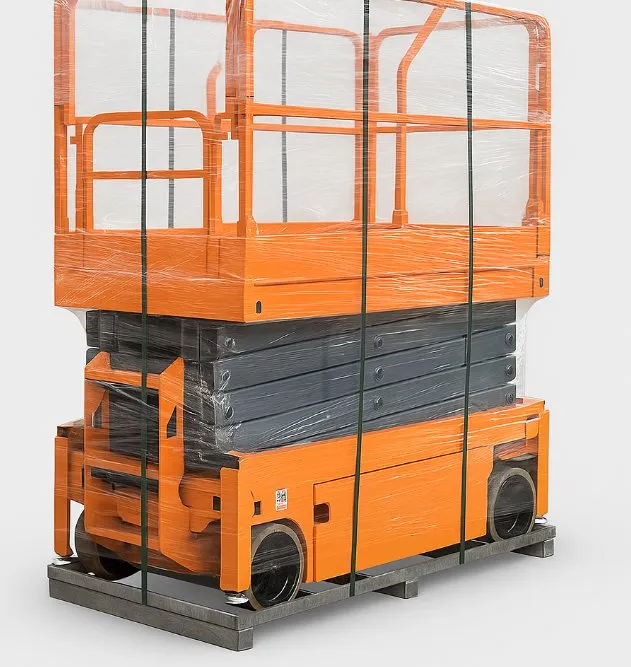

📦 Packing & Delivery
- Standard export pallet packaging
- Waterproof protective film wrapping
- Edge guard and anti-rust treatment
- Secured with high-strength steel straps
- Optimized for 20GP and 40HQ container shipping
🏭 Why Choose Our Solutions
Advanced workshop & strict quality control
Precision welding and assembly lines
Skilled engineering team support
OEM and customization availability
Frequently Asked Questions
Can the off-road scissor lift operate on uneven or rough terrain?
Yes. This model is equipped with off-road solid tires and automatic leveling outriggers, providing strong traction and stability on gravel, muddy ground, and construction sites.
How long can the machine operate on a full charge?
Under normal working conditions, the lift can operate 6–8 hours per charge. Actual time may vary based on usage frequency and load weight.
Is customization available for this model?
Yes, we support full customization including working height, colors, branding/logo printing, and optional safety configuration upgrades.
What is the standard warranty period?
We provide a 12-month warranty for the entire machine (excluding wearing parts), along with free technical support and online troubleshooting services.
What safety certifications do your products have?
Our scissor lifts are fully compliant with CE and ISO 9001 standards, ensuring they meet international safety and quality requirements.
How is the machine protected during international shipping?
Machines are wrapped in waterproof plastic film, secured on standard export pallets with steel straps, and treated with anti-rust coating for sea freight protection.
