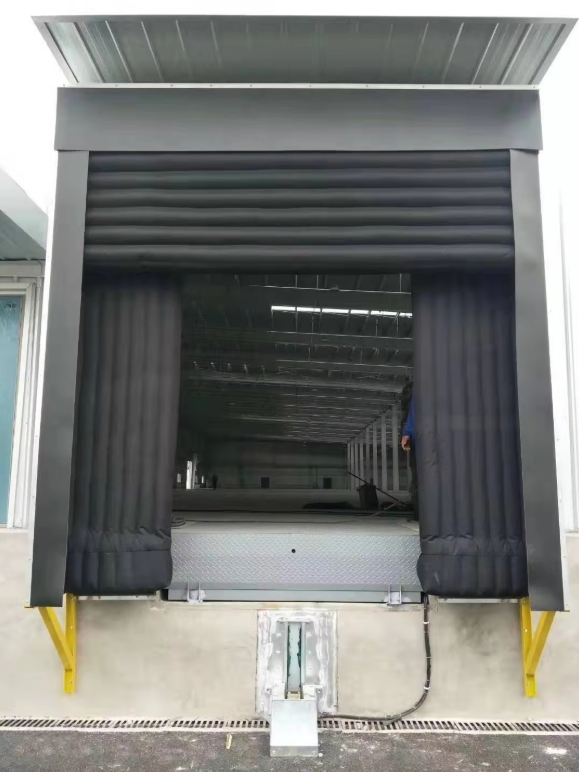

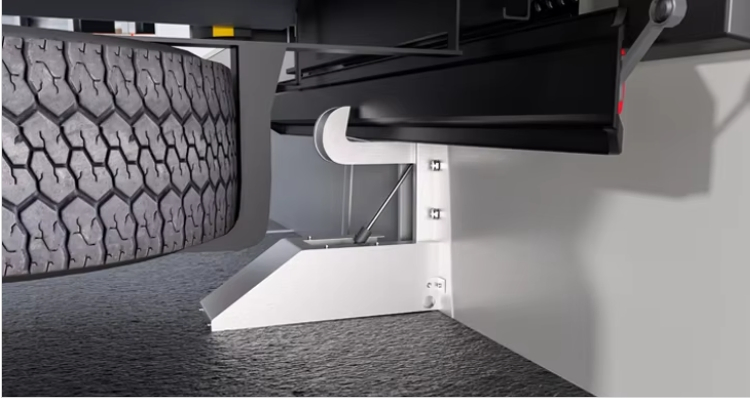

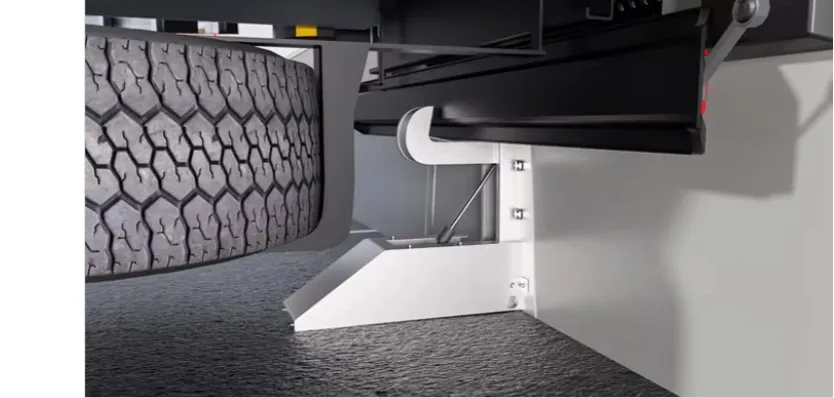

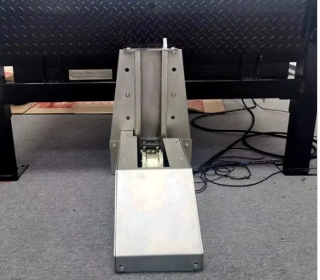

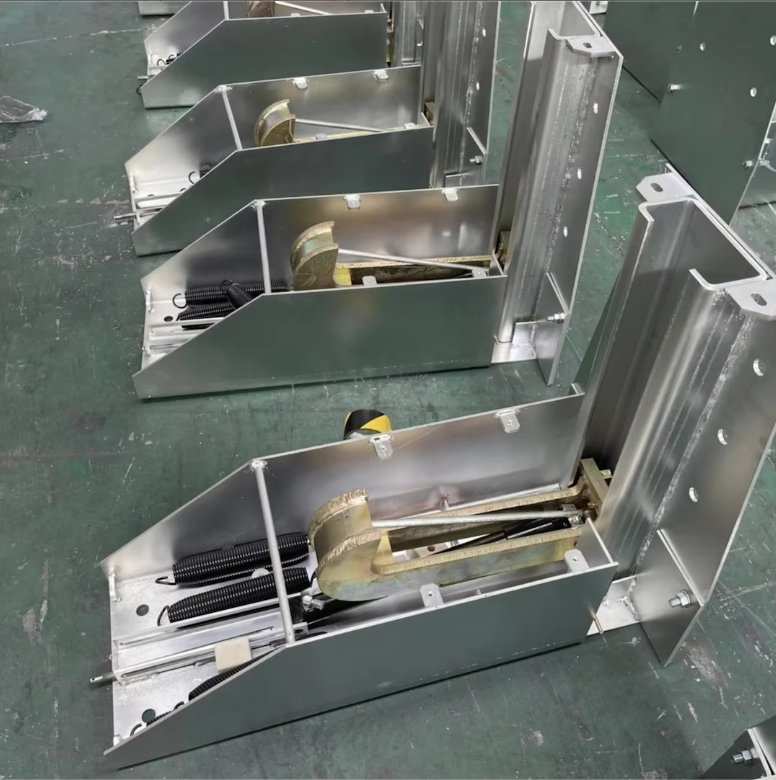

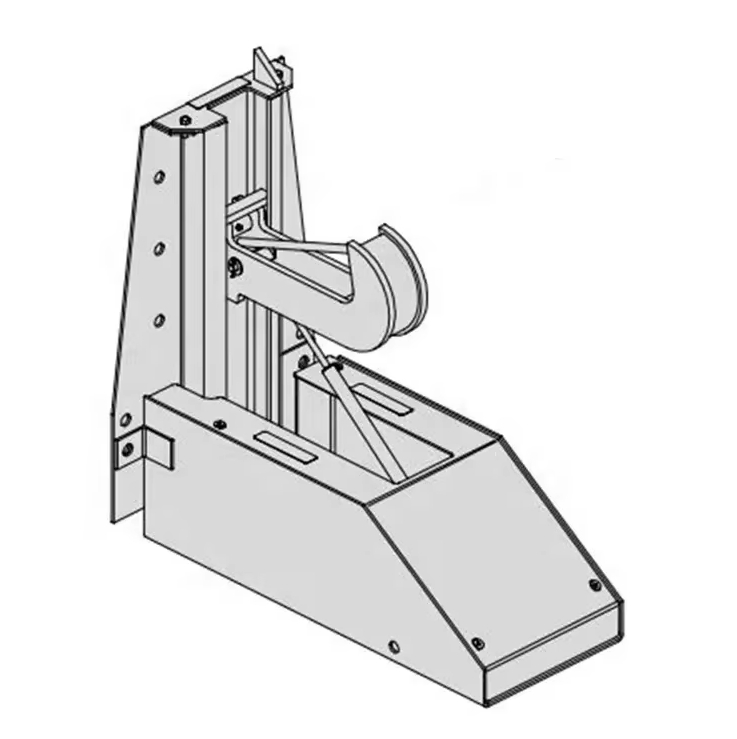

Installed on the outer facade and horizontal ground of the platform, it restricts the movement of the truck by clamping the anti-collision tail pole of the truck, ensuring safe and stable loading and unloading operations for forklifts.
Operating principle: More reliable, durable and safer. The highly durable carriage restraint structure is simply installed above ground and before your dock to guide the trucks of an incoming lorry into a central position in front of the dock for maximum safety and minimum wear.
Lower or higher forklifts or trucks are also available, this makes the vehicle restraints an extremely versatile solution.
| Parameter | Details |
|---|---|

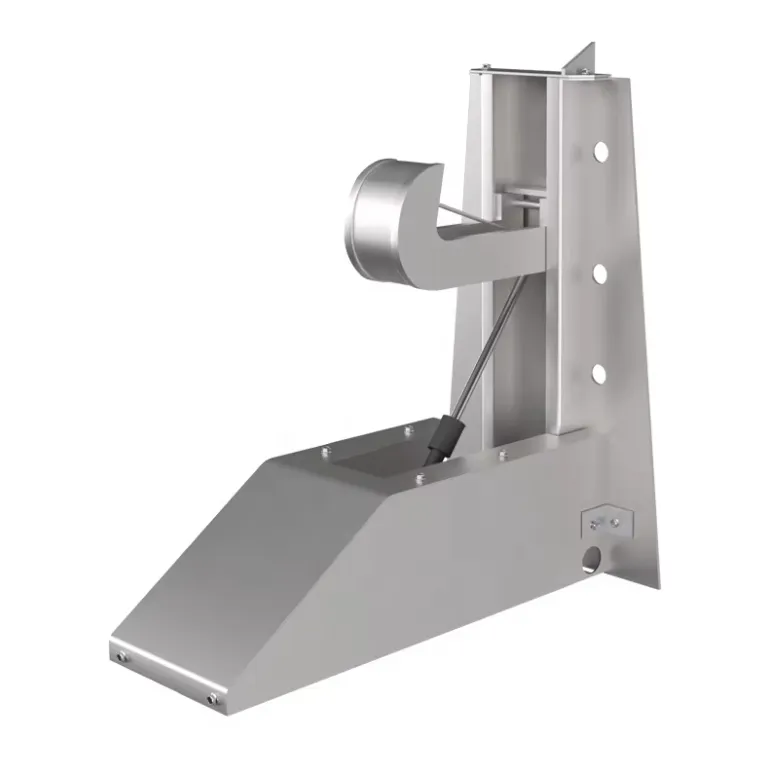

| Product Name | Vehicle Restraints |
| Load Capacity | 16000KG |
| Color | Galvanized |
| Structure Panel | Q345 steel |
| Loading Truck | 16mn steel |
| Latch Hook | 65 mn steel (blue and white galvanized) |
| Hydraulic System | The KS pump station, 380v 1.1kw 50hz |
| Hydraulic Cylinder | Japan NOK Seal assembly |
| Control System | Standard separate control box |
| Free Floating Device | 60si 2mn Special Spring back |
| Interior Signal lamp | LED 3W Combing Red and Green Lights |
| Exterior Signal lamp | LED 5W Diameter 100 Waterproof Traffic Lights |
Technical Information: Fast wheel restraint process in approx 10 seconds. Range from platform of all height, working range from the truck restraint of 700mm, lift up to 600mm, suitable for a wide range of vehicles. Galvanised design for a weather resistant and durable construction consisting of strong tubular material. Complete electrical hydraulic operation controlled via a microprocessor.

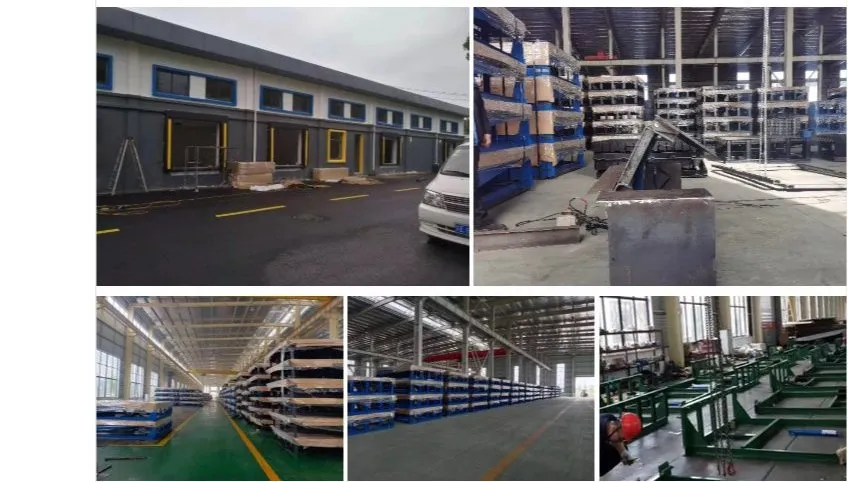

We specialize in the customization, sales, installation, and maintenance of loading and unloading platforms and door seals. We provide customers with products featuring mature models, stable performance, and excellent quality. Solutions are customized based on budgets, needs, and on-site conditions, adhering to the principle of "customer first".
