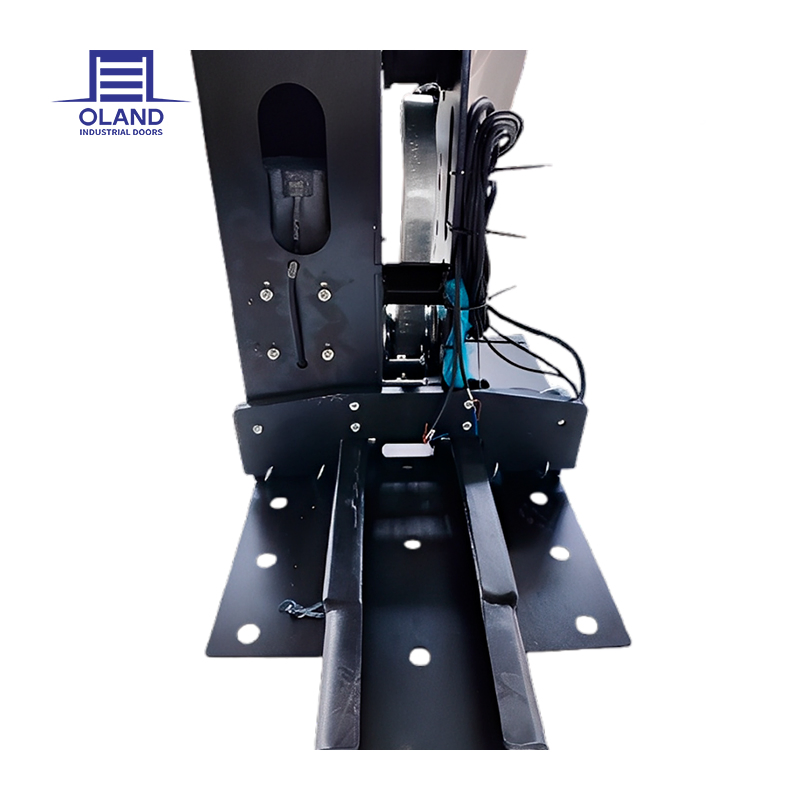

Locking Equipment Safety Device Electric 1500kg Fixed Dock Lock Trailer Truck Vehicle Restraint for Logistic Center System Warehouse

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Specifications
Range of Movement:260~680(420) mm
Color:Black (Galvanized/Electrophoretic)
Main Circuit:AC380V
Motor Power:P=0.3kw V=DC48V
Control Circuit:DC24V, 2.5A
Load Capacity:1500kg
Structural Panel:Manganese Steel Plate
Carriage Rail:Q345 Steel
Locking Hook:Q345 Steel
Package:Wooden Box
Dimensions:730(L)x420(W)x650(H) mm
Origin:China
🛡️ Product Description

The vehicle restraint is a dedicated safety device designed for warehouses, logistics hubs, and industrial loading docks. By securing the trailer's rear impact bar, it prevents movement, shifting, and early departure during loading and unloading operations. Built with an electric mechanical drive system and no hydraulics, it ensures long-term reliability with minimal maintenance.

Featuring 15,000 kg of locking force, 420 mm adjustable range, reinforced heavy-duty hook, signal light indicators, and PLC integration, the restraint can work seamlessly with dock levelers, industrial doors, and safety sensors to form a complete dock safety system. Ideal for both standard warehouses and high-traffic logistics facilities, it significantly enhances operational safety and efficiency.

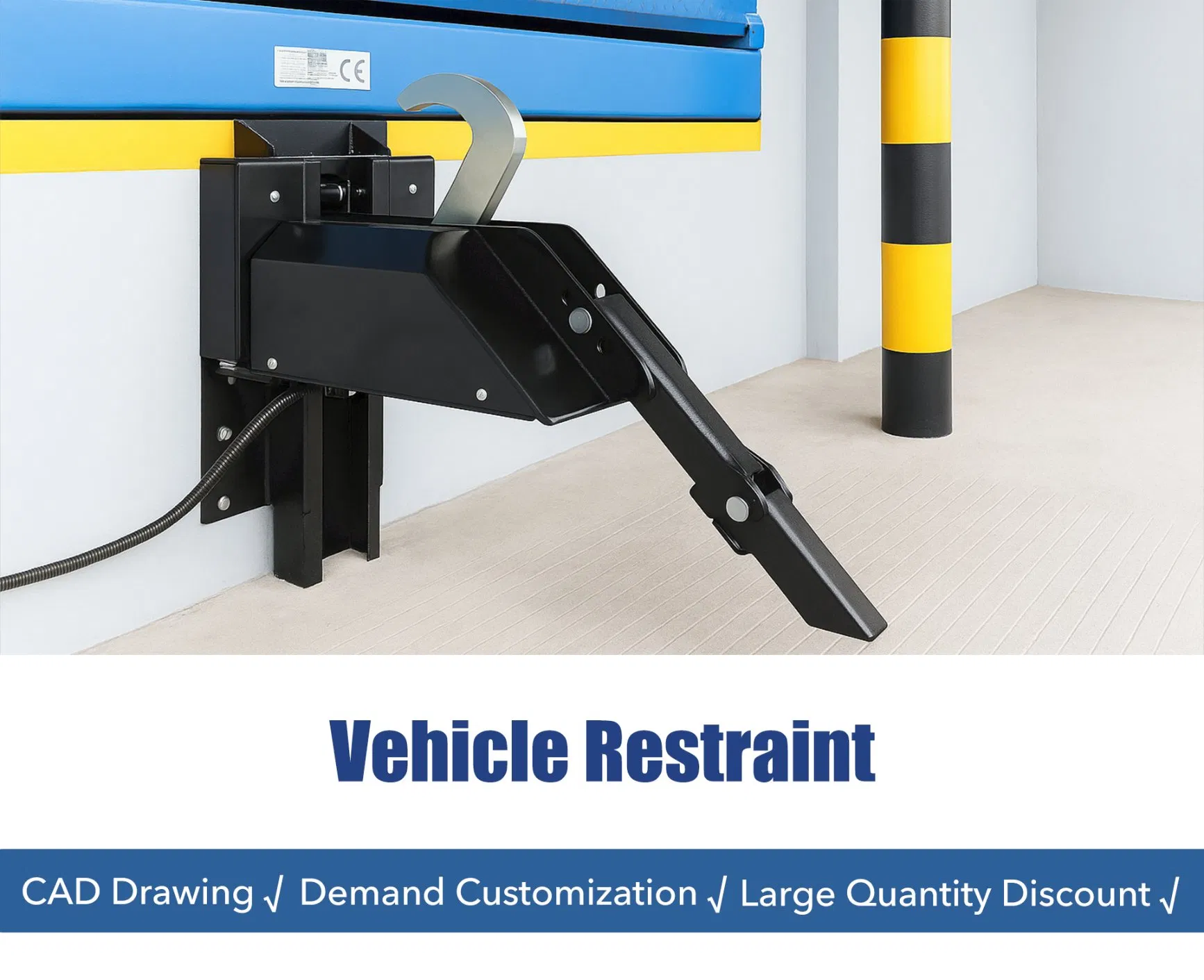

Vehicle Restraint System
📋 Technical Data Sheet
Parameter Details
Size730(L) x 420(W) x 650(H) mm
Range of Movement260~680(420) mm
Weight95KG
Electrical ParametersPmax = 0.5KW
Motor PowerP=0.3KW V=DC48V
Structural MaterialManganese Steel Plate / Q345 Steel
Free-floating Device60si2mn special spring steel, zinc-plated

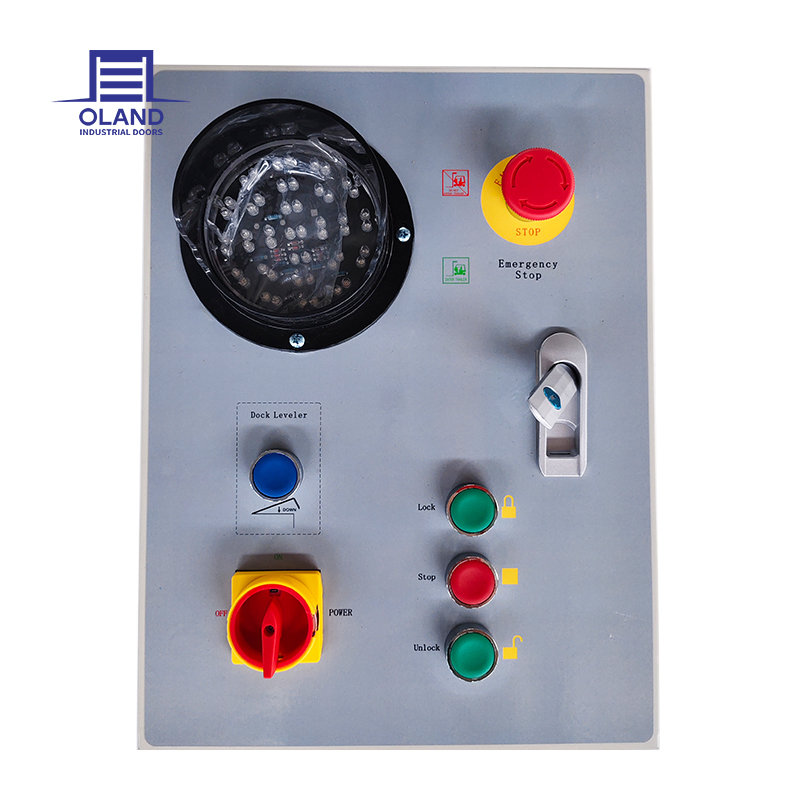

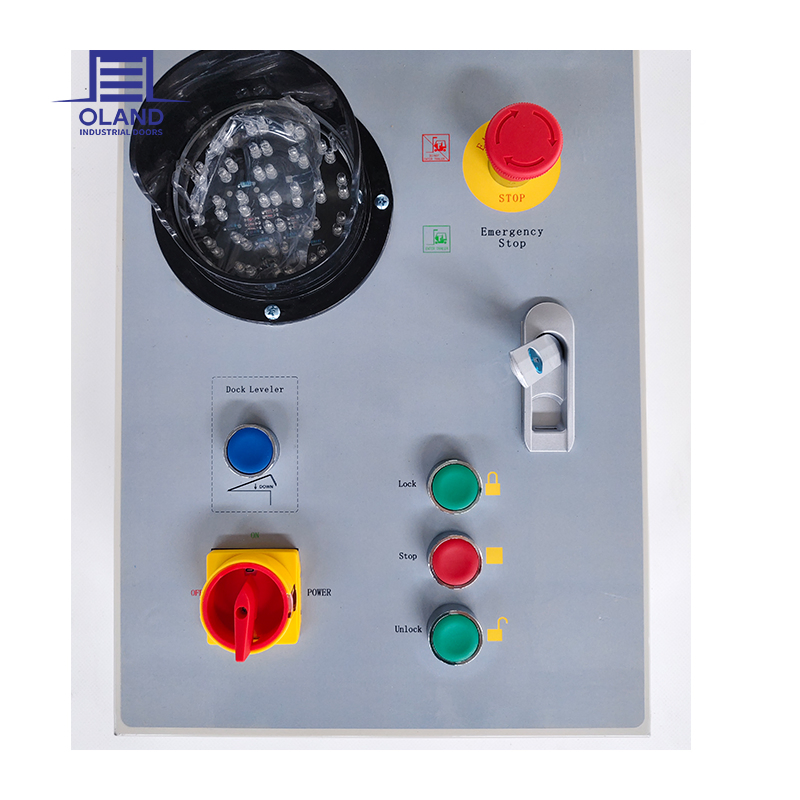

Control SystemPLC logic control, DC24V safety voltage, LED illuminated buttons

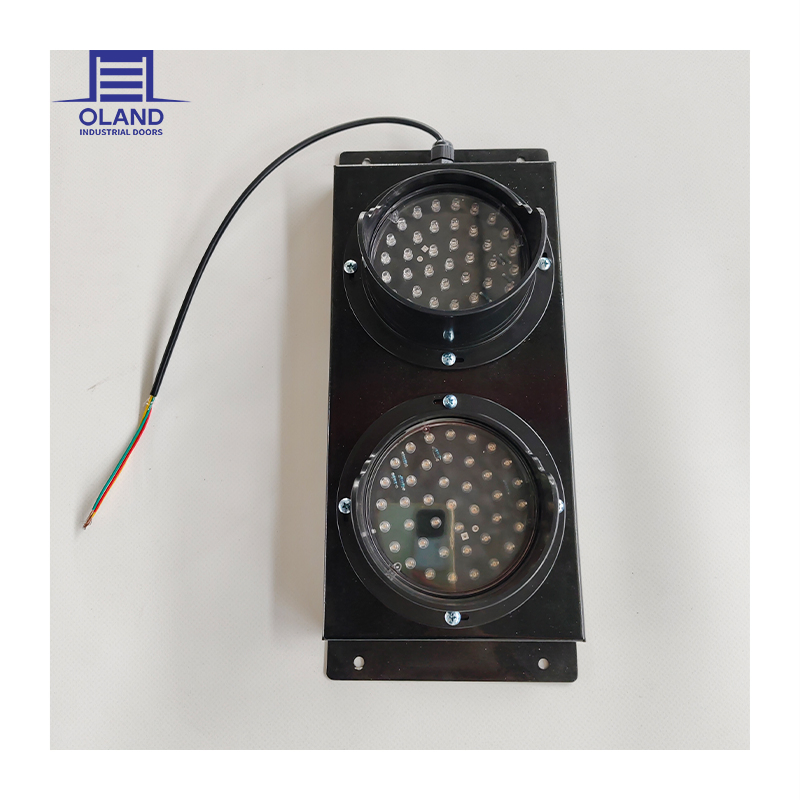

External Signal LightHigh-brightness LED, Waterproof IP56, 100mm diameter
🏗️ Structure Diagram & Details

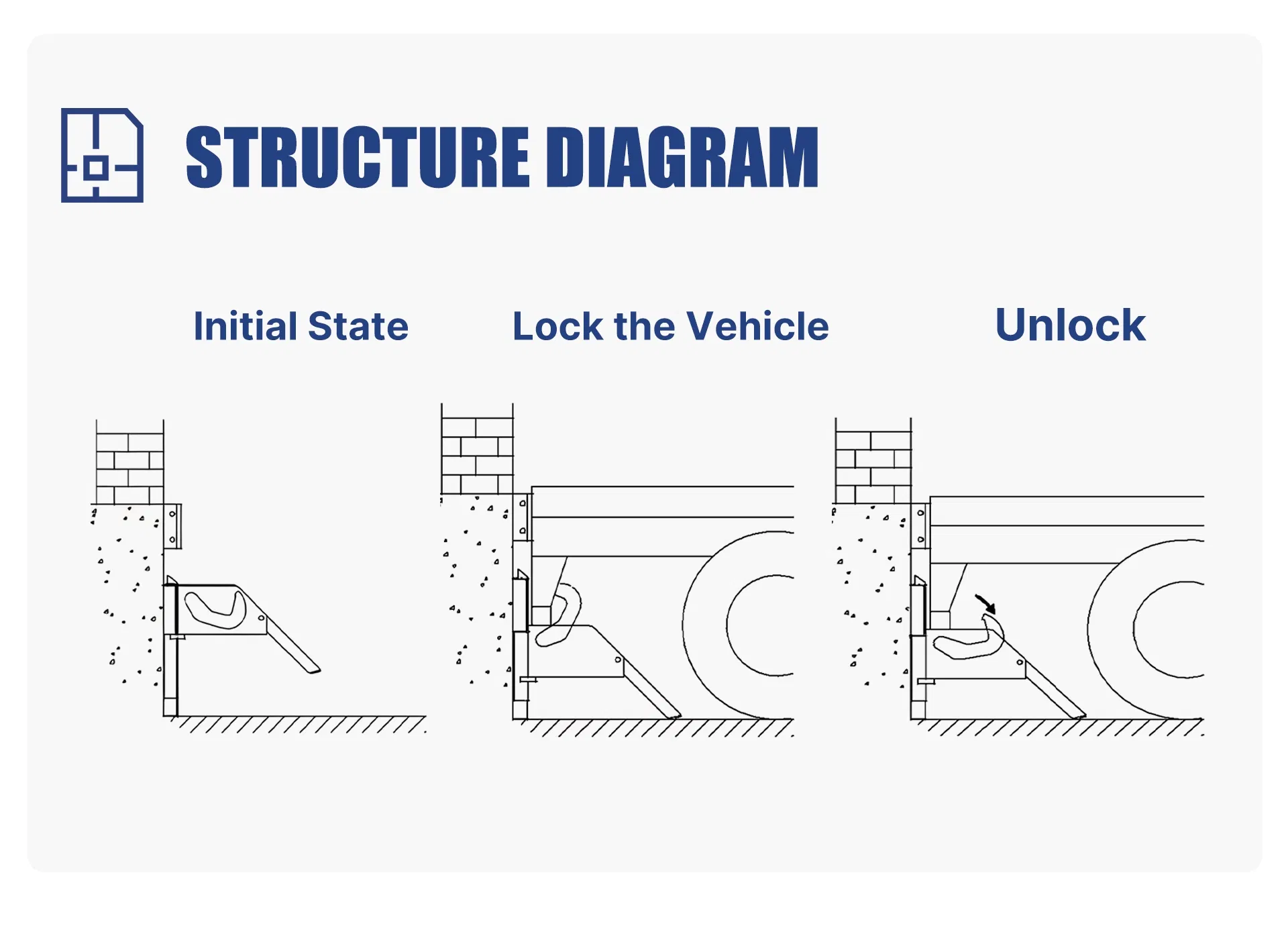

Structure Diagram

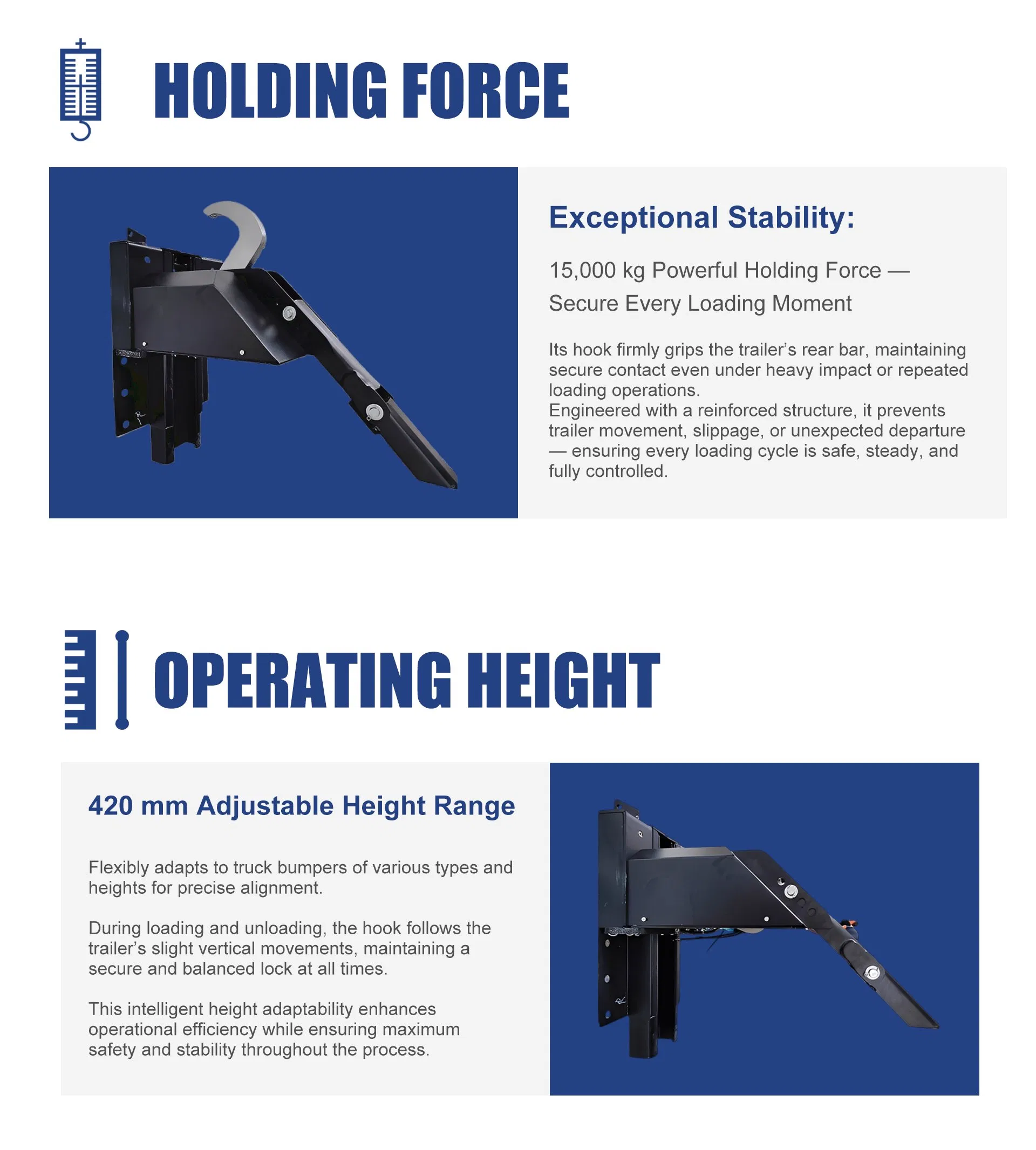

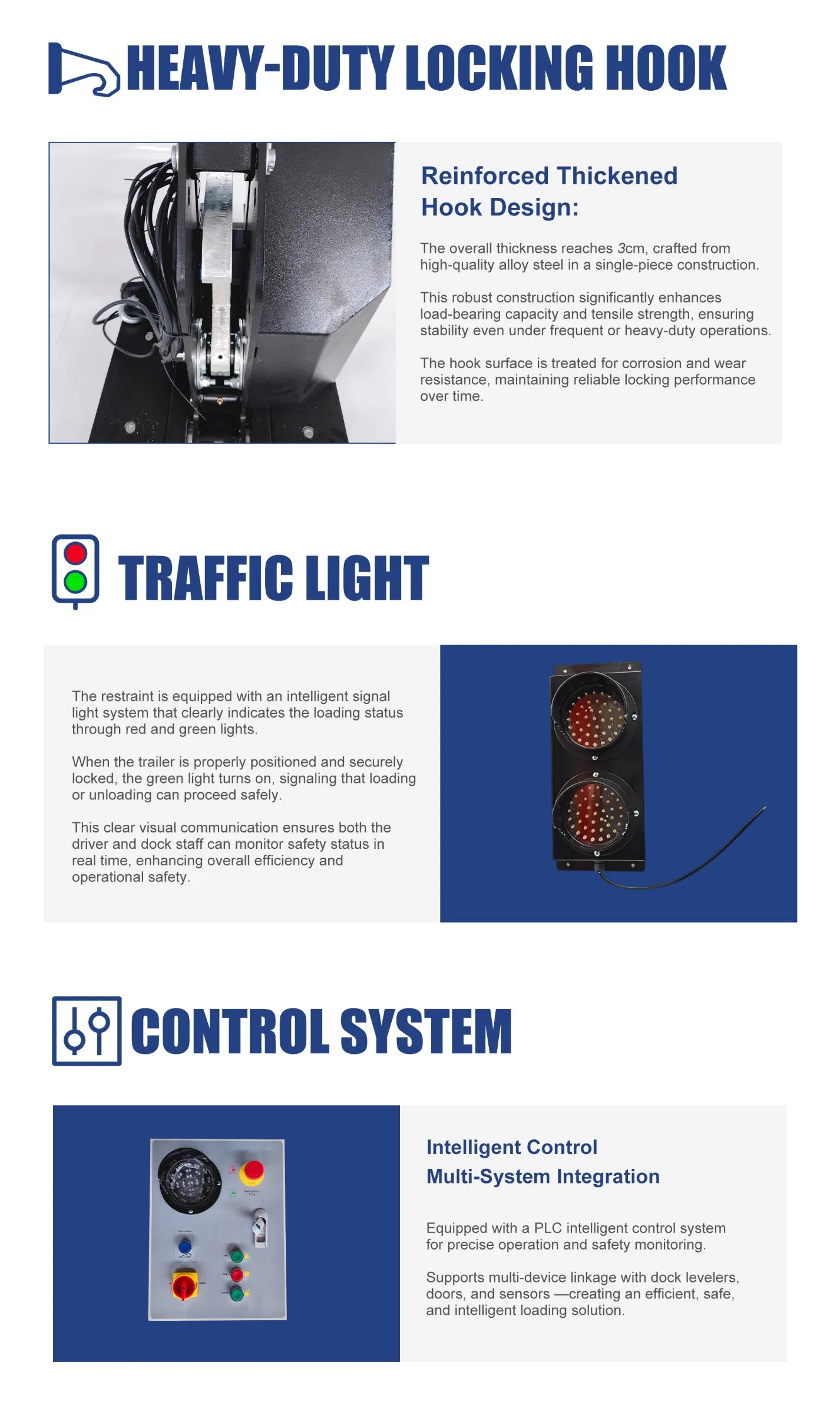

Product Detail 1 Product Detail 2
🏭 Manufacturing & Quality
Production Facility

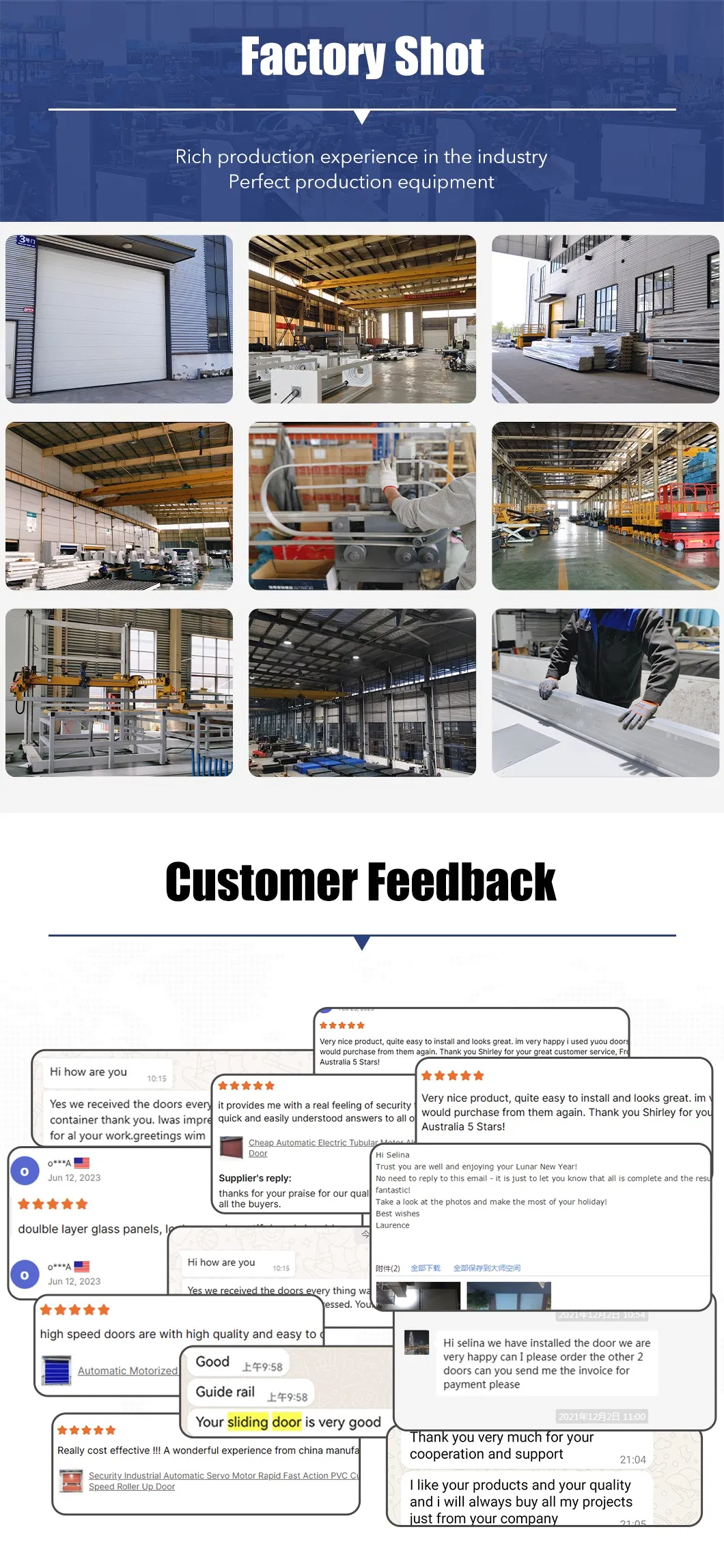

Factory View 1 Factory View 2 Factory View 3
Frequently Asked Questions
Q1: What is the Minimum Order Quantity (MOQ)?
There is no strict limit; we accept orders starting from 1 set.
Q2: What is the typical delivery timeframe?
The standard delivery time is approximately 15 to 30 days depending on the order volume.
Q3: How are the products packaged for transport?
All units are securely packed in heavy-duty plywood boxes to ensure safety during transit.
Q4: Is the installation process difficult for these restraints?
No, they are designed for easy installation. We provide comprehensive manuals and installation videos for your reference.
Q5: What other industrial products do you offer?
Our range includes sectional garage doors, industrial doors, roller shutters, high-speed doors, and hangar doors.
Q6: How can I obtain an accurate price quote?
Please provide the exact sizes and the quantity required for your project. We will generate a detailed quotation based on your specific requirements.
