Customization: Available
After-sales Service: 2years
Warranty: 1year
Send Inquiry

Product Description

📌 Basic Specifications

Model
Fastlink
Type
Truck Restraint
Material
High-Strength Steel
Color
Galvanizing Color
Gross Weight
120.000kg
Protection
IP65 Ingress Protection
Operation
Electric / Hydraulic System
Capacity
16000kg Maximum Containment
Application
Industrial Plants & Logistics
Dimensions
964mm*764mm*971mm

📷 Product Overview

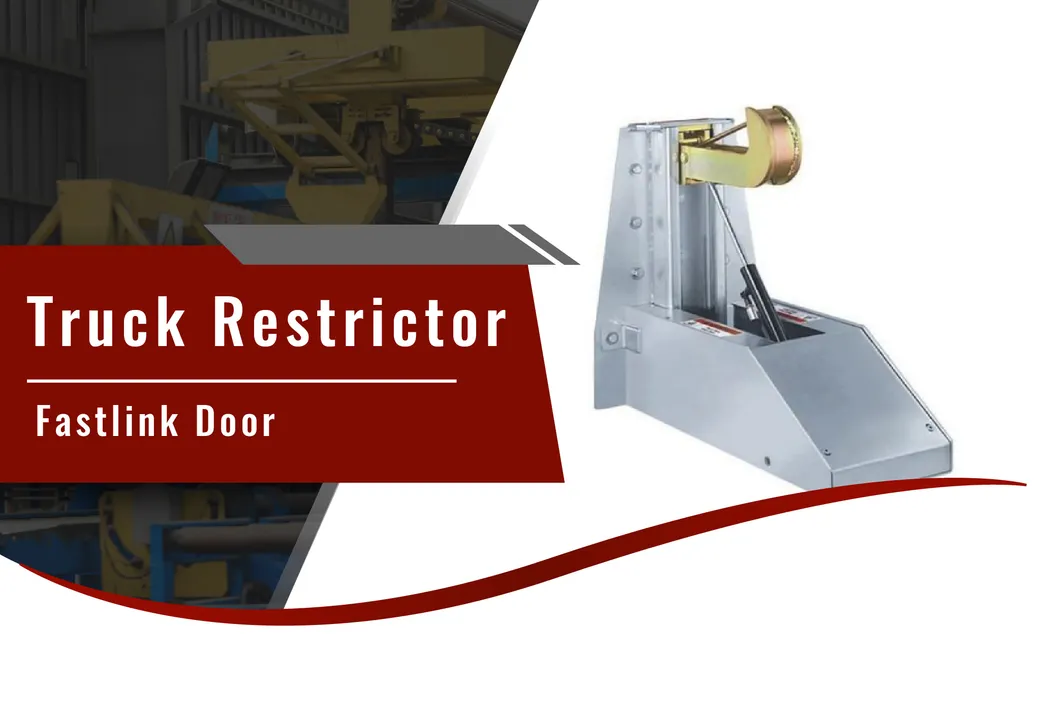

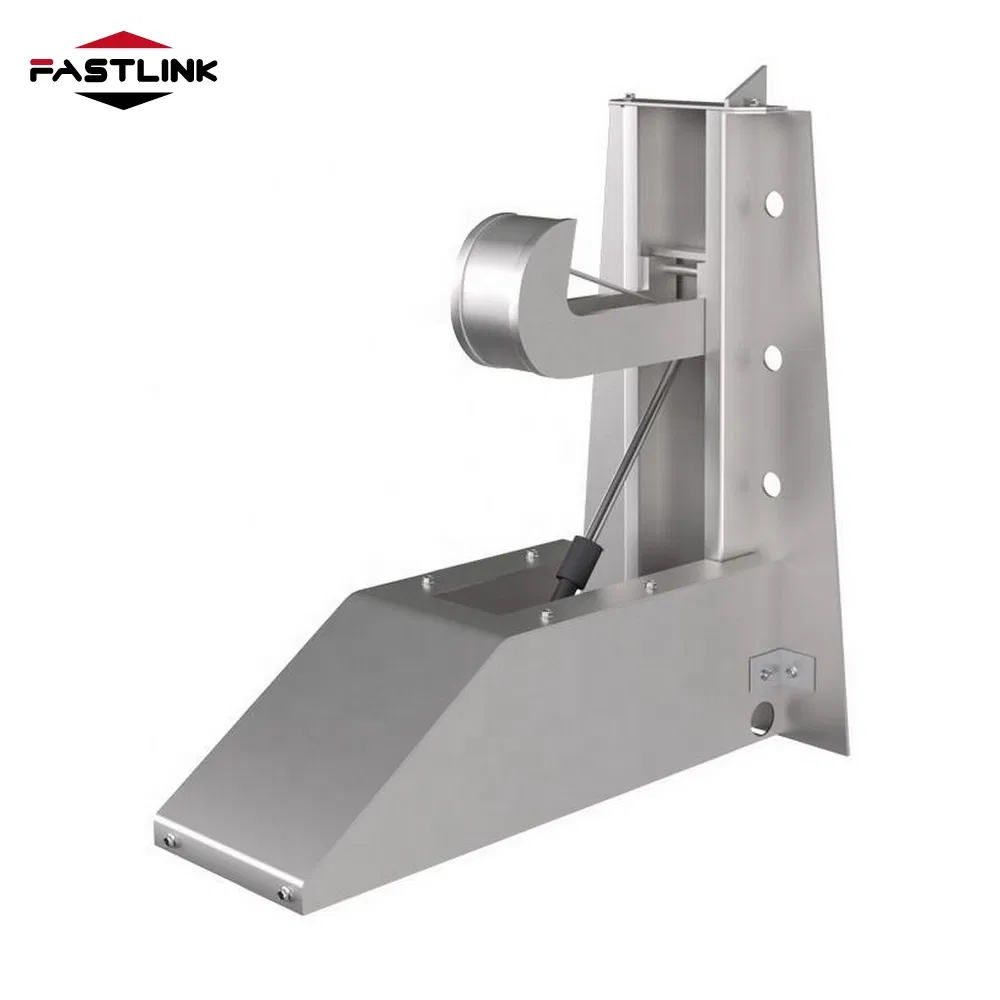

Truck Loading Dock Locks Restraint

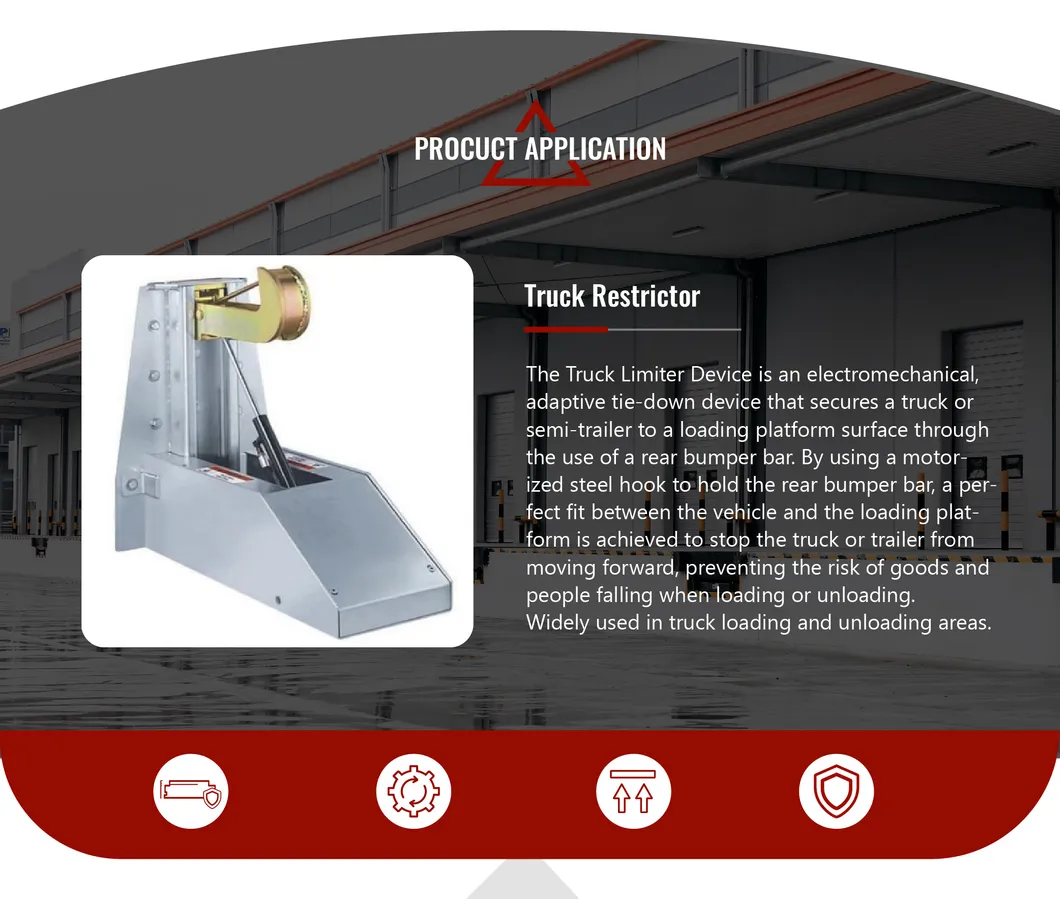

Vehicle Safety Solutions

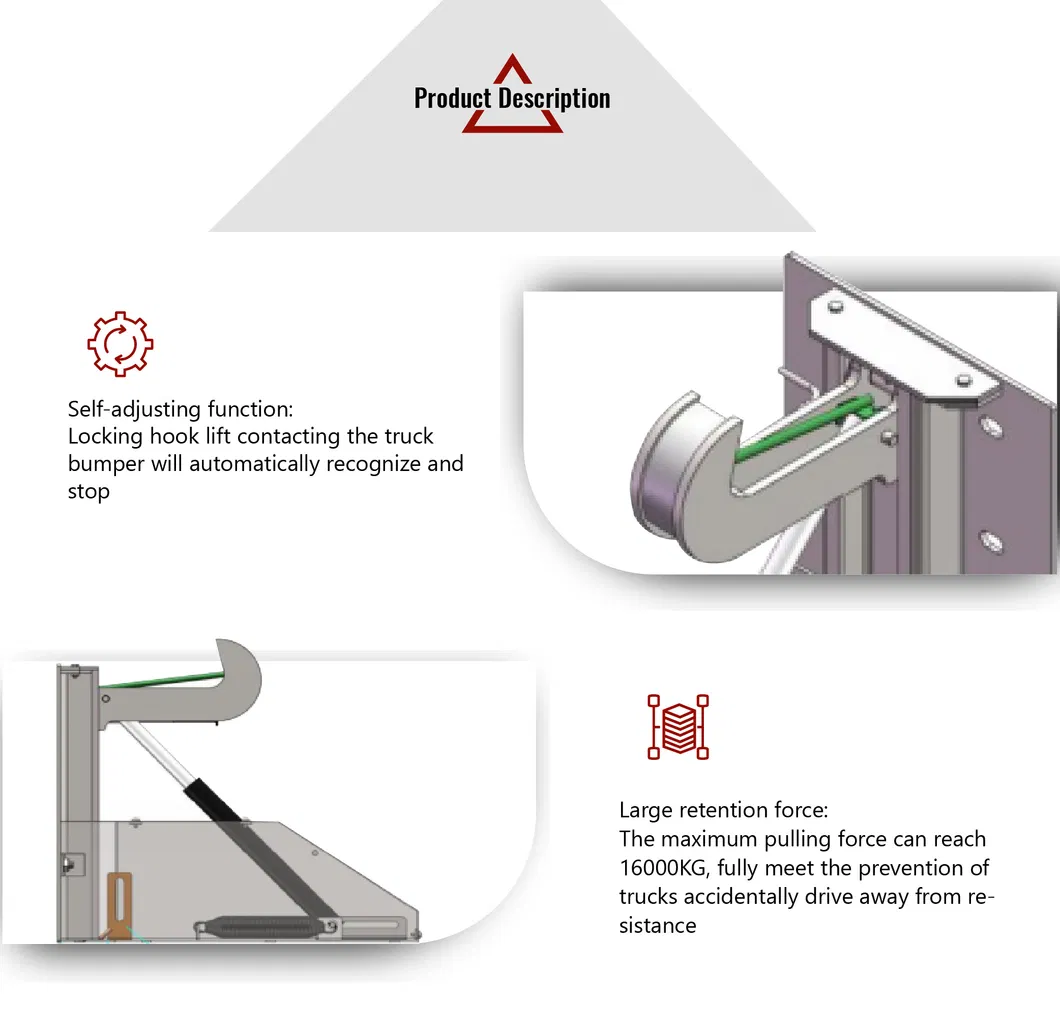

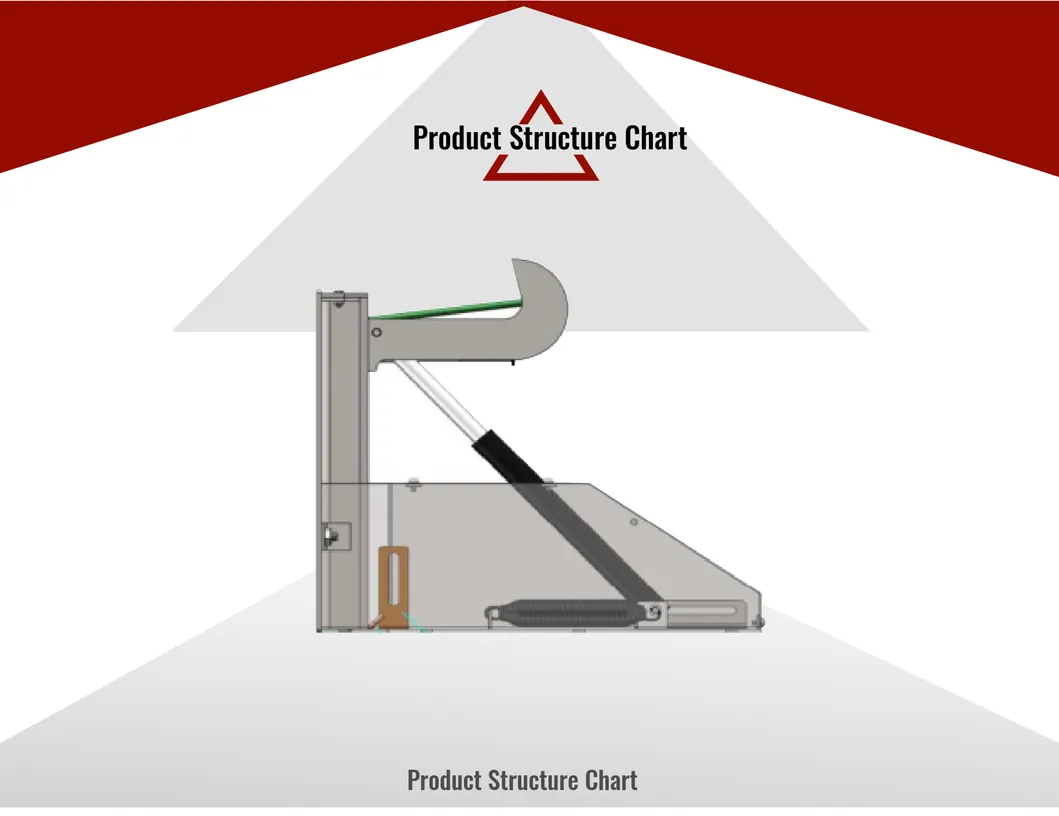

Structural Composition Details

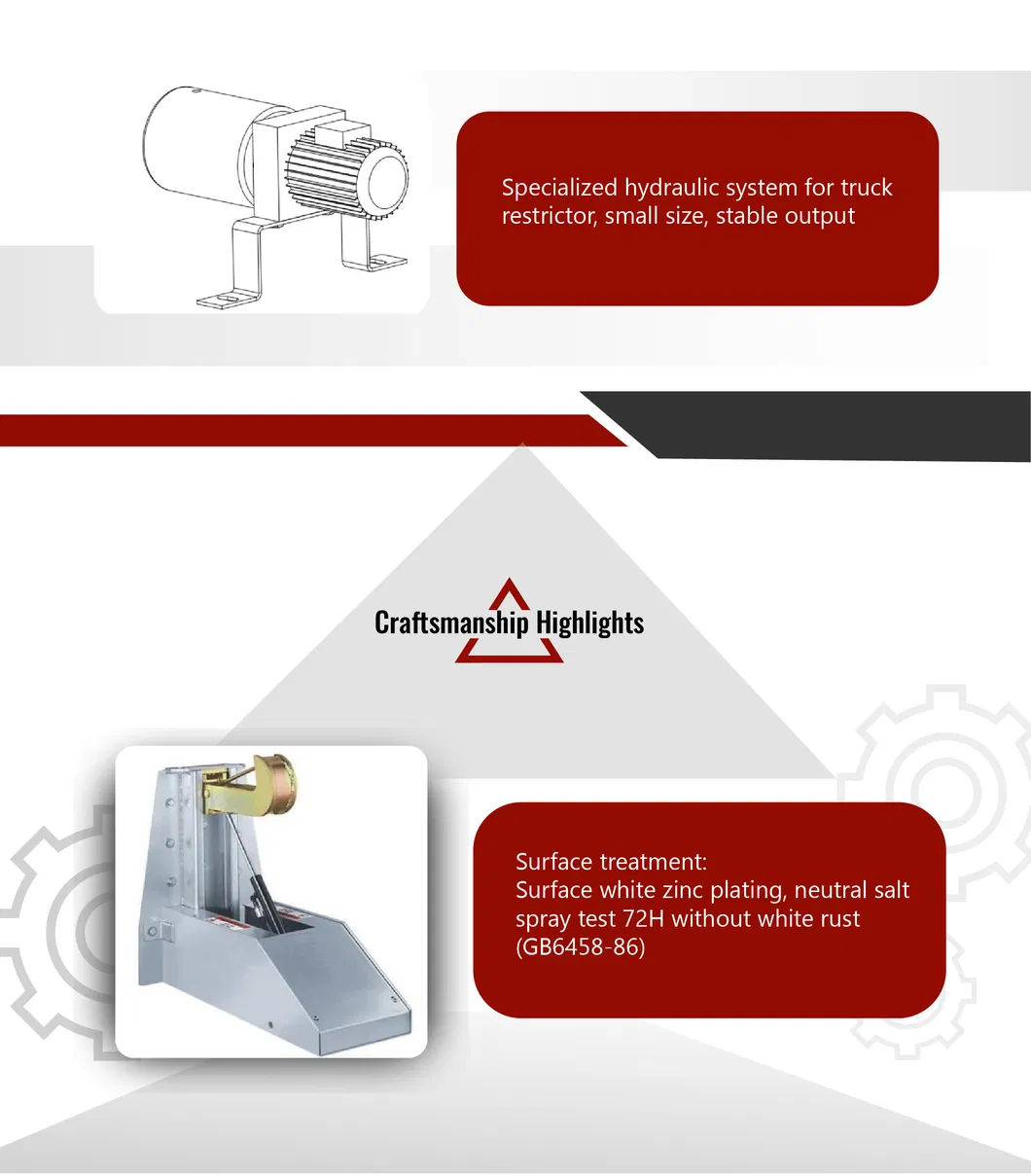

Hydraulic System View

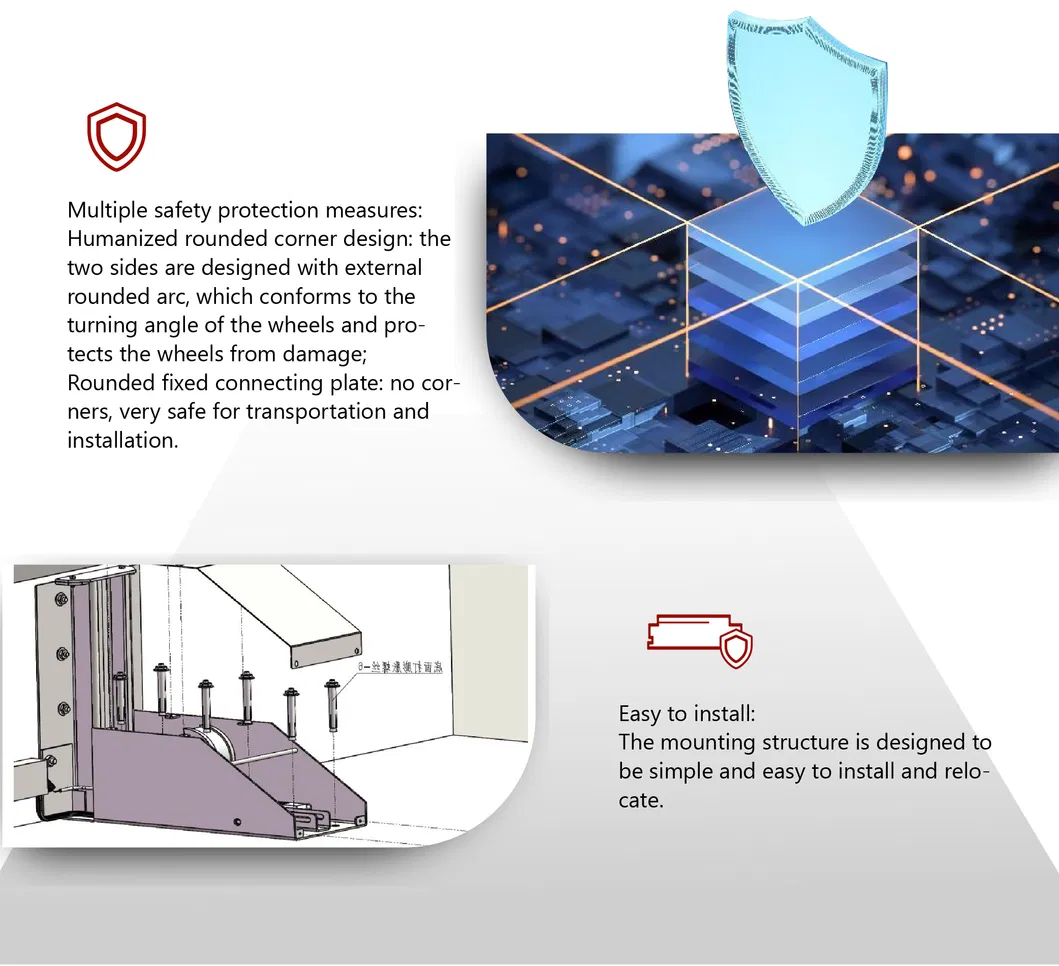

Installation Setup

📋 Technical Data Sheet

Important Attributes
Industry Attributes Limiter / Truck Restraint
Structural Composition Mechanical structure, motor, and integrated control box.
Safety Features High sensor sensitivity, linkage control signal lights, leakage protection.
Performance & Systems
Operating System Interlocked with dock levelers and sectional doors via control box linkage.
Switches Two switches per lock (pressure rod sensor and lower limit sensor).
Maximum Containment Up to 16,000 KG
Logistics Information
Lead Time 30 Days
Production Capacity 5,000 PCS/Year
Certification CE / CPR / UL compliant
Package Type Secure Wooden Box for transport
Safety Restraint Solutions

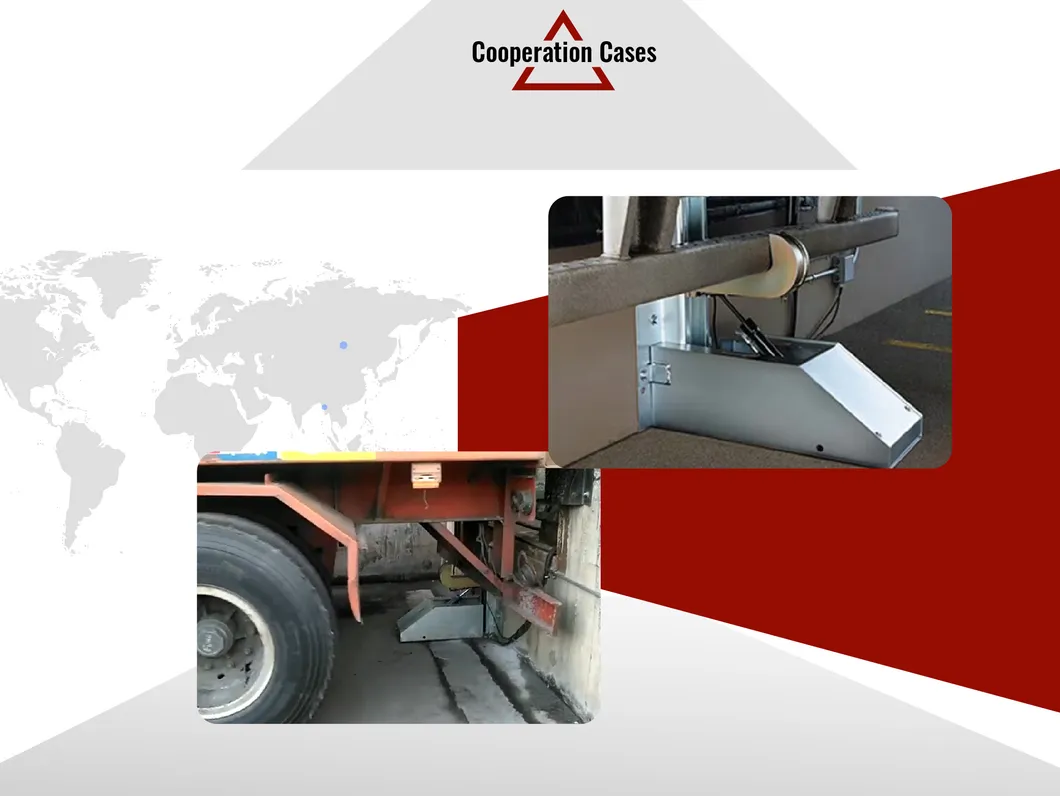

Dock Lock Operational View
Technical Layout
Safety Mechanism

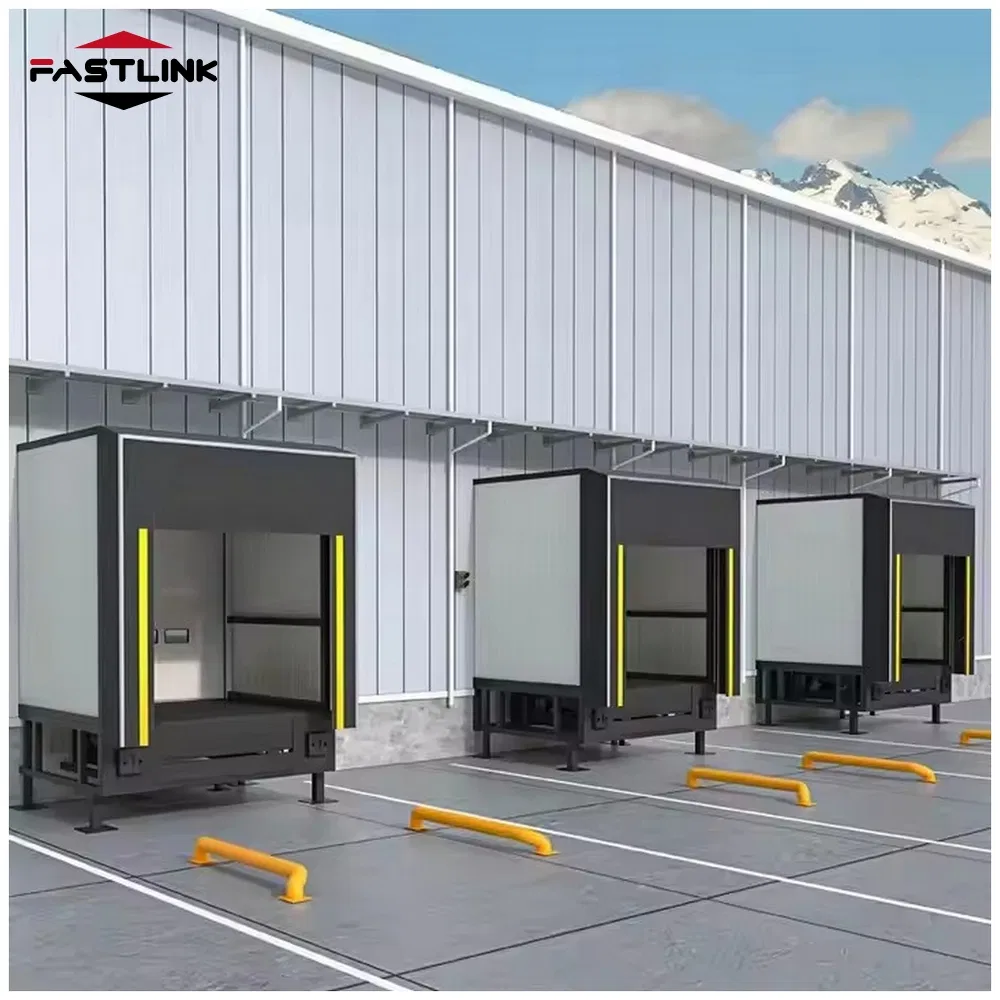

Industrial Application
Banner Design

💡 Questions & Answers

What is the best location to install a truck restrictor?
It should be mounted on the exterior of the loading platform, centered at the width of the vehicle stopping position, and secured to both the floor and the platform wall.
Is the truck restrictor controlled separately?
Yes, the truck restrictor is equipped with a separate control box for individual operation and can also be linked with other equipment like dock levelers simultaneously.
What is the maximum containment capacity of this device?
The system is designed to handle a maximum containment of up to 16,000 KG, ensuring safety for heavy-duty industrial vehicles.
What kind of ingress protection does the system offer?
The product features an IP65 rating, making it highly resistant to dust and water, which is essential for outdoor loading dock environments.
Does the system provide safety alerts during operation?
Yes, it uses linkage control signals to inform the operator of the status through signal lights, effectively preventing misoperation and accidental departures.
What materials are used in the construction of the lock?
The lock is primarily constructed from high-strength steel with a galvanizing color finish for enhanced durability and corrosion resistance.
