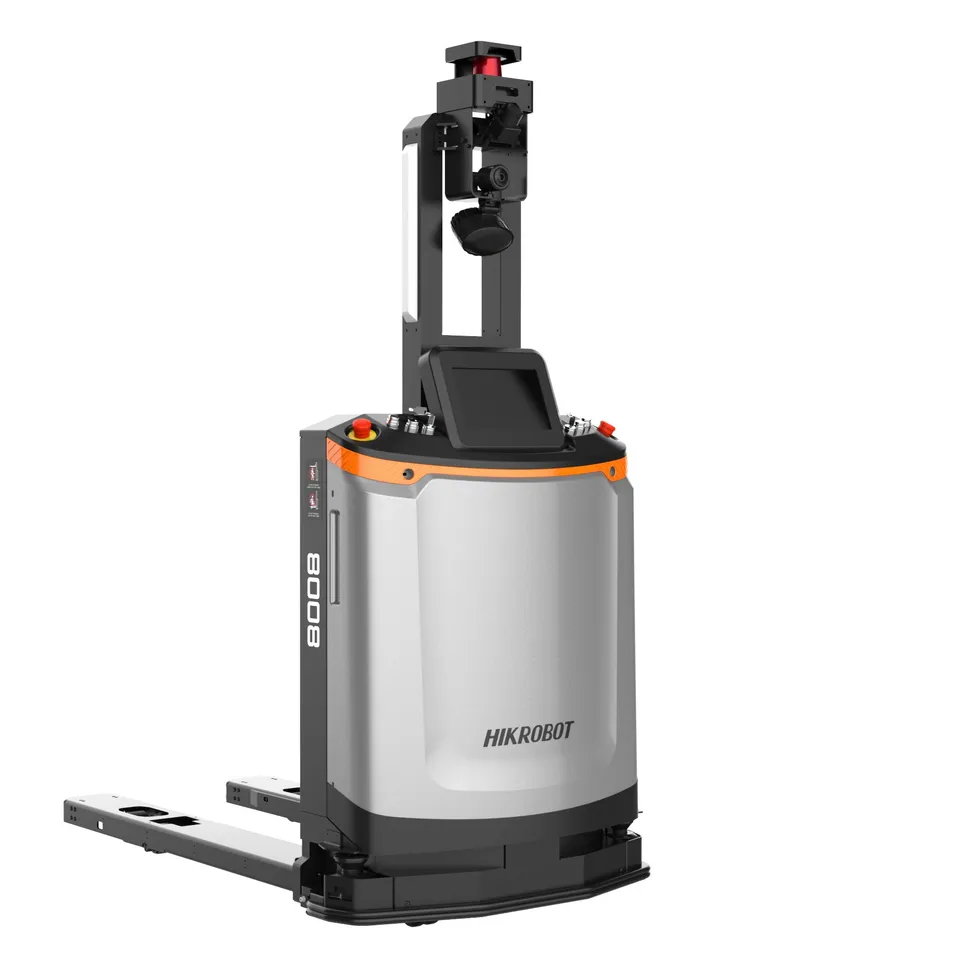

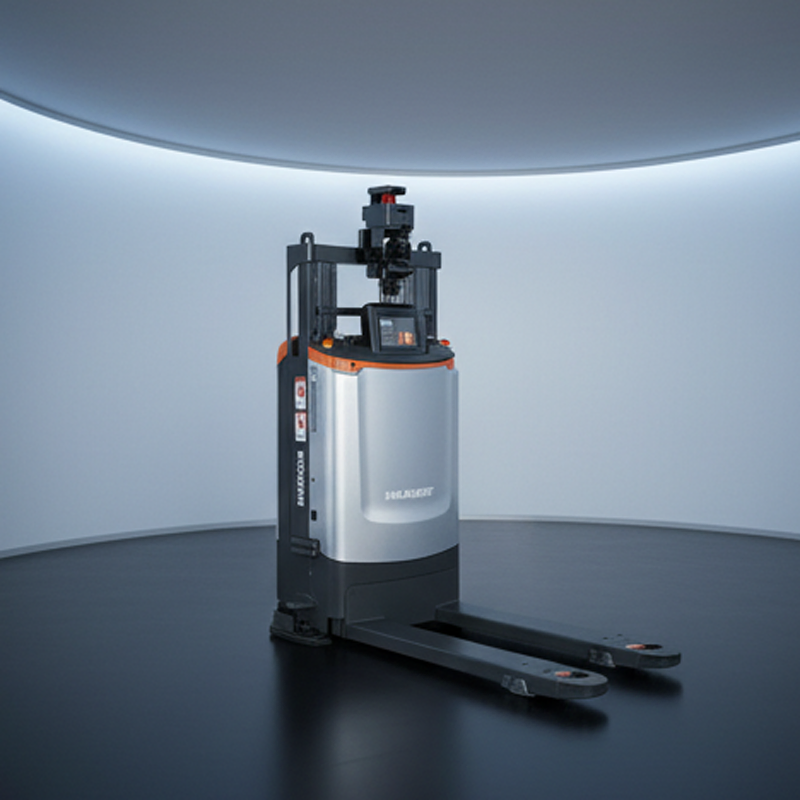

| Model NO. | F1-1000U | Type | AMR (Autonomous Mobile Robot) |
|---|---|---|---|
| Load Capacity | 1000 kg | Rated Load | 1000 kg |
| Dimension (mm) | 1650*990*1984 | Weight (with Battery) | 825 kg |
| Fork Lifting Height | 2049 mm | Load Center Distance | 600 mm |
| Safety Features | Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner | ||
• Superior Performance: Maximum steady running speed up to 1.5m/s.
• Safe & Reliable: 360° stereo sensing for environment and object recognition.
• Precise Positioning: Millimeter-level accuracy using laser and vision positioning.
• Omnidirectional Movement: Supports straight, skew, arc, and in-place rotation.
• Carrier Recognition: Autonomous fork picking based on carrier offset detection.

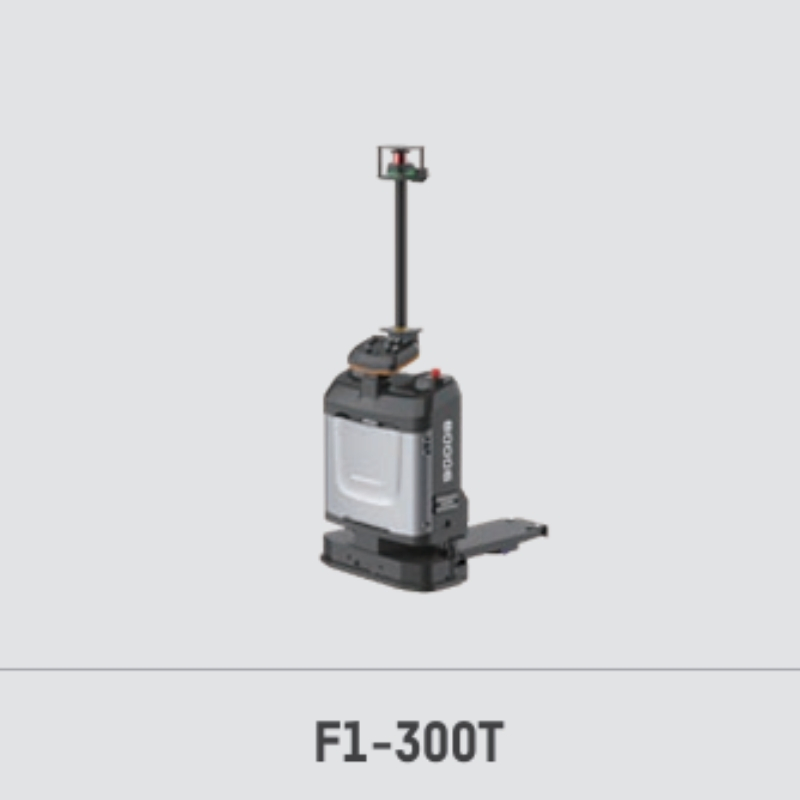

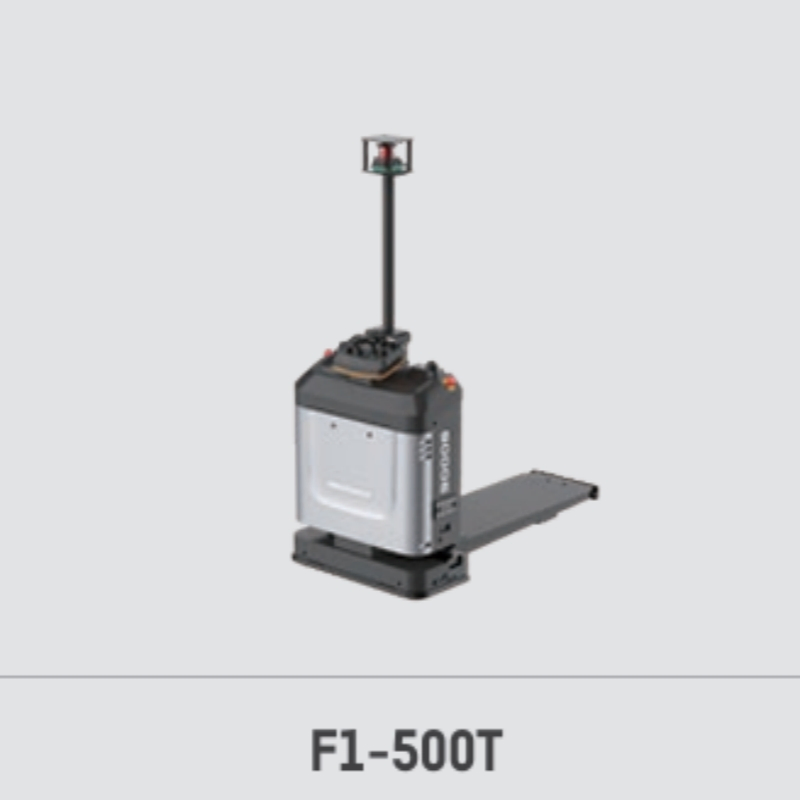

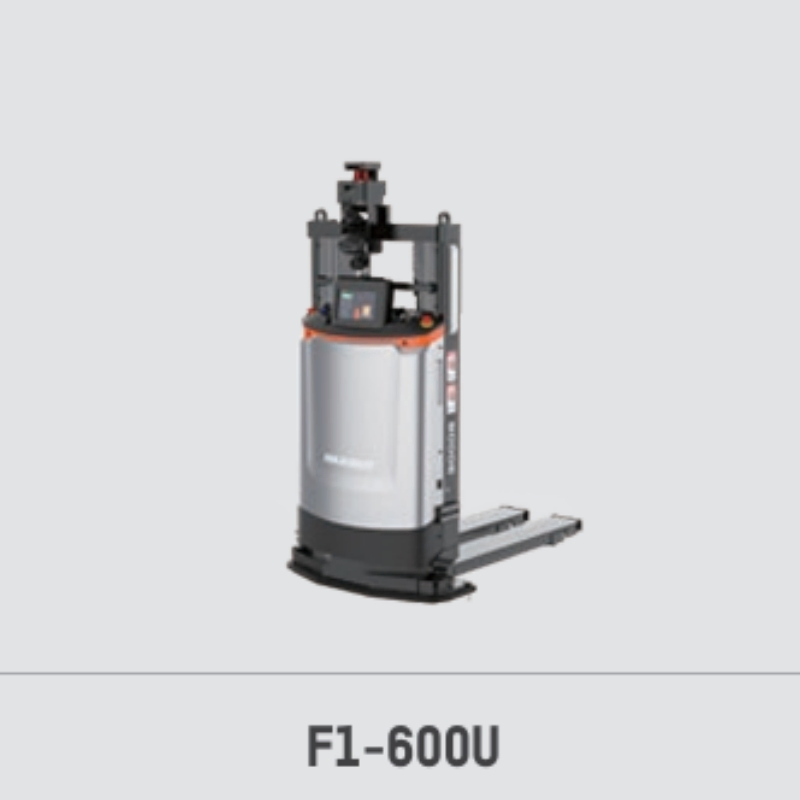

| Model | F1-300T | F1-500T | F1-600U | F1-1000U |
|---|---|---|---|---|
| Rated Speed (m/s) | 1 | 1 | 1.2 | 1.2 |
| Positioning Accuracy | ±10mm / 1° | ±10mm / 1° | ±10mm / 1° | ±10mm / 1° |
| Min. Rotation Radius | 585mm | 727mm | 933mm | 933mm |
| Motion Method | Omnidirectional driving | |||
| Run Time (h) | 6-8 | 6-8 | 6-8 | 6-8 |
| Charging Time (h) | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 2 |
| Navigation Mode | L-SLAM / 3D L-SLAM (Customizable) | |||

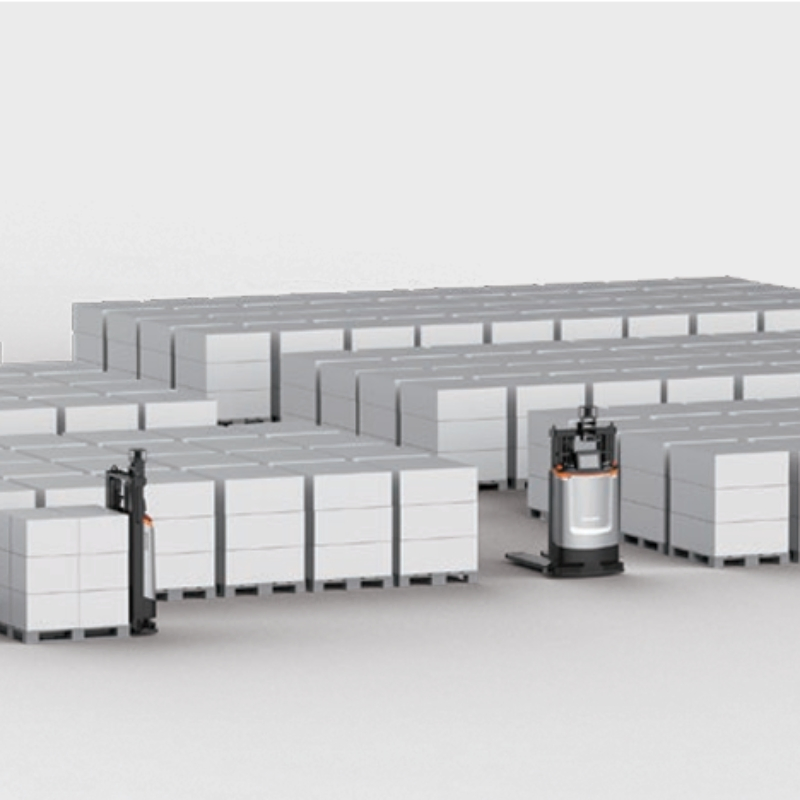

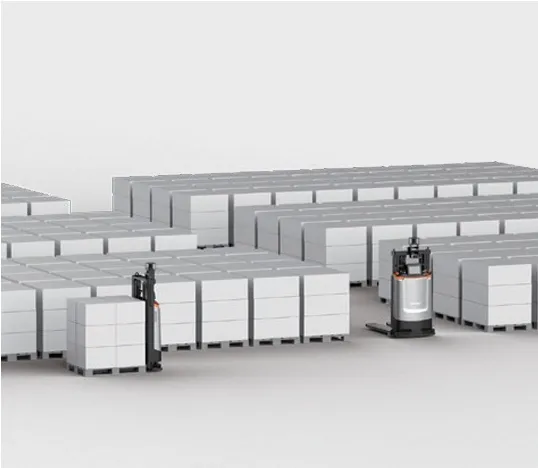

Deep Storage Warehouse

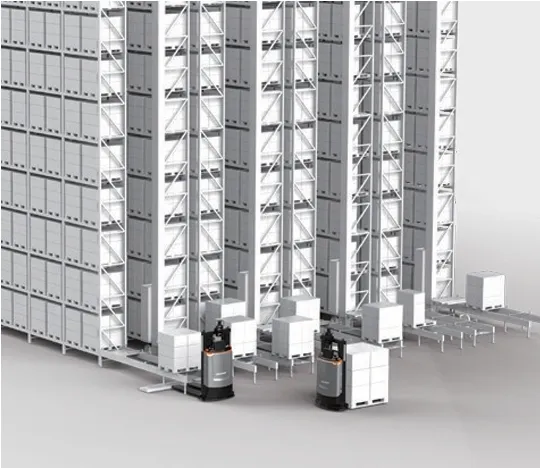

Conveyor Docking

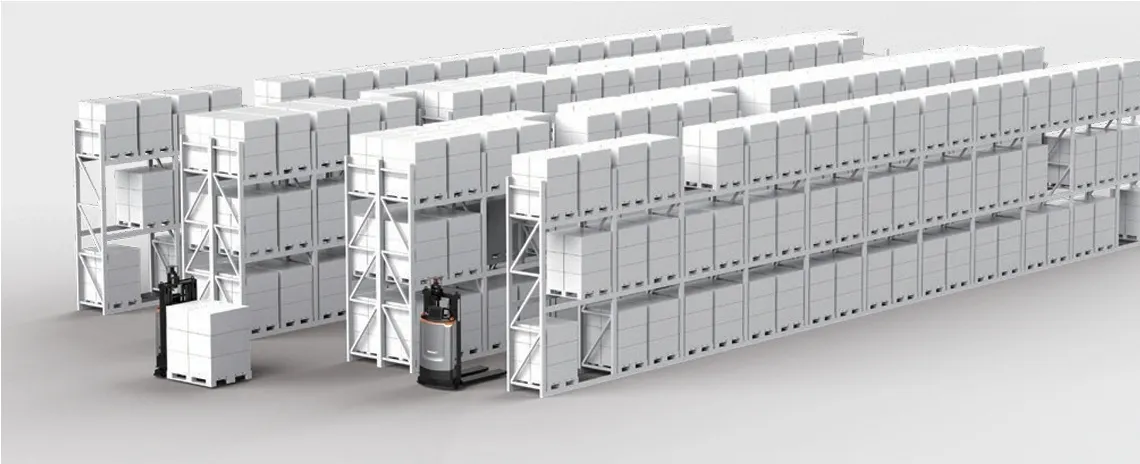

Multi-level Rack Transferring

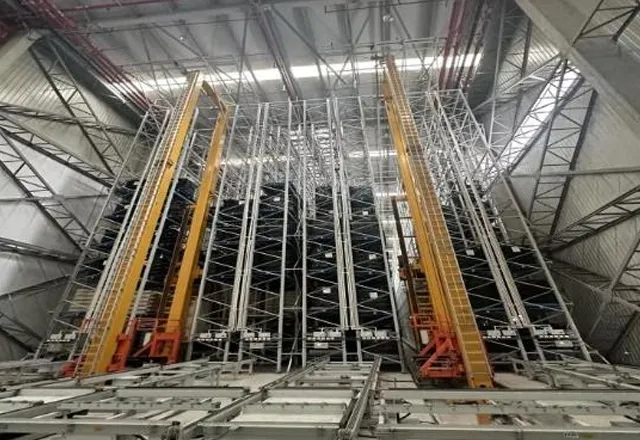

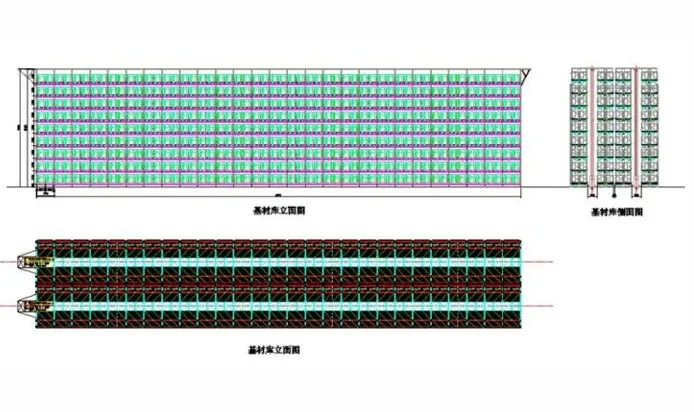

Includes 2 stacker cranes, 4 sets of racks, and 3,888 storage locations. Achieved an inbound/outbound flow rate of 92 pallets per hour.
Integrated 120 LMRs with a shuttle racking system. Resulted in a 40% reduction in labor costs and 100 pallets per hour throughput.

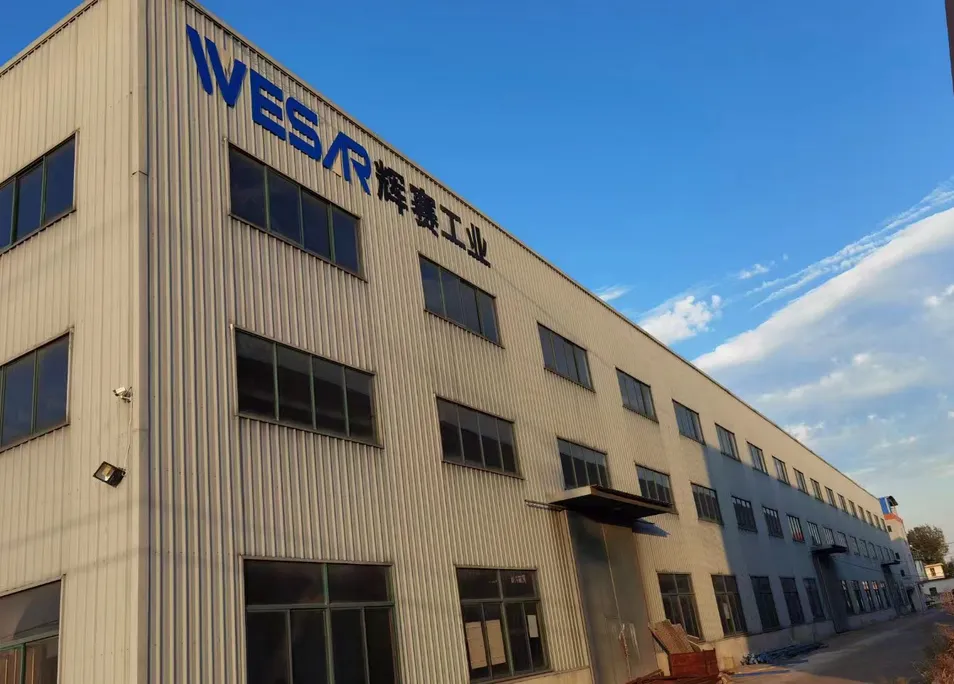

We provide one-stop smart factory solutions, encompassing the production of smart shelving, intelligent logistics handling robots, and the design of automated warehouses. Our expertise covers consulting, software development, and the integration of AGVs and AMRs for global industries including automotive parts, 3C products, and pharmaceuticals.
• Standard Warranty: 12 months or 2,000 operating hours.
• Global Support: 24/7 technical assistance.
• Training: On-site or remote operation and maintenance training.
