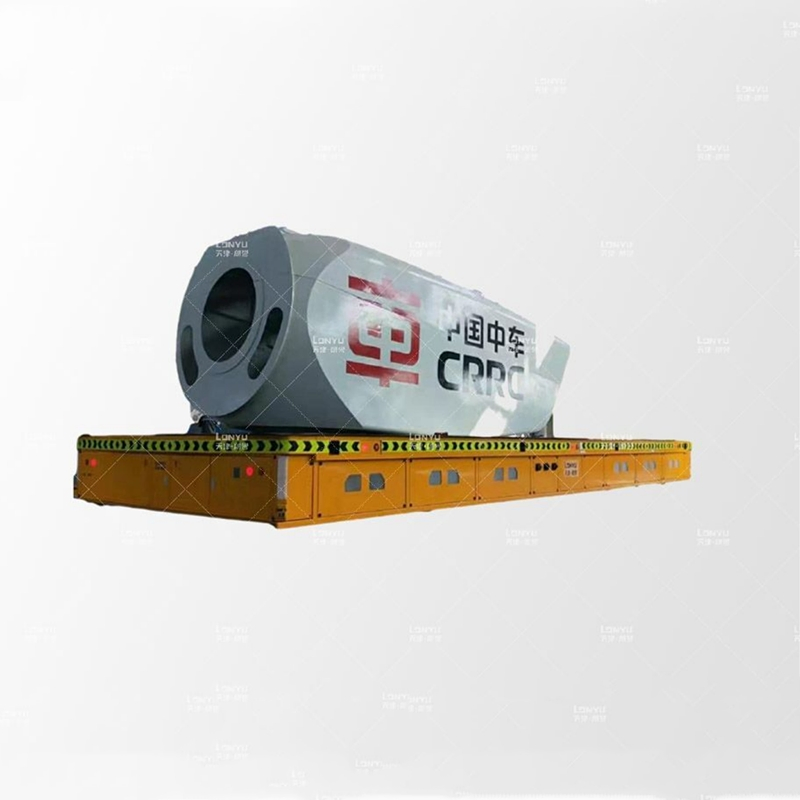

Electric Material Handling Vehicle Transfer Cart 240 Tons Back-Lift Heavy-Load Agv Robot Shipping
1 / 1
Electric Material Handling Vehicle Transfer Cart 240 Tons Back-Lift Heavy-Load Agv Robot Shipping

Electric Material Handling Vehicle Transfer Cart 240 Tons Back-Lift Heavy-Load Agv Robot Shipping

Customization: Available
Control Mode: Main Wireless Controller, Auxiliary Wire Controlle
Drive Mode: Electric
Send Inquiry

Product Description

📊 Basic Information
Model NO.240 tons back-lift heavy-load AGV
Load Capacity240 Tons
TypeAGV (Automated Guided Vehicle)
CommunicationWiFi
CertificationCE
Operation ModeStraight, Lateral, Self-Rotation, Omnidirectional
Moving SpeedNo Load ≥30m/Min
Operating Noise≤70dB
📦 Product Description

240 Tons Heavy-Load AGV

Transportation of wind power industry cabin assembly from the assembly station in the workshop to the finished product storage station outside the workshop.

  • Adaptive to track crossing and complex potholes
  • Self-contained weighing detection and center of mass display
  • Automatic left and right centering system for docking with tooling
  • Normal operation in extremely cold environment of minus 30ºC
  • Rated load: 200T (meeting the impact load of 1.25 times the rated load of 160 tons)
240 Tons Heavy-Load AGV
⚙️ Technical Specifications
Design load240T
Equipment weight26T
Body shapeL9000*W3400*H800mm
Bottom ground clearance200mm
Climbing ability≥5°
Body structureAdopts omnidirectional differential drive structure
Drive Number of wheels12-wheel drive (24 wheels)
Drive modeDrive unit hydraulic independent drive
Suspension formIndependent suspension; Active suspension for even stress
Wheel ground pressure≤10Mpa (Theoretical 7Mpa)
Moving accuracy±10mm
Stop accuracy±10mm
Endurance4km (Full load) + 6km (No load)
Safety protectionFour-level safety protection (Laser, Collision strips, Sound/Light, Emergency stop)
Power supply modePower lithium battery / External towing cable 380V
Heavy-Load AGV Application
🏆 Professional Capabilities & Certifications
Capability 1
Capability 2
Honors
Certifications
❓ Questions & Answers
Would an AGV be a good solution?
An AGV is an excellent choice for moving materials and components horizontally. You must consider the load weight and travel requirements of your specific application to determine if it's the right fit.
What are the benefits of using heavy-duty AGVs?
They offer easy operation, high safety, and stability. Features include automatic lifting, hydraulic independent suspension, anti-collision systems, and the ability to adapt to uneven ground while handling extremely heavy loads.
What applications use heavy-duty AGV transfer vehicles?
Commonly used in warehousing, manufacturing, ports, airports, and hazardous environments to handle large or overweight materials, improving logistics automation and efficiency.
Can this AGV operate in outdoor or cold environments?
Yes, this vehicle is designed for both indoor and outdoor operation and can function normally in extremely cold environments as low as minus 30ºC.
What safety features are integrated into the vehicle?
The vehicle features four-level safety protection, including contact anti-collision rubber strips, sound and light alarms, non-contact laser obstacle avoidance, and multiple emergency stop buttons.
How does the weighing function work?
The AGV is equipped with weighing sensors that display the cargo weight on the control panel. It automatically stops if the load exceeds the rated capacity or if the center of gravity is dangerously offset.
