| Model NO. | 120 tons backpack heavy load AGV |
| Load Capacity | 120 Ton |
| Safety Features | Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner, Sound and Light Alarm |
| Type | AGV (Automated Guided Vehicle) |
| Walking Direction | Straight, Lateral, Rotation in Place |
| Power Supply | Lithium Battery / External Traction / Online Charging |
| Straight Speed | 20m/Min |
| Safety Protection | Emergency Stop, Multiple Anti-Collision Detection |
| Design Life | >10 Years |
| Certification | CE |
| Origin | China |

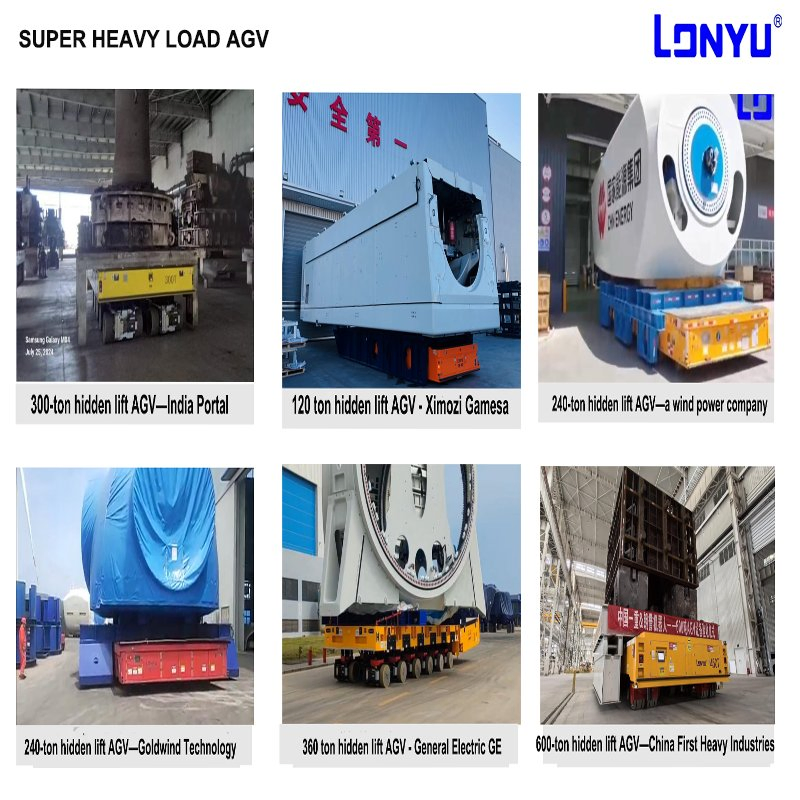

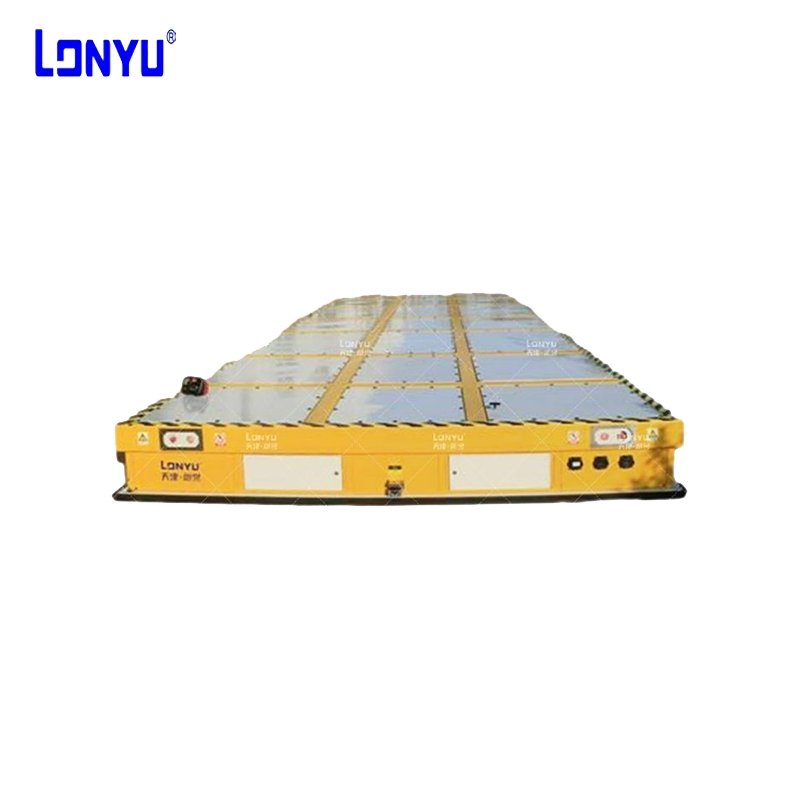

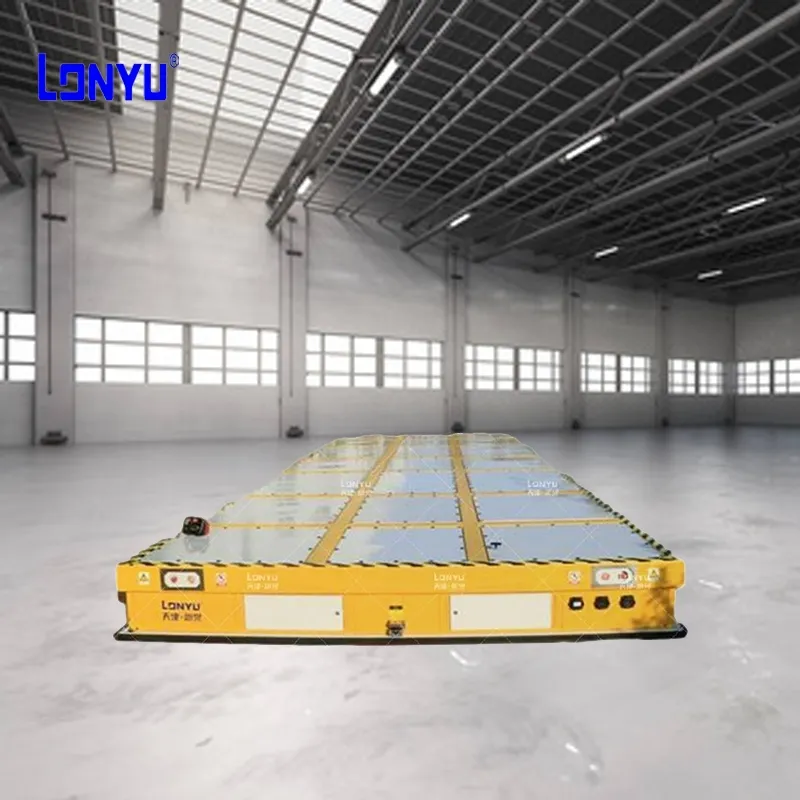

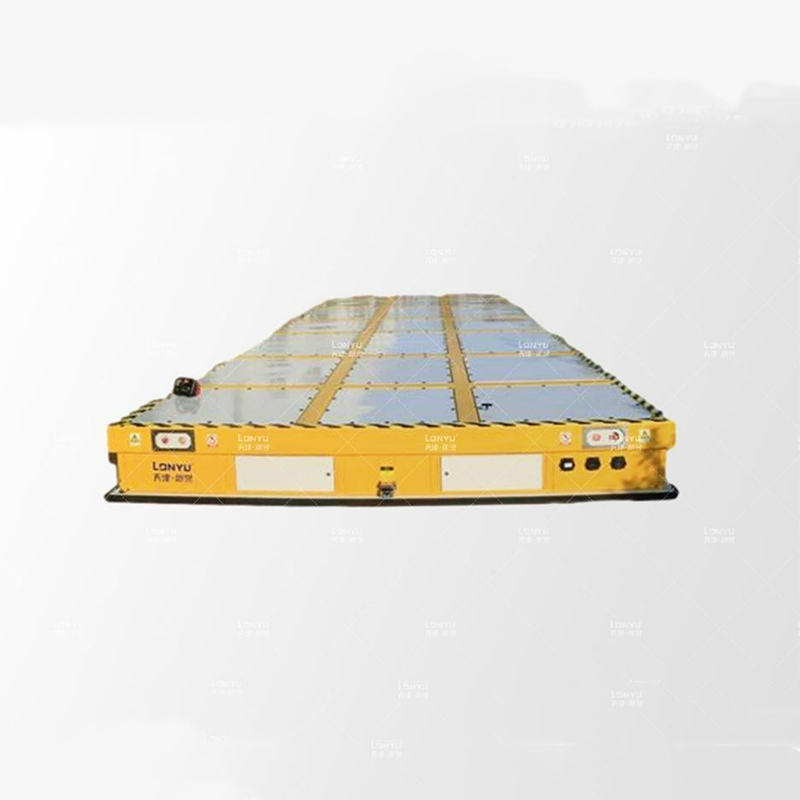

120-ton backpack heavy-duty AGV: This project adopts all-wheel drive with a maximum load capacity of 40,000kg to 120,000kg. It features a straight speed of 20m/min, a turning radius of 2m, and auxiliary magnetic navigation accuracy of ±10mm. Equipped with a laser anti-collision device and automatic lifting stroke of 100mm, it integrates advanced technologies like remote diagnosis and IoT.
| Rated Load | 50T (10-500T customizable) |
| Design Load | 120T |
| Equipment Weight | 18T |
| Body Shape | L11000 × W4000 × H700mm |
| Moving Accuracy | ±5mm |
| Navigation Accuracy | ±20mm |
| Lifting Height | Hydraulic suspension, 150mm |
| Climbing Ability | <3° |
