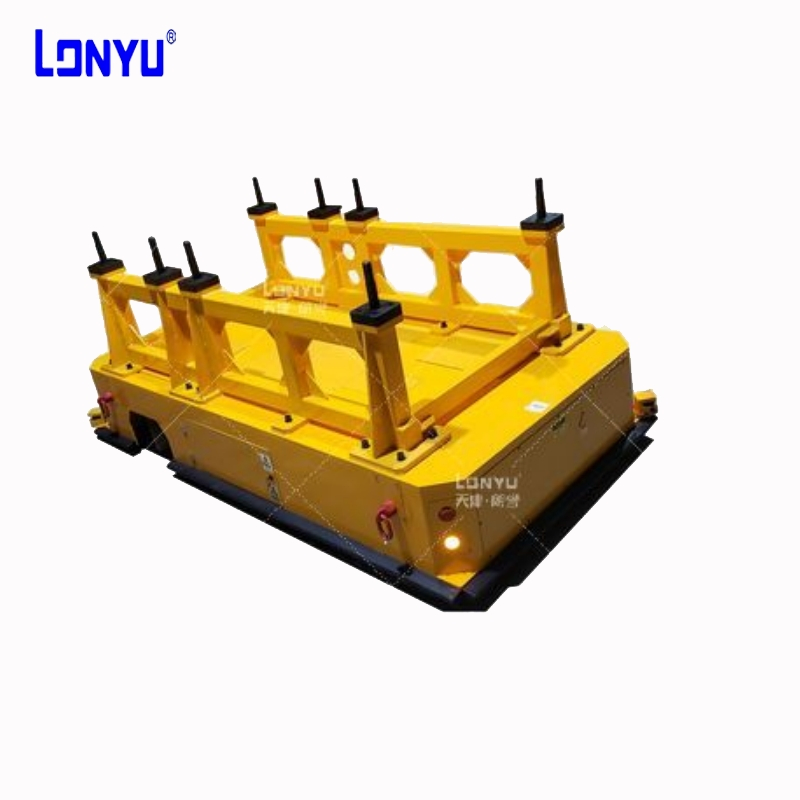

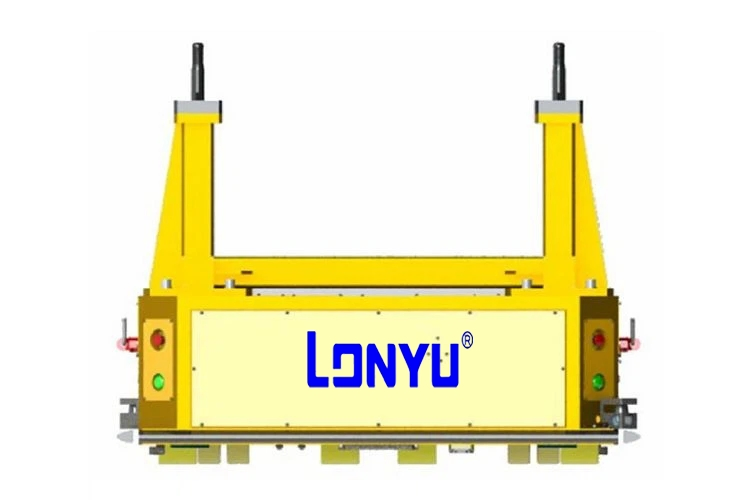

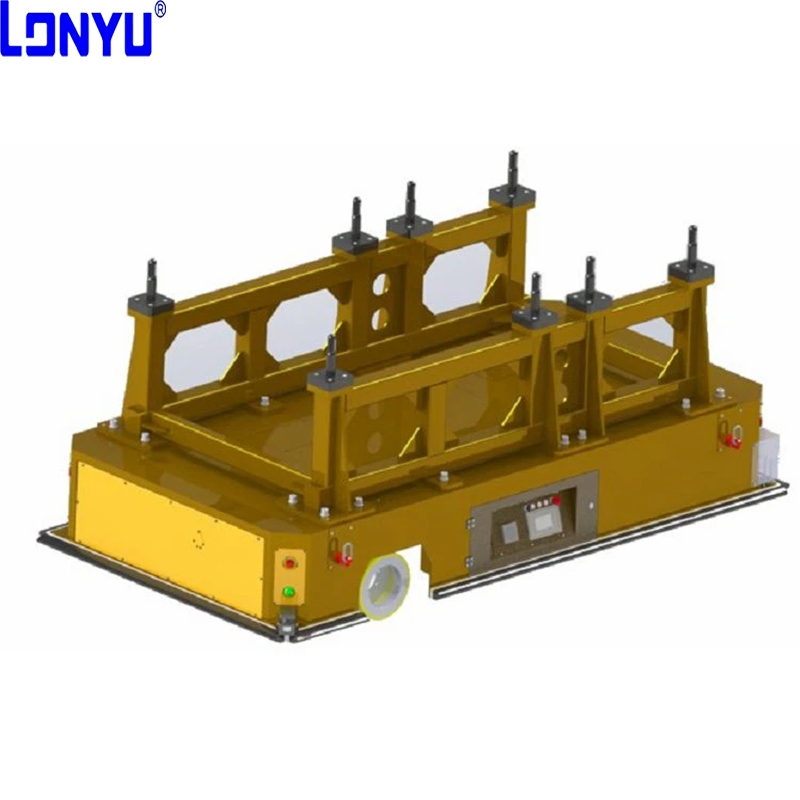

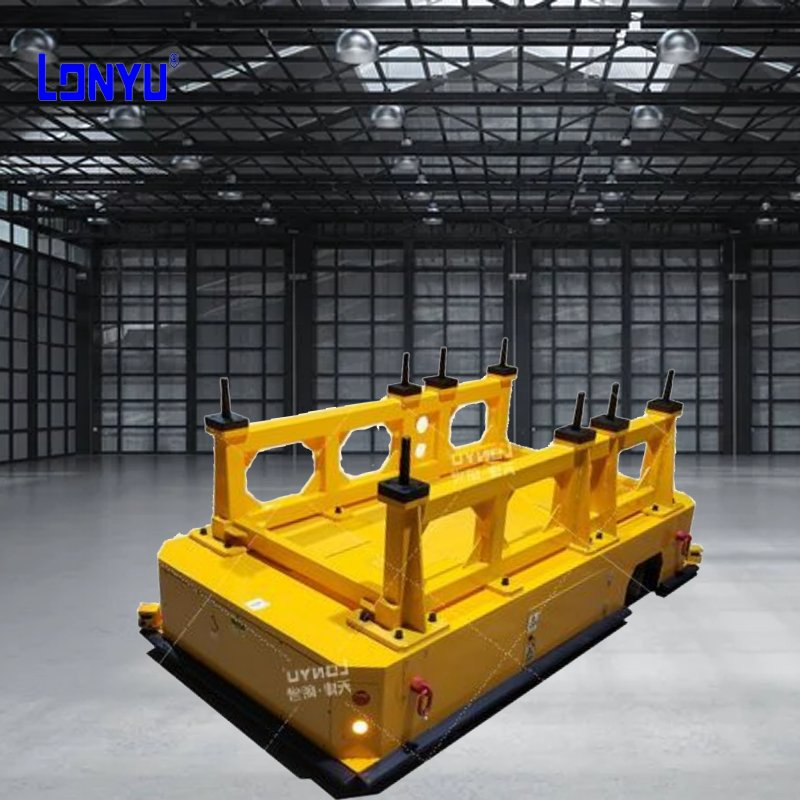

Omni Direction Electric Trackless Transfer Automated Guided Vehicle

Customization: Available
Control Mode: Remote Control
Drive Mode: Electric

Product Description

📊

Basic Information

Model NO.14 tons backpack heavy load AGV
Load Capacity14 Tons
TypeAGV (Automated Guided Vehicle)
Warranty1 Year
CertificationISO
Drive TypeSuper Drive
NavigationMagnetic Navigation
Battery400Ah
⚙️

Product Description

With its unique upper assembly and four-wheel dual-drive configuration, we strive to meet specific tasks and customer requirements while optimizing cost savings. Leveraging robust design capabilities, we successfully address usage needs perfectly, even when optimizing configurations.

Transparent and Reasonable Pricing: We adhere to a transparent pricing policy to ensure a clear understanding of the cost structure. Our solutions are highly competitive, providing cost-effective products and services that ensure value for money.

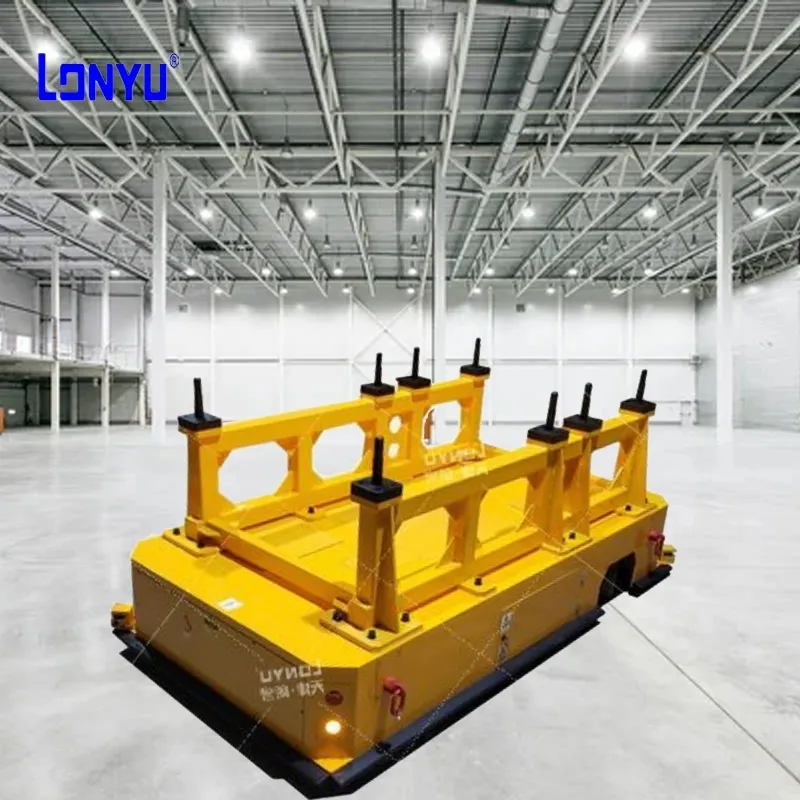

14-ton backpack heavy-duty AGV

14-ton backpack heavy-duty AGV

The integrated quick connection mechanism can fully meet the impact load generated when workpieces are hoisted and placed, ensuring smooth operation without falling off rails, jamming, or other faults. The design accounts for transportation and crane lifting in case of failure.

🖥️

AGV Management and Control System

The AGV Control system connects with MES systems featuring automatic/manual dual insurance scheduling modes. Instructions for handling tasks are issued to the AGV scheduling system, which then directs the vehicles. Completion information is fed back in real-time.

Central management software realizes highly intelligent automated management by monitoring position on electronic maps, updating operating parameters, and implementing traffic control at intersections to improve efficiency and safety.

📋

Technical Specifications

Product Name14-ton backpack heavy-duty AGV
ModelLY-AK-14T-2-2B
Weight3.5 tons
Load Capacity14T
Product Size3000mm * 1500mm * 500mm
Drive TypeSuper drive (Four-wheel drive)
Navigation MethodMagnetic navigation
Walking ModeStraight, 360° rotation, translation, automatic navigation
Voltage / Battery48V / 400AH
Safety FeaturesLong-distance obstacle avoidance + contact anti-collision mechanism

Automatic Charging Device

Developed for frequent material delivery needs. When energy is lower than the preset value, the AGV moves to the charging station. Electrodes dock automatically to achieve charging and separate once finished. This eliminates manual battery handling and saves significant time.

AGV Operation

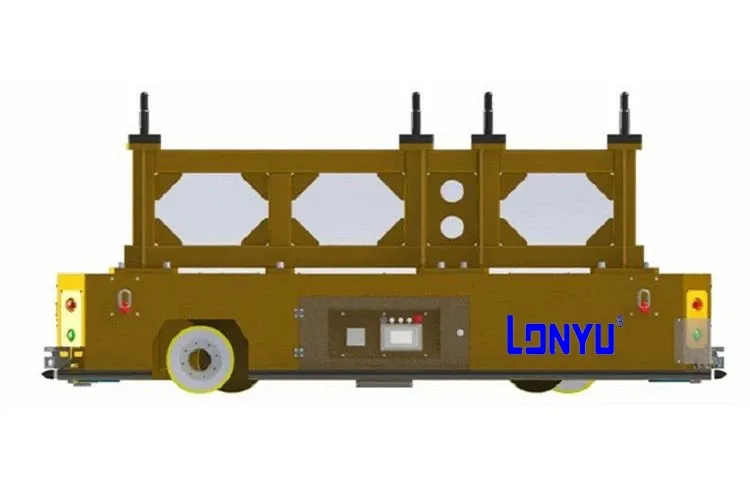

AGV Charging
📦

Related Solutions & Applications

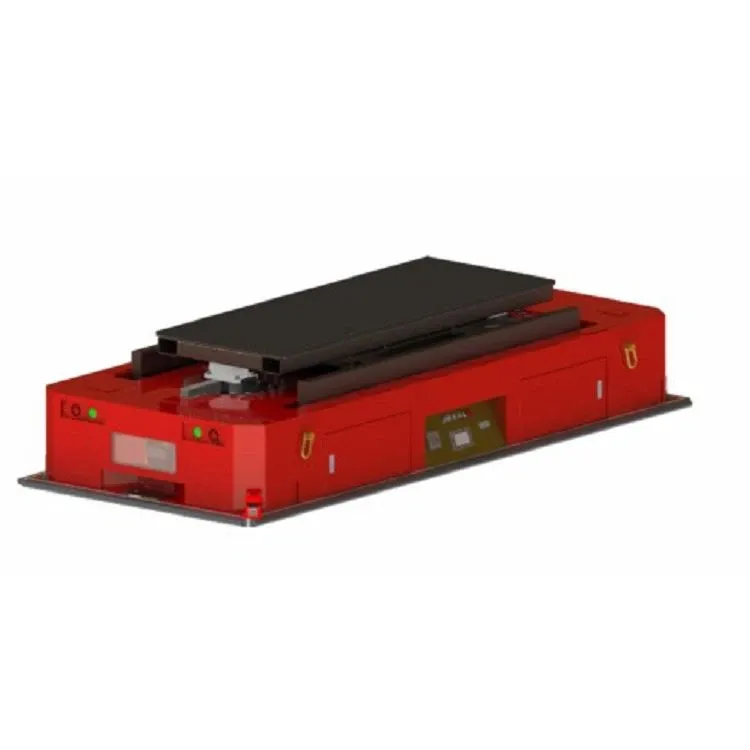

Overweight Parts Trans AGV

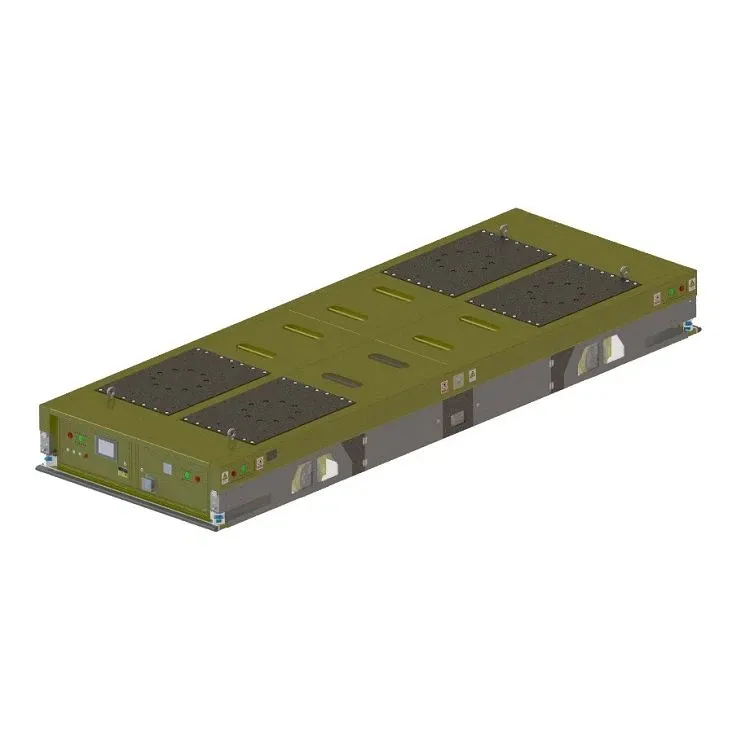

Backpack Heavy-Load AGV

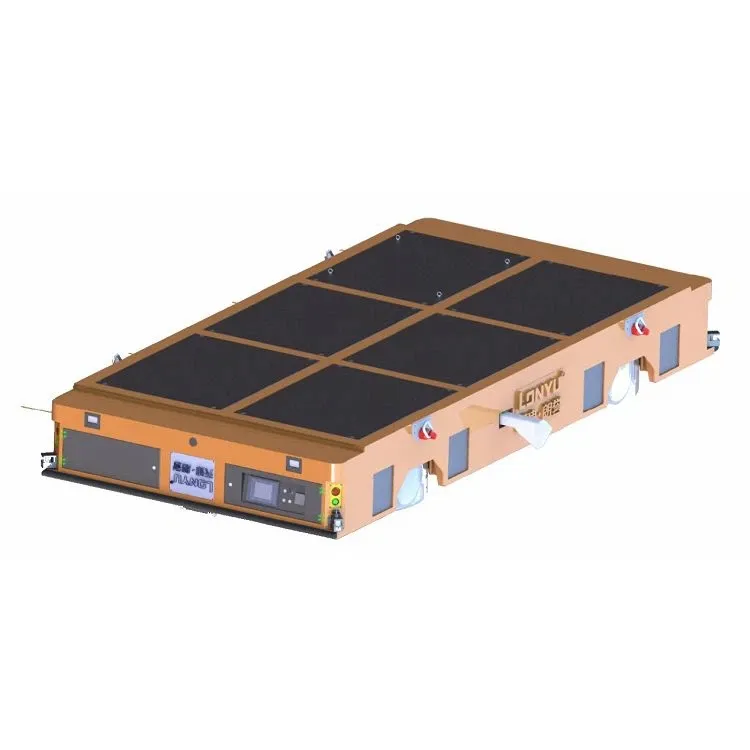

Heavy Duty Omni Direction AGV
Production Line
Workshop Application

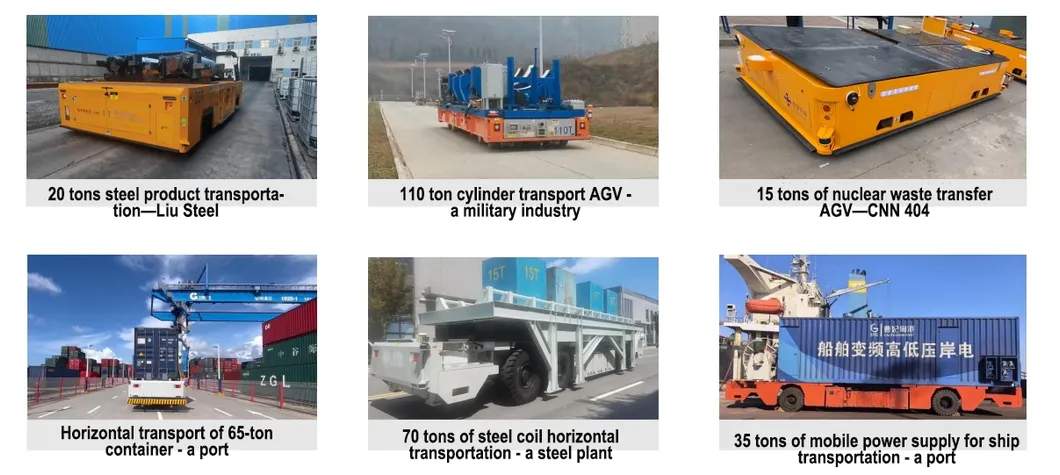

Application Scenario 1

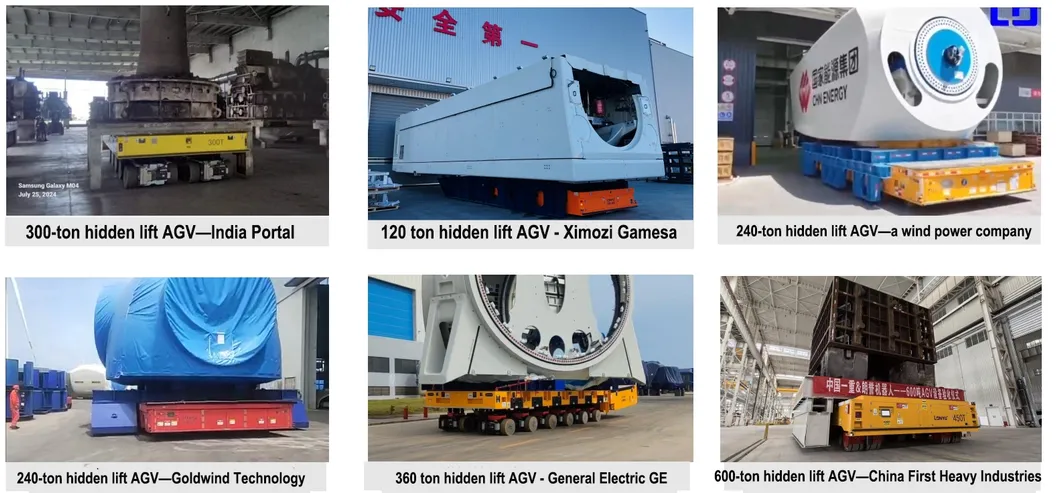

Application Scenario 2
Certifications

Questions & Answers

What is the load capacity of this heavy-duty AGV?
This specific backpack model is designed to handle a heavy load capacity of 14 tons, making it ideal for moving large components and materials horizontally in industrial environments.
What safety features are integrated into the vehicle?
The AGV is equipped with a comprehensive safety suite, including a Collision Avoidance System, Emergency Stop Buttons, Obstacle Detection Sensors, and a Safety Laser Scanner to ensure secure operation in busy workspaces.
How does the automatic charging system benefit the production line?
The automatic charging device allows the AGV to dock and recharge without human intervention when battery levels are low. This eliminates the need for manual battery swapping and significantly reduces downtime.
Can the AGV be integrated with existing factory management systems?
Yes, the AGV control system is designed to connect with MES (Manufacturing Execution Systems). It supports both automatic and manual scheduling modes to synchronize material handling with production instructions.
What movement modes does the four-wheel drive configuration support?
The super drive system allows for versatile movement, including straight forward and backward travel, 360° rotation in place, and lateral translation, providing excellent maneuverability in restricted passages.
What are the primary applications for these AGVs?
They are mainly used in warehousing, manufacturing, ports, and hazardous environments for the automated handling of overweight or overlong materials, helping to improve logistics efficiency and reduce labor intensity.
