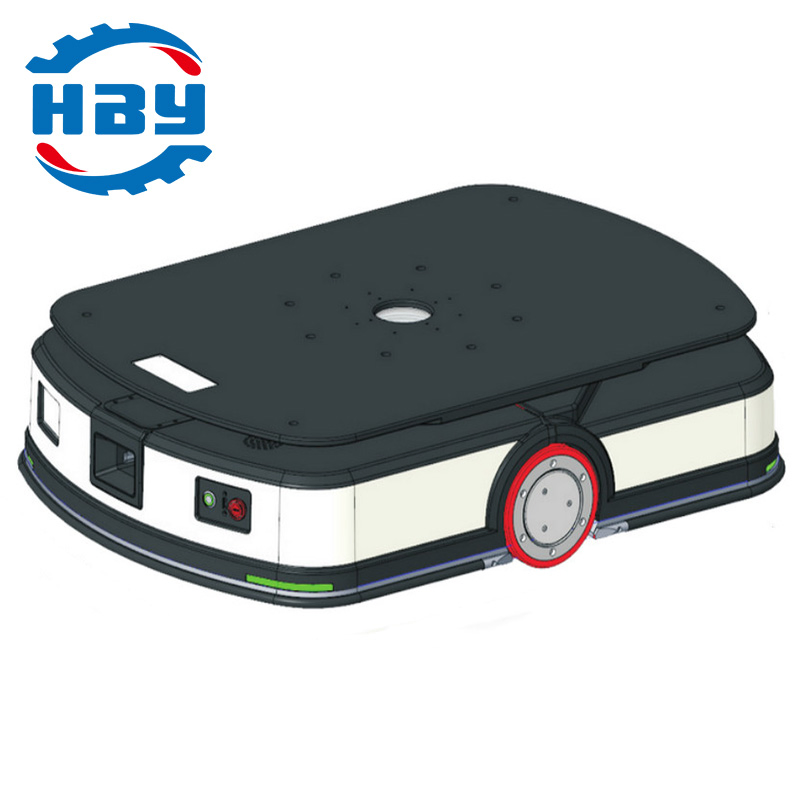

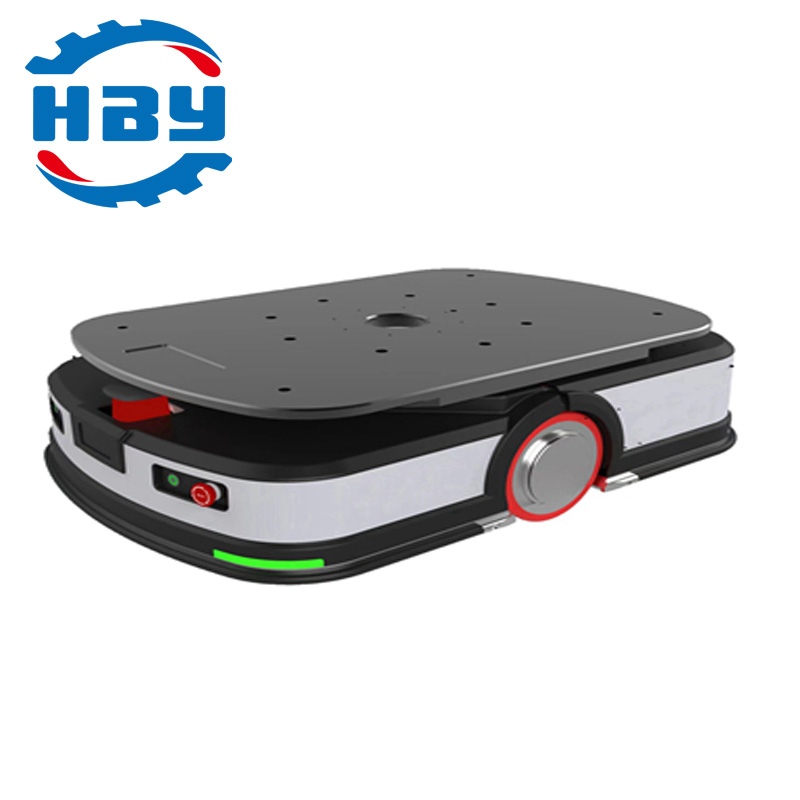

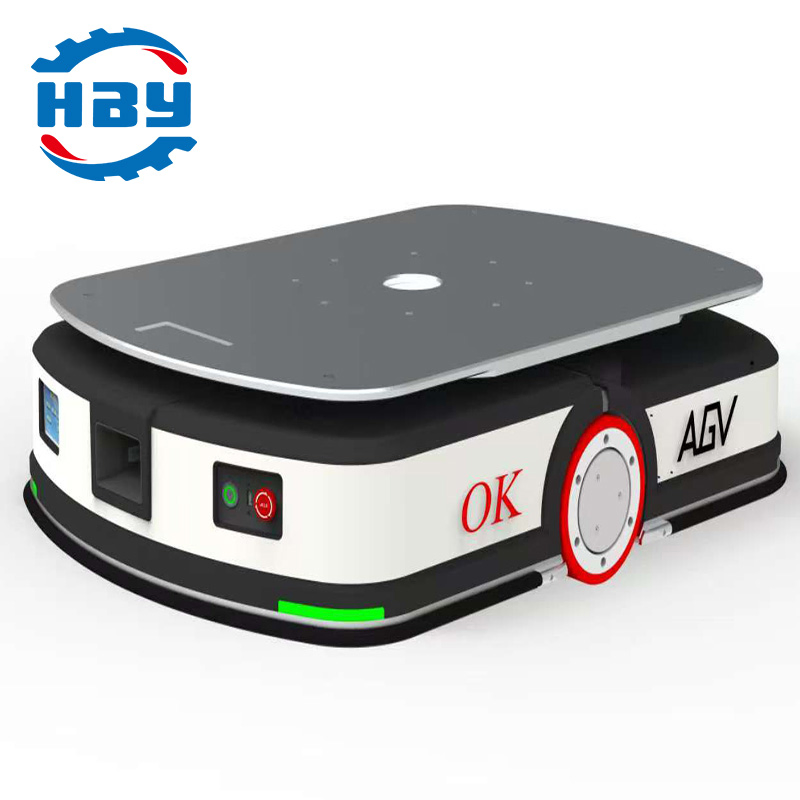

High-Capacity 1500kg Automated Guided Vehicle for Advanced Warehouse Logistics

1 / 5

High-Capacity 1500kg Automated Guided Vehicle for Advanced Warehouse Logistics

Control Mode:	Point to Point Control
Drive Mode:	Electric
Load Capacity:	1500kg

Send Inquiry

Product Description

Basic Information

Model NO.

Shark 1500

Type

AMR (Autonomous Mobile Robot)

Safety Features

Collision Avoidance, Emergency Stop, Obstacle Sensors, Laser Scanner

Color

Customized

Transport Package

Wooden Case

HS Code

8427109000

Production Capacity

1000 Pieces/Year

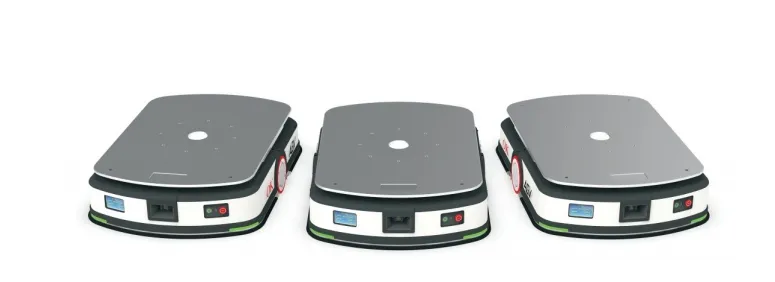

Automated Guided Vehicle Introduction

The Shark 1500 warehouse logistics AGV mobile robot features a 1500kg payload capacity and represents a new version of intelligent transfer robots. It utilizes trackless guidance with a mature fleet control and task control UI. The robot surveys the path to form a navigation map, comparing real-time environments to calculate location, speed, and moving angles accurately.

Product Advantages

Navigation Methods: Magnetic tape, magnetic nail, QR code, laser, or SLAM (optional).
Flexible Movement: Forward, backward, left/right turns, 90°/180° rotation, and pivot movement.
High Accuracy: Standard stop accuracy of ±10mm, customizable up to ±5mm.
Smart Linkage: Supports multiple AGV linkage functions and automatic elevator integration for cross-floor transport.
System Compatibility: Fully compatible with WMS and MES systems for automated scheduling.
Self-Charging: Supports wireless and automatic charging for 24-hour operation.
Triple Protection: Laser obstacle avoidance, front/rear bumpers, and emergency stop buttons.

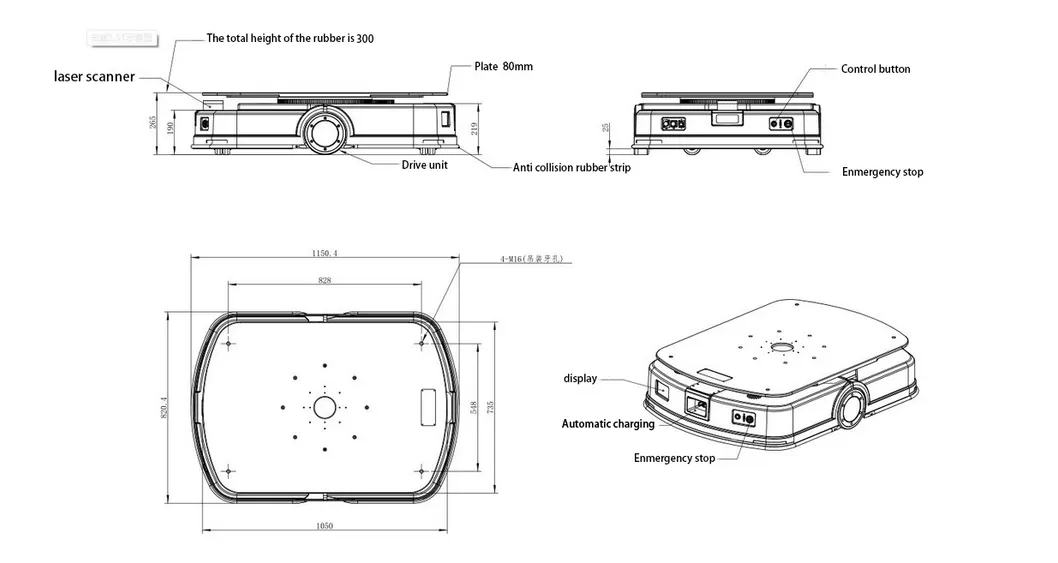

Technical Parameters

AGV Type	Shark Elfin 1500

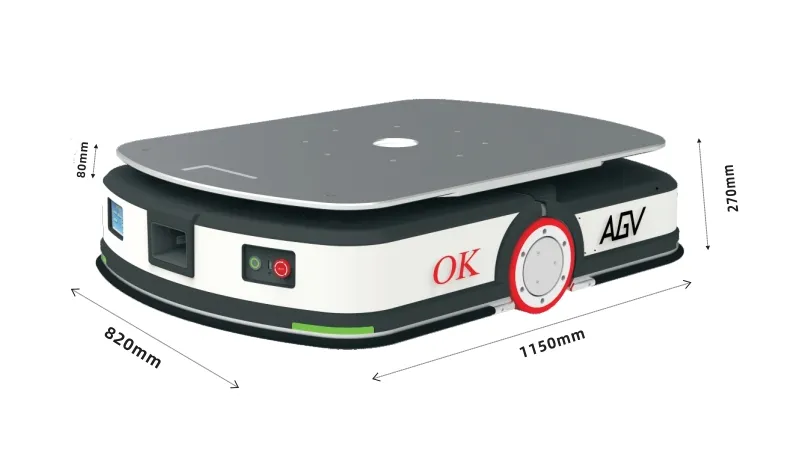

Size	L1150W820H270 (mm)
Control System	Intelligent motion control system
Navigation	SLAM, QR code, laser, magnetic tape, magnetic nail
Moving Mode	Forward, backward, pivot, 90°-360° rotation
Driving Mode	Differential drive
Loading Capacity	1500KG
Lifting Stroke	70mm (Automatic lifting)
Moving Speed	0-80m/min
Battery	Lithium battery (≥2000 discharge cycles)
Working Time	24 Hours
Safety Range	0-180° Angle, 0-3 meters adjustable
Lifespan	Designed for 10 years

Industrial Automation Solutions

Global Expertise: With advanced AGV/AMR technology and in-house production, we deliver industrial-grade solutions trusted by clients worldwide across the UK, UAE, Russia, India, and more.

Key Highlights:

R&D-Driven: Cutting-edge SLAM/Laser navigation for heavy-load designs.
Quality Control: ISO-certified manufacturing with rigorous testing.
Versatile Application: Tailored for logistics, healthcare, and industrial sectors in 20+ countries.

Frequently Asked Questions

Q1: What is the maximum payload capacity of the Shark 1500? A: The Shark 1500 is designed to handle a heavy-duty payload of up to 1500kg.

Q2: Which navigation technologies does this AMR support? A: It supports multiple navigation modes including SLAM, QR code, Laser, Magnetic Tape, and Magnetic Nail.

Q3: Can the robot operate across different floors? A: Yes, it can be integrated with ordinary elevators to automatically enter, exit, and carry materials across multiple floors.

Q4: How does the self-charging system work? A: The robot supports automatic and wireless charging, allowing it to return to the station independently for 24/7 continuous operation.

Q5: What safety measures are in place to prevent collisions? A: It features triple protection: an adjustable laser obstacle avoidance sensor (up to 3 meters), front/rear mechanical bumpers, and emergency stop buttons.

Q6: Is it compatible with existing warehouse management systems? A: Yes, the system is designed for high expansion compatibility and can be seamlessly connected with WMS and MES systems.
