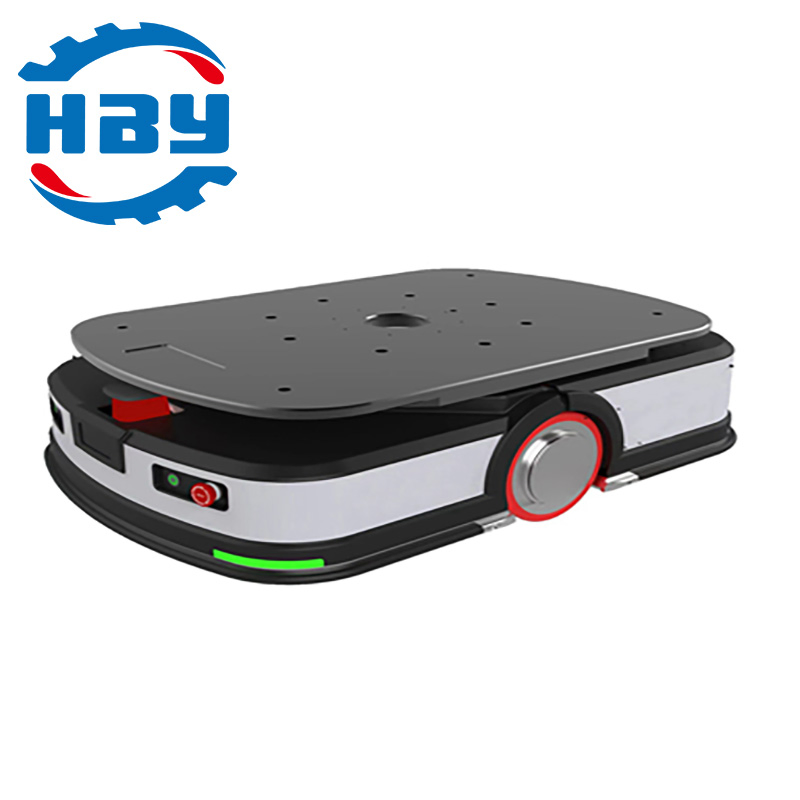

1000kg Lidar Navigation Agv/Auto-Charging Material Handling Robot for Manufacturing
1000kg Lidar Navigation Agv/Auto-Charging Material Handling Robot for Manufacturing
1000kg Lidar Navigation Agv/Auto-Charging Material Handling Robot for Manufacturing
1000kg Lidar Navigation Agv/Auto-Charging Material Handling Robot for Manufacturing
1000kg Lidar Navigation Agv/Auto-Charging Material Handling Robot for Manufacturing
1 / 5
1000kg Lidar Navigation Agv/Auto-Charging Material Handling Robot for Manufacturing
1000kg Lidar Navigation Agv/Auto-Charging Material Handling Robot for Manufacturing
1000kg Lidar Navigation Agv/Auto-Charging Material Handling Robot for Manufacturing
1000kg Lidar Navigation Agv/Auto-Charging Material Handling Robot for Manufacturing
1000kg Lidar Navigation Agv/Auto-Charging Material Handling Robot for Manufacturing

1000kg Lidar Navigation Agv/Auto-Charging Material Handling Robot for Manufacturing

Control Mode: Point to Point Control
Drive Mode: Electric
Load Capacity: 1000kg
Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.
Shark 1000
Type
AMR (Autonomous Mobile Robot)
Safety Features
Collision Avoidance, Emergency Stop, Obstacle Sensors, Laser Scanner
Color
White
Transport Package
Wooden Case
Production Capacity
1000 Pieces/Year
HS Code
8427109000
⚙

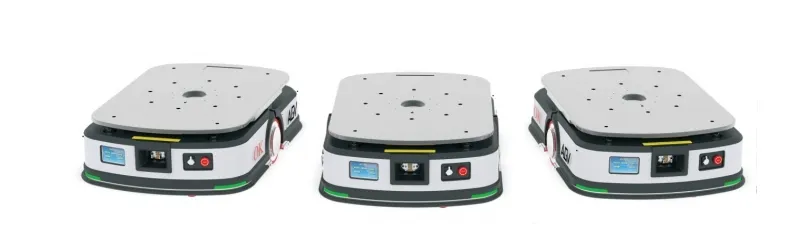

Automated Guided Vehicle Introduction

1000kg Payload Warehouse Logistics AGV Mobile Robot

This intelligent transfer robot features trackless guidance with a mature fleet control and task control UI. The robot surveys the path to form a navigation map, comparing the real-time environment to the map to calculate location, speed, and moving angles accurately.

Automated Guided Vehicle Introduction
✔

Key Product Advantages

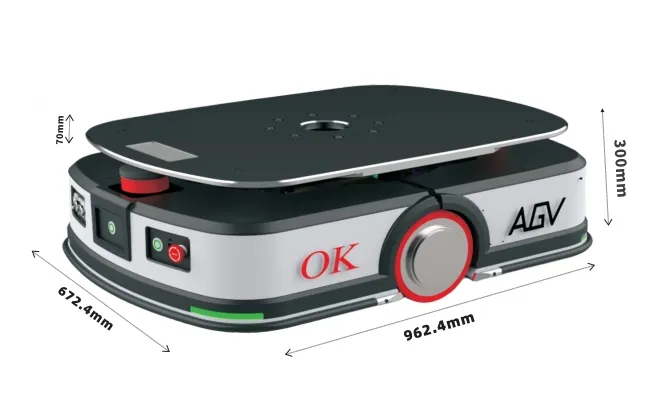

Product Advantages Overview
  • ✦ Navigation method: SLAM, Laser, QR code, Magnetic tape/nail (Optional)
  • ✦ Versatile Movement: Forward, backward, left/right turns, 90°/180° rotation, and pivot
  • ✦ High Precision: Navigation stop accuracy is ±10mm (Customization up to ±5mm)
  • ✦ Multi-linkage: Supports multiple AGV linkage functions
  • ✦ Elevator Compatibility: Automatically connects with ordinary elevators for cross-floor transport
  • ✦ Automation: Fully automatic operation according to scheduling without manual intervention
  • ✦ System Integration: Compatible with WMS and MES systems
  • ✦ Self-charging: Supports both wireless and automatic charging
  • ✦ Safety Protection: Laser obstacle avoidance, bumper protection, and dual emergency stop buttons
📊

Technical Parameters

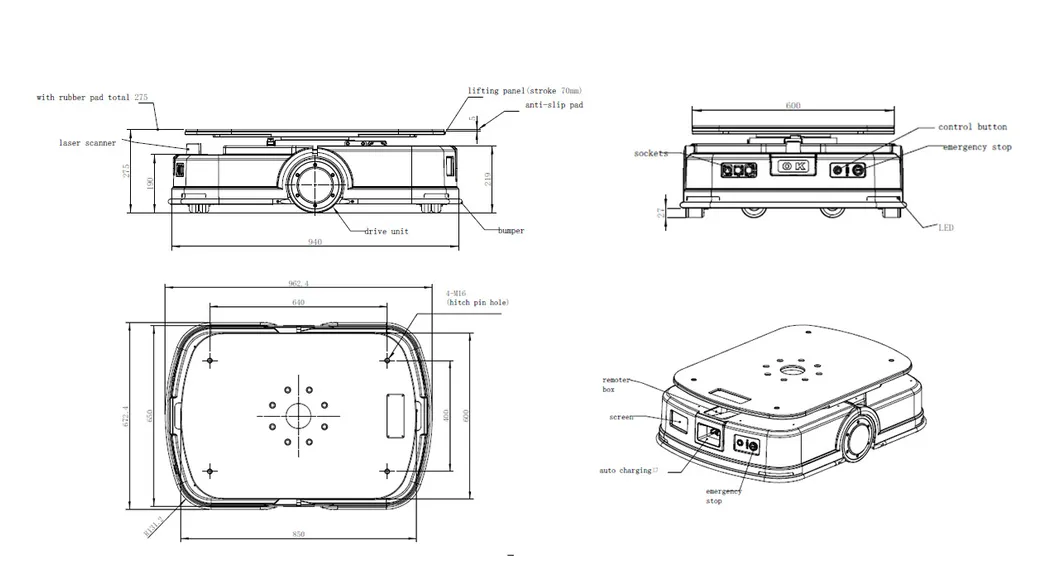

Product Parameter Diagram
AGV TypeShark 1000
SizeL962.4 * W672.4 * H300 (mm)
Control SystemIntelligent motion control system
NavigationSLAM, QR code, laser, magnetic tape, magnetic nail
Driving ModeDifferential drive
Loading Capacity1000 KG
Moving Speed0-80 m/min
Lifting Stroke70 mm
BatteryLithium battery (≥2000 discharge cycles)
Working Time24 Hours
Safety Sensor0-180° Angle, 0-3 Meters adjustable range
Designed Lifespan10 Years
⭐

Technology Highlights

Production Facility
Technology Deployment

Advanced Solutions: With industrial-grade technology and in-house production, we deliver automation solutions tailored to global standards. Our systems are trusted across the UAE, UK, Russia, India, South Africa, and Thailand.

  • R&D-Driven: Cutting-edge SLAM/Laser navigation and heavy-load designs.
  • Manufacturing: Strict quality control and end-to-end production.
  • Global Deployment: Solutions for logistics, healthcare, and industrial sectors in over 20 countries.
❓

Frequently Asked Questions

What is the maximum load capacity of the Shark 1000?
The Shark 1000 is designed for heavy-duty material handling with a maximum loading capacity of 1000kg.
Which navigation methods are available for this AMR?
It supports multiple navigation options including SLAM, QR code, Laser, magnetic tape, and magnetic nail navigation, allowing it to adapt to various warehouse environments.
Can the robot operate between different floors?
Yes, the Shark 1000 has the ability to connect with ordinary elevators automatically, enabling it to transport materials across different floors without manual intervention.
How does the automatic charging system work?
The robot supports automatic self-charging and wireless charging. When the battery is low, it follows scheduling instructions to return to the charging station, ensuring 24-hour operational availability.
What safety measures are integrated into the robot?
The robot features triple protection: a laser obstacle avoidance sensor (adjustable up to 3 meters), front and rear bumper protection, and front and rear emergency stop buttons.
Is the software compatible with existing warehouse systems?
Yes, the robot's control system is designed for high compatibility and can be seamlessly connected with WMS (Warehouse Management Systems) and MES (Manufacturing Execution Systems).
