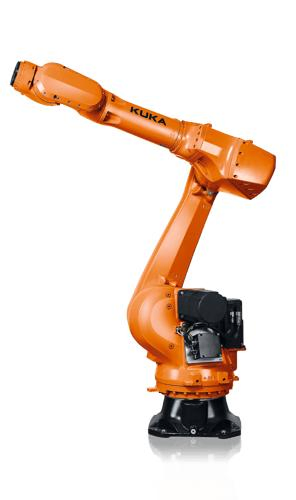

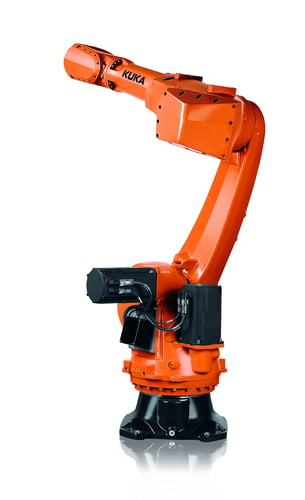

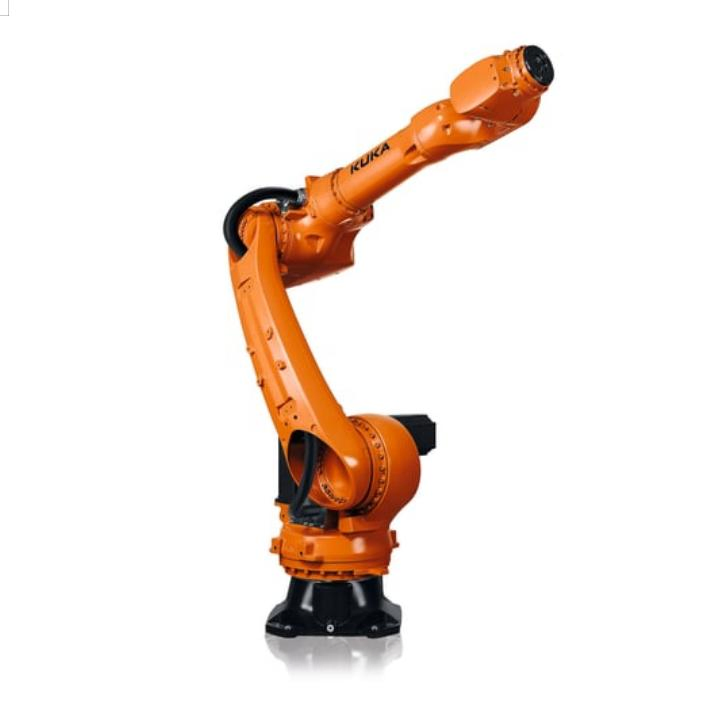

Heavy Payload Material Handling Robots Kuka Kr50 R2500 Welding Pick&Place

Customization: Available
Accuracy: �0.5 mm
Application: Metal Fabrication Industry

Product Description

📊

Basic Information

Model NO.
Kuka Kr50 R2500
Control Mode
Point to Point Control
Drive Mode
Electric
Type
Arc Welding Robot
Welding Speed
Adjustable
Axis No.
6-Axis
Arm Reach
2501mm
Payload
50kgs
Weight
559kgs
Repeatability
+/- 0.05 mm
Operating Lifespan
20000 Hours
Protection Grade
IP65 / IP67
Mounting Position
Floor, Ceiling, Wall, Desired Angle
Controller
Kr C4
Ambient Temp
0 °c to 55 °c
Trademark
KUKA
🤖

Product Description

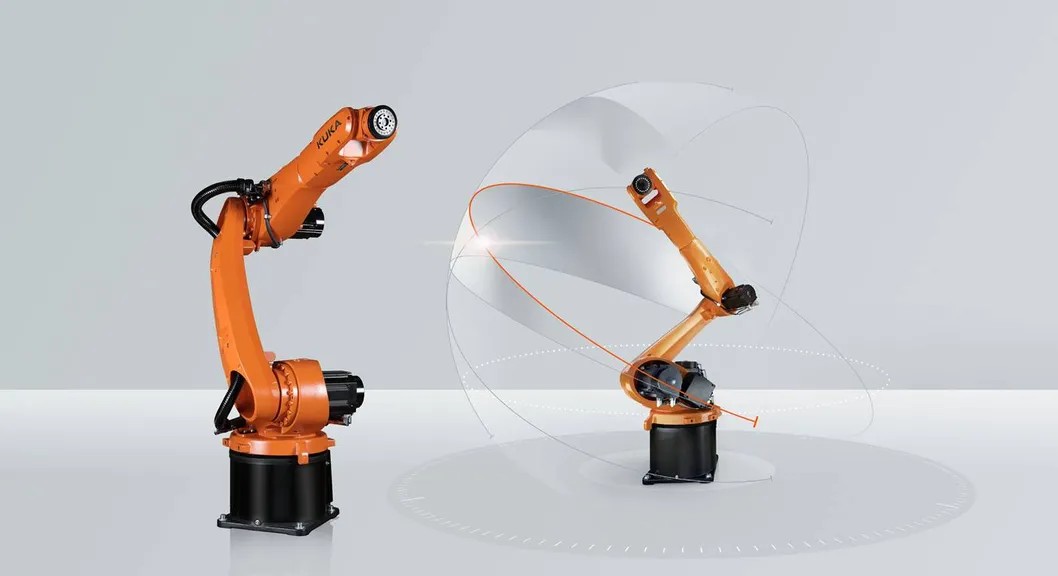

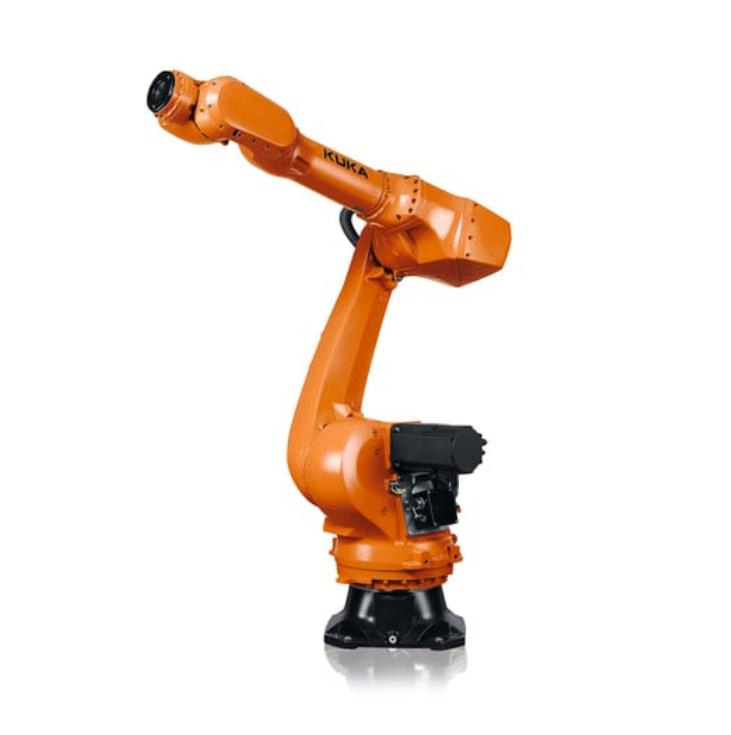

Kuka Kr50 R2500 Industrial Robot

2021 Hotsales KUKA 50R2500 6-Axis 50kg Industrial Robot

Key Advantages

  • Perfected for Handling and Assembly: Fast and incredibly agile with the utmost precision. Designed as high-end handling robots down to the very last detail.
  • Compact Design: Reduced volume with greater payload capacity and longer reach. Works efficiently in confined spaces with a minimized disruptive contour.
  • Maximum Workspace: Large working envelope to the rear and long downward reach allows access to areas inaccessible to conventional robots.
  • Best-in-class Repeatability: Impressive repeatability of 0.04 mm ensures consistent performance in high-precision tasks.
  • Flexibility in Any Position: Exceptional performance when installed on the floor, wall, or ceiling without requiring additional "extras".
📐

Product Parameters

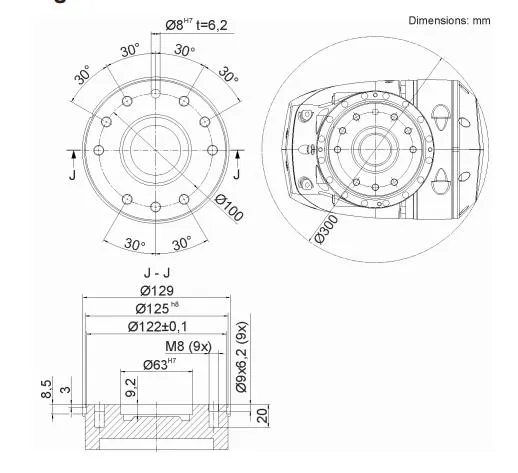

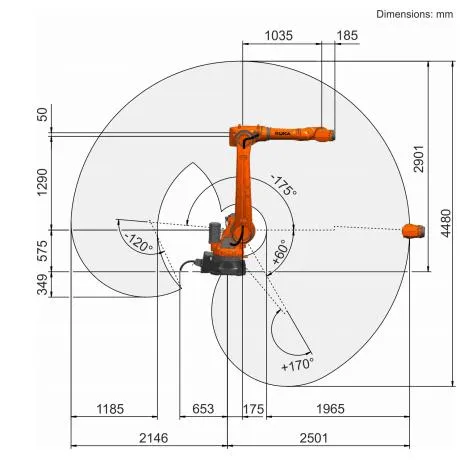

Kuka Robot Parameters 1 Kuka Robot Parameters 2

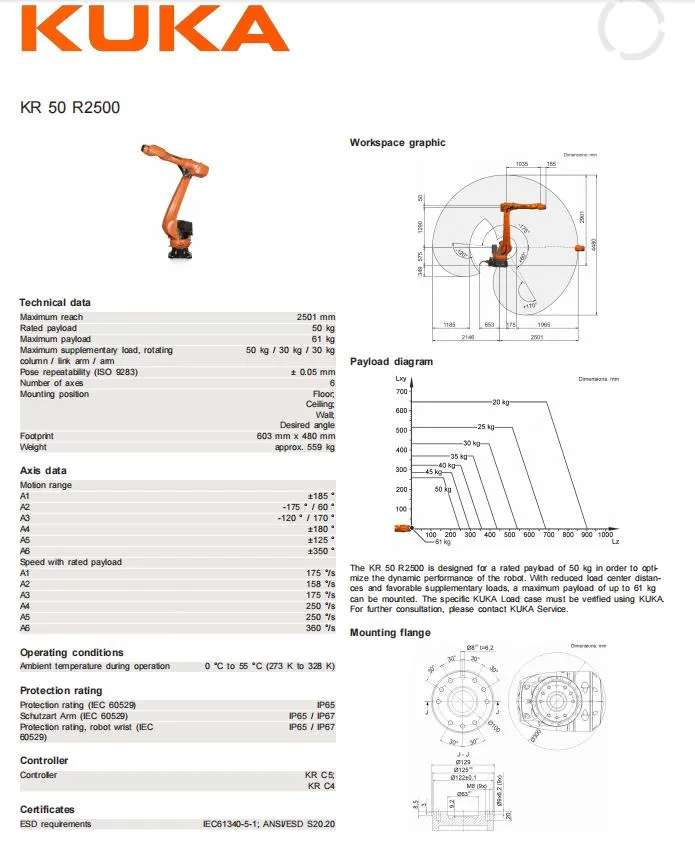

Technical Specifications
📦

Packaging & Shipping

Robot Packaging 1 Robot Packaging 2
🏢

Professional Solutions

About Us: Your trusted partner in integrated robotic arm projects. We specialize in providing innovative robotic solutions that streamline processes and enhance efficiency across various industries. Our expertise lies in designing, developing, and implementing customized robotic arm systems to meet unique needs worldwide.

Our Mission: To revolutionize the way businesses operate by delivering state-of-the-art robotic arm integration projects. We are committed to driving industrial automation forward, enabling higher productivity, precision, and competitiveness.

What We Offer: Tailored robotic arm systems for manufacturing, assembly, packaging, and quality control. We provide comprehensive project integration and leverage the latest advancements in robotics.

Robotic Solutions Display
System Integration

Frequently Asked Questions

Q1: What is the maximum payload and reach of the Kuka Kr50 R2500? A: The robot supports a payload of up to 50kg and has an impressive arm reach of 2501mm.
Q2: What is the repeatability of this industrial robot? A: The Kuka Kr50 R2500 offers best-in-class repeatability of +/- 0.05 mm (with some models reaching 0.04 mm), ensuring high precision for assembly and welding tasks.
Q3: Can this robot be mounted on the ceiling or wall? A: Yes, it is designed for flexibility and can be installed on the floor, wall, ceiling, or even at specific desired angles.
Q4: What is the protection rating for harsh environments? A: The robot arm and wrist feature a protection grade of IP65/IP67, making it suitable for demanding industrial environments.
Q5: What controller is compatible with this robot model? A: This model is typically paired with the advanced KR C4 controller for optimal performance and integration.
Q6: What is the expected operating lifespan of the unit? A: The robot is engineered for durability with an expected operating lifespan of approximately 20,000 hours.
