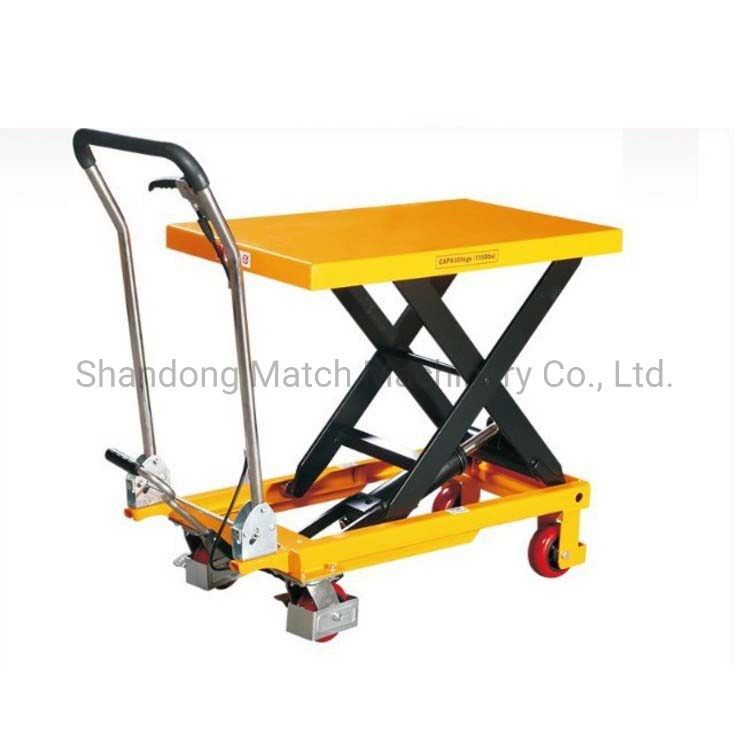

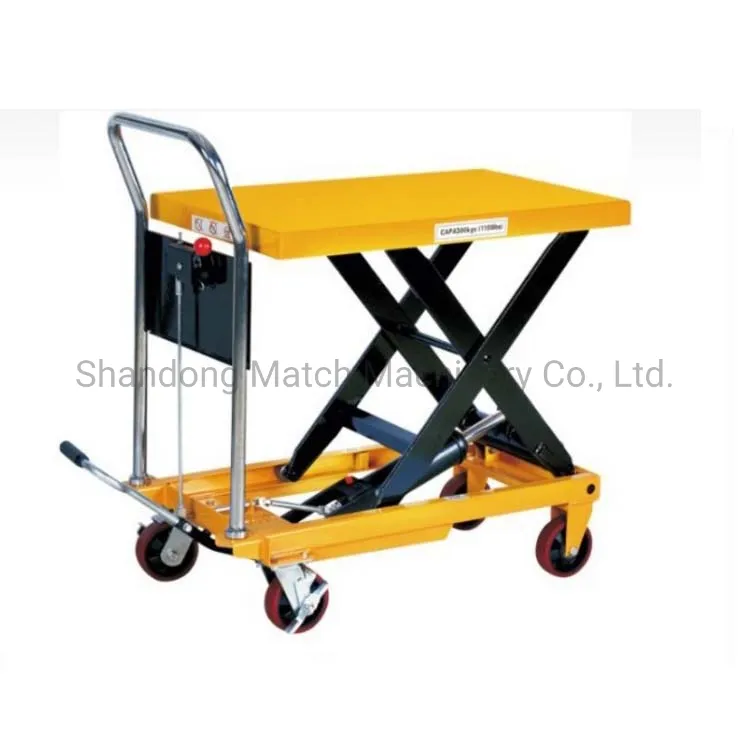

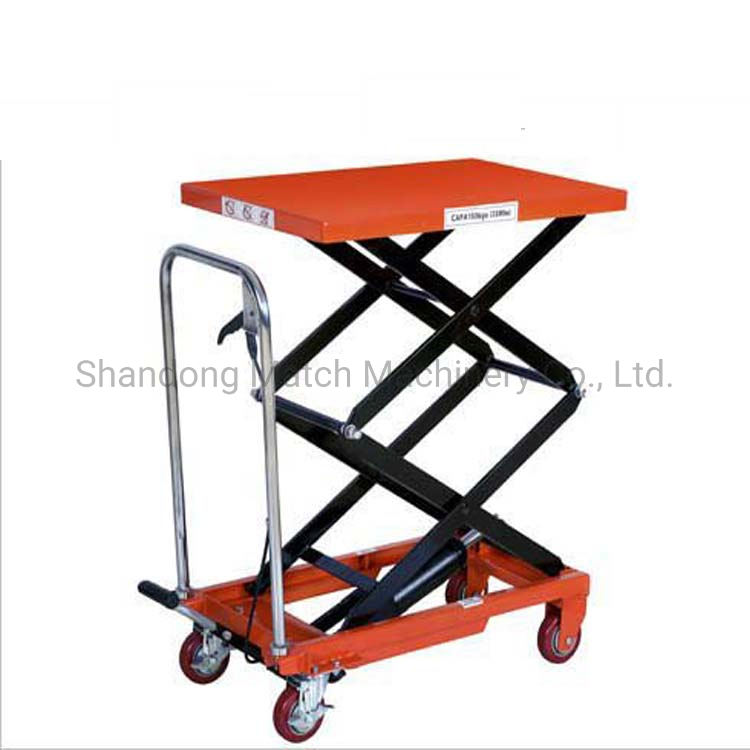

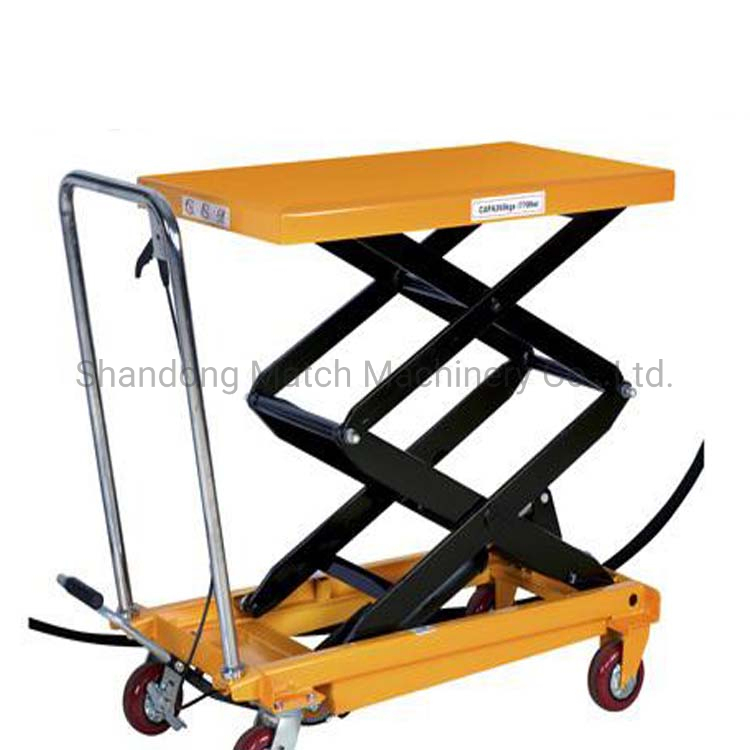

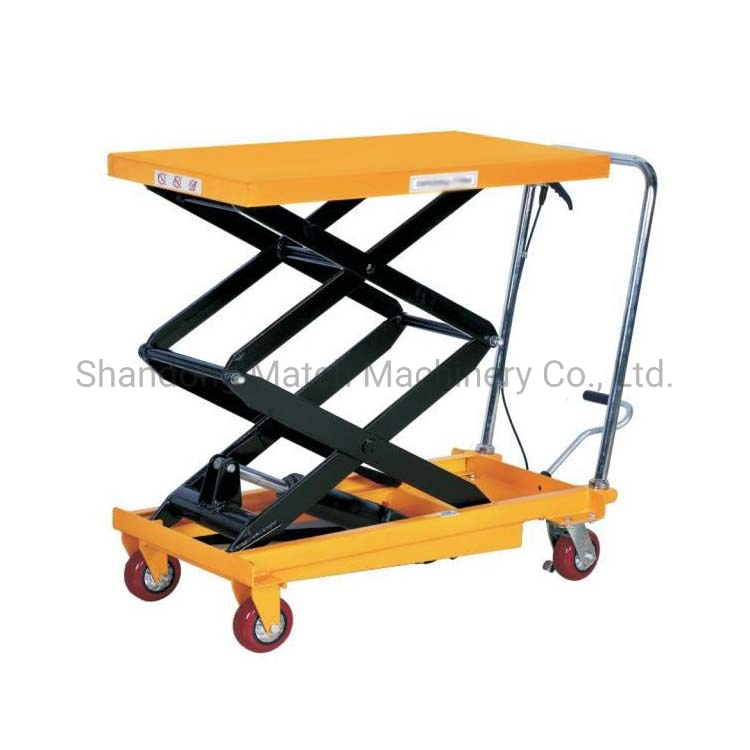

The PTS series hydraulic hand lift table is a professional mobile manual scissor lift platform designed for efficient material handling. As a vital component in high-altitude operation equipment, it is primarily used to convey goods between different working levels and can be installed either on the ground or within a pit.
| Model | Capacity (kg) | Min Height (mm) | Max Height (mm) | Dimension (mm) | Self Weight (kg) |
|---|---|---|---|---|---|
| PTS150 | 150 | 302 | 1260 | 700*450 | 50 |
| PTS350 | 350 | 350 | 1300 | 900*500 | 106 |
| PTS500 | 500 | 360 | 1500 | 905*500 | 110 |
| PTS800 | 800 | 450 | 1500 | 1200*610 | 150 |
| PTS1000 | 1000 | 500 | 1700 | 1200*610 | 225 |
A. Warranty Period: 12 months from receiving the platform lift (excludes man-made faults).
B. Spare Parts: Main parts are provided free of charge during the warranty period if quality issues occur.
C. Maintenance: Free maintenance for internal quality issues; material costs apply for man-made faults.
D. Limitations: Tires and electrical components are not covered under the standard warranty scope.
E. Technical Support: All-life long technical support via online and telephone services.
