| Model | HS1413H | Application | Workshop, Warehouse, Building Crane |
|---|---|---|---|
| Max. Working Height | 15.7m | Platform Capacity | 250kg |
| Lift Mechanism | Scissor Lift | Driven Type | Hydraulic |
| Platform Size | 2.64m x 1.12m | Gradeability | 25% |
| Drive Speed (Stowed) | 3.5km/h | Certification | GS, CE, RoHS, ISO 9001, ANSI |

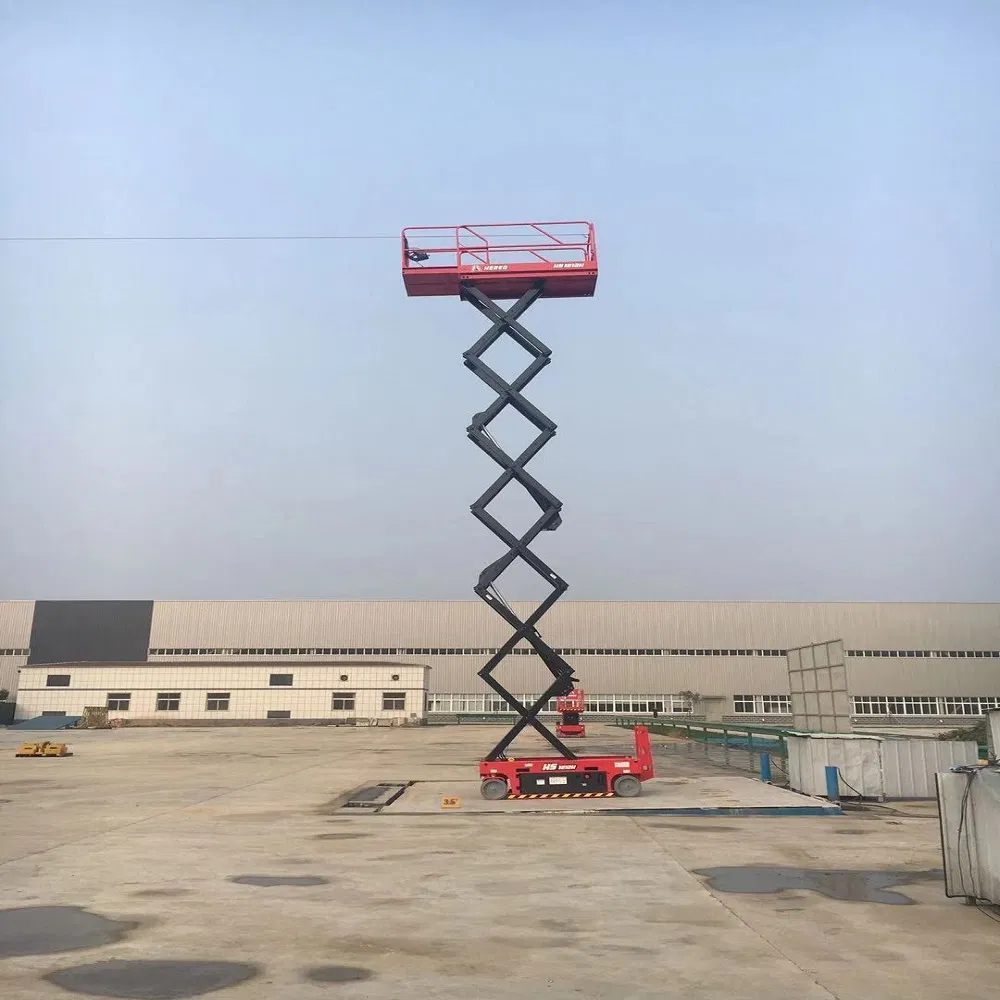

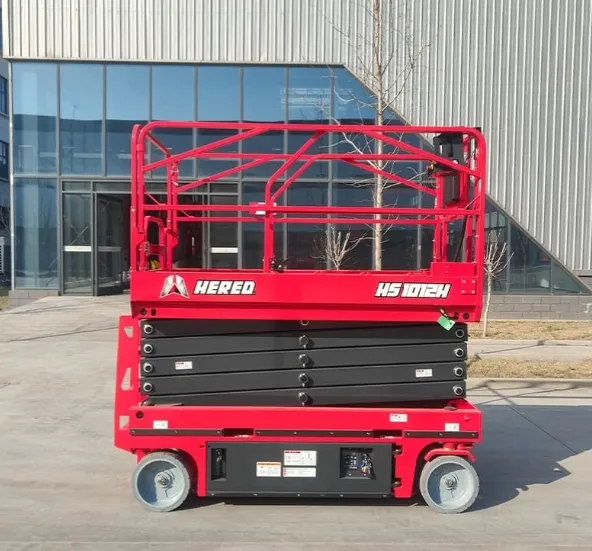

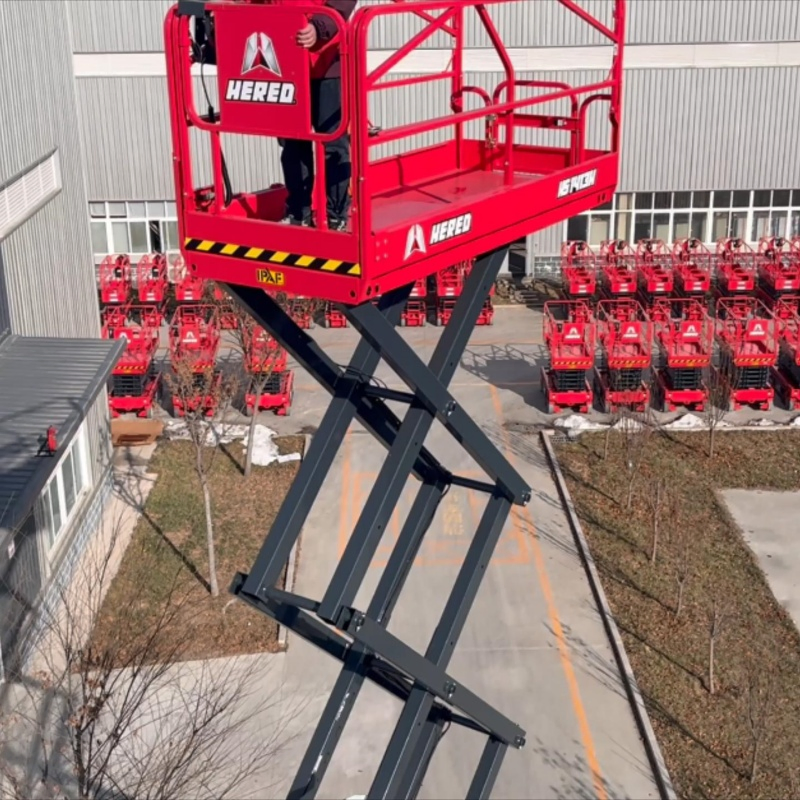

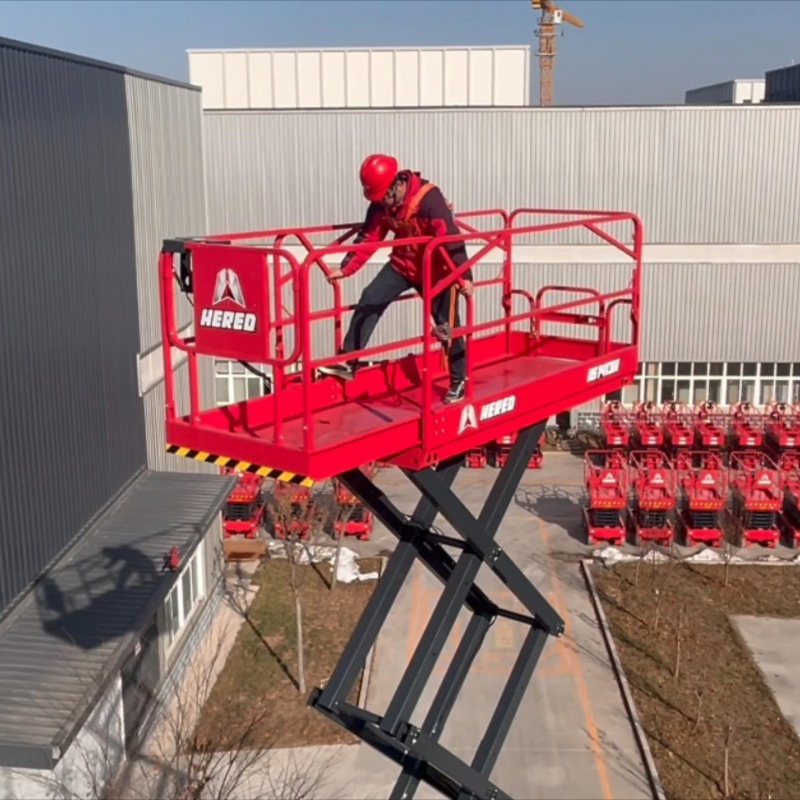

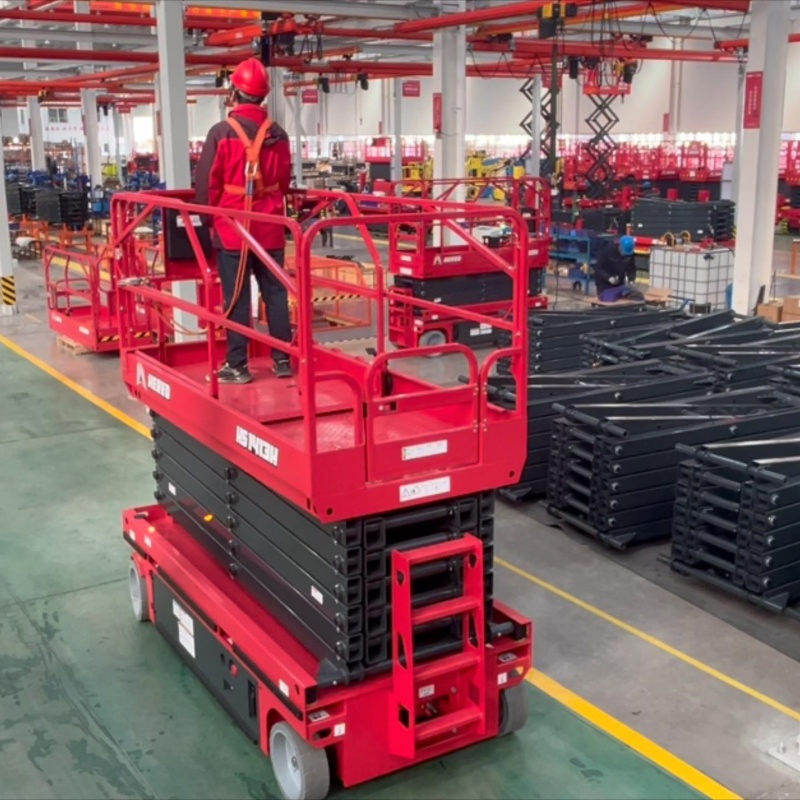

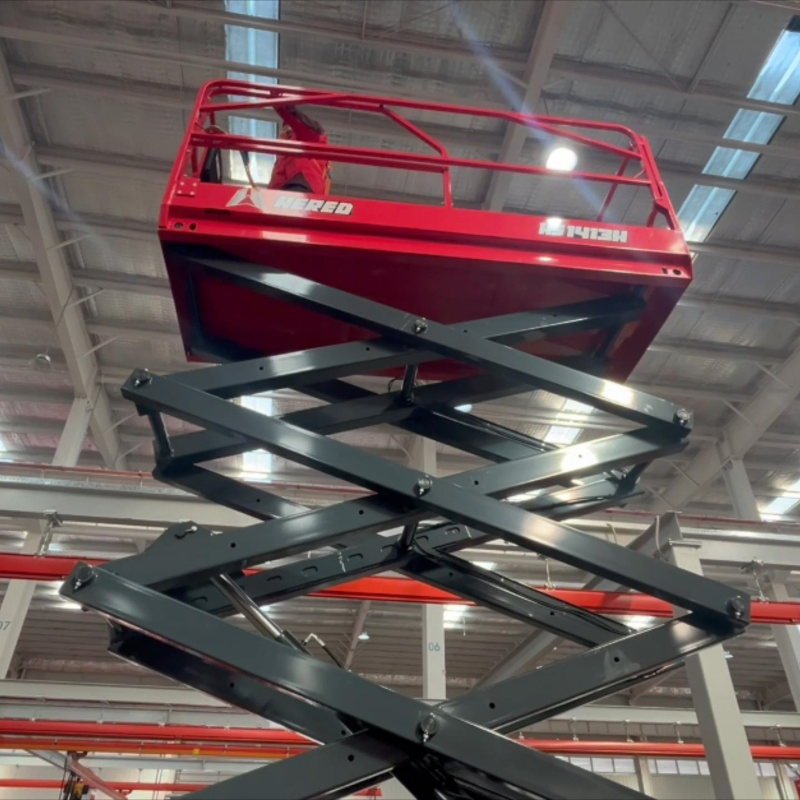

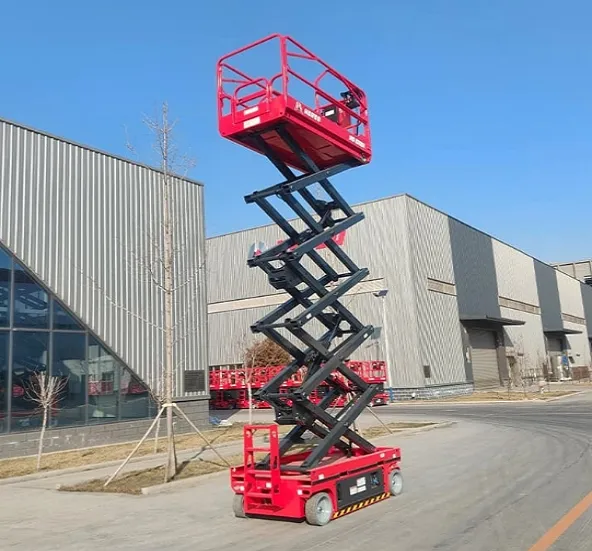

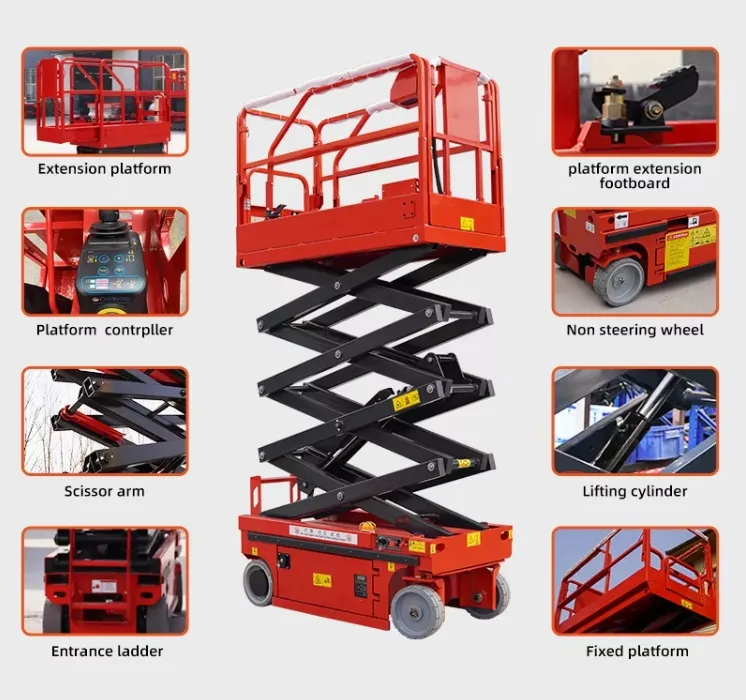

The hydraulic scissor lift platform is a highly versatile personnel lift, engineered for excellence to provide a large platform area for materials and personnel. This innovative mobile platform promises unparalleled performance, enduring durability, and versatile applications in warehouses, construction sites, and infrastructure projects.

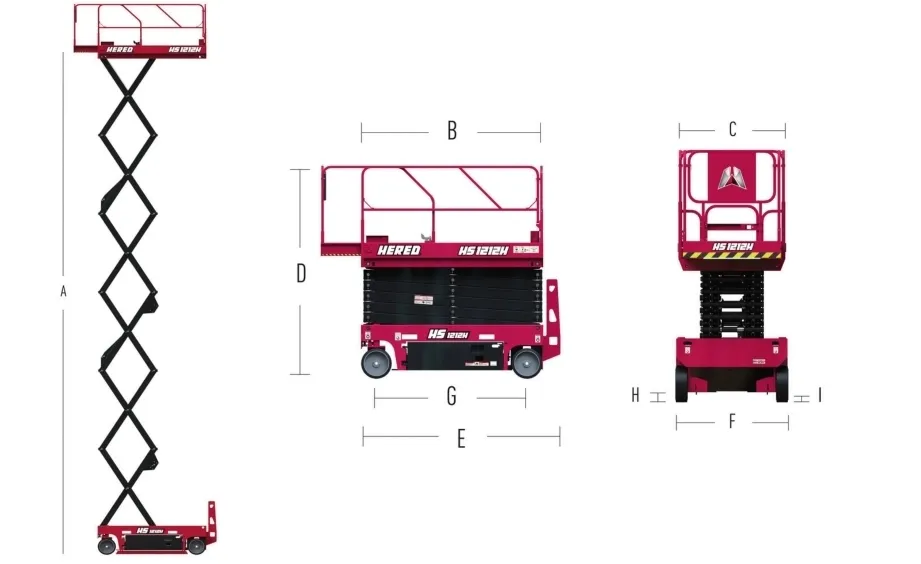

| Dimensions & Performance Data | |
|---|---|
| Max. Platform Height (In/Out) | 13.7m / 8m |
| Extension Size | 0.9m |
| Overall Length (with Ladder) | 2.84m |
| Overall Width | 1.25m |
| Wheel Base | 2.22m |
| Turning Radius (Outer) | 2.3m |
| Up/Down Time | 80/60s |
| Tires (Non-marking) | 381mm x 127mm |
| Power Source (Batteries) | 24V / 300Ah |
| Machine Weight | 3530kg |
Comprehensive safety function testing to ensure design reliability. Passed 100,000 fatigue tests, including climbing, potholes, and rollover trials.

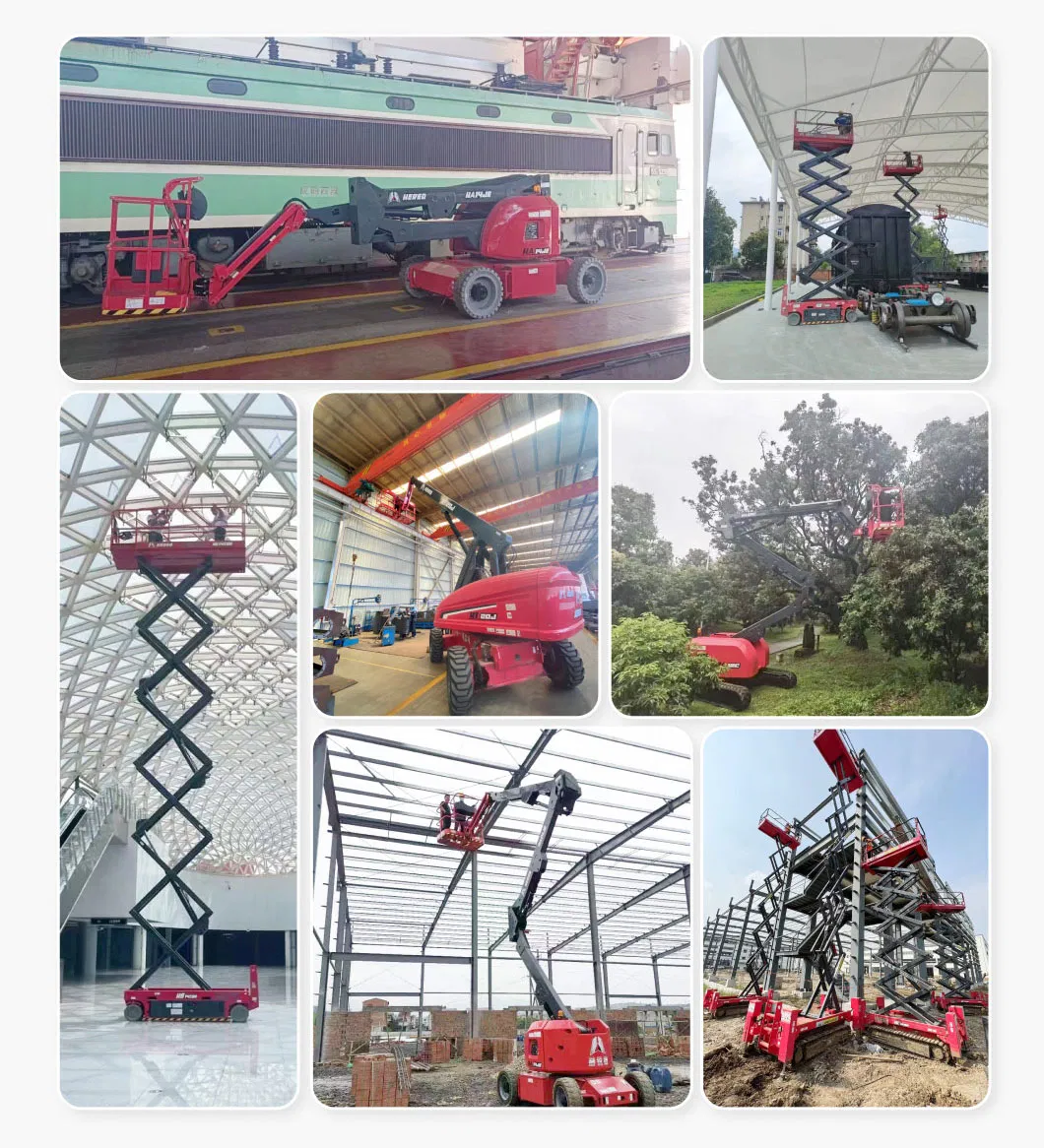

Suitable for various environments including indoor maintenance, outdoor construction, flat terrain, or rugged jobsites. Our scissor lifts are the ideal replacement for traditional scaffolding and hanging baskets.

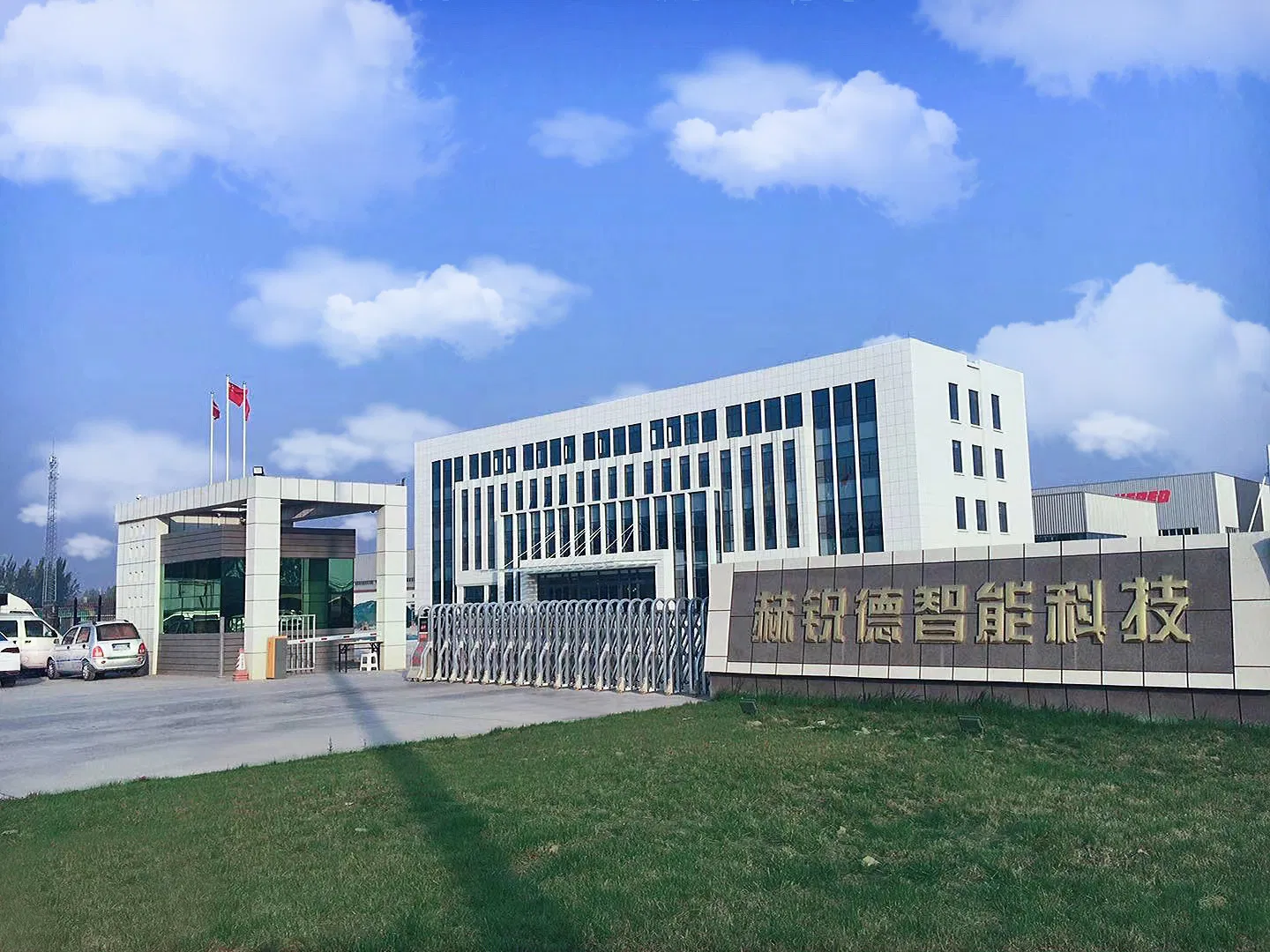

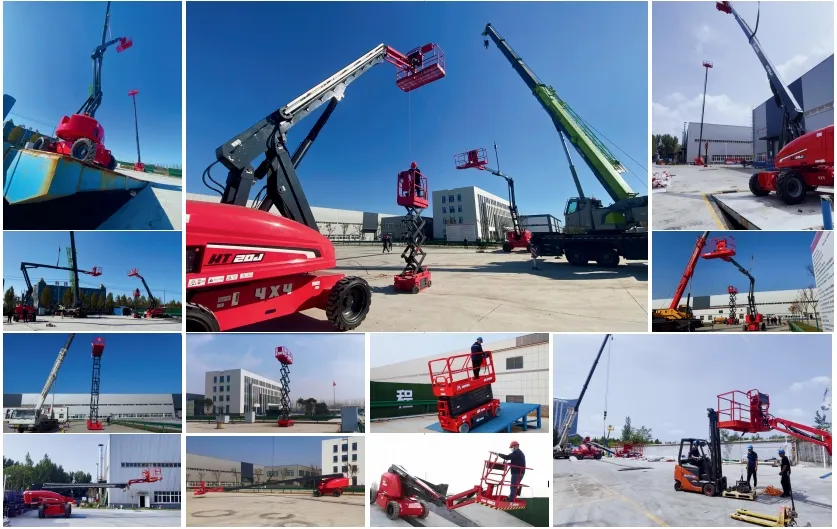

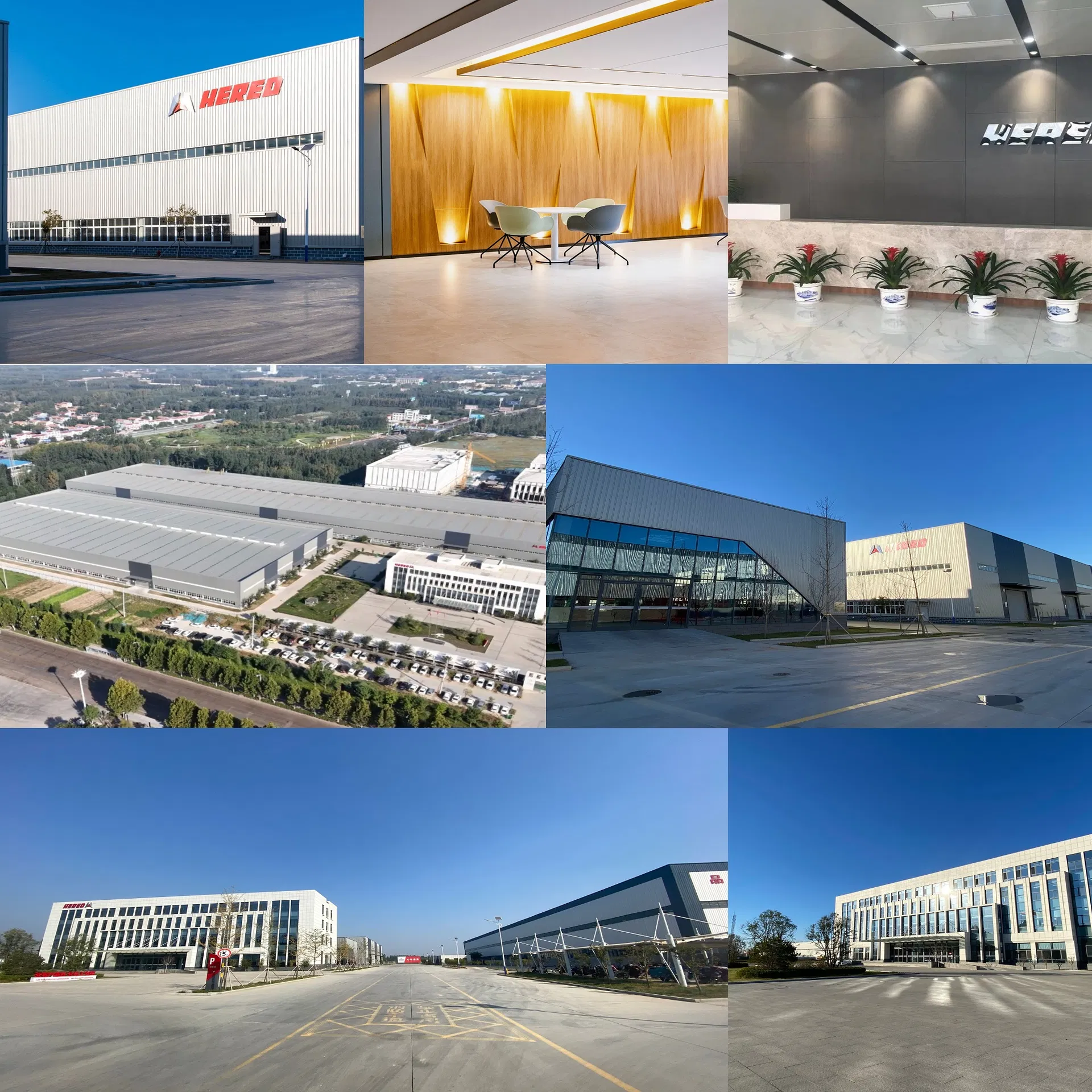

As a modern manufacturing enterprise, we integrate research, development, sales, and service of aerial work platforms. With an annual capacity of over 20,000 units, our facility is recognized as a high-tech green factory and digital workshop. We offer five series of platforms, including self-propelled, rough terrain, and crawler scissor lifts, as well as telescopic and articulated boom lifts.
