⚙️ Basic Information
Mounting Type
Ground, Bracket, Ceiling
Certification
ISO, CE, SGS
🚀 Product Features
-
★
Support up to 12-axis control, realizes the control of external axes (traveling axes and positioner).
-
★
Structural optimization algorithm suitable for the body control of various types of structure.
-
★
Open structure for synchronization of international technology and extension of functions. Industrial standards & reliable stability.
-
★
Software PLC functions facilitate logic control. Process functions make programming easy.
-
★
Modular setting of functions suitable for diverse applications. The safety module ensures the safe production.
-
★
Improved computer bus connection ensures reliability and practicability; supports absolute servo.

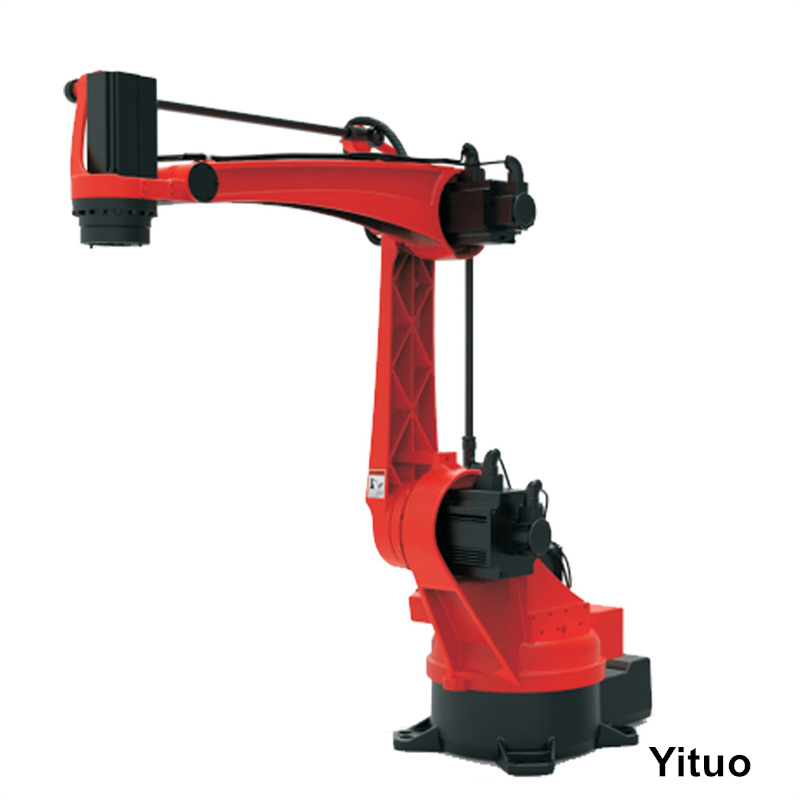

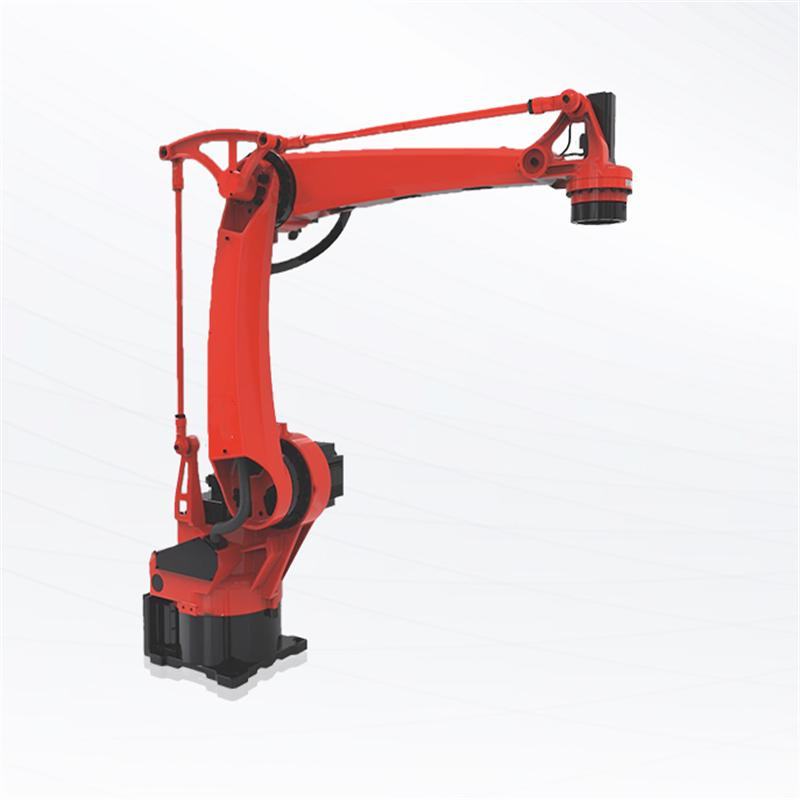

Arm span: 1500mm | Accuracy: ±0.05mm | Max load: 10KG | Power: 5.7KVA | Net weight: ~130KG
| Axis Group |
Axis |
Range |
Max Speed |
| Arm |
J1 |
±165° |
163°/s |
| J2 |
-95°/+70° |
148°/s |
| J3 |
-85°/+75° |
223°/s |
| Wrist |
J4 |
±180° |
250°/s |
| J5 |
±115° |
270°/s |
| J6 |
±360° |
337°/s |

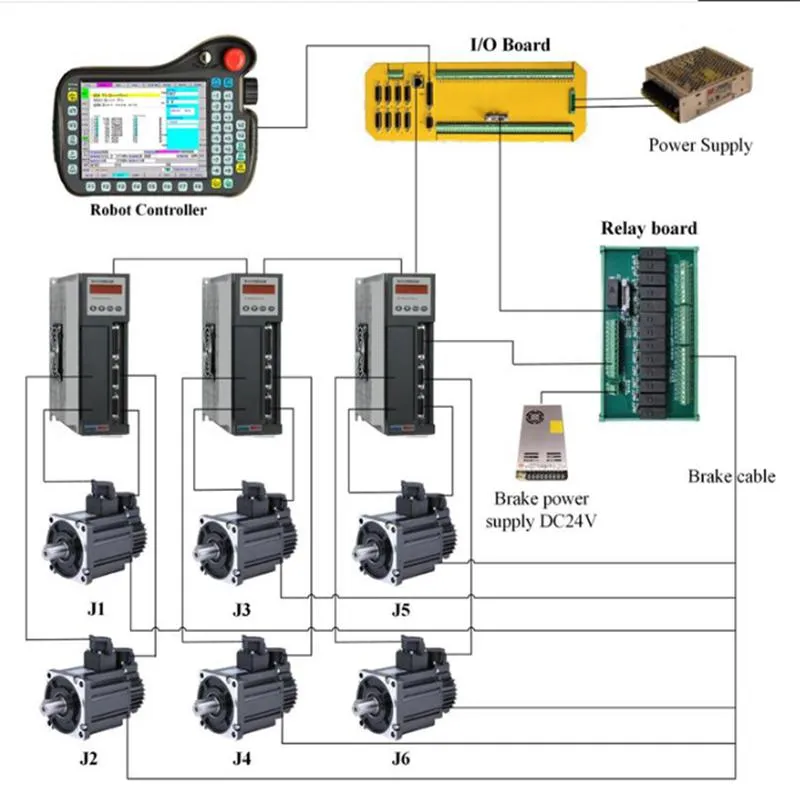

📸 Technical Details

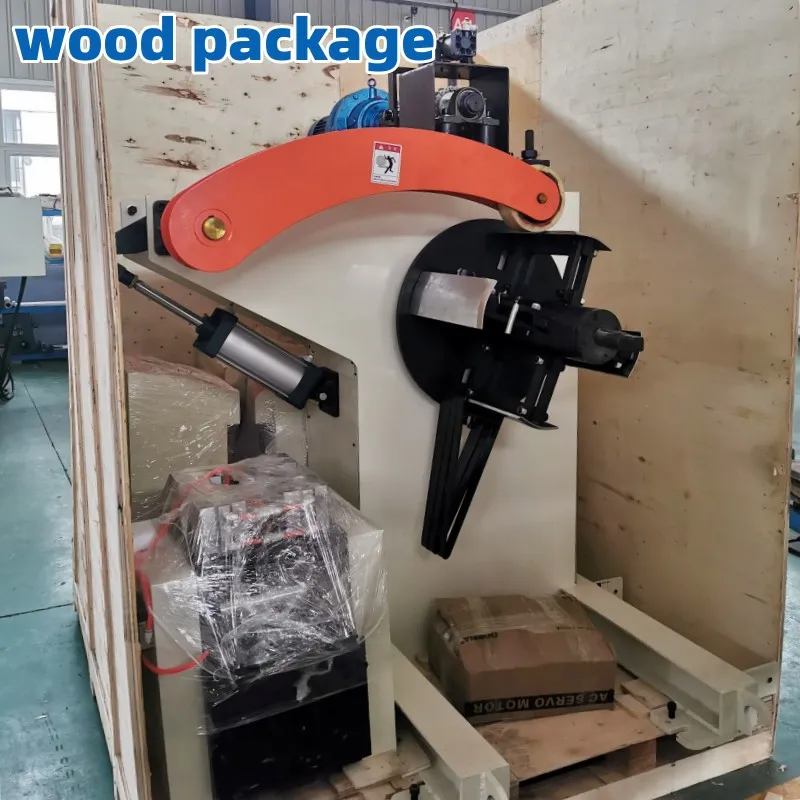

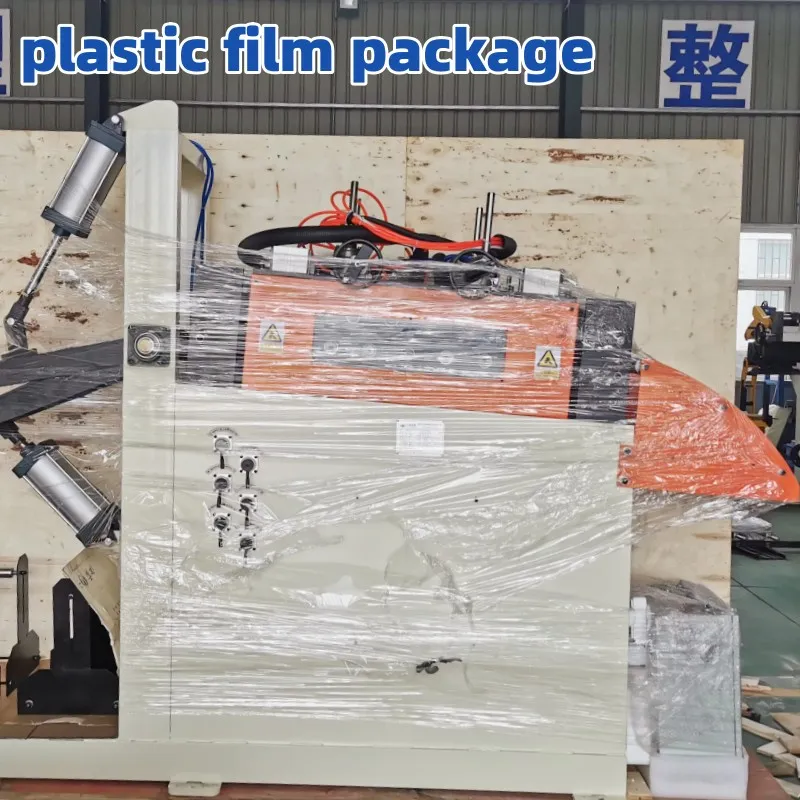

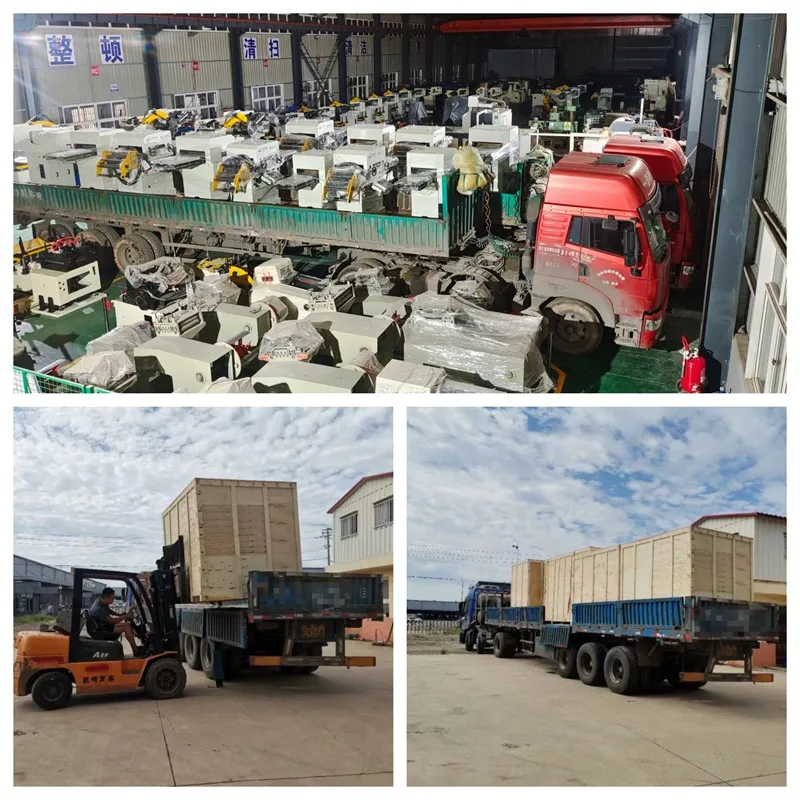

📦 Packaging & Delivery
Package Size
450cm * 510cm * 730cm
❓ Frequently Asked Questions
Are you a factory or trading company?
We are a factory which has been producing stamping automation machines for more than 20 years.
What's the delivery time for the equipment?
Standard machines take 25 to 30 working days. Compact coil feed lines or complete metal stamping lines require 30-70 workdays depending on specifications and production schedules.
Do you provide OEM or ODM services?
Yes, we warmly welcome customers for both OEM and ODM projects in our factory.
What is the warranty period for your machines?
Usually, the warranty period is 12 months. This can be extended based on specific project requirements.
What kind of after-sales support do you offer?
For standard machines, we provide technical guidance for self-installation. For complex lines, we can arrange overseas engineering services for on-site installation and operator training.
What information is needed for a detailed quotation?
Please provide: 1. Material type; 2. Coil thickness (min-max); 3. Coil diameters (Inner/Outer); 4. Maximum coil weight; 5. Required production capacity per day/month.
