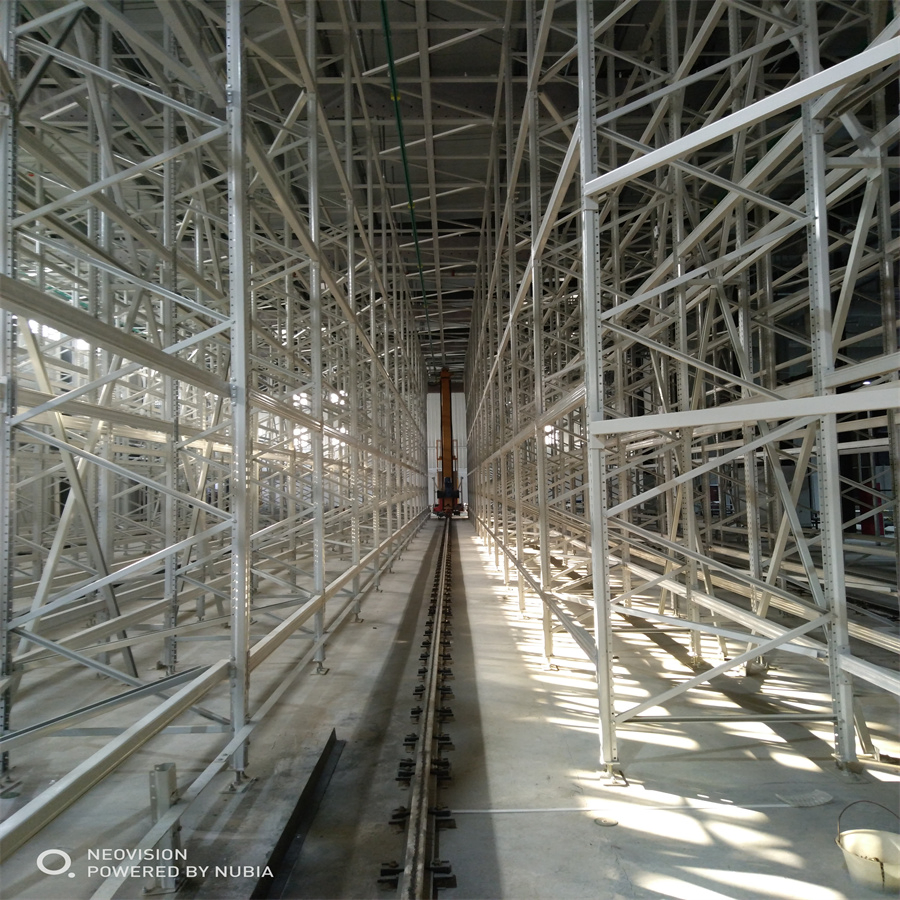

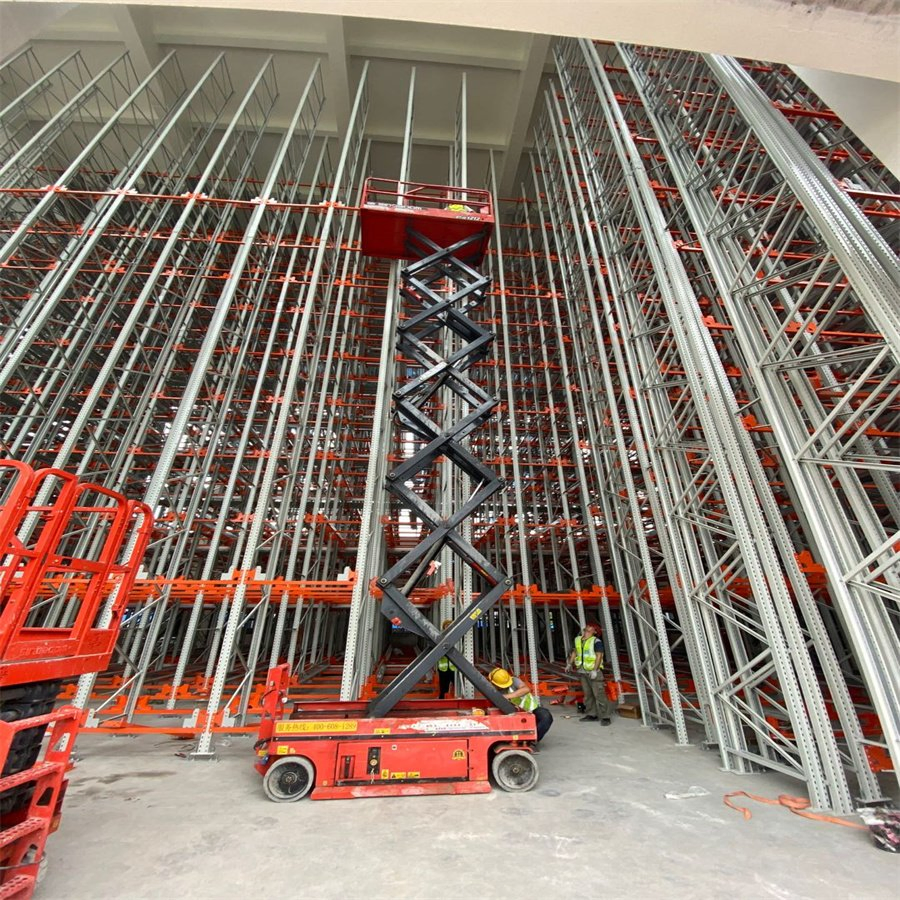

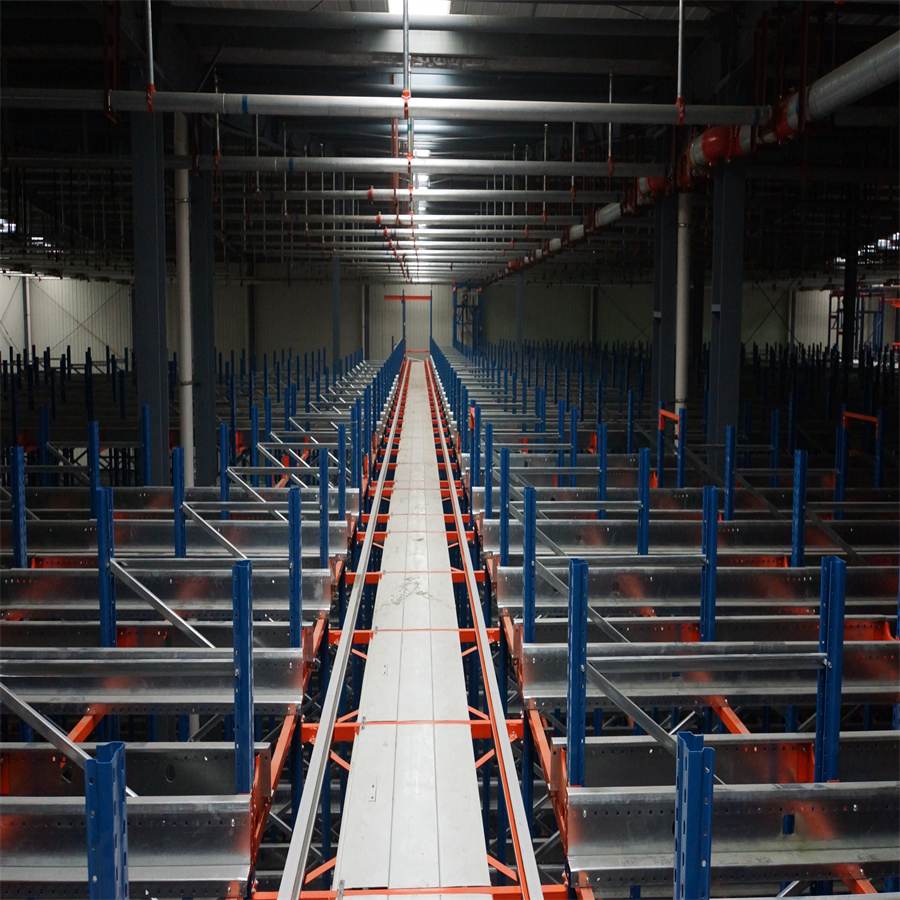

High Efficiency Asrs Racking Pallet Warehouse Storage Racking Multi Automated System
High Efficiency Asrs Racking Pallet Warehouse Storage Racking Multi Automated System
High Efficiency Asrs Racking Pallet Warehouse Storage Racking Multi Automated System
High Efficiency Asrs Racking Pallet Warehouse Storage Racking Multi Automated System
High Efficiency Asrs Racking Pallet Warehouse Storage Racking Multi Automated System
1 / 5
High Efficiency Asrs Racking Pallet Warehouse Storage Racking Multi Automated System
High Efficiency Asrs Racking Pallet Warehouse Storage Racking Multi Automated System
High Efficiency Asrs Racking Pallet Warehouse Storage Racking Multi Automated System
High Efficiency Asrs Racking Pallet Warehouse Storage Racking Multi Automated System
High Efficiency Asrs Racking Pallet Warehouse Storage Racking Multi Automated System

High Efficiency Asrs Racking Pallet Warehouse Storage Racking Multi Automated System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.HYD-ASRS-R01
StructureRack
TypeSelective Pallet Racking
MobilityCombined
ClosedOpen
DevelopmentNew Type
ServiceabilityCommon Use
Pallet Size1*1.2 or Customized
Warehouse TypeExisting or New Build Warehouse
Storage MediumPallet, Metal Cage or Others
SpecificationQ235 STEEL
OriginChina
🚀 Product Description

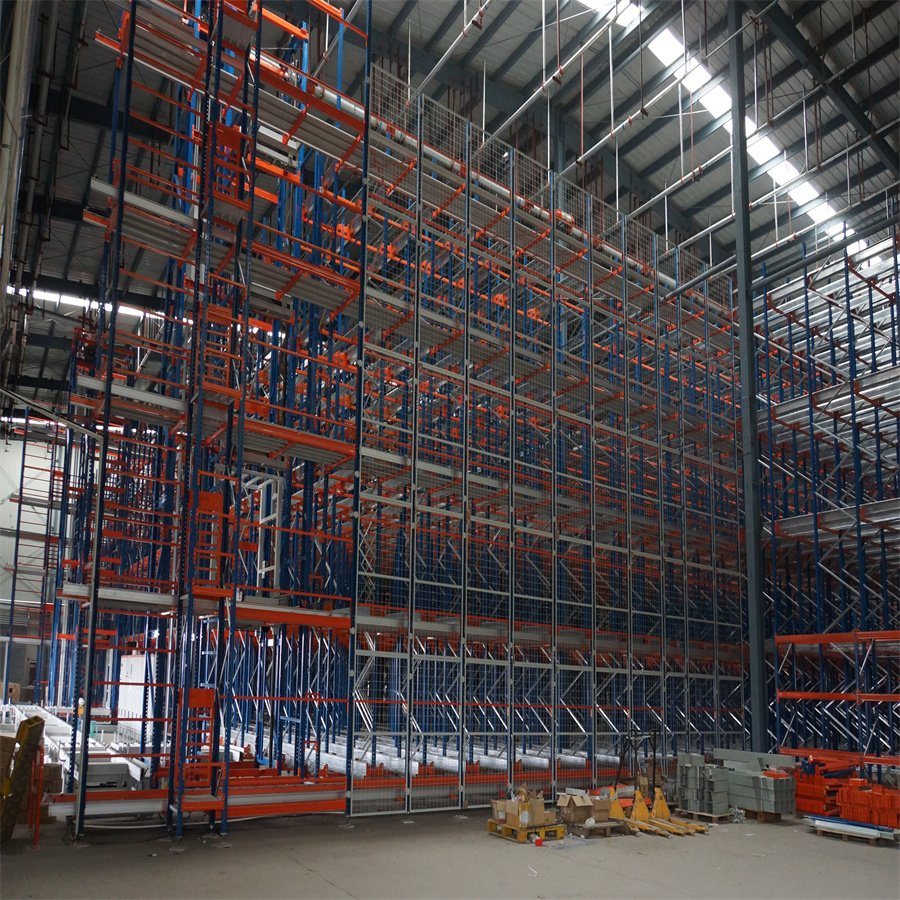

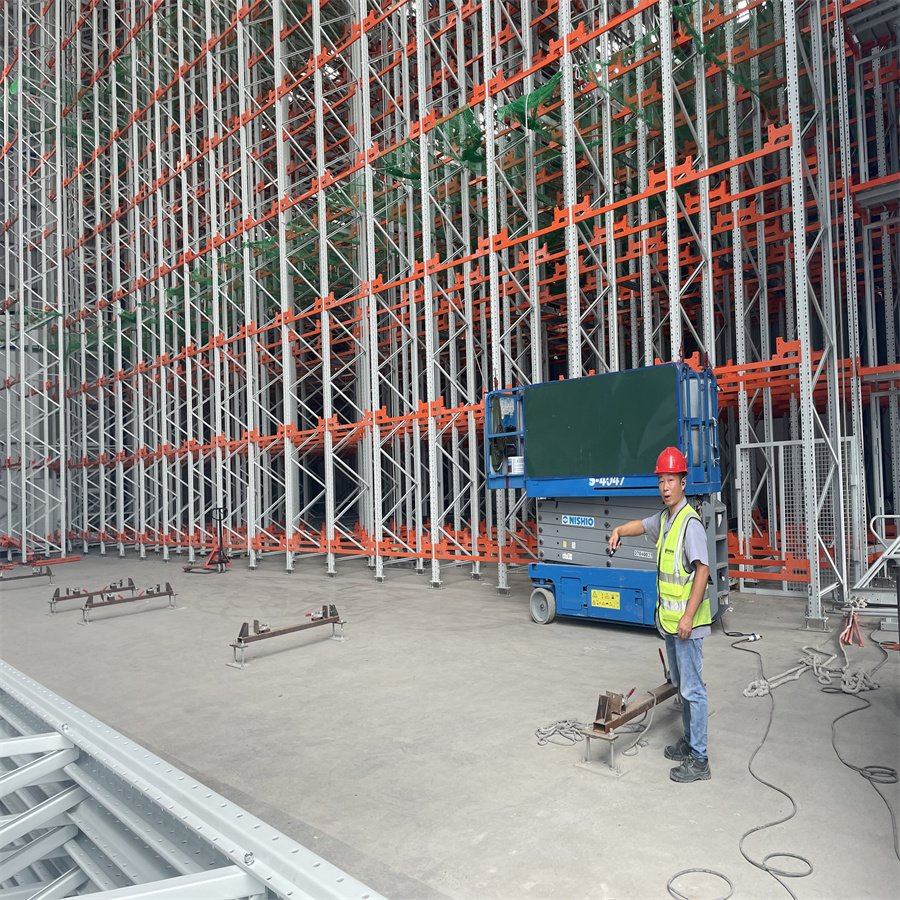

Automated Storage and Retrieval System (ASRS) for pallets is an advanced automated solution that efficiently stores and retrieves goods, replacing manual warehousing tasks. The storage and retrieval machine (SRM) operates as a crane moving vertically within a single aisle. These computer-controlled systems offer extreme accuracy in very narrow aisles (reduced to nearly 2000mm), creating 40% more storage space compared to traditional layouts.

✓
High-Bay Optimization: Engineered to optimize space in high-bay warehouses with precision manufacturing and robust floor-bolted structures.
✓
Stacker Crane Core: Features horizontal driving, vertical lifting, and telescopic forks with QR code precise positioning.
✓
Cold Storage Ready: Specially treated anti-low temperature design makes this system suitable for refrigeration projects.
Compact Footprint Delivers high storage density within a minimal area.
Safety Assurance Tailor-made according to local design criteria for maximum safety.
Extreme Height Fully bolted system offering stability up to 45 meters high.
Fast Installation Block-stack method ensures high-speed project implementation.
⚙️ Product Parameters
Product NameHigh Efficiency ASRS Racking Pallet System
MaterialQ235B / Q355 steel
Weight Capacity50kg - 6000kg / pallet
StructureFree-standing or Rack supported Building
Surface TreatmentPowder Coated
CertificationISO 9001
Industry ApplicationFood, Beverage, Deep-freeze, Logistics, Chemical, Pharmacy, Apparel, etc.
🖼️ System Visuals

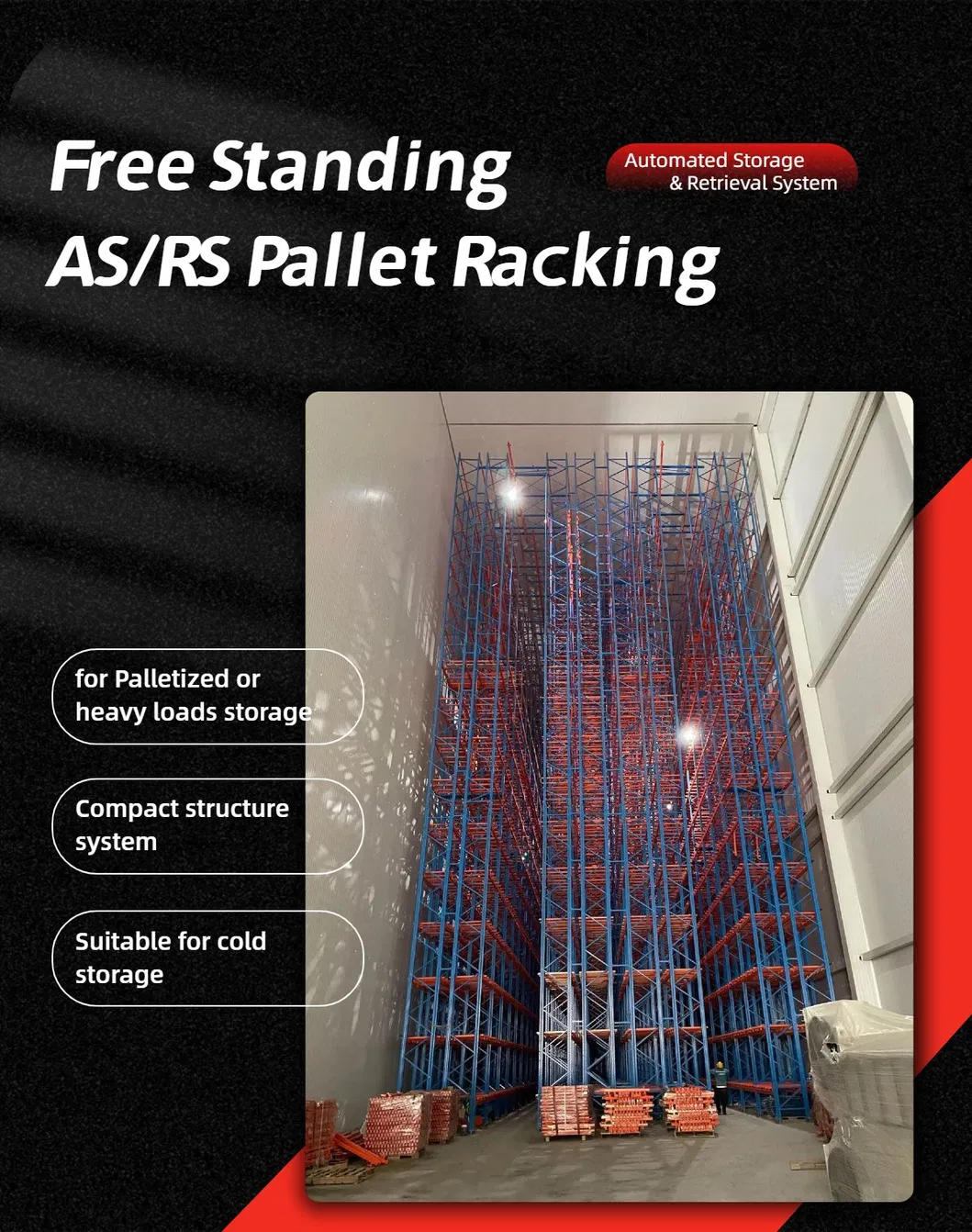

ASRS System View 1
ASRS System View 2

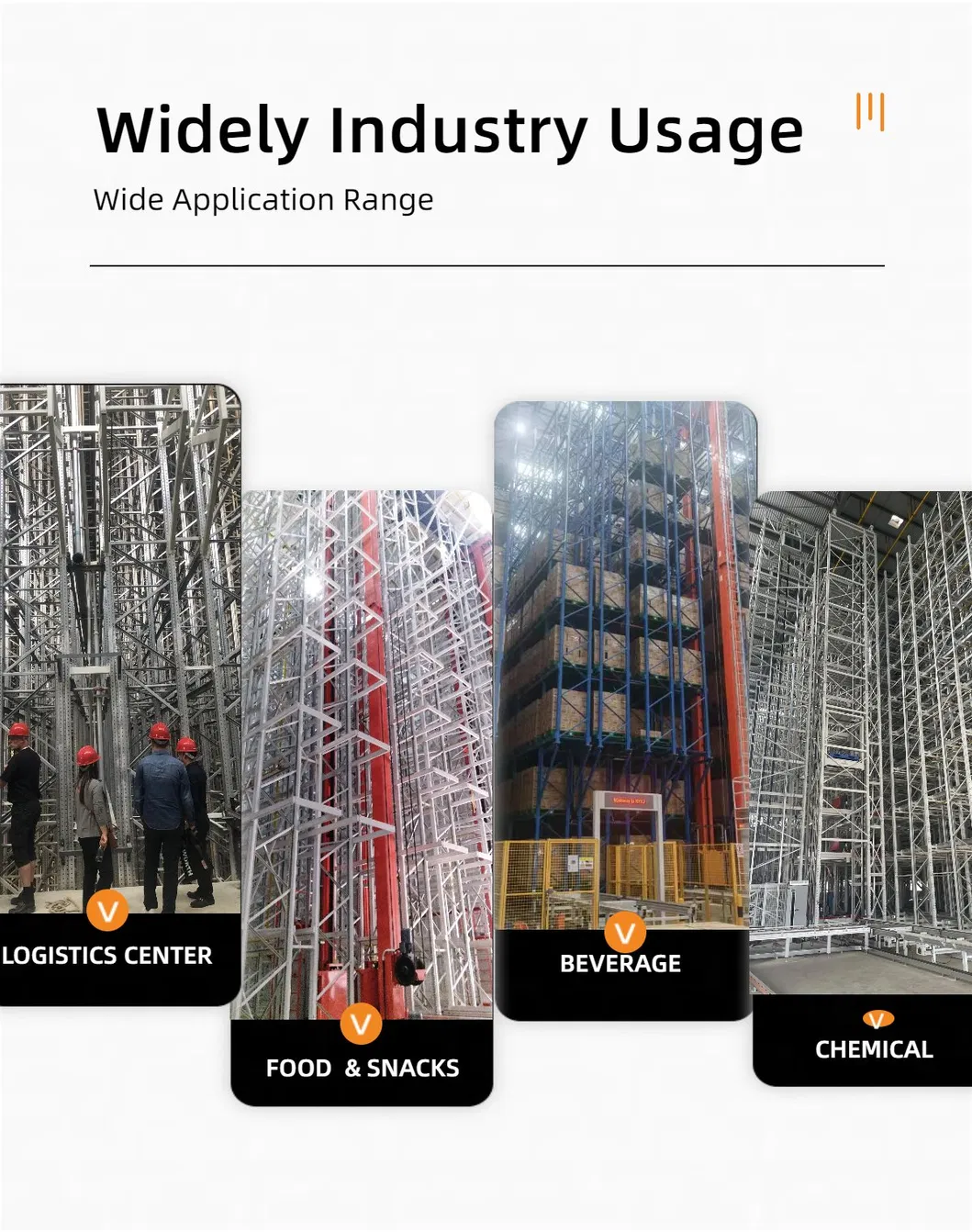

ASRS System View 3
📦 Racking Components

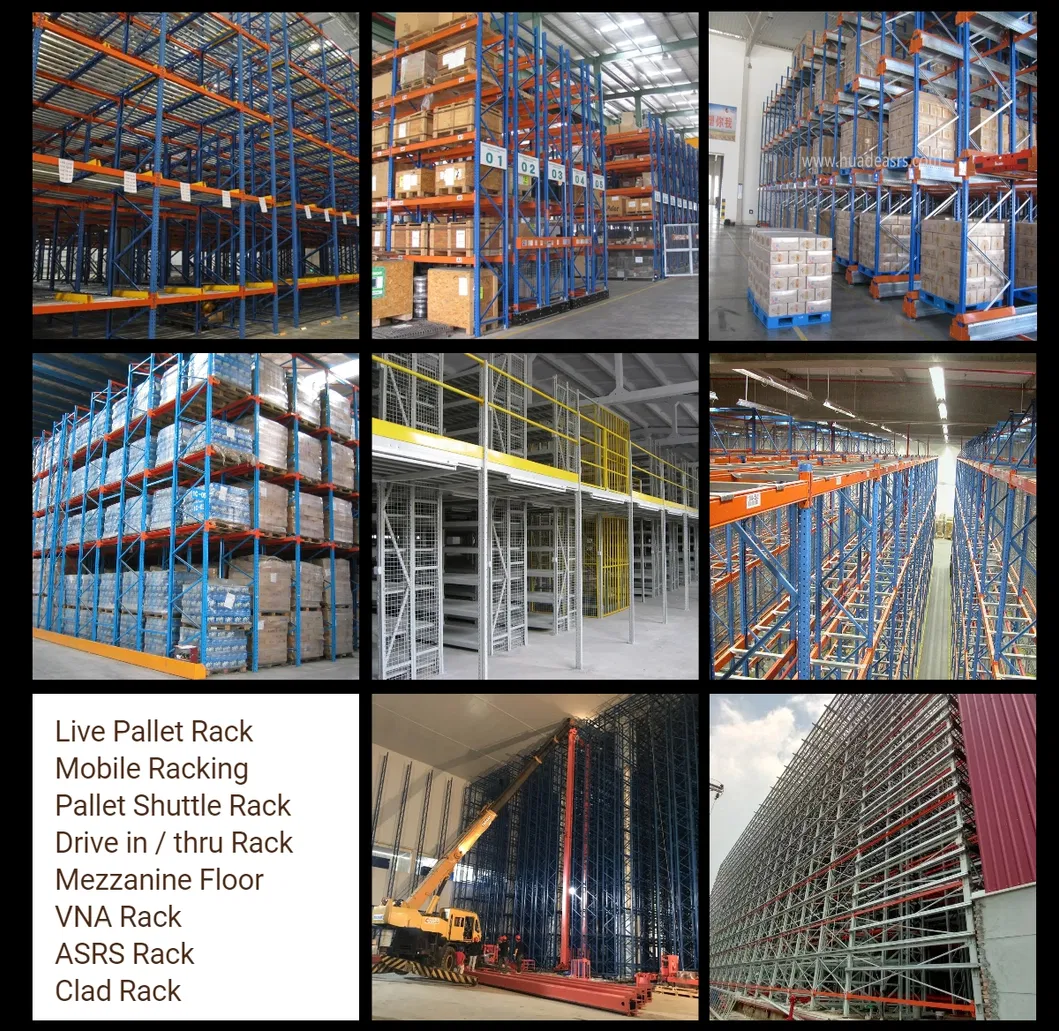

Racking Detail 1
Racking Detail 2
Racking Detail 3
Racking Detail 4
Racking Detail 5

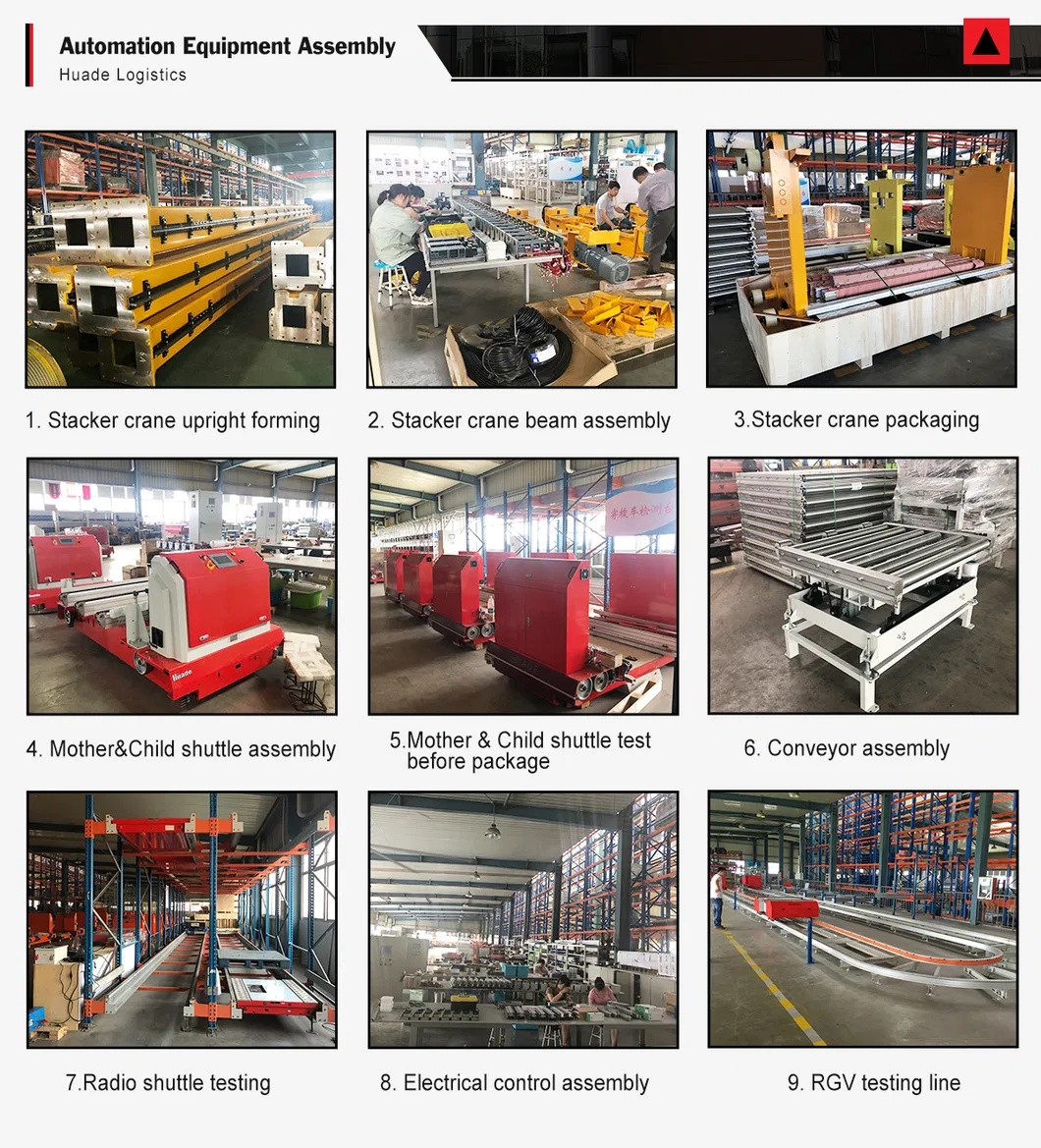

Racking Detail 6
Racking Detail 7
Racking Detail 8
Racking Detail 9
❓ Frequently Asked Questions
What types of ASRS systems are available?

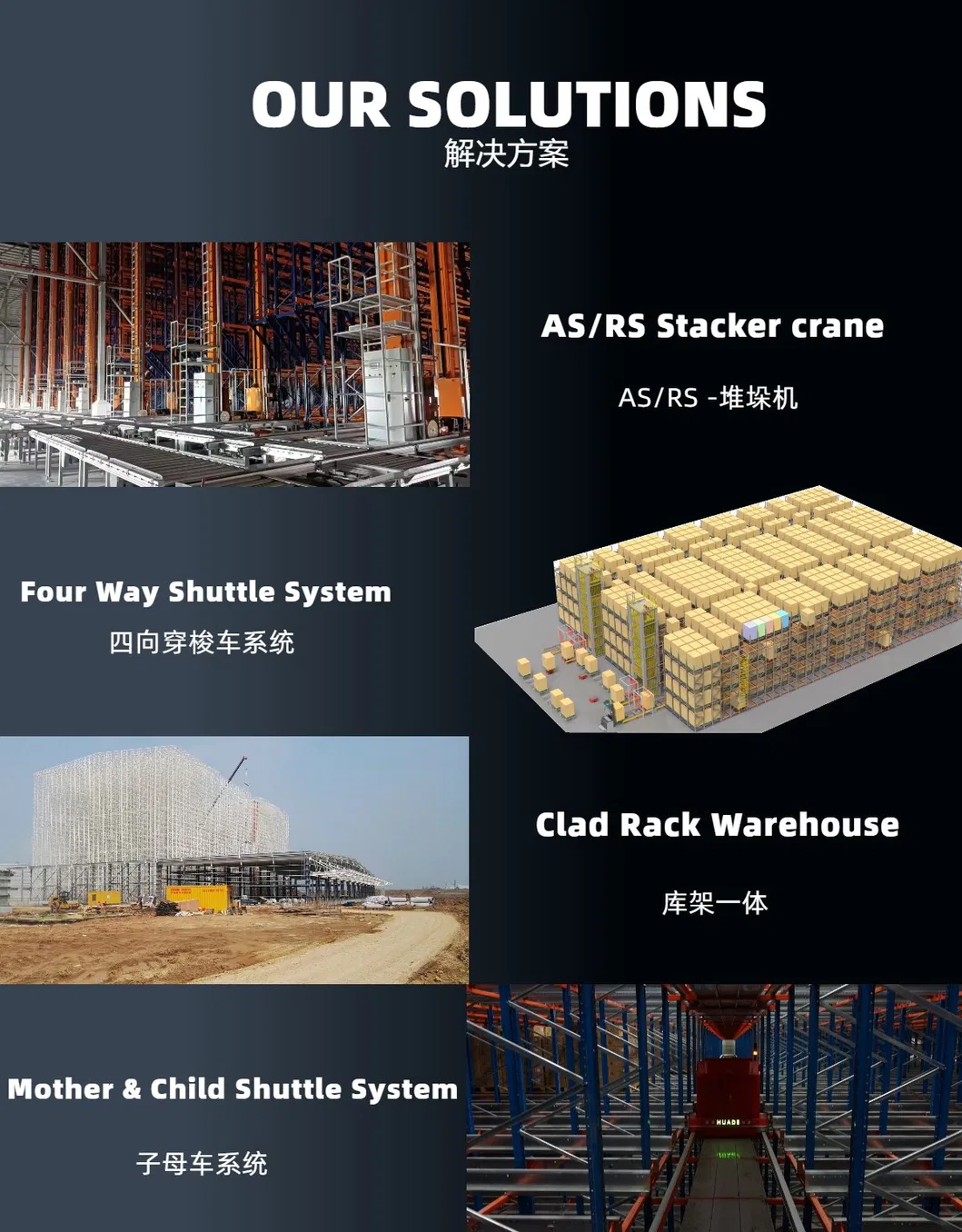

We offer Pallet Type (Unitload), Box/Container Type (Miniload), Shuttle Storage systems, and Rack-supported building types to suit various warehouse needs.
How much space can an ASRS system save?
By utilizing narrow aisles (approx. 2000mm) and high-bay vertical space, ASRS can increase storage capacity by up to 40% compared to traditional racking.
Is the system suitable for cold storage environments?
Yes, the stacker cranes and racking components feature a specially treated anti-low temperature design, making them ideal for deep-freeze warehouses.
What is the maximum height for the racking structure?
The fully bolted system is engineered for stability and reliability at heights of up to 45 meters.
What materials are used for the racking?
The systems are primarily constructed using high-quality Q235B or Q355 steel with a durable powder-coated surface treatment.
How is the project implementation handled?
We follow a 6-step process: Define objectives, Measure business data, Analyze requirements, Design the model, Validate feasibility, and present the final solution.
