| Model NO. | HDR-001 |
| Structure | Rack |
| Type | Selective Pallet Racking |
| Mobility | Adjustable |
| Height | 5-15m |
| Weight Capacity | More Than 1,000kg per pallet |
| Surface Treatment | Powder Coated |
| Color | Blue and Orange |
| Certificate | CE, SGS |
| HS Code | 73089000 |
| Production Capacity | 5,000 Ton/Month |

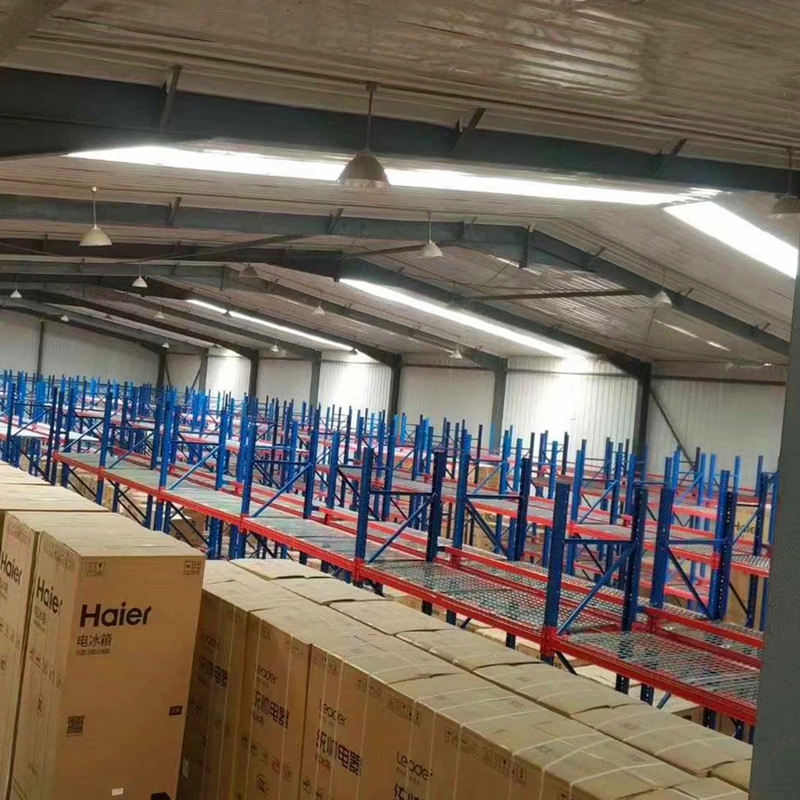

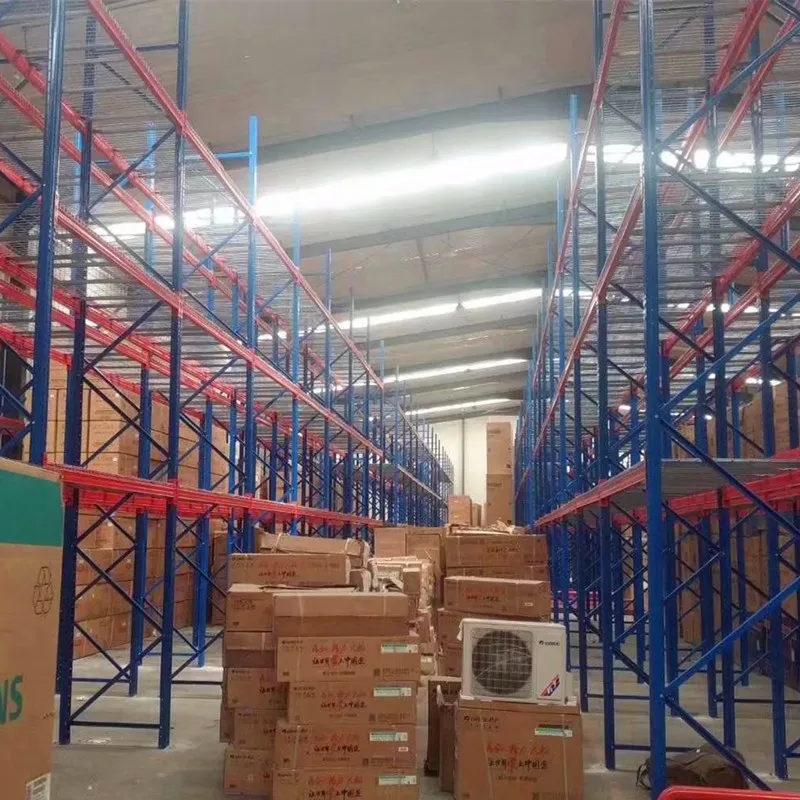

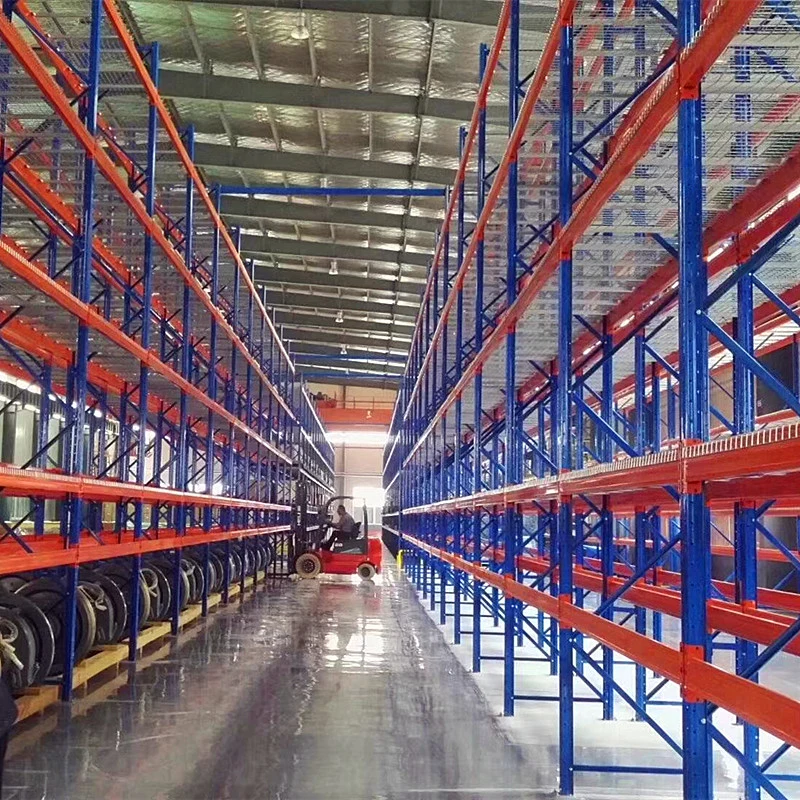

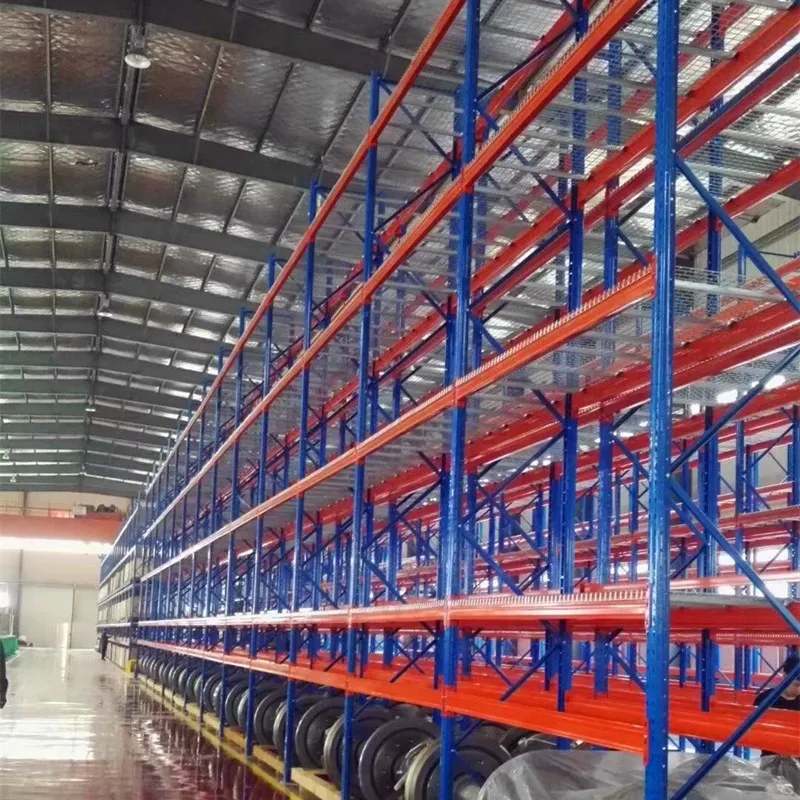

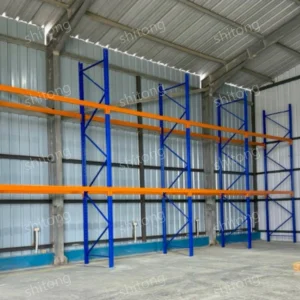

Heavy Duty Steel Selective Pallet Racking for Industrial Warehouse Storage Solutions
This pallet rack system is highly cost-effective, providing high-capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility. It installs quickly and adjusts easily to meet your specific warehouse needs.
| Style | Pallet storage warehouse rack |
| Selection | Single Row, back-to-back Rows and multiple Rows |
| Standard Dimensions |
Pallet: 1200*800 / 1200*1000 / 1100*1100 / 1066*1220 mm Depth: 900mm / 1000mm / 1020mm Width: 2300mm / 2432mm / 2500mm / 2700mm Height: Pitch adjusted by increments of 75mm |

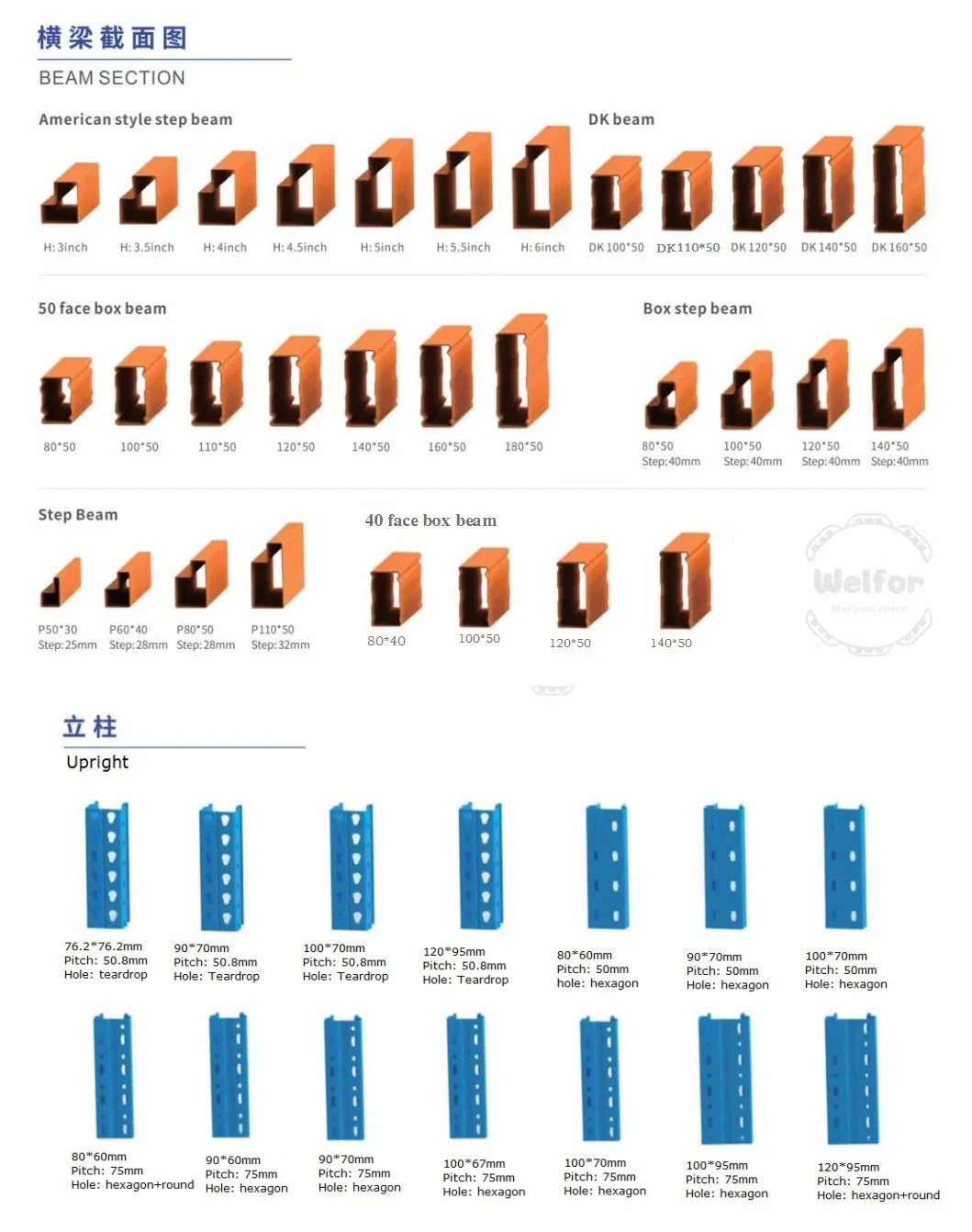

| Beam Range | Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm |
| Upright Range | 80*60 to 120*87mm; Thickness: 1.5~3.0mm |
| Weight Capacity | 5000KG per level max; 1500KG per pallet max |
| Lead Time | 15-20 days for one container |

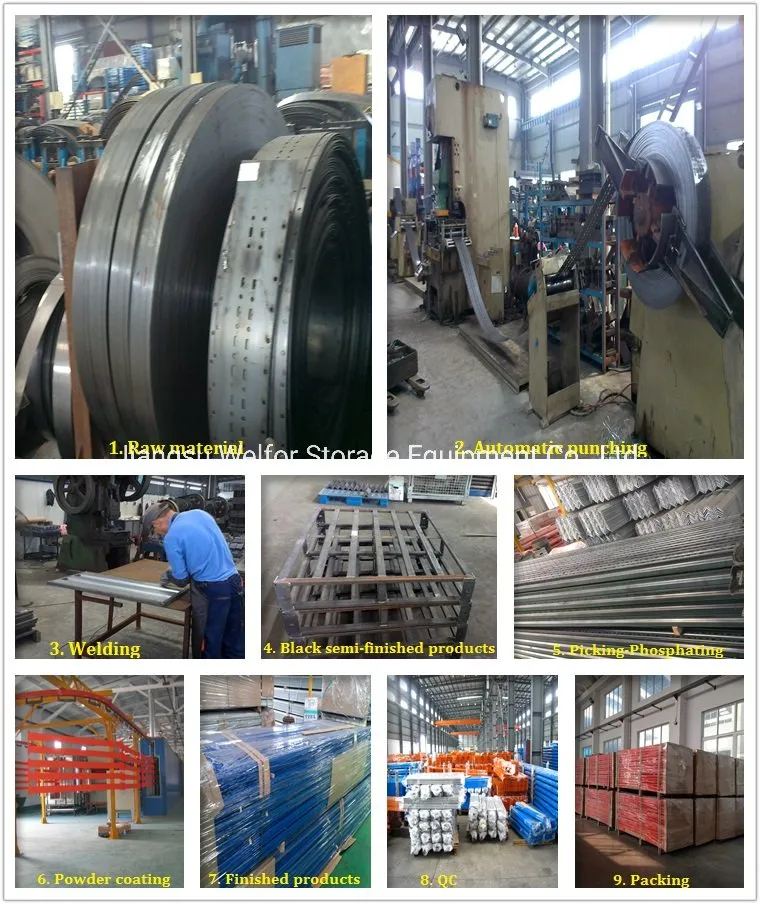

Production Process
