Heavy Duty Warehouse Pallet Storage Racks for Raw Material Storage

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

WD-PR-005

Usage

Tool Rack, Beverage, Tools, Industrial, Warehouse Rack, Logistics

Material

Steel

Structure

Rack

Type

Pallet Racking

Mobility

Fixed

Height

5-15m

Weight

up To 6000kg

Closed

Allow Closed Bay, Open Bay

Development

New Type

Serviceability

Common Use

Upright

80*70/90*70/105*70/120*85

Hole Pitch

50.8mm

Box Beam Size

80*50/90*50/100*50/110*50/140*50/160*50

Upright Thickness

1.8/2.0/2.5/2.75/3.0 mm

Beam Thickness

1.5/1.8/2.0mm

Lead Time

15 Working Days

Finish

Powder-Coated or Galvanized

📦 Product Description

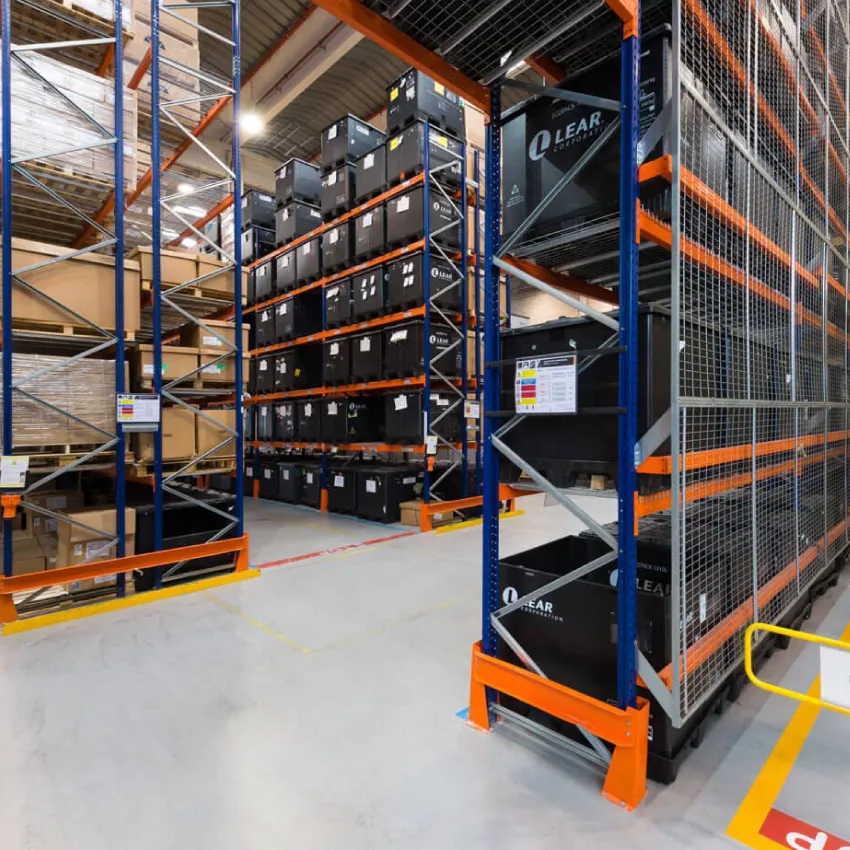

What is Pallet Rack?

Pallet rack is a storage system designed for warehouses and other industrial applications. It is known for its ease of assembly, adjustability, and safety. The key feature of this rack is the teardrop-shaped punched holes in the vertical posts (uprights).

⚙️ Technical Specification

Upright	8070/9070/10570/12085
Hole Pitch	50.8mm
Box Beam Size	8050/9050/10050/11050/14050/16050 /12050/13050/14050/16050
Upright Thickness	1.8/2.0/2.5/2.75/3.0 mm
Beam Thickness	1.5/1.8/2.0mm
Frame Height	Up to 12000mm
Beam Length	Up to 6000mm
Capacity Per Layer	500-4000KG

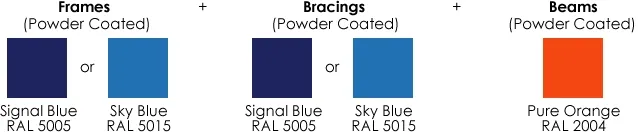

Finish	Powder-coated or hot dip galvanized as required

*Other dimensions as required are available

🌟 The Benefits of Pallet Rack

Quick Installation & Easy Disassembly: Designed for fast setup and breakdown, simplifying relocation or expansion.
Highly Adjustable Design: Beam levels can be repositioned easily to accommodate changing pallet heights.
Safe and Structurally Secure: Built with safety locking mechanisms and robust materials for structural integrity.
Versatile Storage Applications: Suitable for standard pallets or irregular-shaped goods across various industries.
Cost-Effective Investment: Offers an economical storage solution with high ROI for low to medium turnover inventory.
Universal Component Compatibility: Teardrop-style components allow for cross-compatibility between various brands.

Frequently Asked Questions

What are the standard payment terms?

We accept T/T with a 30% deposit upon order confirmation. The remaining 70% balance is payable against the copy of the Bill of Lading. L/C and O/A terms are also available upon credit approval.

What is the typical lead time for an order?

Standard lead time is 15-25 working days after the deposit is received. For standard in-stock products, shipment can be arranged within 7 working days.

How are the goods delivered?

We offer flexible shipping options including sea freight via major international ports, or through client-designated forwarders. We support EXW, FOB, CIF, and DDP terms.

What customization services do you provide?

We offer full OEM & ODM services, including customization based on drawings or sketches. Our engineering team provides warehouse planning and design support to maximize efficiency.

What is the international trading process?

The process follows these steps: Requirement sharing → Design confirmation → Quotation & PI → 30% Deposit → Production → Quality Inspection → 70% Balance payment → Shipment & Document sharing.

Is there a Minimum Order Quantity (MOQ)?

There is no strict MOQ. However, for cost-effectiveness, we recommend ordering at least one 20ft container (approx. 15-20 tons) to optimize freight costs and qualify for better pricing.
