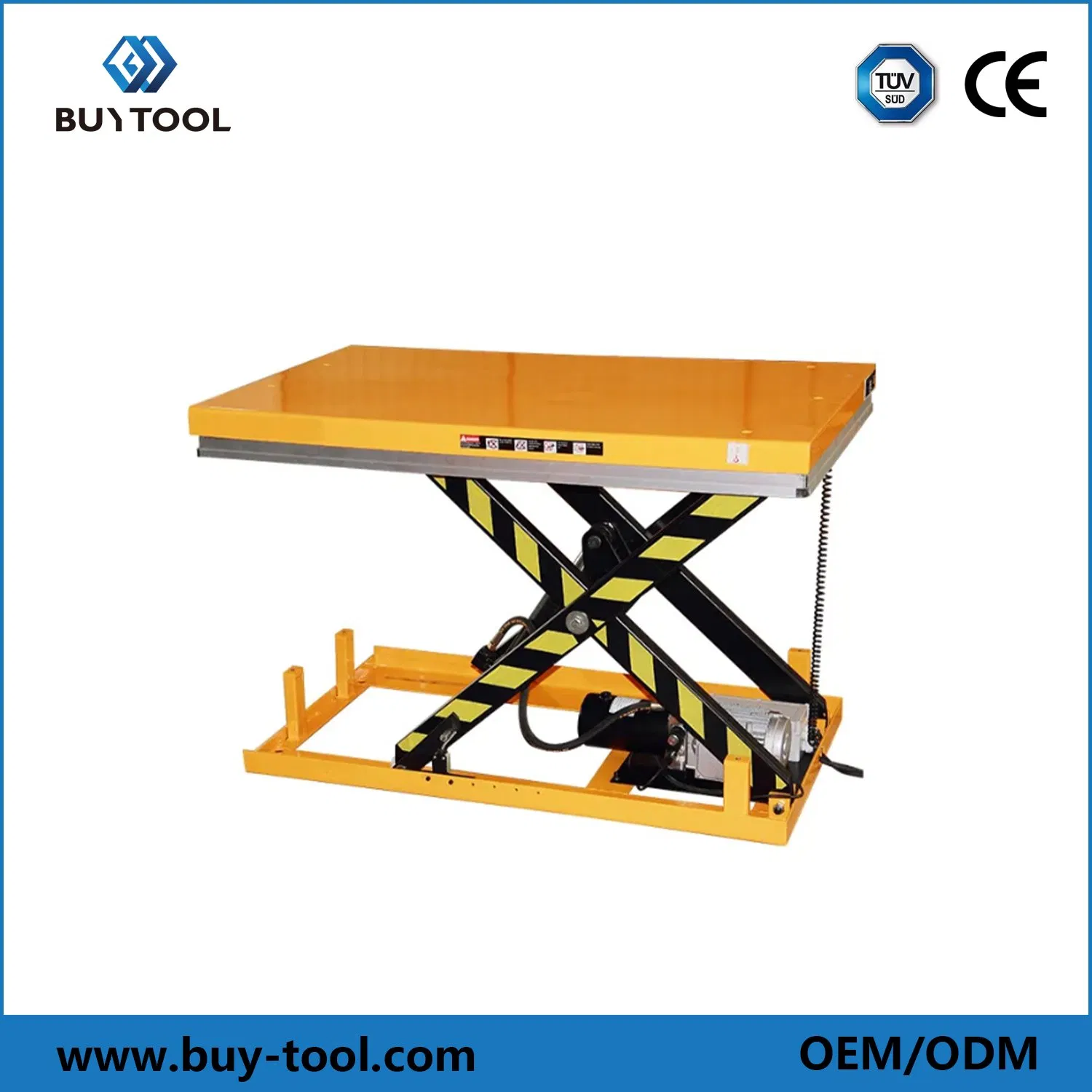

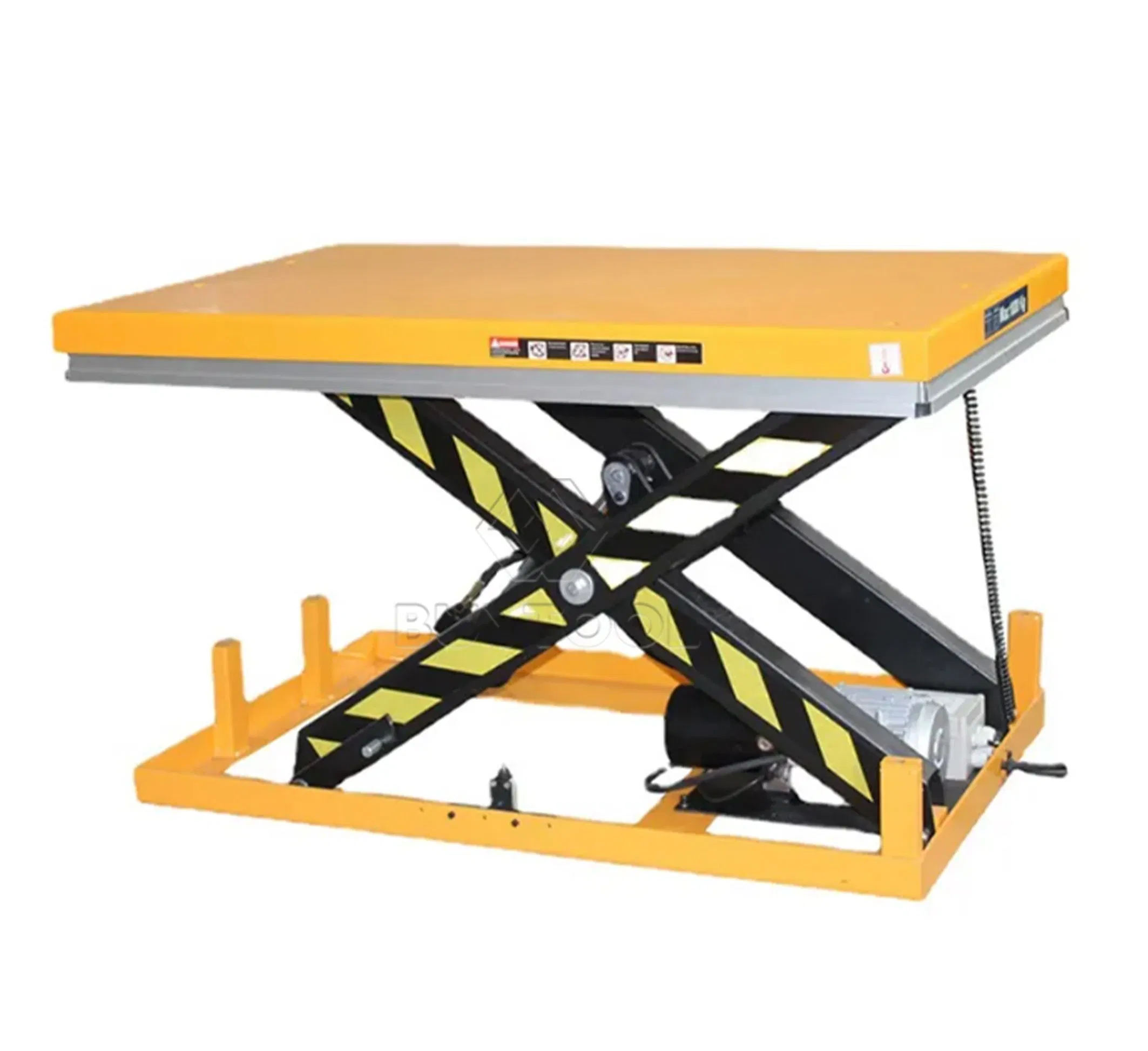

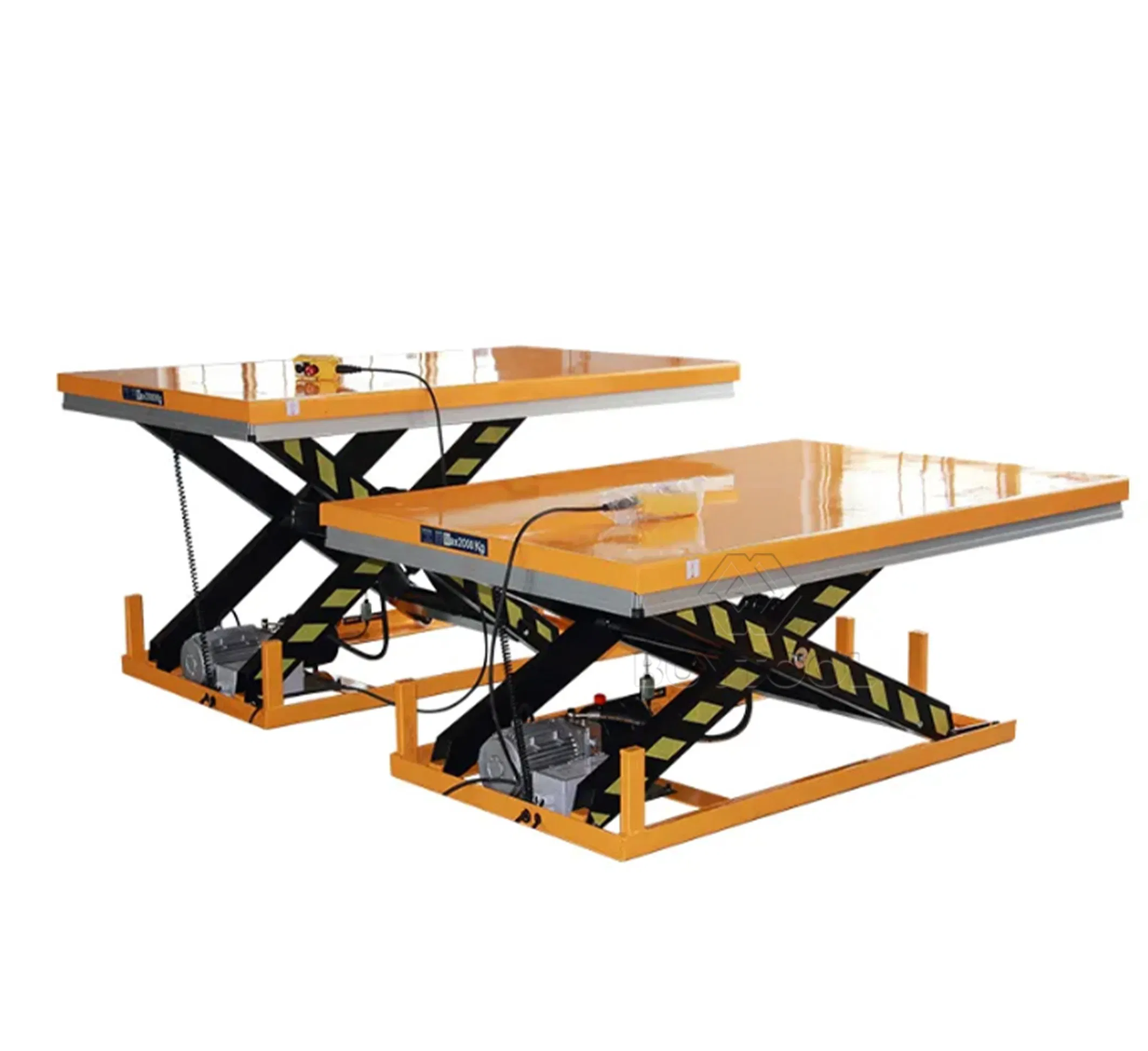

Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling
Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling
Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling
Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling
Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling
1 / 5
Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling
Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling
Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling
Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling
Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling

Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling

Customization: Available
After-sales Service: 24-Hour Online Service
Warranty: One Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
HW1001, HW2001, HW4001
Lift Mechanism
Scissor Lift
Driven Type
AC
Certification
CE, ISO 9001
Capacity
1000kg, 2000kg, 4000kg
Lift Time
20-25s
Power
380V/50Hz
Usage
Material Handling
🏗️ Product Description

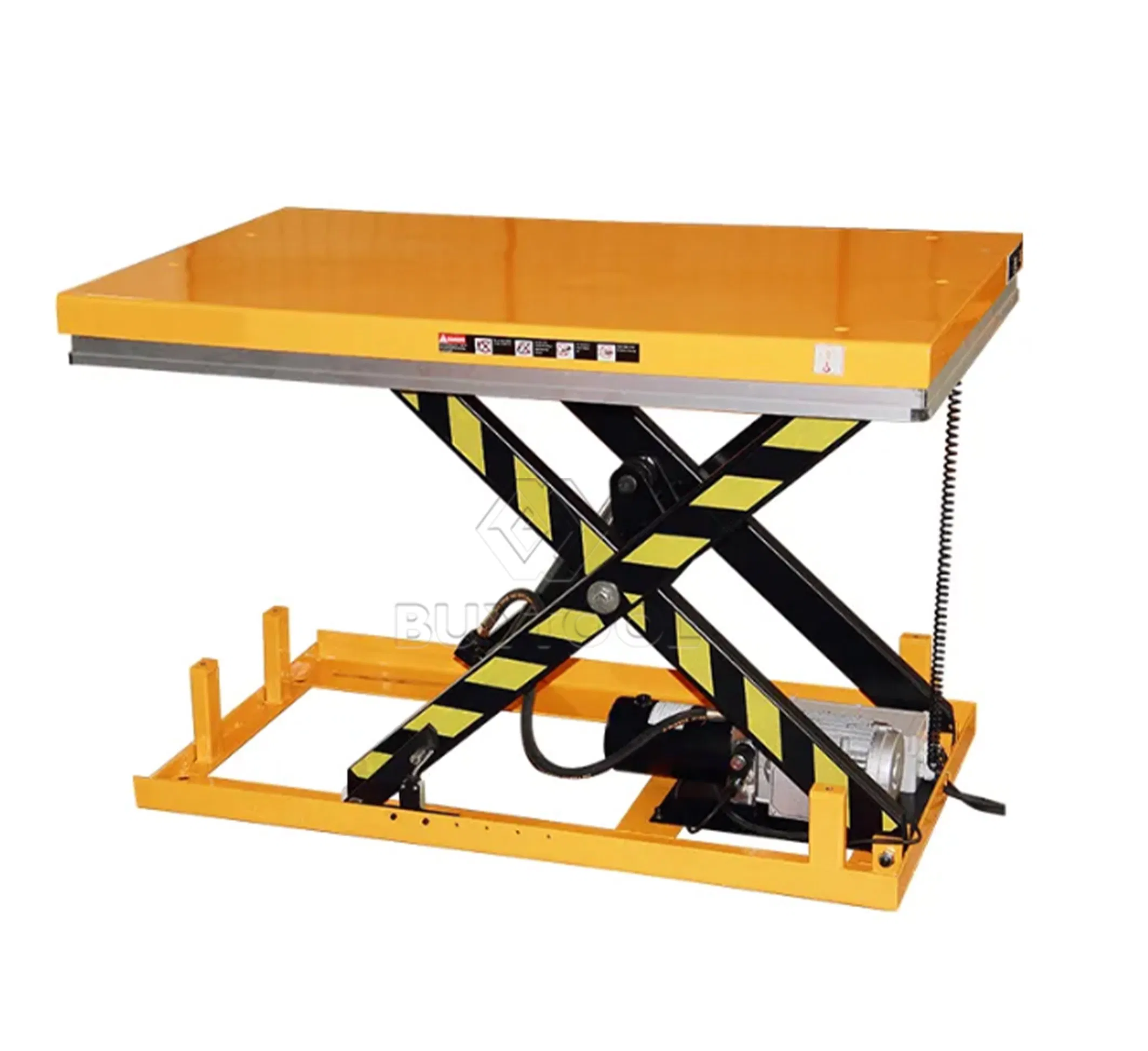

Heavy Duty Hydraulic Scissor Lift Table (1 Ton / 2 Ton / 4 Ton)
  • Heavy duty design for industrial applications.
  • Equipped with safety guard and anti-explosion valve.
  • Meets EN norm and ANSI/ASME safety standards.
  • Suitable for above-floor or in-floor pit applications.
🛡️ Standard Safety Features

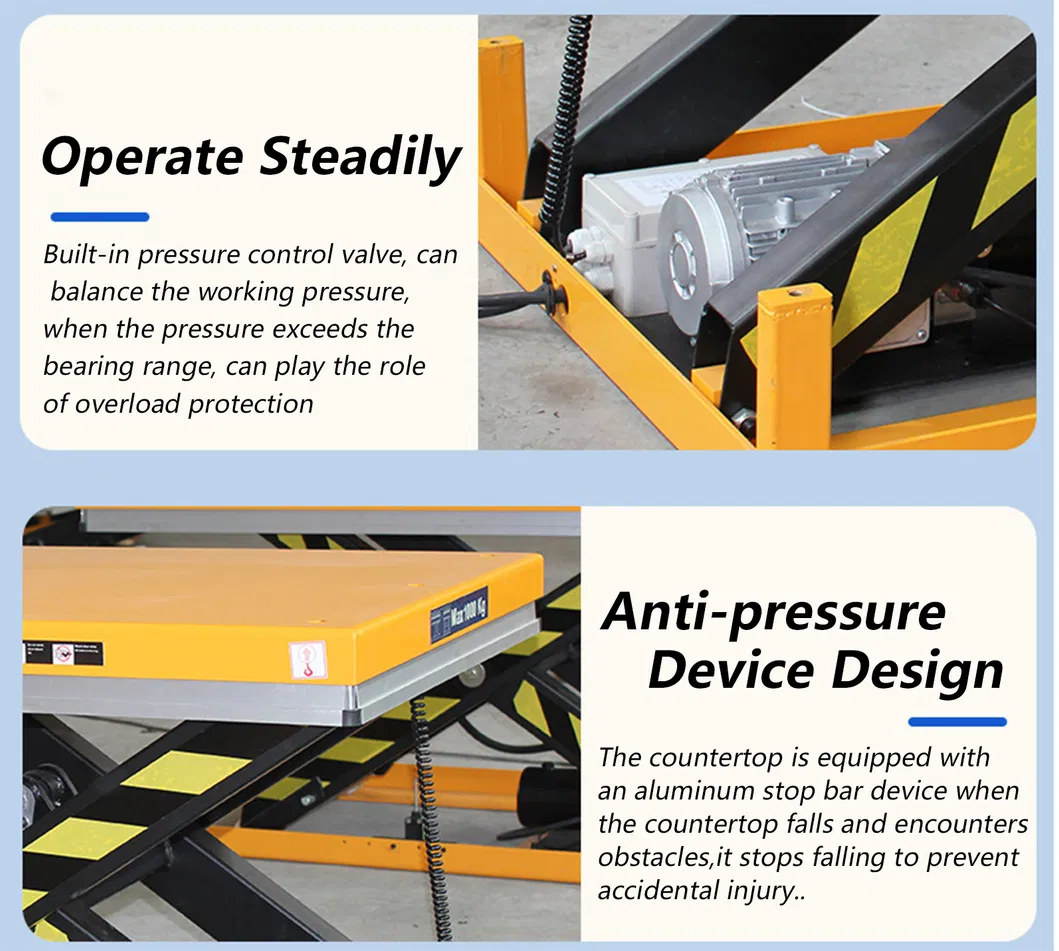

  • Aluminum Safety Bar: Prevents descent on contact with obstructions.
  • Low-tension Control: 24V control box with up-down buttons for operator safety.
  • Internal Power Pack: Equipped with relief valve against overloading.
  • Heavy Duty Cylinders: Features drainage system and check valve to prevent lowering in case of hose burst.

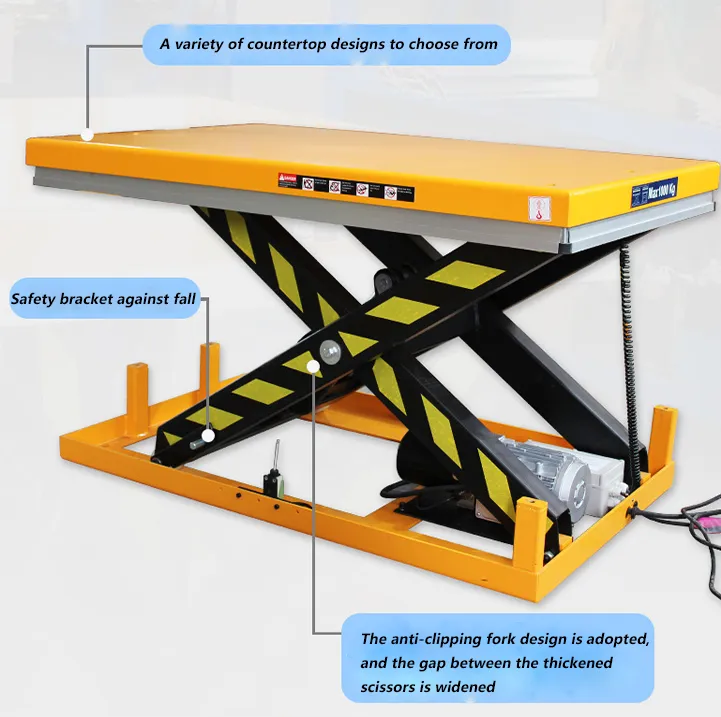

  • Safety Clearance: Designed between scissors to prevent trapping during operation.
  • Self-lubricating Bushings: Located on all pivot points for smooth operation.
📊 Product Parameters
Model Capacity (kg) Lowered Height (mm) Raised Height (mm) Platform Size (mm) Base Frame (mm) Lift Time (s) Power Pack Weight (kg)
HW10011000205990820×1300680×126620-25380V/1.1kw160
HW100210002059901000×1600680×126620-25380V/1.1kw186
HW200120002301000850×1300785×122020-25380V/1.5kw235
HW2004200025013001000×1700785×160025-35380V/1.5kw300
HW4001400024010501200×1700900×160030-40380V/2.2kw375
HW4008400035013002200×18001500×200035-45380V/2.2kw655

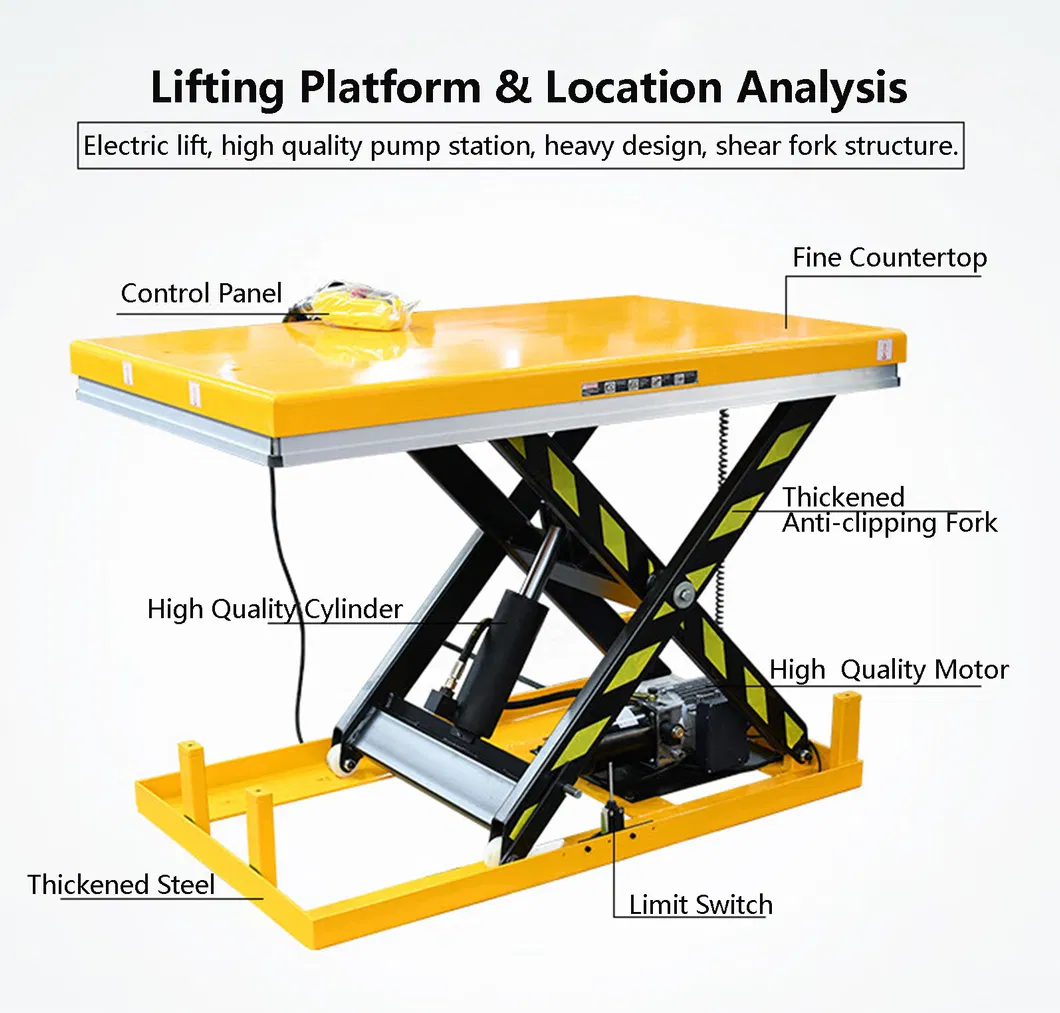

📸 Detailed Photos
Hydraulic Scissor Lift Table Heavy Duty Lift Table Cargo Handling Lift
Customization Options Available

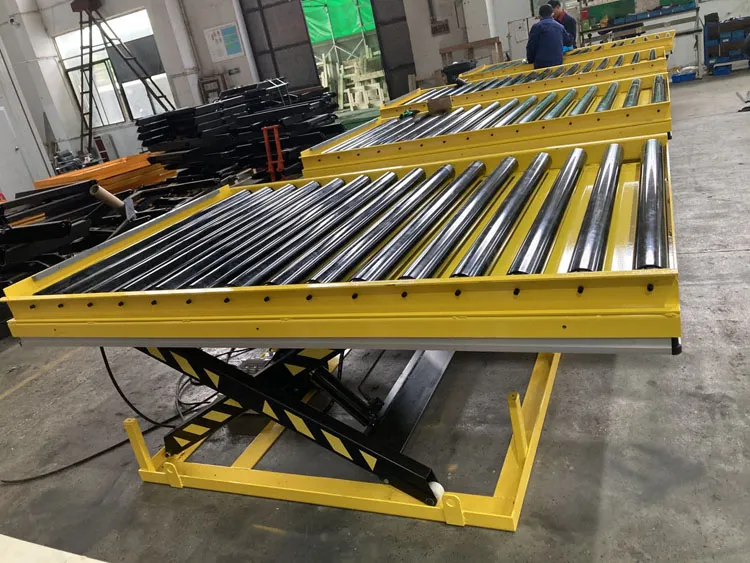

Lift Table with Rollers

🔹 Lift Tables With Rollers: Allows the platform to move easily between positions, improving transportation efficiency and operational flexibility in warehouses and factories.

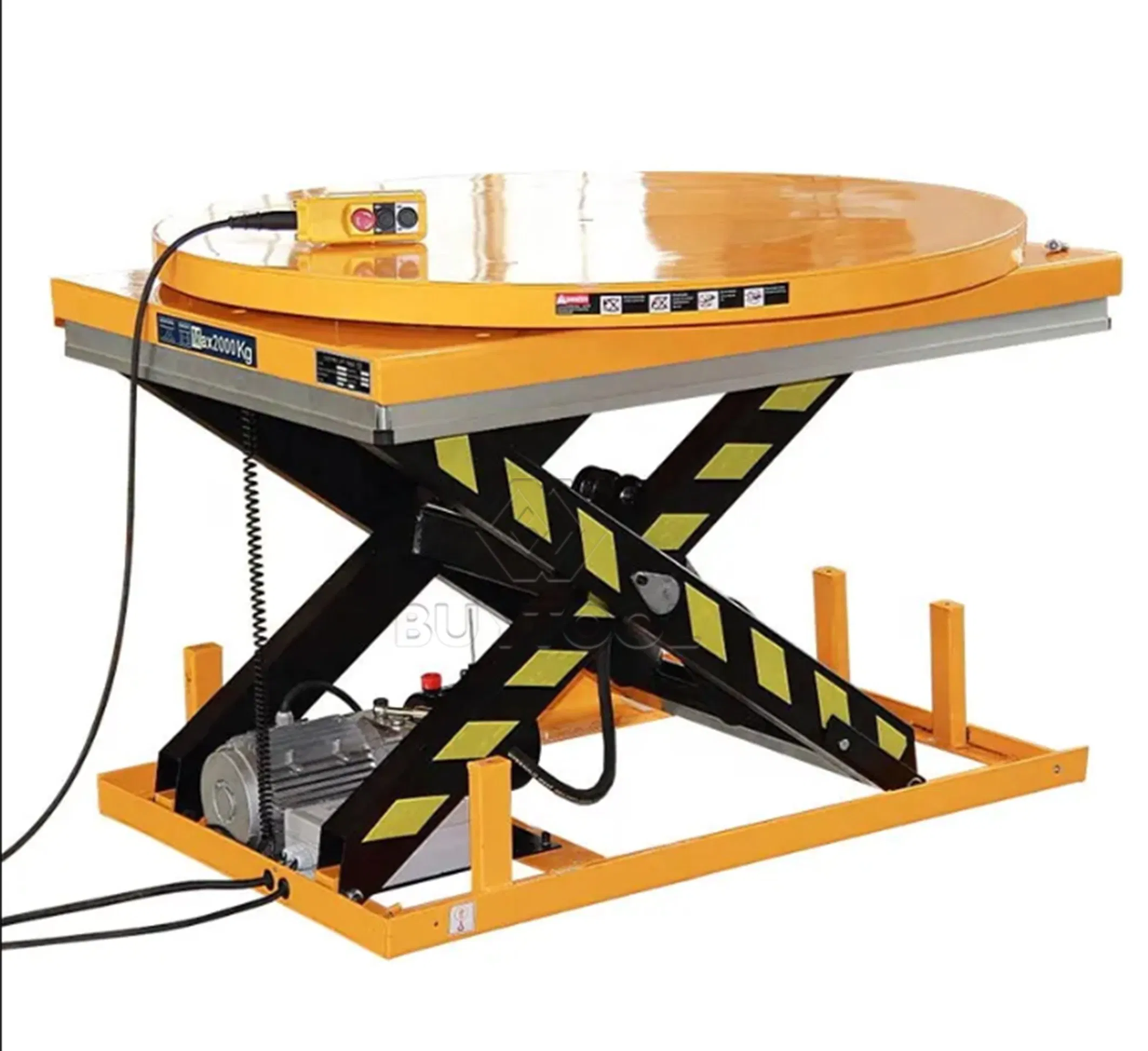

Turnable Top Platform

🔹 Turnable Top Platform: Allows multi-directional operation without moving the entire lift. Ideal for limited spaces or tasks requiring multiple angles.

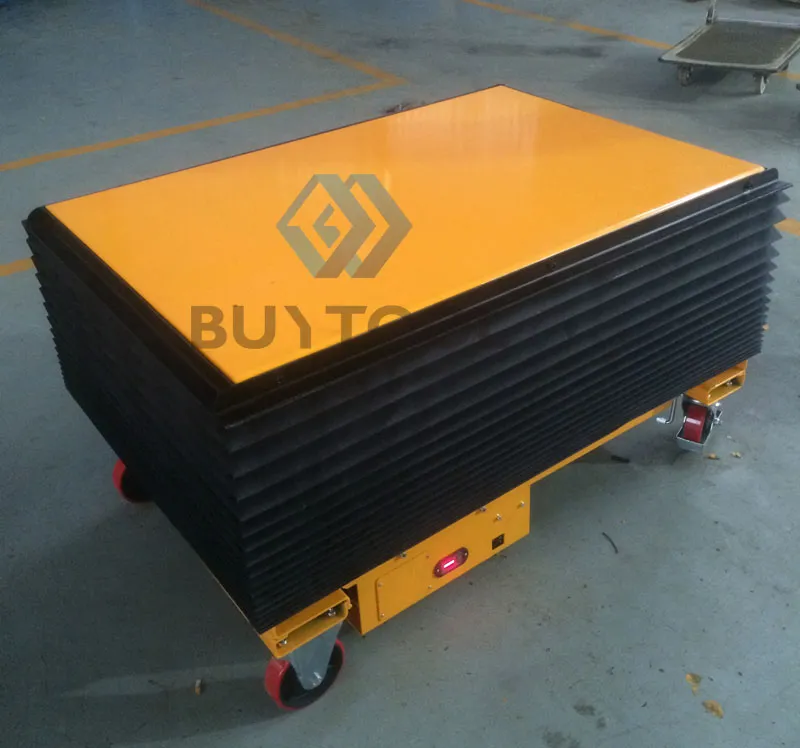

Protection Skirt

🔹 Protection Skirt & Wheels: Mobile design suitable for workshops. The protection skirt adds an extra layer of safety for the internal mechanism.

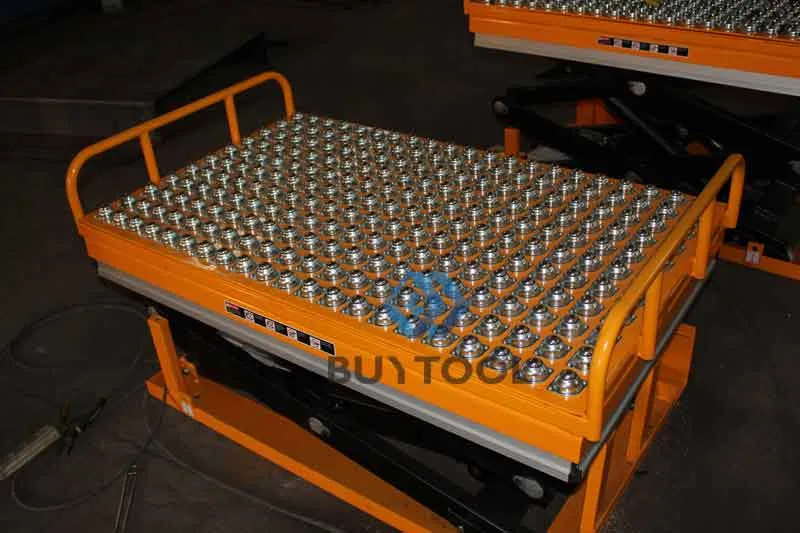

Ball Table

🔹 Ball Table Top: Reduces friction for heavy goods. Operators can move items with a gentle push, significantly reducing labor intensity.

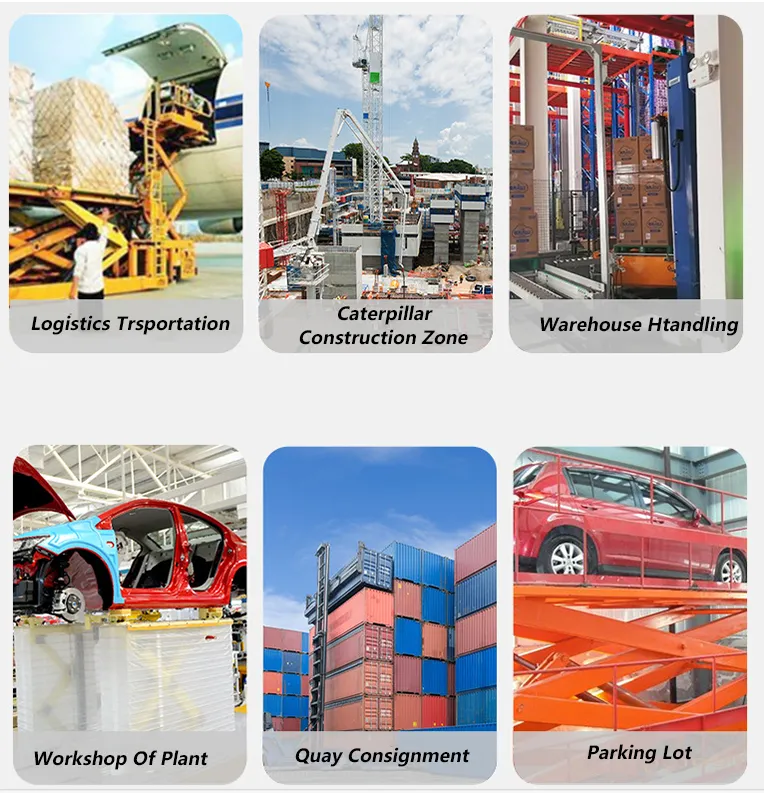

🌐 Range of Application
Application Range
❓ Frequently Asked Questions
What is the quality standard of your lift tables?
Our lift tables are CE approved. We implement a 5-step inspection process: raw material check (ISO9001), production process monitoring, load limit testing, 100% pre-shipment inspection, and optional buyer inspection.
How long is the quality guarantee?
All our lift tables come with a standard one-year warranty.
What is the typical lead time for an order?
Normally, the lead time is 30 days. For single-item container orders, it can be as short as 20 days, while mixed container orders (5+ items) may take up to 45 days.
Can the platform size and features be customized?
Yes, we support various customizations including rollers, turnable tops, ball platforms, guardrails, and specific platform dimensions to meet your operational needs.
What safety mechanisms are included to prevent accidents?
Standard safety features include an aluminum safety bar to stop descent upon obstruction, anti-explosion valves, and safety clearances between scissors to prevent trapping.
What power supply is required for these lift tables?
The standard power requirement is 380V/50Hz AC, but specific motor power (1.1kw to 2.2kw) depends on the model capacity.
