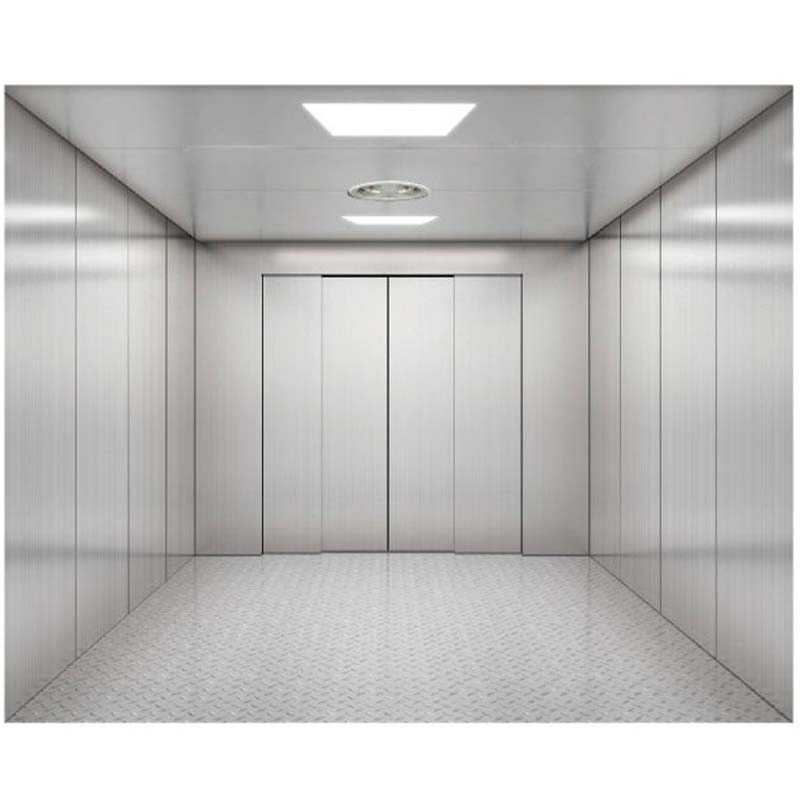

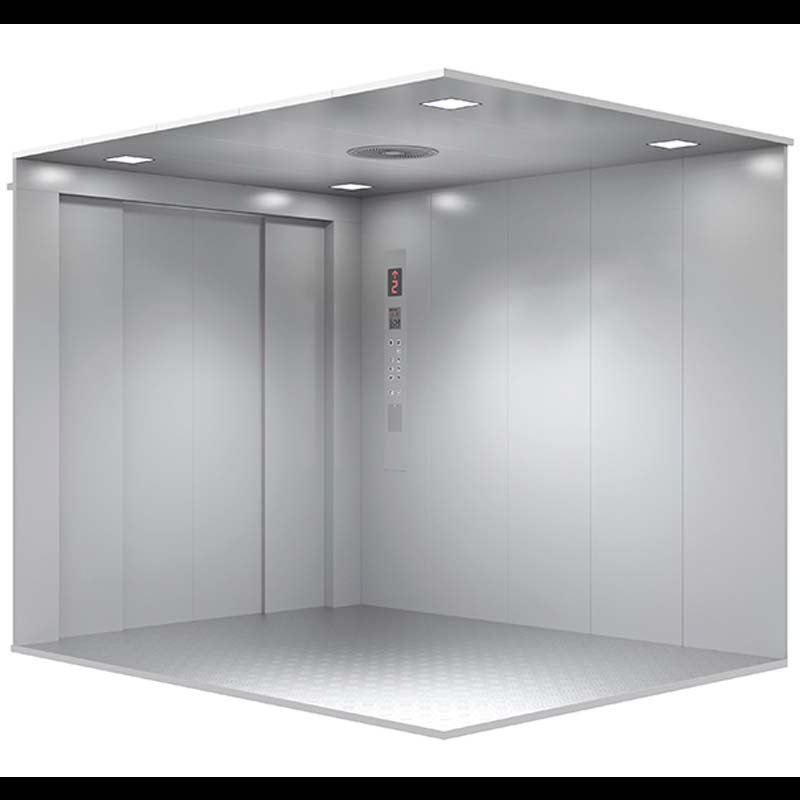

Big Load Capacity Fcatory Machine Room Freight Elevator Vvvf Goods Elevator Cargo Lift
Big Load Capacity Fcatory Machine Room Freight Elevator Vvvf Goods Elevator Cargo Lift
Big Load Capacity Fcatory Machine Room Freight Elevator Vvvf Goods Elevator Cargo Lift
Big Load Capacity Fcatory Machine Room Freight Elevator Vvvf Goods Elevator Cargo Lift
Big Load Capacity Fcatory Machine Room Freight Elevator Vvvf Goods Elevator Cargo Lift
1 / 5
Big Load Capacity Fcatory Machine Room Freight Elevator Vvvf Goods Elevator Cargo Lift
Big Load Capacity Fcatory Machine Room Freight Elevator Vvvf Goods Elevator Cargo Lift
Big Load Capacity Fcatory Machine Room Freight Elevator Vvvf Goods Elevator Cargo Lift
Big Load Capacity Fcatory Machine Room Freight Elevator Vvvf Goods Elevator Cargo Lift
Big Load Capacity Fcatory Machine Room Freight Elevator Vvvf Goods Elevator Cargo Lift

Big Load Capacity Fcatory Machine Room Freight Elevator Vvvf Goods Elevator Cargo Lift

Customization: Available
After-sales Service: 7*24
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
TH1000
Type
Wellhole
Load Capacity
1000kg-20000kg
Speed
0.25m/S-1.5m/S
Drive Mode
AC
Open & Close Type
Automatic
Lift Mechanism
Telescoping Lift
Deceleration
With Deceleration Device
Guide Rail
T Guide
Elevator Door
Center Opening Door
Drive Control
VVVF Control
Customized
Support
Product Description

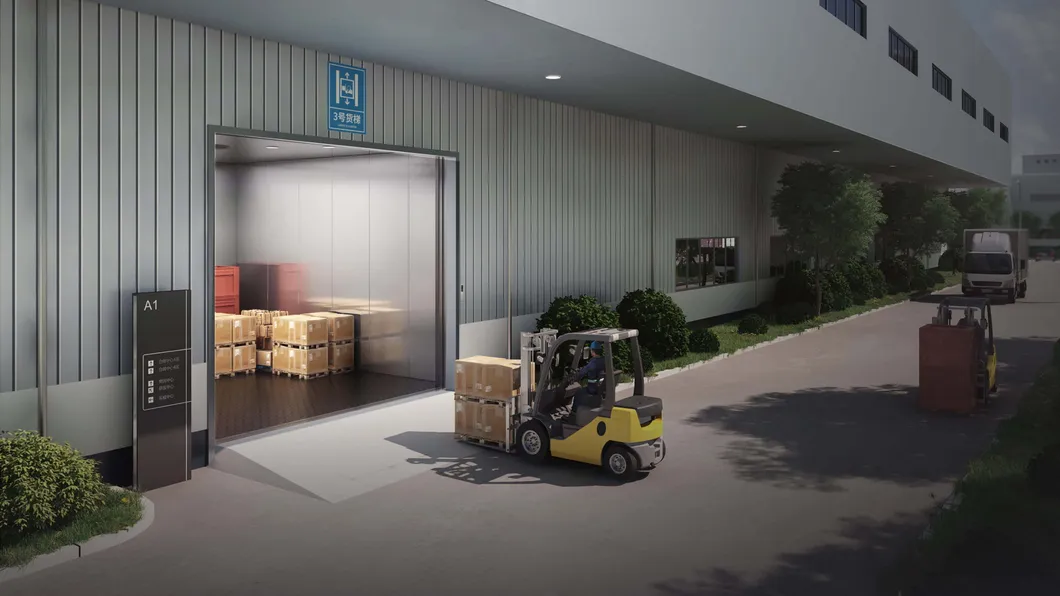

Freight Elevator Banner
The freight elevator uses advanced microcomputer control technology and technology integration to greatly improve the performance and quality of the freight elevator and greatly reduce the occurrence rate of failures. Because it uses variable frequency electric drive technology, the elevator structure is simpler and maintenance is more convenient.
The optimized designed car of the cargo elevator is spacious and bright, economical and practical, making cargo transportation convenient and fast, safe and reliable, with balanced operation, large load capacity and other excellent qualities. It can meet the needs of customers in different uses and environments such as factories, warehouses, shopping malls, libraries, etc.
COP / LOP & Landing Door

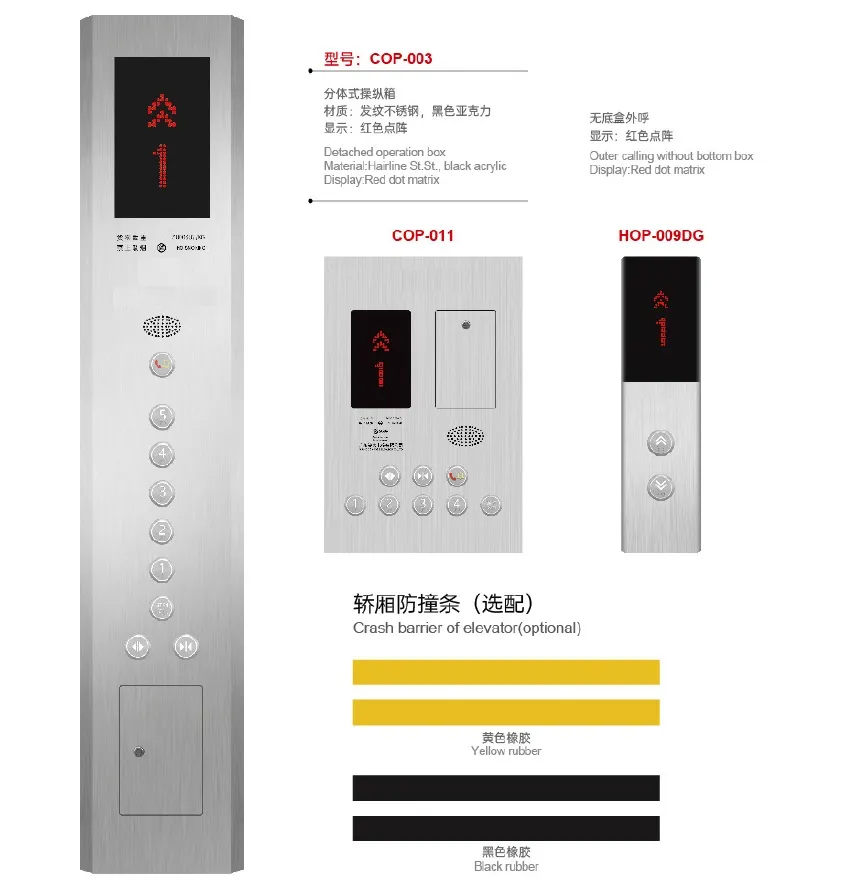

COP LOP Display

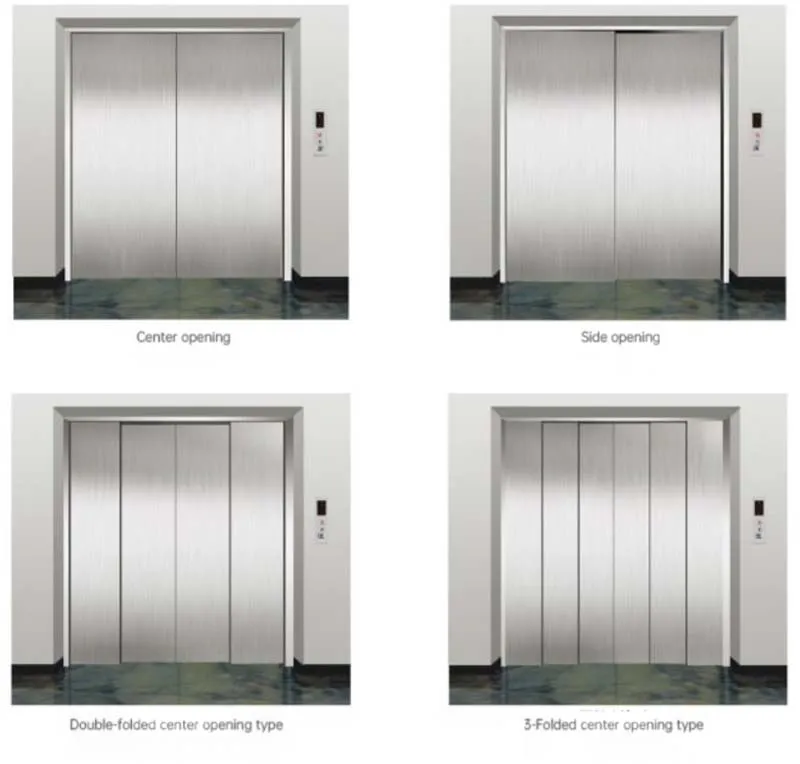

Landing Door
Technical Advantages

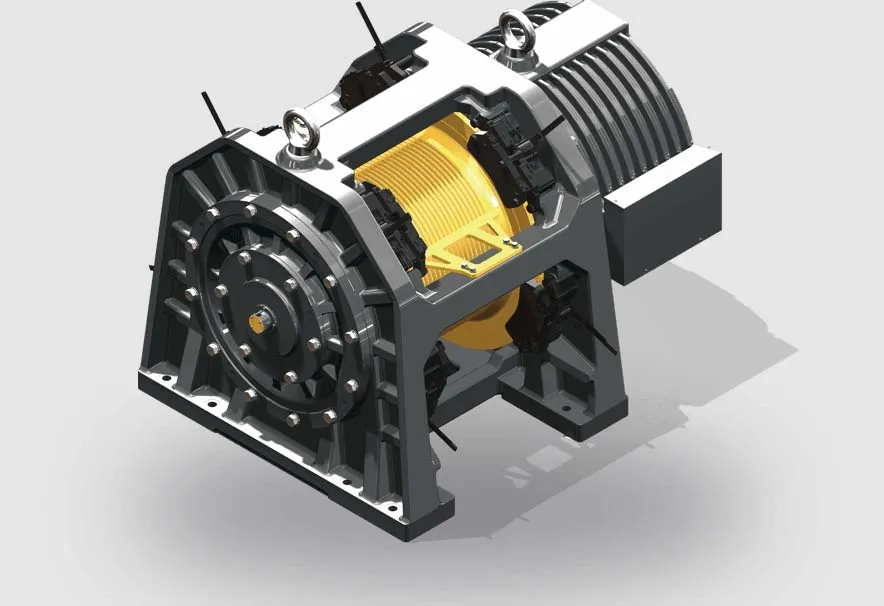

Traction System

The traction host is designed according to vertical logistics requirements and can fully meet various load requirements. Vector closed-loop control technology can fully meet the dynamic adjustment requirements, ensuring the elevator runs smoothly and accurately, significantly improving response speed and comprehensive performance.

Traction System
Energy Saving and Comfort:
The use of VVVF speed regulation technology greatly reduces the power supply capacity, saves nearly 40% energy than traditional AC two-speed technology, and minimizes power consumption. This technology provides constant torque characteristics, improving leveling accuracy and reducing operating noise.

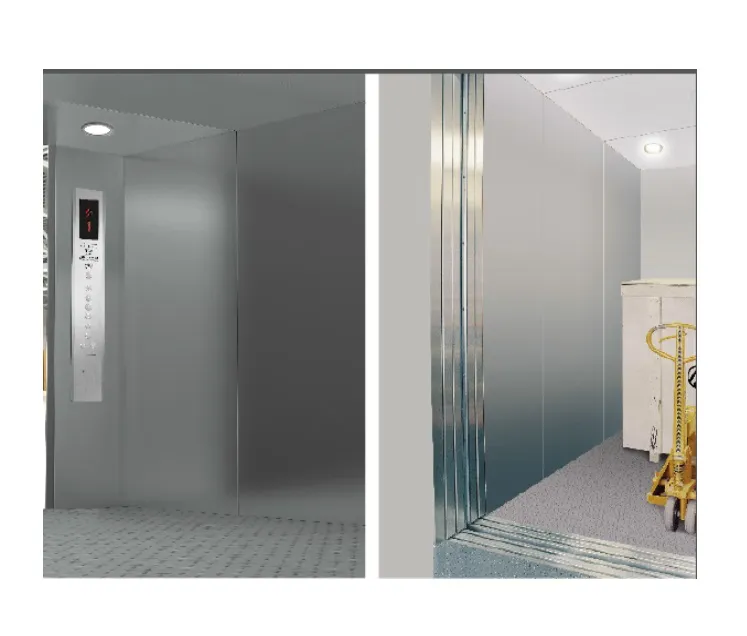

Sturdy Structure & Large Door Spacing

Multi-folding hall car doors achieve the maximum door opening width, facilitating the entry and exit of large goods. The reinforced car bottom reliably bears heavy loads, supported by accurate weighing devices to prevent overloading.

Sturdy Structure
Application Environment
Factories & Warehouses
Museums & Exhibition Halls
Auto Shops & Parking Garages
Shopping Malls & Libraries
Technical Parameters
Model Capacity (kg) Speed (m/s) Car Size (CW*CD*CH mm) Door Size (OP*OPH mm) Shaft Size (HW*HD mm) OH (mm) PT (mm) Power (kw)
F3000 1000 0.5-1.0 1400*1600*2200 1200*2100 2300*2200 4500 1500 7.5-11
2000 0.5-2.0 1900*2100*2200 1600*2100 2900*2700 4500-4800 1500-1800 11-18.5
3000 0.5-2.0 2200*2500*2200 1700*2100 3300*3200 4500-4800 1500-1800 15-22
4000 0.5-2.0 2500*2800*2200 2000*2100 4000*3500 4500-4800 1500-1800 18-35
F5000 8000 0.25-0.5 2800*4500*2200 2600*2100 4400*5200 4800 1800 30-45
10000 0.25-0.5 3000*5300*2200 2700*2100 4600*6000 4800 1800 30-45
Frequently Asked Questions
What is the maximum load capacity of these freight elevators?
Our heavy-duty freight elevators can support a maximum capacity of up to 30,000kg, making them ideal for large-scale industrial use.
How does VVVF technology benefit the elevator's operation?
VVVF (Variable Voltage Variable Frequency) technology reduces energy consumption by up to 40%, ensures smoother starts and stops, and improves leveling accuracy for safer cargo handling.
Are the elevator cars customizable for specific cargo types?
Yes, we support customized configurations, including car size adjustments and door opening widths to facilitate the entry of specific large goods.
What safety mechanisms are in place to prevent overloading?
Each elevator is equipped with an accurate weighing device that monitors the load in real-time and prevents operation if the rated capacity is exceeded.
Is this cargo lift suitable for high-traffic warehouses?
Absolutely. The robust traction system and microcomputer control are designed for high-frequency vertical logistics in factories, warehouses, and shopping malls.
