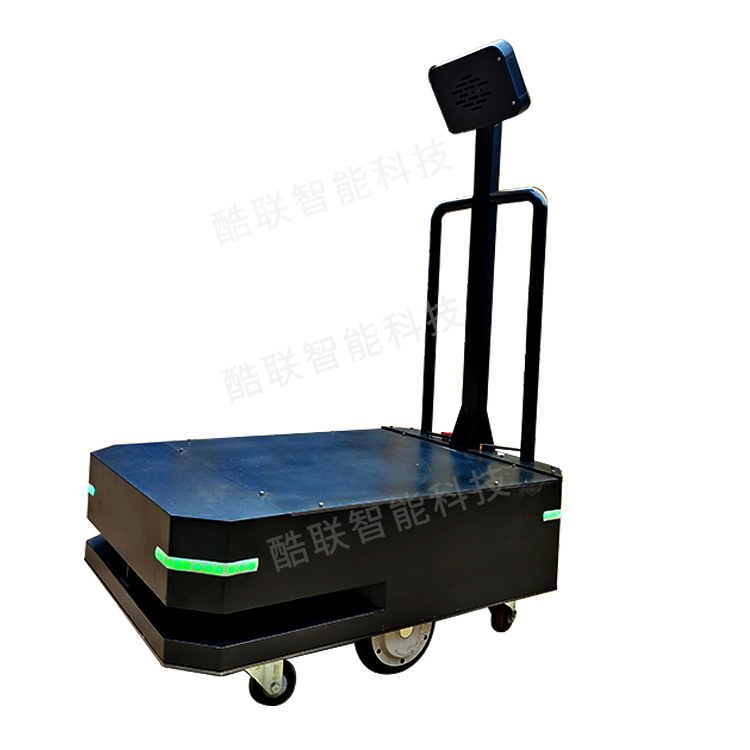

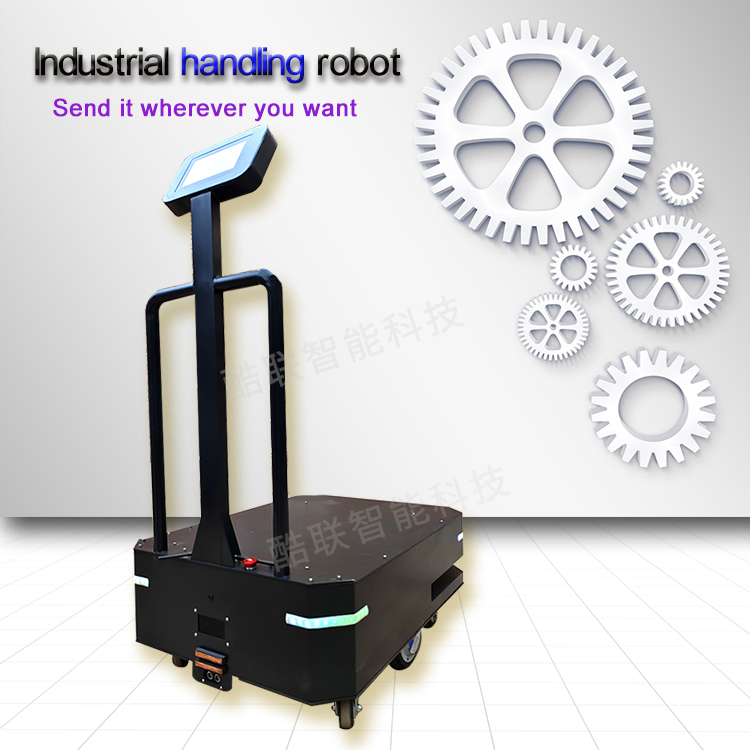

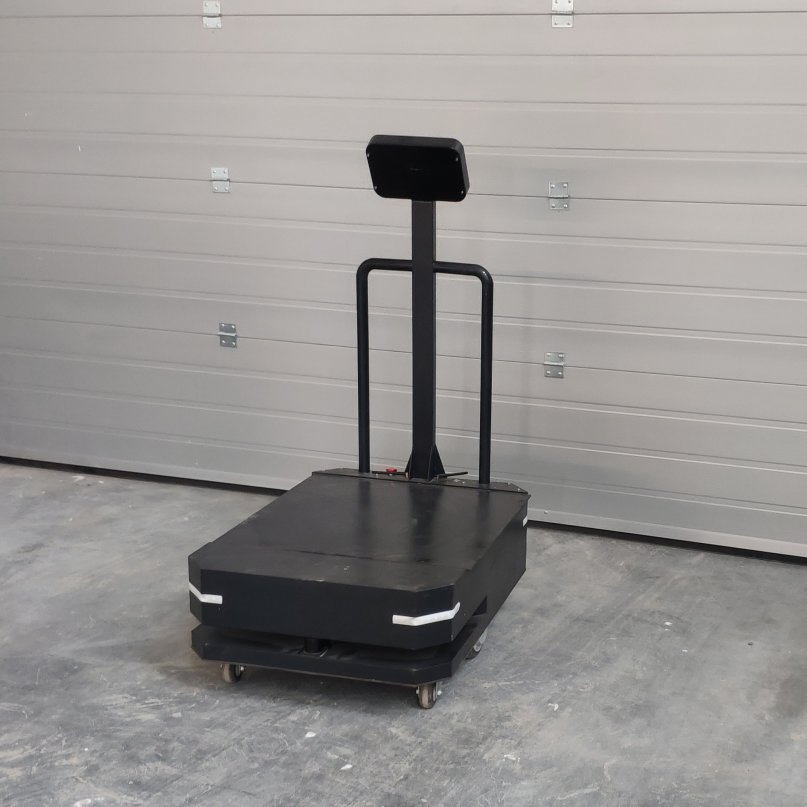

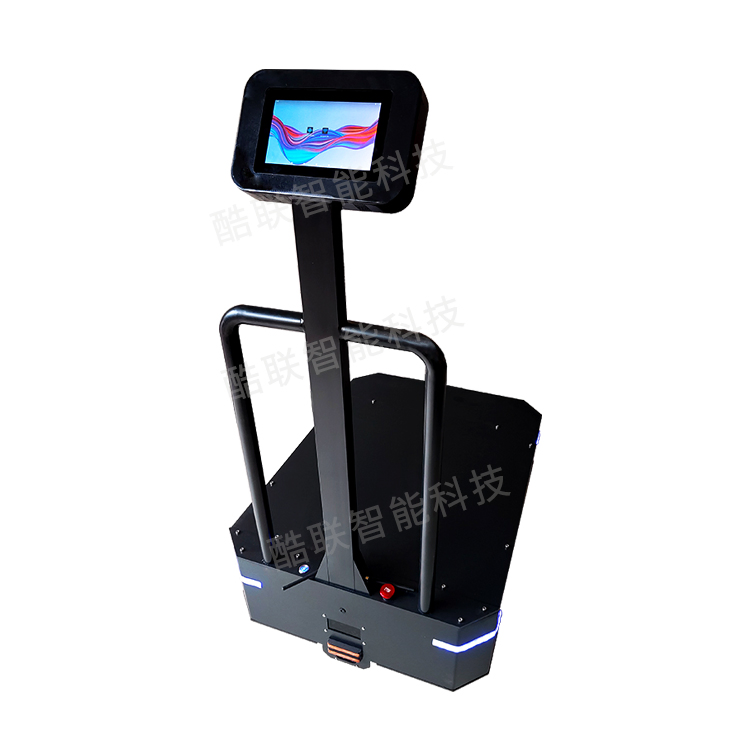

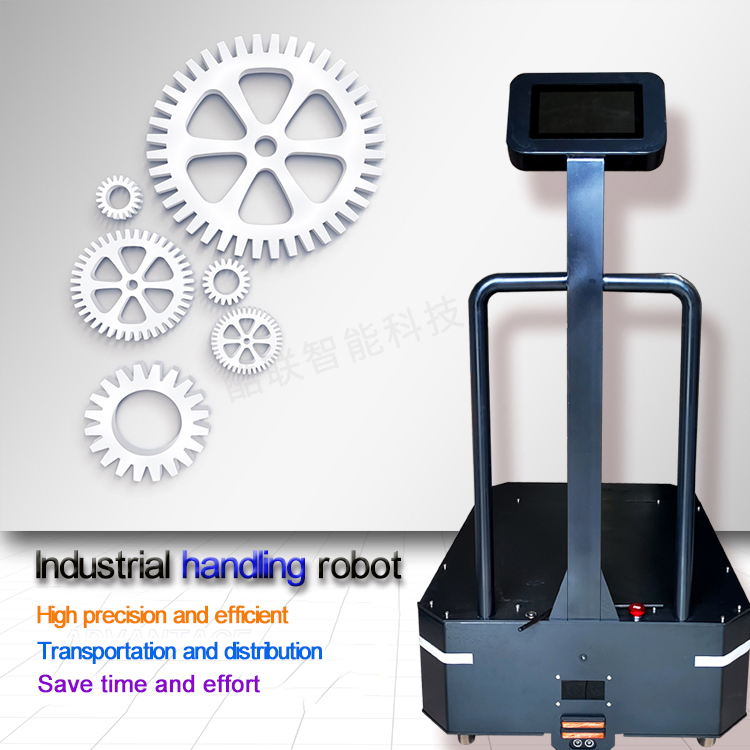

Factory & Warehouse Material Handling Robot: Agv/AMR Intelligent Trolley, Specialized for Production Line Logistics Transfer
Factory & Warehouse Material Handling Robot: Agv/AMR Intelligent Trolley, Specialized for Production Line Logistics Transfer
Factory & Warehouse Material Handling Robot: Agv/AMR Intelligent Trolley, Specialized for Production Line Logistics Transfer
Factory & Warehouse Material Handling Robot: Agv/AMR Intelligent Trolley, Specialized for Production Line Logistics Transfer
Factory & Warehouse Material Handling Robot: Agv/AMR Intelligent Trolley, Specialized for Production Line Logistics Transfer
1 / 5
Factory & Warehouse Material Handling Robot: Agv/AMR Intelligent Trolley, Specialized for Production Line Logistics Transfer
Factory & Warehouse Material Handling Robot: Agv/AMR Intelligent Trolley, Specialized for Production Line Logistics Transfer
Factory & Warehouse Material Handling Robot: Agv/AMR Intelligent Trolley, Specialized for Production Line Logistics Transfer
Factory & Warehouse Material Handling Robot: Agv/AMR Intelligent Trolley, Specialized for Production Line Logistics Transfer
Factory & Warehouse Material Handling Robot: Agv/AMR Intelligent Trolley, Specialized for Production Line Logistics Transfer

Factory & Warehouse Material Handling Robot: Agv/AMR Intelligent Trolley, Specialized for Production Line Logistics Transfer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
CW-BY300
Load Capacity
300 kg
Type
AGV (Automated Guided Vehicle)
Weight
92kg
Operating System
Android 10.0
Origin
China
Safety Features: Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner
🤖 Product Description
Material Handling Robot

Material Moving Robot

The CW-BY 300 kg handling robot is an industrial intelligent handling robot designed for efficient materials handling in industrial settings. It is capable of transporting loads up to 300 kg with precision and stability, making it suitable for a variety of manufacturing and logistics applications.

Intelligent Trolley
⚙️ Technical Specifications
Operating System Android 10 Charging Time 6H
Weight 92KG Navigation Accuracy ±10CM
Screen Resolution 1024*600 Battery Capacity 24V/40Ah
Speed 0.1~1.0 M/S Endurance 8H (Full Load)
Max Payload 300KG Charging Method Auto Recharge / Direct Charging
🖼️ Visual Display

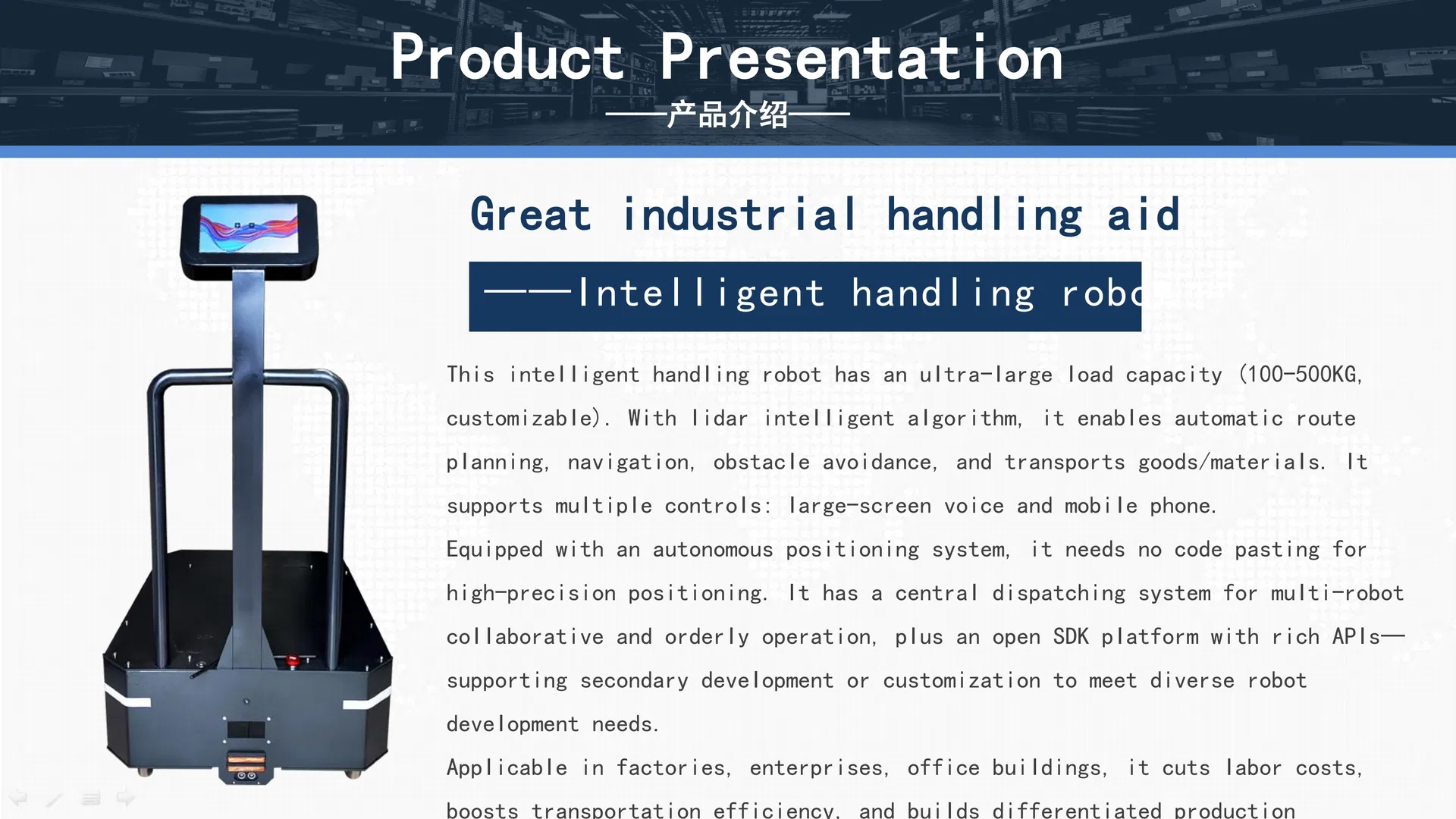

Robot Detail 1

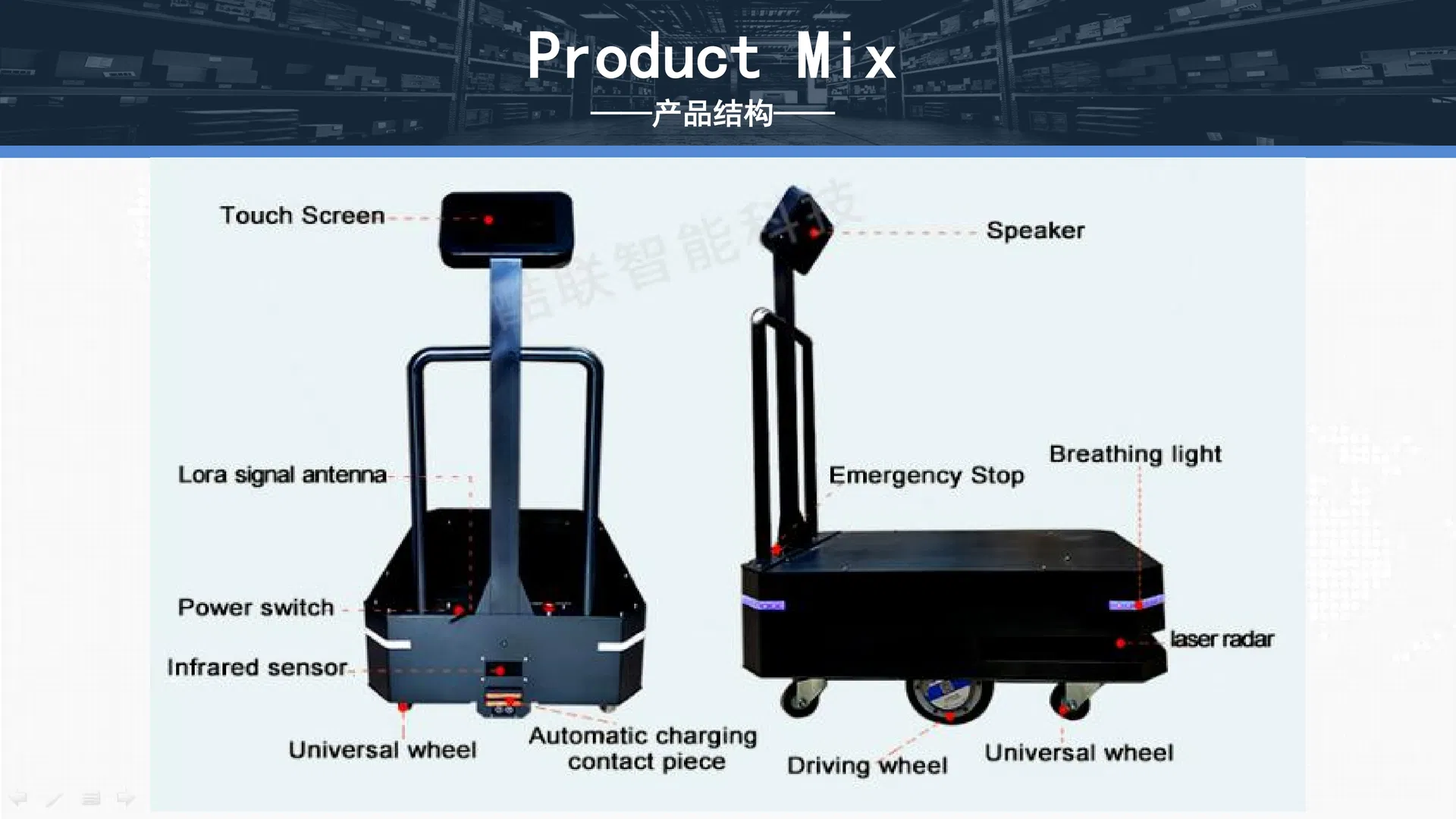

Robot Detail 2

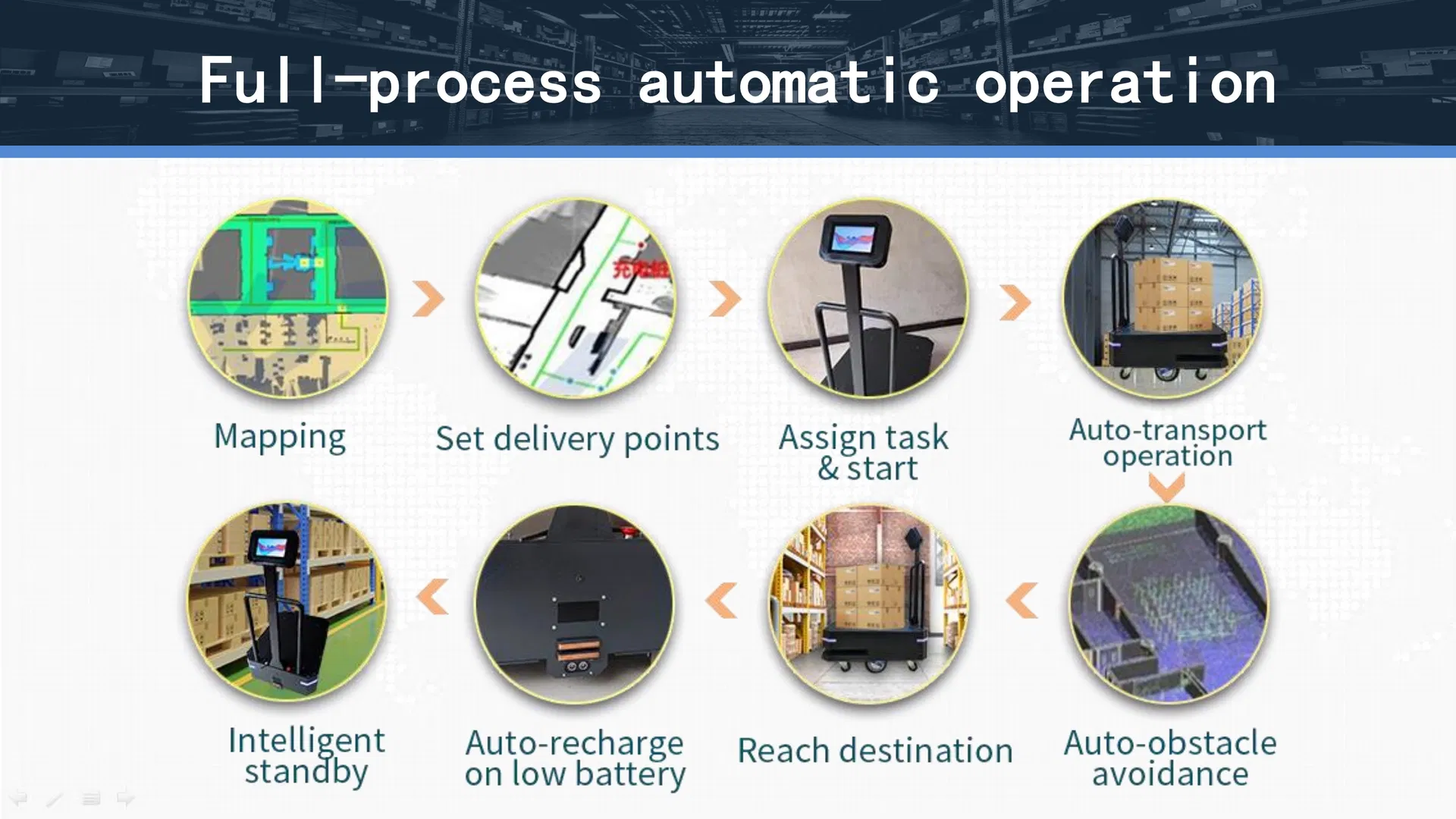

Robot Detail 3

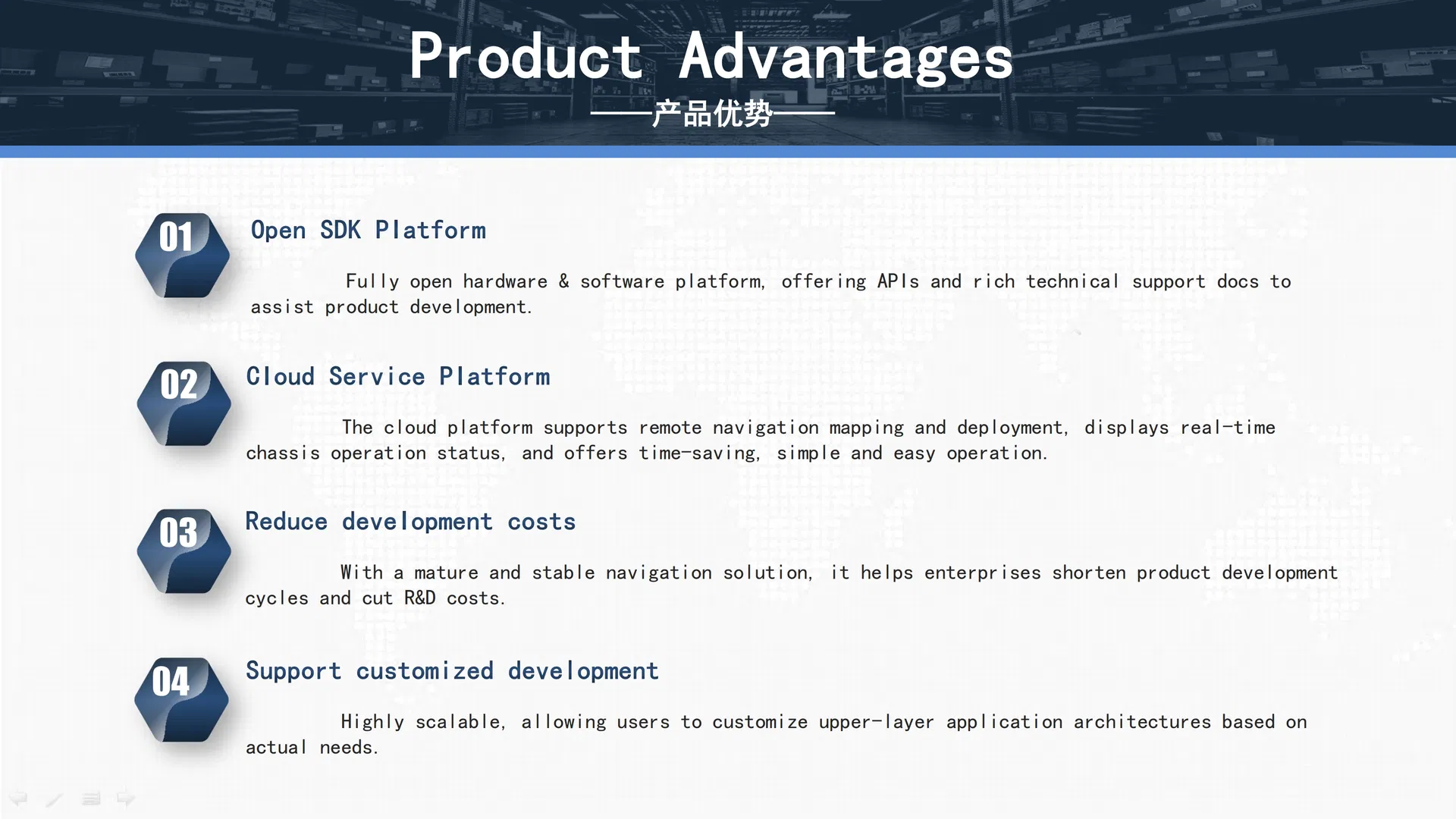

Application 1

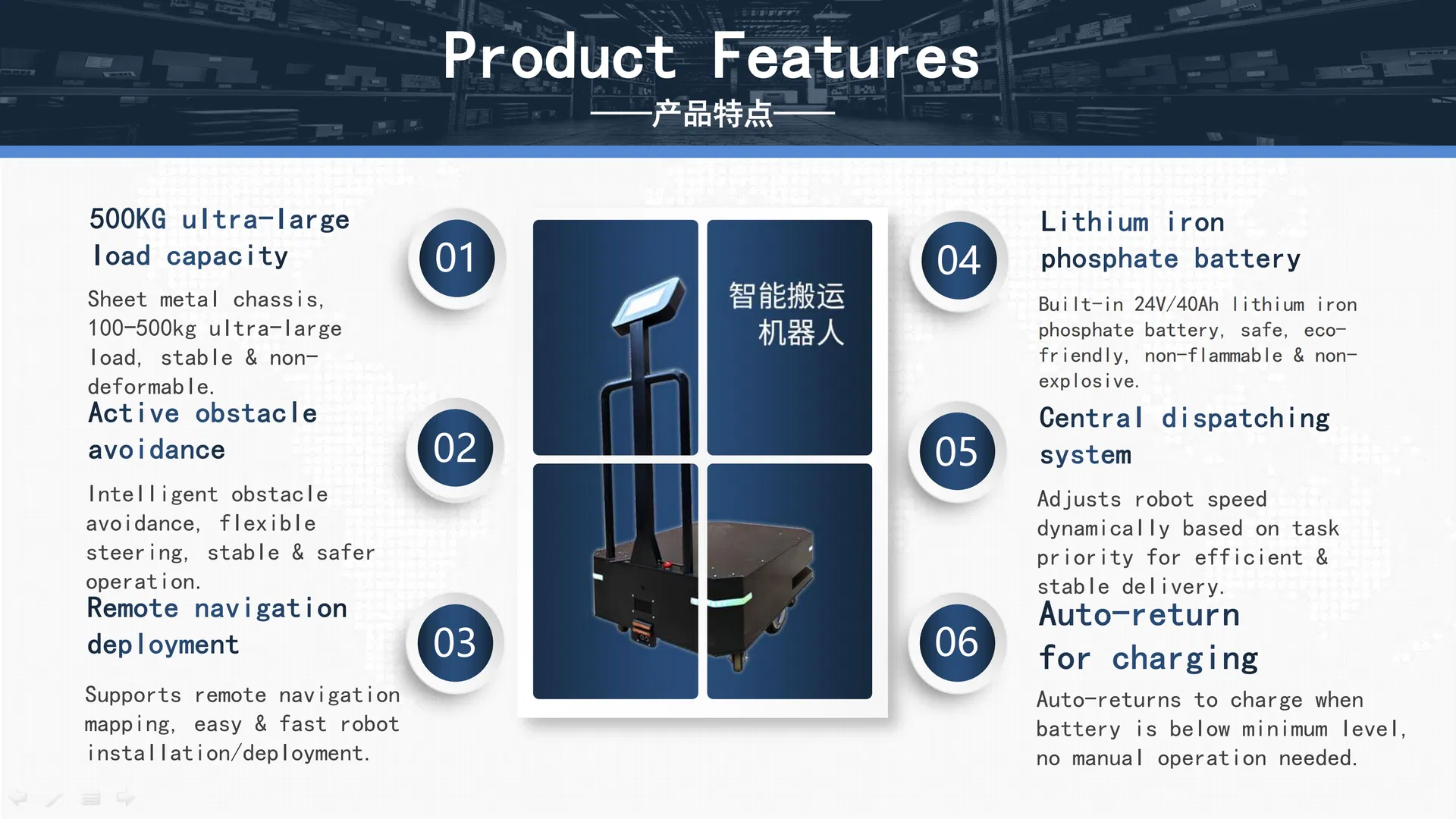

Application 2

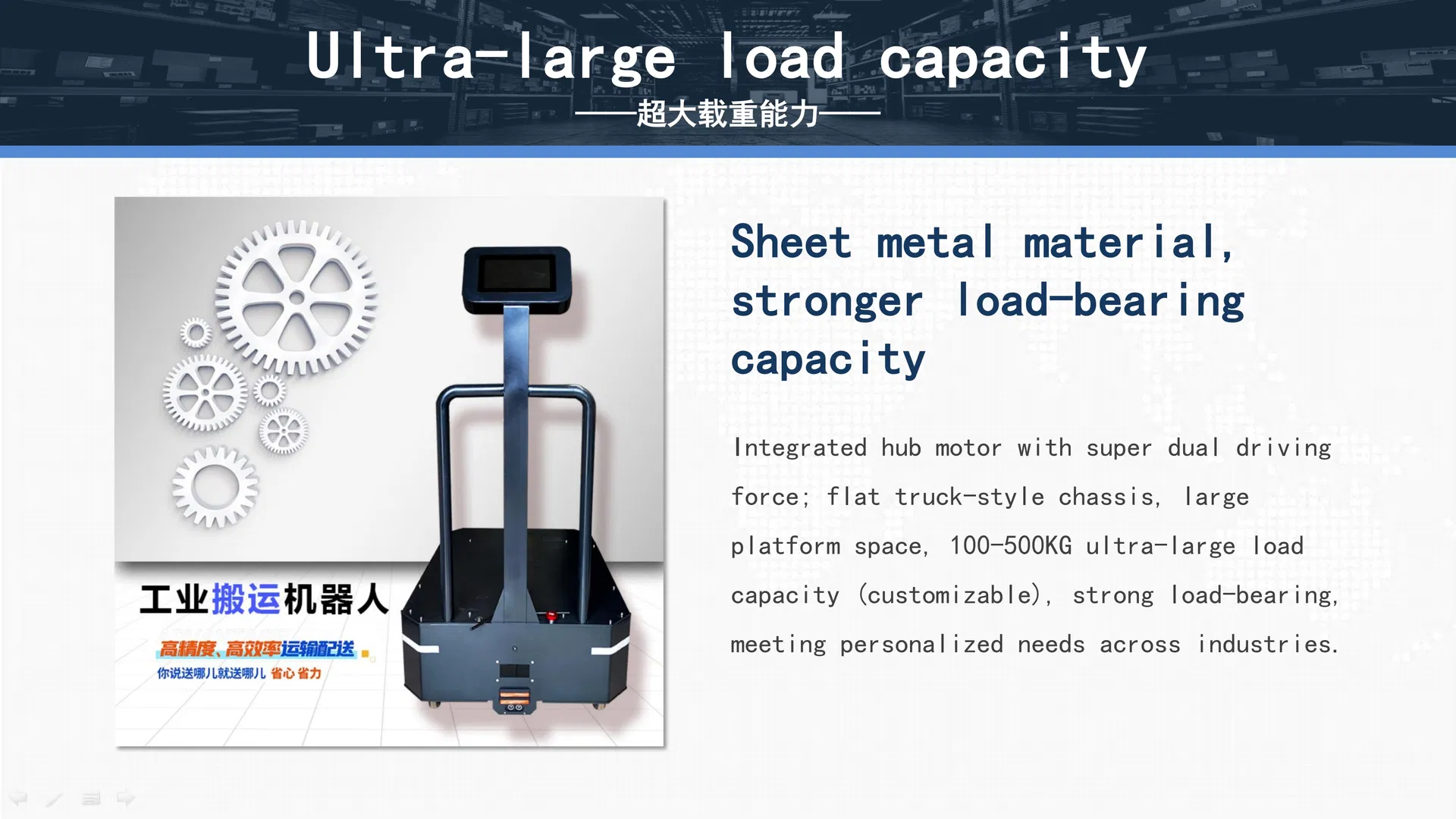

Application 3
Application 4

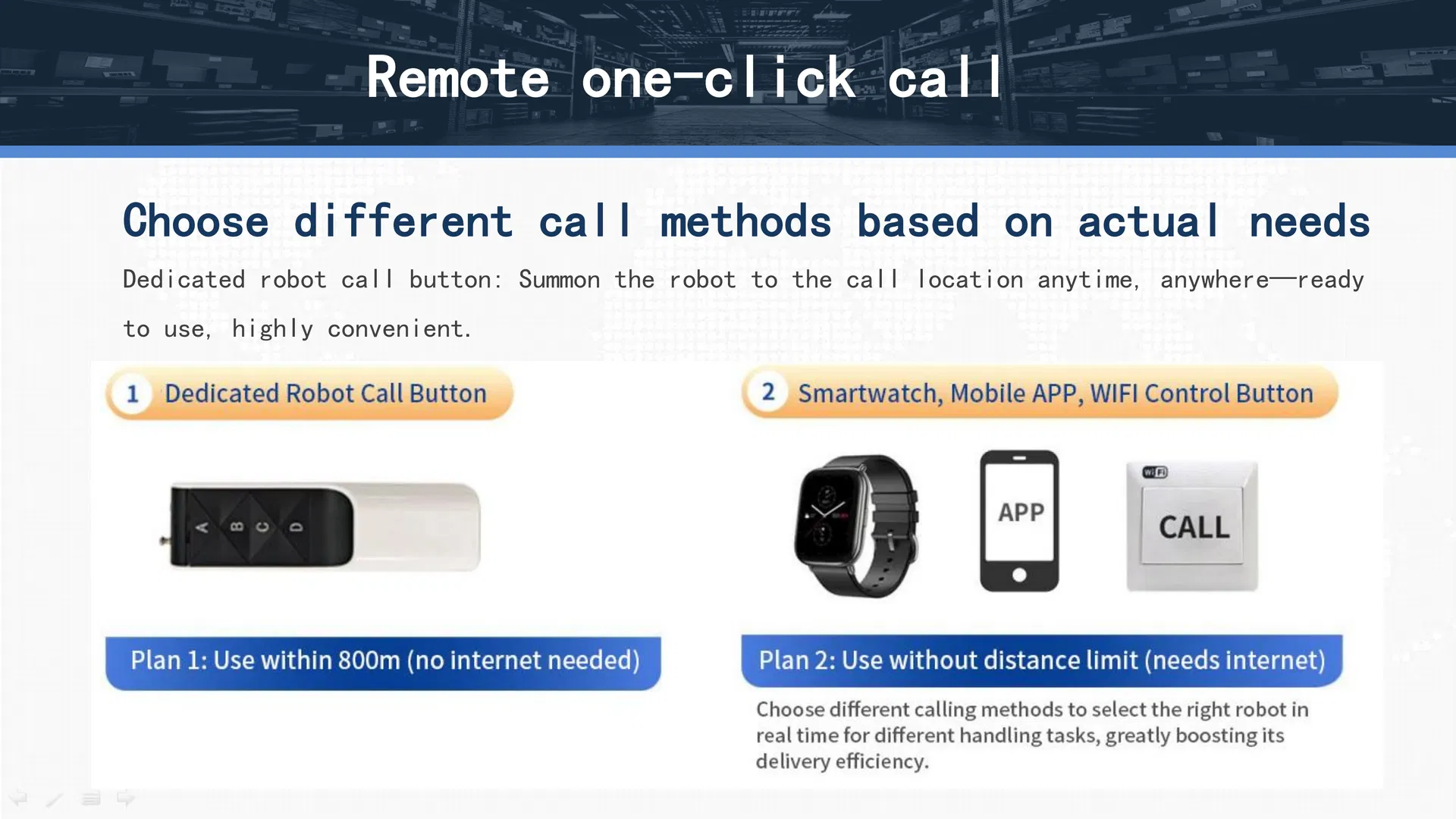

Application 5

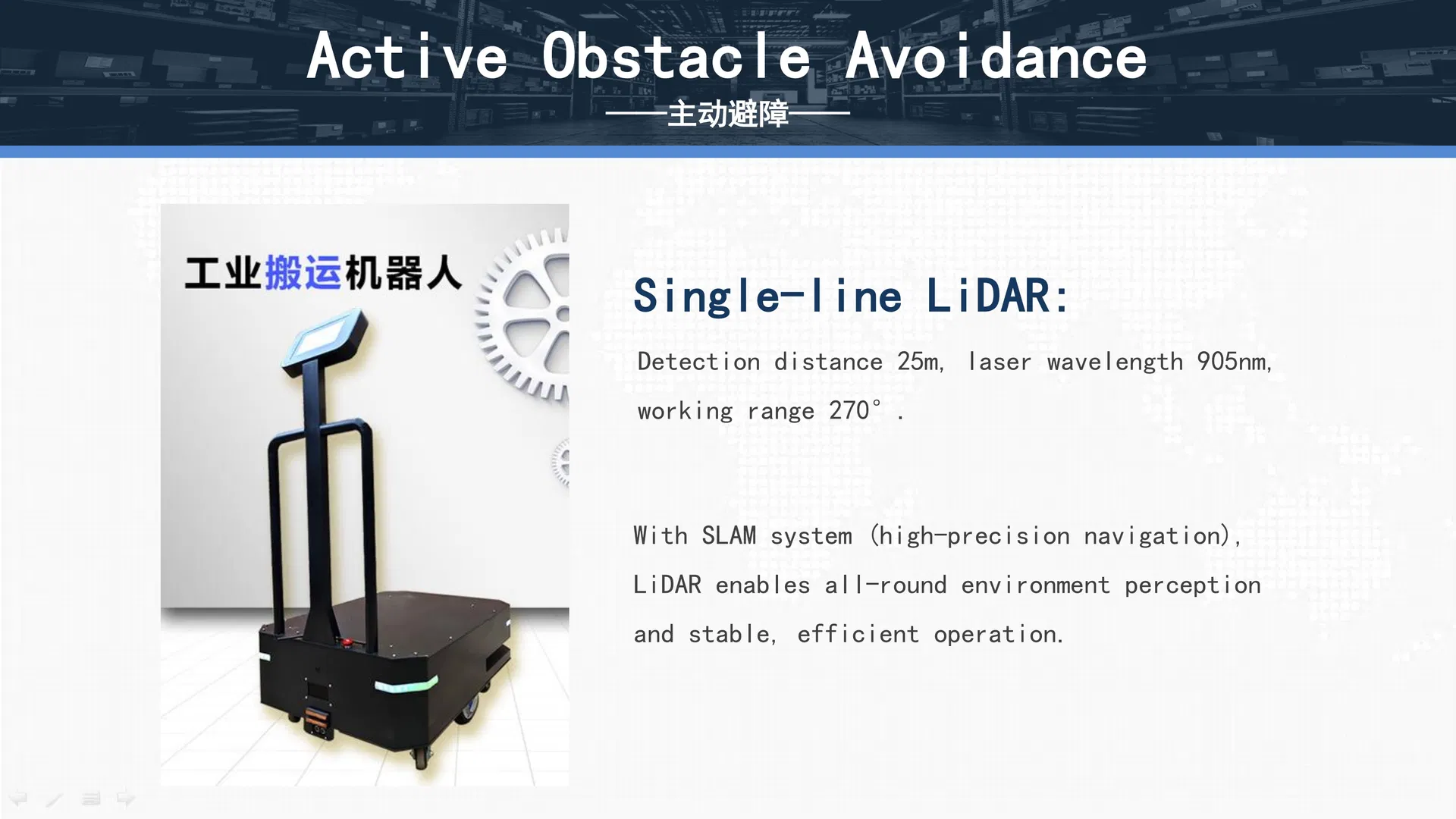

Application 6

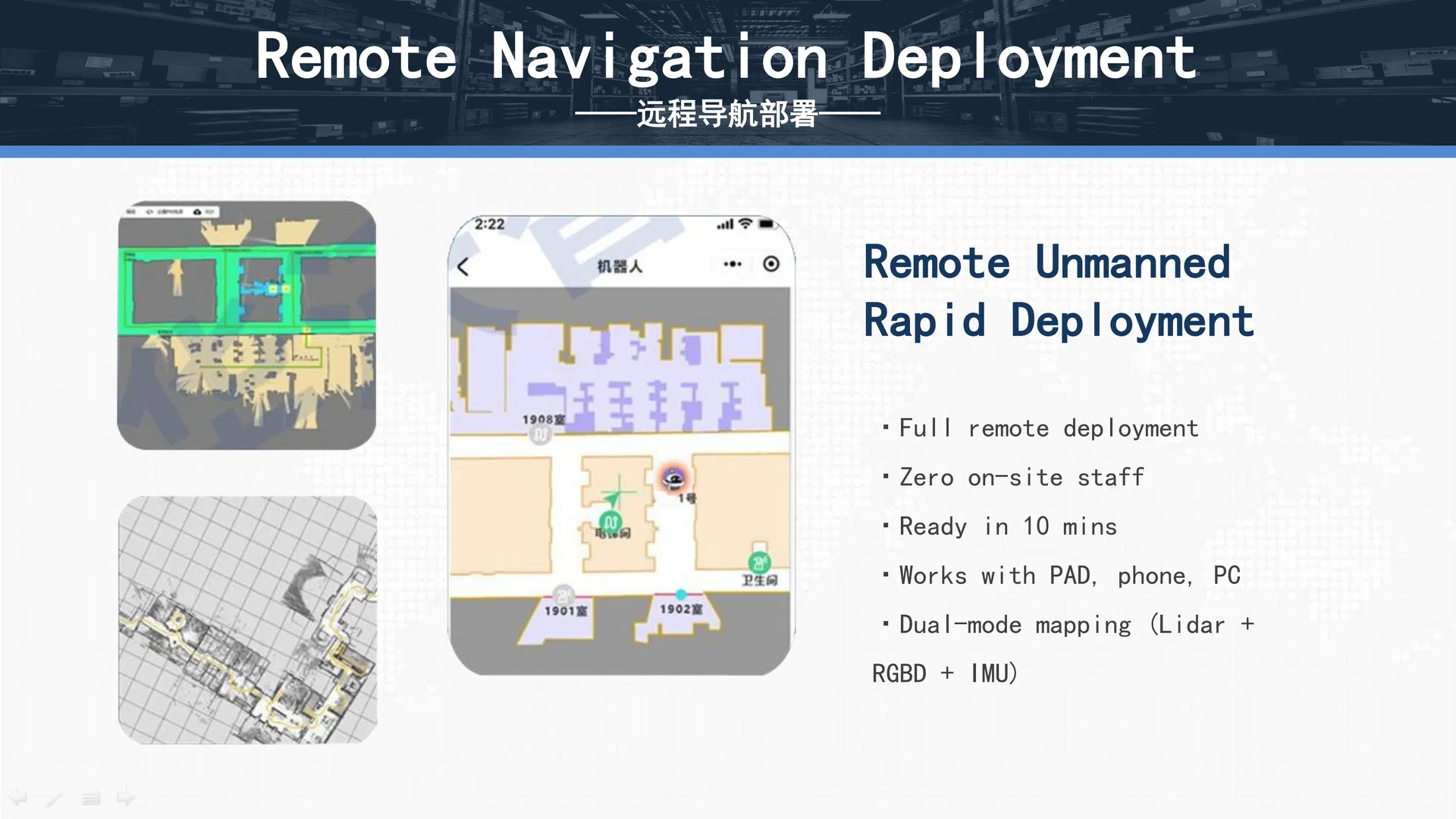

Application 7

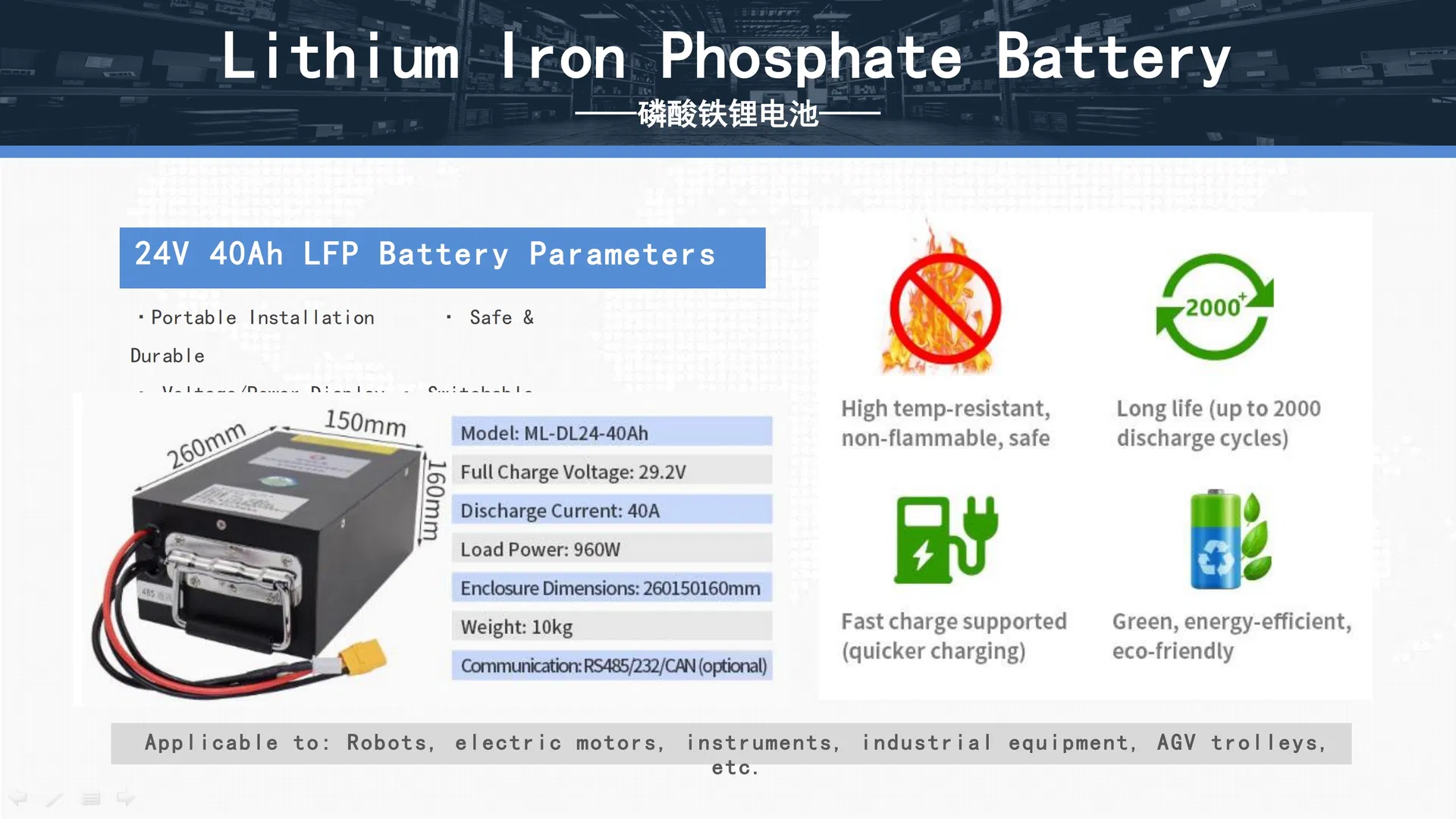

Application 8

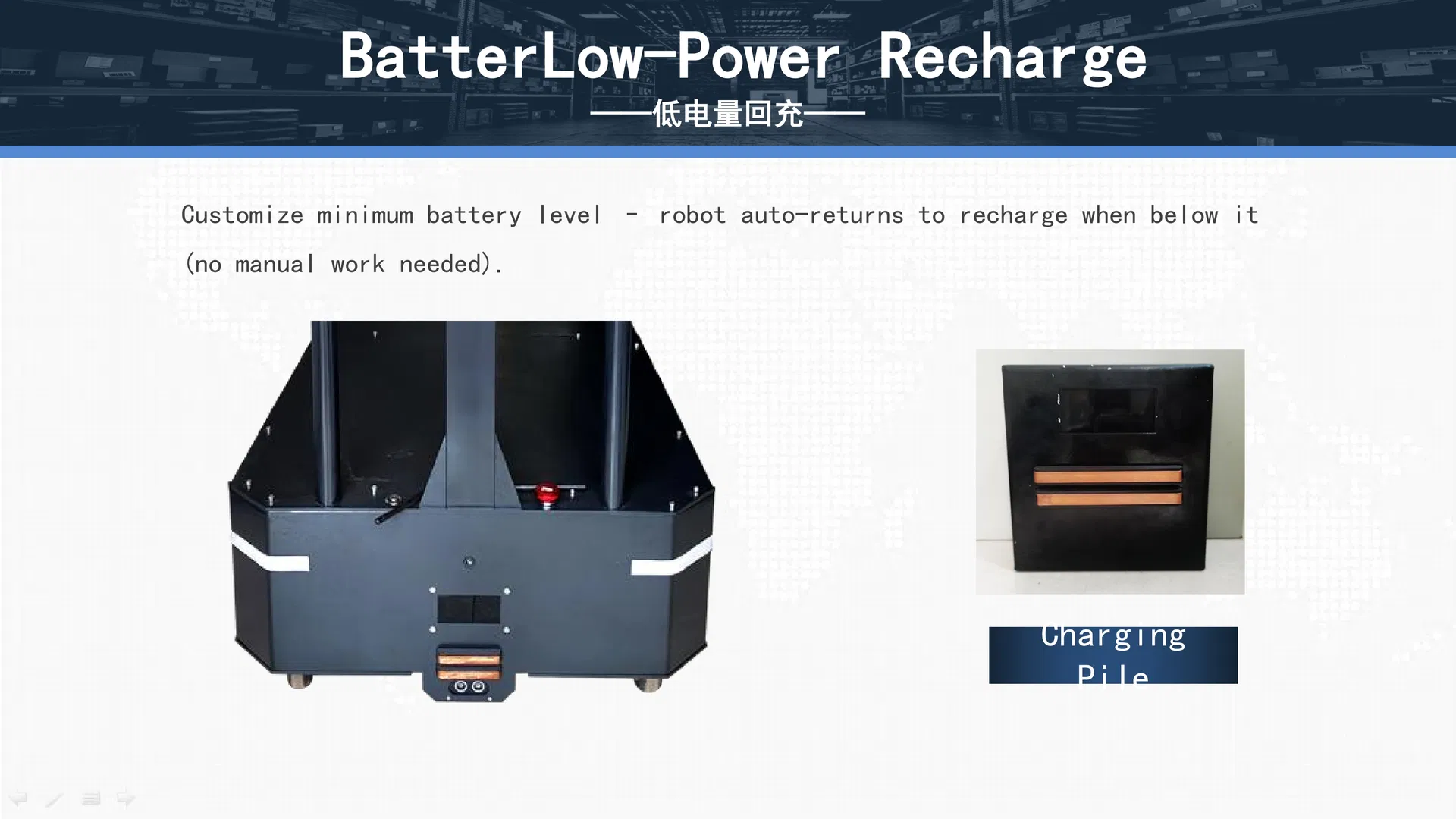

Application 9
🎥 Product Video
Frequently Asked Questions
❓ What is the maximum load capacity of the CW-BY300?
The robot is designed to handle a maximum payload of 300kg, making it ideal for heavy material transport in factories and warehouses.
❓ What safety mechanisms are integrated into the robot?
Safety is a priority; it includes a Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, and a Safety Laser Scanner to ensure secure operation.
❓ How long does the battery last on a full load?
The robot features a 24V/40Ah battery that provides approximately 8 hours of endurance under full load conditions.
❓ What is the navigation accuracy of this AGV?
The CW-BY300 offers high-precision movement with a navigation accuracy of ±10CM.
❓ Does it support automatic charging?
Yes, the robot supports both Automatic Recharging and Direct Charging methods, with a full charge cycle taking about 6 hours.
❓ What operating system does the robot use?
The system runs on Android 10.0, providing a stable and user-friendly interface for logistics management.
