Energy-Saving Loading Container Loading Bay Rubber Cushion Seal Cold Storage Collapsible Head Curtain Retractable Airtight Inflatable Dock Door Seal
Energy-Saving Loading Container Loading Bay Rubber Cushion Seal Cold Storage Collapsible Head Curtain Retractable Airtight Inflatable Dock Door Seal
Energy-Saving Loading Container Loading Bay Rubber Cushion Seal Cold Storage Collapsible Head Curtain Retractable Airtight Inflatable Dock Door Seal
Energy-Saving Loading Container Loading Bay Rubber Cushion Seal Cold Storage Collapsible Head Curtain Retractable Airtight Inflatable Dock Door Seal
Energy-Saving Loading Container Loading Bay Rubber Cushion Seal Cold Storage Collapsible Head Curtain Retractable Airtight Inflatable Dock Door Seal
1 / 5
Energy-Saving Loading Container Loading Bay Rubber Cushion Seal Cold Storage Collapsible Head Curtain Retractable Airtight Inflatable Dock Door Seal
Energy-Saving Loading Container Loading Bay Rubber Cushion Seal Cold Storage Collapsible Head Curtain Retractable Airtight Inflatable Dock Door Seal
Energy-Saving Loading Container Loading Bay Rubber Cushion Seal Cold Storage Collapsible Head Curtain Retractable Airtight Inflatable Dock Door Seal
Energy-Saving Loading Container Loading Bay Rubber Cushion Seal Cold Storage Collapsible Head Curtain Retractable Airtight Inflatable Dock Door Seal
Energy-Saving Loading Container Loading Bay Rubber Cushion Seal Cold Storage Collapsible Head Curtain Retractable Airtight Inflatable Dock Door Seal

Energy-Saving Loading Container Loading Bay Rubber Cushion Seal Cold Storage Collapsible Head Curtain Retractable Airtight Inflatable Dock Door Seal

Customization: Available
After-sales Service: Yes
Warranty: 12 Months After Delivery
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
XF-O-2000
Material
PVC + Aluminum Alloy Frame
Type
Air Tight
Open Style
Air Blowing
Opening Type
Automatic
Special Function
Sealing
Color
Customer-Tailor
Certification
ISO9001, CE
Position
Industrial
Surface Finishing
Finished
Fireproof Grade
EU Grade II
Package
Wooden Case
Specification
3400*3400 mm
Origin
Made in China
Capacity
10000 / Year
📦 Packaging & Delivery
Package Size
200.00cm * 100.00cm * 60.00cm
Gross Weight
100.000kg
🔍 Product Overview

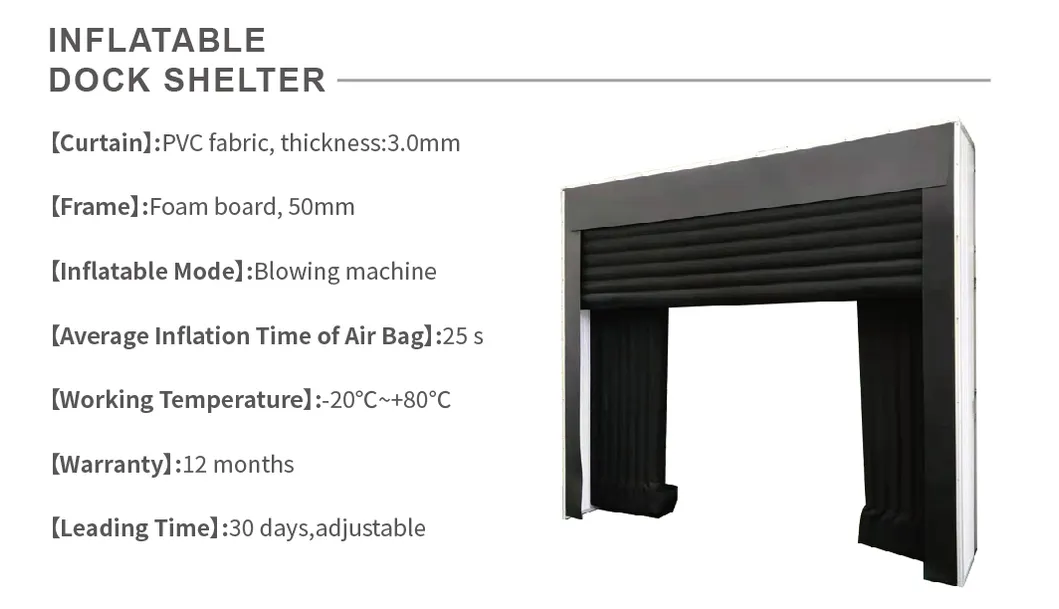

Inflatable Dock Seal 1

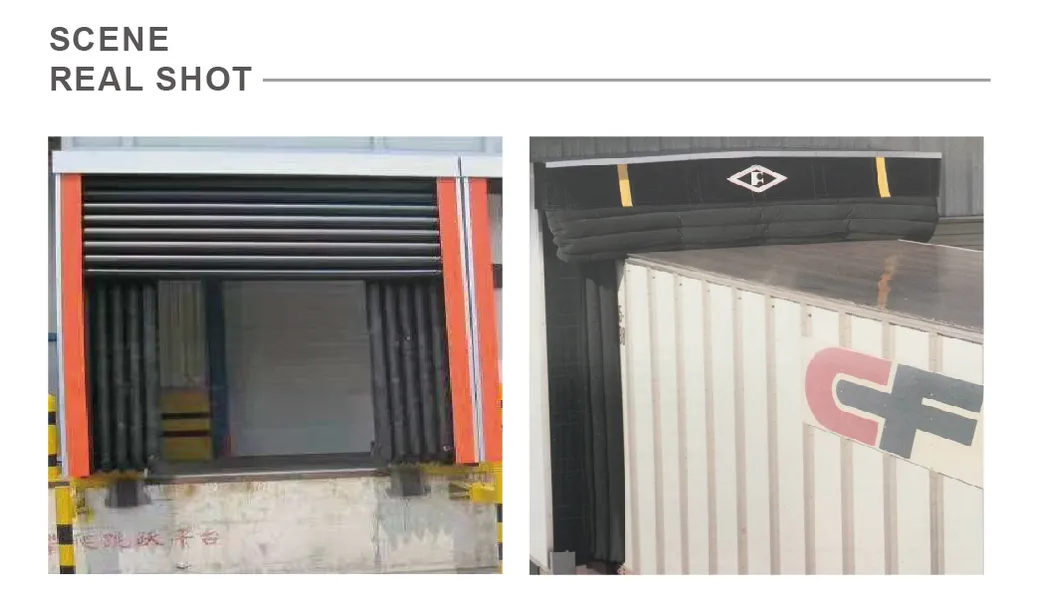

Inflatable Dock Seal 2

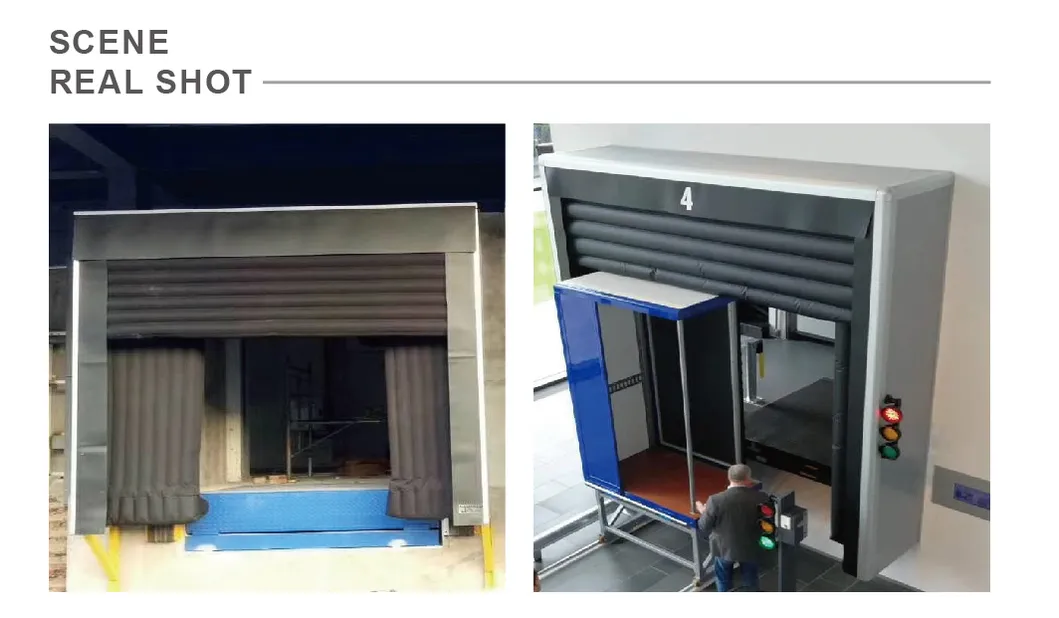

Inflatable Dock Seal 3

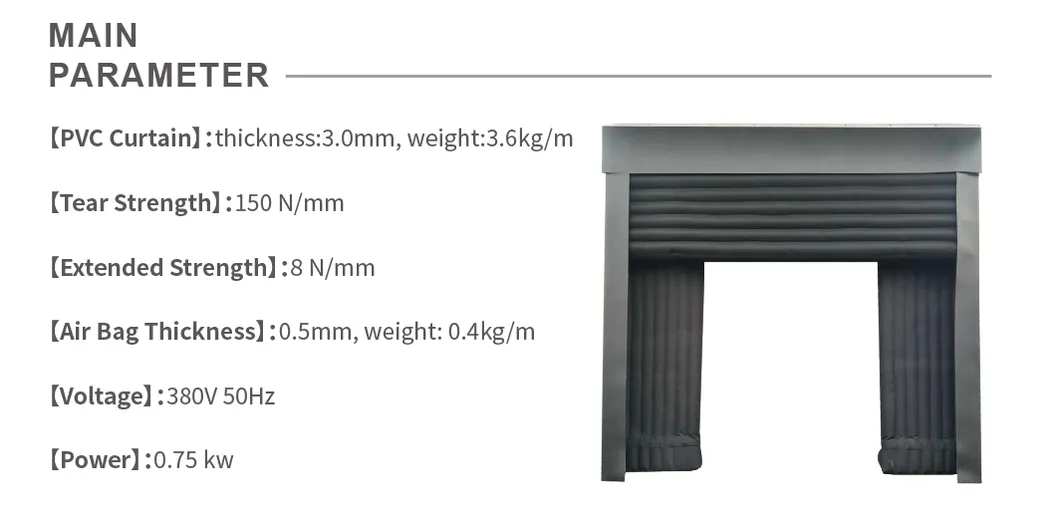

Operational View 1

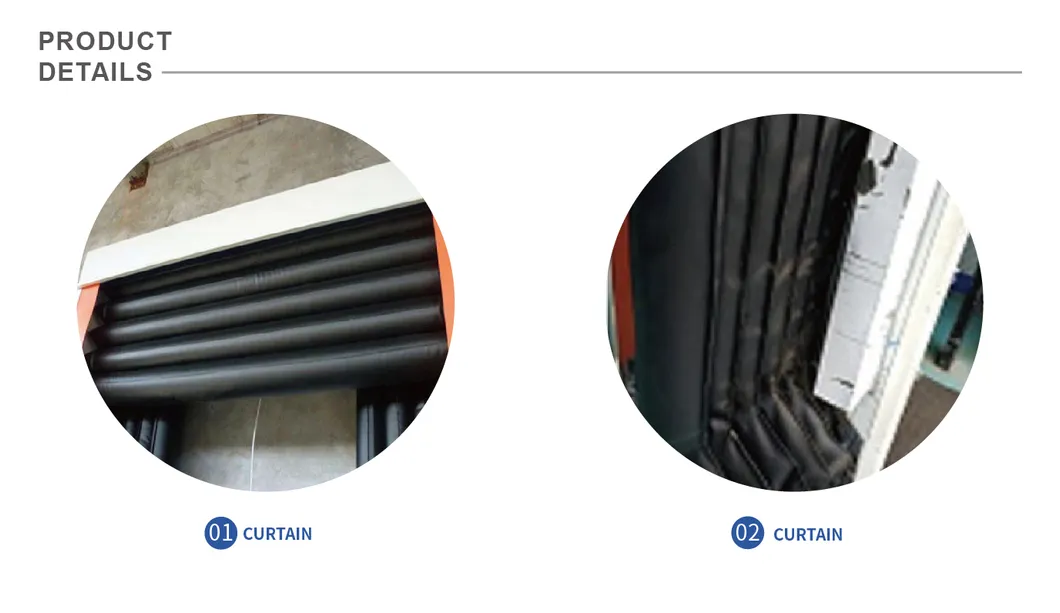

Operational View 2
Technical Parameters
Features & Benefits • Adjustable space between truck and door
• Fits various truck dimensions and loading conditions
• Maintains indoor temperature, clean, and anti-wind
• Pressurized inflation for perfect sealing effect
Air Bag Fabric • Polyester fabric with PVC coating (Thickness: 0.5mm)
• Strength at break: 290N/mm² | Weight: 0.4kg/m²
• Fireproof Grade: EU Grade II
Front Curtain • Polyester fabric with PVC coating (Thickness: 3.0mm)
• Strength at break: 150N/mm² | Weight: 3.6kg/m²
• Fireproof Grade: EU Grade II
Air Pump • Voltage: 380V 50Hz, 3 Phase
• Power: 0.75kw
• Average Inflation Time: 25s
Metal Frame • Material: Aluminum alloy / Polyurethane sandwich panel / Galvanized steel
• Thickness: 50mm
Standard Size 3600(W) * 3600(H) mm or custom-tailored
Working Temp -35ºC to +70ºC
Design Detail
Structure Detail
❓ Frequently Asked Questions
Q1: How does the inflatable dock door seal work?
The system uses an electric air pump to pressurize and inflate the airbags around the truck's perimeter, creating a tight seal that prevents energy loss and protects against weather.
Q2: What is the average time required for full inflation?
The average inflation time is approximately 25 seconds, allowing for quick and efficient loading bay operations.
Q3: Is the material fire resistant?
Yes, both the air bag fabric and the front curtain fabric are made of PVC-coated polyester that meets EU Grade II fireproof standards.
Q4: Can the dock seal withstand extreme weather conditions?
Our seals are designed for industrial durability with an operational temperature scope ranging from -35ºC up to +70ºC, making them suitable for cold storage and hot climates.
Q5: Can the dimensions be customized for specific warehouse doors?
While our standard size is 3600mm x 3600mm, we provide full customer-tailor services to meet your specific door dimensions and operational requirements.
Q6: What materials are used for the main structure?
The frame is constructed using a robust combination of Aluminum alloy, polyurethane sandwich panels, and galvanized steel for maximum stability and insulation.
