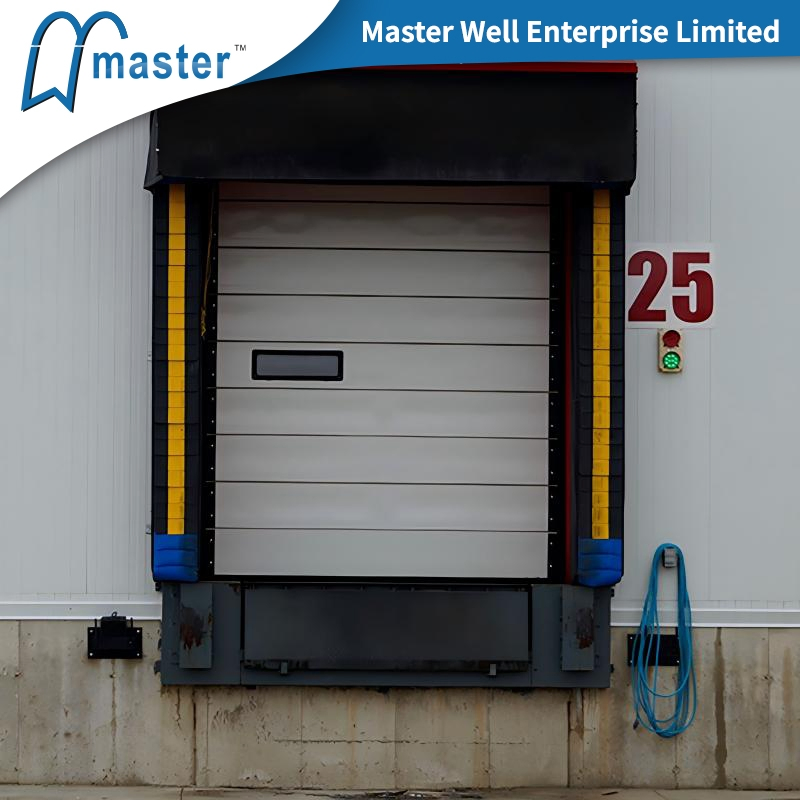

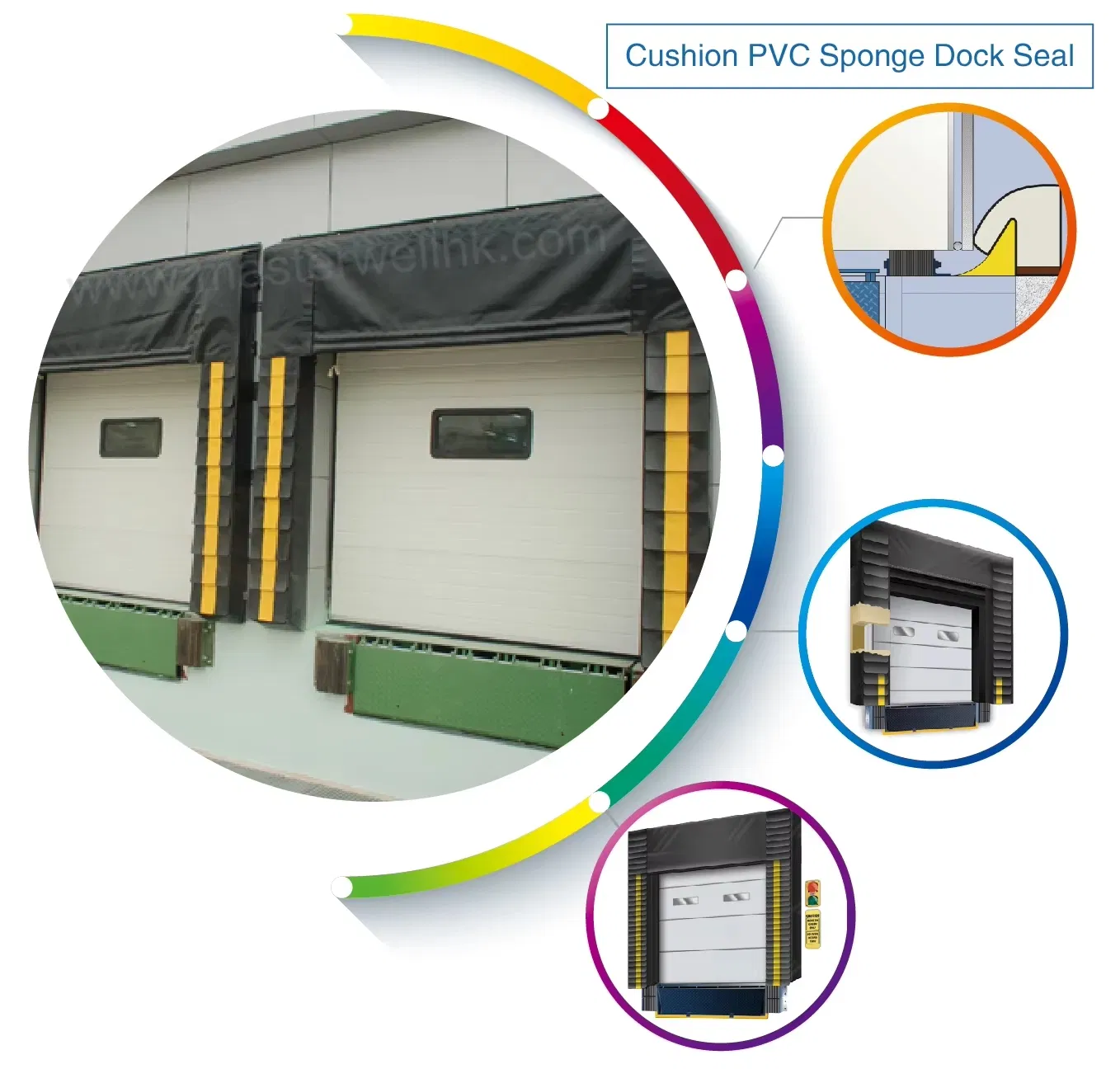

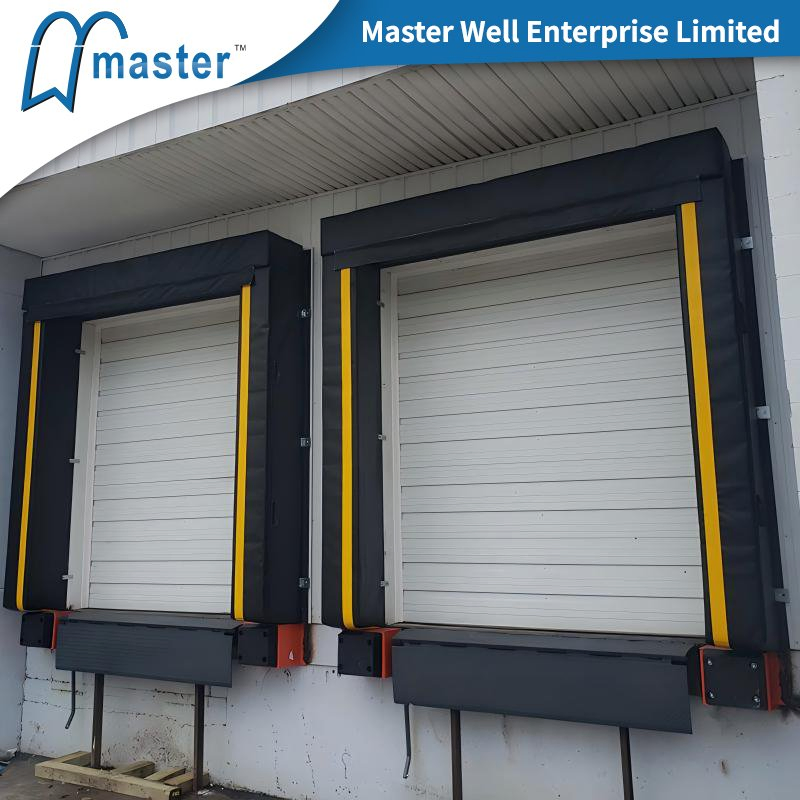

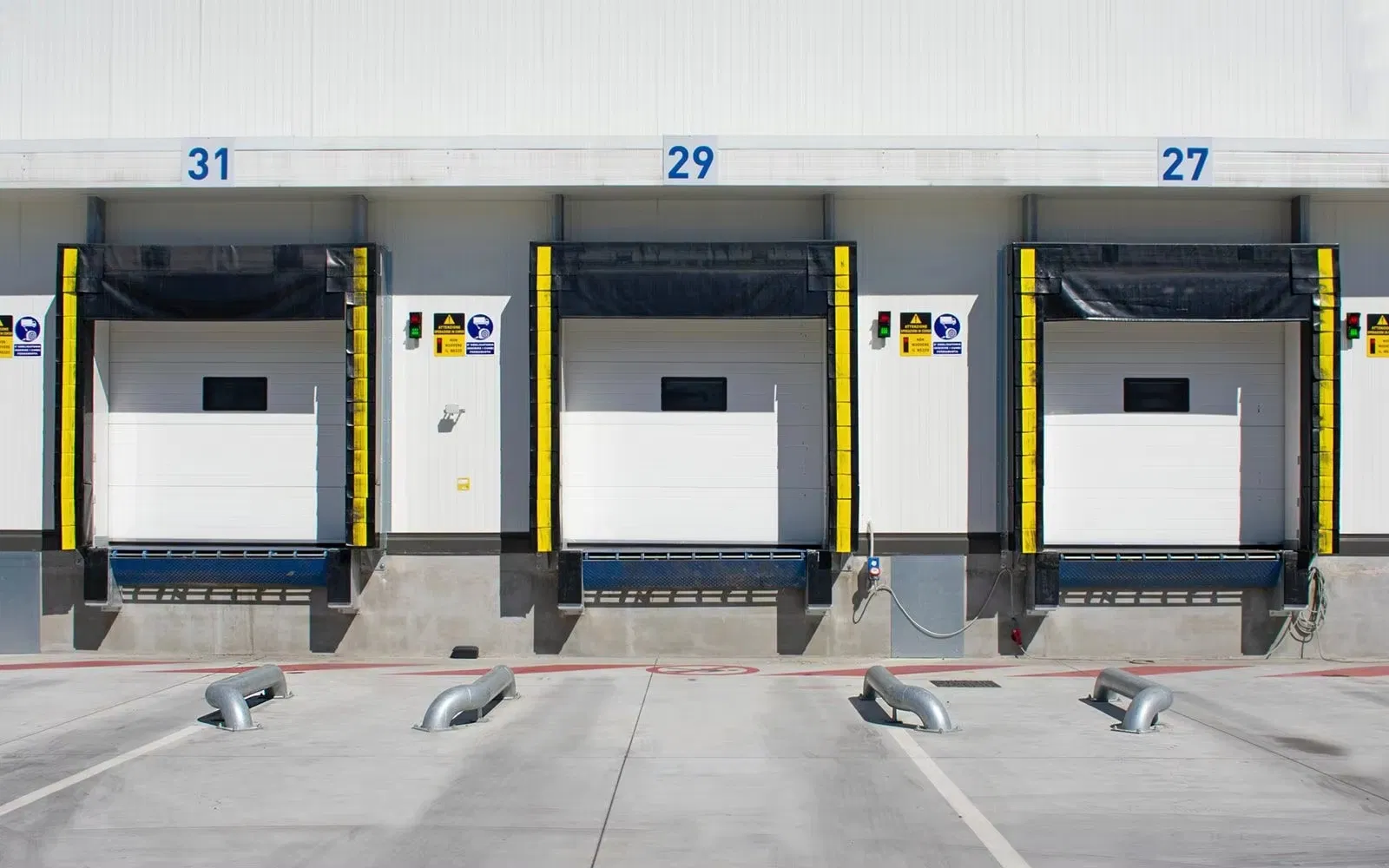

Fixed front curtain, largely meet the requirements of all types of cars of different height. Cushion dock seal, coupled with high elastic sponge, make the distance between car tail and door seal tight sealing, reducing energy consumption.
| Part | Item | Description |
|---|---|---|
| Top Sponge Seals | 1 item | Fabric made of wear-resistant vinyl crude fiber material. Filled with high elasticity sponge pad (-40 ℃ resistance). |
| Vertical Sponge Seals | 2 items | Positive distribution wear-resistant louver folds for extra protection. Reflective warning strip included. |
| Hardware | 1 set | Surface galvanized anti-rust treatment for increased durability. |

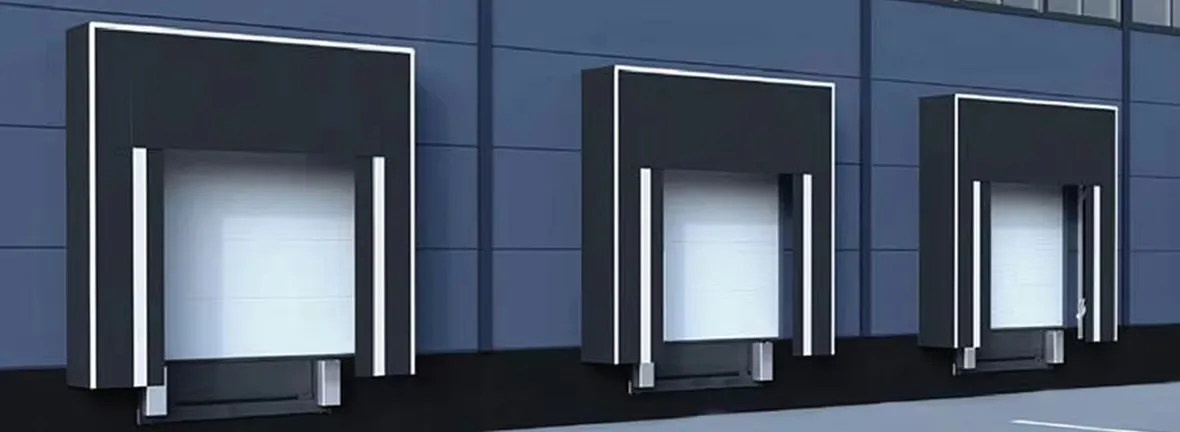

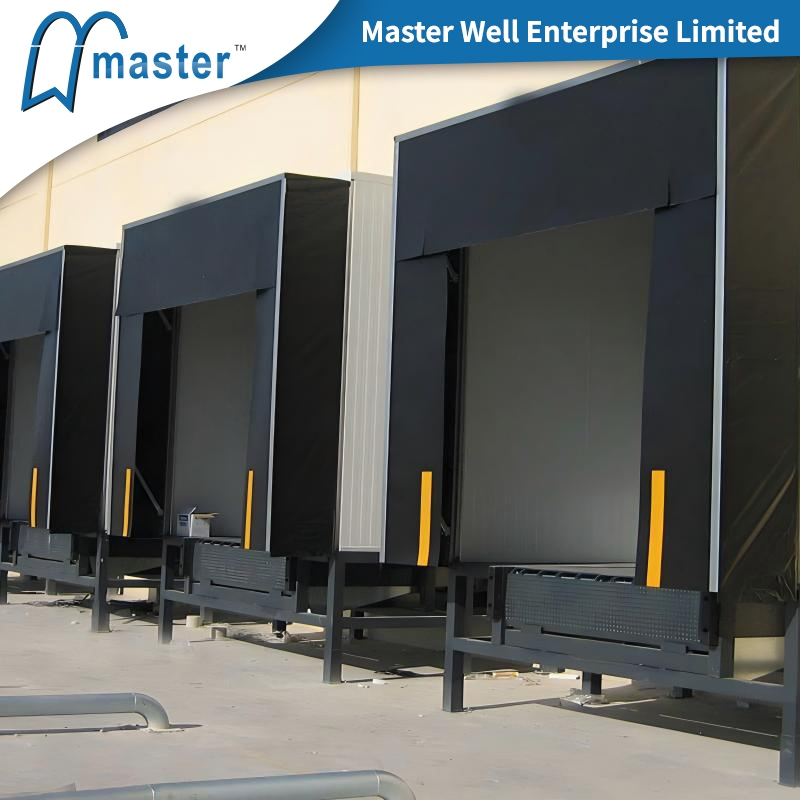

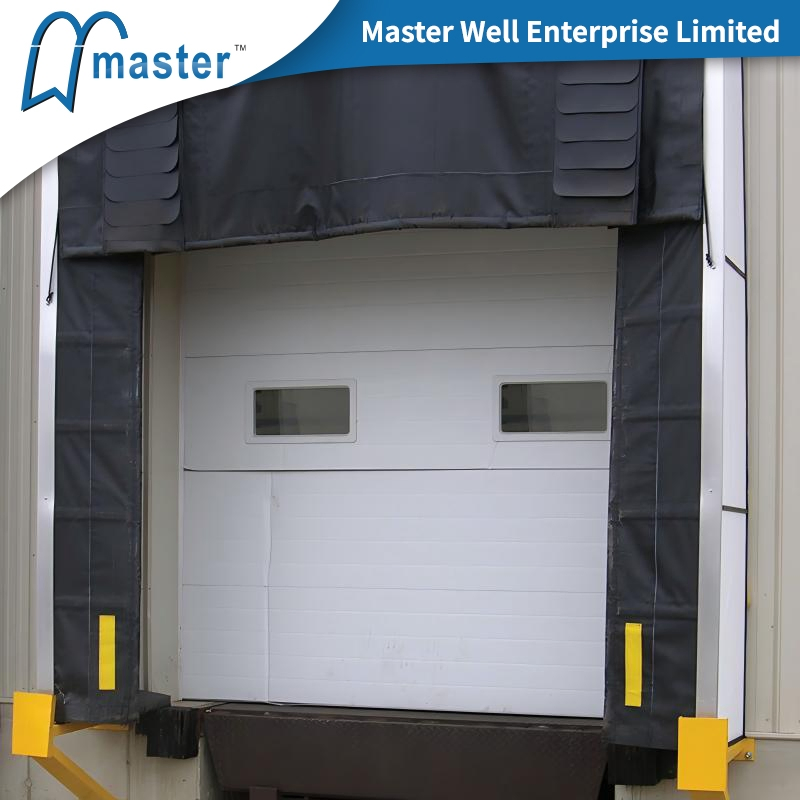

The foldable door seal series of aluminium alloy structure is an ideal configuration scheme for medium strength loading and unloading places. The front curtain board made of special PVC material has high elasticity, wear resistance and tensile strength.
| Technical Parameters | |||
|---|---|---|---|
| Width | 3000/3200/3400 mm | Thickness (Side PVC) | 0.5 mm |
| Height | 3000/3200/3400 mm | Height (Top PVC) | 1000 mm |
| Dock Shelter Depth | 250 mm | Operating Temp | -35℃ to +70℃ |

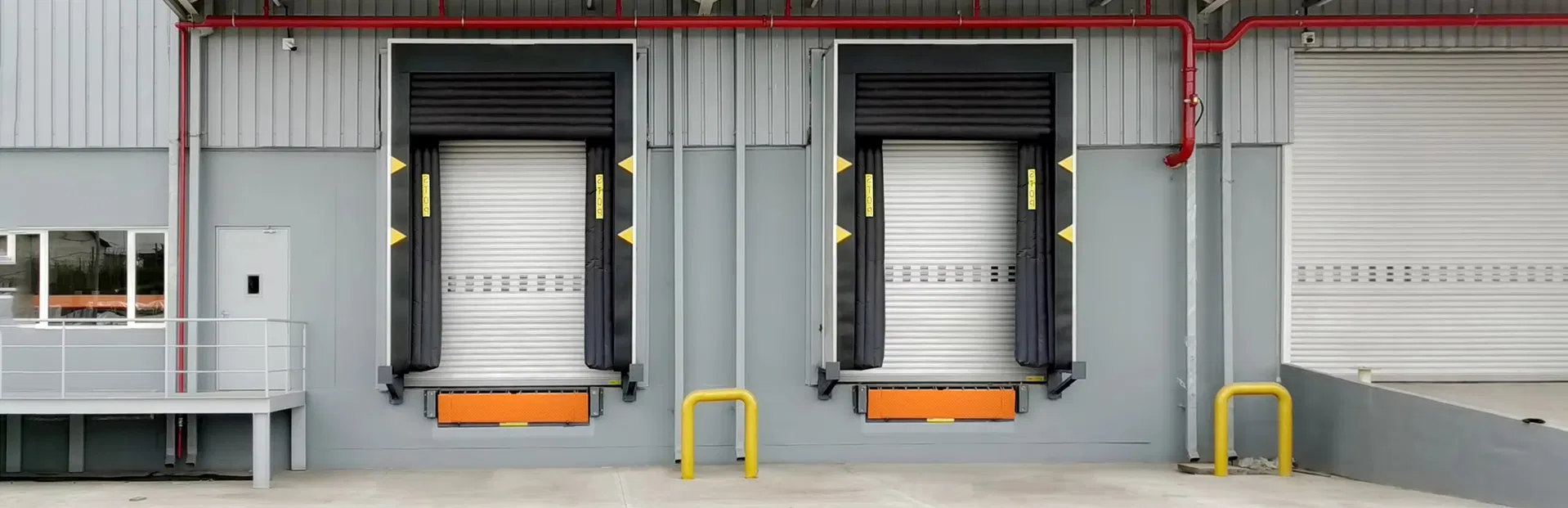

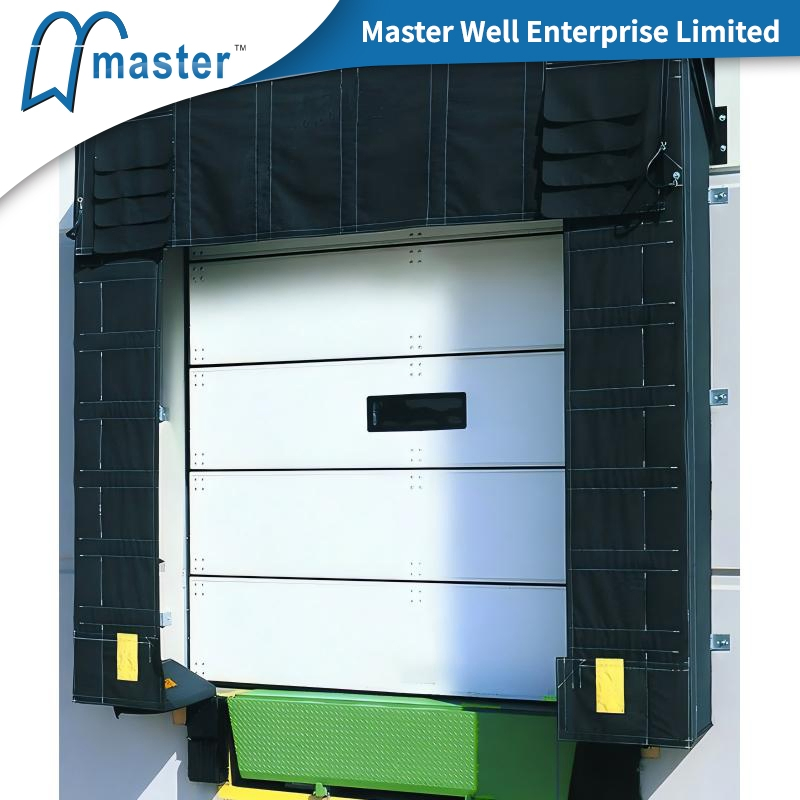

Features: Installation applied for requirements of high insulation and strong sealing. High efficient air blower offering stable air pressure. After use, the air bag exhausts and packs into a small package for a longer service life.
| Inflatable Specifications | |||
|---|---|---|---|
| Power Supply | 380V/50HZ | Inflation Time | 30s |
| Moving Range (Top) | 900 - 1200 mm | Moving Range (Side) | 600 mm |
| Material | Cordura 1000 | Protection Class | IP54 |
