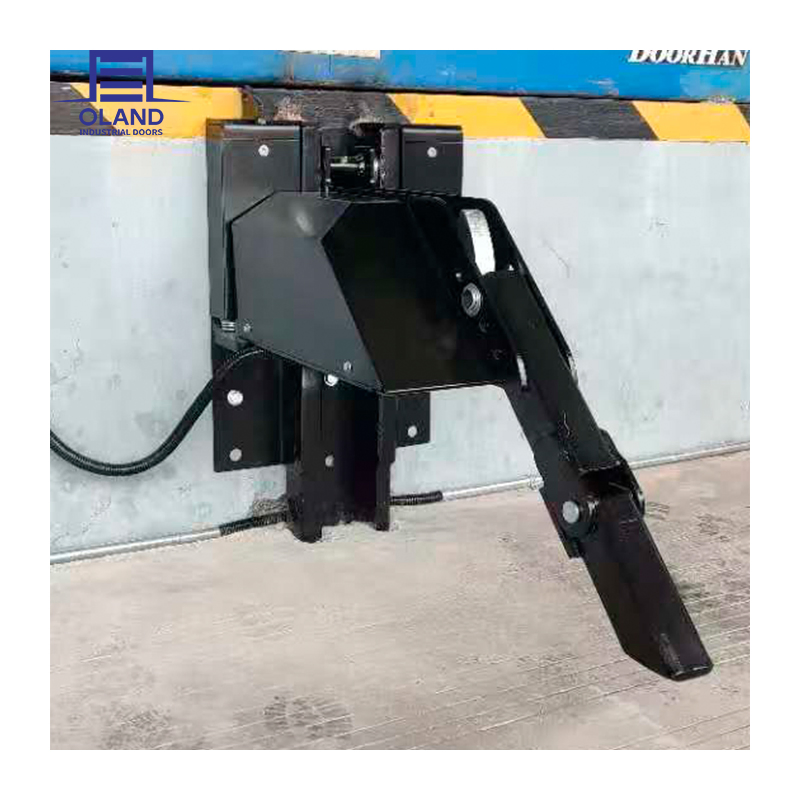

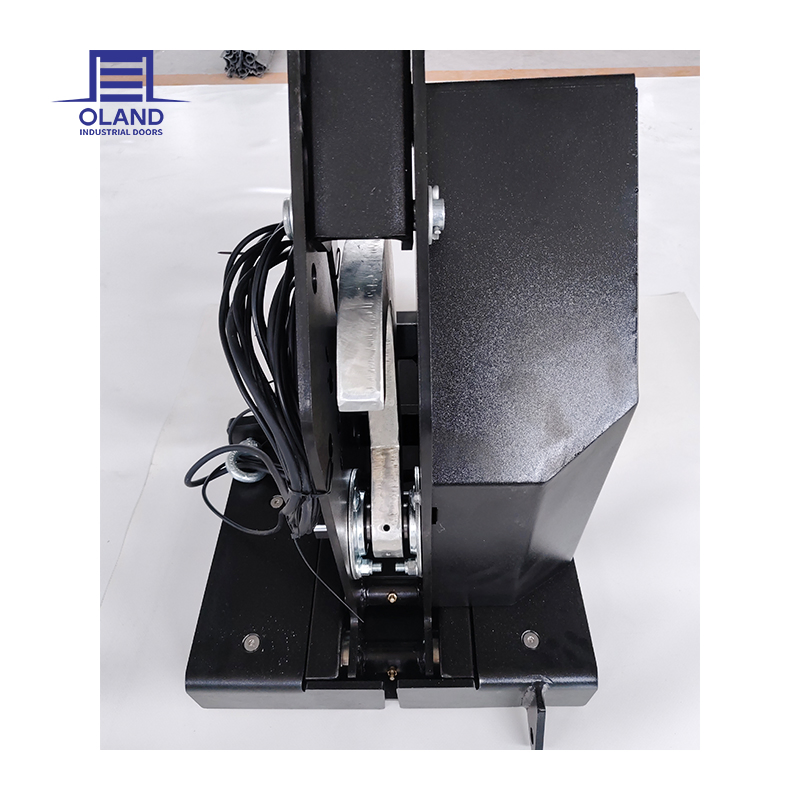

Advanced Automatic Truck Restraint Vehicle Straps Protection

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Technical Specifications

Range of Movement260~680(420) mm
Main CircuitAC380V
Motor PowerP=0.3kw V=DC48V
Control CircuitDC24V, 2.5A
Load Capacity15000 kg
Structural PanelManganese Steel Plate
Carriage RailQ345 Steel
Locking HookQ345 Steel
Production Capacity5000 pieces/Year
⚙️

Product Description

The vehicle restraint is a dedicated safety device designed for warehouses, logistics hubs, and industrial loading docks. By securing the trailer's rear impact bar, it prevents movement, shifting, and early departure during loading and unloading operations. Built with an electric mechanical drive system and no hydraulics, it ensures long-term reliability with minimal maintenance.

Featuring 15,000 kg of locking force, 420 mm adjustable range, reinforced heavy-duty hook, signal light indicators, and PLC integration, the restraint can work seamlessly with dock levelers, industrial doors, and safety sensors to form a complete dock safety system. It significantly enhances operational safety and efficiency in modern dock environments.

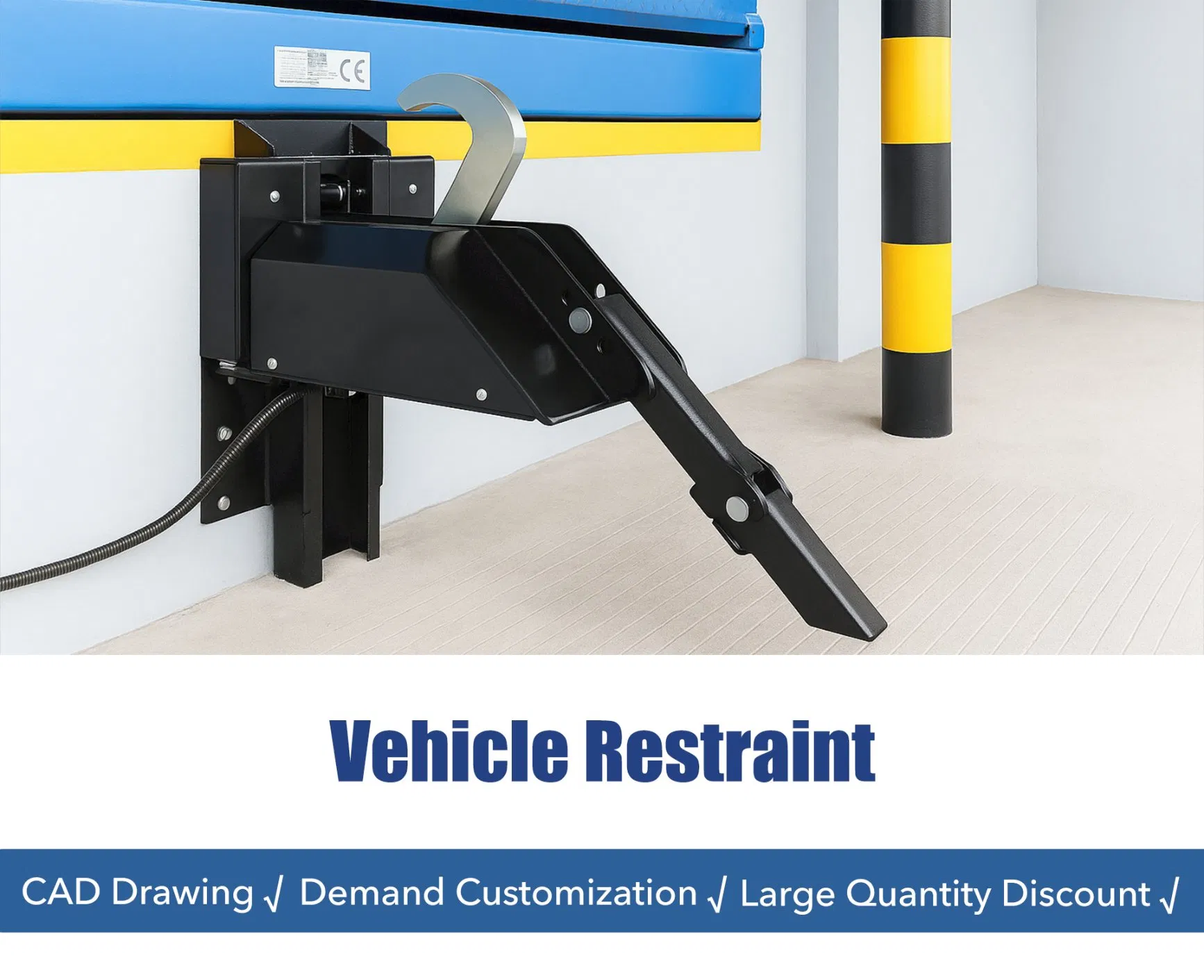

Advanced Automatic Truck Restraint System
📊

Technical Data Details

Performance Parameters
Size730(L) x 420(W) x 650(H) mm
Weight95KG
Free-floating device60si2mn special spring steel, zinc-plated surface finish

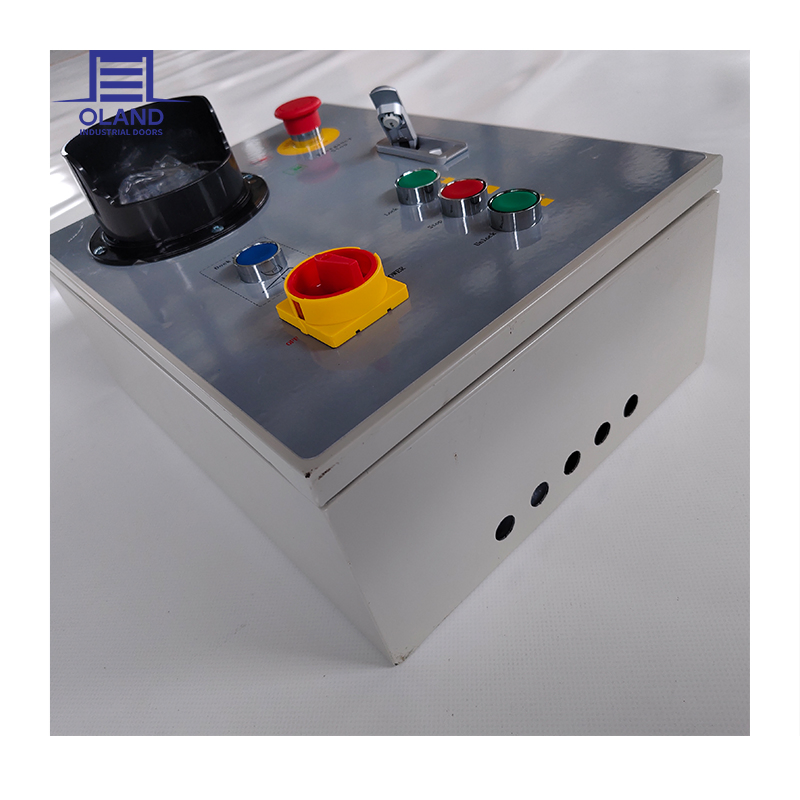

Control systemPLC logic control, DC24V safety voltage, centralized control box

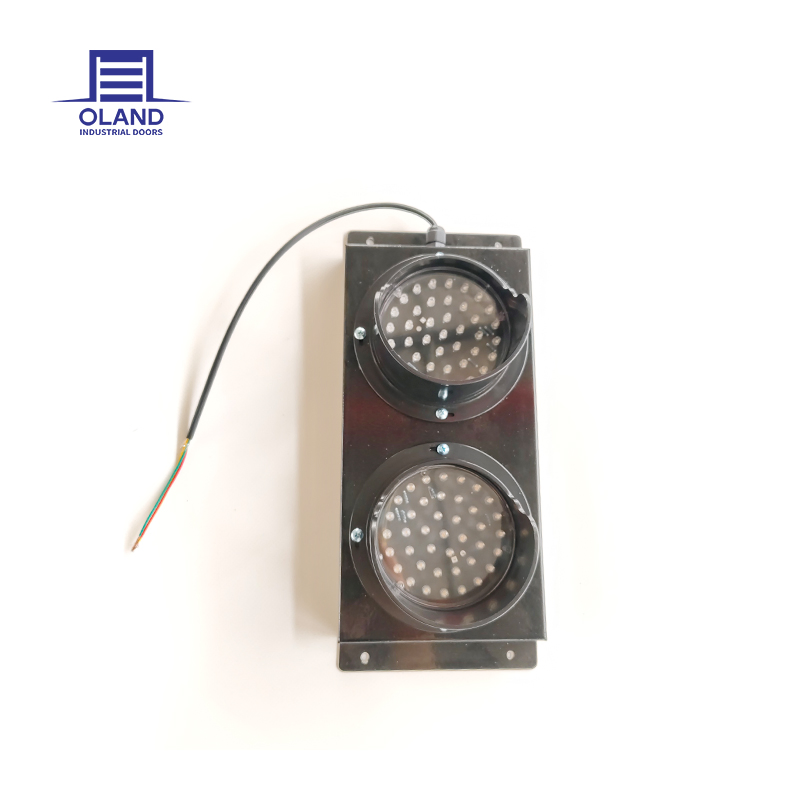

Internal signal lightHigh-brightness LED traffic signal combination
External signal lightHigh-brightness LED waterproof signal, IP56 rating
📐

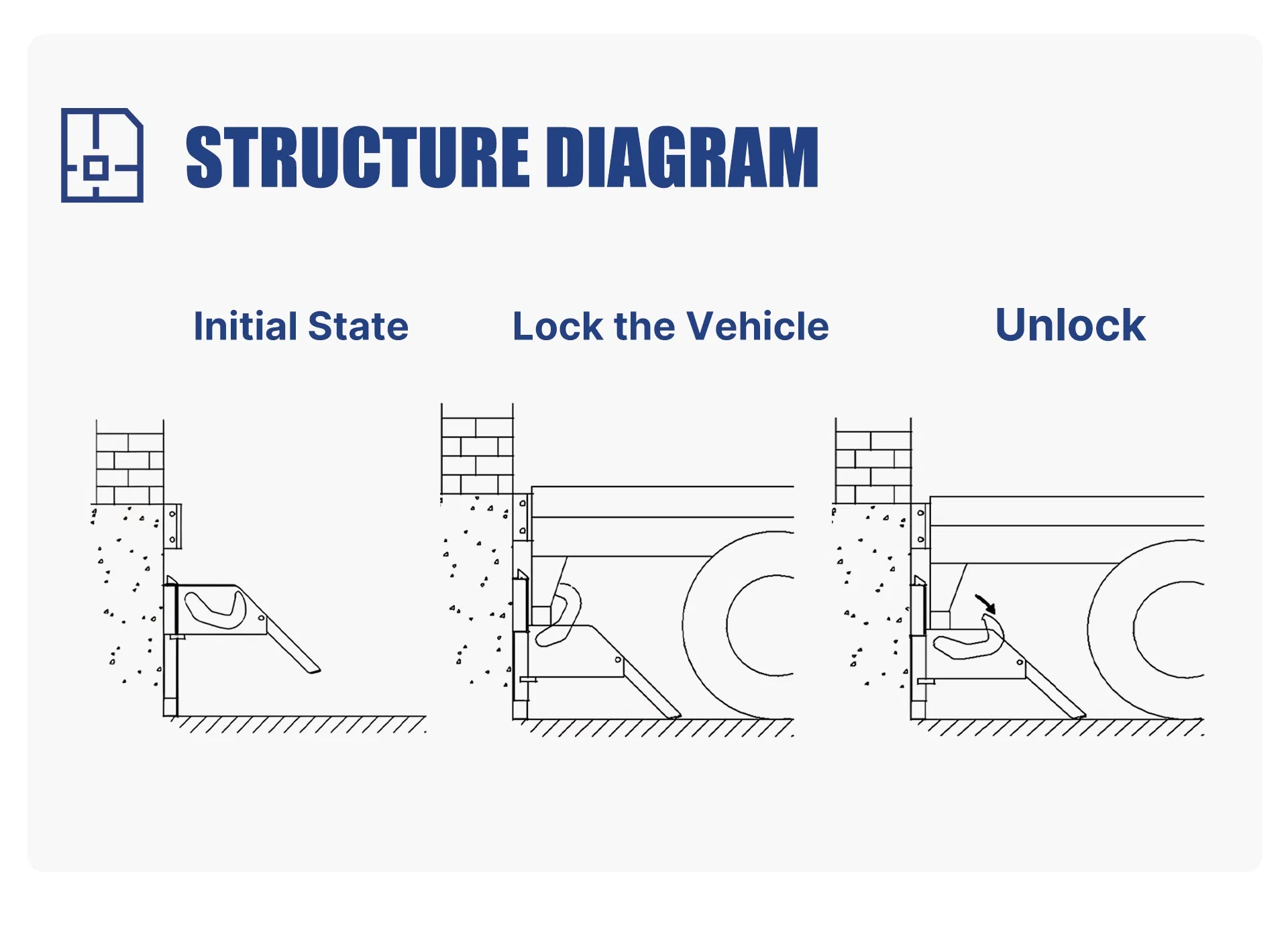

Structure Diagram

Vehicle Restraint Structure Diagram
Standard version of the vehicle restraint structure and accessories. Custom solutions are available upon request.
🔍

Product Details

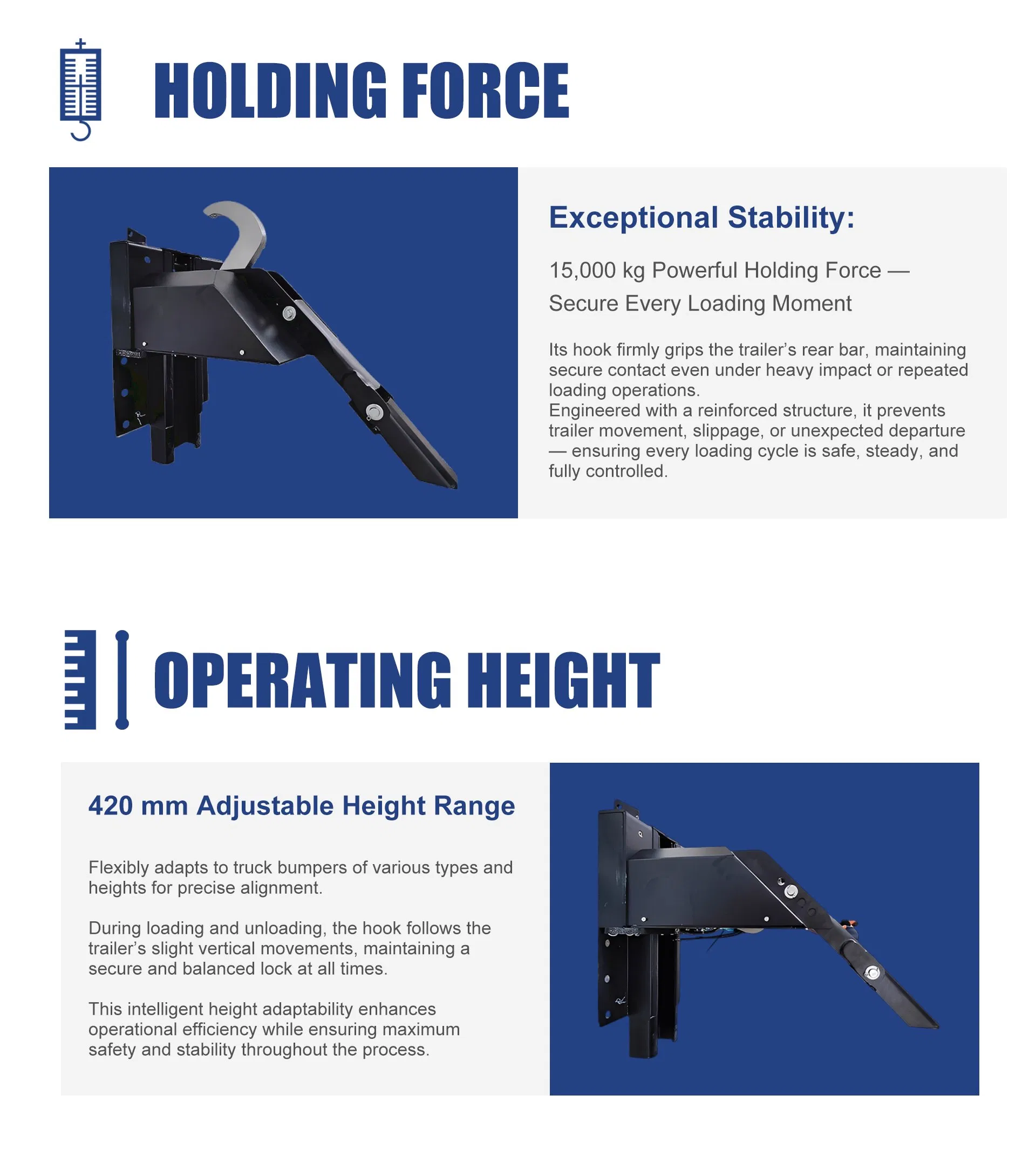

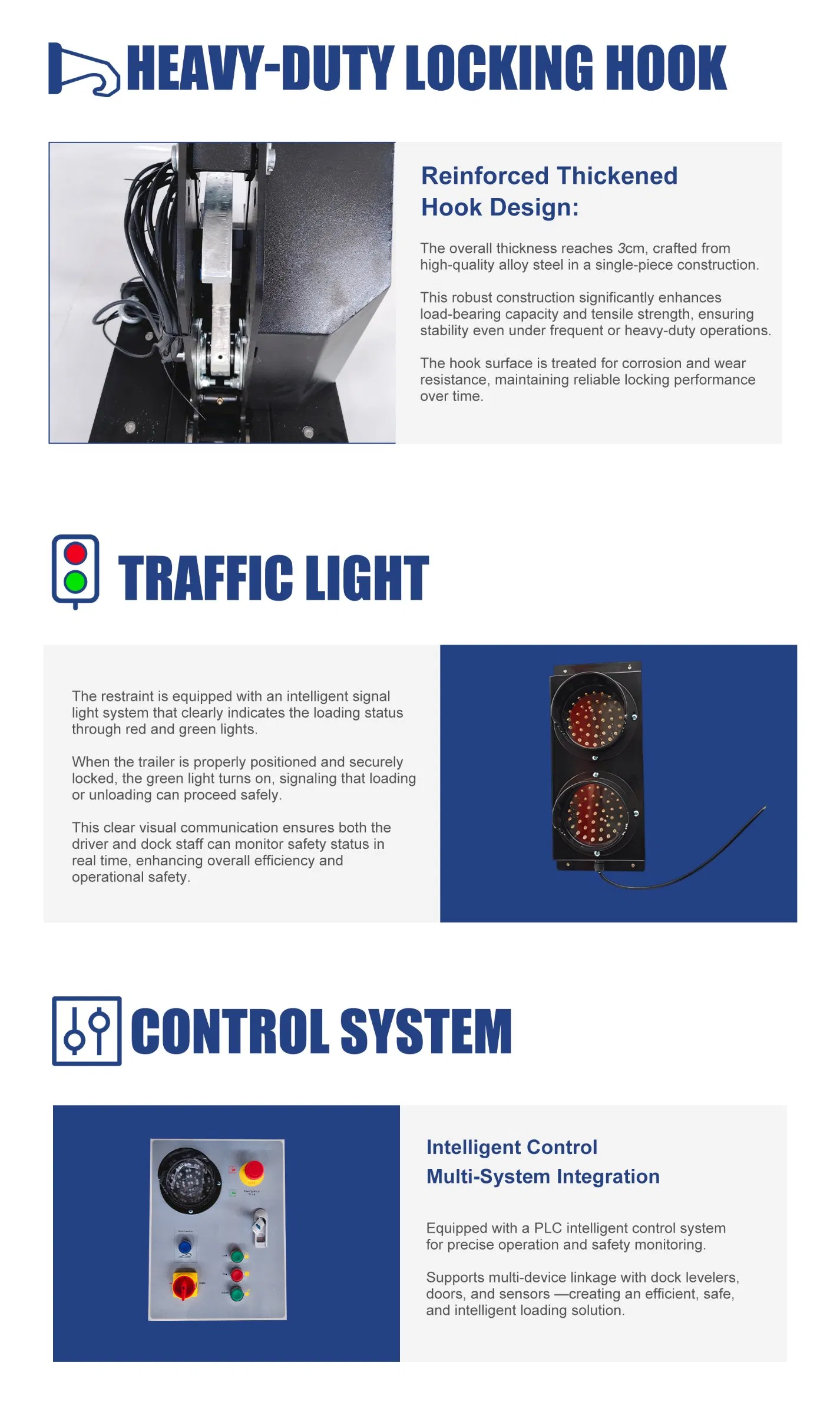

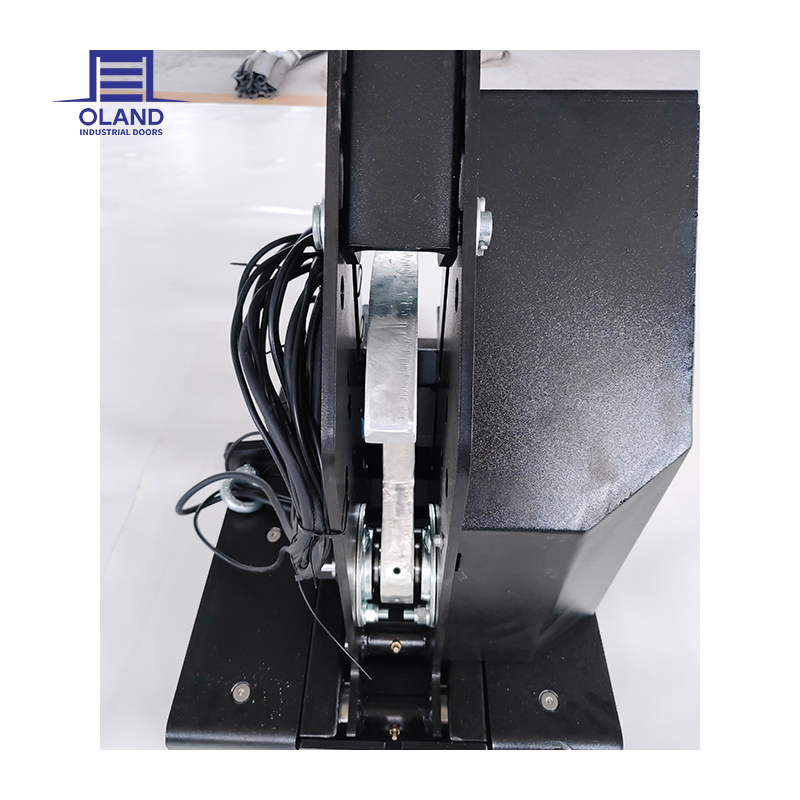

Restraint Detail 1 Restraint Detail 2
🏭

Manufacturing Excellence

Factory Production Line
Facility Overview Quality Control Loading Dock Solutions

Frequently Asked Questions

What is the minimum order quantity (MOQ)?
There is no strict limit. We accept orders starting from 1 set.
What is the typical delivery timeframe?
The standard lead time for production and delivery is approximately 15 to 30 days.
How is the product packaged for international shipping?
We use heavy-duty polywood boxes to ensure the safety of the equipment during transit.
Is the vehicle restraint system difficult to install?
No, it is designed for easy installation. we provide a detailed manual and installation videos for reference. Technical support is also available if needed.
What are the available payment terms?
We generally accept T/T, L/C, Western Union, and Credit Cards. Other terms can be discussed based on requirements.
What other dock safety products do you provide?
In addition to restraints, we produce industrial sectional doors, high-speed doors, roll shutters, and hangar doors for various infrastructure projects.
